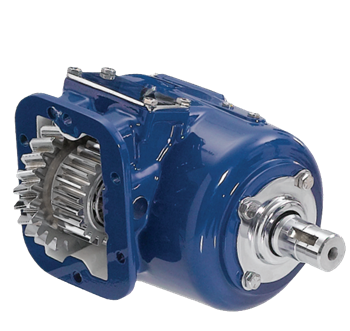

The Muncie CS8S-U6806-A1PX or CS8SU6806A1PX is an 8-bolt clutch shift power take-off from Muncie's CS8 Series. The CS8 Series is noted for compatibility with a wide range of automatic and manual transmissions, including Allison 1000/2000 series units. Direct mount pump flanges are SAE "A", "B", and "BB" as well as DIN 5462, and all flanges are rotatable to give maximum clearance during installation. Three remote mount output shafts are available in keyed and flange configurations for added versatility. Muncie's patented drag brake prevents shaft rotation when the PTO is off, and an optional pulse generator supports System Protection Device speed monitoring. Call us to confirm proper fit for your application.
Features
CS8 Series 8-bolt clutch shift PTO
Direct mount pump flanges: SAE "A", "B", and "BB"; DIN 5462
Rotatable direct mount flanges for maximum pump positioning clearance
Three remote mount output shaft options: keyed and flange types
Patented Muncie drag brake prevents shaft rotation in OFF position
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Series: Muncie CS8
- Configuration: 8-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Remote Mount Output Shafts: Keyed and flange types (3 options)
- Drag Brake: Patented Muncie drag brake (prevents rotation in OFF mode)
- Optional: Pulse generator for System Protection Device monitoring
- Part Number: CS8S-U6806-A1PX or CS8SU6806A1PX
