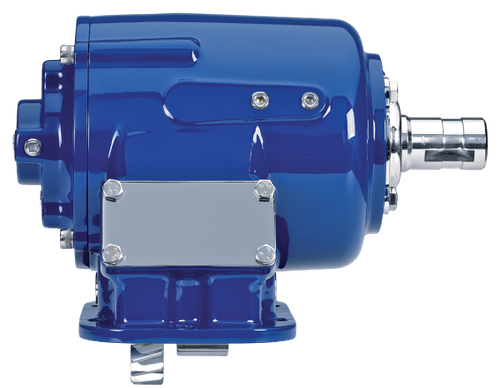

The Muncie SH6S-M6507-A1CX or SH6SM6507A1CX is an air shift power take-off from the Muncie SH Series, positioned between the TG and 82 Series for high-torque applications. The integral air shift design eliminates exposed air cylinder hardware, keeping the installation clean and protected. The 6-bolt cast iron housing mounts securely to a wide range of transmissions - the series covers 17 input gear sets. Five speed ratios and 12 output shaft options give this PTO broad compatibility with the most common hydraulic pump configurations. At speed ratios 05 and 07, the series carries 400 ft-lb intermittent and 280 ft-lb continuous torque at 1,000 RPM. Call us to confirm the right fit for your transmission and pump setup.
Features
Air shift only design with integral cylinder - no exposed air cylinder hardware
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common hydraulic pump types
5 available speed ratios for application versatility
Series intermittent torque ratings range from 325 to 400 ft-lb at 1,000 RPM depending on ratio selected
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
