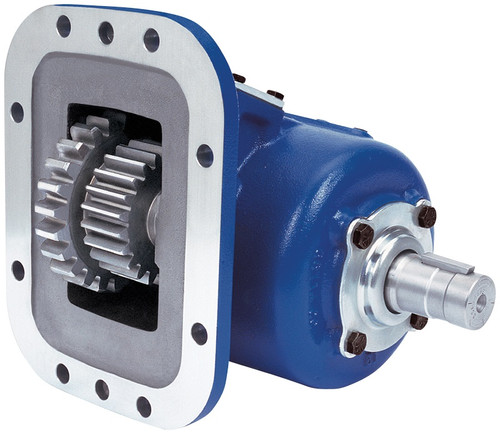

The Muncie SH8B-U6809-A12X or SH8BU6809A12X is an SH Series air-shift power take-off built for high-torque applications, positioned between the Muncie TG and 82 Series in the product lineup. The 8-bolt cast iron housing simplifies mounting and delivers structural strength. The integral air shift design keeps the air cylinder enclosed, eliminating the exposed hardware common on other designs. Five speed ratios cover a range of output needs, and 17 available input gear sets provide compatibility across the most popular transmission configurations. Twelve output shaft options accommodate most common hydraulic pump types. Intermittent torque ratings reach up to 400 lb-ft (542 Nm) depending on the speed ratio selected, at 76 hp (57 kW) intermittent at 1,000 RPM. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for straightforward mounting and high structural strength
17 input gear sets to fit most popular transmission configurations
12 output shaft options to match most common hydraulic pump types
5 available speed ratios for application versatility
Intermittent torque up to 400 lb-ft (542 Nm) at speed ratios 05 and 07
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift (integral, no exposed air cylinder)
- Input Gear Sets: 17
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Intermittent HP @ 1,000 RPM (ratio 05/07): 76 hp (57 kW)
- Intermittent Torque (ratio 05/07): 400 lb-ft (542 Nm)
- Continuous Torque (ratio 05/07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1,000 RPM (ratio 09): 71 hp (53 kW)
- Intermittent Torque (ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1,000 RPM (ratio 12/13): 62 hp (46 kW)
- Intermittent Torque (ratio 12/13): 325 lb-ft (441 Nm)
- Continuous Torque (ratio 12/13): 228 lb-ft (309 Nm)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
