Bendix SD-01-344-TU-FLO-750 Service Data Parts Manual
View the official Bendix SD-01-344-TU-FLO-750 Service Data (PDF)Download PDF

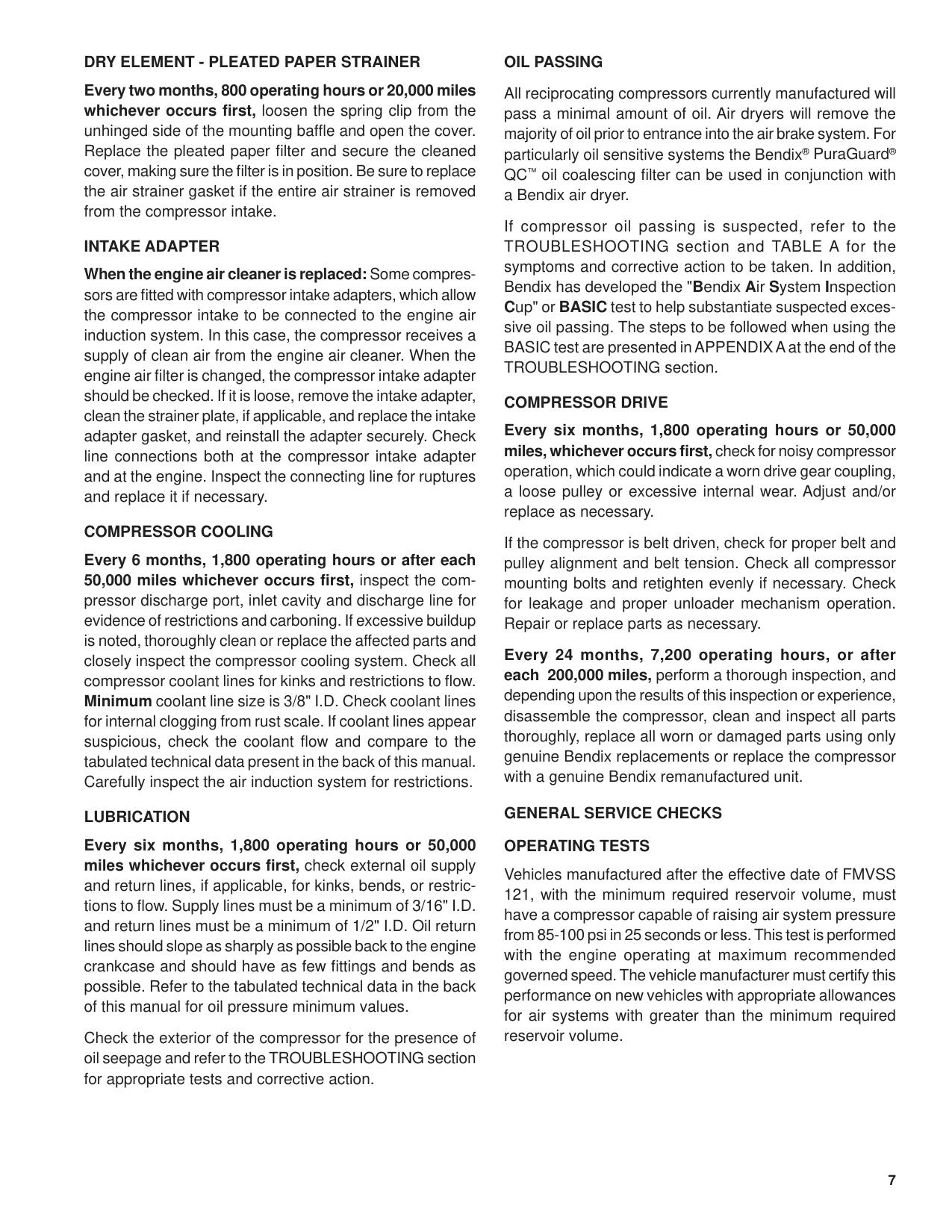

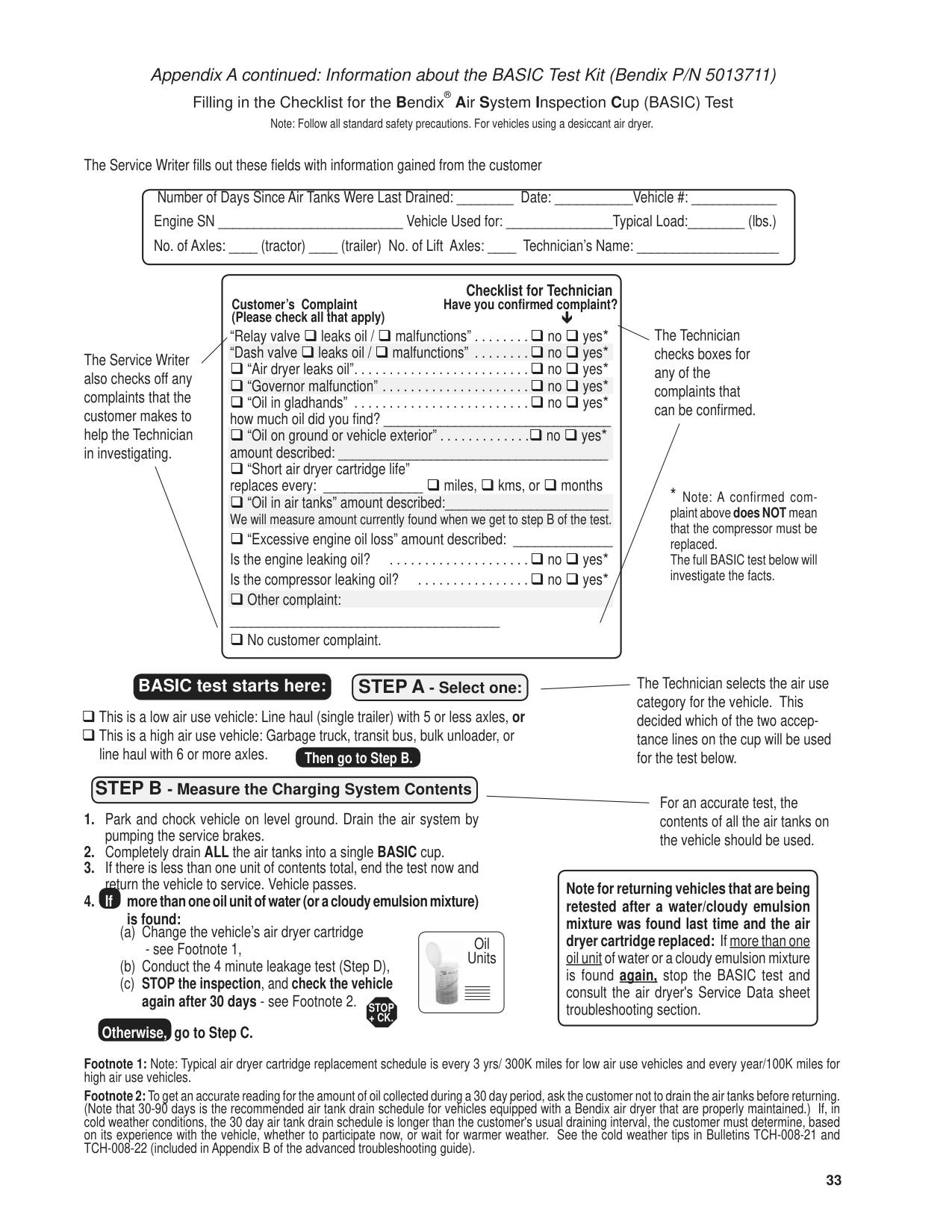

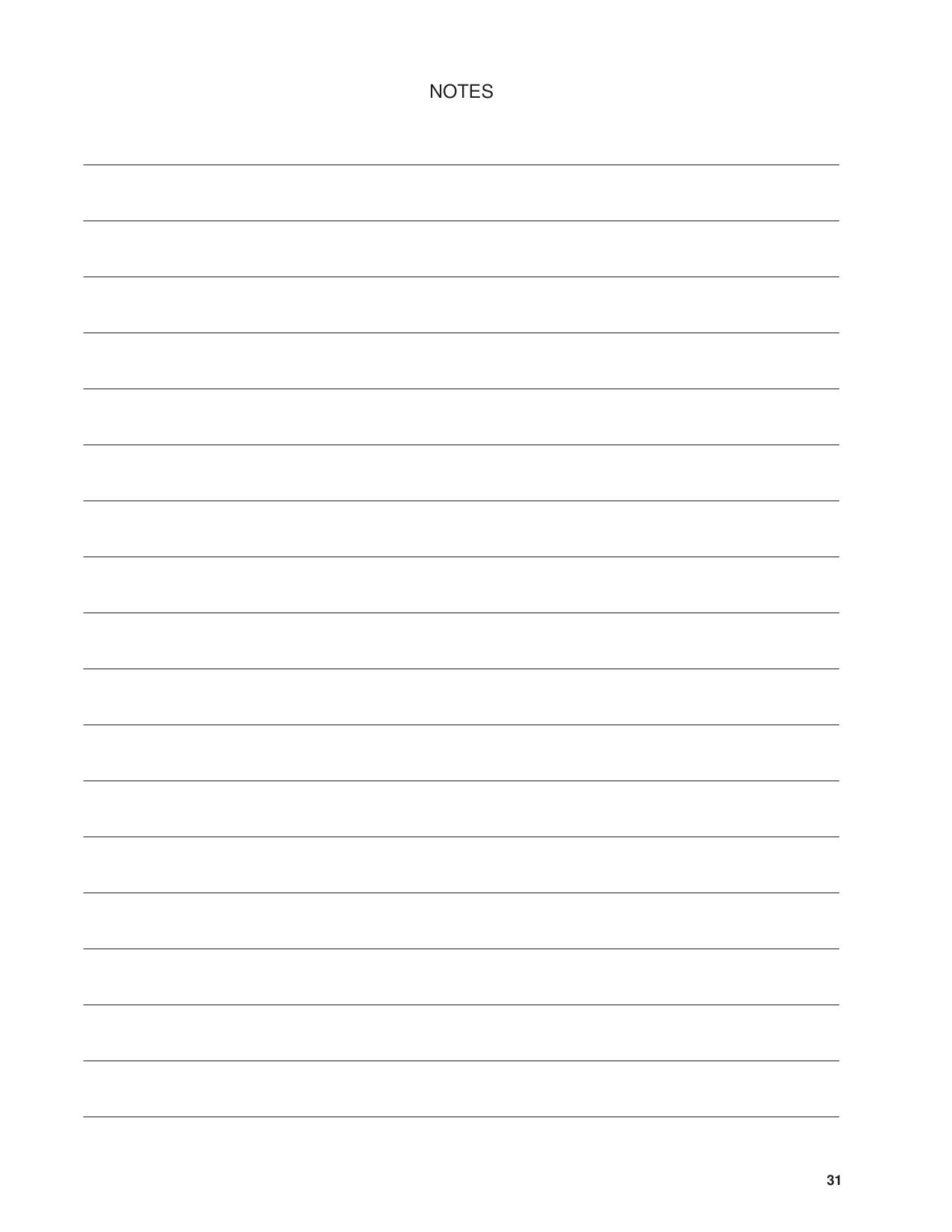

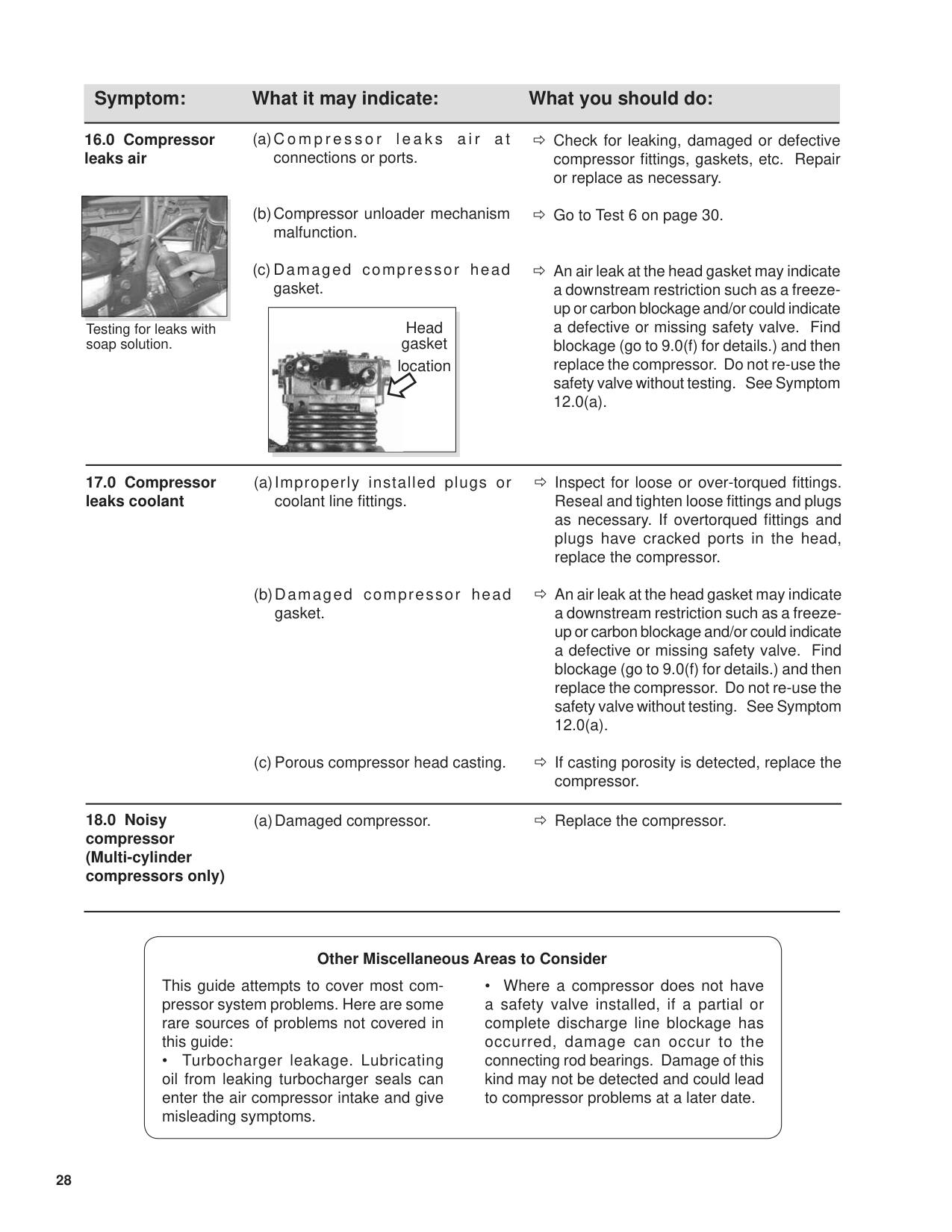

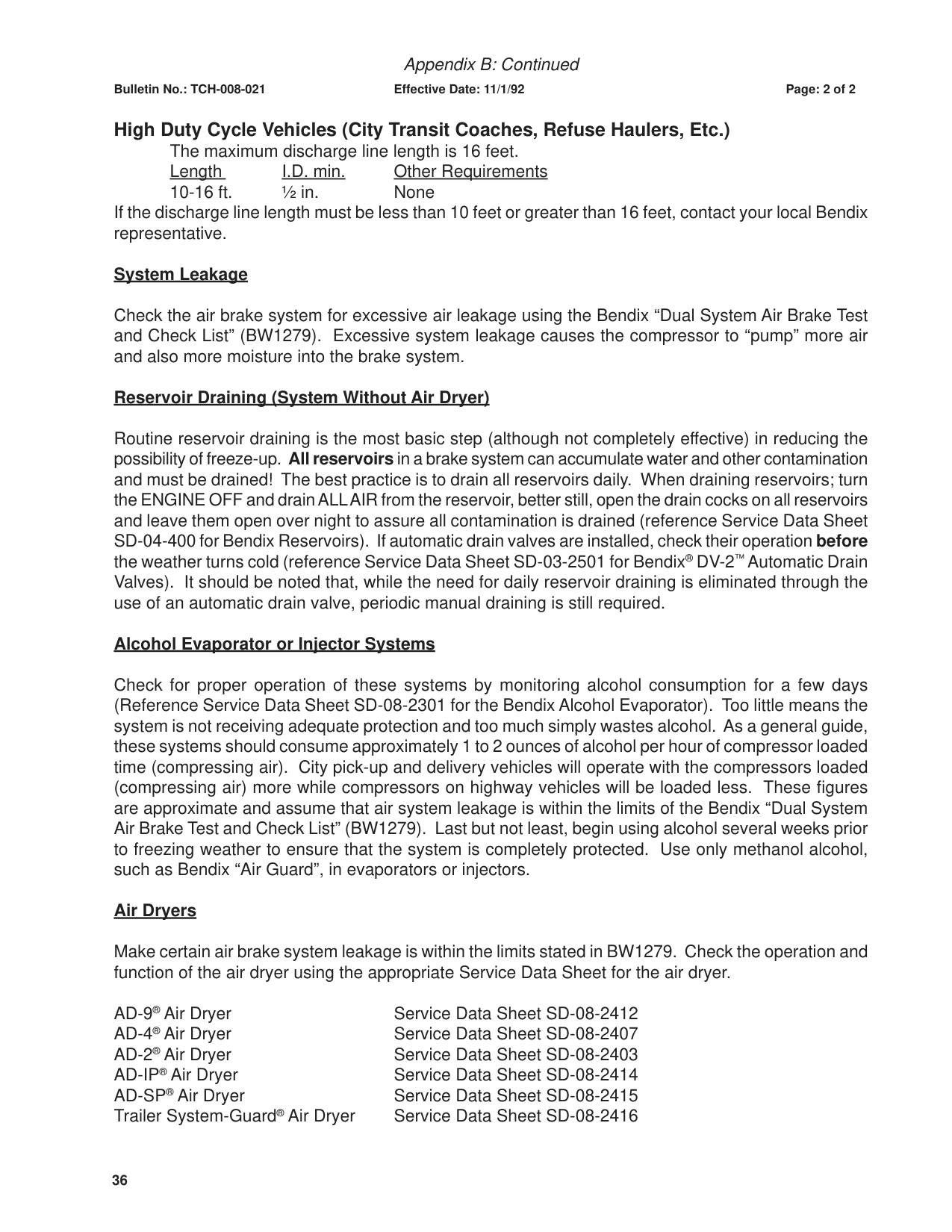

Bendix SD-01-344-TU-FLO-750 Service Data Parts Manual, page by page
Every page of this manual is shown below in order, so you can read it right here without opening the PDF. Need a part you see on these pages? Call (877) 776-4600 or Ask an Expert with the page number and we will quote it.

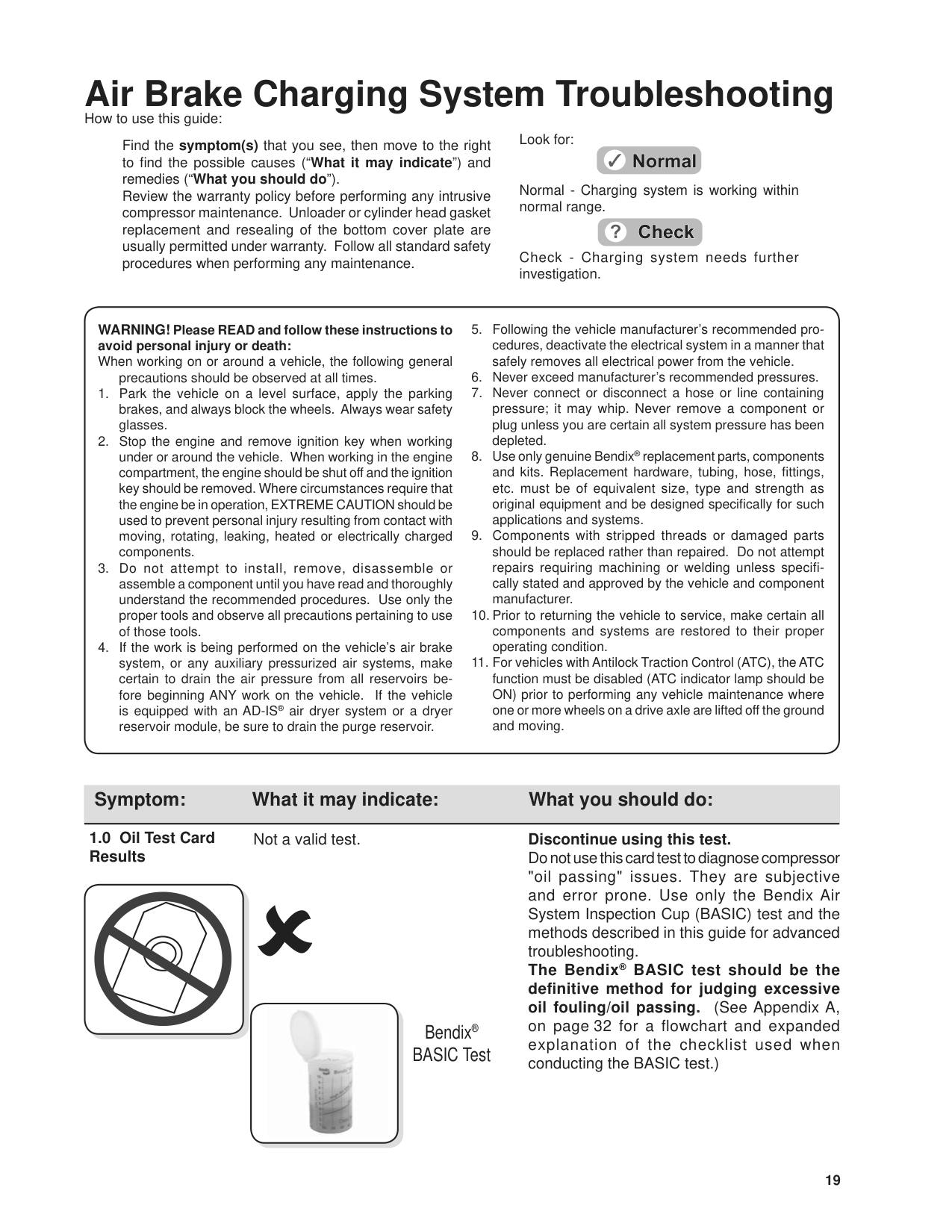

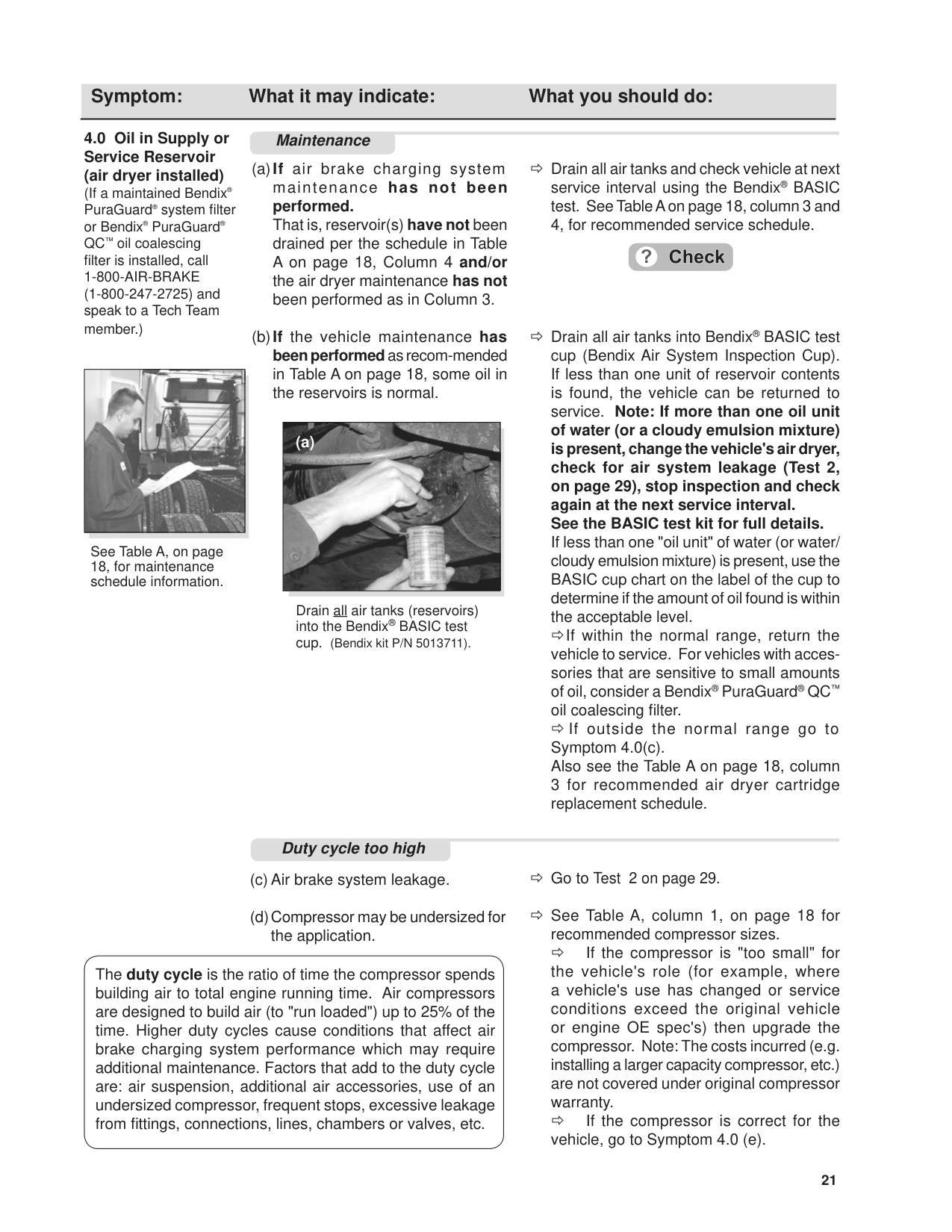

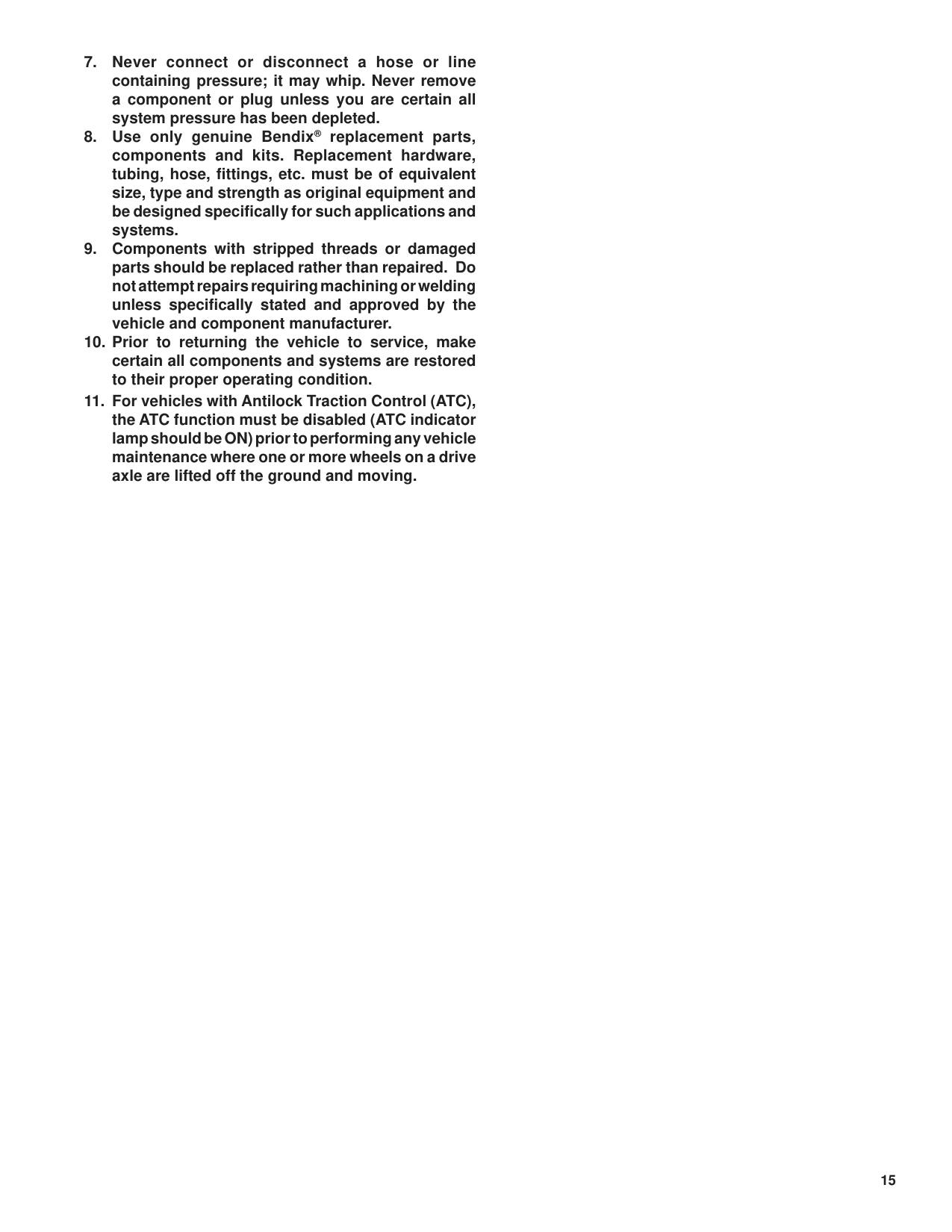

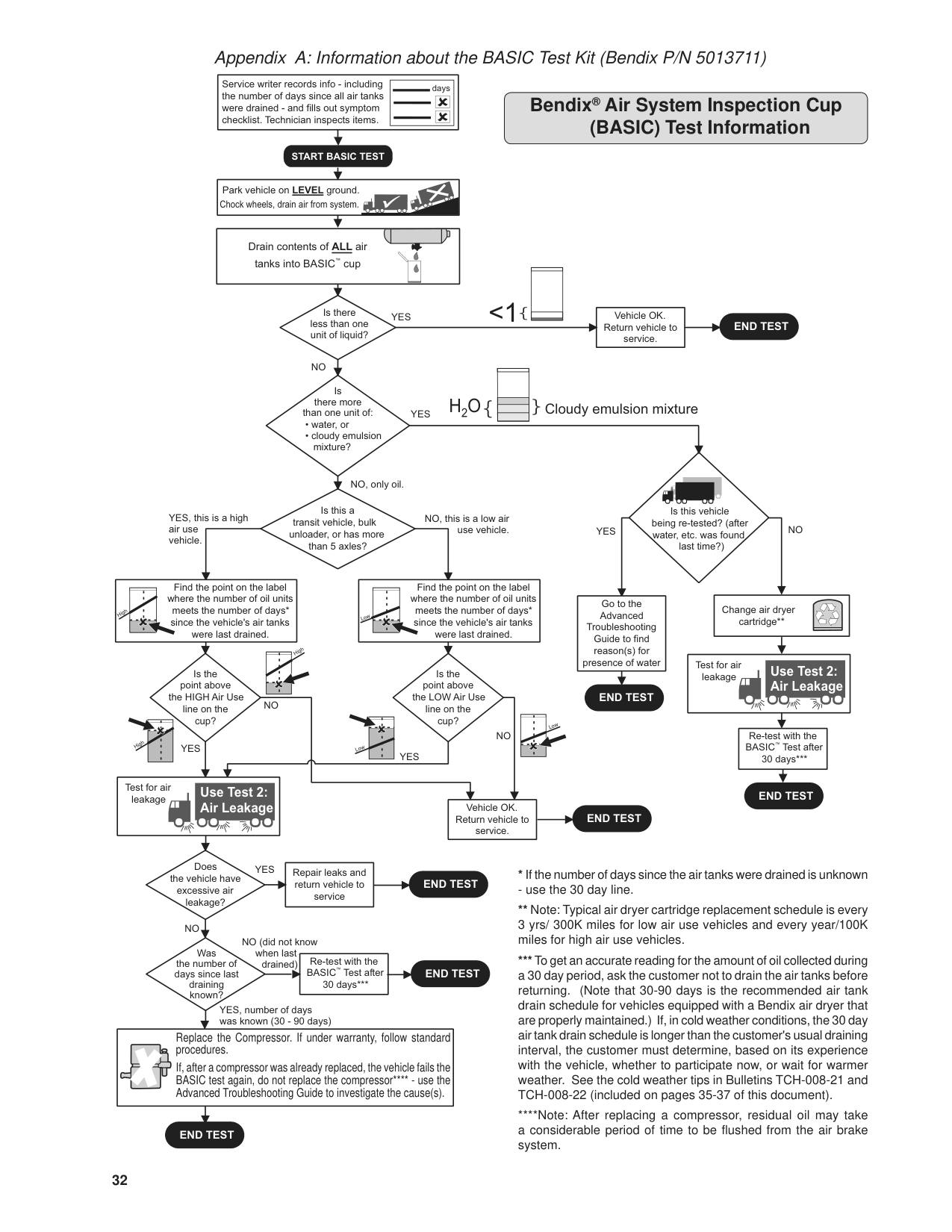

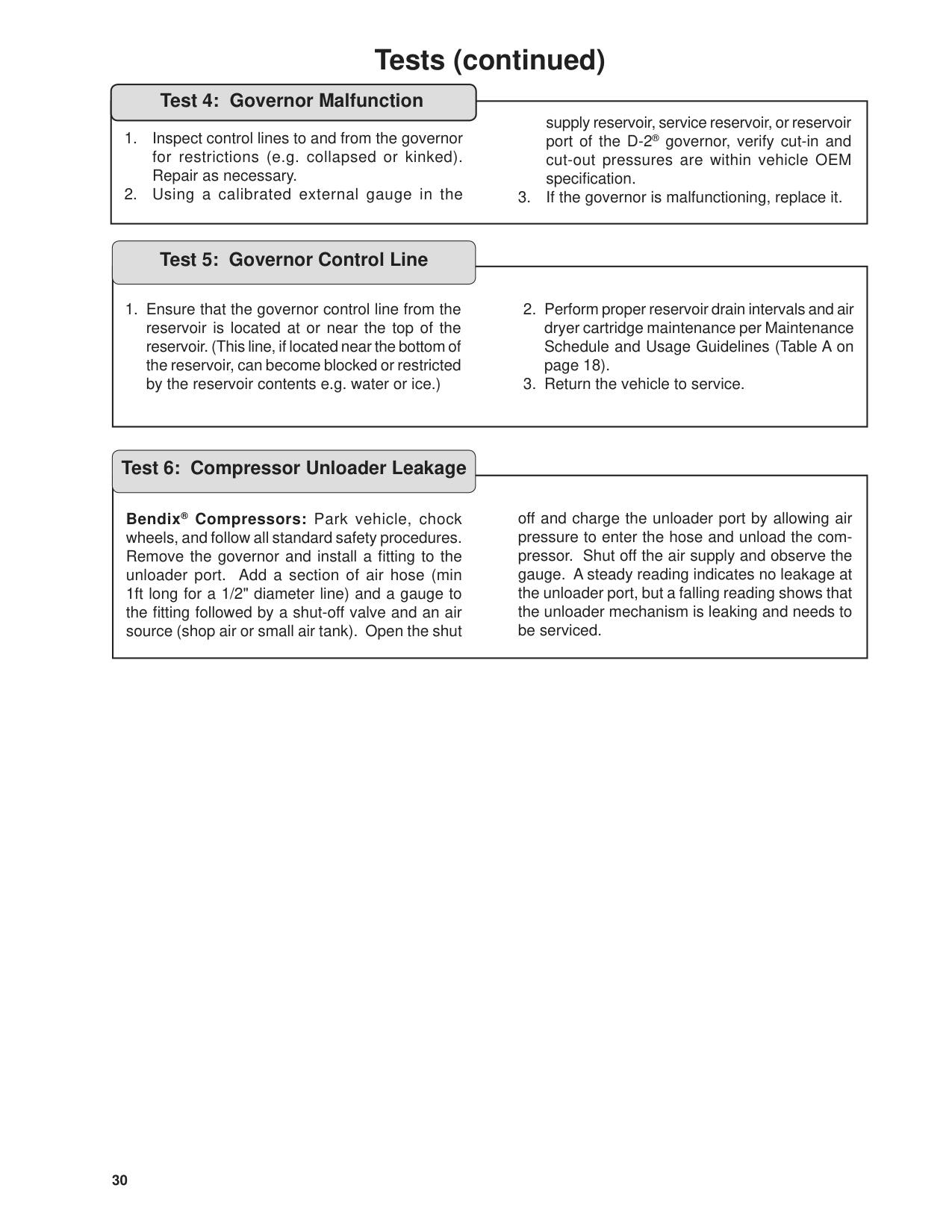

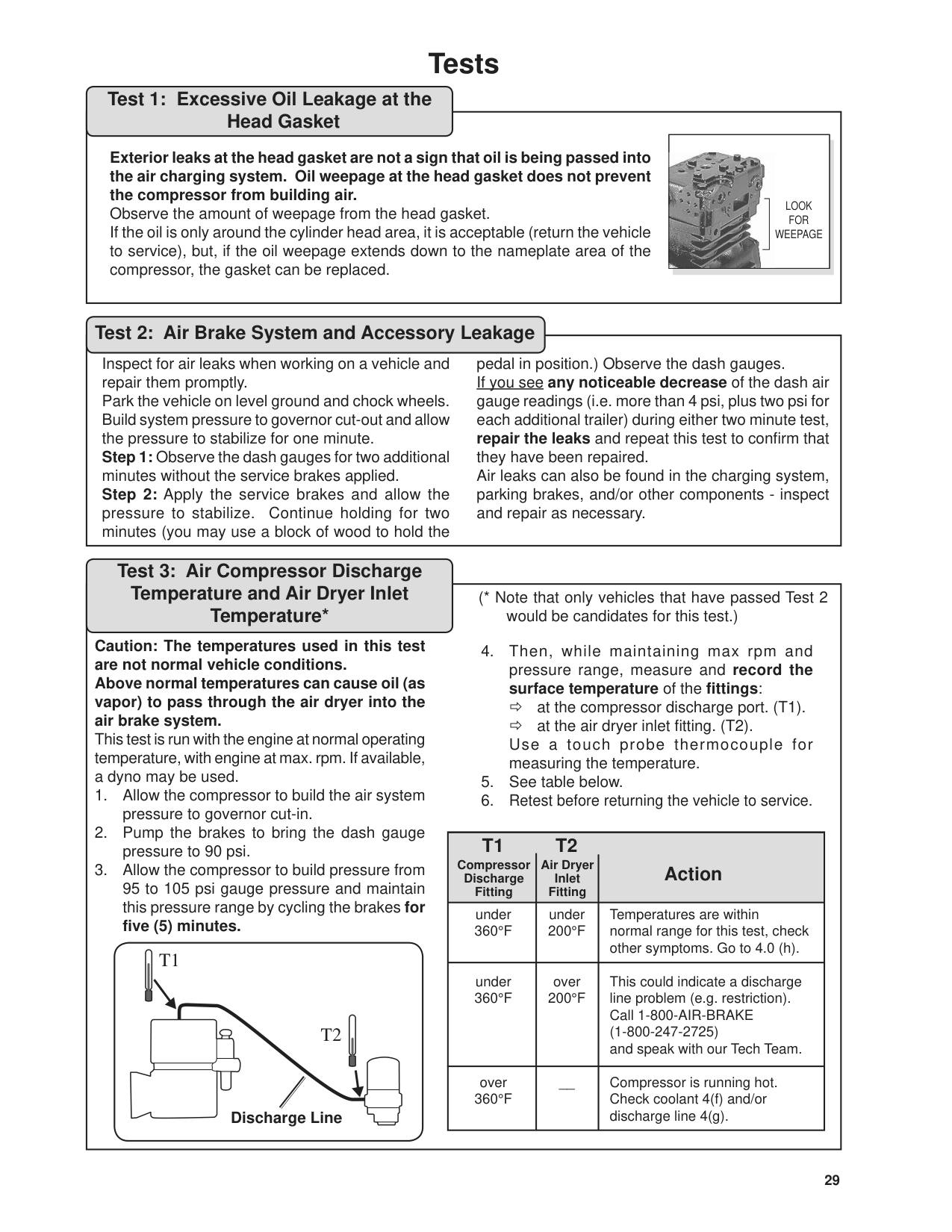

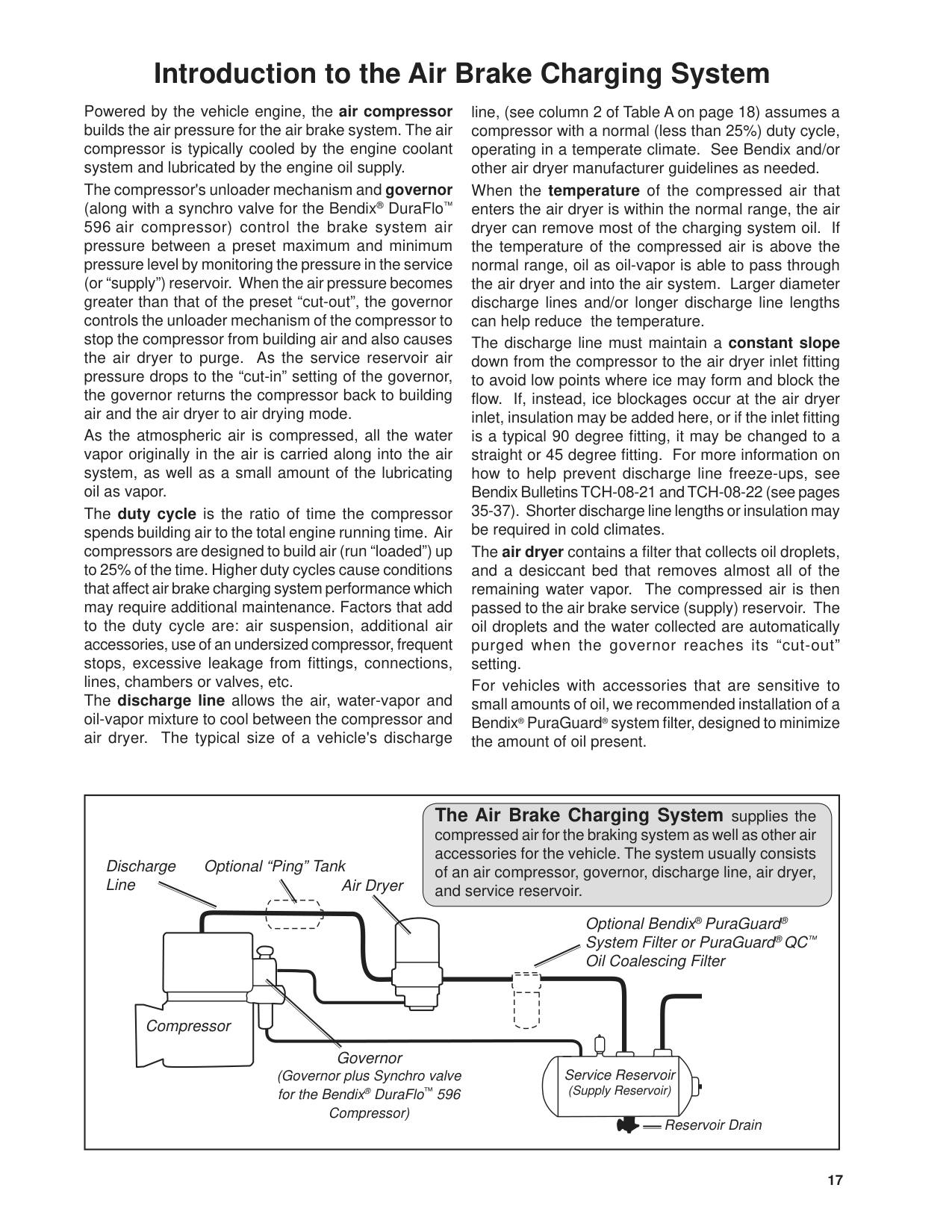

This Bendix Parts & Service Manual (document SD-01-344) covers the description, service procedure and repair-kit parts for the unit, with exploded diagrams.
| Models covered | SD-01-344-TU-FLO-750 |
| Component type | Bendix air brake / air system component |
| Document | SD-01-344 Parts & Service Manual (Bendix) |
| Length | 40 pages |
| Format | PDF — free download |
What’s inside
- Component description & operation
- Disassembly, inspection & reassembly steps
- Torque values & service clearances
- Repair & service kit contents
- Troubleshooting & test procedures

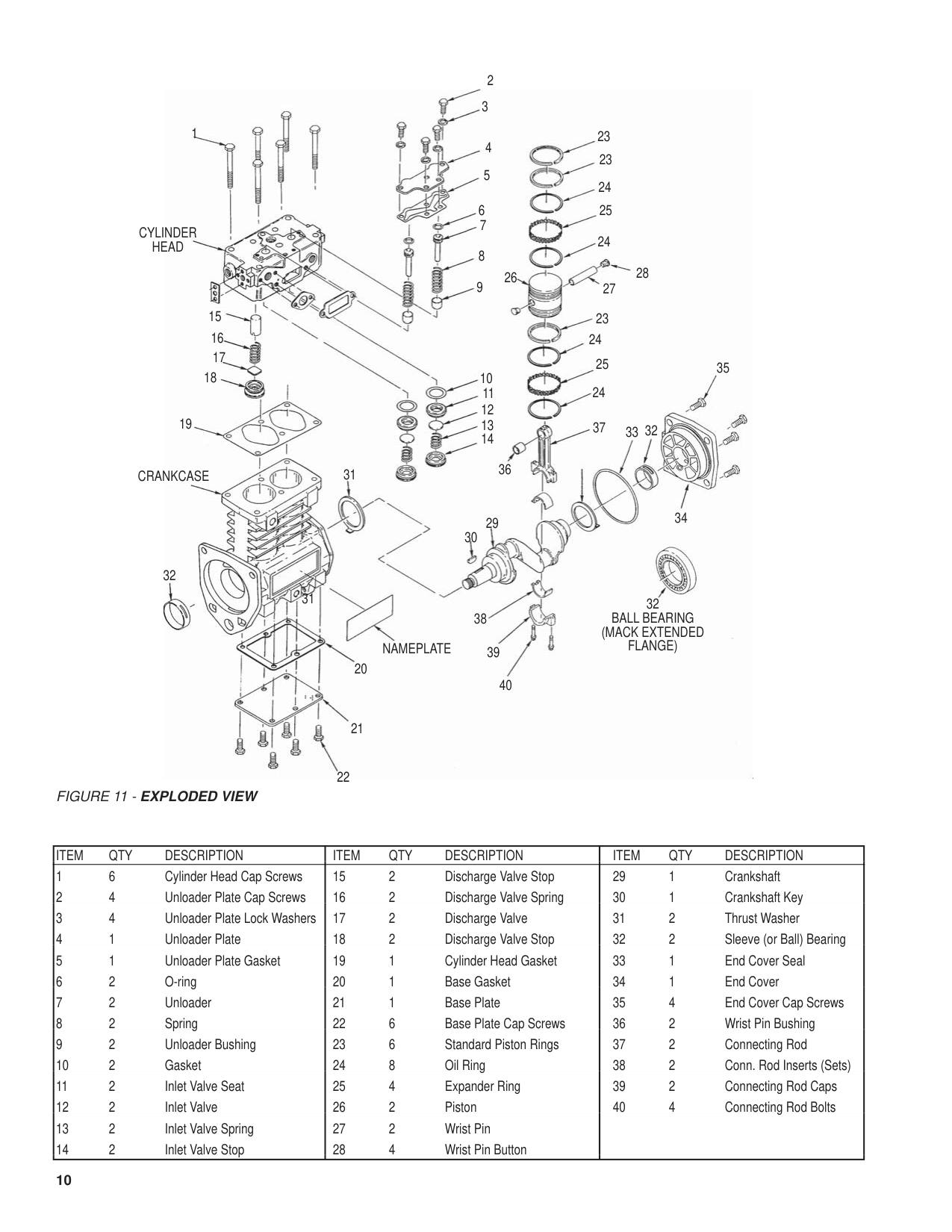

- Exploded diagrams with part numbers
TU-FLO-750 identification
Use these diagrams to find the data plate / nameplate on your TU-FLO-750 compressor and read off the model and serial number.
Data plate
Nameplate location
