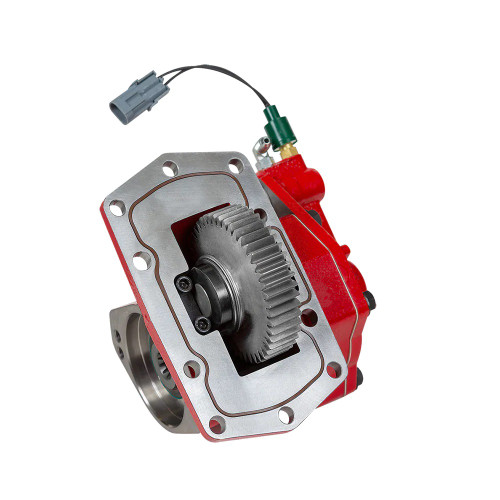

The Chelsea 210 Series Power Take-Off, part number 210FMMFP-K461 or 210FMMFPK461, is a hydraulic-shift PTO designed for the Ford 10R140 10-speed TorqShift automatic transmission using a Ford 10-bolt mounting pattern. The 210 Series input gear designator MF specifies a 46-tooth spur input gear with a 46/36 gear ratio, delivering 144% output speed. Internal lubrication is built in (designator P), eliminating a separate lube port. The series supports up to 235 lb-ft of intermittent torque and offers output shaft options including 1-1/4 in. keyed, 3/4 in. 11-tooth SAE A pilot, and 7/8 in. 13-tooth SAE A pilot configurations. A genuine Chelsea part available at Pro Gear and Transmission. Call us to confirm the correct output shaft configuration for your application.
Features
Chelsea 210 Series PTO for Ford 10R140 10-speed TorqShift automatic transmission
Hydraulic shift operation with Ford 10-bolt mounting
46/36 gear ratio producing 144% output speed
Up to 235 lb-ft intermittent torque capacity
Built-in internal lubrication (no separate lube connection required)
Single hose connection with integrated cartridge valve and pressure switch for simplified installation
Tech Specs
- Product Series: Chelsea 210
- Mounting Type: Ford 10-bolt
- Shift Type: Hydraulic
- Input Gear: 46-tooth spur (designator MF)
- Gear Ratio: 46/36 (144% output speed)
- Intermittent Torque: up to 235 lb-ft (319 Nm)
- Output Shaft Options: 1-1/4 in. keyed, 3/4 in. 11T SAE A pilot, 7/8 in. 13T SAE A pilot
- Lubrication: Internal (designator P)
- Continuous Operation: No
Additional Information
The Chelsea 210 Series is engineered specifically for the Ford TorqShift 10R140 transmission and is available for both 2WD and 4WD applications. The patented noise-reduction design targets reduced operating sound levels, a characteristic that set performance benchmarks for quiet PTO operation in the work truck segment. The 210 Series includes Electronic Overspeed Control (EOC) and is compatible with Smart Start as standard. Typical applications include tow and recovery trucks, service trucks, small dump trucks, and fire and rescue vehicles. The part number 210FMMFP-K461 is also referenced as SP210FMMFP-K461 in some catalog sources.Parts Manual: Chelsea 210 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
