Chelsea PTO 269 Series Parts Manual

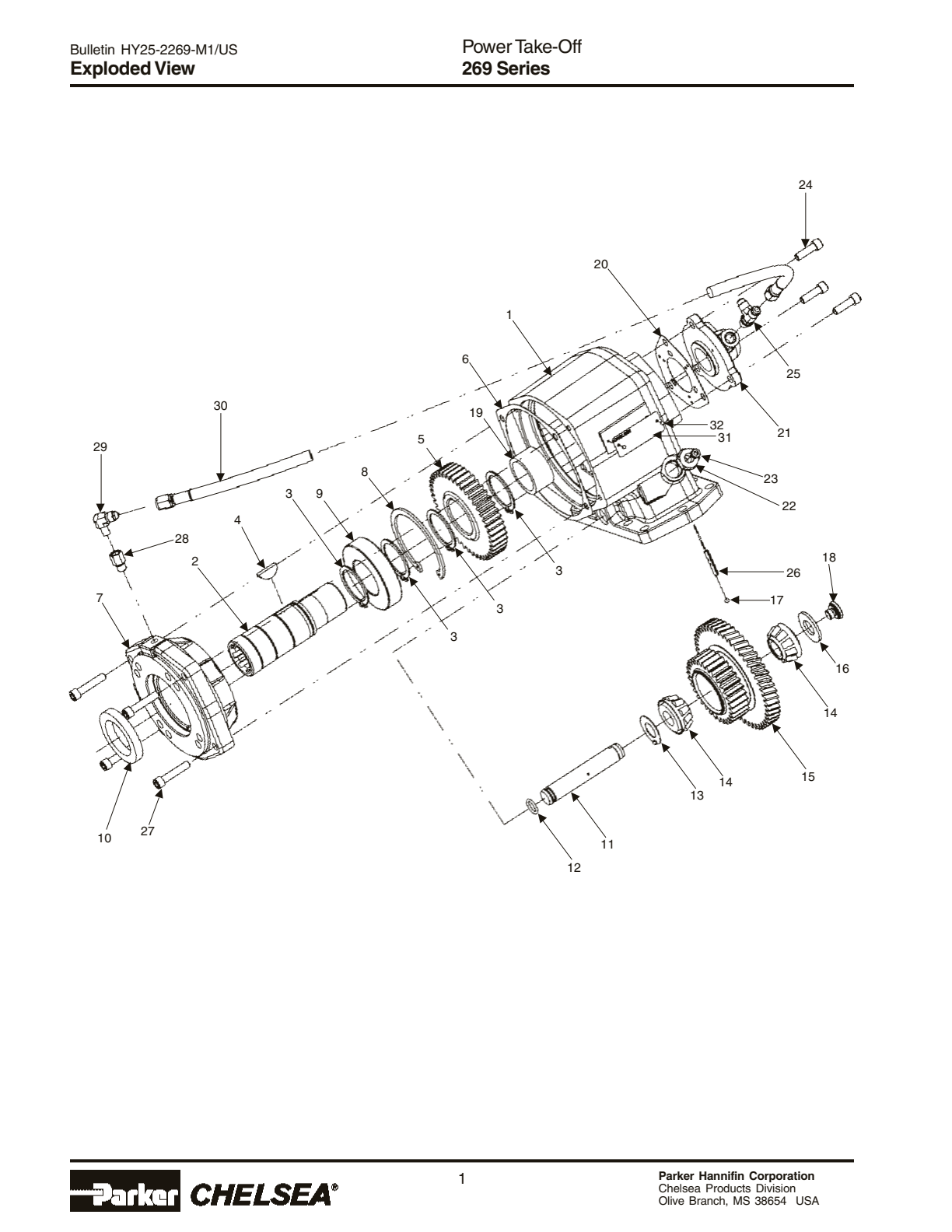

Power Take-Off Bill of Materials 269 Series
Item 29Item 30Item 28Item 10Item 27Item 12Item 1Item 1Item 13Item 14Item 16Item 18Item 17Item 26Item 22Item 23Item 32Item 31Item 21Item 25Item 24Item 20Item 7Item 2Item 4Item 3Item 9Item 8Item 19Item 6Item 1Item 3Item 3Item 3Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P591 | Housing | 1 | — | Call for availability | |
| 2 | 3P983 | Output Shaft | 1 | — | Call for availability | |
| 3 | 378477 | Lockring | 4 | $3.29 | Add to Cart | |
| 4 | 50000724 | Woodruff Key Output Gear | 1 | $1.83 | Add to Cart | |
| 2P845 | G Ratio (x Mount, Standard) | — | Call for availability | |||
| 2P846 | G Ratio (s Mount, Supertorque™) | — | Call for availability | |||
| 2P847 | B Ratio (x Mount, Standard) | — | Call for availability | |||
| 2P848 | B Ratio (s Mount, Supertorque™) | — | Call for availability | |||
| 2P849 | D Ratio (x Mount, Standard) | — | Call for availability | |||
| 2P850 | D Ratio (s Mount, Supertorque™) | — | Call for availability | |||
| 2P851 | M Ratio (x Mount, Standard) | — | Call for availability | |||
| 2P852 | M Ratio (s Mount, Supertorque™) | — | Call for availability | |||
| 6 | 22P101 | Gasket | 1 | $15.38 | Add to Cart | |
| 7 | 21P689 | Pump Flange | 1 | — | No longer available — call for replacement | |
| 8 | 378263 | Lockring | 1 | $19.87 | Add to Cart | |
| 9 | 550311 | Ball Bearing | 1 | $81.15 | Add to Cart | |
| 10 | 28P275 | Oil Seal | 1 | $37.46 | Add to Cart | |
| 11 | 9P91 | Idler Pin | 1 | $81.03 | Add to Cart | |
| 12 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 13 | 31P102 | Thrust Washer | 1 | $3.72 | Add to Cart | |
| 14 | 550439 | Tapered Roller Bearing Input Gear | 2 | $51.63 | Add to Cart | |
| 5P914 | G Ratio (x Mount, Standard) | $1,020.95 | Add to Cart | |||
| 5P1225 | G Ratio (s Mount, Supertorque™) | $1,200.80 | Add to Cart | |||
| 5P912 | B Ratio (x Mount, Standard) | $935.27 | Add to Cart | |||
| 5P1350 | B Ratio (s Mount, Supertorque™) | $1,075.45 | Add to Cart | |||
| 5P913 | D Ratio (x Mount, Standard) | $1,034.20 | Add to Cart | |||
| 5P1293 | D Ratio (s Mount, Supertorque™) | $1,085.95 | Add to Cart | |||
| 5P915 | M Ratio (x Mount, Standard) | $923.32 | Add to Cart | |||
| 5P1351 | M Ratio (s Mount, Supertorque™) | $1,075.45 | Add to Cart | |||
| 16 | 14P791 | Tabbed Washer (.1 12"- .1 14") | 1 or | $7.62 | Add to Cart | |
| 14P792 | Tabbed Washer (.1 16"- .1 18") | 1 or | $7.62 | Add to Cart | ||
| 14P793 | Tabbed Washer (.120"- .122") | 1 or | $7.62 | Add to Cart | ||
| 14P794 | Tabbed Washer (.124"- .126") | 1 | $7.67 | Add to Cart | ||
| 17 | 378108 | Ball | 1 | $2.40 | Add to Cart | |
| 18 | 379672 | Nwd Plug | 1 | $12.09 | Add to Cart | |
| 19 | 560972 | Needle Roller Bearing | 1 | $32.22 | Add to Cart | |
| 20 | 22P112 | Gasket | 1 | $20.18 | Add to Cart | |
| 21 | 21P690 | Seal Cap | 1 | $498.30 | Add to Cart | |
| 22 | 379242 | O-ring Boss Plug | 1 | $22.23 | Add to Cart | |
| 23 | 379231 | Pipe Plug | 1 | $1.50 | Add to Cart | |
| 24 | 3784476 | Socket Head Capscrew | 4 | $4.33 | Add to Cart | |
| 25 | 379659 | Straight Thread O-ring Run Tee | 1 | $51.56 | Add to Cart | |
| 26 | 50096716 | Roll Pin | 1 | — | Call for availability | |
| 27 | 3784478 | Socket Head Capscrew | 4 | $2.32 | Add to Cart | |
| 28 | 379896 | Adapter W/ Restriction | 1 | $59.98 | Add to Cart | |
| 29 | 379625 | Elbow | 1 | $17.80 | Add to Cart | |
| 30 | 3291309X | Hose Assembly | 1 | $60.19 | Add to Cart | |
| 31 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 32 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 7170107X | Mounting Kit | 1 | $122.41 | Add to Cart | ||
| 3289489X | Gasket And Installation Instructions | 1 | $42.19 | Add to Cart | ||
| 22P84 | Xy Pump Mounting Gasket | 1 | $45.16 | Add to Cart |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Chelsea PTO 269 — every part in the manual, matched to our live inventory. We stock 40 of the 52 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
