Chelsea PTO 435 Series Parts Manual
Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Power Take-Off Bill of Materials 435 Series

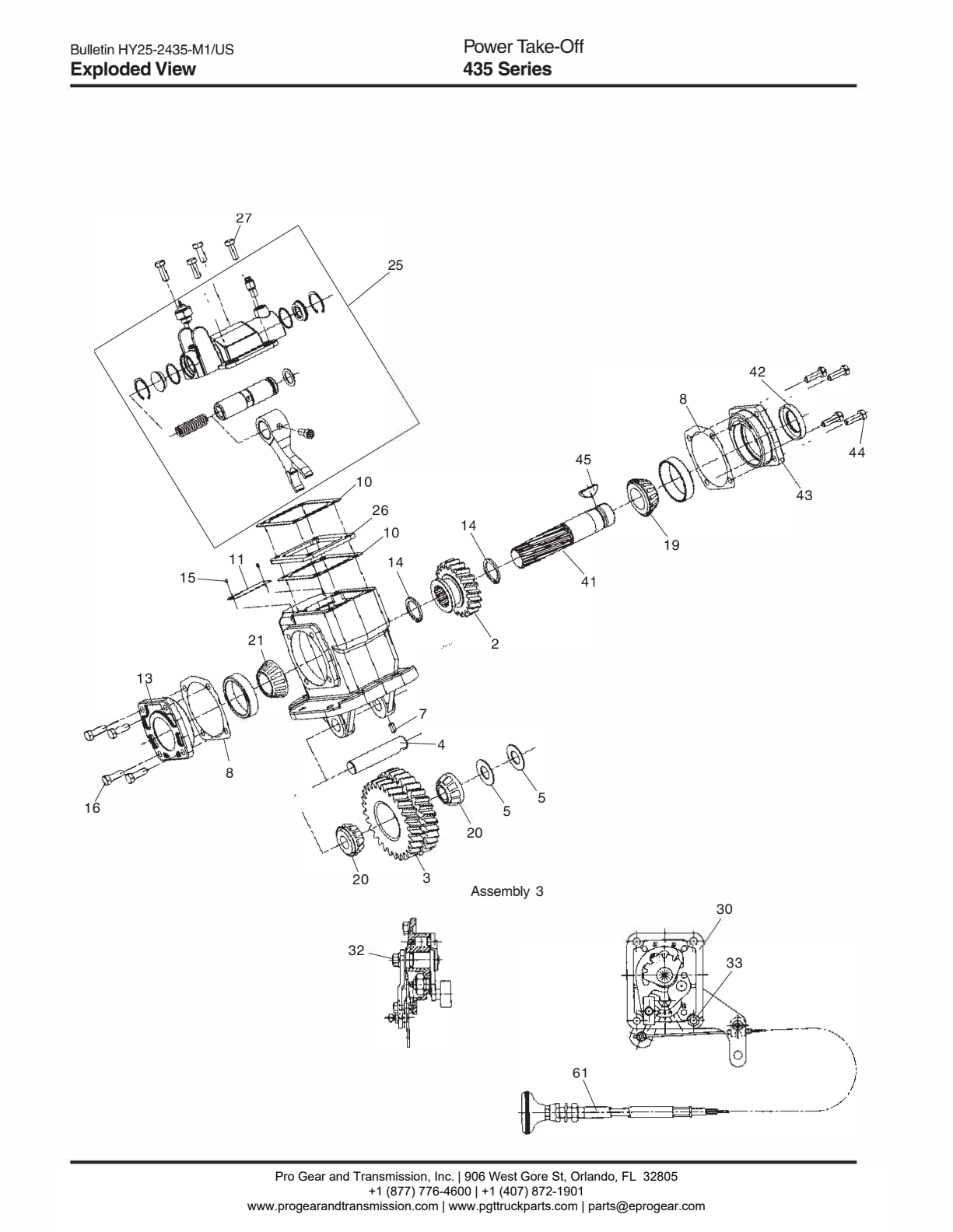

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P486 | Housing | 1 | — | Call for availability | |
| 2 | 2P560 | Output Gear Input Gear | 1 | $224.47 | Add to Cart | |
| 5P952 | 435XUFSX | 1 or | — | Call for availability | ||
| 5P984 | 435XUFZX | 1 or | — | Call for availability | ||
| 5P986 | 435XSFZX | 1 | $423.31 | Add to Cart | ||
| 4 | 9P64 | Idler Shaft | 1 | $104.92 | Add to Cart | |
| 5 | 14P15 | Input Gear Spacers | AIR | $5.70 | Add to Cart | |
| 8 | 22P241 | Bearing Cap Gasket (.01 O") | AIR | $2.30 | Add to Cart | |
| 22P242 | Bearing Cap Gasket (.020") | AIR | $10.49 | Add to Cart | ||
| 22P243 | Bearing Cap Gasket (.015") | AIR | $10.49 | Add to Cart | ||
| 10 | 35P8 | Shifter Cover Gasket | 2 | $3.48 | Add to Cart | |
| 11 | 68P37 | Name Plate | 1 | — | Call for availability | |
| 13 | 328274X | Bearing Cap Assembly (closed End) | 1 | $64.09 | Add to Cart | |
| 14 | 378391 | Lockring | 2 | $2.47 | Add to Cart | |
| 15 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 16 | 37843010 | Hex Capscrew ( .312"-18 X 1 .000") | 4 | $1.76 | Add to Cart | |
| 17 | 3784527 | Set Screw (.250"-20 X .500") | 1 | $4.37 | Add to Cart | |
| 19 | 550397 | Bearing Cone | 1 | $36.75 | Add to Cart | |
| 20 | 550439 | Bearing Cone | 2 | $51.63 | Add to Cart | |
| 21 | 550532 | Bearing Cone Air Shift | 1 | $36.75 | Add to Cart | |
| 25 | 329361X | Air Shift Cover Assembly (3 & 6) | 1 | $337.38 | Add to Cart | |
| 26 | 5A125 | Spacer, Shifter Cover | 1 | $137.79 | Add to Cart | |
| 27 | 3784309 | Hex Capscrew ( .312"-18 X .750") Cable Shift | 4 | $1.76 | Add to Cart | |
| 30 | 3290381X | Cable Shifter Assembly (3 & 6) | 1 | — | Call for availability | |
| 32 | 37843010 | Hex Capscrew ( .312"-18 X 1 .000") | 3 | $1.76 | Add to Cart | |
| 33 | 37843011 | HexCapscrew(.312"-18 X 1 .125") "xr"output | 1 | $4.84 | Add to Cart | |
| 3P283 | Output Shaft | 1 | $187.84 | Add to Cart | ||
| 42 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 329194X | Pump Flange Assembly | 1 | $135.04 | Add to Cart | ||
| 379673 | Shoulder Stud | 4 | $12.77 | Add to Cart | ||
| 379063 | Flat Washer "xd"output | 4 | $2.70 | Add to Cart | ||
| 41 | 3P202 | Output Shaft | 1 | $95.42 | Add to Cart | |
| 43 | 328273X | Bearing Cap Assembly | 1 | $64.09 | Add to Cart | |
| 44 | 37843010 | HexCapscrew(.312"-18 X 1 .000") | 4 | $1.76 | Add to Cart | |
| 45 | 50000729 | Woodruff Key "xq"output | 1 | $3.11 | Add to Cart | |
| 3P282 | Output Shaft | 1 | $187.84 | Superseded by 3P282XAdd to Cart | ||
| 42 | 28P219 | Oil Seal | 1 | $28.20 | Add to Cart | |
| 328589X | Pump Flange Assembly | 1 | $324.47 | Add to Cart | ||
| 3784478 | Allen Head Capscrew Loose Parts | 4 | $2.32 | Add to Cart | ||
| 3289611X | Gasket & Installation Instructions | 1 | $44.39 | Add to Cart | ||
| 61 | 32834615X | Cable Control Assembly | 1 | $187.92 | Add to Cart | |
| 328380X | Cable Control Parts Bag | 1 | $13.25 | Add to Cart | ||
| 328751X | Indicator Light Installation Kit | 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 68P18 | Name Plate | 1 | $4.50 | Add to Cart | ||
| 378978 | 12-V Indicator Light | 1 | $25.82 | Add to Cart | ||
| 378884 | 9-Amp Fuse Holder | 1 | $5.99 | Add to Cart | ||
| 379319 | Indicator Switch Boot | 1 | — | Call for availability | ||
| 32838837X | Air Shift Installation Kit | 1 | $367.41 | Add to Cart | ||
| 328711X | Installation Kit ("xr" Pump) | 1 | $14.26 | Add to Cart | ||
| 328170207X | Capscrew Bag Kit ("ra", "rb", "rf" Outputs) | $9.52 | Add to Cart | |||
| 32916612X | E-z Shift Installation Kit -not Shown | — | Call for availability |
Power Take-Off Air Shift Parts 435 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329361X | Shifter Cover Assembly, Air Shift ( Includes Items 48-57) | 1 | $337.38 | Add to Cart | ||
| 48 | 34P130 | Shifter Cover | 1 | $95.72 | Add to Cart | |
| 49 | 378316 | Snap Ring | 2 | $1.68 | Add to Cart | |
| 50 | 378315 | Cover Plug | 2 | $5.55 | Add to Cart | |
| 51 | 28P42 | O-ring | 2 | $3.59 | Add to Cart | |
| 52 | 37P21 | Shifter Spring | 1 | $2.86 | Add to Cart | |
| 53 | 11P75 | Shaft, Shifter | 1 | $60.75 | Add to Cart | |
| 54 | 28P41 | O-ring | 1 | $5.03 | Add to Cart | |
| 55 | 32P180 | Shifter Fork | 1 | $105.58 | Add to Cart | |
| 56 | 3784474 | Capscrew, Socket Head W/ Lockpatch ( .312"-18 X .750") | 1 | $1.78 | Add to Cart | |
| 57 | 379639 | Indicator Switch (normally Off) | 1 | $25.03 | Add to Cart | |
| 58 | 379904 | Push Connect, For 1/4" Tubing | 1 | $7.13 | Add to Cart | |
| 59 | 35P8 | Gasket, Shifter Cover | 1 | $3.48 | Add to Cart | |
| 60 | 3784309 | Capscrew, Hex Head ( .312"-18 X .875") Air Shift Conversion Kits | 4 | $1.76 | Add to Cart | |
| 3283901OSX | Lever To Air 12V | 1 | — | Call for availability | ||
| 328390106X | Lever To Air 24V | 1 | — | Call for availability | ||
| 3283901HX | Lever Or Cable To Air | 1 | — | Call for availability | ||
| 328390119X | Lever Or Cable To Electric/air, 12V | 1 | $1,071.10 | Add to Cart | ||
| 328390120X | Lever Or Cable To Electric/air, 24V | 1 | $708.43 | Add to Cart |
Gear Chart & Flanges 435 Series Pump Flange & Shaft Dimension Pump Conversion Kits Bill of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| XQ37859117X | 3-P-282 328589X 378447-8 28-P-282 | — | Call for availability |
T L L
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| S1201 | Pump Flange | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 328390-1 | Osx Lever To Air 12V | 1 | — | Call for availability | ||
| 328591-55X | (xd To Ra) | $382.35 | Add to Cart | |||
| 328591-56X | (xd To Rb) | $382.35 | Add to Cart | |||
| 328591-72X | (xr To Ga) 329195X (output) 28-P-216 (output) | $591.49 | Add to Cart | |||
| 328591-106X | (ra To Ga) | — | Call for availability | |||
| 328591-75X | (xr To Gb) 329195X (output) 28-P-216 (output) | — | No longer available — call for replacement | |||
| 328591-107X | (rb To Gb) | $428.82 | Add to Cart | |||
| 328591-116X | (xd To Gh 28-P-216 (output) | $864.02 | Add to Cart |
