Chelsea PTO 437 Series Parts Manual

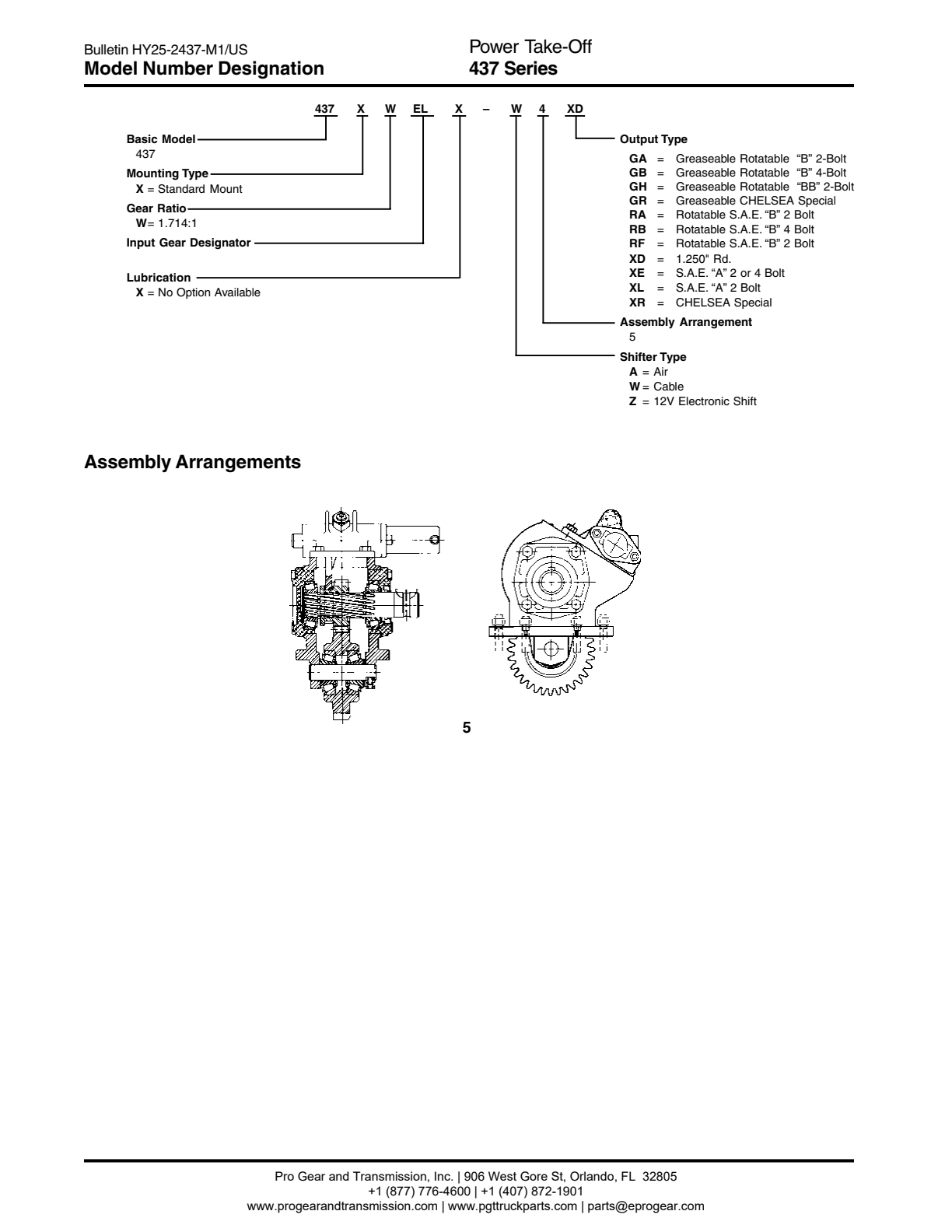

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

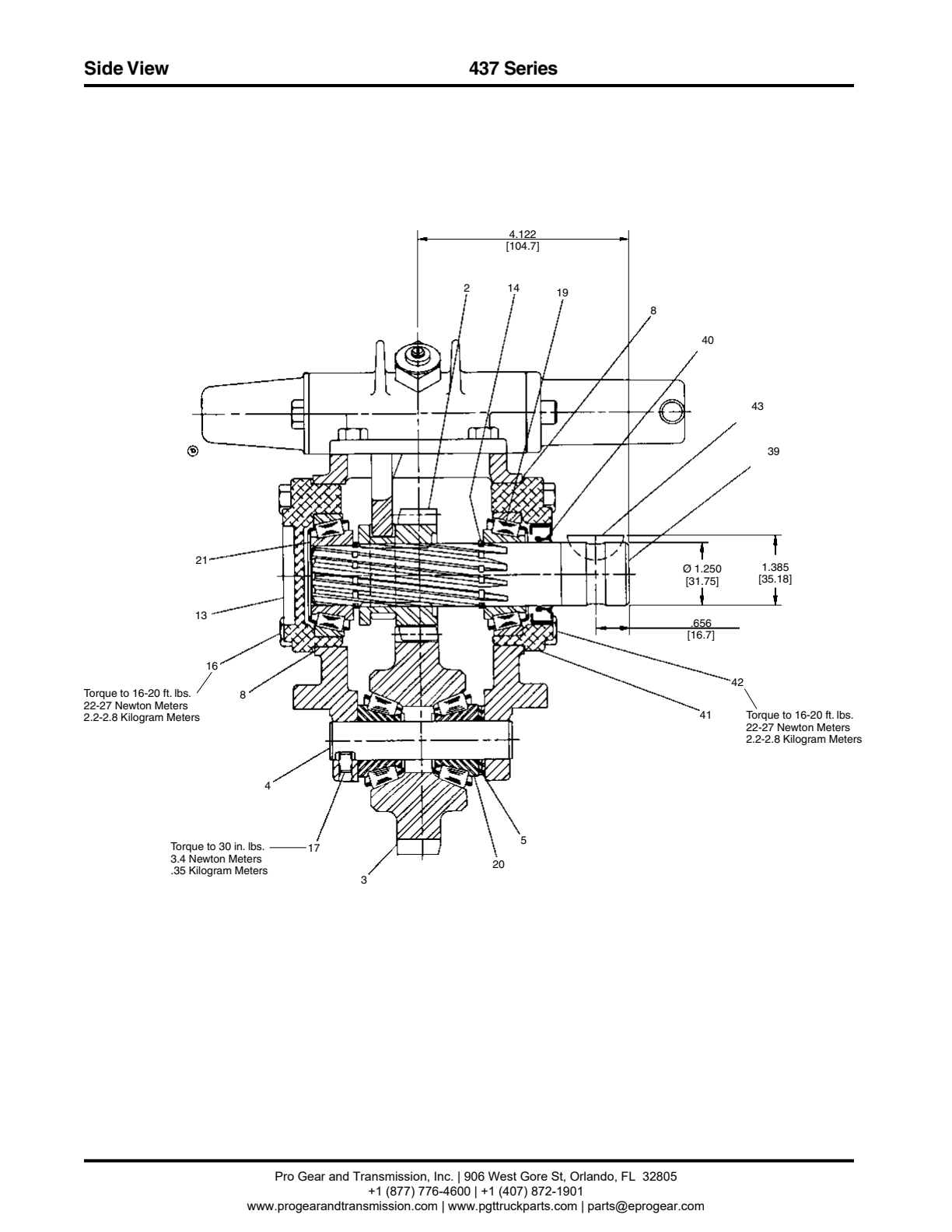

Bill of Materials 437 Series
Item 14Item 19Item 8Item 40Item 43Item 39Item 21Item 13Item 16Item 8Item 41Item 42Item 17Item 20Item 5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1P490 | Gear, Input Shaft, Idler | 1 | Call for availability | |||
| 5 | 14P15 | Spacers, Input Gear | A/R | $5.70 | Add to Cart | |
| 8 | 22P241 | Gasket, Bearing Cap (.010") | A/R | $2.30 | Add to Cart | |
| 22P242 | Gasket, Bearing Cap (.020") | A/R | $10.49 | Add to Cart | ||
| 22P243 | Gasket, Bearing Cap (.015") | A/R | $10.49 | Add to Cart | ||
| 10 | 35P8 | Gasket, Shifter Cover | 2 | $3.48 | Add to Cart | |
| 68P37 | Name Plate | 1 | Call for availability | |||
| 13 | 328274X | Bearing Cap Assembly | 1 | $64.09 | Add to Cart | |
| 14 | 378391 | Lockring | 2 | $2.47 | Add to Cart | |
| 15 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 16 | 37843010 | Capscrew, Hex Head (.312"-18 X 1 .000") | 4 | $1.76 | Add to Cart | |
| 17 | 3784527 | Set Screw (.250"-20 X .500") | 1 | $4.37 | Add to Cart | |
| 19 | 550397 | Bearing Cone | 1 | $36.75 | Add to Cart | |
| 20 | 550439 | Bearing Cone | 2 | $51.63 | Add to Cart | |
| 21 | 550532 | Bearing Cone | 1 | $36.75 | Add to Cart | |
| 560980 | Bearing Cup Cable Shift | 2 | Call for availability | |||
| 26 | 3291192X | Cable Shift Cover Assembly | 1 or | $176.78 | Add to Cart | |
| 29 | 3784309 | Capscrew, Hex Head (.312"-18 X .875") Air Shift | 4 | $1.76 | Add to Cart | |
| 33 | 3290363X | Air Shift Cover Assembly (3 &6) | 1 | Call for availability | ||
| 36 | 3474309 | Capscrew, Hex Head .(312"-18 X .750") | 4 | Call for availability | ||
| 3291655X | E-z Shift “xd” Output | Call for availability | ||||
| 39 | 3P202 | Shaft, Output | 1 | $95.42 | Add to Cart | |
| 40 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 41 | 328273X | Bearing Cap Assembly | 1 | $64.09 | Add to Cart | |
| 42 | 37843010 | Capscrew, Hex Head (.312"-18 X 1 .000") | 4 | $1.76 | Add to Cart | |
| 43 | 50000729 | Woodruff Key “xr” Output | 1 | $3.11 | Add to Cart | |
| 46 | 3P283 | Shaft, Output | 1 | $187.84 | Add to Cart | |
| 47 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 48 | 329194X | Bearing Cap Assembly | 1 | $135.04 | Add to Cart | |
| 49 | 329673 | Shoulder Hex Screw (.312"-24) | 4 | Call for availability | ||
| 50 | 379063 | Flat Washer Loose Parts | 4 | $2.70 | Add to Cart | |
| 328170141X | Stud Kit | 1 | No longer available - Call for replacement | |||
| 3289486X | Installation Instructions | 1 | $24.01 | Add to Cart | ||
| 64 | 32834615X | Cable Control Assembly | 1 | $187.92 | Add to Cart | |
| 328380X | Cable Control Parts Bag | 1 | $13.25 | Add to Cart | ||
| 328751X | Indicator Light Installation Kit | 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 378978 | 12-V Indicator Light | 1 | $25.82 | Add to Cart | ||
| 378884 | 9-AMP Fuse Holder | 1 | $5.99 | Add to Cart | ||
| 379319 | Indicator Switch Boot | 1 | Call for availability | |||
| 32838837X | Air Shift Installation Kit | 1 | $367.41 | Add to Cart | ||
| 328711X | Installation Kit (“xr” Pump) | 1 | $14.26 | Add to Cart | ||
| 32916612X | Installation Kit (e-z Shift) A.r. As Required | 1 | Call for availability |
P.t.o. Housing, Pump Flange & Shaft Dimensions Assembly “XR”
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32859172X | Conversion Kit, GA Mounting, XD To GA; GA Mounting, XR To GA | $591.49 | Add to Cart | |||
| 328591106X | Conversion Kit, GA Mounting, RA To GA | Call for availability | ||||
| 32859174X | Conversion Kit, GB Mounting, XD To GB | $591.49 | Add to Cart | |||
| 32859175X | Conversion Kit, GB Mounting, XR To GB | No longer available - Call for replacement | ||||
| 328591107X | Conversion Kit, GB Mounting, RB To GB | $428.82 | Add to Cart | |||
| 328591116X | Conversion Kit, GH Mounting, XD To GH | $864.02 | Add to Cart | |||
| 328591114X | Conversion Kit, GH Mounting, RF To GH | $592.43 | Add to Cart | |||
| 32859176X | Conversion Kit, GR Mounting, XD To GR | No longer available - Call for replacement | ||||
| 32859153X | Conversion Kit, RA Mounting, XR To RA | $122.93 | Add to Cart | |||
| 32859155X | Conversion Kit, RA Mounting, XD To RA | $382.35 | Add to Cart | |||
| 32859154X | Conversion Kit, RB Mounting, XR To RB | $122.93 | Add to Cart | |||
| 32859156X | Conversion Kit, RB Mounting, XD To RB | $382.35 | Add to Cart | |||
| 32859178X | Conversion Kit, RF Mounting, XD To RF | $586.51 | Add to Cart | |||
| 32859127X | Conversion Kit, XE Mounting, XD To XE | $402.60 | Add to Cart | |||
| 32859118X | Conversion Kit, XL Mounting, XD To XL | Call for availability | ||||
| 32859152X | Conversion Kit, XR Mounting, XD To XR | $260.80 | Add to Cart | |||
| 3P923X | Shaft, GA/GB/GR Mounting | $655.03 | Add to Cart | |||
| 3P941X | Shaft, GH Mounting | $1,076.84 | Add to Cart | |||
| 3P283 | Shaft, RA/RB/XL/XR Mounting | $187.84 | Add to Cart | |||
| 3P924 | Shaft, RF Mounting | $733.31 | Add to Cart | |||
| 3P800 | Shaft, XE Mounting | $319.56 | Add to Cart | |||
| 328273X | Bearing Cap Assembly, GA/GB/GH/GR Mounting, Rear | $64.09 | Add to Cart | |||
| 329195X | Bearing Cap Assembly, GA/GB Mounting, Output; RA/RB Mounting | $132.25 | Add to Cart | |||
| 329264X | Bearing Cap Assembly, GH Mounting, Output; RF Mounting | $164.26 | Add to Cart | |||
| 329194X | Bearing Cap Assembly, GR Mounting, Output; XR Mounting | $135.04 | Add to Cart | |||
| 328328X | Bearing Cap Assembly, XE Mounting | $318.47 | Add to Cart | |||
| 328580X | Bearing Cap Assembly, XL Mounting | $439.30 | Add to Cart | |||
| 28P268 | Oil Seal, GA/GB/GR Mounting, Rear | $69.47 | Add to Cart | |||
| 28P216 | Oil Seal, GA/GB Mounting, Output; RA/RB/XE/XL/XR Mounting | $21.40 | Add to Cart | |||
| 28P219 | Oil Seal, GH Mounting, Output; RF Mounting | $28.20 | Add to Cart | |||
| 21P628 | Pump Flange, GA/RA Mounting | $100.24 | Add to Cart | |||
| 21P572 | Pump Flange, GB/RB Mounting | $114.69 | Add to Cart | |||
| 21P626 | Pump Flange, GH/RF Mounting | $115.30 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 328591-72X | (xr To Ga) 329195X (output) 28-P-216 (output) 21-P-628 | $591.49 | Add to Cart | |||
| 328591-106X | (ra To Ga) | Call for availability | ||||
| 328591-75X | (xr To Gb) 329195X (output) 28-P-216 (output) 21-P-572 | No longer available - Call for replacement | ||||
| 328591-107X | (rb To Gb) | $428.82 | Add to Cart | |||
| 328591-114X | (rf To Gh) 329264X (output) 28-P-219 (output) 21-P-626 | $592.43 | Add to Cart | |||
| 328591-55X | (xd To Ra) | $382.35 | Add to Cart | |||
| 328591-56X | (xd To Rb) | $382.35 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 437, with every part in the manual matched to our live inventory. We stock 65 of the 82 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 437 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 437 |
| PTO type | Chelsea 400 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 12 pages |
| Format | PDF, free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
