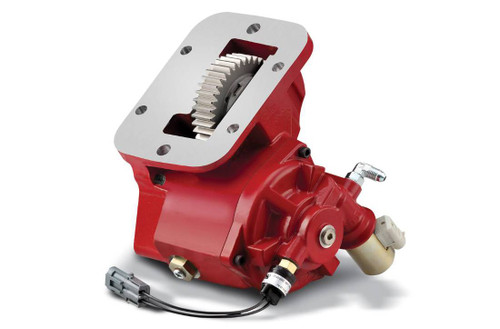

249FMLLX-B4XP Chelsea PTO Assembly

The Chelsea 249FMLLX-B4XP or 249FMLLXB4XP is a hydraulic PowerShift PTO assembly designed for Ford 6R140 TorqShift 6 transmissions using a Ford 6-bolt mounting pattern. It delivers up to 200 lb-ft intermittent torque (271 Nm) and 57 HP at 1,488 RPM, with a 1-1/4" round output shaft. What separates the 249 Series from other PTOs on this platform is Chelsea's patented noise suppression system, which reduces torsional noise levels found on most Ford Super Duty applications. A single-hose connection pairs with an integrated actuation valve, cutting installation time and reducing potential leak points. No special installation tools are required. Available for both 2WD and 4WD applications, the 249 Series fits aerial, service truck, small dump, and fire and rescue work. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Chelsea 249 Series PTO for Ford 6R140 TorqShift 6 transmission, Ford 6-bolt mounting
Hydraulic PowerShift shift type with integrated actuation valve and single-hose connection
Patented noise suppression system, the only quiet PTO designed for the Ford Super Duty TorqShift 6
Intermittent torque rating up to 200 lb-ft (271 Nm); check application pages for actual torque ratings
57 HP (42 kW) shaft power at 1,488 RPM; output power rated at 56+ HP
1-1/4" round output shaft; no special installation tools required; fits 2WD and 4WD applications

Tech Specs

• Transmission Manufacturer: Ford
• Mounting Type: Ford 6-Bolt
• Shift Type: Hydraulic PowerShift
• Output Shaft Type: 1-1/4" Round
• Intermittent Torque: 200 lb-ft / 271 Nm (Check Application Pages for Actual Torque Ratings)
• Output Power: 56+ HP / 41-50 kW
• Shaft Power: 57 HP / 42 kW at 1,488 RPM
• Continuous Operation: Yes, with 30% de-rating
