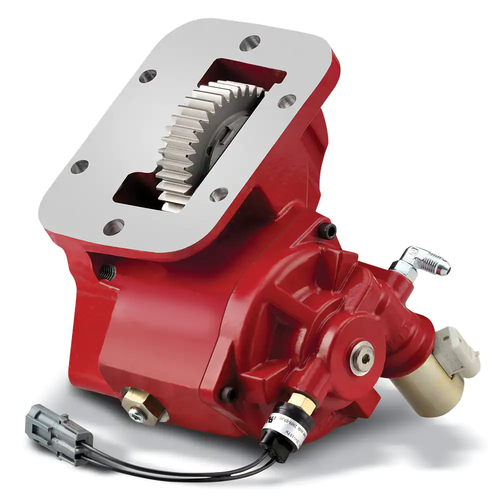

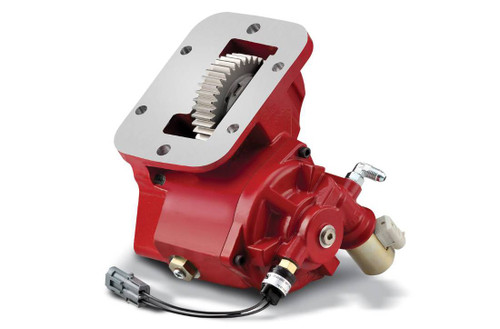

The Chelsea 249GMLLX-B209 or 249GMLLXB209 is a genuine Parker Chelsea 249 Series Power Take-Off assembly built specifically for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series is the only PTO in its class with a patented noise-suppression system engineered to reduce torsional noise on this transmission. Mounting is 6-bolt Ford pattern. The series supports hydraulic and PowerShift hydraulic actuation and features a single-hose connection with an integrated cartridge valve and pressure switch, which reduces installation time and minimizes potential leak paths. Typical applications include service trucks, tow and recovery, aerial work, small dump trucks, and fire and rescue. Call us to confirm proper fit for your specific chassis and transmission configuration.
Features
Chelsea 249 Series PTO for Ford 6R140 TorqShift 6 automatic transmission
Patented noise-suppression system, the only quiet PTO designed for this Ford Super Duty application
6-bolt Ford mounting pattern
Hydraulic and PowerShift hydraulic shift options available in the 249 Series
Single-hose connection with integrated cartridge valve and pressure switch simplifies installation
Suited for service trucks, tow and recovery, aerial, small dump, and fire and rescue applications
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic / PowerShift (Hydraulic)
- Output Shaft Options (series): 1-1/4" Round with 5/16" Key; 3/4" - 11T Pump Spline; SAE B (7/8" - 13T) Pump Spline
- Output Type (series): Driveline or SAE A Pump Flange
- Intermittent Torque Rating (series): Up to 200 lb-ft (271 Nm) - check application pages for actual rating
- Shaft Power (series): 57 HP at 1488 RPM (42 kW)
- Lubricant: Internal pressure lube
- Continuous Operation: Yes, with 30% de-rating
- Transmission Application: Ford 6R140 TorqShift 6
- Compatible Platforms: 2WD and 4WD Ford Super Duty trucks
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
