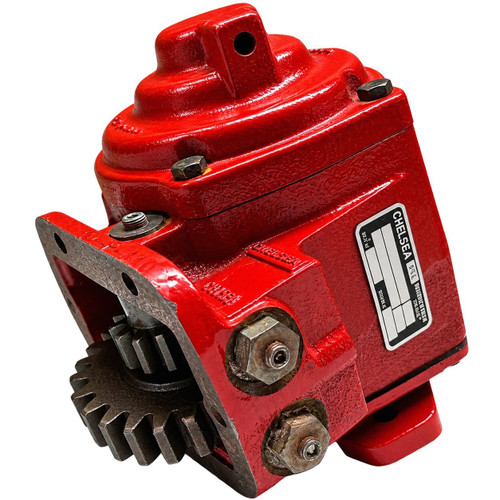

The Chelsea 272NCHVP-K3XD or 272NCHVPK3XD is a 6-bolt, hot-shift power take-off assembly from the Chelsea 272 Series. It features a 1-1/4" round output shaft with a 5/16" key and supports both pneumatic (air) shift and PowerShift (pneumatic/hydraulic) engagement. The 272 Series carries a continuous torque rating up to 300 lb-ft (407 Nm), with intermittent torque in the 201-300 lb-ft (401-500 Nm) range. Output power exceeds 56 HP (41-50 kW). The 272 Series consolidates several earlier Chelsea medium-duty PTO lines and is used in aerial, towing and recovery, construction, and water truck applications across a broad range of transmissions including Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, and RAM. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
6-bolt mounting configuration for broad transmission compatibility
1-1/4" round output shaft with 5/16" key
Pneumatic (air) shift and PowerShift (pneumatic/hydraulic) options
Continuous torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Compatible with Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, and RAM transmissions
Integral air control valve; rotatable flanges for flexible installation
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: Up to 300 lb-ft (407 Nm) - check application pages for actual torque ratings
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 29 HP at 500 RPM, 57 HP at 1000 RPM (21 kW at 500 RPM, 43 kW at 1000 RPM)
- Shift Type: Pneumatic (Air Shift), PowerShift (Pneumatic/Hydraulic)
- Transmission Compatibility: Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, RAM, Other
Additional Information
Parts manual and diagrams: Chelsea 272 Series PTO parts list with prices
