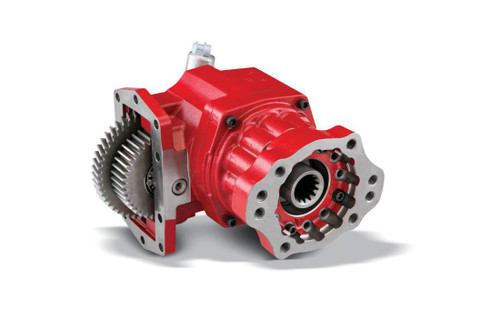

The Chelsea 272RCKUP-G3RF is a 272 Series hot shift power take-off assembly with 6-bolt mounting. The 272 Series consolidates several earlier Chelsea medium-duty PTO lines into one platform, rated for intermittent torque up to 300 lb-ft. The series supports both pneumatic and hydraulic shift configurations and includes an integral air control valve. Output shaft options across the series include round shaft formats, and rotatable flanges allow flexible installation. The 272 Series is suited for aerial, towing and recovery, construction equipment, and water truck applications. Call us to confirm proper fit and shift configuration for your transmission and application.
Features
Chelsea 272 Series 6-bolt hot shift PTO assembly
Intermittent torque rating up to 300 lb-ft (401-500 Nm)
Pneumatic or hydraulic shift with integral air control valve
Rotatable flanges for installation flexibility
Wet-Spline option available for extended PTO and pump shaft life
Smart-Start option supports high-torque start-up conditions
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Pneumatic or Hydraulic
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Output Power: 56+ HP (41-50 kW)
- Output Shaft Type: Round Shaft (1 in. with 1/4 in. key) or Round Shaft (1-1/4 in. with 5/16 in. key)
- Series: Chelsea 272
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
