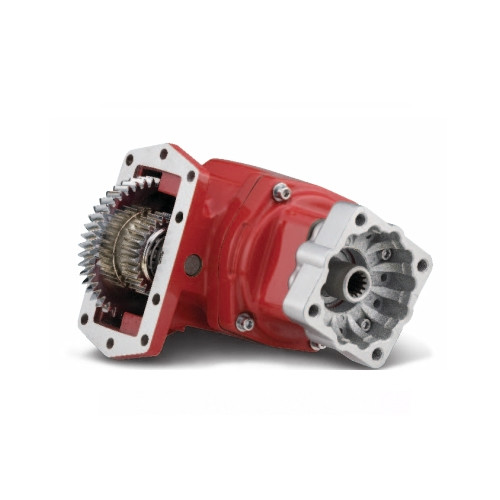

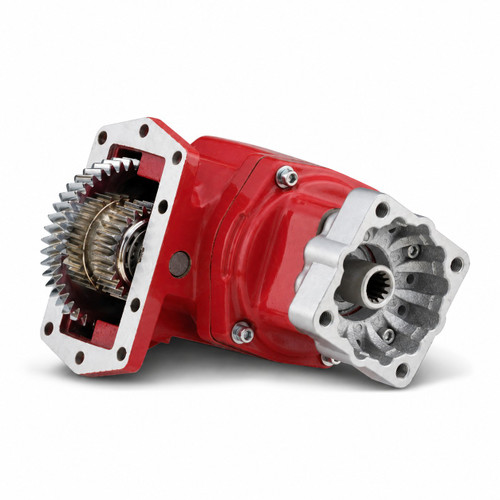

The Chelsea 272XAAJP-G5RB is a 272 Series hot shift power take-off assembly built on a 6-bolt mounting pattern. It features a 1-1/4" round output shaft with a 5/16" key and shifts pneumatically or via PowerShift (pneumatic/hydraulic). The 272 Series carries continuous torque ratings up to 300 lb-ft (407 Nm), with intermittent torque in the 201-300 lb-ft (401-500 Nm) range. Shaft power output is rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. The series supports transmissions from Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, RAM, and other manufacturers. The 272 consolidates several earlier Chelsea medium-duty series into one platform. Call us to confirm proper fit for your application.
Features
6-bolt mounting pattern for broad transmission compatibility
1-1/4" round output shaft with 5/16" key
Pneumatic or PowerShift (pneumatic/hydraulic) shift operation
Continuous torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Shaft power output: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Compatible with Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, and RAM transmissions
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: up to 300 lb-ft (407 Nm) - check application pages for actual torque ratings
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Shift Type: Pneumatic, PowerShift (Pneumatic/Hydraulic)
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 29 HP (21 kW) at 500 RPM; 57 HP (43 kW) at 1,000 RPM
- Transmission Compatibility: Allison, Eaton/Fuller, Ford, Aisin, Volvo/Mack, RAM, and other manufacturers
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
