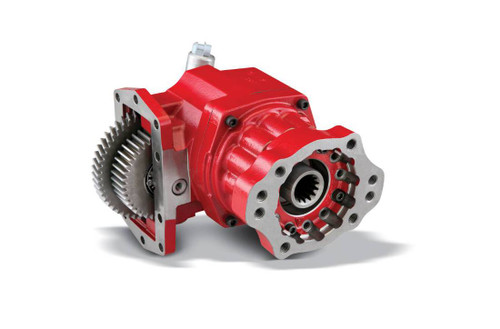

The Chelsea 281 Series Power Take-Off, part number 281GCFJP-E5RK or 281GCFJPE5RK, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. The 281 Series builds on the proven 280 Series platform with a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap to improve clamp load, and an enhanced clutch pack with steel discs 80% thicker than its predecessor. Nine speed ratios cover both low and high ranges. Rotatable cast-iron flanges reduce interference fit issues, and a positive stop for driveline outputs eliminates oil seal damage from coupling contact. The wet spline lubrication option extends shaft life by 7 to 10 times. SmartStart reduces shock load at start-up, and Electronic Overspeed Control (EOC) protects driven equipment. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Hydraulic PowerShift (hot-shift) operation for 10-bolt automatic transmission apertures including Allison and Caterpillar
Ductile iron bearing cap is 117% stronger than gray iron for improved durability
O-ring sealing configuration between housing and bearing cap improves clamp load and resists vibrational effects
Enhanced clutch pack with steel discs 80% thicker than the predecessor 280 Series
Nine speed ratios available, covering both low and high speed ranges
Electronic Overspeed Control (EOC) and SmartStart option reduce shock load and protect driven equipment
Tech Specs
- Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
- Shift Type: PowerShift - Hydraulic (hot-shift)
- Continuous Operation: Yes
- Output Types: SAE B pump flange, SAE C pump flange, ISO 7652 pump flange, driveline
- Lubricant Options: Pressure lube or wet spline
- Speed Ratios: Nine (includes low and high speeds)
- Applications: Fire and rescue, truck cranes, pumper cleaner, refuse
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
