Chelsea PTO Assembly P/N: 281GKFJP-E5RK or 281GKFJPE5RK

281GKFJP-E5RK Chelsea PTO Assembly

Chelsea

Listing Price: $6,474.00
Sale Price: $3,560.70

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GKFJPE5RK
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

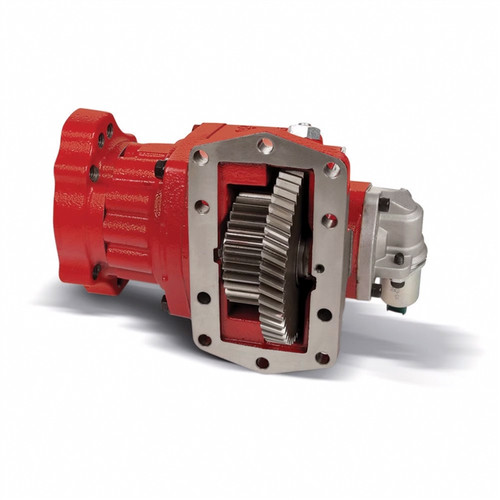

The Chelsea 281 Series Power Take-Off, part number 281GKFJP-E5RK or 281GKFJPE5RK, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, primarily Allison and Caterpillar transmissions. Built as an evolution of the 280 Series, the 281 Series introduces a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap to improve clamp load and resist vibrational damage, and an 80% thicker clutch pack to guard against premature tooth wear. Nine speed ratios cover both low and high-speed applications. Rotatable cast-iron flanges reduce interference fitment problems, and a Positive Stop for driveline outputs eliminates oil seal damage from coupling contact. Call us to confirm proper fit for your transmission application.

Features

10-bolt mounting aperture designed for Allison and Caterpillar automatic transmissions
Hydraulic PowerShift (hot-shift) operation for continuous-duty use
Ductile iron bearing cap rated 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap improves clamp load and reduces vibrational effects
80% thicker steel discs in the clutch pack resist premature tooth wear
Nine speed ratios including low and high speeds; Wet Spline Lubrication option provides 7 to 10 times greater shaft life
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: Hydraulic PowerShift (hot-shift)
  • Continuous Operation: Yes
  • Transmission Compatibility: Allison and Caterpillar automatic transmissions
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Speed Ratios: Nine (including low and high speeds)
  • Lubrication Options: Pressure Lube (P), Wet Spline (W)
  • Bearing Cap Material: Ductile Iron
  • Hose: Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
