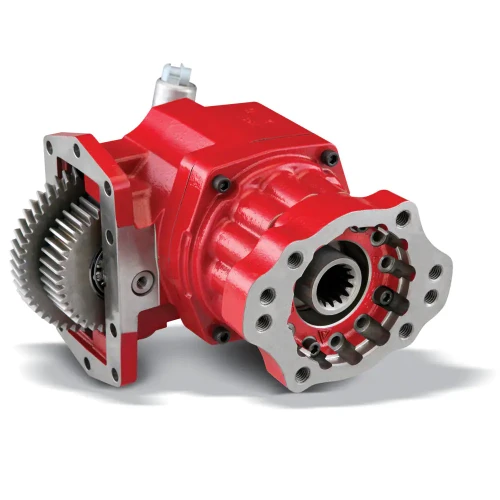

The Chelsea 281GGFJP-B8RY or 281GGFJPB8RY is a Power Takeoff Assembly built around nine speed ratios covering both low and high speed ranges. Ductile iron bearing caps deliver 117% greater strength compared to gray iron, and an O-ring sealing configuration reduces vibrational effects while improving clamp load. Rotatable cast-iron flanges cut interference clearance issues, and driveline outputs include a positive stop that prevents oil seal damage from coupling. The optional wet spline lubrication path extends shaft service life by 7 to 10 times. SmartStart reduces shock load at startup for demanding applications, and the built-in Electronic Overspeed Control (EOC) safeguards driven equipment from overspeed events. A hydraulic hose is included. Call us to confirm proper fit for your application.
Features
Nine speed ratios including dedicated low and high speed selections
Ductile iron bearing caps, 117% stronger than gray iron
O-ring sealing configuration reduces vibrational effects and improves clamp load
Positive stop on driveline outputs prevents oil seal damage from coupling
Wet spline lubrication option extends shaft life 7 to 10 times over standard
Electronic Overspeed Control (EOC) safeguards driven equipment; SmartStart reduces startup shock load
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
