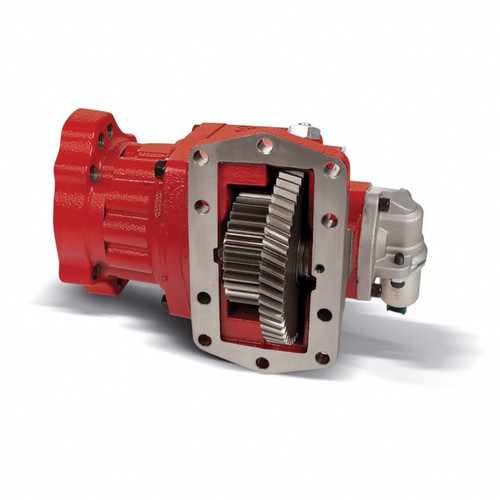

Chelsea PTO Assembly P/N: 281GSFJW-B3RK or 281GSFJWB3RK

281GSFJW-B3RK Chelsea PTO Assembly

Chelsea

Listing Price: $7,010.16
Sale Price: $3,855.59

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GSFJWB3RK
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281GSFJW-B3RK or 281GSFJWB3RK is a 281 Series hydraulically shifted (PowerShift) power take-off built for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar applications. The series carries a 390 lb-ft continuous torque rating and delivers nine speed ratios spanning low and high ranges. Key structural upgrades over the earlier 280 Series include a ductile iron bearing cap rated 117% stronger than gray iron and an 80% thicker clutch pack to resist premature tooth wear. An O-ring sealing configuration between the housing and bearing cap reduces vibrational effects and improves clamp load. Common markets include fire and rescue, truck cranes, pumper/cleaner, and refuse. Call us to confirm proper fit for your specific transmission and application.

Features

10-Bolt mounting aperture compatible with Allison and Caterpillar automatic transmissions
Hydraulic PowerShift (hot shift) operation for engagement under load
Ductile iron bearing cap, 117% stronger than gray iron predecessor
80% thicker steel discs in the clutch pack to resist premature tooth wear
O-ring seal between housing and bearing cap reduces vibrational effects and improves clamp load
Nine speed ratios including low and high speeds; 390 lb-ft continuous torque series rating
Wet Spline Lubrication option extends shaft life 7 to 10 times; SmartStart reduces shock load at engagement
Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic Hot Shift)
  • Transmission Compatibility: Allison and Caterpillar automatic transmissions
  • Continuous Torque (Series Rating): 390 lb-ft (529 Nm)
  • Speed Ratios: Nine, including low and high speeds
  • Lubrication Options: Pressure Lube (P) or Wet Spline (W)
  • Continuous Operation: Yes
  • Electronic Overspeed Control (EOC): Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
