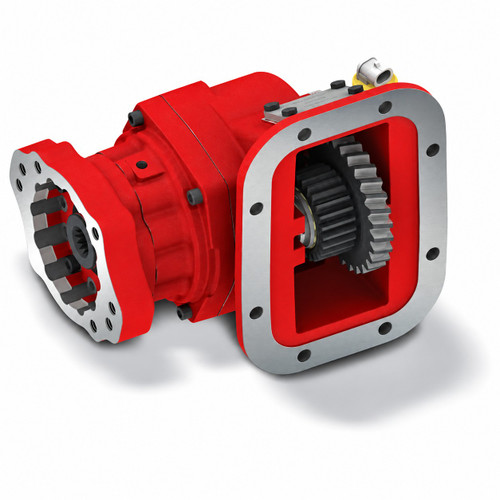

The Chelsea 282XMAJX-A5RK or 282XMAJXA5RK is a medium-duty hot shift Power Take-Off from Chelsea's 282 Series. This series uses an 8-bolt mounting configuration and supports either pneumatic or hydraulic (PowerShift) shift actuation. The 282 Series delivers intermittent torque capability of 201-300 lb-ft (401-500 Nm) and is rated for output power of 56 HP and above. Output shaft options within the series include a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. Common applications for the 282 Series include aerial equipment, construction equipment, towing and recovery, water trucks, and fuel oil delivery. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO
8-bolt mounting configuration
Pneumatic or hydraulic (PowerShift) shift actuation
Intermittent torque rating of 201-300 lb-ft (401-500 Nm)
Output power rated at 56 HP and above
Suitable for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Additional Information
Parts manual and diagrams: Chelsea 282 Series PTO parts list with prices
