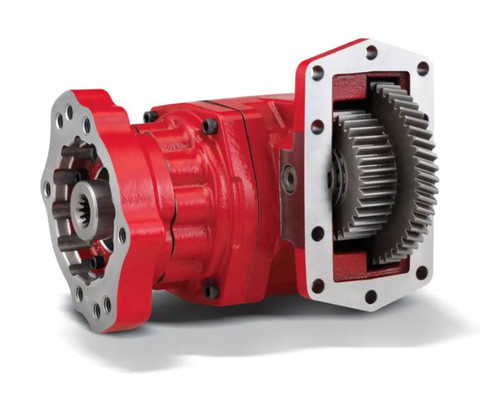

The Chelsea 288 Series Power Take-Off, part number 288GGFJP-M8RY or 288GGFJPM8RY, is a heavy-duty 10-bolt constant mesh PTO built on the 281 Series platform. The cast iron housing pairs with ductile iron bearing caps rated 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing vibration-related wear. The standard output shaft uses a positive-stop design to eliminate oil seal damage from driveline couplings. Nine speed ratios cover both low and high speed applications. Wet Spline lubrication technology provides 7 to 10 times greater pump shaft life by circulating clean oil through the PTO and pump shaft. Rotatable cast-iron flanges reduce clearance and interference issues, and a hydraulic hose is included. Call us to confirm proper fit for your application.
Features
10-Bolt constant mesh mounting on a cast iron housing
Ductile iron bearing caps, 117% stronger than gray iron
O-ring seal between housing and bearing cap reduces vibration effects and improves clamp load
Positive-stop output shaft eliminates oil seal damage from driveline couplings
Nine speed ratios including low and high speeds
Wet Spline Lubrication option extends pump shaft life 7 to 10 times; hydraulic hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft with 1-1/4" Key
- Speed Ratios: Nine ratios including low and high speeds
- Lubrication: Pressure Lube (P) or Wet Spline (W) option
- Series: Chelsea 288 Series (built on 281 Series platform)
- NMFC Code: 125820 - Hydraulic PTOs, Pumps, Motors, etc.
Additional Information
Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
