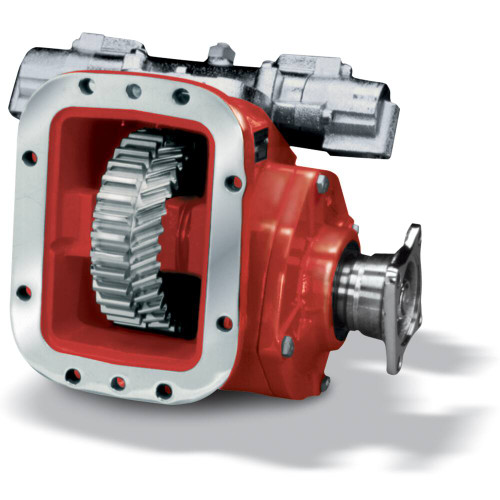

The Chelsea 880XMDAX-A5AZ or 880XMDAXA5AZ is an 8-bolt, heavy-duty power take-off assembly from the Chelsea 880 Series, built for high-torque, high-cycle applications including fire trucks, oil field service, bulk haulers, aerial equipment, and large recovery trucks. It uses a lever mechanical shift and features a 1-1/2"-10T spline output shaft with a 1410 companion flange. Intermittent torque rating for the 880 Series reaches 500 lb-ft (678 Nm), confirm the actual rating for your specific application. Shaft power output is 48 HP at 500 RPM and 95 HP at 1000 RPM. Compatible with Volvo/Mack, Allison, Eaton/Fuller, and other 8-bolt aperture manual transmissions. Call us to confirm proper fit for your application.
Features
8-Bolt mounting configuration fits most manual transmissions with an 8-bolt aperture, including Volvo/Mack, Allison, and Eaton/Fuller
Lever mechanical shift with optional air control shift available
1-1/2"-10T spline output shaft with 1410 series companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm) for the 880 Series (verify actual rating for your application)
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Dual-pump output allows mounting a hydraulic pump on each end of the PTO
Removable shift cover simplifies backlash adjustment during installation
Rugged cast iron housing
Tech Specs
- INTERMITTENT TORQUE: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- SHIFT TYPE: Lever Mechanical
- MOUNTING TYPE: 8-Bolt
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Companion Flange
- OUTPUT POWER: 56+ HP / 51+ kW
- SHAFT POWER: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW at 500 RPM, 71 kW at 1000 RPM)
- TRANSMISSION COMPATIBILITY: Volvo/Mack, Allison, Eaton/Fuller, Other 8-bolt aperture transmissions
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
