Eaton Fuller FRO-16210B Parts Manual
Complete unit — in stock

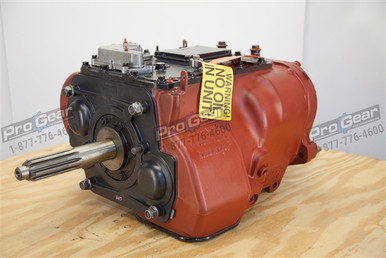

FRO16210B-IC Eaton Fuller Transmission
$3,450.00$4,350.00
+ $3,000.00 refundable core deposit
Rebuilding this unit? Every part below is priced and ready to order. If the FRO-16210B is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Air Module & Range Cyl.
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8-0804M | Capscrew | 4 | M8 X 1.25 X 30MM | $2.09 | Add to Cart |
| 2 | K-3245 | Air Module Assy | 1 | Replaces A-6342. | $536.98 | Add to Cart |
| 3 | 14197 | O-ring | 2 | $4.68 | Add to Cart | |
| 4 | 15569 | O-ring | 1 | $5.45 | Add to Cart | |
| 5 | 20423 | O-ring | 1 | $12.75 | Add to Cart | |
| 6 | K-3129 | Bar & Ring Kit | 1 | Replaces 4302918. | $62.30 | Add to Cart |
| 7 | K-3128 | Piston Kit | 1 | Replaces 4302177. | $24.70 | Add to Cart |
| 8 | 4302080 | Snap Ring | 1 | $1.87 | Add to Cart | |
| 9 | 5568507 | O-ring | 1 | $5.89 | Add to Cart | |
| 10 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 11 | 14197 | O-ring | 1 | $4.68 | Add to Cart | |
| 12 | 4302140 | Cover | 1 | $53.63 | Add to Cart | |
| 13 | X-8-0804M | Capscrew | 2 | M8 X 1.25 X 30MM | $2.09 | Add to Cart |

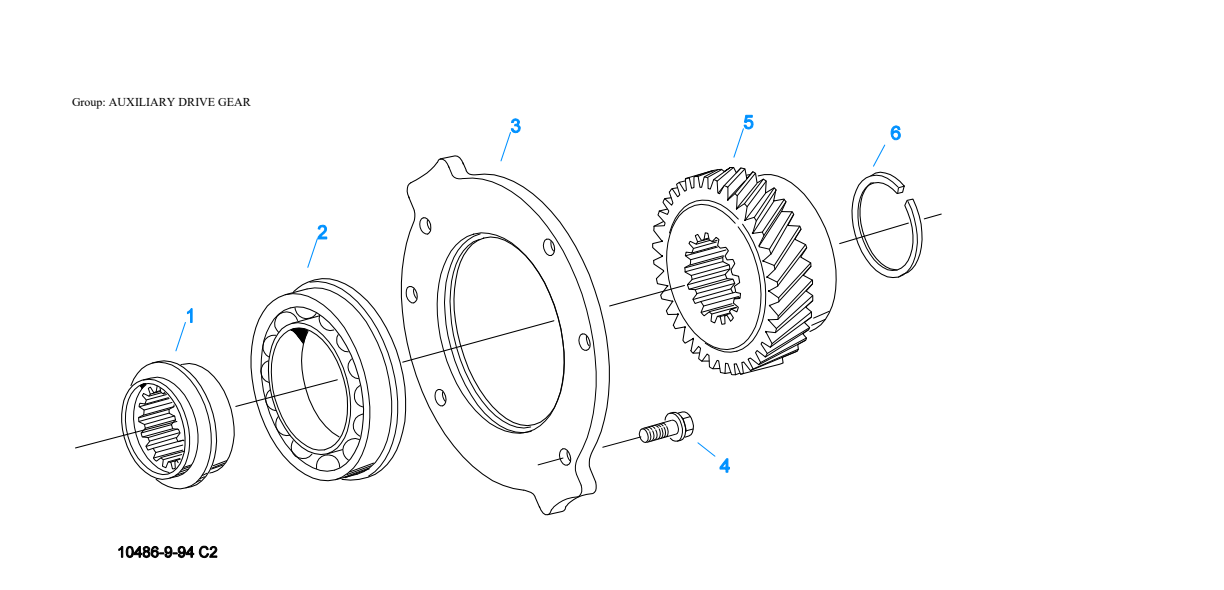

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302313 | Bearing Spacer | 1 | $80.97 | Add to Cart | |
| 2 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 3 | 4302257 | Retainer | 1 | $53.79 | Add to Cart | |
| 4 | X-8-1003M | Capscrew | 6 | M10 X 1.5 X 25MM | $1.99 | Add to Cart |
| 5 | 4302435 | Auxiliary Drive Gear | 1 | Replaces 4302434. | $213.16 | Add to Cart |
| 6 | 17399 | Snap Ring | 1 | $3.82 | Add to Cart |
Case (Aux)
Item 1Item 17Item 11Item 16Item 8Item 10Item 6Item 27Item 7Item 13Item 15Item 18Item 20Item 25Item 9Item 5Item 24Item 2Item 22Item 19Item 12Item 3Item 12Item 26Item 2Item 23Item 21Item 4Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart |
| 2 | 5568511 | O-ring | 1 | $3.05 | Add to Cart | |
| 3 | K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart |
| 4 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 5 | S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart |
| 6 | 1009551 | Gasket - Red Edge Molded | 1 | RED EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS .043 - .051 - NOT INTERCHANGEABLE WITH ANY OTHER GASKET | $6.27 | Add to Cart |
| 6 | 4302247 | Gasket - Purple Edge Molded | 1 | NON EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS - .013 | $6.40 | Add to Cart |
| 7 | X-8-1008M | Hex Screw | 4 | Replaces X8C1024M. M10 X 80.0MM | $10.94 | Add to Cart |
| 7 | X-8-1009M | Capscrew | 6 | M10 X 1.5 X 50MM USE W/4303872 AND 4302332 RBC | $2.16 | Add to Cart |
| 7 | X-8-1009M | Capscrew | 2 | M10 X 1.5 X 50MM | $2.16 | Add to Cart |
| 8 | X-8-1003M | Capscrew | 8 | M10 X 1.5 X 25MM | $1.99 | Add to Cart |
| 9 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 10 | 4305978 | Gasket | 2 | Replaces 4302246. | $7.06 | Superseded by 4309436Add to Cart |
| 11 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 12 | K-3517 | Lifting Eye Kit | 2 | Replaces A-6409. | $5.29 | Add to Cart |
| 13 | K-3239 | Rear Hsg Repl Kit | 1 | Replaces 4302274. | $407.45 | Add to Cart |
| 13 | S-2691 | Rear Housing Assy | 1 | Replaces 4303750. | $596.18 | Add to Cart |
| 14 | 4302248 | Gasket | 1 | $4.48 | Add to Cart | |
| 15 | X-8C-1036M | Capscrew | 17 | Replaces X-8-1005M. M10 X 1.5 X 38MM | $2.27 | Add to Cart |
| 15 | X-8C-1037M | Capscrew | 2 | Replaces X-8-1006M. M10 X 1.5 X 49MM | $2.44 | Add to Cart |
| 16 | 15569 | O-ring | 1 | $5.45 | Add to Cart | |
| 17 | A-6715 | Range Bar Cover Assy | 1 | Replaces A-6472. | — | No longer available — call for replacement |
| 18 | X-8-0802M | Screw | 2 | M8 X 1.25 X 20MM | $3.89 | Add to Cart |
| 19 | 86104 | Speedo Drive Gear | 1 | $89.10 | Add to Cart | |
| 20 | S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart |
| 21 | K-2262 | Oil Seal W/slinger | 1 | Replaces 1910920807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 22 | X-8-1007M | Screw | 6 | M10 X 1.5 X 75MM | $25.20 | Add to Cart |
| 23 | K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart |
| 23 | K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | $56.53 | Superseded by K4151Add to Cart |
| 24 | 4304653 | Shield | 1 | $7.90 | Add to Cart | |
| 25 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 26 | S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart |
| 26 | S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
| 27 | K-3507 | Plug Retaining Kit | 1 | Replaces 4303832, 4305218, 4305219. | $52.54 | Add to Cart |
Case (Front)
Item 4Item 1Item 7Item 9Item 17Item 24Item 2Item 29Item 21Item 14Item 5Item 18Item 10Item 27Item 19Item 26Item 8Item 37Item 15Item 35Item 28Item 38Item 23Item 33Item 22Item 32Item 36Item 6Item 34Item 12Item 3Item 20Item 19Item 30Item 31Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2347 | Case Assy | 1 | Replaces 4302071. W/INTEGRAL OIL PUMP | $2,684.19 | Add to Cart |
| 1 | S-2706 | Case Assy | 1 | Replaces 4303707. OPTIONAL - FOR USE W/INTEGRAL OIL COOLER | $2,268.88 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-1200M | Capscrew | 8 | M12 X 1.75 X 20MM | $3.38 | Add to Cart |
| 7 | 4306584 | Gasket | 1 | Replaces 4302314. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-5992 | Clutch Housing Assy | 1 | Replaces 4301103. #1 PULL ALUM. | $698.49 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 11 | 5577509 | Stud | 6 | Replaces 5577505, 5577503. M16 X 60MM | $3.23 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1606M | Self Locking Hex Nut | 6 | Replaces X11601M, X11603M, X-1-1605M. M16 X 1.5 | $3.16 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8-1004M | Capscrew | 6 | M10 X 1.5 X 30MM | $3.16 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | UPPER | $5.26 | Add to Cart |
| 19 | 8677 | Bushing | 2 | LOWER | $19.09 | Add to Cart |
| 20 | X-8C-1209M | Screw, Hex Hd/washer Assy | 4 | Replaces X-8, C-1204M. M12X1.75, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $5.52 | Add to Cart |
| 20 | X-8C-1210M | Screw, Hex Hd/washer Assy | 2 | Replaces X-8, C-1203M. M12X1.75, FOR IRON HOUSING | $6.37 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 22 | X-8-1002M | Capscrew | 6 | M10 X 1.5 X 20MM | $2.02 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 26 | 5575503 | Dowel Pin | 2 | $4.14 | Add to Cart | |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1606M | Self Locking Hex Nut | 2 | Replaces X11601M, X11603M, X-1-1605M. M16 X 1.5 | $3.16 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | $1.50 | Add to Cart | |
| 31 | 5577504 | Stud | 2 | M16 X 2 X 52MM | $3.05 | Add to Cart |
| 32 | K-3517 | Lifting Eye Kit | 2 | Replaces A-6409. | $5.29 | Add to Cart |
| 33 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 34 | 4302864 | Gasket | 1 | $3.29 | Add to Cart | |
| 35 | 4302854 | Cover | 1 | — | Call for availability | |
| 36 | X-8-0603M | Capscrew | 5 | M6 X 1 X 20MM | $3.11 | Add to Cart |
| 37 | X-8-1003M | Capscrew | 2 | M10 X 1.5 X 25MM | $1.99 | Add to Cart |
| 38 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6434 | Welded Countershaft Assy | 2 | Replaces A-6433, A-6552. D/G 23160 - C/S 4302412 | $291.97 | Add to Cart |
| 3 | 21342 | Spacer | 2 | Replaces 22903. | $8.55 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302082 | Snap Ring | 2 | $1.99 | Add to Cart | |
| 2 | 4304080 | Bearing | 4 | Replaces 4302240. | $43.49 | Add to Cart |
| 3 | 4303877 | Countershaft | 2 | Replaces 4303876. STANDARD | $325.15 | Add to Cart |
| 3 | 4303878 | Countershaft | 1 | LOWER W/PUMP | $352.94 | Add to Cart |
| 3 | 4303950 | Countershaft | 2 | LOWER & UPPER W/THRU SHAFT PTO | $686.40 | Add to Cart |
| 3 | K-3270 | Cntrshft Kit-w/rev & 1ST | 1 | Replaces 4303759, 4304553, 4303951. LOWER W/PUMP & W/PTO | $460.48 | Add to Cart |
| 4 | 4302317 | Key | 2 | $9.75 | Add to Cart | |
| 5 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 6 | 4304024 | Bearing Retainer | 2 | $21.25 | Add to Cart | |
| 7 | 4302420 | 2ND Gear-cntrshft | 2 | Replaces 4302404, 4302530. | $125.52 | Add to Cart |
| 8 | 4304491 | 3RD Gear-cntrshft | 2 | Replaces 4302402. | $155.53 | Add to Cart |
| 9 | 4306033 | Od Gear-cntrshft | 2 | Replaces 4302414, 4304490, 4302271. | $175.15 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 4305879 | Drive Gear-cntrshft | 2 | Replaces 4303009, 4303182, 4303875. | $277.22 | Add to Cart |
| 12 | 4302081 | Snap Ring | 2 | $1.87 | Add to Cart | |
| 13 | 4302792 | Pump Drive Gear | 1 | FOR MODELS WITH PUMP | $36.58 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 4301417 | Bearing | 1 | Replaces 81504. | $64.75 | Superseded by 4308451Add to Cart |
| 5 | 4302486 | Snap Ring | 1 | USE W/4304004 MAIN DRIVE GEAR | $2.24 | Add to Cart |
| 5 | 4303362 | Snap Ring | 1 | USE W/4304639 MAIN DRIVE GEAR | $3.13 | Add to Cart |
| 6 | 4303181 | Nla-order K-3419 | 1 | — | Call for availability | |
| 6 | 4303874 | Nla-order K-3419 | 1 | — | Call for availability | |
| 6 | 4304004 | Nla-order K-3419 | 1 | Replaces 4304002, 4304003. | $526.12 | Superseded by K3419Add to Cart |
| 6 | 4305880 | Main Drive Gear | 1 | Replaces 43046374304638, 4304639. USE W/4303362 SNAP RING AND S-2822 INPUT SHAFT | $192.41 | Add to Cart |
| 8 | K-3602 | Clutch Installtion Kit | 1 | Replaces 4302315, S-2988. FOR 4302315 INPUT SHAFT REPLACEMENT | $433.27 | Add to Cart |
| 8 | S-2395 | Nla-order K-3419 | 1 | Replaces 4302315. | — | Call for availability |
| 8 | S-2822 | Input Shaft Assy | 1 | Replaces 4304633. 2" PULL - USE W/4304639 MAIN DRIVE GEAR | $134.43 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | K-3600 | Clutch Installtion Kit | 1 | FOR CURRENT DESIGN INPUT SHAFT (S-2822) | $289.25 | Add to Cart |
| 10 | K-3602 | Clutch Installtion Kit | 1 | Replaces 4302315, S-2988. FOR ORIGINAL DESIGN INPUT SHAFT (4302315) | $433.27 | Add to Cart |
| 10 | K-4124 | Clutch Installation Kit (fr), Hydraulic Release | 1 | STANDARD FR INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $386.58 | Add to Cart |
Integral Oil Cooler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3246 | Integral Oil Cooler Kit | 1 | $260.35 | Add to Cart | |
| 2 | S-2707 | Oil Cooler Cover Assy | 1 | Replaces 4303709. OPTIONAL - 1/2-14 NPTF | $535.21 | Add to Cart |
| 2 | S-2738 | Oil Cooler Cover Assy | 1 | Replaces 4303993. STANDARD - 3/4-16 UNF 2B | $342.94 | Add to Cart |
| 3 | X-8-0603M | Capscrew | 2 | M6 X 1 X 20MM | $3.11 | Add to Cart |
| 4 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 5 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 6 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 7 | 4303742 | Gasket | 1 | $45.92 | Add to Cart | |
| 9 | X-8-1004M | Capscrew | 12 | M10 X 1.5 X 30MM | $3.16 | Add to Cart |
Integral Oil Pump
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6473 | Integral Oil Pump | 1 | COMPONENT PARTS NOT SOLD SEPARATELY | $245.26 | Add to Cart |
Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 1910920807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2910 | Cover & Screw Kit | 1 | Replaces 4302854. | $14.69 | Add to Cart | |
| K-2917 | Small Parts Kit | 1 | $381.88 | Add to Cart | ||
| K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart | |
| K-2921 | Gasket Kit | 1 | $53.26 | Add to Cart | ||
| K-2923 | Range Piston Kit | 1 | $45.62 | Add to Cart | ||
| K-2924 | Basic Rebuild Kit | 1 | ELECTRONIC SPEEDO FOR OVERHAUL KIT - ORDER THE REBUILD KIT AND THE REQUIRED INPUT SHAFT | $642.84 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart | |
| K-3128 | Piston Kit | 1 | Replaces 4302177. | $24.70 | Add to Cart | |
| K-3129 | Bar & Ring Kit | 1 | Replaces 4302918. | $62.30 | Add to Cart | |
| K-3130 | Shift Yoke Kit | 1 | Replaces 4302179. | $113.97 | Add to Cart | |
| K-3131 | Yoke Bar Kit | 1 | Replaces 4302780, 4303831. | $139.47 | Add to Cart | |
| K-3132 | Basic Rebuild Kit | 1 | MECHANICAL SPEEDO FOR OVERHAUL KIT - ORDER THE REBUILD KIT AND THE REQUIRED INPUT SHAFT ASSY | $704.98 | Add to Cart | |
| K-3150 | Idler Shaft Kit | 1 | Replaces 4302261, 4303503. | $28.03 | Add to Cart | |
| K-3239 | Rear Hsg Repl Kit | 1 | Replaces 4302274. | $407.45 | Add to Cart | |
| K-3240 | Rear Hsg Repl Kit | 1 | Replaces 4302534. THRU-SHAFT PTO | $317.49 | Add to Cart | |
| K-3245 | Air Module Assy | 1 | Replaces A-6342. | $536.98 | Add to Cart | |
| K-3246 | Integral Oil Cooler Kit | 1 | $260.35 | Add to Cart | ||
| K-3270 | Cntrshft Kit-w/rev & 1ST | 1 | Replaces 4303759, 4304553, 4303951. LOWER W/PUMP & W/PTO | $460.48 | Add to Cart | |
| K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3419 | Gear Update Kit | 1 | FOR UNITS BUILT PRIOR TO 3-1-99 | $526.12 | Add to Cart | |
| K-3427 | Housing Update Kit (fro) | 1 | Replaces 4302150, S-2394. HOUSING ONLY | $623.44 | Superseded by K4175Add to Cart | |
| K-3428 | Hsg Update Kit (frof) | 1 | Replaces 4302643, 4304436, S-2393. HOUSING ONLY | $608.77 | Superseded by K4176Add to Cart | |
| K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart | |
| K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | $56.53 | Superseded by K4151Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3475 | Oil Cooler Kit | 1 | Replaces K-3212. FOR FR SERIES (C2000) MODELS REQUIRING METRIC FASTENERS, REAR MOUNTING AUX C/S PUMP | $1,183.71 | Add to Cart | |
| K-3476 | Pump Installation Kit | 1 | Replaces K-3213. AIR TO OIL COOLER INSTALATION KIT FOR FR SERIES (C2000) MODELS REQUIRING METRIC FASTENERS, REAR MOUNTED AUX C/S PUMP | $1,821.88 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3495 | Synchronizer Replacement Kit | 1 | Replaces K-2922. SLIDING CLUTCH INCLUDED IN KIT | $465.37 | Add to Cart | |
| K-3507 | Plug Retaining Kit | 1 | Replaces 4303832, 4305218, 4305219. | $52.54 | Add to Cart | |
| K-3517 | Lifting Eye Kit | 1 | Replaces A-6409. | $5.29 | Add to Cart | |
| K-3600 | Clutch Installtion Kit | 1 | FOR CURRENT DESIGN INPUT SHAFT (S-2822) | $289.25 | Add to Cart | |
| K-3602 | Clutch Installtion Kit | 1 | Replaces 4302315, S-2988. FOR ORIGINAL DESIGN INPUT SHAFT (4302315) | $433.27 | Add to Cart | |
| K-3740 | External Cooler Kit | 1 | FOR USE ON UNITS WITH A HYDRAULIC CLUTCH RELEASE | $618.40 | Add to Cart | |
| K-3883 | Conical Washer Fastener Kit | 1 | TO CONVERT FROM LOCKWASHER TO CONICAL WASHER | $68.99 | Add to Cart | |
| K-4054 | Fr Clutch Housing Service Kit | 1 | $62.09 | Add to Cart | ||
| K-4124 | Clutch Installation Kit (fr), Hydraulic Release | 1 | STANDARD FR INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $386.58 | Add to Cart | |
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2347 | Case Assy | 1 | Replaces 4302071. W/INTEGRAL OIL PUMP | $2,684.19 | Add to Cart | |
| S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart | |
| S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart | |
| S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2543 | Roadranger Valve Assy | 1 | Replaces A-5043. RT - W/SHIFT DIAGRAM MEDALLION | $111.11 | Add to Cart | |
| S-2691 | Rear Housing Assy | 1 | Replaces 4303750. | $596.18 | Add to Cart | |
| S-2692 | Rear Housing Assy | 1 | Replaces 4303778. THRU-SHAFT PTO | $320.53 | Add to Cart | |
| S-2706 | Case Assy | 1 | Replaces 4303707. | $2,268.88 | Add to Cart | |
| S-2707 | Oil Cooler Cover Assy | 1 | Replaces 4303709. OPTIONAL - 1/2-14 NPTF | $535.21 | Add to Cart | |
| S-2738 | Oil Cooler Cover Assy | 1 | Replaces 4303993. STANDARD - 3/4-16 UNF 2B | $342.94 | Add to Cart | |
| S-2747 | Range Section Assy | 1 | $2,536.13 | Add to Cart | ||
| S-2747R | Reman Range Section Assy | 1 | $3,201.83 | Add to Cart | ||
| S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart | |
| S-2822 | Input Shaft Assy | 1 | Replaces 4304633. 2" PULL | $134.43 | Add to Cart | |
| S-2842 | Shift Bar Housing (fro) | 1 | Replaces 43044354305081. HOUSING ONLY | $411.99 | Add to Cart | |
| S-2843 | Shift Bar Housing (frof) | 1 | Replaces 43044364305082. HOUSING ONLY | $390.89 | Add to Cart | |
| S-2844 | Shift Bar Hsg Assy (fro) | 1 | Replaces 4302150, 4304435, 4305081, S-2392. COMPLETE - INCLUDES RANGE CYLINDER ASSY | $1,472.77 | Add to Cart | |
| S-2845 | Shift Bar Hsg Assy (fro) | 1 | Replaces 4302150, 4304435, 4305081, S-2695. COMPLETE - INCLUDES RANGE CYLINDER ASSY AND OPTIONAL DETENT SPRING DESIGN DETENT SPRING. IT IS USED TO INCREASE SHIFTER DETENT FORCE. | $1,709.73 | Add to Cart | |
| S-2846 | Shift Bar Hsg Asy (frof) | 1 | Replaces 4302643, 4304436, 4305082, S-2391. COMPLETE - INCLUDES RANGE CYLINDER ASSY | $1,730.97 | Add to Cart | |
| S-2847 | Shift Bar Hsg Asy (frof) | 1 | Replaces 4302643, 4304436, 4305082, S-2694. COMPLETE - INCLUDES RANGE CYLINDER ASSY AND OPTIONAL DETENT SPRING DESIGN DETENT SPRING. IT IS USED TO INCREASE SHIFTER DETENT FORCE. | $1,605.05 | Add to Cart | |
| S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
Levers/Housings
Item 17Item 14Item 7Item 24Item 8Item 15Item 8Item 16Item 13Item 8Item 6Item 3Item 2Item 1Item 2Item 33Item 23Item 3Item 3Item 21Item 22Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-1036M | Capscrew | 4 | Replaces X-8-1005M. M10 X 1.5 X 38MM | $2.27 | Add to Cart |
| 6 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $369.73 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |
Mainshaft & Synchro(Aux)
Item 7Item 1Item 7Item 10Item 15Item 9Item 6Item 5Item 9Item 16Item 4Item 10Item 11Item 2Item 9Item 12Item 13Item 9Item 14Item 8Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 4300924 | Sliding Clutch | 1 | $215.66 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 4302276 | Auxiliary Mainshaft | 1 | $202.34 | Add to Cart | |
| 6 | 4302243 | Washer | 1 | $15.10 | Add to Cart | |
| 7 | K-3131 | Yoke Bar Kit | 1 | Replaces 4302780, 4303831. | $139.47 | Add to Cart |
| 8 | 5575506 | Pin | 1 | NOT REQUIRED FOR 4303831 YOKE BAR | — | Call for availability |
| 9 | 4302080 | Snap Ring | 2 | $1.87 | Add to Cart | |
| 10 | K-3130 | Shift Yoke Kit | 1 | Replaces 4302179. | $113.97 | Add to Cart |
| 11 | 5568519 | No Longer Available | 1 | NOT REQUIRED FOR 4303831 YOKE BAR | — | Call for availability |
| 12 | 4302413 | Reduction Gear | 1 | Replaces 4302409. | $239.93 | Add to Cart |
| 13 | 22898 | Spacer | 1 | $71.12 | Add to Cart | |
| 14 | 5556503-BOX | Bearing | 1 | Replaces 5556503. | $165.74 | Add to Cart |
| 15 | K-4122 | Hex Flange Crimped Nut Kit | 1 | Replaces 4302321, 4306520. | $34.01 | Add to Cart |
| 16 | 5505543 | YOKE-1710 Half Round | 1 | $353.96 | Add to Cart | |
| 16 | 5505544 | YOKE-1710 Full Round | 1 | $276.39 | Add to Cart | |
| 16 | 5505545 | YOKE-1760 Half Round | 1 | $305.76 | Add to Cart | |
| 16 | 5505546 | YOKE-1760 Full Round | 1 | $273.87 | Add to Cart | |
| 16 | 5505547 | YOKE-1810 Half Round | 1 | $274.84 | Add to Cart | |
| 16 | 5505548 | YOKE-1810 Full Round | 1 | $273.87 | Add to Cart |
Mainshaft Assy
Item 7Item 7Item 2Item 1Item 9Item 11Item 8Item 5Item 8Item 8Item 6Item 8Item 8Item 8Item 3Item 4Item 13Item 12Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304617 | Mainshaft | 1 | Replaces 4302318. | $130.14 | Add to Cart |
| 2 | 4302316 | Key | 1 | $5.22 | Add to Cart | |
| 3 | 4302184 | Snap Ring | 1 | $5.61 | Add to Cart | |
| 4 | 4302312 | Spacer | 1 | $10.18 | Add to Cart | |
| 5 | 4302259 | Washer | 1 | $23.66 | Add to Cart | |
| 6 | 4303033 | Reverse Gear- Mainshaft | 1 | Replaces 4303116. | $147.91 | Add to Cart |
| 7 | 4302265 | Sliding Clutch | 2 | $59.96 | Superseded by 4306650Add to Cart | |
| 8 | 4302258 | Washer | 6 | $18.53 | Add to Cart | |
| 9 | 4303880 | 1ST Gear-mainshaft | 1 | Replaces 4303879. | $138.19 | Add to Cart |
| 10 | 4302421 | 2ND Gear-mainshaft | 1 | Replaces 4302405. | $139.72 | Add to Cart |
| 11 | 4302529 | 3RD Gear-mainshaft | 1 | Replaces 4302403. | $168.98 | Add to Cart |
| 12 | 4304007 | Od Gear-mainshaft | 1 | Replaces 43040054304006. | $201.23 | Add to Cart |
| 13 | 4302309 | Nla-order K-3419 For Units Built Prior To 3- 1-99 | 1 | — | Call for availability | |
| 13 | 4304014 | Sliding Clutch | 1 | $79.93 | Superseded by 4306649Add to Cart |

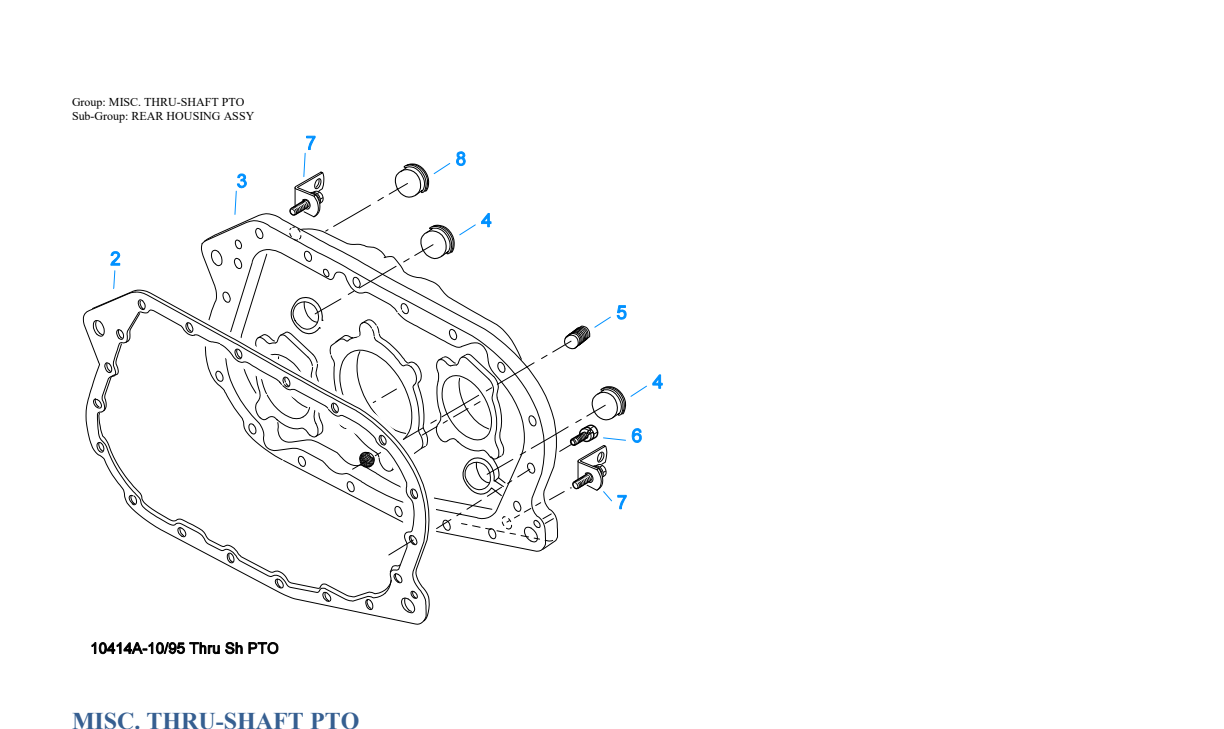

Misc. Thru-Shaft Pto
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 4302248 | Gasket | 1 | $4.48 | Add to Cart | |
| 3 | K-3240 | Rear Hsg Repl Kit | 1 | Replaces 4302534. | $317.49 | Add to Cart |
| 3 | S-2692 | Rear Housing Assy | 1 | Replaces 4303778. | $320.53 | Add to Cart |
| 4 | 21073 | Expansion Plug | 2 | $29.98 | Add to Cart | |
| 6 | X-8-1028M | Screw | 6 | Replaces X8L1021M. 10MM X 1.5 X 12MM | $5.46 | Add to Cart |
| 6 | X-8L-1021M | Capscrew & Washer | 6 | M10 X 1.5 | — | Call for availability |
| 7 | K-3517 | Lifting Eye Kit | 2 | Replaces A-6409. | $5.29 | Add to Cart |
| 8 | K-3507 | Plug Retaining Kit | 1 | Replaces 4303832, 4305218, 4305219. | $52.54 | Add to Cart |
| 9 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 10 | X-8-1003M | Capscrew | 2 | M10 X 1.5 X 25MM | $1.99 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20400 | Shift Diagram Label | 1 | Replaces 19301. | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Cooler
Item 7Item 1Item 7Item 7Item 2Item 4Item 2Item 13Item 11Item 11Item 6Item 6Item 7Item 6Item 12Item 6Item 3Item 9Item 13Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |
Reverse Idler
Item 7Item 7Item 6Item 12Item 2Item 11Item 4Item 6Item 8Item 9Item 3Item 3Item 8Item 2Item 3Item 6Item 10Item 5Item 4Item 1Item 10Item 5Item 5Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3150 | Idler Shaft Kit | 2 | Replaces 4302261, 4303503. | $28.03 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302241 | Washer | 2 | $7.71 | Add to Cart | |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 4303117 | Reverse Idler Gear | 2 | $106.14 | Add to Cart | |
| 6 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 7 | K-3150 | Idler Shaft Kit | 2 | Replaces 4302261, 4303503. | $28.03 | Add to Cart |
| 8 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 9 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 10 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | X-8-1600M | Capscrew | 2 | M16 X 2 X 30MM | $9.50 | Add to Cart |
| 12 | 4305512 | Reverse Idler Shaft | 2 | $18.81 | Add to Cart |
Roadranger Valve
Item 4Item 7Item 7Item 7Item 7Item 6Item 2Item 5Item 12Item 13Item 11Item 2Item 2Item 2Item 2Item 1Item 2Item 3Item 2Item 5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586106 | Shift Diagram Medallion | 1 | FR/FRF/FRO/FROF | $28.59 | Add to Cart |
| 2 | K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | — | Call for availability |
| 13 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-6909 | Roadranger Valve Assy | 1 | Replaces A-5010, A-5310. STANDARD-W/LOGO | $88.64 | Add to Cart |
| 999 | S-2543 | Roadranger Valve Assy | 1 | Replaces A-5043. FR/FRF/FRO/FROF-W/MEDALLION | $111.11 | Add to Cart |
Shift Bar Housing (Fro)
Item 14Item 17Item 1Item 19Item 4Item 2Item 18Item 6Item 27Item 3Item 39Item 16Item 9Item 34Item 5Item 21Item 10Item 28Item 26Item 23Item 20Item 33Item 38Item 29Item 12Item 30Item 25Item 36Item 22Item 32Item 19Item 11Item 41Item 31Item 24Item 13Item 40Item 37Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3427 | Housing Update Kit (fro) | 1 | Replaces 4302150, S-2394. HOUSING ONLY | $623.44 | Superseded by K4175Add to Cart |
| 1 | S-2842 | Shift Bar Housing (fro) | 1 | Replaces 43044354305081. HOUSING ONLY | $411.99 | Add to Cart |
| 2 | 4302713 | Pin | 1 | AFTER S/N 51109212 | $5.36 | Add to Cart |
| 2 | 4303767 | Pin | 1 | PRIOR TO S/N 51109212 | $59.37 | Add to Cart |
| 3 | 5568504 | O-ring | 1 | TO BE USED WITH SWITCH ONLY | $1.50 | Add to Cart |
| 4 | 4302748 | Reverse Switch | 1 | $26.05 | Add to Cart | |
| 5 | 4302142 | Plug | 1 | M14 X 2 HEX | $4.61 | Add to Cart |
| 6 | 14192 | O-ring | 1 | TO BE USED WITH PLUG ONLY | $2.17 | Add to Cart |
| 7 | 4302156 | Gasket | 1 | $3.90 | Add to Cart | |
| 9 | 4302175 | Oil Trough | 1 | $10.79 | Add to Cart | |
| 10 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 11 | 4304138 | Plunger | 1 | Replaces 4302162. | $8.09 | Add to Cart |
| 12 | 4302134 | Spring | 1 | STANDARD | $11.25 | Add to Cart |
| 13 | 4303135 | Spring | 1 | $7.57 | Add to Cart | |
| 14 | X-8-1013M | Screw | 1 | M10 X 1.5 X 20MM | $1.99 | Add to Cart |
| 15 | 4303038 | Shift Block | 1 | $80.31 | Add to Cart | |
| 16 | 4302168 | Shift Yoke | 1 | REVERSE/1ST | $119.16 | Add to Cart |
| 17 | 4303037 | Shift Shaft | 1 | CAN BE USED WITH EITHER 4305081 OR 4304435 SHIFT BAR HOUSING | $292.46 | Add to Cart |
| 18 | 4304604 | Key | 1 | Replaces 4302158. SHIFT | $79.17 | Add to Cart |
| 19 | 4302159 | Interlock Key | 1 | DETENT | $76.31 | Add to Cart |
| 20 | 4302166 | Shift Yoke | 1 | 2ND/3RD | $100.19 | Add to Cart |
| 21 | 4302174 | Shift Block | 1 | USE W/4302150 HOUSING | $125.02 | Add to Cart |
| 21 | 4304464 | Shift Block | 1 | USE W/4304435 HOUSING | $86.64 | Add to Cart |
| 22 | 4302170 | Shift Yoke | 1 | 4TH/5TH - USE W/4302150 HOUSING | $69.56 | Add to Cart |
| 22 | 4304438 | Shift Yoke | 1 | 4TH/5TH - USE W/4304435 HOUSING | $61.15 | Add to Cart |
| 23 | K-3916 | Shift Bar Replacement Kit | 1 | Replaces 4302155. | $39.42 | Add to Cart |
| 24 | 4302070 | Snap Ring | 1 | $256.36 | Add to Cart | |
| 25 | 4302157 | Actuator | 1 | USE W/4302150 HOUSING | $20.63 | Add to Cart |
| 25 | 4303225 | Actuator | 1 | USE W/4304435 HOUSING | $12.87 | Add to Cart |
| 26 | 4302183 | Snap Ring | 1 | $1.76 | Add to Cart | |
| 27 | 4302172 | Bias Plate | 1 | $11.47 | Add to Cart | |
| 28 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 28 | X-12-603 | Pipe Plug | 1 | 3/8" NPT | $4.40 | Add to Cart |
| 29 | 4302152 | Pin | 1 | USE W/4302150 HOUSING | $20.23 | Add to Cart |
| 29 | K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. USE W/4304435 HOUSING | $6.06 | Add to Cart |
| 30 | 4302857 | Breather | 1 | 3/8" | $16.17 | Add to Cart |
| 30 | 4304602 | Breather | 1 | Replaces 23605. 1/4" | $8.22 | Add to Cart |
| 31 | 4302133 | Bias Plunger | 1 | $9.11 | Add to Cart | |
| 32 | 4302138 | Spring | 1 | OUTER | $7.61 | Add to Cart |
| 33 | 4302139 | Spring | 1 | INNER | $6.07 | Add to Cart |
| 34 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |
| 35 | 4302153 | Pin | 1 | $8.46 | Add to Cart | |
| 36 | 5568510 | O-ring | 1 | USE WITH SWITCH OR PLUG | $3.82 | Add to Cart |
| 37 | 4302749 | Neutral Switch | 1 | $23.23 | Add to Cart | |
| 38 | 4302143 | Plug | 1 | M16 X 1.5 HEX | $5.76 | Add to Cart |
| 39 | X-8C-1036M | Capscrew | 16 | Replaces X-8-1005M. M10 X 1.5 X 38MM | $2.27 | Add to Cart |
| 40 | X-12-603 | Pipe Plug | 1 | 3/8" NPT | $4.40 | Add to Cart |
| 41 | 4305078 | Shift Shaft | 1 | CAN ONLY BE USED WITH 4305081 SHIFT BAR HOUSING | $224.55 | Superseded by 4308006Add to Cart |
| 999 | S-2844 | Shift Bar Hsg Assy (fro) | 1 | Replaces 4302150, 4304435, 4305081, S-2392. COMPLETE - INCLUDES RANGE CYLINDER ASSY | $1,472.77 | Add to Cart |
| 999 | S-2845 | Shift Bar Hsg Assy (fro) | 1 | Replaces 4302150, 4304435, 4305081, S-2695. COMPLETE - INCLUDES RANGE CYLINDER ASSY AND OPTIONAL DETENT SPRING DESIGN DETENT SPRING. IT IS USED TO INCREASE SHIFTER DETENT FORCE. | $1,709.73 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller FRO-16210B — every part in the manual, matched to our live inventory. We stock 370 of the 396 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Air Module & Range Cyl. Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Input Shaft & Drive Gear Integral Oil Cooler Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Misc. Thru-Shaft Pto Miscellaneous Oil Cooler Reverse Idler Roadranger Valve Shift Bar Housing (Fro)
No parts match that search — try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the FRO-16210B transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | FRO-16210B |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FRO-16210B
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
