Eaton Fuller RTLO-17610B Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTLO-17610B is past saving, we also stock reman and new Eaton Fuller 10 speed transmissions, ready to ship.

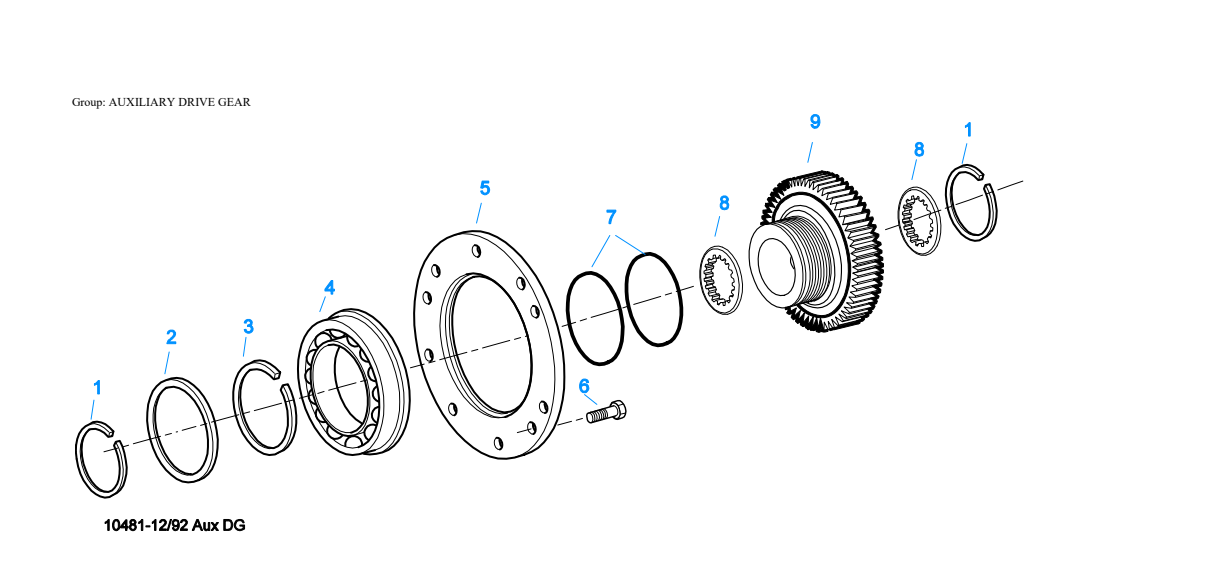

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 8 | 21599 | Washer | 2 | $16.47 | Add to Cart | |
| 9 | K-2640 | Repl Kit-drive Gear | 1 | Replaces 4301397, 4301520. | $370.33 | Add to Cart |
Case (Aux)
Item 7Item 17Item 14Item 1Item 9Item 8Item 5Item 5Item 5Item 4Item 18Item 5Item 19Item 10Item 15Item 13Item 16Item 3Item 2Item 22Item 21Item 6Item 23Item 20Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-611 | Capscrew | 5 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 2 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 3 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 5 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-602 | Capscrew | 8 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 13 | K-2430 | Shim Kit | 1 | Replaces 21452. | $78.97 | Add to Cart |
| 14 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 14 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | 4303592 | Rear Housing | 1 | $395.64 | Superseded by S3124Add to Cart | |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | X-8-611 | Capscrew | 1 | 3/8"-16X3-1/4" | $6.93 | Add to Cart |
| 18 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 19 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | |
| 22 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 23 | 4305978 | Gasket | 2 | Replaces 4302246. | $7.06 | Superseded by 4309436Add to Cart |
Case (Front)
Item 1Item 1Item 7Item 7Item 4Item 37Item 10Item 11Item 16Item 6Item 3Item 14Item 22Item 19Item 27Item 8Item 2Item 9Item 12Item 28Item 39Item 15Item 19Item 38Item 24Item 36Item 29Item 5Item 31Item 18Item 23Item 3Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2062 | Case Assy | 1 | Replaces 4301790. FOR USE W/INTEGRAL PUMP | $2,477.94 | Add to Cart |
| 2 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-5992 | Clutch Housing Assy | 1 | Replaces 4301103. #1 PULL ALUM.(SPECIAL-LIGHTER WEIGHT) | $698.49 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |

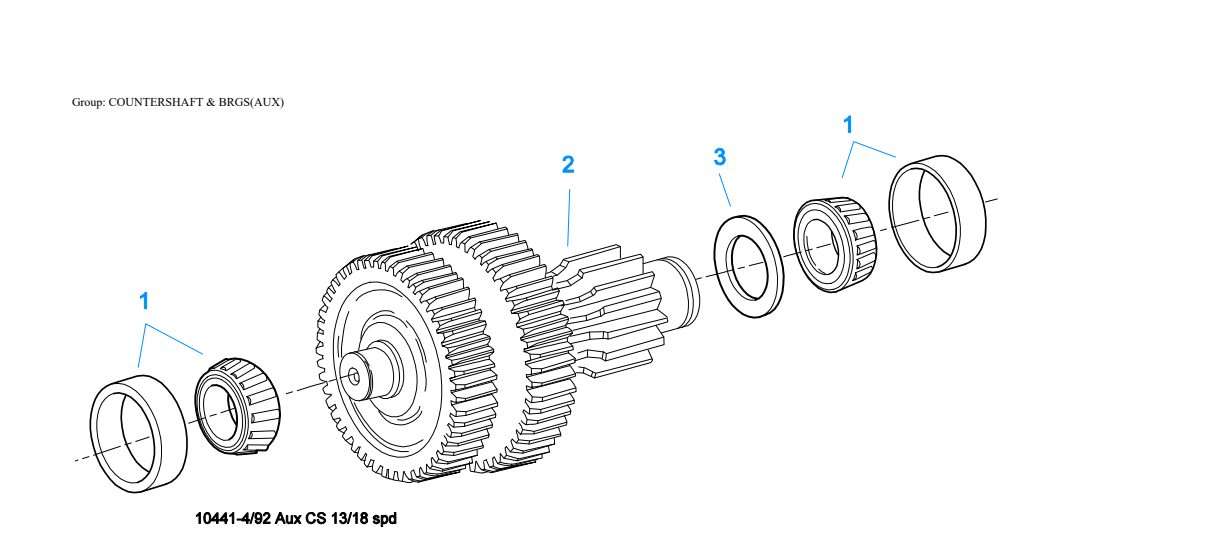

Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6387 | Welded Countershaft Assy | 2 | C/S 4301398 - D/G 4301399 S/G 4302696 | $603.80 | Add to Cart |
| 3 | 4300184 | Spacer | 2 | $23.33 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | — | No longer available — call for replacement | |
| 3 | K-2932 | Cntrshft W/rev & Lo | 2 | Replaces 4301395, 4303966, 4303967. | $502.71 | Add to Cart |
| 5 | 62511 | Roll Pin | 4 | ROLL PINS NO LONGER REQUIRED | $1.54 | Add to Cart |
| 6 | 4303968 | Key | 2 | $8.22 | Add to Cart | |
| 9 | 4303961 | 2ND Gear-cntrshft | 2 | Replaces 4303960. | $126.67 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 21586 | Drive Gear-cntrshft | 2 | Replaces 22271. | $171.09 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 4302677, 4304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 16 | 4303964 | Spacer | 2 | $53.69 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |
Hoses & Connections
Item 4Item 1Item 2Item 11Item 8Item 12Item 8Item 3Item 10Item 14Item 7Item 7Item 9Item 6Item 15Item 13Item 3Item 1Item 5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-411 | Capscrew | 2 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 2 | 4303110 | Range Valve Actuator | 1 | $248.42 | Add to Cart | |
| 3 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 4 | 4302479 | Adapter-pipe 1/8 X 1/8 | 1 | $10.66 | Add to Cart | |
| 5 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 6 | 4301989 | Pin | 1 | Replaces 22813. | $5.22 | Add to Cart |
| 7 | 84006 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 8 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 9 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 10 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 11 | 19727 | Hose Clamp | 2 | $4.37 | Add to Cart | |
| 12 | 75120 | Nylon Tube | 1 | 5/32" | $61.45 | Add to Cart |
| 13 | 75320 | Nylon Tube | 1 | Replaces 5546014. 5/32" | $61.61 | Add to Cart |
| 14 | 52601 | Harness Tubing Rd & Blk | 1 | Replaces 52600, 5549034, 5549035. | — | Call for availability |
| 15 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 20458 | Main Drive Gear | 1 | Replaces 19630. | $103.22 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |
Integral Oil Pump
Item 11Item 7Item 25Item 6Item 27Item 24Item 18Item 2Item 16Item 8Item 12Item 26Item 5Item 9Item 17Item 13Item 15Item 10Item 19Item 1Item 23Item 3Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303773 | Retainer | 1 | $41.32 | Add to Cart | |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 12 | 20509 | Key | 1 | $10.21 | Add to Cart | |
| 13 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 14 | 4303774 | Pump Drive Gear | 1 | Replaces 4304880. | $64.04 | Add to Cart |
| 15 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 16 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 4303775 | Spring | 1 | $8.37 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 4304629 | Plug | 1 | $7.19 | Add to Cart | |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-2062 | Case Assy | 1 | Replaces 4301790. FOR USE W/INTEGRAL PUMP | $2,477.94 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | X-8-447 | Screw | 2 | $2.85 | Add to Cart | |
| 27 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2078 | O-ring Kit - Splitter | 1 | SPLITTER | $10.58 | Add to Cart | |
| K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2295 | Gasket Kit | 1 | $61.69 | Add to Cart | ||
| K-2297 | O-ring Kit - Range | 1 | RANGE | $18.58 | Add to Cart | |
| K-2298 | O-ring Kit - Complete | 1 | COMPLETE | $27.19 | Add to Cart | |
| K-2347 | Master Valve Repair Kit | 1 | FOR A-5510 VALVE | $25.82 | Add to Cart | |
| K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart | |
| K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2430 | Shim Kit | 1 | Replaces 21452. | $78.97 | Add to Cart | |
| K-2640 | Repl Kit-drive Gear | 1 | Replaces 4301397, 4301520. | $370.33 | Add to Cart | |
| K-2756 | Small Parts Kit | 1 | $197.41 | Add to Cart | ||
| K-2765 | Basic Overhaul Kit | 1 | $954.71 | Add to Cart | ||
| K-2773 | Basic Rebuild Kit | 1 | $881.46 | Add to Cart | ||
| K-2932 | Countershaft Repl Kit | 1 | Replaces 4301395, 4303966, 4303967. | $502.71 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3190 | Master Valve Repair Kit | 1 | FOR A-6910 VALVE | $43.81 | Superseded by K3191Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | — | No longer available — call for replacement | |
| K-3334 | Range Valve Repl Kit | 1 | Replaces A-6864. | — | No longer available — call for replacement | |
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1786 | Shift Yoke Assy | 1 | Replaces 22801. | $137.64 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-1984 | Cover Assy-range Cyl | 1 | $305.38 | Add to Cart | ||
| S-2058 | Shift Bar Hsg Assy (std) | 1 | Replaces 22800, 4301786, S-1968. COMPLETE - FOR USE W/SHIFT LEVER | $1,333.73 | Add to Cart | |
| S-2062 | Case Assy | 1 | Replaces 4301790. FOR USE W/INTEGRAL PUMP | $2,477.94 | Add to Cart | |
| S-2073 | Shift Bar Hsg Assy (std) | 1 | Replaces 4301786. HOUSING ONLY | $413.11 | Add to Cart | |
| S-2074 | Shift Bar Hsg Assy (std) | 1 | Replaces 4301786. COMPLETE - FOR USE W/REMOTE CONTROL | $1,411.31 | Add to Cart | |
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2568 | Roadranger Valve | 1 | RTLO - W/SHIFT DIAGRAM | $104.05 | Add to Cart | |
| S-2737 | Mainshaft Assy | 1 | Replaces 4304597. | $200.24 | Add to Cart | |
| S-2781 | Range Section Assy | 1 | $3,701.48 | Add to Cart | ||
| S-2781R | Reman Range Section Assy | 1 | $2,822.66 | Add to Cart |
Levers/Housings
Item 7Item 17Item 1Item 16Item 2Item 21Item 24Item 6Item 8Item 4Item 3Item 4Item 6Item 3Item 20Item 22Item 1Item 19Item 5Item 15Item 5Item 33Item 23Item 8Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4303432 | Gasket | 1 | Replaces 22799. | $27.47 | Add to Cart |
| 13 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-500 | Nut | 1 | 5/16"-24 | — | Call for availability |
| 17 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 19 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
Mainshaft & Synchro(Aux)
Item 7Item 8Item 17Item 5Item 2Item 6Item 9Item 12Item 5Item 4Item 16Item 1Item 15Item 14Item 3Item 11Item 13Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21930 | Sliding Clutch | 1 | $76.35 | Add to Cart | |
| 2 | X-7-1005 | Capscrew | 1 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 3 | A-6340 | Retainer Assy | 1 | Replaces 4302057. | $28.94 | Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 4302058 | Bearing | 2 | $7.67 | Add to Cart | |
| 6 | 4302695 | Splitter Gear- Mainshaft | 1 | Replaces 4301940, 4302066. | $293.80 | Add to Cart |
| 7 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 8 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 9 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 10 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 11 | 4302059 | Auxiliary Mainshaft | 1 | $278.67 | Add to Cart | |
| 12 | 19203 | Spacer | 1 | $44.10 | Add to Cart | |
| 13 | 4301400 | Reduction Gear | 1 | $333.98 | Add to Cart | |
| 14 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 15 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 16 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 17 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |
Mainshaft Assy
Item 13Item 6Item 13Item 6Item 9Item 8Item 1Item 12Item 6Item 8Item 3Item 2Item 5Item 4Item 7Item 7Item 7Item 7Item 4Item 4Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 1 | K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart |
| 2 | S-2737 | Mainshaft Assy | 1 | Replaces 4304597. | $200.24 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 3 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 3 | $6.93 | Add to Cart | |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | — | No longer available — call for replacement |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 9 | 4301396 | Lo Gear-mainshaft | 1 | Replaces 4301519. | $279.69 | Add to Cart |
| 12 | 4303969 | 2ND Gear-mainshaft | 1 | Replaces 4301394, 4301517. | $162.28 | Add to Cart |
| 13 | 16288 | Spacer | 2 | $49.53 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 23205 | Shift Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 6 | 4303682 | Range Cylinder | 1 | Replaces 4301789. | — | No longer available — call for replacement |
| 7 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 8 | 4301558 | Yoke Bar | 1 | $43.41 | Add to Cart | |
| 9 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 10 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 11 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 12 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 13 | 14197 | O-ring | 1 | $4.68 | Add to Cart | |
| 14 | 5568539 | O-ring | 1 | $7.67 | Add to Cart | |
| 15 | K-3334 | Range Valve Repl Kit | 1 | Replaces A-6864. | — | No longer available — call for replacement |
| 16 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 17 | X-8L-607 | Capscrew | 4 | Replaces X8607. 3/8"-16X2-1/4", 3/8"-16X2-1/4" | $3.06 | Add to Cart |
| 999 | K-3334 | Range Valve Repl Kit | 1 | Replaces A-6864. | — | No longer available — call for replacement |
Reverse Idler
Item 7Item 11Item 7Item 4Item 2Item 5Item 4Item 6Item 9Item 10Item 2Item 8Item 12Item 9Item 4Item 3Item 6Item 5Item 3Item 5Item 3Item 3Item 3Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 7 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 4 | $5.69 | Superseded by 4302982Add to Cart | |
| 10 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |
Roadranger Valve
Item 13Item 1Item 14Item 4Item 4Item 2Item 11Item 6Item 5Item 12Item 2Item 2Item 6Item 3Item 2Item 2Item 2Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586109 | Shift Diagram Medallion | 1 | RTLO | $28.59 | Add to Cart |
| 2 | K-2347 | Master Valve Repair Kit | 1 | FOR A-5510 VALVE | $25.82 | Add to Cart |
| 2 | K-3190 | Master Valve Repair Kit | 1 | FOR A-6910 VALVE | $43.81 | Superseded by K3191Add to Cart |
| 3 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 4 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 5 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 6 | 84001 | Connector Assy | 2 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 6 | 84003 | Connector Assy | 2 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 6 | 84005 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 11 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 11 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 11 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 12 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 12 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 12 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 13 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | — | Call for availability |
| 14 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-6910 | Roadranger Valve Assy | 1 | Replaces A-5510. STANDARD-W/LOGO | $79.78 | Add to Cart |
| 999 | S-2568 | Roadranger Valve Assy | 1 | RTLO - W/SHIFT DIAGRAM MEDALLION | $104.05 | Add to Cart |
Shift Bar Housing (Std)
Item 7Item 1Item 14Item 6Item 14Item 8Item 21Item 22Item 24Item 15Item 9Item 24Item 8Item 10Item 26Item 25Item 28Item 27Item 5Item 37Item 10Item 11Item 15Item 9Item 24Item 33Item 29Item 38Item 34Item 12Item 36Item 19Item 3Item 2Item 13Item 35Item 30Item 23Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2073 | Shift Bar Hsg Assy (std) | 1 | Replaces 4301786. HOUSING ONLY | $413.11 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 5 | 22812 | Pin | 1 | $27.37 | Add to Cart | |
| 6 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 7 | 4301999 | Pin | 1 | Replaces 22871. | $5.26 | Add to Cart |
| 8 | 15900 | Gasket | 2 | $2.24 | Add to Cart | |
| 9 | 22940 | Rev/neutral Light Switch | 2 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 10 | 4303656 | Plug | 2 | Replaces 15917. | $2.91 | Add to Cart |
| 11 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 12 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 12 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4" OR USE 14 PCS OF X- 8L-604 AND 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 13 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 14 | 15918 | Spring | 2 | $1.97 | Add to Cart | |
| 15 | X-14-800 | Steel Ball | 2 | 1/2" | $1.78 | Add to Cart |
| 19 | 22815 | Snap Ring | 1 | $1.45 | Add to Cart | |
| 20 | 22814 | Washer | 1 | $25.69 | Add to Cart | |
| 21 | 22809 | Spring | 1 | W/SHIFT LEVER | $2.50 | Add to Cart |
| 21 | 4302195 | Spring | 1 | W/REMOTE CONTROL | $5.41 | Add to Cart |
| 22 | 22811 | Plunger | 1 | $32.21 | Add to Cart | |
| 23 | S-1786 | Shift Yoke Assy | 1 | Replaces 22801. | $137.64 | Add to Cart |
| 24 | 3220 | Lockscrew | 3 | $4.28 | Add to Cart | |
| 25 | 4301787 | Yoke Bar | 1 | REVERSE/1ST | $38.97 | Add to Cart |
| 26 | 4301788 | Interlock Bar | 1 | $177.99 | Add to Cart | |
| 27 | 4301553 | Selector Block | 1 | $86.08 | Add to Cart | |
| 28 | 5558502 | Pin | 1 | $4.05 | Add to Cart | |
| 29 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 30 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 33 | 22803 | Shift Block | 1 | $119.87 | Add to Cart | |
| 34 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 35 | 18739 | Spring | 1 | W/SHIFT LEVER | $2.75 | Add to Cart |
| 35 | 4302196 | Spring | 1 | W/REMOTE CONTROL | $2.53 | Add to Cart |
| 36 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 37 | 22805 | Yoke Bar | 1 | 4TH/5TH | $46.86 | Add to Cart |
| 38 | 16136 | Shift Yoke | 1 | $74.09 | Add to Cart | |
| 999 | S-2058 | Shift Bar Hsg Assy (std) | 1 | Replaces 22800, 4301786, S-1968. COMPLETE-FOR USE W/SHIFT LEVER | $1,333.73 | Add to Cart |
| 999 | S-2074 | Shift Bar Hsg Assy (std) | 1 | Replaces 4301786. COMPLETE-FOR USE W/REMOTE CONTROL | $1,411.31 | Add to Cart |
Splitter Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21607 | Shift Yoke | 1 | $111.01 | Add to Cart | |
| 2 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 3 | 4303583 | Gasket | 1 | $1.99 | Add to Cart | |
| 4 | 4303582 | Splitter Cylinder | 1 | $102.56 | Superseded by 4306632Add to Cart | |
| 5 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 6 | 4300182 | Yoke Bar | 1 | — | No longer available — call for replacement | |
| 7 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 8 | 5568534 | O-ring | 1 | $1.50 | Add to Cart | |
| 9 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 10 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 11 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | — | No longer available — call for replacement |
| 12 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 999 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | — | No longer available — call for replacement |
This is the complete factory parts breakdown for the Eaton Fuller RTLO-17610B — every part in the manual, matched to our live inventory. We stock 365 of the 385 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator Hoses & Connections Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Cooler Range Cylinder Reverse Idler Roadranger Valve Shift Bar Housing (Std) Splitter Cylinder
No parts match that search — try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLO-17610B transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | RTLO-17610B |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLO-17610B
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
