Spicer CM5852-A Parts Manual

View the official Spicer Transmission CM5552-A parts manual (PDF)Download PDF

Drive Gear Group - Input

Item	Part No.	Description	Qty	Price
A-2 •	550930	Cone - Main Drive Gear Bearing	2	$64.20	Add to Cart
A -3 •	550929	Cup - Main Drive Gear Bearing	2	$28.81	Add to Cart
A-4	47-468-2	Baffle Oil Ring Drive Gear	1	$33.38	Superseded by 3132403XAdd to Cart
A-5	47-228-2	-2 • Spacer/shim - Drive Gear Bearing	1	—	Call for availability
A-6	47-468-1	• Baffle Bearing Cap	1	$3.55	Add to Cart
A-7	550931	Cone Drive Gear Pocket Bearing		$34.78	Add to Cart
• Included	IN313240-3X	Kit.		—	Call for availability

Mains Haft Group - Output

Item	Part No.	Description	Qty	Price
B-1	53-362-3	Mainshaft (2 .00 " -40 Fine Spline)	1	$571.08	Add to Cart
B-1	53-362-8	Main Shaft (1 314" 10 Spline Industrial)	1	—	Call for availability
B-2	53-8-9	Gear-1 St Speed (42T)	1	—	Call for availability
B-3	550932	Bearing - 1st & Rev. Gear Needle Assy.	2	$40.03	Add to Cart
B-4	330866	Thrust Washer - 1st Speed Gear	1	—	Call for availability
B-5	27-381-5	Snap Ring - 1st Speed Thrust Washer		$3.07	Add to Cart
B-6	53-8-10	Gear- 2nd Speed (36T) 5552A,5552D ,5852A (before Sin 2741653)	1	$354.67	Add to Cart
B-6	53-8-24	Gear- 2nd Speed (36T) 5552A,5552D ,5852A (start & After Sin 2741653)	1	—	Call for availability
B-6	53-8-12	Gear- 2nd Speed (37T) 5552B ,5552C (before Sin 2741653)	1	—	Call for availability
B-6	53-8-30	Gear- 2nd Speed (37T) 5552B ,5552C (start & After Sin 2741653)	1	—	Call for availability
B-7	59-482-1-1X	Bearing Kit- 2nd Speed Needle (includes 61 Needles)	1	$18.84	Add to Cart
B-8	53-466-1	Gear- 2nd & 3rd Clutch (18T) (before Sin 2741653)	1	$143.40	Add to Cart
B-8	59-466-3	Gear- 2nd & 3rd Clutch (40T) (starting & After Sin 2741653)	1	$217.97	Add to Cart
B-9	46-381-1	Snap Ring - 2nd & 3rd Clutch Gear	1	$4.22	Add to Cart
B-10	313459X	Synchronizer- 2nd & 3rd (18T) (before Sin 2741653)		—	No longer available — call for replacement
B-10	313536X	Synchronizer- 2nd & 3rd (40T) (starting & After Sin 2741653)	1	$1,039.90	Add to Cart
B-10A	53-465-6	Clutch Collar -(less Synchronizer)( Before Sin 2741653)	1	—	Call for availability
B-10A	59-465-1	Clutch Collar- (less Synch .)(starting & After Sin 2741653)	1	—	Call for availability
B-11	53-8-16	Gear- 3rd Speed (37T) 5552A (before Sin 2741653)		—	Call for availability
B-11	53-8-28	Gear- 3rd Speed (37T) 5552A (starting & After Sin 2741653)		—	Call for availability
B-11	53-8-19	Gear- 3rd Speed (40T) 5552B (before Sin 2741653)	1	—	Call for availability
B-11	53-8-32	Gear- 3rd Speed (40T) 5552B (starting & After Sin 2741653)	1	—	Call for availability
B-11	53-8-18	Gear- 3rd Speed (38T) 5552C (before Sin 2741653)	1	—	Call for availability
B-11	53-8-34	Gear- 3rd Speed (38T) 5552C (starting & After Sin 2741653)	1	—	Call for availability
B-11	53-8-14	Gear- 3rd Speed (35T) 5552D ,5852A (before Sin 2741653)	1	—	Call for availability
B-11	53-8-26	Gear - 3rd Speed (35T) 55520 ,5852A (start & After Sin 2741653)	1	—	Call for availability
B-12	330818	Thrust Washer- 3rd & 4th Speed	1	$35.44	Superseded by 67471Add to Cart
B-13	53-381-2	Snap Ring - 3rd & 4th Thrust Washer	2	$6.40	Add to Cart
B-14	53-8-22	Gear- 4th Speed (29T) 5552A,5552C	1	—	Call for availability
B-14	53-8-23	Gear- 4th Speed (31T) 5552B	1	—	Call for availability
B-14	53-8-21	Gear- 4th Speed (27T) 55520 ,5852A	1	—	Call for availability
B-15	1016-W	Thrust Washer- 4th Speed	1	$83.44	Add to Cart
B-16	313453X	Synchronizer- 4th & 5th Speed	1	$481.50	Add to Cart
B-16A	53-466-3-1X	Clutch Gear - 4th & 5th (used In Place Of Synchronizer)		$481.50	Superseded by 313453XAdd to Cart
B-17	47-465-1	Clutch Collar - 1st & Rev.	1	$215.92	Add to Cart
B-18	53-8-1	Gear- Reverse (42T)	1	$403.79	Add to Cart
B-19	330867	Thrust Washer- Reverse Gear	1	—	Call for availability
B-20	313240-3X	Spacer & Shim Kit (to Adjust Mainshaft End Play)		$33.38	Add to Cart
B-20	53-37-1	Spacer (used In Place Of Speedometer Drive Gear)		—	Call for availability
B-23	53-205-1	Washer- 1 1 14" Flat	1	$4.42	Add to Cart
B-24	501200	N Ut- Mainshaft (1 1 14" -18 Hex)	1	$15.74	Add to Cart

Countershaft Group

Item	Part No.	Description	Qty	Price
C-1	53-30-3	Countershaft (12T)		$635.17	Add to Cart
C-2	500008-37	Woodruff Key	4	$2.76	Add to Cart
C-3	53-196-1	Gear- 2nd Speed (1ST) 5552B ,5552C		—	Call for availability
C-3	53-196-3	Gear- 2nd Speed (19T) 5552A,5552D ,5852A		$222.62	Add to Cart
C-4	46-37-5	Spacer - 2nd & 3rd Speed Gear	1	—	Call for availability
C-5	46-196-13	Gear - 3rd Speed (32T) 5552A		—	Call for availability
C-5	46-196-29	Gear - 3rd Speed (30T) 5552B	1	—	Call for availability
C-5	46-196-21	Gear- 3rd Speed (31T) 5552C	1	—	Call for availability
C-5	46-196-17	Gear- 3rd Speed (34T) 5552D ,5852A		—	Call for availability
C-6	46-196-38	Gear- 4th Speed (41T) 5552A,5552C		—	Call for availability
C-6	46-196-35	Gear- 4th Speed (39T) 5552B	1	—	Call for availability
C-6	46-196-40	Gear- 4th Speed (43T) 5552D ,5852A	1	—	No longer available — call for replacement
C-7	82-381-1	Snap Ring - 4th Speed Gear		$2.46	Add to Cart
C-8	47-1-1	Gear- Countershaft Drive (47T) 5552A,5552B ,5552C ,5552D	1	$46,169.59	Add to Cart
C-8	47-1-3	Gear- Countershaft Drive (45T) 5852A		—	Call for availability
C-9	46-381-1	Snap Ring - Countershaft Drive Gear		$4.22	Add to Cart
C-10	550927	Bearing -cone Countershaft	2	$32.85	Add to Cart
C-11	550375	Bearing - Cup Countershaft	2	$17.99	Add to Cart
C-12	47-37-3	Spacer - Front Bearing Countershaft	1	—	Call for availability
C-13	47-228-3	Shim - Countershaft Rear Bearing ( .005 " Thick)	A/R	—	Call for availability

Reverse Idler Group

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
D-1	59-5-1	Gear- Reverse Idler		—	Call for availability
D-2	97-37-1	Spacer- Reverse Idler Bearing	1	$2.43	Add to Cart
D-3	550886	Bearing - Roller Reverse Idler	2	$11.32	Add to Cart
D-4	974-W	Thrust Washer	2	$41.88	Add to Cart
D-5	63-60-1	Shaft - Reverse Idler		$33.08	Add to Cart

Companion Flanges

Item	Part No.	Description	Qty	Price
	1610	6 7/8 " 5-1 -6321 215/16 " F -6 5/8" Air	All	—	Call for availability
	1710	6-1 -5751 Air	All	—	Call for availability
	1480	U -bolt 3-4-8781 4 11/64" 22 1/2 Air Nav1star/GM		—	Call for availability
	1550	U -bolt 4-4-4491 4 1/64" 21 1/2 Air Navistar/gm		—	Call for availability
4 -4	6111-1X	And 5-4 -761 1 -1X Assemblies Includes Brake Drum		—	Call for availability

Clutch Housing Group

Item	Part No.	Description	Qty	Notes	Price
E-1	47-352-1	Gasket	1		$12.59	Add to Cart
E-3		Clutch Housing	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
N .S	128C-20	Bushing (312256X & 312830)()	2		$8.55	Add to Cart
E-4	46-96-2-1X	Hand Hole Cover Assy.	1		$44.01	Add to Cart
E-4	47-96-1-1X	Hand Hole Cover Assy. (used For 47 -518 -4 -1 X Only)	1		—	Call for availability
E-4	545001	Size 1/2 " -13 X 1 1/4		version * (see the manual's footnote)	—	Call for availability
E-4	545001-1	Size 1/2 " -13 X 1 3/8		version * (see the manual's footnote)	—	Call for availability
E-4	545001-5	Size1/2 " -1 3x1 1/8		version * (see the manual's footnote)	—	Call for availability
E-4	545001-6	Size 1/2 " -13 X 1 5/8		version * (see the manual's footnote)	—	Call for availability
E-6	47-223-5	Gasket - Countershaft Front Bearing Cap	1		—	Call for availability
E-7	60-22-28	Cap - Countershaft Front Bearing	1		—	Call for availability
E-8	330801-1	Bolt -7/1 6 " -14 X 7/8 " Hex Head Self-locking	4		$2.67	Add to Cart

Drive Gear Bearing Cap Group

Item	Part No.	Description	Qty	Notes	Price
F-1	47-223-1	Gasket			$6.27	Add to Cart
F-3		Cap Drive Gear Bearing	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
F-4	60-463-10-1X	Oil Seal - (includes Installation Sleeves)			$37.74	Add to Cart
F-5	545002-1	Bolt- 3/8 " -16 X 7/8 " Hex Head Self-locking	4		$2.23	Add to Cart

Case Group

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
G-2		Case	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
G-3	NP-96	Nameplate	1		$2.16	Add to Cart
N .S	NP-196	Patent Plate			$2.97	Add to Cart
G-4	252-SP	Pin - Nameplate	4		$1.90	Add to Cart
G-5	500100	Filler Plug	1		—	Call for availability
G-6	62-39-3	Drain Plug - Magnetic Square Head	1		$9.27	Add to Cart
G-6	62-39-4	Drain Plug - Magnetic Recessed Head	1		$9.50	Add to Cart
G-7	545002-10	Bolt- 3/8 " -16 X 1/2 " Hex Head (left Hand Side)	2		—	Call for availability
G-8	330923	Oil Trough			—	Call for availability
G-9	545009	Bolt- 5/16 " -18 X 5/8 " Flanged Head Self-locking	1		—	Call for availability
G-10	307-D	Plug - 1/2 " -13 X 1/2 " Hex Head	2		—	Call for availability
and	266-D	Plug - 5/8 " -1 1 X 7/16 " Hex Head	2		—	Call for availability
N .S	545089-1	Plug 9/16 " -12 X 3/4 " Hex Head Brake Anchor Bar	6		$1.67	Add to Cart
G-11	97-324-2	Gasket- 8 Bolt P .t .o Aperture Cover	1		$6.27	Add to Cart
G-12	73-267-1	Cover- 8 Bolt P .t .o Aperture	1		$160.99	Add to Cart
G-13	545012	Bolt- 7/16 " -14 X 3/4 " Flanged Hex Head Self-locking	8		$3.23	Add to Cart
G-14	97-324-1	Gasket- 6 Bolt P .t .o Aperture Cover	1		$3.91	Add to Cart
G-15	50-267-2	Cover-: 6 Bolt P .t .o Aperture	1		$122.97	Add to Cart
G-16	330800	Bolt- 3/8 " -16 X 3/4 " Hex Head Self-locking	6		—	Call for availability

Mains Haft Rear Bearing Cap Group

Item	Part No.	Description	Qty	Notes	Price
H-2	60-463-8	Oil Seal - Mainshaft Rear Bearing Cap	1		$18.84	Add to Cart
H-2	63-463-1	Oil Seal - (ford Only)	1		$28.23	Add to Cart
H-3		Cap Mainshaft Rear Bearing		Not sold separately - order the sub-assembly it belongs to	—	Call for availability
H-5	47-223-3	Gasket- Mainshaft Rear Bearing Cap	1		$5.49	Add to Cart
H-5	53-223-1	Gasket- (navistar Bendix Brake Mounting)	1		—	Call for availability
H-5	63-223-7	Gasket- (ford Only)	1		—	Call for availability
H-6	545001	Bolt- 1/2 " -13 X 1 1/4 " Hex Head Self-locking	4		$2.49	Add to Cart
and	545008	Bolt- 5/8 " -1 1 X 1 1/4 " Hex Head Self-locking (for Brake Cap)	2		—	Call for availability
and	55-334-1	Plug - Speedometer Hole (use When No Driven Gear)	1		$88.44	Add to Cart
H-8	55-454-1	Sleeve - 1 1/4 " Long Speedo Driven Gear			—	No longer available — call for replacement
H-8	44-473-1	Sleeve - 5 " Long Speedo Driven Gear			—	Call for availability
H-8	97-454-2-1X	Sleeve - 1 1/4 " Long Speedo Driven Gear (with Seal)			$34.11	Add to Cart

Countershaft Rear Bearing Cap Group

Item	Part No.	Description	Qty	Price
J-1	59-22-1	Cap - Countershaft Rear Bearing	1	—	Call for availability
J-1A	47-22-3	Cap - Countershaft Rear Bearing	1	—	Call for availability
J-2	545001	Bolt- 1/2 -13 X 1 1/4 " Hex Head Self-locking	4	$2.49	Add to Cart
N .S	47-223-2	Gasket- Countershaft Rear Brg Cap (use With 47 -22 -3 Cap)	1	—	Call for availability
K-2	330564-3	Lift Hook - Countershaft Rear Bearing Cap	1	$3.15	Add to Cart
K-2	330564-1	Lift Hook- Countershaft Rear Bearing Cap		$3.15	Add to Cart
K-2	53-452-2	(5 Teeth) Supplied By Oem Navistar Only		—	Call for availability
K-2	53-452-3	(5 Teeth)' 62 -453-4 (15 Teeth) 3 : 1 Gmc Only		—	Call for availability
K-2	53-452-4	(4 Teeth)' 53-453-2 (12 Teeth) 3 : 1 Rvi & Mack		—	Call for availability
K-2	53-452-5	(electronic)' • Not Required Navistar		—	Call for availability
K-2	53-452-6	(electronic)' • Not Required Ford Only		—	Call for availability
K-2	97-454-2	-1X (with Oil Seal) (see H -8 Page 10)		—	Call for availability
K-2	53-452	-5 & 53-452 -6 Both Have (16) Grooves.		—	Call for availability

Clutch Housing Dimensions T210 -CM55

Item	Part No.	Description	Qty	Price
3	16VS	A -o~: _(		—	Call for availability
46-518-21	1XC102C-477	3 51 As" 1 " 545001	-5	—	Call for availability
46-518-23	C46-518-18-1	2 5% " 1 " 545001		—	Call for availability
47-518-5	C47-518-6	2 6112 11 1Va" 219/s2" 2112" 545001	-6	—	Call for availability
47-518-10-1X	C47-518-11	2 43.4" 545001	-5	—	Call for availability
312830X	128C-20	C 1 02C-530-1 2 51J1s" 1 " 21%2" 2%" 545001	-5	$8.55	Add to Cart

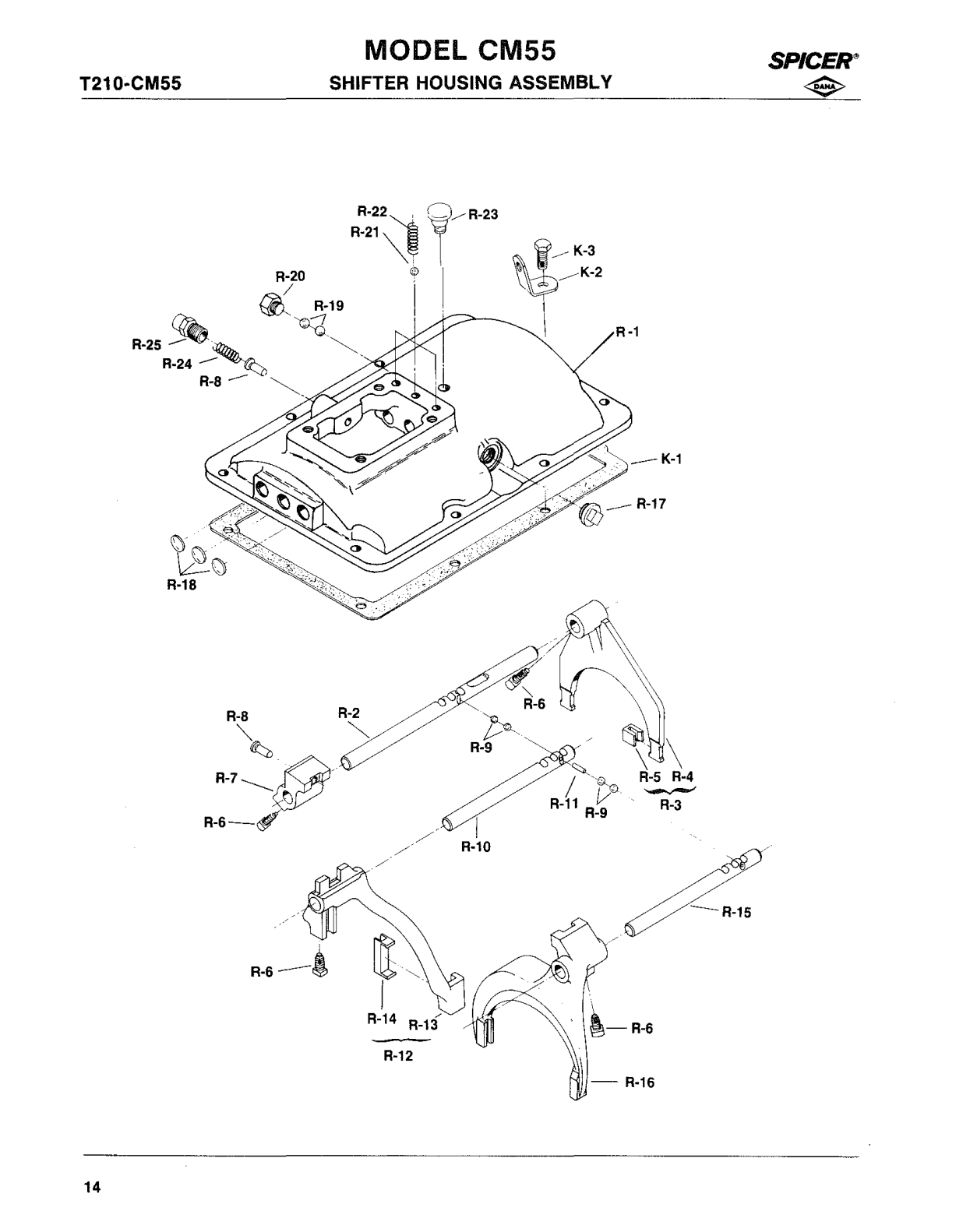

Parts Listed Below Are Included in Assembly

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
R-1	47-16-1-1	Shifter Housing	1		$450.25	Add to Cart
R-2	47-67-1	Rod - 1 St And Reverse Shift	1		$52.73	Add to Cart
R-3	59-66-1-1X	Fork & Clip Assy. - 1 St And Reverse Shift	1		—	No longer available — call for replacement
R-4		Fork- 1 St And Reverse Shift	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
R-5	46-486-2	Clip - Shift Fork	2		$1.78	Add to Cart
R-6	330639	Bolt- 3/8 " -24 X 3/4 " Square Head Self-locking	4		$10.21	Superseded by 745DAdd to Cart
R-7	53-354-1	Bracket- 1 St And Reverse Shift Rod	1		$243.80	Add to Cart
R-8	62-438-2	Pin - 1 St And Reverse Shift Finger Plunger	2		$6.27	Add to Cart
R-9	50-80-1	Ball - Shift Rod Poppet And Interlock	4		$2.70	Add to Cart
R-10	46-67-5	Rod - 2nd And 3rd Shift	1		$78.92	Add to Cart
R-11	277-SP	Pin - Interlock	1		$1.93	Add to Cart
R-12	53-66-3-1X	Fork - 2nd And 3rd Shift	1		$398.71	Superseded by 536632XAdd to Cart
R-13		Shift Fork	1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
R-14	53-486-1	Clip - Shift Fork	2		$12.30	Add to Cart
R-15	47-67-2	Rod -4th And 5th Shift	1		$60.87	Add to Cart
R-16	53-66-1	Fork - 4th And 5th Shift	1		$1,191.84	Superseded by 536611XAdd to Cart
R-17	545021	Plug - Interlock	1		$18.89	Add to Cart
R-18	330894	Expansion Plug - 3/4 " (aluminum)	3		—	Call for availability
R-19	50-80-4	Ball -backup Switch	2		$7.01	Add to Cart
R-20	330366	Plug - Backup Switch Hole	1		$15.51	Add to Cart
R-21	50-80-1	Ball - Shift Rod Poppet	3		$2.70	Add to Cart
R-22	47-72-1	Spring - Shift Rod Poppet	3		$3.15	Add to Cart
R-23	312268	Breather Assembly	1		$31.32	Add to Cart
R-25	38P-1	Retainer- Shift Finger Plunger 1 St And Reverse	1		—	Call for availability
K-1	47-155-1	Gasket - Shifter Housing	1		$12.59	Add to Cart
K-2	330564-1	Lift Hook - Shifter Housing	2		$3.15	Add to Cart
K-3	545002	Bolt - 3/8 " -16 X 1 " Hex Head Self-locking	6		$1.98	Add to Cart
and	545002-4	Bolt- 3/8 " -16 X 1 1/8 " Hex Head Self-locking (for Lift Hook)	2		$6.93	Add to Cart
N .S	313262X	0 Neutral Start Switch Actuator Kit (see Tab Bills)	1		—	Call for availability

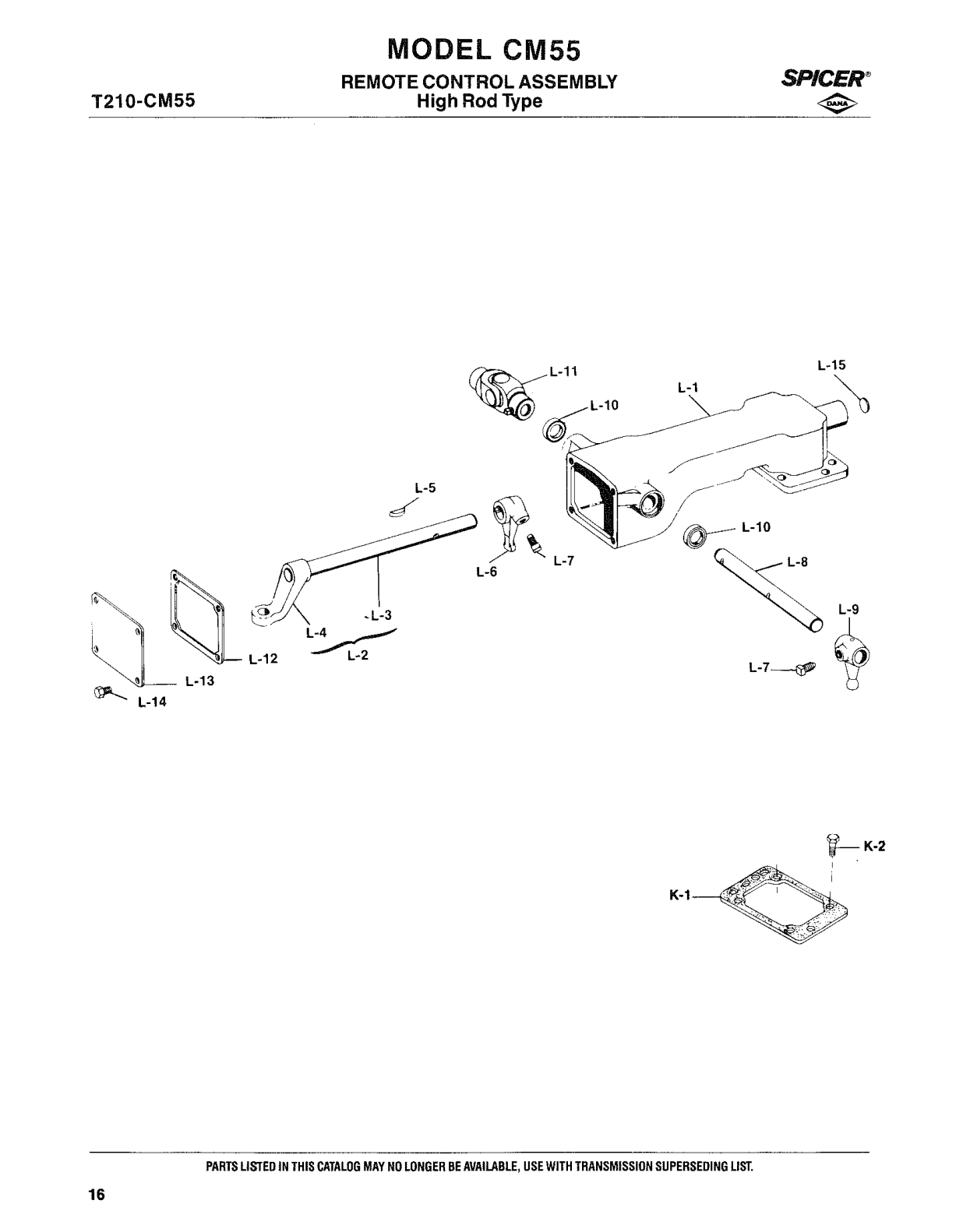

Parts Listed Below Are Not Included in Assembly

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
	47-16-8-1X	Coverassembly(castingno .62-16-78) 1 1 1	1		—	Call for availability
	47-16-9-1X	Coverassembly(castingno .62-16-78-1X)	1 1		—	Call for availability
	47-16-10-1X	Cover Assembly(casting No. 62-16-96)	1		—	Call for availability
	311860X	Cover Assembly(casting No. 62-19-96)	1		—	Call for availability
L-1		Remote Control Cover 1 1 1	1 1 1 1 1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
L-2	310647X	Shift Finger Rod And Bracket Assembly 1 1 1	1		—	Call for availability
L-2	310879X	Shift Finger Rod And Bracket Assembly	1 1		—	Call for availability
L-2	311661X	Shift Finger Rod And Bracket Assembly	1 1		—	Call for availability
L-3		Rod -shift Finger 1 1 1	1 1 1 1 1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
L-4		Bracket-shift Finger Rod 1 1 1	1 1 1 1 1	Not sold separately - order the sub-assembly it belongs to	—	Call for availability
L-5	500007-19	Woodruff Key-#1 1 1 1 1	1 1 1 1 1		—	Call for availability
L-6	62-6-24	Finger-inner Shift 1 1 1	1 1 1 1 1		—	Call for availability
L-7	545011	Bolt-7/16 " -20 X 7/S "headhexself-locking 2 2 2 2	2 2 2		$16.57	Add to Cart
L-7	545063	Bolt-7/16 " -20 X 13/16 " Square Head Self-locking	2		$6.27	Add to Cart
L-8	82-65-5	Rod -remote Control Shift 1 1 1	1 1 1		$22.31	Add to Cart
L-8	82-65-22	Rod -remote Control Shift (counter Sunk Spots At 90			—	Call for availability
L-9	82-6-7	Finger-outer Shift 1 1 1	1 1 1 1 1		$171.09	Add to Cart
L-10	28P-19	Seal -remote Control Shift Rod 2 2 2 2	2 2 2 2		—	Call for availability
L-11	10380-SF	U -joint Assembly-control 1 1	1 1 1		—	Call for availability
L-12	82-118-1	Gasket-aperture Cover 1 1 1	1 1 1 1 1		—	Call for availability
L-13	82-96-1	Aperture Cover 1 1 1	1 1 1 1 1		—	Call for availability
L-14	545005-1	Bolt-5/16 " -18 X 5/8 " Hex Head Self-locking 4 4 4 4	4 4 4 4		—	Call for availability
L-15	500166-16	Expansion Pl Ug -1 1 /1 6 " 1 1 1	1 1 1 1 1		—	Call for availability
K-1	62-155-7	Gasket-shifter Housing To Control Cover 1 1 1	1 1 1 1 1		$9.44	Superseded by 6215513Add to Cart
K-2	545028-4	Bolt-7/16 " -14 X 1 1/4 " Hexheadself-lockint 4 4 4 4	4 4 4 4		—	No longer available — call for replacement

Parts Listed Below Are Not Included in Assembly

Item	Part No.	Description	Qty	Notes	Price
	311528-7X	Remote Control Cover Assembly (see Tab Bills)	1		—	Call for availability
L-1	47-16-13	Remote Control Cover	1		—	Call for availability
L-16	500007-17	Woodruff Key #91	1		—	Call for availability
L-17	62-65-26	Shaft-inner Shift Finger	1		—	Call for availability
L-18	62-6-30	Shift Finger-inner	1		—	Call for availability
L-19	545063	Bolt-7;\6 ' -20 X "l 'i6 ' Hex Head Self-locking	1		$6.27	Add to Cart
L-20	62-16-92	End Cover-remote Control	1		—	Call for availability
L-21	310926X	Cam And Stud Assembly-selection Lever	1		—	Call for availability
L-22	62-6-59	Lever-upper Selection	1		—	Call for availability
L-23	500381-4	N Ut -7;\6 ' -20	1		$2.11	Add to Cart
L-24	62-65-27	Rod -outer Shift Lever	1		—	Call for availability
L-25	47-6-1	Lever-outer Shift	1		—	Call for availability
L-26	545002-7	Bolt-% " -16 X 1 1 12	1	version * (see the manual's footnote)	$2.33	Add to Cart
L-27	258-W	Washer-shift Lever Rod	2		—	Call for availability
L-28	62-381-13	Snap Ring	1		—	Call for availability
L-29	62-155-11	Gasket-end Cover	1		—	Call for availability
L-30	500357-10	Lock Washer 5;\s	1	version * (see the manual's footnote)	—	Call for availability
L-31	545005-2	Bolt-5;\ " -18 X %	2	version * (see the manual's footnote)	$1.66	Add to Cart
L-32	500397-22	Bolt-5;\6 ' -18 X 2112	1	version * (see the manual's footnote)	—	Call for availability
K-4	62-155-7	Gasket-shifter Housing To Control Cover	1		$9.44	Superseded by 6215513Add to Cart
K-8	545028-4	Bolt- 'l\ " -14 X 1% " Hex Head Self-locking	4		—	No longer available — call for replacement

Parts Not Included in Assembly

Item	Part No.	Description	Qty	Notes	Price
P-1	390-27	Handle -shift Lever 1 1	1		—	Call for availability
P-2	250-1121	Shift Lever-26 1/4 " Straight 1			—	Call for availability
P-2	250-1122	Shift Lever-29 1/4 " Straight 1			—	Call for availability
P-2	250-1621	Shift Lever-30 " Straight 1	1		—	Call for availability
P-2	250-1537	Shift Lever-35 " Straight	1		—	Call for availability
P-2	250-1896	Shift Lever-28 " Bent 1			—	Call for availability
P-2	250-2075	Shift Lever-29 3/16 " Bent 1			—	Call for availability
P-2	250-2163	Shift Lever-31 29/64 " Bent	1		—	Call for availability
P-2	250-2330	Shift Lever-lower Lever-5 .20 " Straight	1		—	Call for availability
P-2	250-2388	Shift Lever-24 5/8" Bent 1			—	Call for availability
P-2	250-2316	Shift Lever-lower Lever 9 7/16" Straight	1		—	Call for availability
P-2	2502315	Shift Lever- 26 1/4" Bent	1		—	Call for availability
P-2	47-16-3X	Dome Assembly-2 5/8 " Overall Height 1 1 1			—	Call for availability
P-2	47-16-4X	Dome Assembly-3 5/32 " Overall Height 1			—	Call for availability
P-2	47-16-5X	Dome Assembly-3 5/8 " Overall Height 1 1	1 1	manual lists 47-16-5X - we stock the base part 47-16-5	—	Call for availability
P-2	47-16-7X	Dome Assembly-5 5/32 " Overall Height	1 1 1		—	Call for availability
P-2	47-16-7-28X	Dome Assembly-5 5/32 " Overall Height_	1		—	Call for availability
P-3	286-SP	Pin -shift Lever Collar 1 1 1 1 1 1	1 1 1 1 1		$2.95	Add to Cart
P-4	550-7	Collar-compression 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-5	560-25	Spring -compression 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-5	P-6540-13	Cup -compression 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-5	P-7690-6	Washer-friction 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-8	47-16-3	Dome -shift Lever (C62-16-24-1) 1 1 1			—	Call for availability
P-8	47-16-4	Dome -shift Lever (C62-16-30-1) 1			—	Call for availability
P-8	47-16-5	Dome -shift Lever (C62-16-67) 1 1	1 1		$127.15	Add to Cart
P-8	47-16-7	Dome -shift Lever (C62-16-125)	1 1 1		—	Call for availability
P-8	P-962-381-7	Snap Ring -rock Shaft 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-8	P-10530-15	Shaft-shift Lever Rock 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-8	K-162-155-7	Gasket-dome To Shifter Housing 1 1 1 1 1 1	1 1 1 1 1		—	Call for availability
P-8	K-2545028-4	Screw-7/16 " -14 X 1 1/4 " Hex Head Self-locking 4 4 4 4 4 4	4 4 4 4 4		—	Call for availability

THRU Shaft (used with Push Type Clutch)

Item	Part No.	Description	Notes	Price
	106C-1071	106C-10B3 RS-8 7 .969		—	Call for availability
	106C-11415-125	106C-1094 RS-8 8 .469	version * (see the manual's footnote)	—	Call for availability
	106C-11426-125	106C-1 123 RS-8 12 .968	version * (see the manual's footnote)	—	Call for availability
	106C-11855-750	106C-1 169 RS-8 9 .125	version * (see the manual's footnote)	—	Call for availability
	106C-12164-750	106C-1315 RS-8 7 .625		—	Call for availability
	106C-12784-812	106C-1367 RS-8 10 .312		—	Call for availability
	106C-13605-312	106C-1375 RS-8 6 .781		—	Call for availability
	106C-14986-500	106C-1417 RS-8 7 .250	version * (see the manual's footnote)	—	Call for availability
	106C-15447-000	106C-1422 Rs ·8 7 .500	version * (see the manual's footnote)	—	Call for availability
	330601-16-250	106C-1490 RS-8 16 .000		—	Call for availability
	330610-5	RS-8 9 .469	version * (see the manual's footnote)	$80.92	Add to Cart
	330610-1	1 RS-8 10 .750	version * (see the manual's footnote)	—	Call for availability
	46-510-9	RS-5 7 .125	version * (see the manual's footnote)	—	Call for availability
	330610-10	RS-8 9 .500	version * (see the manual's footnote)	$88.67	Add to Cart
	310233X	For Left Side Mtg		—	Call for availability
	310473X	For Right Side Mtg		—	Call for availability
106C-438	RS-514-000	•lever Type Can Be Used On Either Right Or Left Side.		—	Call for availability
106C-839	RS-811-469	Part No. Type Length		—	Call for availability
106C-939	RS-810-000	106C-1566 Splined 19 .125	version * (see the manual's footnote)	—	Call for availability
106C-953	RS-89-750	106C-1550 Keyed 16 .375	version * (see the manual's footnote)	—	Call for availability
106C-959	RS-811-968	106C-1558 Keyed 19 .000	version * (see the manual's footnote)	—	Call for availability
106C-960	RS-88-719	1 06C-157B Splined 19 .500	version * (see the manual's footnote)	—	Call for availability
106C-1046	RS-88-968	49-510-1 Keyed 19 .120	version * (see the manual's footnote)	—	Call for availability
106C-1047	RS-89-469	97-510-2 Splined 19 .313	version * (see the manual's footnote)	—	Call for availability

Clutch Release Code Table

Item	Part No.	Description	Qty	Price
1	105C-64	106C-1142 106C-1047 310233X 11 .969 60 105C-137 106C-1185 106C-617 310233X	12 .969	—	Call for availability
2	105C-64	106C-t185 106C-438 - 16.500 61 105C-137 106C-1 185 · 106C-839 310233X	13.969	—	Call for availability
3	105C-64	106C-1185 106C-939 310233X 12 .500 62 105C-137 106C-1185 106C-939 310233X	12 .500	—	Call for availability
4	105C-64	106C-t185 106C-1046 310233X 11 .468 63 105C-137 106C-1185 106C-939 310473X	12 .500	—	Call for availability
5	105C-64	106C-1185 106C-1047 310233X 11 .969 64 105C-137 106C-1185 106C-953 310473X	12 .250	—	Call for availability
6	105C-64	106C-1185 106C-1047 47-526-1 -tx 11 .969 65 105C-137 106C-1185 106C-1046 310233X	11 .468	—	Call for availability
7	105C-64	106C-1544 106C-839 310233X 13.969 66 105C-137 106C-1185 106C-1046 310473X	11 .468	—	Call for availability
8	105C-68	106C-1142 106C-438 - 16.125 67 105C-137 106C-1185 106C-1047 310233X	11 .969	—	Call for availability
9	105C-68	106C-1142 106C-617 - 12 .594 68 105C-137 106C-1 185 106C-1083 310233X	10 .469	—	Call for availability
10	105C-68	106C-1142 106C-617 310233X 12 .594 69 105C-137 106C-1 185 106C-1094	- 10 .969	—	Call for availability
11	105C-68	106C-1142 106C-839 310233X 13.594 70 105C-137 106C-1 185 106C-1094 310233X	10 .969	—	Call for availability
12	105C-68	106C-1142 106C-939 310233X 12.125 71 105C-137 106C-1 185 106C-1123	- 15.468	—	Call for availability
13	105C-68	106C-1142 106C-1046 310233X 11 .093 72 105C-137 106C-1 185 106C-1123 310233X	15.468	—	Call for availability
14	105C-68	106C-1142 106C-1047 310233X 11 .594 73 105C-137 106C-1 185 106C-1367	- 12.812	—	Call for availability
15	105C-68	106C-1278 106C-438 - 16.125 74 105C-137 106C-1 185 106C-1367 310233X	12.812	—	Call for availability
15A	105C-68	106C-1278 106C-939 310473X 12.125 75 105C-137 106C-1 185 106C-1375 310873X	9.281	—	Call for availability
158	105C-68	106C-1278 106C-939 310233X 12.125 76 105C-137 106C-1 185 106C-1515	- 13.875	—	Call for availability
16	105C-117	106C-1071 106C-939 310233X 12 .750 77 105C-137 106C-1 185 106C-1529	- 10.812	—	Call for availability
17	105C-117	106C-1071 106C-1094 310233X 11 .219 78 105C-137 106C-1 185 330610-5	- 11 .969	—	Call for availability
18	105C-117	106C-1142 106C-939 310233X 12 .750 78A 105C-137 106C-1 185 46-510-9	- 9 .625	—	Call for availability
19	105C-117	106C-1185 106C-438 - 16.750 79 105C-137 106C-1216 106C-617 310233X	12 .969	—	Call for availability
20	105C-117	106C-1185 106C-617 310233X 13.219 80 105C-137 106C-1278 106C-438	- 16 .500	—	Call for availability
21	105C-117	106C-1185 106C-839 47-526-1 -tx 14.219 81 105C-137 106C-1278 106C-588	- 9 .500	—	Call for availability
22	105C-117	106C-1185 106C-939 310233X 12 .750 82 105C-137 106C-1278 106C-588 310233X	9 .500	—	Call for availability
23	105C-117	106C-1185 106C-953 310873X 12 .500 83 105C-137 106C-1278 106C-617 310233X	12 .969	—	Call for availability
24	105C-117	106C-1185 106C-960 310233X 11 .469 84 105C-137 106C-1278 106C-939 310233X	12 .500	—	Call for availability
25	105C-117	106C-1185 106C-1046 310233X 11 .718 84A 105C-137 106C-1278 106C-939 310473X	12 .500	—	Call for availability
26	105C-117	106C-1185 106C-1047 310233X 12.219 85 105C-137 106C-1278 106C-939 310873X	12 .500	—	Call for availability
27	105C-117	106C-1185 106C-1083 - 10.719 86 105C-137 106C-1278 106C-960 310233X	11 .219	—	Call for availability
28	105C-117	106C-1185 106C-1083 310233X 10.719 87 105C-137 106C-1278 106C-1046	- 11 .468	—	Call for availability
29	105C-117	106C-1185 106C-1083 310473X 10.719 88 105C-137 106C-1278 106C-1046 310233X	11 .468	—	Call for availability
30	105C-117	106C-1185 106C-1094 310233X 11 .219 89 105C-137 106C-1278 106C-1047	- 11 .969	—	Call for availability
31	105C-117	106C-1185 106C-1094 310873X 11 .219 90 105C-137 106C-1278 106C-1047 310233X	11 .969	—	Call for availability
32	L05C-1	17 106C-1185 106C-1169 310233X 11 .875 91 105C-137 106C-1278 106C-1083 310233X	10 .469	—	Call for availability
33	105C-117	106C-1185 106C-1315 - 10.375 91A 105C-137 106C-1278 106C-1083 310473X	10 .469	—	Call for availability
34	105C-117	l06C-1 185 106C-1315 310233X 10.375 92 105C-137 106C-1278 106C-1094 310233X	10.969	—	Call for availability
35	105C-117	106C-1185 106C-1315 47-526-1 -tx 10.375 92A 105C-137 106C-1278 106C-1315 310233X	10.125	—	Call for availability
35A	105C-117	106C-1185 106C-1375 310873X 9.531 93 105C-137 106C-1278 106C-1375 310233X	9.281	—	Call for availability
36	105C-117	106C-1185 106C-1417 310233X 10.000 94 105C-137 106C-1278 106C-1422 310233X	10.000	—	Call for availability
37	105C-117	106C-1185 106C-1417 310873X 10.000 95 105C-137 106C-1278 106C-1529	- 10.812	—	Call for availability
38	105C-117	l06C-1 185 106C-1490 310233X 18.750 96 105C-137 106C-1360 106C-1083	- 10 .469	—	Call for availability
39	105C-117	106C-1278 106C-939 310233X 12 .750 96A 105C-137 106C-1360 106C-1417 310233X	9 .750	—	Call for availability
40	105C-117	106C-1278 106C-960 310873X 11 .469 97 105C-137 106C-1360 106C-1422 310233X	10 .000	—	Call for availability
41	105C-117	106C-1278 106C-1047 310233X 12.219 98 105C-137 106C-1375 106C-438 310233X	16 .500	—	Call for availability
43	105C-117	106C-1278 106C-1315 310233X 10.375 100 105C-137 106C-1498 106C-617 310233X	12 .969	—	Call for availability
44	105C-117	106C-1278 106C-1367 310233X 13.062 101 105C-137 106C-1498 106C-617 310473X	12 .969	—	Call for availability
45	105C-117	106C-1360 106C-1083 310233X 10.719 102 105C-137 106C-1498 106C-939 310233X	12 .500	—	Call for availability
46	105C-117	106C-1360 106C-1315 310233X 10.375 103 105C-137 106C-1498 106C-939 310473X	12 .500	—	Call for availability
46A	105C-117	106C-1360 330610-10 - 12 .250 104 105C-137 106C-1498 106C-953 310233X	12 .250	—	Call for availability
47	105C-117	Thru Shaft 106C-1550 - - 105 105C-137 106C-1498 106C-959 310233X	14 .468	—	Call for availability
48	105C-117	Thru Shaft 106C-1558 - - 106 105C-137 106C-1498 106C-1046 310233X	11 .468	—	Call for availability
49	105C-124	106C-1185 106C-438 - 14.313 107 105C-137 106C-1498 106C-1047	- 11 .969	—	Call for availability
50	105C-124	Thru Shaft 106C-1566 310233X - 108 105C-137 106C-1498 106C-1047 310233X	11 .969	—	Call for availability
51	105C-124	Thru Shaft 106C-1566 310473X - 109 105C-137 106C-1498 106C-1083 310233X	10 .469	—	Call for availability
52	105C-124	Thru Shaft 106C-1566 310873X - 110 105C-137 106C-1498 106C-1094	- 10 .969	—	Call for availability
52A	105C-124	Thru Shaft 49-510-1 310233X - 111 105C-137 106C-1498 330610-11 310233X	13 .250	—	Call for availability
53	105C-132	106C-1185 106C-1047 310233X 9 .782 112 105C-137 330601 -1 106C-939 310233X	12 .500	—	Call for availability
54	105C-132	106C-1185 106C-1083 310233X 8 .282 112A 85-509-3 106C-1278 106C-939 310233X	12 .750	—	Call for availability
55	105C-132	106C-1185 106C-1417 310873X 7.563 113 85-509-3 106C-1360 106C-1417 310233X	10.000	—	Call for availability
56	105C-132	106C-1185 46-510-9 - 7.438 114 85-509-3 Thru Shaft 106C-1578 310233X		—	Call for availability
57	105C-132	106C-1278 46-510-9 - 7.438 114A 85-509-3 Thru Shaft 106C-1578 310473X		—	Call for availability
58	105C-137	106C-1141 106C-1169 310233X 11 .625 115 85-509-3 Thru Shaft 106C-1578 310873X		—	Call for availability
59	105C-137	106C-1185 106C-438 - 16.500 116 312916 Thru Shaft 97-510-2		—	Call for availability

Major Overhaul Kit

Part No.	Description	Qty	Price
T21O-CM55	Basic Overhaul Kits		—	Call for availability
313400-45X	Major Overhaul Kit	1	$723.59	Superseded by 554001XAdd to Cart
500008-37	Woodruff Key- #f	4	$2.76	Add to Cart
53-205-1	Washer- Mainshaft	1	$4.42	Add to Cart
501200	Nut - Mainshaft	1	$15.74	Add to Cart
313401-13X	Thrust Washer Kit	1	$169.55	Add to Cart
313429-6X	Shifter Housing Repair Parts Kit	1	—	Call for availability
313432-10X	Minor Overhaul Kit	1	$428.87	Add to Cart

Minor Overhaul Kit

Part No.	Description	Qty	Price
313432-10X	Minor Overhaul Kit	1	$428.87	Add to Cart
550375	Countershaft - Cup	2	—	Call for availability
550927	Countershaft - Cone	2	—	Call for availability
550886	Reverse Idler Shaft	2	—	Call for availability
550929	Drive Gear And Mainshaft Rear- Cup	2	$28.81	Add to Cart
550930	Drive Gear And Mainshaft Rear - Cone	2	$64.20	Add to Cart
550931	Drive Gear - Pocket	1	$34.78	Add to Cart
550932	1 St And Reverse Mainshaft Needle Bearing Assy.	2	$40.03	Add to Cart
59-482-1-1X	Needle Roller Bearing And Spacer Kit	1	$18.84	Add to Cart
60-463-8	Oil Seal - Mainshaft Rear	1	$18.84	Add to Cart
60-463-10-1X	Oil Seal - Drive Gear	1	$37.74	Add to Cart
63-463-1	Oil Seal - Mainshaft Rear (ford Only)	1	$28.23	Add to Cart
46-463-8	Oil Seal - Mainshaft Rear Bearing Cap	1	$17.87	Add to Cart
545007	Bearing Lubricant		—	Call for availability
545008-1	Loctite	1	—	Call for availability
2770	Bearing Lube Instructions	1	—	Call for availability
2783	Loctite Application Instructions Tor Mainshaft Nut	1	—	Call for availability
2734	Bulletin For Thrust Washer Installation	1	—	Call for availability
2759	Bulletin For Drive Gear Replacement	1	—	Call for availability
312475-28X	Gasket Kit	1	$72.07	Add to Cart
313024-13X	Snap Ring Kit	1	—	Call for availability
313240-3X	Baffle And Shim Kit - Drive Gear	1	$33.38	Add to Cart
313438X	Shim Kit - Countershaft Rear	1	$6.73	Add to Cart
2355	Service Manual	1	—	Call for availability

Basic Overhaul Kits T210 -CM55

Part No.	Description	Qty	Notes	Price
313429-6X	Shifter Housing Repair Parts Kit	1		—	Call for availability
266-SP	Interlock Pin	1		—	Call for availability
50-80-1	Ball - Shift Rod Poppet And Interlock	7		$2.70	Add to Cart
50-80-4	Ball - Backup Switch	2		$7.01	Add to Cart
62-438-2	Plunger - 1 St And Reverse	2		—	Call for availability
47-72-1	Spring - Shift Rod Poppet	3		$3.15	Add to Cart
62-72-8	Spring - Shift Finger Plunger 1 St And Reverse			—	No longer available — call for replacement
312475-28X	Gasket Kit	1		$72.07	Add to Cart
82-118-1	Remote Control - Aperture Cover	1		—	Call for availability
47-155-1	Shifter Housing	1		—	Call for availability
62-155-7	Control Cover	1		$9.44	Superseded by 6215513Add to Cart
47-223-1	Drive Gear Bearing Cap			$6.27	Add to Cart
47-223-2	Countershaft Rear Bearing Cap			—	Call for availability
47-223-3	Mainshaft Rear Bearing Cap	1		$5.49	Add to Cart
47-223-4	Mainshaft Rear Bearing Cap - For Brake Mounting	1		—	Call for availability
47-223-5	Countershaft Front Bearing Cap	1		—	Call for availability
53-223-1	Mainshaft Rear Bearing Cap - For Brake Mounting	1		—	Call for availability
63-223-7	Mainshaft Rear Bearing Cap -for Ford Only	1		—	Call for availability
47-352-1	Clutch Housing	1		$12.59	Add to Cart
97-324-1-1X	P .t .o (6 Holes) Kit	1	manual lists 97-324-1-1X - we stock the base part 97-324-1	—	Call for availability
97-324-2-1X	P .t .o (8 Holes) Kit		manual lists 97-324-2-1X - we stock the base part 97-324-2	—	Call for availability
313024-13X	Snap Ring Kit	1		—	Call for availability
27-381-5	Mainshaft	2		—	Call for availability
46-381-1	Countershaft And Mainshaft	2		—	Call for availability
53-381-2	Mainshaft	2		—	Call for availability
82-381-1	Countershaft			—	Call for availability
46-381-2	Mainshaft - 3rd And 4th Speed Gear			$6.73	Add to Cart
313240-3X	Baffle And Shim Kit - Mainshaft	1		$33.38	Add to Cart
47-228-1-1	Adjusting Shim - Mainshaft Rear	9		$3.40	Add to Cart
47-228-2-2	Shim - Mainshaft Front	1		—	Call for availability
47-228-2-10	Spacer - Mainshaft Rear			$33.38	Superseded by 3132403XAdd to Cart
47-468-1	Baffle - Bearing Cap Front			$3.55	Add to Cart
47-468-2	Baffle - Oil Ring Drive Gear	1		$33.38	Superseded by 3132403XAdd to Cart
2789	Bulletin - Baffle And Shim Kit	1		—	Call for availability
313438X	Shim Kit - Countershaft Rear	1		$6.73	Add to Cart
47-228-3-1	Shim - Rear Bearing	4		—	Call for availability
2759	Bulletin - Drive Gear Replacement	1		—	Call for availability

Used by with A No. Code Gear Cap Assembly

Item	Part No.	Description	Qty	Notes	Price
301309-Model	5552	-a			—	Call for availability
#-U nit has	313262X	Neutral Start Switch Actuator Kit- Shipped Loose			—	Call for availability

Tabulated Bills of Material

Part No.	Description	Qty	Price
153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
253-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
553-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
653-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
953-19-12-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
1053-19-12-4X	47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
1153-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
1453-19-12-4X	47 -16 -1 -8X		—	Call for availability
1553-19-12-4X	53-452-3 62 -453-4 5-4-6321 47 -16 -1 -1 1X 47 -16 -8	-2X	—	Call for availability
1853-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
1953-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
2053-19-12-4X	53-452 -3 62 -453-4 5-4-6321 47 -16 -1 -1 1X 47 -16 -8	-2X	—	Call for availability
2153-19-12-4X	53-452 -3 62 -453-4 5-4-6321 47 -16 -1 -8X		—	Call for availability
2253-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
2353-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
2453-19-12-4X	53-452-3 62 -453 -4 47 -16 -1 -1 1X		—	Call for availability
2653-19-12-4X	53-452 -3 62 -453-4 47 -16 -1 -8X		—	Call for availability
2753-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
2953-19-12-4X	47 -16 -1 -16X		—	Call for availability
3053-19-12-4X	53-452-3 62 -453-4 47 -16 -1 -8X 47 -16 -3 -25X		—	Call for availability
3153-19-12-4X	47 -16 -1 -8X		—	Call for availability
3253-19-12-4X	47 -16 -1 -8X		—	Call for availability
3453-19-12-4X	47 -16 -1 -8X		—	Call for availability
3553-19-12-4X	53-106-2 47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability

Used by with A No. Code Gear Cap Assembly

Item	Part No.	Description	Qty	Notes	Price
301309-Model	5552	-a (cont' D)			—	Call for availability
#-U nit has	313262X	Neutral Start Switch Actuator Kit -shipped Loose			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Price
301309-Model	5552	-a (con! ' D)		—	Call for availability
301309-Model	3653-19-12-4X	47 -16 -1 -lox		—	Call for availability
301309-Model	3753-19-12-4X	47 -16 -1 -bx 47 -16 -8	-2X	—	Call for availability
301309-Model	3953-19-3-4X	53 -452 -2 47 -16 -1 -bx		—	Call for availability
301309-Model	4053-19-12-4X	47 -16 -1 -bx		—	Call for availability
301309-Model	4153-19-12-4X	47 -16 -1 -bx 47 -16 -3 -lx		—	Call for availability
301309-Model	4253-19-12-4X	47 -16 -1 -bx		—	Call for availability
301309-Model	4353-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16	-8 -2X	—	Call for availability
301309-Model	4753-19-12-4X	47 -16 -1 -bx 47 -16 -3 -lx		—	Call for availability
301309-Model	4953-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16 -9	-2X	—	Call for availability
301309-Model	5153-19-12-4X	53 -452 -4 53-453-2 4-4-4491 47 -16 -1 -1 1X		—	Call for availability
301309-Model	5253-19-12-4X	53 -452 -3 47 -16 -1 -bx		—	Call for availability
301309-Model	5353-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16 -8	-2X	—	Call for availability
301309-Model	5553-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16	-8 -2X	—	Call for availability
301309-Model	5653-19-12-4X	53-106-2 47 -16 -1 -bx 47 -16 -3 -lx		—	Call for availability
301309-Model	5753-19-13O2X	• 47 -16 -1 -bx		—	Call for availability
301309-Model	5853-I9-15-2X	47 -16 -1 -bx		—	Call for availability
301309-Model	6053-19-13-2X	• 47 -16 -1 -bx		—	Call for availability
301309-Model	6153-19-15-2X	47 -16 -1 -bx		—	Call for availability
301309-Model	6253-19-17-2X	47 -16 -1 -bx		—	Call for availability
301309-Model	6653-19-12-4X	53-106-2 47 -16 -1 -bx 47 -16 -5-38X		—	Call for availability
301309-Model	6753-19-13-2X	• 47 -16 -1 -bx		—	Call for availability
301309-Model	6853-19-15-2X	47 -16 -1 -bx		—	Call for availability
301309-Model	6953-19-17-2X	47 -16 -1 -bx		—	Call for availability
301309-Model	7053-19-12-4X	5-4-6321 47 -16 -1 -bx 47 -16 -3 -lx		—	Call for availability
	E-220-21	A-1 F -2 G-1		—	Call for availability
	7153-19-7-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	7253-19-12-4X	53 -452-3 62-453 -4 5-4-6321 47-16-1 -8X 47-16-3 -1X		—	Call for availability
	7353-19-12-4X	47-16-1 -16X		—	Call for availability
	7753-19-12-4X	53 -106-2 47-16-1 -16X		—	Call for availability
	7853-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X 47-16-3 -25X		—	Call for availability
	8153-19-12-4X	47-16-1 -8X 47-16-3 -1X		—	Call for availability
	8253-19-12-4X	53 -452-3 62-453 -4 5-1 -6311X 47-16-1 -8X 47-16-8-2X		—	Call for availability
	8353-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	8453-19-12-4X	53 -106-2 47-16-1 -16X 47-16-3 -1X		—	Call for availability
	8553-19-13-2X	47-16-1 -8X		—	Call for availability
	8647-19-3-2X	47-16-1 -16X		—	Call for availability
	8753-19-7-2X	53 -452-4 53 -453 -2 5-1 -6311X 47-16-1 -11X		—	Call for availability
	8853-19-12-4X	3-4-8781 47-16-1 -16X 47-16-3 -1X		—	Call for availability
	8947-19-3-2X	47-16-1 -18X		—	Call for availability
	9053-19-12-4X	47-16-1 -8X		—	Call for availability
	9153-19-3-2X	53 -452-2 47-16-1 -8X		—	Call for availability
	9253-19-13-2X	• 47-16-1 -8X		—	Call for availability
	9353-19-13-2X	• 47-16-1 -8X		—	Call for availability
	9453-19-12-4X	53 -452-4 53 -453 -2 4-4-4491 47-16-1 -8X		—	Call for availability
	9653-19-1-4X	53 -452-2 47-16-1 -8X		—	Call for availability
	9753-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	9853-19-3-2X	53 -452-2 47-16-1 -8X		—	Call for availability
	9953-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
-100	53-19-12-4X	53 -452-3 5-4-6321 47-16-1 -8X 47-16-8-3X		—	Call for availability
-102	53-19-12-4X	53 -452-4 53 -453 -2 5-4-6321 47-16-1 -8X 47-16-3 -1X		—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
301309-Model	5552-A	(con! ' D)			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Price
301309-Model	5552	-a (cont' D)		—	Call for availability
301309-Model	10847-19-3-2X	47 -16 -1 -sx		—	Call for availability
301309-Model	10953-19-12-4X	5-1 -631 1X 47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
301309-Model	12053-19-12-4X	53 -452 -2 53-453-2 5-4-6321 -1 47 -16 -1 -8X 47 -16 -5-43X		—	Call for availability
301309-Model	12153-19-12-4X	53 -452 -4 53-453-2 5-4-6321 -1 47 -16 -1 -1 1X		—	Call for availability
301309-Model	12353-19-12-4X	53-452 -4 53-453-2 5-4-6321 47 -16 -1 -1 1X		—	Call for availability
301309-Model	12453-19-12-4X	53-452 -4 53-453-3 5-4-6321 47 -16 -1 -8X 47 -16 -5-43X		—	Call for availability
301309-Model	153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
301309-Model	253-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
301309-Model	453-19-12-4X	47 -16 -1 -12X 47 -16 -8	-2X	—	Call for availability
301309-Model	653-19-12-4X	47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
301309-Model	753-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
301309-Model	853-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
301309-Model	953-19-3-4X	53-452 -2 47 -16 -1 -sx		—	Call for availability
301309-Model	1053-19-12-4X	53-452 -3 62-453-4 53-106-2 47 -16 -1 -sx		—	Call for availability
301309-Model	1153-19-12-4X	47 -16 -1 -8X 47 -16	-8 -2X	—	Call for availability
301309-Model	1253-19-12-4X	47 -16 -1 -8X		—	Call for availability
301309-Model	1353-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
301309-Model	1453-19-12-4X	47 -16 -1 -sx		—	Call for availability
301309-Model	1553-19-12-4X	53-452 -3 62-453-4 5-4-6321 47-16 -18X 47 -16 -8	-3X	—	Call for availability
301309-Model	1753-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
301309-Model	1853-19-12-4X	4-4-4491 47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
301309-Model	1953-19-12-4X	47 -16 -1 -8X 47 -16 -3 -25X		—	Call for availability
301309-Model	2053-19-12-4X	47 -16 -1 -8X		—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
30131 0 -Model	5552	-b (con! ' D)			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Qty	Price
	2153-19-12-4X	5-4-6321 47 -16 -1 -12X 47 -16 -12	-2X	—	Call for availability
	2253-19-12-4X	53-106-2 47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
	2353-19-3-4X	47 -16 -1 -8X		—	Call for availability
	2453-19-12-4X	5-4-6321 47 -16 -1 -12X 47 -16 -8	-2X	—	Call for availability
	2553-19-12-4X	53 -452 -3 62 -453 -4 53-106-2 47 -16 -1 -8X 47 -16 -3 -25X		—	Call for availability
	2753-19-12-4X	4-4-4491 47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
	2853-19-12-4X	53 -452 -3 62 -453-4 47 -16 -1 -1 1X		—	Call for availability
	2953-19-12-4X	53-106-2 47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
	3053-19-12-4X	47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
	3353-19-12-4X	53-106-2 47 -16 -1 -8X 47 -16 -8	-2X	—	Call for availability
	3453-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
	4153-19-13-2X	47 -16 -1 -8X		—	Call for availability
	4253-19-15-2X	47 -16 -1 -8X		—	Call for availability
	4353-19-17-2X	47 -16 -1 -8X		—	Call for availability
	4453-19-13-2X	47 -16 -1 -8X		—	Call for availability
	4553-19-15-2X	47 -16 -1 -8X		—	Call for availability
	4653-19-17-2X	47 -16 -1 -8X		—	Call for availability
	4753-19-12-4X	53 -452 -3 62 -453-4 53-106-1 47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
	4853-19-12-4X	4-4-4491 47 -16 -1 -8X 47 -16 -8	-3X	—	Call for availability
	4953-19-12-4X	4-4-4491 47 -16 -1 -17X		—	Call for availability
	5153-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
	5253-19-17-2X	47 -16 -1 -8X		—	Call for availability
	5353-19-13-2X	47 -16 -1 -8X		—	Call for availability
	5553-19-13-2X	47 -16 -1 -8X		—	Call for availability
	E-220-21	A-1 F -2 G -1		—	Call for availability
	5753-19-15-2X	47 -16 -1 -bx		—	Call for availability
	5853-19-7-2X	5-1 -631 1X 47 -16 -1 -bx 47 -16 -3 -1X		—	Call for availability
	5953-19-13-2X	3-4-8781 47 -16 -1 -bx		—	Call for availability
	6053-19-12-4X	5-1 -631 1X 47 -16 -1 -19X		—	Call for availability
	6153-19-12-4X	47 -16 -1 -bx		—	Call for availability
	6253-19-12-4X	53 -452 -3 47 -16 -1 -bx		—	Call for availability
	153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
	253-19-12-4X	53 -452 -3 47 -16 -1 -8X		—	Call for availability
	353-19-12-4X	53 -452 -3 62 -453 -4 47 -16 -1 -1 1X		—	Call for availability
	453-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16	-8 -2X	—	Call for availability
	653-19-7-4X	53 -452 -3 47 -16 -1 -bx		—	Call for availability
	753-19-12-4X	5-4-6321 47 -16 -1 -1 1X 47 -16	-8 -2X	—	Call for availability
	1453-19-1-4X	53-452 -2 47 -16 -1 -10X		—	Call for availability
	1753-19-3-4X	53-452 -2 47 -16 -1 -bx		—	Call for availability
	1853-19-12-4X	47 -16 -1 -8X		—	Call for availability
	1953-19-12-4X	47 -16 -1 -8X		—	Call for availability
	2053-19-12-4X	47 -16 -1 -10X		—	Call for availability
	2153-19-1-4X	53 -452 -2 47 -16-1 -8X		—	Call for availability
	2353-19-12-4X	53-106-2 47 -16 -1 -1 1X		—	Call for availability
	2553-19-7-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
	2653-19-12-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
	3153-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	3253-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -11X 47-16-8	-2X	—	Call for availability
	3353-19-3-4X	53 -452-2 47-16-1 -8X		—	Call for availability
	3653-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X 47-16-5 -21X		—	Call for availability
	3753-19-12-4X	47-16-1 -8X 47-16-3 -1X		—	Call for availability
	3853-19-7-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	3953-19-12-4X	53 -452-3 47-16-1 -bx		—	Call for availability
	4053-19-12-4X	53 -452-3 47-16-1 -bx		—	Call for availability
	4153-19-7-4X	53 -452-3 47-16-1 -bx		—	Call for availability
	4253-19-1-4X	53 -452-2 47-16-1 -bx		—	Call for availability
	4353-19-13-2X	• 47-16-1 -bx		—	Call for availability
	4453-19-15-2X	47-16-1 -sx		—	Call for availability
	4553-19-17-2X	47-16-1 -bx		—	Call for availability
	4653-19-13-2X	47-16-1 -bx		—	Call for availability
	4753-19-15-2X	47-16-1 -bx		—	Call for availability
	4853-19-17-2X	47-16-1 -bx		—	Call for availability
	5053-19-13-2X	47-16-1 -bx		—	Call for availability
	5353-19-15-2X	47-16-1 -bx		—	Call for availability
	5453-19-12-4X	53 -106-2 47-16-1 -11X		—	Call for availability
	5553-19-12-4X	53 -106-2 47-16-1 -11X		—	Call for availability
	5653-19-12-4X	47-16-1 -bx		—	Call for availability
	5853-19-12-4X	53 -452-3 62-453 -4 3 -4-8781 47-16-1 -11X		—	Call for availability
	5953-19-12-4X	53 -452-3 47-16-1 -bx		—	Call for availability
	353-19-3-4X53	-452-2 47 -16-1 -8X		—	Call for availability
	453-19-3-4X53	-452 -2 47-16-1 -8X		—	Call for availability
	553-19-1-4X53	-452 -2 47 -16-1 -8X		—	Call for availability
	653-19-7-4X53	-452-3 47-16-1 -8X		—	Call for availability
	753-19-12-4X53	-452-3 47-16-1 -8X		—	Call for availability
	853-19-12-4X53	-452-3 47-16-1 -8X		—	Call for availability
	953-19-7-4X53	-452-3 47-16-1 -8X		—	Call for availability
	1053-19-12-4X53	-452-3 47-16-1 -8X		—	Call for availability
	1253-19-7-4X53	-452-3 47-16-1 -8X		—	Call for availability
	1353-19-13-2X	47-16-1 -8X		—	Call for availability
	1453-19-15-2X	47-16-1 -8X		—	Call for availability
	1553-19-15-2X	47 -16-1 -8X		—	Call for availability
	1653-19-13-2X	47-16-1 -8X		—	Call for availability
	1753-19-17-2X	47-16-1 -8X		—	Call for availability
	1853-19-15-2X	47-16-1 -8X		—	Call for availability
	1953-19-15-2X	47-16-1 -8X		—	Call for availability
	2053-19-17-2X	47-16-1 -8X		—	Call for availability
	2253-19-13-2X	47-16-1 -8X		—	Call for availability
	2353	-452-3 47-16-1 -8X		—	Call for availability
	2453-19-7-2X53	-452-3 47-16-1 -8X		—	Call for availability
	2653-19-1-2X53	-452-2 47-16-1 -8X		—	Call for availability
	2953-19-1-2X	47-16-1 -8X 47-16-3 -1X		—	Call for availability
	3053-19-1-2X	53 -452-2 47-16-1 -8X		—	Call for availability
	453-19-1-4X	53 -452-2 47-16-1 -8X		—	Call for availability
	553-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
T210	CM55	Tabulated Bills Of Material		—	Call for availability
	653-19-3-4X	53 -452-2 47-16-1 -sx		—	Call for availability
	853-19-12-4X	53 -452-3 47-16-1 -sx		—	Call for availability
	953-19-7-4X	53 -452-3 47-16-1 -sx		—	Call for availability
	1553-19-1-4X	53 -452-2 47-16-1 -sx		—	Call for availability
	1653-19-3-4X	53 -452-2 47-16-1 -sx		—	Call for availability
	1853-19-7-4X	53 -452-3 47-16-1 -sx		—	Call for availability
	2253-19-1-4X	53 -452-2 47-16-1 -sx		—	Call for availability
	3253-19-7-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	3553-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -12X 47-16-3 -25X		—	Call for availability
	3653-19-7-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	3853-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	3953-19-7-4X	53 -452-3 47-16-1 -8X		—	Call for availability
	4353-19-12-4X	53 -452-4 53 -453 -2 4-4-4491 47-16-1 -11X		—	Call for availability
	4453-19-12-4X	53 -452-3 47-16-1 -bx		—	Call for availability
	4553-19-7-4X	53 -452-3 47-16-1 -sx		—	Call for availability
	5053-19-12-4X	47-16-1 -sx 47-16-8-2X		—	Call for availability
	5453-19-15-2X	47-16-1 -sx		—	Call for availability
	5553-19-17-2X	47-16-1 -sx		—	Call for availability
	5653-19-13-2X	47-16-1 -sx		—	Call for availability
	5853-19-17-2X	47-16-1 -sx		—	Call for availability
	6553-19-13-2X	47-16-1 -sx		—	Call for availability
	6653-19-15-2X	47-16-1 -sx		—	Call for availability
	6753-19-17-2X	47-16-1 -bx		—	Call for availability
	7153-19-12-4X	47-16-1 -sx 47-16-3 -1X		—	Call for availability
	7253-19-7-2X	53 -452-3 47-16-1 -sx		—	Call for availability
	7353-19-12-4X	53 -452-3 47-16-1 -sx		—	Call for availability
	7453-19-3-4X	53 -452-2 53 -106-2 47-16-1 -sx 47-16-5-21X		—	Call for availability
	7553-19-7-2X	53 -452-4 53 -453 -2 5-1 -6311X 47-16-1 -11X		—	Call for availability

Clutch Housing Main Drive Gear

Item	Part No.	Description	Qty	Notes	Price
T210	CM55	Tabulated Bills Of Material			—	Call for availability

Tabulated Bills of Material

Item	Part No.	Description	Price
	7653-19-1-4X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
	7753-19-3-2X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
	7853-19-12-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
	7953-19-13-2X	47 -16 -1 -8X	—	Call for availability
	8053-19-13-2X	47 -16 -1 -8X	—	Call for availability
	8153-19-17-2X	47 -16 -1 -8X	—	Call for availability
	8253-19-12-4X	53 -452 -3 47 -16 -1 -8X	—	Call for availability
	9353-19-12-4X	53-452 -4 53-453-2 5-4-6321 -1 47 -16 -1 -8X 47 -16 -5-43X	—	Call for availability
	9453-19-12-4X	53-452 -4 53-453-2 5-4-6321 -1 47 -16 -1 -1 1X	—	Call for availability
	9553-19-12-4X	53 -452 -4 53-453-2 5-4-6321 47 -16 -1 -1 1X	—	Call for availability
	9653-19-12-4X	53-452 -4 53-453-2 5-4-6321 47 -16 -1 -8X 47 -16 -5-43X	—	Call for availability
	153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X	—	Call for availability
	253-19-12-4X	47 -16 -1 -8X 47 -16 -3 -1X	—	Call for availability
	553-19-1-4X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
	653-19-3-4X	53-452 -2 47 -16 -1 -8X	—	Call for availability
	953-19-12-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
	1453-19-12-4X	47 -16 -1 -8X	—	Call for availability
T210	CM55	Tabulated Bills Of Material	—	Call for availability
	1853-19-1-4X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
	1953-19-3-4X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
	2753-19-1-4X	53-452 -2 47 -16 -1 -8X	—	Call for availability
	3153-19-12-4X	47-16-1 -sx	—	Call for availability
	3653-19-12-4X	47 -16 -1 -10X	—	Call for availability
	3953-19-3-4X	53 -452 -2 47-16-1 -sx	—	Call for availability
	4053-19-12-4X	47-16 -1 -10X	—	Call for availability
301366-Model	5552	-a (cont ' D)	—	Call for availability
301366-Model	5153-19-12-4X	53-452 -4 53 -453 -2 4-4-4491 47 -16 -1 -1 1X	—	Call for availability
301366-Model	5253-19-12-4X	53-452 -3 47-16 -1 -sx	—	Call for availability
301366-Model	5653-19-12-4X	53 -106 -2 47 -16 -1 -sx 47 -16 -3 -1X	—	Call for availability
301366-Model	5753-19-13-2X	47-16 -1 -sx	—	Call for availability
301366-Model	5853-19-15-2X	47 -16 -1 -sx	—	Call for availability
301366-Model	5953-19-17-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6053-19-13-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6153-19-15-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6253-19-17-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6653-19-12-4X	53-106-1 47-16 -1 -sx 47 -16 -5-38X	—	Call for availability
301366-Model	6753-19-13-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6853-19-15-2X	47-16 -1 -sx	—	Call for availability
301366-Model	6953-19-17-2X	47-16 -1 -sx	—	Call for availability
301366-Model	7153-19-7-4X	53-452-3 47-16 -1 -sx	—	Call for availability
301366-Model	8353-19-12-4X	53-452-3 47-16 -1 -sx	—	Call for availability
301366-Model	8453-19-12-4X	53-106-2 47 -16 -1 -16X 47 -16 -3 -1X	—	Call for availability

Clutch Housing Main Drive Gear

Item	Part No.	Description	Qty	Notes	Price
T210	CM55	Tabulated Bills Of Material			—	Call for availability
T210	115M	Byrne Mfg Push 3 46 -518-21 -1X 22 53 -35-1 -1X 47 -19 -82 -1X 47 -15-13	-2X •		—	Call for availability

Tabulated Bills of Material

Part No.	Description	Qty	Price
8853-19-12-4X	3-4-8781 47-16-1 -16X 47-16-3 -1X		—	Call for availability
9053-19-12-4X	47-16-1 -8X		—	Call for availability
9253-19-13-2X	47-16-1 -8X		—	Call for availability
9453-19-12-4X	53 -452-4 53 -453 -2 4-4-4491 47-16-1 -8X 47-16-5 -43X		—	Call for availability
9553-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
9653-19-1-4X	53 -452-2 47-16-1 -8X		—	Call for availability
9953-19-12-4X	53 -452-3 47-16-1 -8X		—	Call for availability
10053-19-12-4X	53 -452-3 62-453 -4 5-4-6321 47-16-1 -8X 47-16-8	-3X	—	Call for availability
10153-19-12-4X	53 -452-3 62-453 -4 3-4-8781 47-16-1 -8X 47-16-3 -1X		—	Call for availability
10353-19-22-1X	53 -452-6 4-4-4611 -2 47-16-1 -8X		—	Call for availability
10453-19-22-1X	53 -452-6 5 -4-6481 -1 47-16-1 -8X		—	Call for availability
10553-19-22-1X	53 -452-6 4-4-4611 -2 47-16-1 -8X		—	Call for availability
10653-19-22-1X	53 -452-6 5-4-6481 -1 47-16-1 -8X		—	Call for availability
10753-19-22-1X	53 -452-6 5 -4-6481 -1 47-16-1 -8X		—	Call for availability
10847-19-3-2X	47-16-1 -18X		—	Call for availability
11453-19-12-4X	53 -452-3 62-453 -4 3-4-8781 47-16-1 -8X		—	Call for availability
11553-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X		—	Call for availability
11653-19-22-1X	53 -452-6 4-4-4611 -2 47-16-1 -8X		—	Call for availability
11753-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X 47-16-9-3X		—	Call for availability
11853-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X 47-16-3 -1X		—	Call for availability
11953-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X 47-16-8	-3X	—	Call for availability
12053-19-12-4X	53 -452-4 53 -453 -2 5-4-6321 47-16-1 -8X 47-16-5 -43X		—	Call for availability
12153-19-12-4X	53 -452-4 53 -453 -2 5-4-6321 47-16-1 -11X		—	Call for availability
12253-19-12-4X	53 -452-3 62-453 -4 53 -106-2 47-16-1 -8X		—	Call for availability

Used by with A No. Code Gear Cap Assembly

Item	Part No.	Description	Qty	Notes	Price
!01366-Model	5552	-a (cont ' D)			—	Call for availability
!01367 -Model	5552	-b			—	Call for availability

Tabulated Bills of Material

Part No.	Description	Qty	Price
12353-19-12-4X	53-452 -4 53 -453 -2 5-4-6321 47 -16 -1 -1 1X		—	Call for availability
12453-19-12-4X	53-452 -4 53 -453 -2 5-4-6321 47 -16 -1 -8X 47 -16 -5-43X		—	Call for availability
12553-19-12-4X	53-452 -4 62 -453 -4 5-4-6321 47 -16 -1 -8X 47 -16	-8 -3X	—	Call for availability
12753-19-12-4X	53-452 -3 62 -453 -4 53-106-2 47 -16 -1 -8X 47 -16	-8 -3X	—	Call for availability
12853-19-22-1X	53-452 -6 3 -4 -8931 -2 47 -16 -1 -8X		—	Call for availability
12953-19-12-4X	53-452 -3 62 -453 -4 3-4-8781 47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
253-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
553-19-12-4X	5-4-6321 47 -16 -1 -8X 47 -16	-9 -2X	—	Call for availability
753-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
853-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
953-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
1053-19-12-4X	53-452-3 62 -453-4 53-106-2 47 -16 -1 -8X		—	Call for availability
1353-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
2353-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
2853-19-12-4X	53-452 -3 62 -453-4 47-16-1 -1 1X		—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
301367 -Model	5552-B	(cont' D)			—	Call for availability

Tabulated Bills of Material

Part No.	Description	Price
3153-19-12-4X	53 -452 -3 62 -453-4 3-4-8781 47 -16 -1 -8X	—	Call for availability
4153-19-13-2X	47 -16 -1 -sx	—	Call for availability
4253-19-15-2X	47 -16 -1 -sx	—	Call for availability
4353-19-17-2X	47 -16 -1 -sx	—	Call for availability
4453-19-13-2X	47 -16 -1 -8X	—	Call for availability
4553-19-15-2X	47 -16 -1 -8X	—	Call for availability
4653-19-17-2X	47 -16 -1 -8X	—	Call for availability
5253-19-17-2X	47 -16 -1 -8X	—	Call for availability
5353-19-13-2X	47 -16 -1 -8X	—	Call for availability
5753-19-15-2X	47 -16 -1 -sx	—	Call for availability
6153-19-12-4X	47 -16 -1 -8X	—	Call for availability
6253-19-12-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
6353-19-12-4X	5-4-6481 47 -16 -1 -8X	—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
• • - Unit has	97-454-2-1X	Speedo Sleeve & Oil Seal			$34.11	Add to Cart

Tabulated Bills of Material

Part No.	Description	Qty	Price
153-19-1-4X	47 -16 -1 -8X 47 -16 -3 -1X		—	Call for availability
253-19-12-4X	53-452-3 47 -16 -1 -8X		—	Call for availability
353-19-12-4X	53-452 -3 62-453-4 47 -16 -1 -1 1X		—	Call for availability
653-19-7-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
1453-19-1-4X	53-452 -2 47 -16 -1 -10X		—	Call for availability
1553-19-12-4X	53-452 -3 53-106-2 47 -16 -1 -8X		—	Call for availability
1753-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
1853-19-12-4X	47 -16 -1 -8X		—	Call for availability
2053-19-12-4X	47 -16 -1 -10X		—	Call for availability
2153-19-1-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
2253-19-12-4X	53-452 -3 62-453-2 53-106-1 47 -16 -1 -1 1X 47 -16	-8 -2X	—	Call for availability
2353-19-12-4X	53-106-2 47 -16 -1 -1 1X		—	Call for availability
2553-19-7-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
2653-19-12-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
2853-19-12-4X	53-452 -3 5-4-6321 47 -16 -1 -8X		—	Call for availability
3053-19-12-4X	53-452 -3 5-4-6321 47 -16 -1 -1 1X 47 -16 -3 -1X		—	Call for availability
3153-19-12-4X	53-452 -3 47 -16 -1 -8X		—	Call for availability
3353-19-3-4X	53-452 -2 47 -16 -1 -8X		—	Call for availability
3453-19-12-4X	5-4-6321 47 -16 -1 -1 1X		—	Call for availability

Used by with A No. Code Gear Cap Assembly

Item	Part No.	Description	Qty	Notes	Price
301368-Model	5552	-c (cont'd)			—	Call for availability

Tabulated Bills of Material

Part No.	Description	Price
3853-19-7-4X	53-452 -3 47-16 -1 -bx	—	Call for availability
3953-19-12-4X	53-452 -3 47 -16 -1 -bx	—	Call for availability
4053-19-12-4X	53-452 -3 47-16 -1 -bx	—	Call for availability
4153-19-7-4X	53-452 -3 47 -16 -1 -bx	—	Call for availability
4253-19-1-4X	53-453-2 47 -16 -1 -bx	—	Call for availability
4353-19-13-2X	• 47 -16 -1 -bx	—	Call for availability
4453-19-15-2X	47 -16 -1 -bx	—	Call for availability
4553-19-17-2X	47-16 -1 -bx	—	Call for availability
4653-19-13-2X	47-16 -1 -bx	—	Call for availability
4753-19-15-2X	47 -16 -1 -bx	—	Call for availability
4853-19-17-2X	47-16 -1 -bx	—	Call for availability
5053-19-13-2X	• 47-16 -1 -bx	—	Call for availability
5253-19-17-2X	47-16 -1 -bx	—	Call for availability
5353-19-15-2X	47-16 -1 -bx	—	Call for availability
5453-19-12-4X	53-106-2 47 -16 -1 -1 1X	—	Call for availability
5747-19-3-2X	47 -16 -1 -13X 311582-?X	—	Call for availability
6053-19-12-4X	53-106-2 47 -16 -1 -1 1X	—	Call for availability
6353-19-12-4X	53-452 -3 62 -453-4 3-4-8781 47-16 -1 -bx	—	Call for availability
6453-19-22-1X	53-452 -6 5-4-6481 -1	—	Call for availability
6553-19-22-1X	53-452 -6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
6653-19-22-1X	53-452 -6 5-4-6481 -1 47-16 -1 -bx	—	Call for availability
6753-19-22-1	X 53-452 -6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
6853-19-22-1	X 53-452 -6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
6953-19-12-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
7053-19-12-4X	4-4-4491 47 -16 -1 -17X	—	Call for availability
7153-19-22-1X	53-452 -6 3-4 -8931 -2 47-16 -1 -bx	—	Call for availability

For Use S Assembly Rei. Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
• • -Unit has	97-454-2-1X	Speedo Sleeve & Oil Sleeve			$34.11	Add to Cart

Tabulated Bills of Material

Item	Part No.	Description	Price
301369-Model	5552	-d	—	Call for availability
301369-Model	153-19-1-4X	47-16-1 -8X 47-16-3 -1X	—	Call for availability
301369-Model	353-19-3-4X	53 -452-2 47-16-1 -8X	—	Call for availability
301369-Model	453-19-3-4X	53 -452-2 47-16-1 -8X	—	Call for availability
301369-Model	553-19-1-4X	53 -452-2 47-16-1 -8X	—	Call for availability
301369-Model	653-19-7-4X	53 -452-3 47-16-1C8X	—	Call for availability
301369-Model	753-19-12-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	853-19-12-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	953-19-7-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	1053-19-12-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	1253-19-7-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	1353-19-13-2X	47-16-1 -8X	—	Call for availability
301369-Model	1453-19-15-2X	47-16-1 -8X	—	Call for availability
301369-Model	1553-19-17-2X	47-16-1 -8X	—	Call for availability
301369-Model	1653-19-13-2X	47-16-1 -8X	—	Call for availability
301369-Model	1753-19-17-2X	47-16-1 -8X	—	Call for availability
301369-Model	1853-19-15-2X	47-16-1 -8X	—	Call for availability
301369-Model	1953-19-15-2X	47-16-1 -8X	—	Call for availability
301369-Model	2053-19-17-2X	47-16-1 -8X	—	Call for availability
301369-Model	2153-19-12-4X	47-16-1 -8X	—	Call for availability
301369-Model	2253-19-13-2X	• 47-16-1 -8X	—	Call for availability
301369-Model	2353-19-12-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	2453-19-7-4X	53 -452-3 47-16-1 -8X	—	Call for availability
301369-Model	2653-19-1-4X	53 -452-2 47-16-1 -8X	—	Call for availability
301369-Model	2753-19-12-4X	5-4-6321 47-16-1 -8X 47-16-8-2X	—	Call for availability
301369-Model	3053-19-1-4X	53 -452-2 47-16-1 -8X	—	Call for availability
301369-Model	3453-19-12-4X	53 -452-3 62-453 -4 47-16-1 -11X	—	Call for availability
301369-Model	3553-19-12-4X	53 -452-3 62-453 -4 3-4-8781 47-16-1 -8X 311528-7X	—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
301369-Model	5552-D	(cont' D)			—	Call for availability
• • -Unit has	97-454-2-1X	Speedo Sleeve & Oil Seal			$34.11	Add to Cart

Tabulated Bills of Material

Part No.	Description	Price
3653-19-22-1X	53-452 -6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
3753-19-22-1X	53-452 -6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
3853-19-22-1X	53-452 -6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
3953-19-22-1X	53-452 -6 4 -4 -461 1 -2 47 -16 -1 -sx	—	Call for availability
4353-19-22-1X	53-452-6 3 -4 -8931 -2 47-16 -1 -sx	—	Call for availability
4453-19-15-2X	53-452-3 47-16 -1 -sx 47 -16 -3 -25X	—	Call for availability
4553-19-13-2X	• 53-452-3 53-106-2 47-16 -1 -sx 47 -16 -3 -25X	—	Call for availability
153-19-1-4X	47-16 -1 -sx 47 -16 -3 -1X	—	Call for availability
453-19-1-4X	53-452 -2 47 -16 -1 -sx	—	Call for availability
553-19-12-4X	53-452-3 47-16 -1 -sx	—	Call for availability
1553-19-1-4X	53-452-2 47-16 -1 -sx	—	Call for availability
1653-19-3-4X	53-452 -2 47-16 -1 -sx	—	Call for availability
1853-19-7-4X	53-452 -3 47-16 -1 -sx	—	Call for availability
1953-19-12-4X	53-452 -3 47-16 -1 -sx	—	Call for availability
2153-19-12-4X	53-452-3 47-16 -1 -sx	—	Call for availability
2253-19-1-4X	53-452-2 47-16 -1 -sx	—	Call for availability

For Use S Assembly Rei. Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
301370-Model	5852-A	(cant' D)			—	Call for availability
. . -Unit has	97-454-2-1X	Speedo Sleeve & Oil Seal			$34.11	Add to Cart

Tabulated Bills of Material

Part No.	Description	Price
2753-19-12-4X	47 -16 -1 -8X	—	Call for availability
2853-19-12-4X	47 -16 -1 -10X	—	Call for availability
2953-19-12-4X	47 -16 -1 -10X	—	Call for availability
3053-19-12-4X	47 -16 -1 -10X	—	Call for availability
3253-19-7-4X	53 -452 -3 47 -16 -1 -8X	—	Call for availability
3353-19-3-4X	53 -452 -2 47 -16 -1 -8X	—	Call for availability
3453-19-12-4X	53 -452 -3 47 -16 -1 -lox	—	Call for availability
3653-19-7-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
3753-19-12-4X	53-452 -3 47 -16 -1 -8X	—	Call for availability
3853-19-12-4X	53-452 -3 47 -16 -1 -bx	—	Call for availability
3953-19-7-4X	53-452 -3 47 -16 -1 -bx	—	Call for availability
4353-19-12-4X	53-452 -4 53 -453 -2 4-4-4491 47 -16 -1 -1 1X	—	Call for availability
4453-19-12-4X	53-452 -3 47-16-1 -sx	—	Call for availability
4553-19-7-4X	53-452 -3 47 -16 -1 -sx	—	Call for availability
5353-19-13-2X	47-16-1 -sx	—	Call for availability
5453-19-15-2X	47-16-1 -sx	—	Call for availability
5553-19-17-2X	47-16-1 -sx	—	Call for availability
5653-19-13-2X	' 47-16-1 -bx	—	Call for availability
5753-19-15-2X	47-16-1 -bx	—	Call for availability
5853-19-17-2X	47-16-1 -bx	—	Call for availability

For Use S Assembly Rei Drive Bearing Case

Item	Part No.	Description	Qty	Notes	Price
301370-Model	5852-A	(cont' D)			—	Call for availability
" -U nit has	97-454-2-1X	Speedo Sleeve & Oil Seal			$34.11	Add to Cart

Cap, Seal and Bushing Gear Gear Flange Assy. Domeassy. Control

Part No.	Description	Price
6253-1	.9-12-4X 53-452 -4 53-453-2 4-4-4491 47 -16 -1 -8X	—	Call for availability
6553	-19 -13 -2X' 47 -16 -1 -8X	—	Call for availability
6653	-19 -15-2X 47 -16 -1 -8X	—	Call for availability
6753	-19 -17 -2X 47 -16 -1 -8X	—	Call for availability
6853	-19 -1 -4X 53-452 -2 47 -16 -1 -8X	—	Call for availability
7253	-19 -7 -4X 53-452 -3 47 -16 -1 -8X	—	Call for availability
7353	-19-12 -2X 53-452 -3 47 -16 -1 -8X	—	Call for availability
7553	-19 -7 -2X 53-452 -4 53-453-2 5-1 -631 1X 47 -16 -1 -1 1X	—	Call for availability
8053	-19 -13 -2X' 47 -16 -1 -8X	—	Call for availability
8453	-19 -22 -1X 53-452-6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
8553	-19 -22 -1X 53-452-6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
8653	-19 -22 -1X 53-452-6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
8753-19-22-1	X 53-452-6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
8853	-19 -22 -1X 53-452-6 5-4-6481 -1 47 -16 -1 -8X	—	Call for availability
9153	-19 -12 -4X 53-452-3 62-453-4 3-4-8781 47 -16 -1 -13X 47 -16 -3 -1X	—	Call for availability
9253	-19 -22 -1X 53-452-6 4 -4 -461 1 -2 47 -16 -1 -8X	—	Call for availability
9353	-19 -12 -4X 53-452-4 53-453-2 5-4-6321 47 -16 -1 -8X 47-16 -5-43X	—	Call for availability
9453	-19 -12 -4X 53-452 -4 53-453-2 5-4-6321 47 -16 -1 -1 1X	—	Call for availability
9553	-19 -12 -4X 53-452-4 53-453-2 5-4-6321 47 -16 -1 -1 1X	—	Call for availability
9653	-19 -12 -4X 53-452-4 53-453-2 5-4-6321 47 -16 -1 -sx 47-16 -5-43X	—	Call for availability
9753	-19 -22 -1X 53-452-6 3 -4 -8931 -2 47 -16 -1 -8X	—	Call for availability
T210-CM55	Bills Of Material	—	Call for availability
CM5052A	CM5052A CM5552A CM5552A CM5952A ES60-5A	—	Call for availability
301068-1	301247-1 301309-1 301366-1 301360-1 301460-1	—	Call for availability
301068-2	301247 -2 301309 -2 301366 -2 301360 -2 301460 -2	—	Call for availability
301068-3	301247 -3 (1) None None None None	—	Call for availability
301068-4	301247 -4 (2) None None None None	—	Call for availability
301068-5	301247 -5 301309 -5 301366 -5 301360 -5 301460 -3	—	Call for availability
301068-6	301247 -6 301309 -6 301366 -6 301360 -6 301460 -4	—	Call for availability
301068-7	301247 -7 None None None None	—	Call for availability
301068-8	301247 -8 None None None None	—	Call for availability
301068-9	301247 -9 301309 -9 301366 -9 301360 -9 301460 -5	—	Call for availability
301068-10	301247 -10 301309 -10 None 301360 -10 301460 -6	—	Call for availability
301068-11	301247-11 301309-11 None 301360-11 301460 -7	—	Call for availability
301068-12	301247 -12 None None None None	—	Call for availability
301068-13	301247 -13 None None None None	—	Call for availability
301068-14	301247 -14 301309 -14 301366 -14 301360 -14 301460 -8	—	Call for availability
301068-15	301247 -15 301309 -15 None 301360 -15 301460 -9	—	Call for availability
301068-16	301247 -16 301309 -16 301366 -16 301360-16 301460 -10	—	Call for availability
301068-17	301247 -17 None None None None	—	Call for availability
301068-18	301247 -18 301309 -18 301366 -18 301360 -18 301460-11	—	Call for availability
301068-19	301247 -19 301309 -19 301366 -19 301360 -19 301460 -12	—	Call for availability
301068-20	301247 -20 301309 -20 None 301360 -20 301460 -13	—	Call for availability
301068-21	301247-21 301309-21 None 301360-21	—	Call for availability
301068-22	301247 -22 301309 -22 None 301360 -22 301460 -14	—	Call for availability
301068-23	301247 -23 301309 -23 None 301360 -23 301460 -15	—	Call for availability
301068-24	301247 -24 301309 -24 None 301360 -24 301460 -16	—	Call for availability
301068-25	301247 -25 None None None None	—	Call for availability
301068-26	301247 -26 301309 -26 None 301360-26 301460 -17	—	Call for availability
301068-27	301247 -27 301309 -27 301366 -27 301360 -27 301460 -18	—	Call for availability
301068-28	301247 -28 None None None None	—	Call for availability
301068-29	301247 -29 301309 -29 None 301360-29 301460 -19	—	Call for availability
301068-30	301247 -30 301309 -30 None 301360-30 301460 -20	—	Call for availability
301068-31	301247-31 301309-31 301366-31 301360-31 301460-21	—	Call for availability
301068-32	301247 -32 301309 -32 None 301360 -32 301460 -22	—	Call for availability
301068-33	301247 -33 None None None None	—	Call for availability
301068-34	301247 -34 301309 -34 None 301360 -34 301460 -23	—	Call for availability
301068-35	301247 -35 301309 -35 None 301360 -35 301360 -24	—	Call for availability
301068-36	301247 -36 301309 -36 301366 -36 301360 -36 301460 -25	—	Call for availability
301068-37	301247 -37 301309 -37 None 301360 -37 301460 -26	—	Call for availability
301068-38	301247 -38 (3) None None None None	—	Call for availability
301068-39	301247 -39 301309 -39 301366 -39 301360-39 301460 -27	—	Call for availability
301068-40	301247 -40 301309 -40 301366 -40 301360-40 301460 -28	—	Call for availability
301068-41	301247 -41 301309-41 None 301360-41 301460 -29	—	Call for availability
301068-42	301247 -42 301309 -42 None 301360-42 301460 -30	—	Call for availability
301068-43	301247 -43 301309 -43 None 301360-43 301460-31	—	Call for availability
301068-44	301247 -44 None None None None	—	Call for availability
301068-45	301247 -45 None None None None	—	Call for availability
301068-46	301247 -46 None None None None	—	Call for availability
301068-47	301247 -47 301309 -47 None 301360 -47 301460 -32	—	Call for availability
301068-48	301247 -48 (4) None None None None	—	Call for availability

Bills of Material T210 -CM55

Item	Part No.	Description	Price
	CM5052A	CM5052A CM5552A CM5552A CM5952A ES60-5A	—	Call for availability
	301068-49	301247 -49 301309 -49 None 301360 -49 301460 -33	—	Call for availability
	301068-50	301247 -50 None None None None	—	Call for availability
	301068-51	301247-51 301309-51 301366-51 301360-51 301460 -34	—	Call for availability
	301068-52	301247 -52 301309 -52 301366 -52 301360 -52 301460 -35	—	Call for availability
T210	CM55	Bills Of Material	—	Call for availability
T210	CM5052A	CM5052A CM5552A CM5552A CM5952A ES60-5A	—	Call for availability
T210	CM5052B	CM5052B CM5552B CM5552B CM5952B ES60-5B	—	Call for availability
T210	301079-1	301248 -1 301310-1 301367-1 None None	—	Call for availability
T210	301079-2	301248 -2 301310 -2 301367 -2 None None	—	Call for availability
T210	301079-3	301248 -3 (5) None None None None	—	Call for availability
T210	301079-4	301248 -4 301310 -4 None None None	—	Call for availability
T210	301079-5	301248 -5 None 301367 -5 None None	—	Call for availability
T210	301079-6	301248 -6 301310 -6 None None None	—	Call for availability
T210	301079-7	301248 -7 301310 -7 301367 -7 None None	—	Call for availability
T210	301079-8	301248 -8 301310 -8 301367 -8 None None	—	Call for availability
T210	301079-9	301248 -9 301310 -9 301367 -9 None None	—	Call for availability
T210	301079-10	301248 -10 None 301367 -10 None None	—	Call for availability
T210	301079-11	301248 -11 301310-11 None None None	—	Call for availability
T210	301079-12	301248 -12 301310 -12 None None None	—	Call for availability
T210	301079-13	301248 -13 301310 -13 301367 -13 None None	—	Call for availability
	CM5052B	CM5052B CM5552B CM5552B CM5952B t:::::>oU-51::1	—	Call for availability
	301079-14	301248 -14 301310-14 None None None	—	Call for availability
	301079-15	301248 -15 301310-15 None None None	—	Call for availability
	301079-16	301248 -16 301310-16 None None None	—	Call for availability
	301079-17	301248 -17 301310 -17 None None None	—	Call for availability
	301079-18	301248 -18 301310-18 None None None	—	Call for availability
	301079-19	301248 -19 301310-19 None None None	—	Call for availability
	301079-20	301248 -20 301310-20 None None None	—	Call for availability
	301079-21	301248 -21 301310-21 None None None	—	Call for availability
	301079-22	301248 -22 301310-22 None None None	—	Call for availability
	301079-23	301248 -23 301310-23 301367 -23 None None	—	Call for availability
	301079-24	301248 -24 301310-24 None None None	—	Call for availability
	301079-25	301248 -25 301310-25 None None None	—	Call for availability
	301079-26	301248 -26 None None None None	—	Call for availability
	301079-27	301248 -27 301310-27 None None None	—	Call for availability
	301079-28	301248 -28 301310-28 301367 -28 None None	—	Call for availability
	301079-29	301248 -29 301310-29 None None None	—	Call for availability
	301079-31	301248 -31 None 301367-31 None None	—	Call for availability
	T210-CM55	Bills Of Material	—	Call for availability
	CM5052C	CM5052C CM5552C CM5552C CM5952C ES60-5C	—	Call for availability
	301080-1	301249-1 301311 -1 301368 -1 301362-1 301461 -1	—	Call for availability
	301080-2	301249 -2 301311 -2 301368 -2 301362 -2 301461 -2	—	Call for availability
	301080-3	301249 -3 301311 -3 301368 -3 301362 -3 301461 -3	—	Call for availability
	301080-4	301249 -4 301311 -4 None 301362 -4 301461 -4	—	Call for availability
	301080-5	301249 -5 None None None None	—	Call for availability
	301080-6	301249 -6 301311 -6 301368 -6 301362 -6 301461 -5	—	Call for availability
	301080-7	301249 -7 301311 -7 None 301362 -7 301461 -6	—	Call for availability
	301080-8	301249 -8 (8) None None None None	—	Call for availability
	301080-9	301249 -9 None None 301362 -9 301461 -50	—	Call for availability
	301080-10	301249 -10 None None None None	—	Call for availability
	301080-11	301249-11 None None None None	—	Call for availability
	301080-12	301249 -12 301311 -12 301368 -12 301362 -12 301461 -7	—	Call for availability
	301080-13	301249 -13 301311 -13 301368 -13 301362 -13 301461 -8	—	Call for availability
	301080-14	301249 -14 301311 -14 301368 -14 301362 -14 301461 -9	—	Call for availability
	301080-15	301249 -15 301311 -15 301368 -15 301362 -15 301461 -10	—	Call for availability
	301080-16	301249 -16 None None None None	—	Call for availability
	301080-17	301249 -17 301311 -17 301368 -17 301362 -17 301461 -11	—	Call for availability
	301080-18	301249 -18 301311 -18 301368 -18 301362 -18 301461 -12	—	Call for availability
	301080-19	301249 -19 301311 -19 None 301362 -19 301461 -13	—	Call for availability
	301080-20	301249 -20 301311 -20 301368 -20 301362 -20 301461 -14	—	Call for availability
	301080-21	301249-21 301311 -21 301368 -21 301362-21 301461 -15	—	Call for availability
	301080-22	301249 -22 301311 -22 301368 -22 301362 -22 None	—	Call for availability
	301080-23	301249 -23 301311 -23 301368 -23 301362 -23 301461 -16	—	Call for availability
	301080-24	301249 -24 301311 -24 None 301362 -24 301461 -17	—	Call for availability
	301080-25	301249 -25 301311 -25 301368 -25 301362 -25 301461 -18	—	Call for availability
	301080-26	301249 -26 301311 -26 301368 -26 301362 -26 301461 -19	—	Call for availability
	301080-27	301249 -27 None None None None	—	Call for availability
	301080-28	301249 -28 301311 -28 301368 -28 301362 -28 301461 -20	—	Call for availability
	301080-29	301249 -29 (9) None None None None	—	Call for availability
	301080-30	301249 -30 301311 -30 301368 -30 301362 -30 301461 -21	—	Call for availability
	301080-31	301249-31 301311 -31 301368 -31 301362-31 301461 -22	—	Call for availability
	301080-32	301249 -32 301311 -32 None None None	—	Call for availability
	301080-33	301249 -33 301311 33 301368 -33 301362 -33 301461 -23	—	Call for availability
	301080-34	301249 -34 301311 -34 301368 -34 301362 -34 301461 -24	—	Call for availability
	301080-35	301249 -35 None None None None	—	Call for availability
	301080-36	301249 -36 301311 -36 None 301362 -36 301461 -25	—	Call for availability
	301080-37	301249 -37 301311 -37 None 301362 -37 301461 -26	—	Call for availability
	CM5052D	CM5052D CM5552D CM5552D CM5952D ES60-5D	—	Call for availability
	301230-1	301250-1 301312-1 301369-1 301363 -1 301462-1	—	Call for availability
	301230-2	301250 -2 (1 0) None None None None	—	Call for availability
	301230-3	301250 -3 301312 -3 301369 -3 301363 -3 301462 -2	—	Call for availability
	301230-4	301250 -4 301312 -4 301369 -4 301363 -4 301462 -3	—	Call for availability
	CM5252A	CM5252A CM5852A CM5852A CM5952E ES60 -5E	—	Call for availability
	301081-1	301251 -1 301313 -1 301370-1 None None	—	Call for availability
	301081	-2 301251 -2 (11) None None None None	—	Call for availability
	30108H4	301251 -4 301313 -4 301370 -4 301364 -4 301463 -59	—	Call for availability
	301081-21	301251 -21 301313 -21 301370-21 301364-21 301463 -12	—	Call for availability
	5252A	CM5252A CM5852A CM5852A CM5952E ES60 -5E	—	Call for availability
	301081-23	301251 -23 301313 -23 301370-23 301364 -23 301463 -14	—	Call for availability
	301081-24	301251 -24 301313 -24 None 301364 -24 301463 -15	—	Call for availability
	301081-25	301251 -25 301313; 25 None 301364 -25 301463 -16	—	Call for availability
	301081-26	301251 -26 301313 -26 None 301364 -26 301463 -17	—	Call for availability
	301081-27	301251 -27 301313 -27 301370-27 301364 -27 301463 -18	—	Call for availability
	301081-28	301251 -28 301313 -28 301370-28 301364 -28 301463 -19	—	Call for availability
	301081-29	301251 -29 301313 -29 301370-29 301364 -29 301463 -20	—	Call for availability
	301081-30	301251 -30 (12) 301313 -30 301370-30 None None	—	Call for availability
	301081-31	301251 -31 301313 -31 None 301364-31 301463 -21	—	Call for availability
	301081-32	301251 -32 301313 -32 301370-32 301364 -32 301463 -22	—	Call for availability
	301081-33	301251 -33 301313 -33 301370-33 301364 -33 301463 -23	—	Call for availability
	301081-34	301251 -34 301313 -34 301370-34 301364 -34 301463 -24	—	Call for availability
	301081-35	301251 -35 301313 -35 None 301364 -35 301463 -25	—	Call for availability
	301081-36	301251 -36 301313 -36 301370-36 301364 -36 301463 -26	—	Call for availability
	301081-37	301251 -37 301313 -37 301370-37 301364 -37 301463 -27	—	Call for availability
	301081-38	301251 -38 301313 -38 301370-38 301364 -38 301463 -28	—	Call for availability
	301081-39	301251 -39 301313 -39 301370-39 301364 -39 301463 -29	—	Call for availability
	301081-41	301251 -41 None None None None	—	Call for availability
	301081-42	301251 -42 None None None None	—	Call for availability
	301081-43	301251 -43 301313 -43 301370-43 301364 -43 301463 -30	—	Call for availability
	301247-58	9" X3 " Brake 301249-47 9" X3 " Brake	—	Call for availability
	301247-59	1211 X 4" Brake 301249-48 12" X 4" Brake	—	Call for availability
	301247-75	9" X3 " Brake 301249-44 9" X3 " Brake	—	Call for availability
	301247-76	12" X 4" Brake 301249-45 12" X 411 Brake	—	Call for availability
	301247-61	9" X 3" Brake 301250-9 9" X 3" Brake	—	Call for availability
	301247-62	1211 X 411 Brake 301250-10 12" X 4" Brake	—	Call for availability
	301247-64	9" X 3" Brake 301251 -54 9" X 3" Brake	—	Call for availability
	301247-65	12" X 4" Brake 301251 -55 12" X 4" Brake	—	Call for availability
	301248-37	9" X3 " Brake 301251 -57 9" X 311 Brake	—	Call for availability
	301248-38	12" X 4" Brake 301251 -58 12" X 4" Brake	—	Call for availability
	301248-45	911 X 3'1 Brake 301251 -61 9" X 3" Brake	—	Call for availability
	301248-46	12" X 4" Brake 301251 -62 12" X 4" Brake	—	Call for availability
	301248-42	9" X 3 '1 Brake	—	Call for availability
	301248-43	12" X 4" Brake	—	Call for availability

No parts match that search — try the part number with no dashes.

This is the complete factory parts breakdown for the Spicer Transmission CM5552-A — every part in the manual, matched to our live inventory. We stock 128 of the 1063 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

This is the Spicer Illustrated Parts List covering the CM5852-A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.

Models covered	CM5852-A
Transmission type	5-speed, twin-countershaft, heavy duty
Document	Illustrated Parts List (Spicer)
Length	80 pages
Format	PDF — free download

What’s inside

Service kits & assemblies with recommended stocking quantities
Mainshaft & countershaft gear groups
Drive gears, idler & auxiliary drive gears
Case, clutch & shift-bar housings
Shift lever, forks & selector assemblies
Bearings, seals, snap rings & small parts
Air-shift and range-control components (where fitted)
Exploded parts diagrams with OEM part numbers

Spicer parts & units we stock

Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:

Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
