Dana Spicer DS405 Tandem Drive Axle Parts Manual

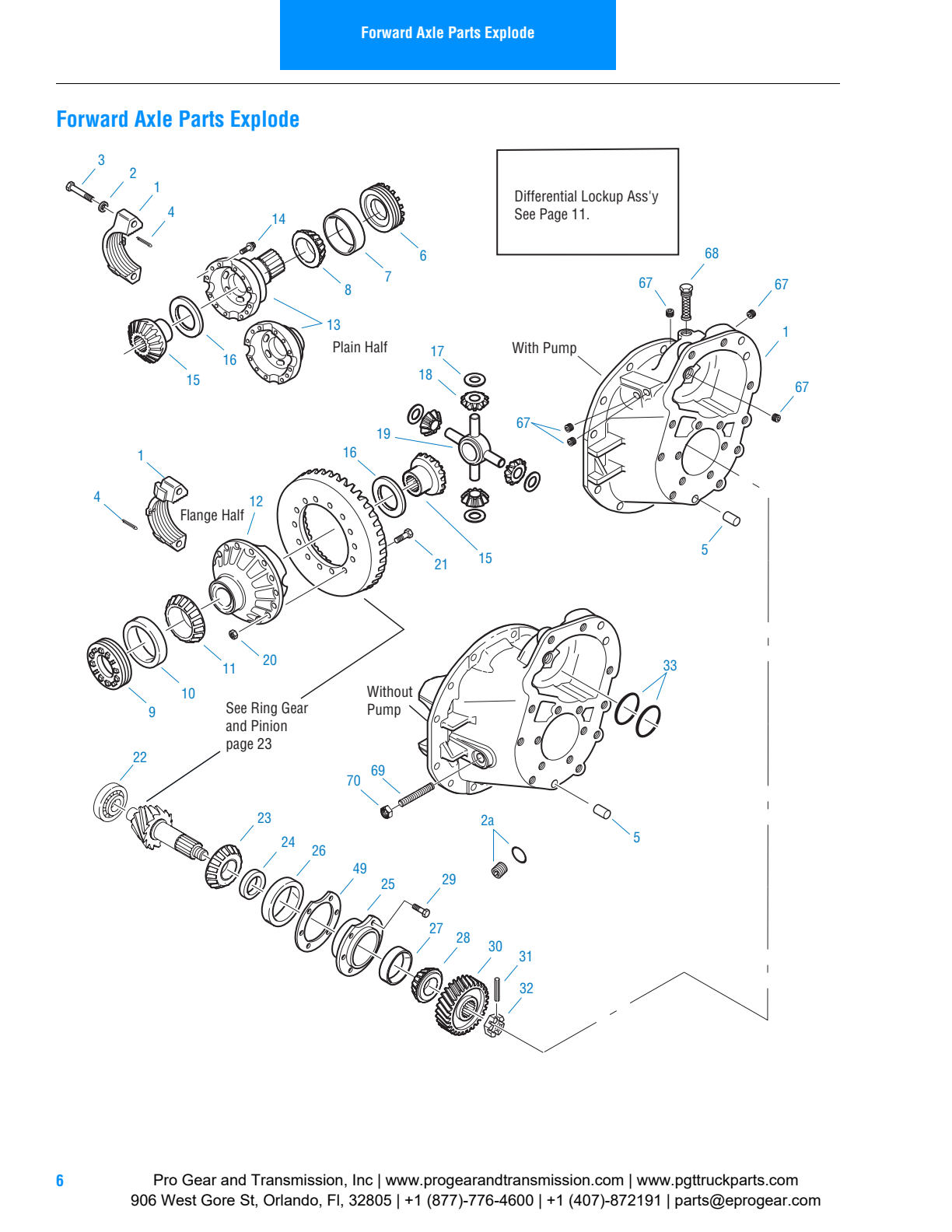

Forward Axle Parts List
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 510393 | Basic Overhaul Kit - DSH40(P)/DSH44(P) | Contents Identified with | $1,223.33 | Add to Cart | ||
| 510399 | Basic Overhaul Kit - DDH40(P)/DDH44(P) | Contents Identified with | $1,147.81 | Add to Cart | ||
| 512812 | Bearing Kit - DSH40(P)/DSH44(P) | — | No longer available — call for replacement | |||
| 512800 | Bearing Kit - DDH40(P)/DDH44(P) | Items 8-11 on p.17, See Note 1 | — | No longer available — call for replacement | ||
| 1 | 510023 | Diff Carrier & Bearing Caps Kit - DSH40P | Casting #130809 | — | Call for availability | |
| 1 | 510024 | Diff Carrier & Bearing Caps Kit - DSH40P | Casting #130819 | — | Call for availability | |
| 1 | 510027 | Diff Carrier & Bearing Caps Kit - DDH40P | Casting #130814 | — | No longer available — call for replacement | |
| 1 | 510028 | Diff Carrier & Bearing Caps Kit - DDH40P | Casting #130814 | — | Call for availability | |
| 2 | 210288 | Flat Washer | 4 | $1.06 | Add to Cart | |
| 2a | 131809 | Plug & O-ring Assembly | 1 | O-ring not serviced seperately | $16.70 | Add to Cart |
| 3 | 210095 | Capscrew | 4 | $5.03 | Add to Cart | |
| 4 | 090873 | Cotter Pin | 2 | — | Call for availability | |
| 5 | 007641 | Dowel Pin | 2 | $3.83 | Add to Cart | |
| 6 | 129130 | Diff Brg Adjuster - Plain Half - DSH40(P)/DSH44(P) | 1 | $45.05 | Add to Cart | |
| 6 | 128616 | Diff Brg Adjuster - Plain Half - DDH40(P)/DDH44(P) | 1 | $88.75 | Add to Cart | |
| 7 | 129566 | Brg Cup - Plain Half - DSH40(P)/DSH44(P) | 1 | — | No longer available — call for replacement | |
| 7 | 015092 | Brg Cup - Plain Half - DDH40(P)/DDH44(P) | 1 | — | Call for availability | |
| 8 | 129565 | Brg Cone - Plain Half - DSH40(P)/DSH44(P) | 1 | $112.18 | Add to Cart | |
| 8 | 128604 | Brg Cone - Plain Half - DDH40(P)/DDH44(P) | 1 | — | Call for availability | |
| 9 | 129128 | Diff Brg Adjuster - Flange Half | 1 | $56.84 | Add to Cart | |
| 10 | 129564 | Brg Cup - Flange Half | 1 | — | No longer available — call for replacement | |
| 11 | 129563 | Brg Cone - Flange Half | 1 | WHEEL DIFF. CASE KITS | — | No longer available — call for replacement |
| 12 | 508653 | Diff Case-rh (flg Half) - DSH40(P)/DSH44(P) | 1 | Ratios 3.08 to 3.55 | $494.09 | Add to Cart |
| 12 | 508724 | Diff Case-rh (flg Half) - DDH40(P)/DDH44(P) | 1 | Ratios 3.08 to 3.55 | $1,715.01 | Add to Cart |
| 12 | 508654 | Diff Case-rh (flg Half) (ratios 3.70 To 4.11) - DSH40(P)/DSH44(P) | Ratios 3.70 to 4.11 | $480.55 | Add to Cart | |
| 12 | 508725 | Diff Case-rh (flg Half) (ratios 3.70 To 4.11) - DDH40(P)/DDH44(P) | Ratios 3.70 to 4.11 | $1,178.51 | Add to Cart | |
| 12 | 508655 | Diff Case-rh (flg Half) (ratios 4.33 To 4.88) - DSH40(P)/DSH44(P) | Ratios 4.33 to 4.88 | $412.14 | Add to Cart | |
| 12 | 508726 | Diff Case-rh (flg Half) (ratios 4.33 To 4.88) - DDH40(P)/DDH44(P) | Ratios 4.33 to 4.88 | $498.76 | Add to Cart | |
| 12 | 508656 | Diff Case-rh (flg Half) (ratios 5.29 To 7.17) - DSH40(P)/DSH44(P) | Ratios 5.29 to 7.17 | $1,178.20 | Add to Cart | |
| 12 | 508727 | Diff Case-rh (flg Half) (ratios 5.29 To 7.17) - DDH40(P)/DDH44(P) | Ratios 5.29 to 7.17 | $1,135.22 | Add to Cart | |
| 13 | 127498 | Diff Case-lh (plain Half) - DSH40(P)/DSH44(P) | 1 | Order kits listed above | — | Call for availability |
| 13 | 128607 | Diff Case-lh (plain Half) - DDH40(P)/DDH44(P) | 1 | Order kits listed above | — | Call for availability |
| 14 | 127465 | Capscrew - DSH40(P)/DSH44(P) | 12 | $3.47 | Add to Cart | |
| 14 | 128619 | Capscrew - DDH40(P)/DDH44(P) | 12 | $3.47 | Superseded by 127465Add to Cart | |
| 510397 | Wheel Diff Side Gear Kit | Includes items 15-19 | $277.43 | Add to Cart | ||
| 510396 | Wheel Diff Kit W/o Side Gears (includes Items 16-19) | Includes items 16-19 | $336.55 | Add to Cart | ||
| 15 | 127368 | Side Gear 41 Inv Spline | 2 | $67.19 | Add to Cart | |
| 16 | 127386 | Side Gear Thrust Washer | 2 | $3.58 | Add to Cart | |
| 17 | 129305 | Side Pinion Thrust Washer | 4 | $2.49 | Add to Cart | |
| 18 | 129765 | Side Pinion | 4 | $80.82 | Superseded by 133784Add to Cart | |
| 19 | 129599 | Diff Spider | 1 | $192.11 | Add to Cart | |
| 508652 | Ring Gear Nut & Bolt Kit | Includes items 20-21 | $65.24 | Add to Cart | ||
| 20 | 126216 | Nut | 16 | $2.89 | Add to Cart | |
| 21 | 129686 | Bolt | 16 | — | No longer available — call for replacement | |
| 22 | 127484 | Pinion Pilot Brg | 1 | — | Call for availability | |
| 23 | 129560 | Pinion Brg Cone - Inner | 1 | — | No longer available — call for replacement | |
| 25 | 129767 | Pinion Brg Cage & Cup Assy | 1 | Includes item 25-27 Cage #127488C NSS | — | Call for availability |
| 26 | 129561 | Pinion Brg Cup - Inner | 1 | $59.96 | Add to Cart | |
| 27 | 012495 | Pinion Brg Cup - Outer | 1 | — | Call for availability | |
| 28 | 127535 | Pinion Brg Cone - Outer | 1 | — | Call for availability | |
| 29 | 210115 | Capscrew | 6 | $2.61 | Add to Cart | |
| 30 | 127523 | Pinion Helical Gear | 1 | — | No longer available — call for replacement | |
| 31 | 118807 | Roll Pin | 1 | $1.70 | Add to Cart | |
| 32 | 126182 | Slotted Pinion Nut | 1 | $24.47 | Add to Cart | |
| 33 | 127545 | Output Shaft O-ring | 2 | $3.02 | Add to Cart | |
| 34 | 127536 | Output Shaft Brg Cup | 1 | $71.58 | Add to Cart | |
| 35 | 110812 | Output Shaft Brg Cone | 1 | $74.18 | Add to Cart | |
| 36 | 127645 | Output Shaft Side Gear | 1 | — | No longer available — call for replacement | |
| 37 | 085997 | Snap Ring | 1 | — | Call for availability | |
| 38 | 129771 | Inter-axle Diff Assy | 1 | Replaces 128634 | — | Call for availability |
| 39 | 130907 | Helical Side Gear & Bushing Assy | 1 | Replaces 127495 Gear #130906 NSS (Incls item 40) | — | No longer available — call for replacement |
| 40 | 129371 | Helical Gear Bushing | 2 | Replaces 127543 | $81.76 | Add to Cart |
| 41 | 128702 | Helical Gear Thrust Washer | 1 | $25.89 | Superseded by 132439Add to Cart | |
| 42 | 127510 | Lockout Sliding Clutch | 1 | — | Call for availability | |
| 43 | 510593 | Input Shaft Kit | 1 | Includes Items 41, 43, 55 Input Shaft 129770 NSS | $445.35 | Superseded by 504181Add to Cart |
| 44 | 128700 | Oil Retainer | 1 | $6.75 | Add to Cart | |
| 45 | 129558 | Input Shaft Bearing Cone | 1 | Replaces 820643 | $80.24 | Superseded by 134303Add to Cart |
| 46 | 130823 | Pdu Cover | 1 | See Note 2 Replaced 129572 | $483.90 | Add to Cart |
| 46A | 129494 | Magnet | 1 | Not Illustrated, located inside PDU Cover | $6.19 | Add to Cart |
| 47 | 128415 | Washer | 11 | — | Call for availability | |
| 48 | 210091 | Capscrew Long | 11 | See Note 2 | $3.20 | Add to Cart |
| 49 | 129559 | Bearing Cup | 1 | Optional Part No. 1008912 | $44.75 | Superseded by 134304Add to Cart |
| 216224 | Oil Seal & Shim Kit | Includes items50,54&127592 ( item 17 on p. 17) | $172.26 | Add to Cart | ||
| 50 | 127595 | Shim.003 | AR | $3.42 | Add to Cart | |
| 50 | 127596 | Shim.003 Shim.005 | $3.58 | Add to Cart | ||
| 50 | 127597 | Shim.003 Shim.010 | $3.61 | Add to Cart | ||
| 50 | 127598 | Shim.003 Shim.020 | $4.74 | Add to Cart | ||
| 50 | 127599 | Shim.003 Shim.030 | $6.60 | Add to Cart | ||
| 51 | 128703 | Oil Seal-v-ring | 1 | $27.82 | Add to Cart | |
| 52 | 129766 | Input Brg Cover Assy - #129574C | 1 | Includes item 49 | — | No longer available — call for replacement |
| 53 | 210115 | Bearing Cover Cap Screw | 6 | $2.61 | Add to Cart | |
| 54 | 127591 | Oil Seal | 1 | $33.28 | Add to Cart | |
| 55 | 128049 | Locknut | 1 | In 510394 Kit (M42x1.5) | $18.13 | Add to Cart |
| 56 | 129577 | Lube Trough | 1 | $7.90 | Add to Cart | |
| 510052 | Air Lockout Kit - Complete | Includes items 57- 59, 61- 62 | $150.78 | Add to Cart | ||
| 510053 | Air Lockout Repair Kit | Includes items 59, 61- 62 | $30.66 | Add to Cart | ||
| 57 | 129856 | Shift Fork Assy | 1 | Order Kit 510870 | $71.26 | Superseded by 510870Add to Cart |
| 58 | 129859 | Compression Spring | 1 | $5.31 | Add to Cart | |
| 510870 | Shift Fork & Compression Spring | Includes items 57 & 58 KIT | $71.26 | Add to Cart | ||
| 59 | 129573 | Piston Cover Assy | 1 | Includes Cover #129578 & Item 60 | $25.00 | Add to Cart |
| 60 | 129579 | O-ring | 1 | $3.17 | Add to Cart | |
| 61 | 129580 | Piston | 1 | $6.47 | Add to Cart | |
| 62 | 210180 | O-ring | 1 | $10.02 | Add to Cart | |
| 63 | 599792 | Shipping Plug | 1 | $1.13 | Add to Cart | |
| 64 | 127534 | Lube Pump Assembly | 1 | Pump Models Only | $876.22 | Add to Cart |
| 65 | 127551 | Capscrew | 3 | Pump Models Only | $7.79 | Add to Cart |
| 66 | 128628 | Drive Coupling - Service | 1 | Pump Models Only | $27.03 | Add to Cart |
| 67 | 090897 | Pipe Plug | 5 | Pump Models Only | — | Call for availability |
| 68 | 127649 | Filter Screen Assy | 1 | Pump Models Only | $69.05 | Add to Cart |
| 69 | 126193 | Thrust Screw | 1 | $47.65 | Add to Cart | |
| 70 | 210184 | Jam Nut | 1 | $22.84 | Add to Cart | |
| 71 | 107276S | Rtv - Sealant | 1 | Not Illustrated | $17.75 | Add to Cart |
Wheel Differential Lock Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 128627 | Fixed Curvic Clutch Gear | 1 | $243.01 | Add to Cart | |
| 2 | 129433 | Snap Ring | 1 | $5.38 | Add to Cart | |
| 3 | 126840 | Sl Curvic Clutch Gear - 41 Inv Spline | 1 | $308.10 | Add to Cart | |
| 4 | 128614 | Compression Spring | 1 | $31.19 | Add to Cart | |
| 217465 | Shift Fork Assy | Includes items 5-6 | $92.61 | Add to Cart | ||
| 5 | 128609 | Shift Fork | 1 | $92.61 | Superseded by 217465Add to Cart | |
| 6 | 210020 | Spring Pin | 1 | $1.32 | Add to Cart | |
| 7 | 128617 | Push Rod | 1 | — | No longer available — call for replacement | |
| 8 | 128640 | Piston Driver | 1 | $60.47 | Superseded by 132489Add to Cart | |
| 9 | 128618 | Set Screw | 1 | $15.15 | Add to Cart | |
| 10 | 128624 | Piston | 1 | $18.69 | Add to Cart | |
| 11 | 210180 | O-ring | 1 | $10.02 | Add to Cart | |
| 12 | 129425 | Piston Cover | 1 | $131.75 | Add to Cart | |
| 13 | 128643 | Gasket | 1 | $4.54 | Add to Cart | |
| 14 | 128744 | Capscrew - Flg Head | 2 | $2.94 | Add to Cart | |
| 15 | 129946 | Capscrew | 1 | $7.52 | Add to Cart | |
| 16 | 129034 | Washer | 1 | $5.46 | Add to Cart | |
| 17 | 129035 | Switch | 1 | $111.85 | Add to Cart | |
| 18 | 129047 | Wiring Harness | 1 | Not Illustrated | $32.74 | Add to Cart |
| 19 | 210288 | Washer | 1 | Not Illustrated, Note 1 | $1.06 | Add to Cart |

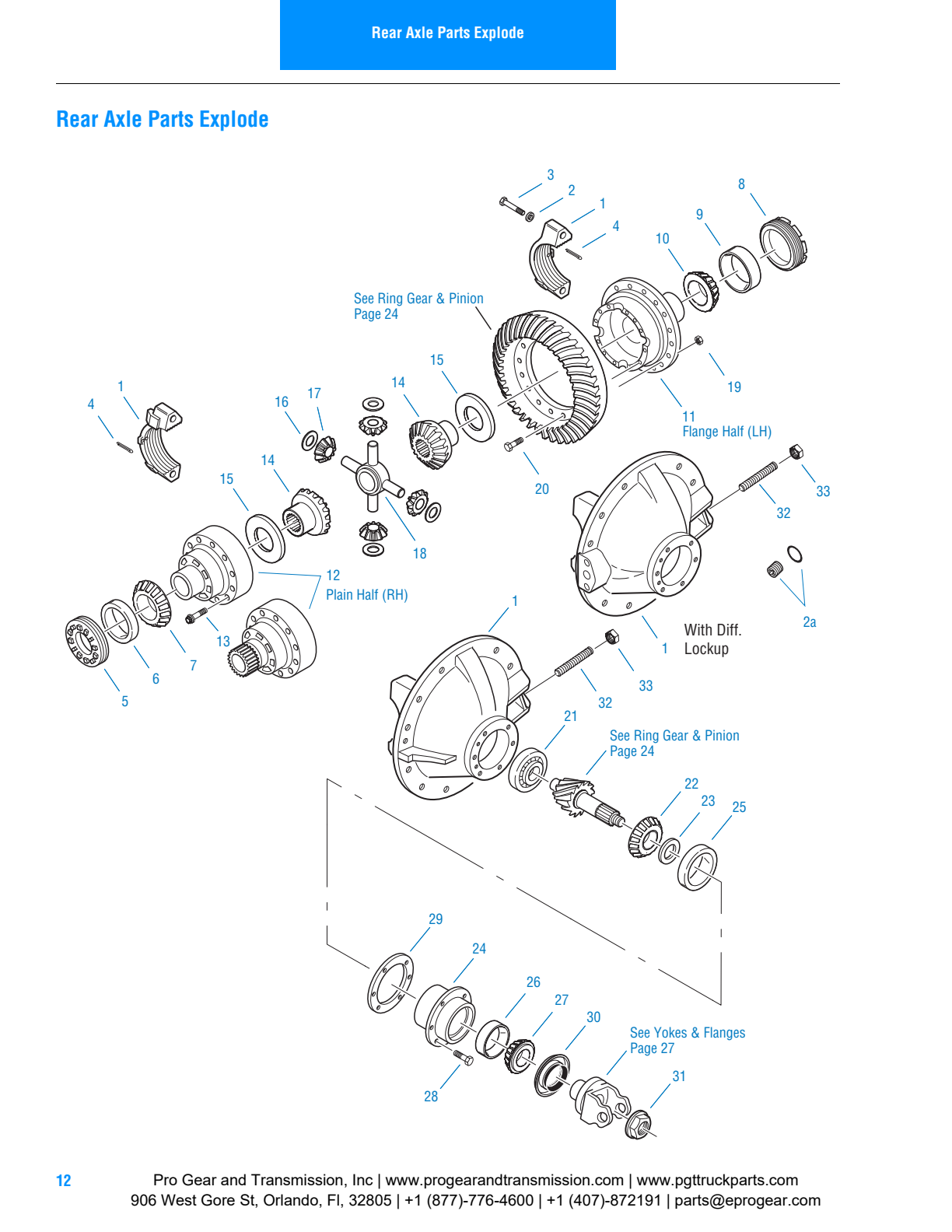

Rear Axle Parts List
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 510398 | Basic Overhaul Kit - RSH40/RSH44/22060SH | Contents Identified with | — | No longer available — call for replacement | ||
| 510400 | Basic Overhaul Kit - RDH40/RDH44 | Contents Identified with | — | No longer available — call for replacement | ||
| 512806 | Bearing Kit - RSH40/RSH44/22060SH | — | No longer available — call for replacement | |||
| 512805 | Bearing Kit - RDH40/RDH44 | $725.11 | Add to Cart | |||
| 1 | 510018 | Diff Carr & Brg Caps Kit Includes Items 1-3, 33-34 And Items 8-11 On (casting # 130824) | p. 17 | Casting # 130824 See Note 1 | $1,363.28 | Add to Cart |
| 1 | 510017 | Diff Carr & Brg Caps Kit (casting # 130827) | Casting # 130827 | $1,363.94 | Add to Cart | |
| 2 | 210288 | Flat Washer | 4 | $1.06 | Add to Cart | |
| 2a | 131809 | Plug & O-ring Assembly | 1 | O-ring not serviced seperately | $16.70 | Add to Cart |
| 3 | 210095 | Capscrew | 4 | $5.03 | Add to Cart | |
| 4 | 090873 | Cotter Pin | 2 | — | Call for availability | |
| 5 | 129130 | Diff Brg Adjuster - Plain Half - RSH40/RSH44/22060SH | 1 | $45.05 | Add to Cart | |
| 5 | 128616 | Diff Brg Adjuster - Plain Half - RDH40/RDH44 | 1 | $88.75 | Add to Cart | |
| 6 | 129566 | Bearing Cup - Plain Half - RSH40/RSH44/22060SH | 1 | — | No longer available — call for replacement | |
| 6 | 015092 | Bearing Cup - Plain Half - RDH40/RDH44 | 1 | — | Call for availability | |
| 7 | 129565 | Bearing Cone - Plain Half - RSH40/RSH44/22060SH | 1 | $112.18 | Add to Cart | |
| 7 | 128604 | Bearing Cone - Plain Half - RDH40/RDH44 | 1 | — | Call for availability | |
| 8 | 129128 | Diff Brg Adjuster - Flange Half | 1 | $56.84 | Add to Cart | |
| 9 | 129564 | Bearing Cup - Flange Half | 1 | — | No longer available — call for replacement | |
| 10 | 129563 | Bearing Cone - Flange Half | 1 | WHEEL DIFF. CASE KITS | — | No longer available — call for replacement |
| 11 | 508653 | Diff Case-lh (flg Half) - RSH40/RSH44/22060SH | 1 | Ratios 3.08 to 3.55 | $494.09 | Add to Cart |
| 11 | 508724 | Diff Case-lh (flg Half) - RDH40/RDH44 | 1 | Ratios 3.08 to 3.55 | $1,715.01 | Add to Cart |
| 11 | 508654 | Diff Case-lh (flg Half) (ratios 3.70 To 4.11) - RSH40/RSH44/22060SH | Ratios 3.70 to 4.11 | $480.55 | Add to Cart | |
| 11 | 508725 | Diff Case-lh (flg Half) (ratios 3.70 To 4.11) - RDH40/RDH44 | Ratios 3.70 to 4.11 | $1,178.51 | Add to Cart | |
| 11 | 508655 | Diff Case-lh (flg Half) (ratios 4.33 To 4.88) - RSH40/RSH44/22060SH | Ratios 4.33 to 4.88 | $412.14 | Add to Cart | |
| 11 | 508726 | Diff Case-lh (flg Half) (ratios 4.33 To 4.88) - RDH40/RDH44 | Ratios 4.33 to 4.88 | $498.76 | Add to Cart | |
| 11 | 508656 | Diff Case-lh (flg Half) (ratios 5.29 To 7.17) - RSH40/RSH44/22060SH | Ratios 5.29 to 7.17 | $1,178.20 | Add to Cart | |
| 11 | 508727 | Diff Case-lh (flg Half) (ratios 5.29 To 7.17) - RDH40/RDH44 | Ratios 5.29 to 7.17 | $1,135.22 | Add to Cart | |
| 12 | 127498 | Diff Case-rh(plain Half) - RSH40/RSH44/22060SH | 1 | Order kits listed above | — | Call for availability |
| 12 | 128607 | Diff Case-rh(plain Half) - RDH40/RDH44 | 1 | Order kits listed above | — | Call for availability |
| 13 | 127465 | Capscrew - RSH40/RSH44/22060SH | 12 | $3.47 | Add to Cart | |
| 13 | 128619 | Capscrew - RDH40/RDH44 | 12 | $3.47 | Superseded by 127465Add to Cart | |
| 510397 | Wheel Diff Side Gear Kit | Includes items 14-18 | $277.43 | Add to Cart | ||
| 13 | 510396 | Capscrew Wheel Diff Kit W/o Side Gears (includes Items 15-18) | Includes items 15-18 | $336.55 | Add to Cart | |
| 14 | 127368 | Side Gear 41 Inv Spline | 2 | $67.19 | Add to Cart | |
| 15 | 127386 | Side Gear Thrust Washer | 2 | $3.58 | Add to Cart | |
| 16 | 129305 | Side Pinion Thrust Washer | 4 | $2.49 | Add to Cart | |
| 17 | 129765 | Side Pinion | 4 | $80.82 | Superseded by 133784Add to Cart | |
| 18 | 129599 | Diff Spider | 1 | $192.11 | Add to Cart | |
| 508652 | Ring Gear Nut & Bolt Kit | Includes items 19-20 | $65.24 | Add to Cart | ||
| 19 | 126216 | Nut | 16 | $2.89 | Add to Cart | |
| 20 | 129686 | Bolt | 16 | — | No longer available — call for replacement | |
| 21 | 127485 | Pinion Pilot Brg | 1 | — | Call for availability | |
| 22 | 129562 | Pinion Brg Cone - Inner | 1 | $116.39 | Add to Cart | |
| 24 | 129768 | Pinion Brg Cage & Cup Assy | 1 | Includes items 24-26 Cage #127481C NSS | — | Call for availability |
| 25 | 129561 | Pinion Brg Cup - Inner | 1 | $59.96 | Add to Cart | |
| 26 | 012495 | Pinion Brg Cup - Outer | 1 | — | Call for availability | |
| 27 | 012496 | Pinion Brg Cone - Outer | 1 | — | Call for availability | |
| 28 | 210115 | Capscrew | 6 | $2.61 | Add to Cart | |
| 216225 | Oil Seal & Shim Kit | Includes items 29-30, 34 | — | No longer available — call for replacement | ||
| 29 | 127595 | Shim.003 | AR | $3.42 | Add to Cart | |
| 29 | 127596 | Shim.003 Shim.005 | $3.58 | Add to Cart | ||
| 29 | 127597 | Shim.003 Shim.010 | $3.61 | Add to Cart | ||
| 29 | 127598 | Shim.003 Shim.020 | $4.74 | Add to Cart | ||
| 29 | 127599 | Shim.003 Shim.030 | $6.60 | Add to Cart | ||
| 30 | 127591 | Oil Seal | 1 | $33.28 | Add to Cart | |
| 31 | 127589 | Pinion Nut | 1 | M36 x 1.5 | $13.13 | Add to Cart |
| 32 | 126193 | Thrust Screw | 1 | $47.65 | Add to Cart | |
| 33 | 210184 | Jam Nut | 1 | $22.84 | Add to Cart | |
| 34 | 107276S | Rtv - Sealant | 1 | Not Illustrated | $17.75 | Add to Cart |
Bearing Spacers
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 129079 | Part Number Spacer Thickness Part Number Spacer Thickness | $58.26 | Add to Cart | |||
| 91552 | Part Number Spacer Thickness Part Number Spacer Thickness | $27.98 | Add to Cart | |||
| 129080 | Part Number Spacer Thickness Part Number Spacer Thickness | — | Call for availability | |||
| 91553 | Part Number Spacer Thickness Part Number Spacer Thickness | — | No longer available — call for replacement | |||
| 129081 | Part Number Spacer Thickness Part Number Spacer Thickness | $42.03 | Add to Cart | |||
| 91554 | Part Number Spacer Thickness Part Number Spacer Thickness | $27.27 | Add to Cart | |||
| 129082 | Part Number Spacer Thickness Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91555 | Part Number Spacer Thickness Part Number Spacer Thickness | — | No longer available — call for replacement | |||
| 129083 | Part Number Spacer Thickness Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91556 | Part Number Spacer Thickness Part Number Spacer Thickness | $37.27 | Add to Cart | |||
| 129084 | Part Number Spacer Thickness Part Number Spacer Thickness | $13.35 | Add to Cart | |||
| 91557 | Part Number Spacer Thickness Part Number Spacer Thickness | $22.65 | Add to Cart | |||
| 129085 | Part Number Spacer Thickness Part Number Spacer Thickness | $40.61 | Add to Cart | |||
| 91558 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.51 | Add to Cart | |||
| 129086 | Part Number Spacer Thickness Part Number Spacer Thickness | $50.39 | Add to Cart | |||
| 91559 | Part Number Spacer Thickness Part Number Spacer Thickness | $34.17 | Add to Cart | |||
| 129087 | Part Number Spacer Thickness Part Number Spacer Thickness | $29.58 | Add to Cart | |||
| 91560 | Part Number Spacer Thickness Part Number Spacer Thickness | $29.25 | Add to Cart | |||
| 129088 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.66 | Add to Cart | |||
| 91561 | Part Number Spacer Thickness Part Number Spacer Thickness | — | No longer available — call for replacement | |||
| 129089 | Part Number Spacer Thickness Part Number Spacer Thickness | $40.61 | Add to Cart | |||
| 91562 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.06 | Add to Cart | |||
| 129090 | Part Number Spacer Thickness Part Number Spacer Thickness | $34.57 | Add to Cart | |||
| 91564 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.62 | Add to Cart | |||
| 129091 | Part Number Spacer Thickness Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91566 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.62 | Add to Cart | |||
| 129093 | Part Number Spacer Thickness Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91568 | Part Number Spacer Thickness Part Number Spacer Thickness | $48.18 | Add to Cart | |||
| 129097 | Part Number Spacer Thickness Part Number Spacer Thickness | $35.08 | Add to Cart | |||
| 91572 | Part Number Spacer Thickness Part Number Spacer Thickness | $25.49 | Add to Cart | |||
| 129099 | Part Number Spacer Thickness Part Number Spacer Thickness | $34.57 | Add to Cart | |||
| 91576 | Part Number Spacer Thickness Part Number Spacer Thickness | $25.49 | Add to Cart | |||
| 129101 | Part Number Spacer Thickness Part Number Spacer Thickness | $35.99 | Add to Cart | |||
| 91580 | Part Number Spacer Thickness Part Number Spacer Thickness | $26.27 | Add to Cart | |||
| 129103 | Part Number Spacer Thickness Part Number Spacer Thickness | $29.47 | Add to Cart | |||
| 91584 | Part Number Spacer Thickness Part Number Spacer Thickness | $26.27 | Add to Cart | |||
| 129105 | Part Number Spacer Thickness Part Number Spacer Thickness | $31.89 | Add to Cart | |||
| 91588 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.34 | Add to Cart | |||
| 129107 | Part Number Spacer Thickness Part Number Spacer Thickness | $30.23 | Add to Cart | |||
| 91592 | Part Number Spacer Thickness Part Number Spacer Thickness | $27.89 | Add to Cart | |||
| 129109 | Part Number Spacer Thickness Part Number Spacer Thickness | $31.14 | Add to Cart | |||
| 91596 | Part Number Spacer Thickness Part Number Spacer Thickness | $28.61 | Add to Cart | |||
| 129111 | Part Number Spacer Thickness Part Number Spacer Thickness | $35.11 | Add to Cart | |||
| 91600 | Part Number Spacer Thickness Part Number Spacer Thickness | $28.61 | Add to Cart | |||
| 129113 | Part Number Spacer Thickness Part Number Spacer Thickness | $37.37 | Add to Cart | |||
| 91602 | Part Number Spacer Thickness Part Number Spacer Thickness | $33.92 | Add to Cart | |||
| 129115 | Part Number Spacer Thickness Part Number Spacer Thickness | $37.03 | Add to Cart | |||
| 91604 | Part Number Spacer Thickness Part Number Spacer Thickness | $33.25 | Add to Cart | |||
| 129117 | Part Number Spacer Thickness Part Number Spacer Thickness | $37.14 | Add to Cart | |||
| 91606 | Part Number Spacer Thickness Part Number Spacer Thickness | $38.05 | Add to Cart | |||
| 129119 | Part Number Spacer Thickness Part Number Spacer Thickness | $38.99 | Add to Cart | |||
| 91608 | Part Number Spacer Thickness Part Number Spacer Thickness | $31.81 | Add to Cart | |||
| 129120 | Part Number Spacer Thickness Part Number Spacer Thickness | $44.10 | Add to Cart | |||
| 91610 | Part Number Spacer Thickness Part Number Spacer Thickness | $40.23 | Add to Cart | |||
| 129121 | Part Number Spacer Thickness Part Number Spacer Thickness | $49.14 | Add to Cart | |||
| 91611 | Part Number Spacer Thickness Part Number Spacer Thickness | $33.81 | Add to Cart | |||
| 129122 | Part Number Spacer Thickness Part Number Spacer Thickness | $43.36 | Add to Cart | |||
| 91612 | Part Number Spacer Thickness Part Number Spacer Thickness | $25.97 | Add to Cart | |||
| 129123 | Part Number Spacer Thickness Part Number Spacer Thickness | $51.88 | Add to Cart | |||
| 91613 | Part Number Spacer Thickness Part Number Spacer Thickness | $28.36 | Add to Cart | |||
| 129124 | Part Number Spacer Thickness Part Number Spacer Thickness | $51.13 | Add to Cart | |||
| 91614 | Part Number Spacer Thickness Part Number Spacer Thickness | $38.16 | Add to Cart | |||
| 129125 | Part Number Spacer Thickness Part Number Spacer Thickness | $50.39 | Add to Cart | |||
| 91615 | Part Number Spacer Thickness Part Number Spacer Thickness | $42.42 | Add to Cart | |||
| 129126 | .833 * Most Popular | — | Call for availability |

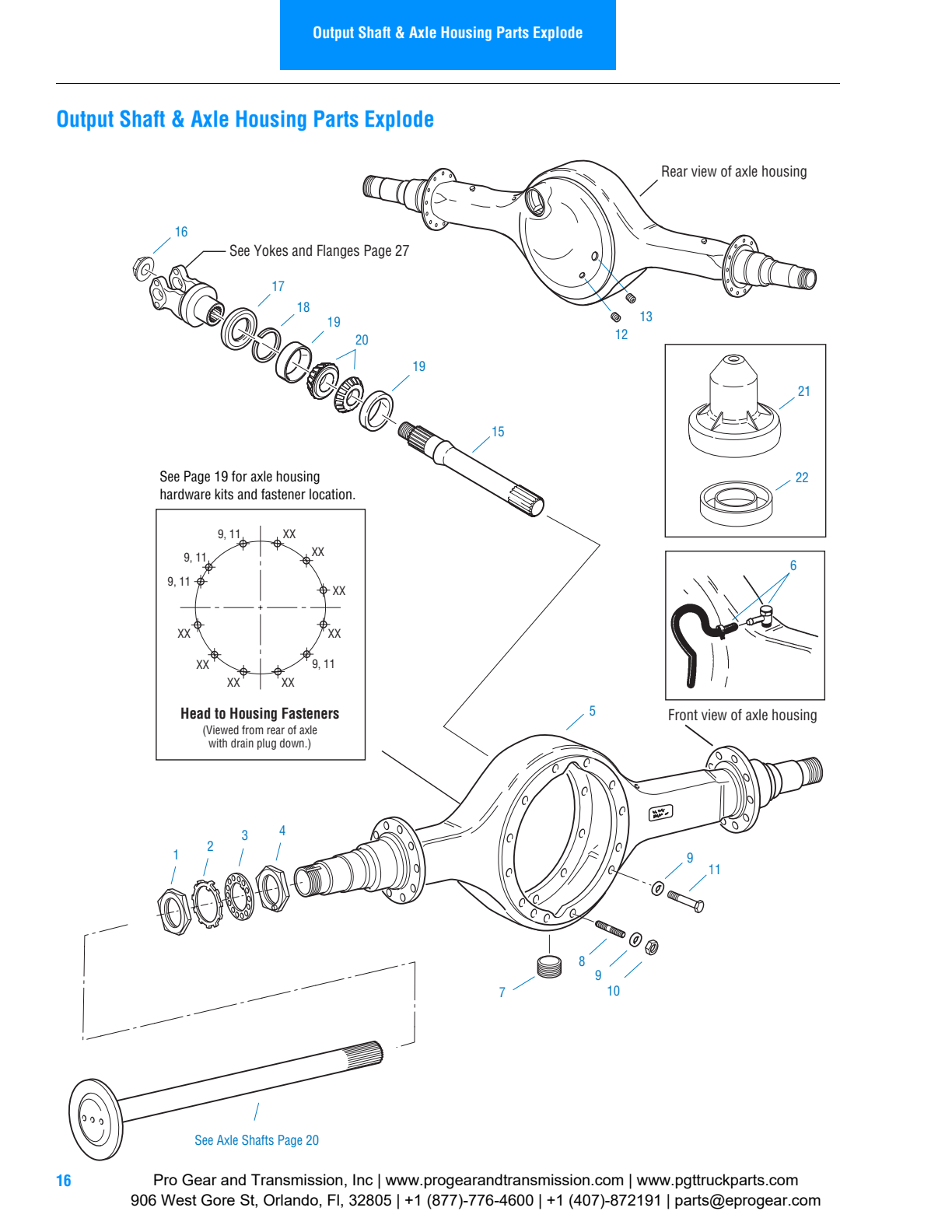

Output Shaft & Axle Housing Parts List
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 119881 | Outer Bearing Adjuster Nut | 2 | $28.59 | Add to Cart | |
| 2 | 129132 | Lockwasher - W/tab | 2 | $4.03 | Add to Cart | |
| 3 | 119883 | Dowel-type Lockwasher | 2 | $20.49 | Add to Cart | |
| 4 | 119882 | Inner Bearing Adjuster Nut | 2 | $34.16 | Add to Cart | |
| 6 | 507162 | U-tube Breather Kit | 1 | $18.32 | Add to Cart | |
| 7 | 054254 | Magnetic Drain Plug - 3/4" | 1 | All D/R models | $6.50 | Add to Cart |
| 12 | 129492 | Non-magnetic Plug 3/4" | 1 | $5.32 | Add to Cart | |
| 12 | 129491 | Magnetic Plug - 3/4" | 1 | $4.88 | Add to Cart | |
| 13 | 90898 | Temperature Sensor Plug 1/2" | 1 | $2.77 | Add to Cart | |
| 14 | 129486 | Lube Tag (for 3/4" Plug) | 1 | Part - Not Illustrated | $2.29 | Add to Cart |
| 216227 | Output Shaft Kit | Includes Items 15-16 Replaces 510395 | $232.39 | Add to Cart | ||
| 16 | 127588 | Locknut - Hex | 1 | M39 x 1.5 | $16.30 | Add to Cart |
| 17 | 127592 | Oil Seal | 1 | $103.46 | Add to Cart | |
| 18 | 129594 | Snap Ring .103" | 1 | $10.66 | Add to Cart | |
| 19 | 127539 | Bearing Cup | 2 | $12.46 | Add to Cart | |
| 20 | 127540 | Bearing Cone | 2 | $22.94 | Add to Cart | |
| 21 | 126917 | Seal Driver | 1 | In Kit 217414 - See Page 28 | $45.14 | Add to Cart |
| 22 | 128706 | Adapter | 1 | In Kit 217414 - See Page 28 | $30.43 | Superseded by 128706HXAdd to Cart |
| 23 | 129293 | Loctite Adhesive | 1 | Not Illustrated, .5 ml Tube | $7.49 | Add to Cart |
| 24 | 107276S | Rtv - Sealant | 1 | Not Illustrated, 3 oz. Tube | $17.75 | Add to Cart |
Axle Shafts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 127437 | Axle Shaft 1 41 1.87 4" 8.500 8(.635) Str 6,5,3 | $354.63 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4" 8.500 8(.635) Str 6,5,3 | — | Call for availability | |||
| 127438 | Axle Shaft DSH40(P) 1 41 1.87 4" 8.500 8(.635) Str 6,5,3 | $410.70 | Add to Cart | |||
| 43307 | Axle Shaft DSH40(P) 1 41 1.87 4" 8.500 8(.635) Str 6,5,3 | — | Call for availability | |||
| 128514 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | $583.18 | Add to Cart | |||
| 38130 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | — | Call for availability | |||
| 128515 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | $502.11 | Add to Cart | |||
| 42460 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | — | Call for availability | |||
| 128516 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | $442.30 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | — | Call for availability | |||
| 128517 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | $563.13 | Superseded by 128517HXAdd to Cart | |||
| 43307 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | — | Call for availability | |||
| 22060SH | Axle Shaft RSH44 | — | Call for availability | |||
| 128521 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 38130 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 128522 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 42460 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 128893 | Axle Shaft 1 39 1.81 11" 5.500 8(.645) Str 10 | — | Call for availability | |||
| 40906 | Axle Shaft 1 39 1.81 11" 5.500 8(.645) Str 10 | — | Call for availability | |||
| 127437 | Axle Shaft 1 41 1.87 4" 8.500 8(.635) Str 3,5,6 | $354.63 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4" 8.500 8(.635) Str 3,5,6 | — | Call for availability | |||
| 128435 | Axle Shaft 1 41 1.87 11" 8.500 8(.635) Str 3,5,6 | $549.68 | Add to Cart | |||
| 43307 | Axle Shaft 1 41 1.87 11" 8.500 8(.635) Str 3,5,6 | — | Call for availability | |||
| 128514 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | $583.18 | Add to Cart | |||
| 38130 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7,10 | — | Call for availability | |||
| 128559 | Axle Shaft 1 41 1.87 11" 8.500 8(.773) Str 7,10 | $653.25 | Add to Cart | |||
| 42460 | Axle Shaft 1 41 1.87 11" 8.500 8(.773) Str 7,10 | — | Call for availability | |||
| 128516 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | $442.30 | Add to Cart | |||
| 38976 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 2,4,7,9 | — | Call for availability | |||
| 128561 | Axle Shaft 1 41 1.87 11" 8.500 8(.948) Tpr 2,4,7,9 | $707.44 | Superseded by 128561HXAdd to Cart | |||
| 43307 | Axle Shaft 1 41 1.87 11" 8.500 8(.948) Tpr 2,4,7,9 | — | Call for availability | |||
| 128521 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 38130 | Axle Shaft 1 41 1.87 4" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 128563 | Axle Shaft 1 41 1.87 11" 8.500 8(.948) Tpr 1 | — | No longer available — call for replacement | |||
| 42460 | Axle Shaft 1 41 1.87 11" 8.500 8(.948) Tpr 1 | — | Call for availability | |||
| 129432 | Axle Shaft 1 41 1.87 11" 8.500 8(.773) Str 7 | — | Call for availability | |||
| 43380 | Axle Shaft 1 41 1.87 11" 8.500 8(.773) Str 7 | — | Call for availability | |||
| 129434 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7 | — | Call for availability | |||
| 38976 | Axle Shaft 1 41 1.87 4" 8.500 8(.773) Str 7 | — | Call for availability | |||
| 013885 | Tapered Dowel 1.00” .630” .469” For 5/8” Studs - Split Dowel | — | Call for availability | |||
| 013886 | Gasket 8 Hole | $2.89 | Add to Cart | |||
| 029804 | Washer | — | Call for availability | |||
| 060600 | Axle Shaft Nut 5/8”, 18 Thread | $2.94 | Add to Cart | |||
| 127794 | Stud 5/8”, 18 Thread | $23.20 | Add to Cart |
Gear & Pinion Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 510104 | Gear & Pinion Service Kit 3.08 Ratio | 37/12 teeth, 15.40 in. ring gear | $1,731.31 | Superseded by 513386Add to Cart | ||
| 132230 | Ring Gear 3.08 Ratio, Mated Set | 37/12 teeth, 15.40 in. ring gear | — | Call for availability | ||
| 132200 | Drive Pinion 3.08 Ratio, Mated Set | 37/12 teeth, 15.40 in. ring gear | — | Call for availability | ||
| 510105 | Gear & Pinion Service Kit 3.25 Ratio | 39/12 teeth, 15.75 in. ring gear | $3,112.79 | Add to Cart | ||
| 132233 | Ring Gear 3.25 Ratio, Mated Set | 39/12 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132202 | Drive Pinion 3.25 Ratio, Mated Set | 39/12 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510106 | Gear & Pinion Service Kit 3.36 Ratio | 37/11 teeth, 15.75 in. ring gear | $3,078.31 | Add to Cart | ||
| 132235 | Ring Gear 3.36 Ratio, Mated Set | 37/11 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132204 | Drive Pinion 3.36 Ratio, Mated Set | 37/11 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510107 | Gear & Pinion Service Kit 3.55 Ratio | 39/11 teeth, 15.75 in. ring gear | — | No longer available — call for replacement | ||
| 132237 | Ring Gear 3.55 Ratio, Mated Set | 39/11 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132206 | Drive Pinion 3.55 Ratio, Mated Set | 39/11 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510108 | Gear & Pinion Service Kit 3.70 Ratio | 37/10 teeth, 15.75 in. ring gear | $2,753.92 | Add to Cart | ||
| 132239 | Ring Gear 3.70 Ratio, Mated Set | 37/10 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132208 | Drive Pinion 3.70 Ratio, Mated Set | 37/10 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510109 | Gear & Pinion Service Kit 3.90 Ratio | 39/10 teeth, 15.75 in. ring gear | $2,826.85 | Add to Cart | ||
| 132241 | Ring Gear 3.90 Ratio, Mated Set | 39/10 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132210 | Drive Pinion 3.90 Ratio, Mated Set | 39/10 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510110 | Gear & Pinion Service Kit 4.11 Ratio | 37/9 teeth, 15.75 in. ring gear | $3,443.40 | Add to Cart | ||
| 132243 | Ring Gear 4.11 Ratio, Mated Set | 37/9 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132212 | Drive Pinion 4.11 Ratio, Mated Set | 37/9 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510111 | Gear & Pinion Service Kit 4.33 Ratio | 39/9 teeth, 15.75 in. ring gear | $3,527.80 | Add to Cart | ||
| 132245 | Ring Gear 4.33 Ratio, Mated Set | 39/9 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132214 | Drive Pinion 4.33 Ratio, Mated Set | 39/9 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510112 | Gear & Pinion Service Kit 4.63 Ratio | 37/8 teeth, 15.65 in. ring gear | $1,101.64 | Superseded by 513378Add to Cart | ||
| 132246 | Ring Gear 4.63 Ratio, Mated Set | 37/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132216 | Drive Pinion 4.63 Ratio, Mated Set | 37/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 510113 | Gear & Pinion Service Kit 4.88 Ratio | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132248 | Ring Gear 4.88 Ratio, Mated Set | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132218 | Drive Pinion 4.88 Ratio, Mated Set | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 511894 | Gear & Pinion Service Kit 5.29 Ratio | 37/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132250 | Ring Gear 5.29 Ratio, Mated Set | 37/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132220 | Drive Pinion 5.29 Ratio, Mated Set | 37/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 512147 | Gear & Pinion Service Kit 5.57 Ratio | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132252 | Ring Gear 5.57 Ratio, Mated Set | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132222 | Drive Pinion 5.57 Ratio, Mated Set | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 510462 | Gear & Pinion Service Kit 6.17 Ratio | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132254 | Ring Gear 6.17 Ratio, Mated Set | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132224 | Drive Pinion 6.17 Ratio, Mated Set | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 511571 | Gear & Pinion Service Kit 6.50 Ratio | 39/6 teeth, 15.65 in. ring gear | $1,764.91 | Add to Cart | ||
| 132257 | Ring Gear 6.50 Ratio, Mated Set | 39/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132226 | Drive Pinion 6.50 Ratio, Mated Set | 39/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 510114 | Gear & Pinion Service Kit 3.08 Ratio - Rear Axle | 37/12 teeth, 15.75 in. ring gear | $1,722.04 | Superseded by 513373Add to Cart | ||
| 132115 | Ring Gear 3.08 Ratio, Mated Set - Rear Axle | 37/12 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 132072 | Drive Pinion 3.08 Ratio, Mated Set - Rear Axle | 37/12 teeth, 15.75 in. ring gear | — | Call for availability | ||
| 510115 | Gear & Pinion Service Kit 3.25 Ratio - Rear Axle | 39/12 teeth, 15.75 in. ring gear | $3,911.44 | Add to Cart | ||
| 510116 | Gear & Pinion Service Kit 3.36 Ratio - Rear Axle | 37/11 teeth, 15.75 in. ring gear | $3,233.88 | Add to Cart | ||
| 510117 | Gear & Pinion Service Kit 3.55 Ratio - Rear Axle | 39/11 teeth, 15.75 in. ring gear | $2,308.15 | Add to Cart | ||
| 510118 | Gear & Pinion Service Kit 3.70 Ratio - Rear Axle | 37/10 teeth, 15.75 in. ring gear | $2,914.53 | Add to Cart | ||
| 510119 | Gear & Pinion Service Kit 3.90 Ratio - Rear Axle | 39/10 teeth, 15.75 in. ring gear | $2,569.36 | Add to Cart | ||
| 510120 | Gear & Pinion Service Kit 4.11 Ratio - Rear Axle | 37/9 teeth, 15.75 in. ring gear | $3,685.04 | Add to Cart | ||
| 510121 | Gear & Pinion Service Kit 4.33 Ratio - Rear Axle | 39/9 teeth, 15.75 in. ring gear | $2,827.59 | Add to Cart | ||
| 510122 | Gear & Pinion Service Kit 4.63 Ratio - Rear Axle | 37/8 teeth, 15.65 in. ring gear | $2,428.22 | Superseded by 513365Add to Cart | ||
| 132132 | Ring Gear 4.63 Ratio, Mated Set - Rear Axle | 37/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132097 | Drive Pinion 4.63 Ratio, Mated Set - Rear Axle | 37/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 510123 | Gear & Pinion Service Kit 4.88 Ratio - Rear Axle | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132135 | Ring Gear 4.88 Ratio, Mated Set - Rear Axle | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132101 | Drive Pinion 4.88 Ratio, Mated Set - Rear Axle | 39/8 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 511518 | Gear & Pinion Service Kit 5.29 Ratio - Rear Axle | 37/7 teeth, 15.65 in. ring gear | $1,416.57 | Superseded by 513363Add to Cart | ||
| 132137 | Ring Gear 5.29 Ratio, Mated Set - Rear Axle | 37/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132104 | Drive Pinion 5.29 Ratio, Mated Set - Rear Axle | 37/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 511519 | Gear & Pinion Service Kit 5.57 Ratio - Rear Axle | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132139 | Ring Gear 5.57 Ratio, Mated Set - Rear Axle | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132107 | Drive Pinion 5.57 Ratio, Mated Set - Rear Axle | 39/7 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 510463 | Gear & Pinion Service Kit 6.17 Ratio - Rear Axle | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132141 | Ring Gear 6.17 Ratio, Mated Set - Rear Axle | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132109 | Drive Pinion 6.17 Ratio, Mated Set - Rear Axle | 37/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 511573 | Gear & Pinion Service Kit 6.50 Ratio - Rear Axle | 39/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132143 | Ring Gear 6.50 Ratio, Mated Set - Rear Axle | 39/6 teeth, 15.65 in. ring gear | — | Call for availability | ||
| 132110 | Drive Pinion 6.50 Ratio, Mated Set - Rear Axle | 39/6 teeth, 15.65 in. ring gear | — | Call for availability |
Service Carriers - Single Reduction
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 22060SH | Service Carrier DSH40(P) RSH40, | — | Call for availability | |||
| 675740 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | Call for availability | |||
| 675750 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | Call for availability | |||
| 675780 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | Call for availability | |||
| 675741 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | Call for availability | |||
| 675751 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | Call for availability | |||
| 675781 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | No longer available — call for replacement | |||
| 675742 | Service Carrier 3.36 41 Inv 3.36 41 Inv | $3,755.00 | Superseded by DSH40336EXAdd to Cart | |||
| 675752 | Service Carrier 3.36 41 Inv 3.36 41 Inv | — | Call for availability | |||
| 675782 | Service Carrier 3.36 41 Inv 3.36 41 Inv | $2,950.60 | Superseded by RSH40336EXAdd to Cart | |||
| 675743 | Service Carrier 3.55 41 Inv 3.55 41 Inv | $3,755.00 | Superseded by DSH40355EXAdd to Cart | |||
| 675753 | Service Carrier 3.55 41 Inv 3.55 41 Inv | $3,755.00 | Superseded by DSH40P355EXAdd to Cart | |||
| 675783 | Service Carrier 3.55 41 Inv 3.55 41 Inv | $2,950.60 | Superseded by RSH40355EXAdd to Cart | |||
| 675744 | Service Carrier 3.70 41 Inv 3.70 41 Inv | $4,068.16 | Superseded by DSH40370EXAdd to Cart | |||
| 675754 | Service Carrier 3.70 41 Inv 3.70 41 Inv | — | Call for availability | |||
| 675784 | Service Carrier 3.70 41 Inv 3.70 41 Inv | $2,950.60 | Superseded by RSH40370EXAdd to Cart | |||
| 675745 | Service Carrier 3.90 41 Inv 3.90 41 Inv | $3,755.00 | Superseded by DSH40390EXAdd to Cart | |||
| 675755 | Service Carrier 3.90 41 Inv 3.90 41 Inv | — | Call for availability | |||
| 675785 | Service Carrier 3.90 41 Inv 3.90 41 Inv | $2,950.60 | Superseded by RSH40390EXAdd to Cart | |||
| 675746 | Service Carrier 4.11 41 Inv 4.11 41 Inv | $4,045.67 | Superseded by DSH40411EXAdd to Cart | |||
| 675756 | Service Carrier 4.11 41 Inv 4.11 41 Inv | — | Call for availability | |||
| 675786 | Service Carrier 4.11 41 Inv 4.11 41 Inv | $2,950.60 | Superseded by RSH40411EXAdd to Cart | |||
| 675747 | Service Carrier 4.33 41 Inv 4.33 41 Inv | $3,755.00 | Superseded by DSH40433EXAdd to Cart | |||
| 675757 | Service Carrier 4.33 41 Inv 4.33 41 Inv | — | Call for availability | |||
| 675787 | Service Carrier 4.33 41 Inv 4.33 41 Inv | $2,950.60 | Superseded by RSH40433EXAdd to Cart | |||
| 675748 | Service Carrier 4.63 41 Inv 4.63 41 Inv | — | Call for availability | |||
| 675758 | Service Carrier 4.63 41 Inv 4.63 41 Inv | — | Call for availability | |||
| 675788 | Service Carrier 4.63 41 Inv 4.63 41 Inv | $2,694.52 | Add to Cart | |||
| 675749 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | Call for availability | |||
| 675759 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | Call for availability | |||
| 675789 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | No longer available — call for replacement | |||
| 675835 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675847 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675871 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675836 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 675848 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 675872 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 676155 | Service Carrier 6.17 41 Inv 6.14 41 Inv | — | Call for availability | |||
| 676141 | Service Carrier 6.17 41 Inv 6.14 41 Inv | — | Call for availability | |||
| 676142 | Service Carrier 6.17 41 Inv 6.14 41 Inv | — | Call for availability | |||
| 676156 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability | |||
| 676153 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability | |||
| 676154 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability | |||
| 681279 | Service Carrier 7.17 41 Inv Na 7.17 41 Inv | — | Call for availability | |||
| 681281 | Service Carrier 7.17 41 Inv Na 7.17 41 Inv | — | Call for availability | |||
| 675760 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | Call for availability | |||
| 675770 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | Call for availability | |||
| 675790 | Service Carrier 3.08 41 Inv 3.08 41 Inv | — | No longer available — call for replacement | |||
| 675761 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | Call for availability | |||
| 675771 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | Call for availability | |||
| 675791 | Service Carrier 3.25 41 Inv 3.25 41 Inv | — | No longer available — call for replacement | |||
| 675762 | Service Carrier 3.36 41 Inv 3.36 41 Inv | — | Call for availability | |||
| 675772 | Service Carrier 3.36 41 Inv 3.36 41 Inv | — | Call for availability | |||
| 675792 | Service Carrier 3.36 41 Inv 3.36 41 Inv | — | No longer available — call for replacement | |||
| 675763 | Service Carrier 3.55 41 Inv 3.55 41 Inv | — | Call for availability | |||
| 675773 | Service Carrier 3.55 41 Inv 3.55 41 Inv | — | Call for availability | |||
| 675793 | Service Carrier 3.55 41 Inv 3.55 41 Inv | $5,405.14 | Add to Cart | |||
| 675764 | Service Carrier 3.70 41 Inv 3.70 41 Inv | — | Call for availability | |||
| 675774 | Service Carrier 3.70 41 Inv 3.70 41 Inv | $5,965.33 | Superseded by DDH40P370EXAdd to Cart | |||
| 675794 | Service Carrier 3.70 41 Inv 3.70 41 Inv | — | No longer available — call for replacement | |||
| 675765 | Service Carrier 3.90 41 Inv 3.90 41 Inv | $6,331.00 | Superseded by DDH40390EXAdd to Cart | |||
| 675775 | Service Carrier 3.90 41 Inv 3.90 41 Inv | — | Call for availability | |||
| 675795 | Service Carrier 3.90 41 Inv 3.90 41 Inv | $5,080.78 | Superseded by RDH40390EXAdd to Cart | |||
| 675766 | Service Carrier 4.11 41 Inv 4.11 41 Inv | — | Call for availability | |||
| 675776 | Service Carrier 4.11 41 Inv 4.11 41 Inv | — | Call for availability | |||
| 675796 | Service Carrier 4.11 41 Inv 4.11 41 Inv | — | No longer available — call for replacement | |||
| 675767 | Service Carrier 4.33 41 Inv 4.33 41 Inv | — | Call for availability | |||
| 675777 | Service Carrier 4.33 41 Inv 4.33 41 Inv | — | Call for availability | |||
| 675797 | Service Carrier 4.33 41 Inv 4.33 41 Inv | — | No longer available — call for replacement | |||
| 675768 | Service Carrier 4.63 41 Inv 4.63 41 Inv | — | Call for availability | |||
| 675778 | Service Carrier 4.63 41 Inv 4.63 41 Inv | — | Call for availability | |||
| 675798 | Service Carrier 4.63 41 Inv 4.63 41 Inv | — | No longer available — call for replacement | |||
| 675769 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | Call for availability | |||
| 675779 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | Call for availability | |||
| 675799 | Service Carrier 4.88 41 Inv 4.88 41 Inv | — | No longer available — call for replacement | |||
| 675811 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675823 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675859 | Service Carrier 5.29 41 Inv 5.29 41 Inv | — | Call for availability | |||
| 675812 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 675824 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 675860 | Service Carrier 5.57 41 Inv 5.57 41 Inv | — | Call for availability | |||
| 676161 | Service Carrier 6.17 41 Inv 6.17 41 Inv | — | Call for availability | |||
| 676159 | Service Carrier 6.17 41 Inv 6.17 41 Inv | — | Call for availability | |||
| 676157 | Service Carrier 6.17 41 Inv 6.17 41 Inv | — | Call for availability | |||
| 676162 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability | |||
| 676160 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability | |||
| 676158 | Service Carrier 6.50 41 Inv 6.50 41 Inv | — | Call for availability |
Yokes & Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| ABIB0607 | Vary. Please Contact Driveshaft Division For Price And Availability Of Service Yokes. For Additional Information, See Service Bulletin | — | Call for availability | |||
| 22060SH | DSH/RSH40, DSH/RSH44, Series | — | Call for availability | |||
| 127620 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 127550 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $418.59 | Superseded by 6489811XAdd to Cart | |||
| 127617 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $418.59 | Superseded by 6489811XAdd to Cart | |||
| 127622 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $276.92 | Superseded by 63452211XAdd to Cart | |||
| 127618 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 127621 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 127619 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 127638 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Vendor P/n | — | Call for availability | |||
| 127624 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Vendor P/n | $471.74 | Superseded by 649001XAdd to Cart | |||
| 127558 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Vendor P/n | $437.93 | Superseded by 649041XAdd to Cart | |||
| 128722 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Vendor P/n | — | Call for availability | |||
| 128737 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Vendor P/n | $507.80 | Superseded by 6490411XAdd to Cart | |||
| 129164 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 129166 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 128720 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 128721 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | No longer available — call for replacement | |||
| 127415 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $217.22 | Superseded by 649031XAdd to Cart | |||
| 127637 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $13.51 | Add to Cart | |||
| 128745 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | — | Call for availability | |||
| 128746 | Yoke & Slinger Series Joint Angle Style Dim. A Dim. B Dim. C Spicer P/n | $230.82 | Superseded by 6489911XAdd to Cart |
Kits and Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 217414 | Oil Seal Driver Installation Kit | $73.99 | Add to Cart | |||
| 512087 | Axle Hsg Hardware Kit - Thick Flange Forward Axle | $117.81 | Add to Cart | |||
| 511600 | Axle Hsg Hardware Kit - Thin Flange Rear Axle | $104.25 | Add to Cart | |||
| 22060SH | Kits And Assemblie RSH40, RSH44, | — | Call for availability | |||
| 22060SH | RSH40, RSH44, DSH40(P), DSH44(P) - Ratios 4.11 To 4.88 | — | Call for availability | |||
| 22060SH | RSH40, RSH44, Wheel Diff Side Gear Kit | — | Call for availability |
Ratios Covered — DS405
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| DS405 2.64 | DS405 2.64 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 2.85 | DS405 2.85 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 2.93 | DS405 2.93 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.08 | DS405 3.08 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.25 | DS405 3.25 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.36 | DS405 3.36 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.42 | DS405 3.42 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.55 | DS405 3.55 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 3.90 | DS405 3.90 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 4.11 | DS405 4.11 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 4.33 | DS405 4.33 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 4.63 | DS405 4.63 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 4.88 | DS405 4.88 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 5.29 | DS405 5.29 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 5.57 | DS405 5.57 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability | |||
| DS405 6.50 | DS405 6.50 Ratio — Parts Book Edition (this Page Covers Every Ratio) | — | Call for availability |
This is the complete factory parts breakdown for the Dana Spicer DS405 Tandem Drive Axle — every part in the manual, matched to our live inventory. We stock 235 of the 511 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
Part of the Dana Spicer 40 Series Single Reduction Tandem Drive Axle parts manual (the full 40 series book: DSH/DDH40-44 forward, RSH/RDH40-44 rear).
