Eaton Fuller FS-5005C Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the FS-5005C is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

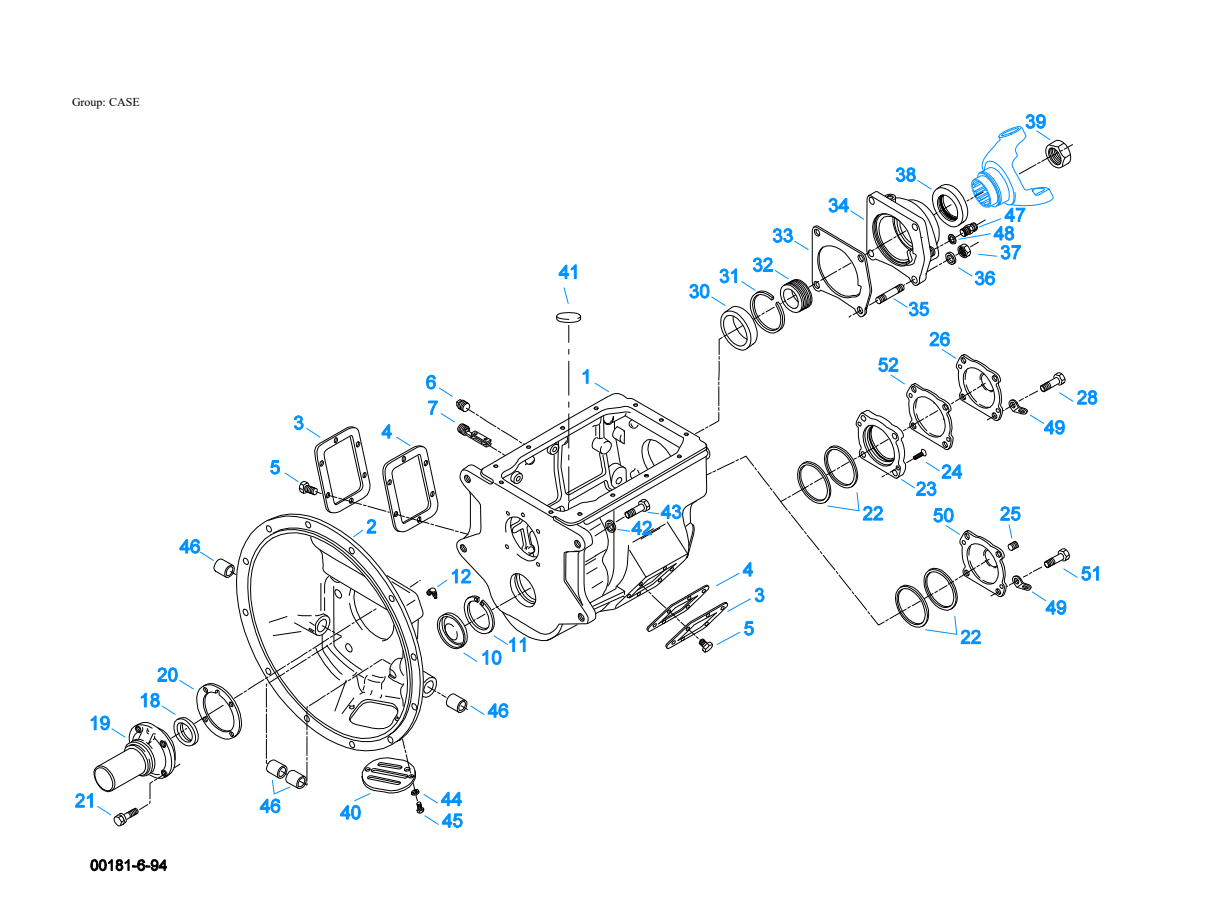

Case
Item 7Item 4Item 22Item 1Item 4Item 47Item 11Item 21Item 28Item 45Item 49Item 41Item 44Item 3Item 46Item 25Item 24Item 3Item 35Item 40Item 48Item 52Item 5Item 6Item 12Item 33Item 19Item 38Item 49Item 50Item 30Item 42Item 26Item 18Item 37Item 46Item 34Item 46Item 22Item 51Item 23Item 5Item 43Item 10Item 2Item 32Item 20Item 39Item 36Item 31Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1911 | Case Assy | 1 | Replaces 4300218. | $2,999.54 | Add to Cart |
| 1 | S-1922 | Case Assy | 1 | Replaces 4300983. METRIC BOSS HOLES | $1,813.33 | Add to Cart |
| 2 | 230548 | Clutch Hsg Assy | 1 | Replaces 230549. #2 PUSH-IRON W/10H25 FITTINGS | Call for availability | |
| 2 | A-5205 | Clutch Hsg Assy | 1 | Replaces 21646. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | No longer available - Call for replacement | |
| 2 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 2 | A-5751 | Clutch Hsg Assy | 1 | Replaces 4300418. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | $328.83 | Add to Cart |
| 2 | A-7513 | Clutch Hsg Assy | 1 | Replaces 3316239. #2 ALUMINUM, PUSH TYPE (FORK) | No longer available - Call for replacement | |
| 3 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 4 | 201400 | Gasket | 2 | $10.64 | Add to Cart | |
| 5 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 6 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 7 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 10 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 11 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 12 | 10H25 | Fitting-straight | 2 | $2.06 | Superseded by 4759Add to Cart | |
| 12 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 18 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 18 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 18 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 19 | 23147 | Front Brg Cover-pull | 1 | Replaces 3315538. USE 4300121 OIL SEAL | $131.46 | Add to Cart |
| 19 | 235357 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | $214.76 | Add to Cart |
| 19 | 235358 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $185.11 | Add to Cart |
| 19 | 235650 | Front Brg Cover-pull | 1 | USE 4300204 OIL SEAL | $175.92 | Add to Cart |
| 19 | 4300354 | Front Brg Cover-push | 1 | USE 4300204 OR 4300798 OIL SEAL | $204.88 | Add to Cart |
| 19 | 4300355 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | $229.94 | Add to Cart |
| 19 | 4300882 | Front Brg Cvr- Push/pull | 1 | Replaces 237335. USE 4300798 OIL SEAL | $160.59 | Add to Cart |
| 20 | 235403 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.85 | Add to Cart |
| 20 | 235404 | Shim .007 | 1 | QUANTITY AS REQUIRED | $5.29 | Add to Cart |
| 20 | 235405 | Shim .010 | 1 | QUANTITY AS REQUIRED | $5.98 | Add to Cart |
| 20 | 235406 | Shim .020 | 1 | QUANTITY AS REQUIRED | $6.50 | Add to Cart |
| 20 | 4300979 | Shim .040 | 1 | $14.17 | Add to Cart | |
| 21 | 239614 | Screw | 4 | 5/16-18X.81 | $7.31 | Add to Cart |
| 22 | 22015 | Shim .004 | 1 | QUANTITY AS REQUIRED | $8.70 | Add to Cart |
| 22 | 22016 | Shim .007 | 1 | QUANTITY AS REQUIRED | $5.66 | Add to Cart |
| 22 | 22017 | Shim .010 | 1 | QUANTITY AS REQUIRED | $5.83 | Add to Cart |
| 22 | 22018 | Shim .020 | 1 | QUANTITY AS REQUIRED | $8.38 | Add to Cart |
| 22 | 4300982 | Shim .040 | 1 | $7.28 | Add to Cart | |
| 23 | 22011 | No Longer Available | 1 | Call for availability | ||
| 24 | 9G416H | Screw | 2 | 1/4"-20X1" | $6.60 | Add to Cart |
| 25 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 26 | 22013 | Bearing Retainer | 1 | $30.21 | Add to Cart | |
| 28 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 30 | 235422 | Bearing Assy | 1 | INCLUDES 226331 SNAP RING | $188.35 | Superseded by K4162Add to Cart |
| 31 | 226331 | Snap Ring | 1 | $4.45 | Add to Cart | |
| 32 | 21558 | Speedo Rotor | 1 | 16 TEETH - 1.96 OUTPUT | $61.79 | Add to Cart |
| 32 | 3314685 | Speedo Drive Gear | 1 | 6 TEETH - 1.96 OUTPUT | $80.39 | Add to Cart |
| 33 | 4300852 | Gasket | 1 | Replaces 2356532367334301096. | $14.03 | Add to Cart |
| 34 | 241705 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $213.72 | Add to Cart |
| 34 | K-7041 | Rear Brg Cover Kit | 1 | Replaces 4302617. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $214.98 | Add to Cart |
| 34 | K-7042 | Rear Brg Cover Kit | 1 | Replaces 4302618. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $156.87 | Add to Cart |
| 34 | S-7032 | Nla-rear Brg Cover Assy | 1 | Replaces 23247, 4301986. USE 4300203 OIL SEAL NOTE: SENSOR SEAL REQUIRED | Call for availability | |
| 34 | S-7033 | Rear Brg Cover Assy | 1 | Replaces 23341, 4302023. USE 23484 OR 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $594.66 | Add to Cart |
| 34 | S-7034 | Rear Brg Cover Assy | 1 | Replaces 21557, 4302000. USE 23484 OR 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $159.80 | Add to Cart |
| 35 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 36 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 37 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 38 | 23484 | Oil Seal | 1 | SHAFT 2.505, WIDTH .433 | $43.16 | Add to Cart |
| 38 | 235655 | Oil Seal | 1 | SHAFT 2.75, WIDTH .5 | $19.68 | Add to Cart |
| 38 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 38 | 4300203 | Oil Seal | 1 | Replaces 229985, 237983. SHAFT 2.503, WIDTH .5 | $7.31 | Add to Cart |
| 39 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 40 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 41 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 42 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 43 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 44 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 45 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 46 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 46 | 8677 | Bushing | 2 | $19.09 | Add to Cart | |
| 47 | 3316225 | Sleeve | 1 | $38.30 | Add to Cart | |
| 48 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 49 | 238370 | Lifting Eye | 1 | $4.99 | Add to Cart | |
| 50 | 4301603 | Bearing Retainer | 1 | $73.34 | Add to Cart | |
| 51 | X-8-688 | Capscrew | 4 | 3/8"-16X1" | $2.77 | Add to Cart |
| 52 | 22014 | Gasket | 1 | $19.35 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3859 | Countershaft Brg Kit | 2 | Replaces 654166, 791943. | $79.58 | Add to Cart |
| 3 | 224024 | Snap Ring | 1 | $5.28 | Add to Cart | |
| 4 | 4301182 | Drive Gear-cntrshft | 1 | $167.38 | Add to Cart | |
| 4 | A-6328 | Countershaft Assy | 1 | $888.26 | Add to Cart | |
| 5 | 4301184 | 4TH Gear-cntrshft | 1 | $170.69 | Add to Cart | |
| 5 | A-6328 | Countershaft Assy | 1 | $888.26 | Add to Cart | |
| 6 | 4301187 | Countershaft | 1 | $423.16 | Add to Cart | |
| 6 | A-6328 | Countershaft Assy | 1 | $888.26 | Add to Cart |
Input Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 235432 | No Longer Available | 1 | USE 235358 FRONT BRG COVER | Call for availability | |
| 1 | 235434 | No Longer Available | 1 | USE 4300882 FRONT BRG COVER | Call for availability | |
| 1 | 235649 | IN/SHAFT-1.75" Push/pull | 1 | USE 23147 OR 235650 FRONT BRG COVER | No longer available - Call for replacement | |
| 1 | 2760832 | No Longer Available | 1 | USE 23147 OR 235650 FRONT BRG COVER | Call for availability | |
| 1 | 4300424 | No Longer Available | 1 | USE 4300355 FRONT BRG COVER | Call for availability | |
| 1 | 4300886 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $318.14 | Add to Cart |
| 2 | 1314774 | Bearing Cup | 1 | 1.50" INPUT | $46.68 | Superseded by K4154Add to Cart |
| 2 | 235417 | Bearing Cup | 1 | 1.75" INPUT | $60.51 | Superseded by K4153Add to Cart |
| 3 | 1314773 | Bearing Cone | 1 | 1.50" INPUT | $46.68 | Superseded by K4154Add to Cart |
| 3 | 235418 | Bearing Cone | 1 | 1.75" INPUT | $60.51 | Superseded by K4153Add to Cart |
| 4 | 235414 | Bearing | 14 | $1.79 | Add to Cart | |
| 5 | 235415 | Washer | 1 | $6.58 | Add to Cart | |
| 6 | 235416 | Snap Ring | 1 | $4.78 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2085 | Gasket Kit | 1 | $24.54 | Add to Cart | ||
| K-2113 | Synchronizer Kit | 1 | $360.29 | Add to Cart | ||
| K-2114 | Synchronizer Kit | 1 | $237.19 | Add to Cart | ||
| K-2121 | Basic Rebuild Kit | 1 | FOR UNITS W/1.50" INPUT SHAFT & 2.00" MAINSHAFT | $469.06 | Add to Cart | |
| K-2122 | Basic Rebuild Kit | 1 | FOR UNITS W/1.50" INPUT SHAFT & 1.75" MAINSHAFT FOR UNITS W/1.75" INPUT SHAFT & 1.75" MAINSHAFT, IN ADDITION TO K- 2122 YOU MUST ORDER ONE 235417, 235418 & 4300204 FOR 2.503" COVER BORE DIAMETER OR 4300121 FOR 2.678" COVER BORE DIAMETER | $663.99 | Add to Cart | |
| K-2123 | Basic Rebuild Kit | 1 | FOR UNITS W/1.75" INPUT SHAFT & 2.00" MAINSHAFT | $471.57 | Add to Cart | |
| K-2132 | Small Parts Kit | 1 | $262.88 | Add to Cart | ||
| K-2291 | Mainshaft Kit | 1 | Replaces 23016. 1.96 SPLINE | $555.52 | Add to Cart | |
| K-2293 | Mainshaft Kit | 1 | Replaces 23118. 2.00 SPLINE | $490.13 | Superseded by 4301933Add to Cart | |
| K-2294 | Mainshaft Kit | 1 | Replaces 23119. 1.75 SPLINE | No longer available - Call for replacement | ||
| K-3859 | Countershaft Brg Kit | 1 | Replaces 654166, 791943. | $79.58 | Add to Cart | |
| K-7041 | Rear Brg Cover Kit | 1 | Replaces 4302617. | $214.98 | Add to Cart | |
| K-7042 | Rear Brg Cover Kit | 1 | Replaces 4302618. | $156.87 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| S-1643 | Shift Lever Assy-high | 1 | No longer available - Call for replacement | |||
| S-1911 | Case Assy | 1 | Replaces 4300218. | $2,999.54 | Add to Cart | |
| S-1922 | Case Assy | 1 | Replaces 4300983. METRIC BOSS HOLES | $1,813.33 | Add to Cart | |
| S-7032 | Nla-rear Brg Cover Assy | 1 | Replaces 23247, 4301986. | Call for availability | ||
| S-7033 | Rear Brg Cover Assy | 1 | Replaces 23341, 4302023. | $594.66 | Add to Cart | |
| S-7034 | Rear Brg Cover Assy | 1 | Replaces 21557, 4302000. | $159.80 | Add to Cart |
Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 228648 | Shift Lever | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | No longer available - Call for replacement | |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |

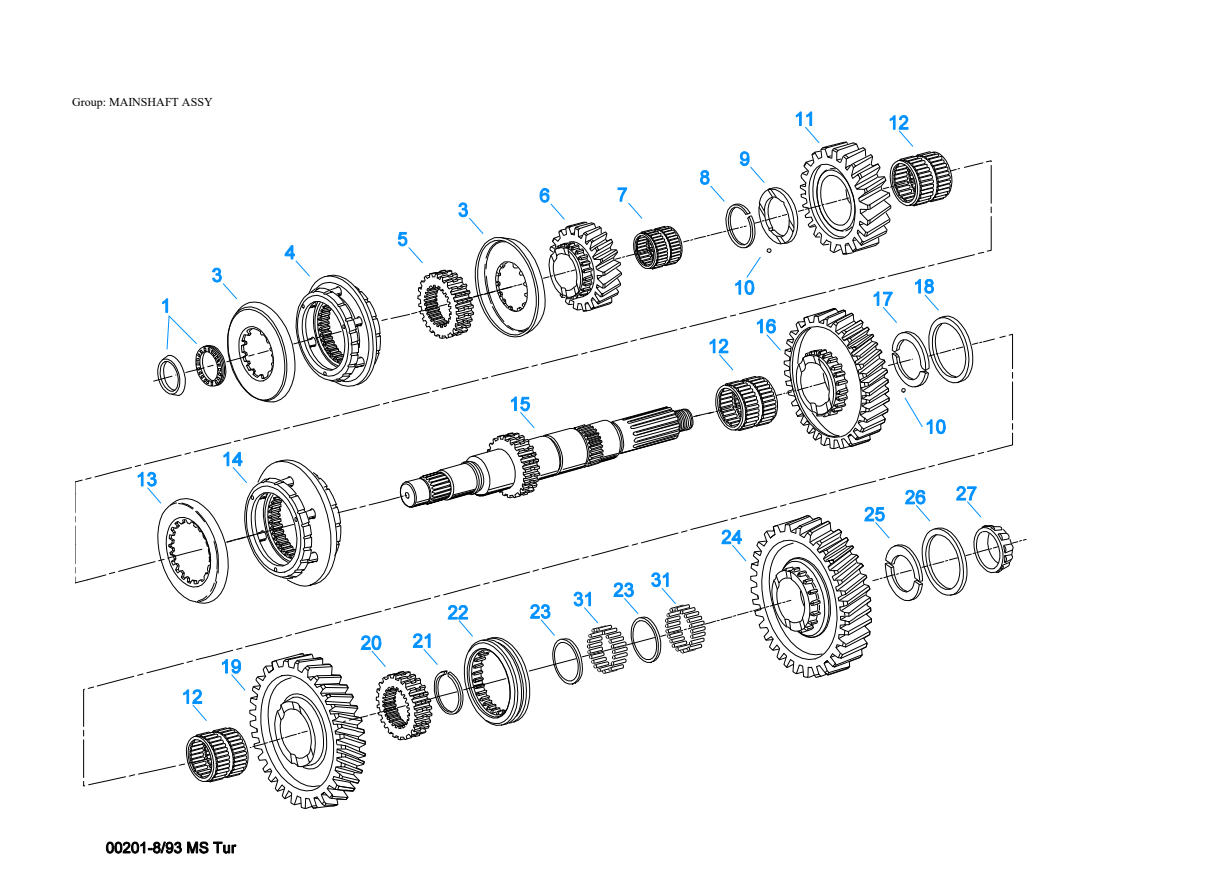

Mainshaft Assy
Item 7Item 4Item 17Item 8Item 21Item 31Item 1Item 11Item 20Item 14Item 12Item 22Item 19Item 24Item 3Item 27Item 16Item 10Item 13Item 12Item 15Item 10Item 9Item 3Item 12Item 31Item 18Item 6Item 5Item 25Item 23Item 26Item 23Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3704 | Bearing & Race Kit | 1 | Replaces 235382, 235383. | $46.86 | Add to Cart |
| 3 | 228296 | Synchronizer Cup | 2 | $36.60 | Add to Cart | |
| 4 | A-5401 | Synchronizer Assy 4/5 | 1 | $167.71 | Add to Cart | |
| 5 | 23694 | Clutch Hub 4/5 | 1 | Replaces 21635. | $48.39 | Add to Cart |
| 6 | 239347 | 4TH Gear-mainshaft | 1 | $138.95 | Add to Cart | |
| 7 | 239651 | Bearing | 1 | $17.79 | Add to Cart | |
| 8 | 224069 | Snap Ring | 1 | $4.50 | Add to Cart | |
| 9 | 4303687 | Washer | 1 | Replaces 23017. | $69.61 | Add to Cart |
| 10 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 11 | 239346 | 3RD Gear-mainshaft | 1 | $122.89 | Add to Cart | |
| 12 | 239653 | Bearing | 3 | $25.13 | Add to Cart | |
| 13 | 228306 | Synchronizer Cup | 1 | $43.31 | Add to Cart | |
| 14 | A-5693 | Synchronizer Assy 2/3 | 1 | Replaces A-5254, A-5543. | $228.33 | Add to Cart |
| 15 | 23696 | Mainshaft | 1 | 1.96 SPLINE | $555.52 | Add to Cart |
| 15 | 23697 | Mainshaft | 1 | 2.00 SPLINE | $490.13 | Superseded by 4301933Add to Cart |
| 15 | 23698 | Mainshaft | 1 | 1.75 SPLINE | No longer available - Call for replacement | |
| 15 | K-2291 | Mainshaft Kit | 1 | Replaces 23016. 1.96 SPLINE | $555.52 | Add to Cart |
| 15 | K-2293 | Mainshaft Kit | 1 | Replaces 23118. 2.00 SPLINE | $490.13 | Superseded by 4301933Add to Cart |
| 15 | K-2294 | Mainshaft Kit | 1 | Replaces 23119. 1.75 SPLINE | No longer available - Call for replacement | |
| 16 | 235366 | 2ND Gear-mainshaft | 1 | $152.54 | Add to Cart | |
| 17 | 235378 | Split Washer | 2 | $15.28 | Add to Cart | |
| 18 | 235379 | Retainer | 1 | $18.30 | Add to Cart | |
| 19 | 235365 | Reverse Gear- Mainshaft | 1 | $162.62 | Add to Cart | |
| 20 | 235371 | Clutch Hub 1/REV | 1 | $60.26 | Add to Cart | |
| 21 | 235372 | Snap Ring | 1 | $8.75 | Add to Cart | |
| 22 | 235373 | Sliding Clutch | 1 | $75.01 | Add to Cart | |
| 23 | 235431 | Spacer | 2 | $6.80 | Add to Cart | |
| 24 | 235364 | 1ST Gear-mainshaft | 1 | $160.59 | Add to Cart | |
| 25 | 235374 | Split Washer | 2 | $22.77 | Add to Cart | |
| 26 | 235375 | Retainer | 1 | $20.06 | Add to Cart | |
| 27 | 237227 | Bearing Cone | 1 | $188.35 | Superseded by K4162Add to Cart | |
| 31 | 235376 | Bearing | 88 | $1.73 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |

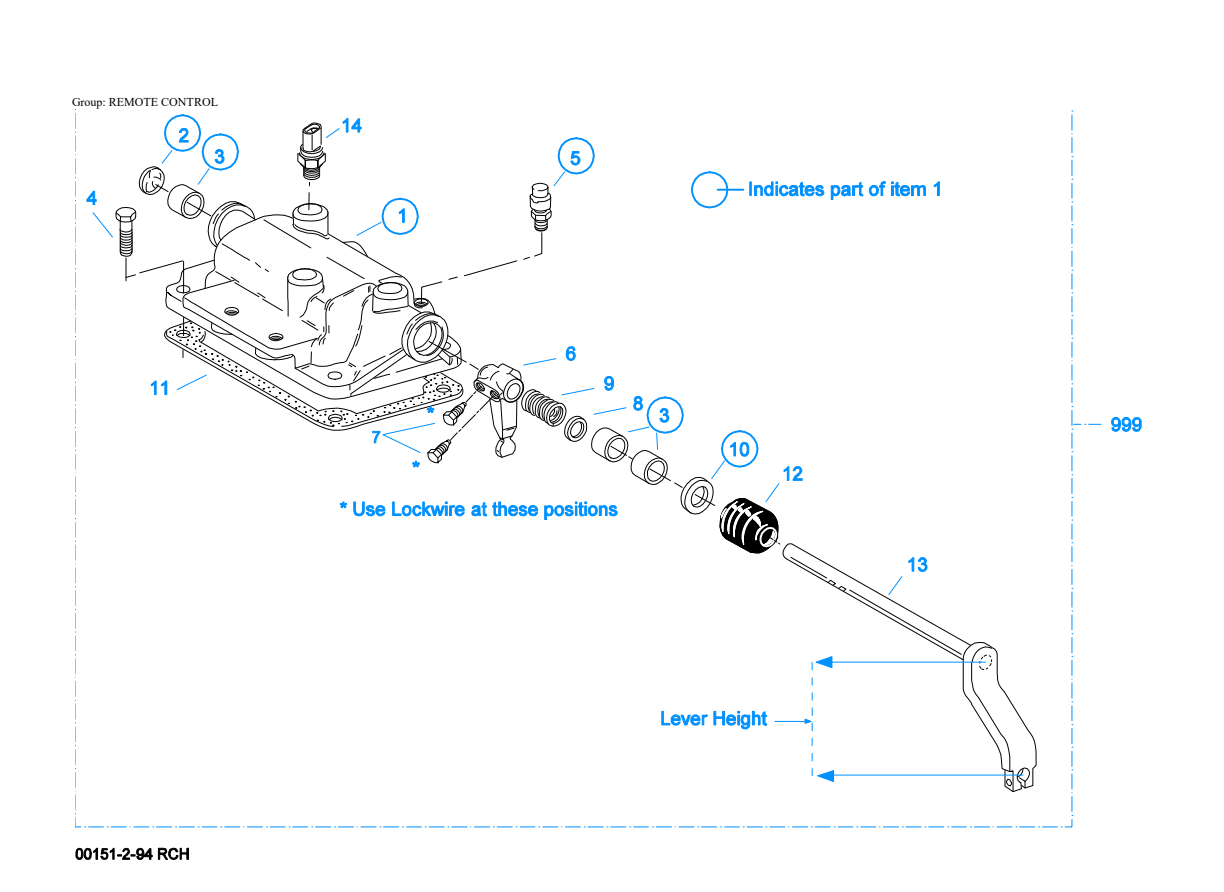

Remote Control
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316284 | Control Housing Assy | 1 | Replaces 3316285. | Call for availability | |
| 1 | 3316308 | Control Housing Assy | 1 | Replaces 221153316309. | $155.91 | Add to Cart |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | $14.64 | Add to Cart | |
| 6 | 21775 | Inner Shift Lever | 1 | Call for availability | ||
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | 3316288 | No Longer Available | 1 | LEVER HEIGHT 5-1/8" | Call for availability | |
| 13 | A-5273 | Shaft & Lever Assy | 1 | LEVER HEIGHT 3-3/4" | $108.19 | Add to Cart |
| 13 | A-5797 | No Longer Availalbe | 1 | Call for availability | ||
| 999 | A-5399 | M/r Slave Control Assy | 1 | LEVER HEIGHT 3-3/4" | Call for availability | |
| 999 | A-5795 | No Longer Available | 1 | Call for availability |
Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 240023 | Washer | 2 | $6.86 | Add to Cart | |
| 2 | 235413 | Spacer | 3 | $4.58 | Add to Cart | |
| 3 | 235412 | Bearing | 52 | $1.76 | Add to Cart | |
| 4 | 235392 | Idler Gear | 1 | $216.94 | Add to Cart | |
| 5 | 203609 | Idler Shaft | 1 | $39.19 | Add to Cart | |
| 6 | 201929 | Shaft Lock | 1 | $2.63 | Add to Cart | |
| 7 | X-8C-600 | Capscrew | 1 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |

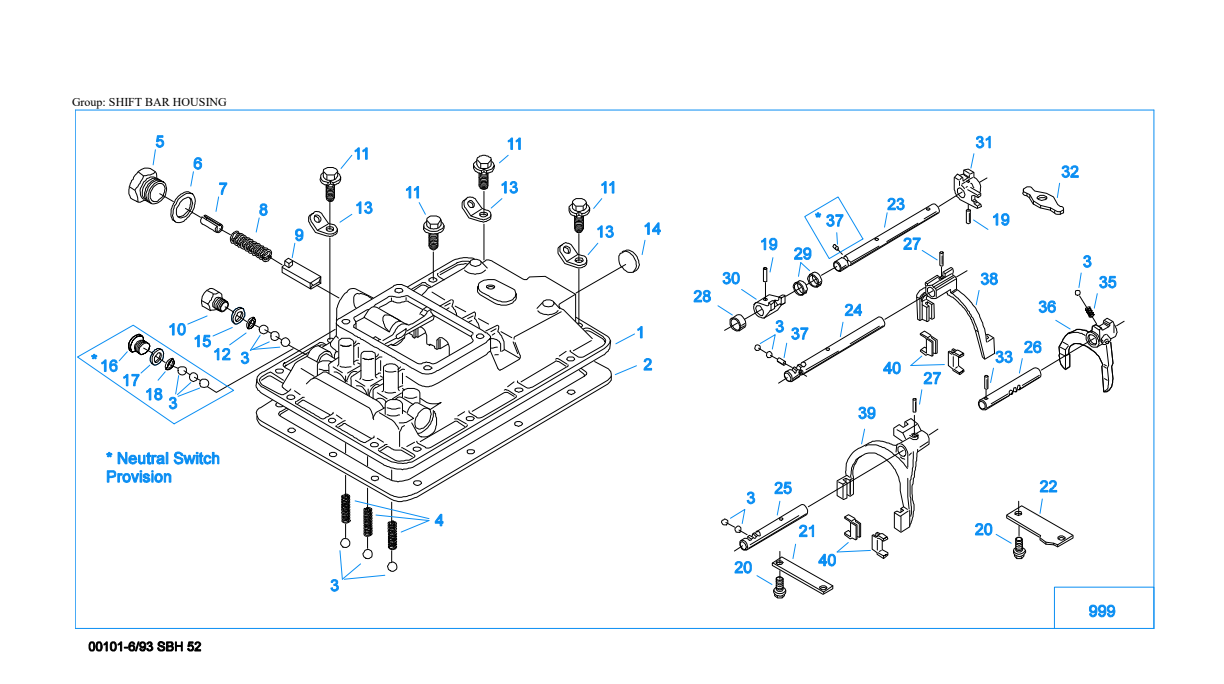

Shift Bar Housing
Item 7Item 14Item 21Item 6Item 24Item 3Item 22Item 39Item 36Item 31Item 40Item 11Item 10Item 3Item 4Item 5Item 9Item 27Item 35Item 28Item 13Item 1Item 8Item 3Item 2Item 19Item 19Item 38Item 15Item 32Item 29Item 20Item 26Item 3Item 13Item 30Item 13Item 20Item 23Item 25Item 11Item 11Item 37Item 40Item 11Item 27Item 33Item 10Item 37Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6535 | Shift Bar Hsg Assy | 1 | Replaces 235626, 4302945. HOUSING ONLY REVERSE SWITCH POSITION - RIGHT FRONT | $242.80 | Add to Cart |
| 2 | 228330 | Gasket | 1 | $6.37 | Add to Cart | |
| 3 | 10J14 | Steel Ball | 11 | 7/16" | $1.81 | Add to Cart |
| 4 | 4303939 | Spring | 3 | Replaces 201045. | $1.61 | Add to Cart |
| 5 | 235621 | Plug 1" | 1 | $13.94 | Add to Cart | |
| 6 | 235622 | Gasket | 1 | $2.11 | Add to Cart | |
| 7 | 235620 | Spacer | 1 | $760.40 | Add to Cart | |
| 8 | 3316218 | Spring | 1 | $4.94 | Add to Cart | |
| 9 | 235619 | Plunger | 1 | $23.93 | Add to Cart | |
| 10 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 10 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 11 | X-8C-600 | Capscrew | 14 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 13 | 238370 | Lifting Eye | 3 | $4.99 | Add to Cart | |
| 14 | 5879 | No Longer Available | 1 | Call for availability | ||
| 15 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 14J1818 | Pin | 2 | $3.01 | Add to Cart | |
| 20 | 233043 | Capscrew | 4 | 3/8"-16X1" | $4.04 | Add to Cart |
| 21 | 4301277 | Shift Bar Retainer | 1 | FRONT | $21.53 | Add to Cart |
| 22 | 235609 | Shift Bar Retainer | 1 | REAR | $31.98 | Add to Cart |
| 23 | 235610 | Yoke Bar 1ST/REV | 1 | $42.74 | Add to Cart | |
| 24 | 21659 | Yoke Bar 2ND/3RD | 1 | $71.78 | Add to Cart | |
| 25 | 21658 | Yoke Bar 4TH/5TH | 1 | $73.94 | Add to Cart | |
| 26 | 4304465 | Yoke Bar 1ST/REV | 1 | $143.58 | Add to Cart | |
| 26 | K-3389 | Clutch/bar Repl Kit | 1 | Replaces 235607, 4301712. | $288.90 | Add to Cart |
| 27 | 14J1818 | Pin | 2 | $3.01 | Add to Cart | |
| 28 | 204756 | Spacer | 1 | FRONT | $6.44 | Add to Cart |
| 29 | 233384 | Spacer | 2 | REAR | $5.09 | Add to Cart |
| 30 | 235613 | Shift Block 1ST/REV | 1 | $50.21 | Add to Cart | |
| 31 | 235618 | Reverse Block | 1 | $59.22 | Add to Cart | |
| 32 | 235426 | Actuator | 1 | $38.03 | Add to Cart | |
| 33 | 106358 | Pin | 1 | $3.29 | Add to Cart | |
| 35 | 206641 | Spring | 1 | $6.20 | Add to Cart | |
| 36 | 235606 | Yoke 1ST/REV | 1 | Call for availability | ||
| 37 | 201044 | Pin | 1 | $2.91 | Add to Cart | |
| 38 | A-5212 | No Longer Available | 1 | Replaces 21660, 228322. | Call for availability | |
| 39 | 228324 | No Longer Available | 1 | Replaces 228325. | Call for availability | |
| 40 | 227675 | Insert - Yoke Pad | 4 | $7.01 | Add to Cart | |
| 999 | S-7012 | No Longer Available | 1 | Replaces 235626. | Call for availability |
This is the complete factory parts breakdown for the Eaton Fuller FS-5005C, with every part in the manual matched to our live inventory. We stock 190 of the 227 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the FS-5005C transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | FS-5005C |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-5005C
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
