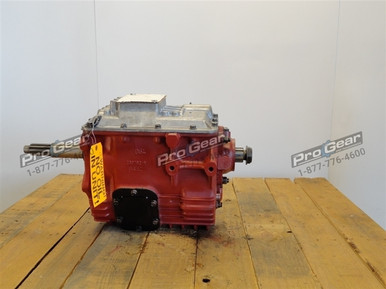

FS-6206A Eaton Fuller Transmission
$2,995.00$6,500.00
+ $1,500.00 refundable core deposit
Rebuilding this unit? Every part below is priced and ready to order. If the FS-6206A is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

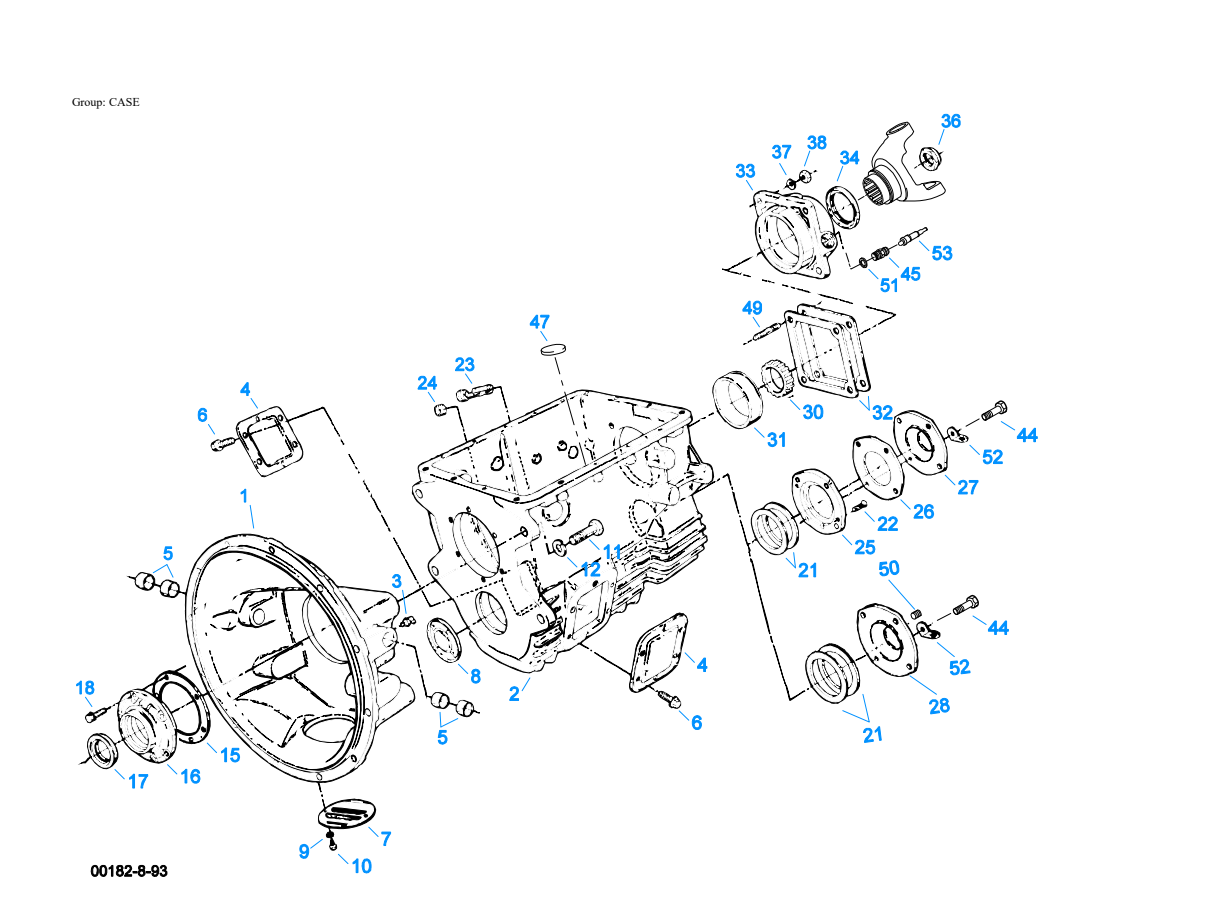

Case
Item 1Item 4Item 9Item 2Item 44Item 17Item 15Item 47Item 6Item 8Item 26Item 51Item 4Item 33Item 24Item 22Item 18Item 44Item 3Item 7Item 49Item 21Item 23Item 6Item 25Item 16Item 53Item 30Item 32Item 52Item 31Item 5Item 36Item 11Item 34Item 38Item 37Item 27Item 5Item 28Item 21Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5205 | Clutch Hsg Assy | 1 | Replaces 21646. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | No longer available - Call for replacement | |
| 1 | A-5631 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/90 DEG FITTINGS | $429.71 | Add to Cart |
| 1 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 1 | A-5751 | Clutch Hsg Assy | 1 | Replaces 4300418. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | $328.83 | Add to Cart |
| 1 | A-5878 | Clutch Hsg Assy | 1 | Replaces 4300744. #2 PULL-ALUMINUM | $333.25 | Add to Cart |
| 1 | A-6228 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/45 DEG FITTINGS | $660.36 | Add to Cart |
| 1 | A-7514 | Clutch Hsg Assy | 1 | Replaces 3316241. #2 ALUMINUM, PUSH TYPE (FORK) | No longer available - Call for replacement | |
| 2 | S-2952 | Case Assy | 1 | Replaces 3316276, 4301285, 4304643, 4305177. | $1,717.12 | Add to Cart |
| 3 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 3 | 4872 | FITTING-90 Degree | 2 | Replaces 12H15. | $3.41 | Add to Cart |
| 4 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 5 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 5 | 8677 | Bushing | 2 | USE W/A-5205 CLUTCH HSG ASSY | $19.09 | Add to Cart |
| 6 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 7 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 8 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 9 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 10 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 11 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 12 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 15 | 3315659 | Gasket | 1 | $1.13 | Add to Cart | |
| 16 | 21893 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $193.63 | Add to Cart |
| 16 | 21982 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $250.83 | Add to Cart |
| 16 | 21992 | Front Brg Cover-push | 1 | USE 19110 OIL SEAL | $216.76 | Add to Cart |
| 16 | 3316171 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $203.38 | Superseded by 4300888Add to Cart |
| 16 | 3316313 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $511.80 | Add to Cart |
| 16 | 4300887 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | Call for availability | |
| 16 | 4300888 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $203.38 | Add to Cart |
| 16 | 4301144 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $148.24 | Add to Cart |
| 17 | 19110 | Oil Seal | 1 | Replaces 18386. SHAFT 1.875, WIDTH .188 | $20.77 | Add to Cart |
| 17 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 17 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 17 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 18 | 239614 | Screw | 6 | 5/16-18X.81 | $7.31 | Add to Cart |
| 21 | 3315681 | Shim .004 | 1 | QUANTITY AS REQUIRED | $3.01 | Add to Cart |
| 21 | 3315682 | Shim .007 | 1 | QUANTITY AS REQUIRED | $2.24 | Add to Cart |
| 21 | 3315683 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.06 | Add to Cart |
| 21 | 3315684 | Shim .020 | 1 | QUANTITY AS REQUIRED | $3.74 | Add to Cart |
| 21 | 4300977 | Shim .040 | 1 | $3.34 | Add to Cart | |
| 22 | 9G416H | Screw | 2 | 1/4"-20X1" | $6.60 | Add to Cart |
| 23 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 24 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 25 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 26 | 3315671 | Gasket | 1 | $5.69 | Add to Cart | |
| 27 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 28 | 4301607 | C/s Rear Brg Cover | 1 | $72.73 | Add to Cart | |
| 30 | 3316160 | Speedo Rotor | 1 | 16 TEETH | $71.38 | Add to Cart |
| 30 | 3316283 | Speedo Drive Gear | 1 | 6 TEETH | $84.78 | Add to Cart |
| 30 | 4300003 | Speedo Rotor | 1 | 6 TEETH | $101.57 | Add to Cart |
| 30 | 86302 | Speedo Drive Gear | 1 | 5 TEETH | $118.45 | Add to Cart |
| 30 | 86310 | No Longer Available | 1 | 6 TEETH | Call for availability | |
| 30 | 86313 | No Longer Available | 1 | 6 TEETH | Call for availability | |
| 31 | 711123 | Bearing Cup | 1 | Call for availability | ||
| 32 | 3315662 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.74 | Add to Cart |
| 32 | 3315663 | Shim .007 | 1 | QUANTITY AS REQUIRED | $6.73 | Add to Cart |
| 32 | 3315664 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.71 | Add to Cart |
| 32 | 3315665 | Shim .020 | 1 | QUANTITY AS REQUIRED | $5.51 | Add to Cart |
| 32 | 4300978 | Shim .040 | 1 | $12.31 | Add to Cart | |
| 33 | 21901 | No Longer Available | 1 | USE 4300119 OIL SEAL | Call for availability | |
| 33 | 21947 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $319.65 | Add to Cart |
| 33 | 22020 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $199.60 | Add to Cart |
| 33 | 3316278 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $198.89 | Add to Cart |
| 33 | S-7035 | Rear Brg Cover Assy | 1 | Replaces 23248, 4301987. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $241.26 | Add to Cart |
| 33 | S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $329.08 | Add to Cart |
| 33 | S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $216.02 | Add to Cart |
| 33 | S-7038 | Rear Brg Cover Assy | 1 | Replaces 4300746, 4302100. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $185.67 | Add to Cart |
| 34 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 36 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 37 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 38 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 44 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 45 | 3316225 | Sleeve | 1 | $38.30 | Add to Cart | |
| 45 | 86147 | Sleeve | 1 | $86.48 | Add to Cart | |
| 47 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 49 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 51 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 52 | 238370 | Lifting Eye | 1 | $4.99 | Add to Cart | |
| 53 | 5501519 | No Longer Available | 1 | 17 TEETH | Call for availability | |
| 53 | 86303 | Speedo Driven Gear | 1 | 15 TEETH | $73.23 | Add to Cart |
| 53 | 86309 | No Longer Available | 1 | 12 TEETH | Call for availability |

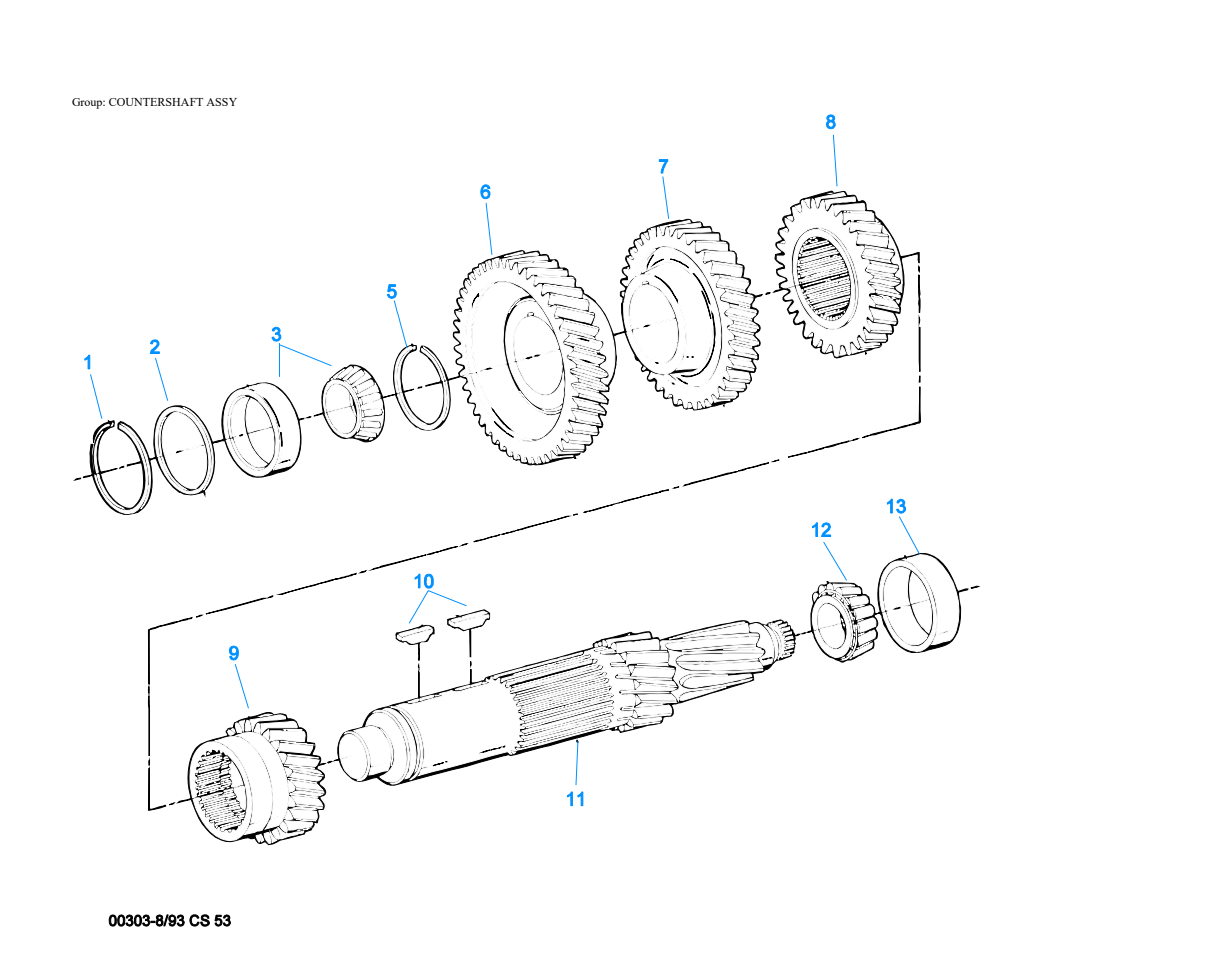

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 2 | 3315687 | Washer | 1 | $20.36 | Add to Cart | |
| 3 | K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart |
| 5 | 3315752 | Snap Ring | 1 | Replaces 3315751. | $5.01 | Add to Cart |
| 6 | 3315743 | Drive Gear-cntrshft | 1 | $159.29 | Add to Cart | |
| 7 | 3315745 | 5TH Gear-cntrshft | 1 | $175.53 | Add to Cart | |
| 8 | 3315747 | 4TH Gear-cntrshft | 1 | $124.92 | Add to Cart | |
| 9 | 4303240 | 3RD Gear-cntrshft | 1 | Replaces 22076. | $118.29 | Add to Cart |
| 10 | 230292 | Key | 2 | $4.27 | Add to Cart | |
| 11 | 4303238 | Countershaft | 1 | Replaces 3315740. | $590.37 | Add to Cart |
| 12 | 658981 | Bearing Cone | 1 | $69.47 | Superseded by K4155Add to Cart | |
| 13 | 660181 | Bearing Cup | 1 | $69.47 | Superseded by K4155Add to Cart |
Input Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 675250 | Bearing Cup | 1 | 1.75" INPUT | Call for availability | |
| 1 | 711123 | Bearing Cup | 1 | 1.50" INPUT | Call for availability | |
| 2 | 5557003 | Bearing Cone | 1 | Replaces 5202047. 1.50" INPUT | $165.84 | Superseded by K4160Add to Cart |
| 2 | 742259 | Bearing Cone | 1 | 1.75" INPUT | $93.34 | Superseded by K4152Add to Cart |
| 3 | 21896 | IN/SHAFT-1.50" Push/pul | 1 | USE 21893 FRONT BRG COVER | $404.42 | Add to Cart |
| 3 | 21898 | IN/SHAFT-1.75" Push/pull | 1 | USE 3316171, 4300888 OR 4301144 FRONT BRG COVER | $302.91 | Add to Cart |
| 3 | 21988 | IN/SHAFT-1.50" Push/pull | 1 | USE 21982 FRONT BRG COVER | $333.89 | Add to Cart |
| 3 | 3316257 | IN/SHAFT-1.75" Push/pull | 1 | USE 21992, 23106, 3316171 OR 4301144 FRONT BRG COVER | $275.10 | Add to Cart |
| 3 | 3316314 | Input SHAFT-1.50" Push | 1 | USE 3316313 FRONT BRG COVER | $316.19 | Add to Cart |
| 3 | 4300889 | Input SHAFT-1.50" Push | 1 | USE 4300887 FRONT BRG COVER | Call for availability |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2017 | Synchronizer Kit | 1 | $360.29 | Add to Cart | ||
| K-2022 | Conversion Kit | 1 | $733.01 | Add to Cart | ||
| K-2041 | Basic Rebuild Kit | 1 | $807.44 | Add to Cart | ||
| K-2111 | Gear Replacement Kit | 1 | Replaces 3315750. | $490.81 | Add to Cart | |
| K-2181 | Gasket Kit | 1 | $34.12 | Add to Cart | ||
| K-2183 | Shim Kit | 1 | $65.70 | Add to Cart | ||
| K-2306 | Conversion Kit | 1 | $322.25 | Add to Cart | ||
| K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart | |
| K-7023 | Synchronizer Kit | 1 | $561.78 | Add to Cart | ||
| K-7026 | Small Parts Kit | 1 | $154.18 | Add to Cart | ||
| K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart | |
| S-1578 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $494.57 | Add to Cart | |
| S-1827 | Shift Lever Assy 3-1/8" | 1 | Replaces S-7079. COMPLETE ASSY - ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $483.17 | Add to Cart | |
| S-7013 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. COMPLETE | $1,140.33 | Add to Cart | |
| S-7035 | Rear Brg Cover Assy | 1 | Replaces 23248, 4301987. | $241.26 | Add to Cart | |
| S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. | $329.08 | Add to Cart | |
| S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. | $216.02 | Add to Cart | |
| S-7038 | Rear Brg Cover Assy | 1 | Replaces 4300746, 4302100. | $185.67 | Add to Cart | |
| S-7045 | Shift Lever Assy 2-7/8" | 1 | COMPLETE ASSY - ALUMINUM HOUSING LOW - LEVER HEIGHT 2- 7/8" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $548.46 | Add to Cart |

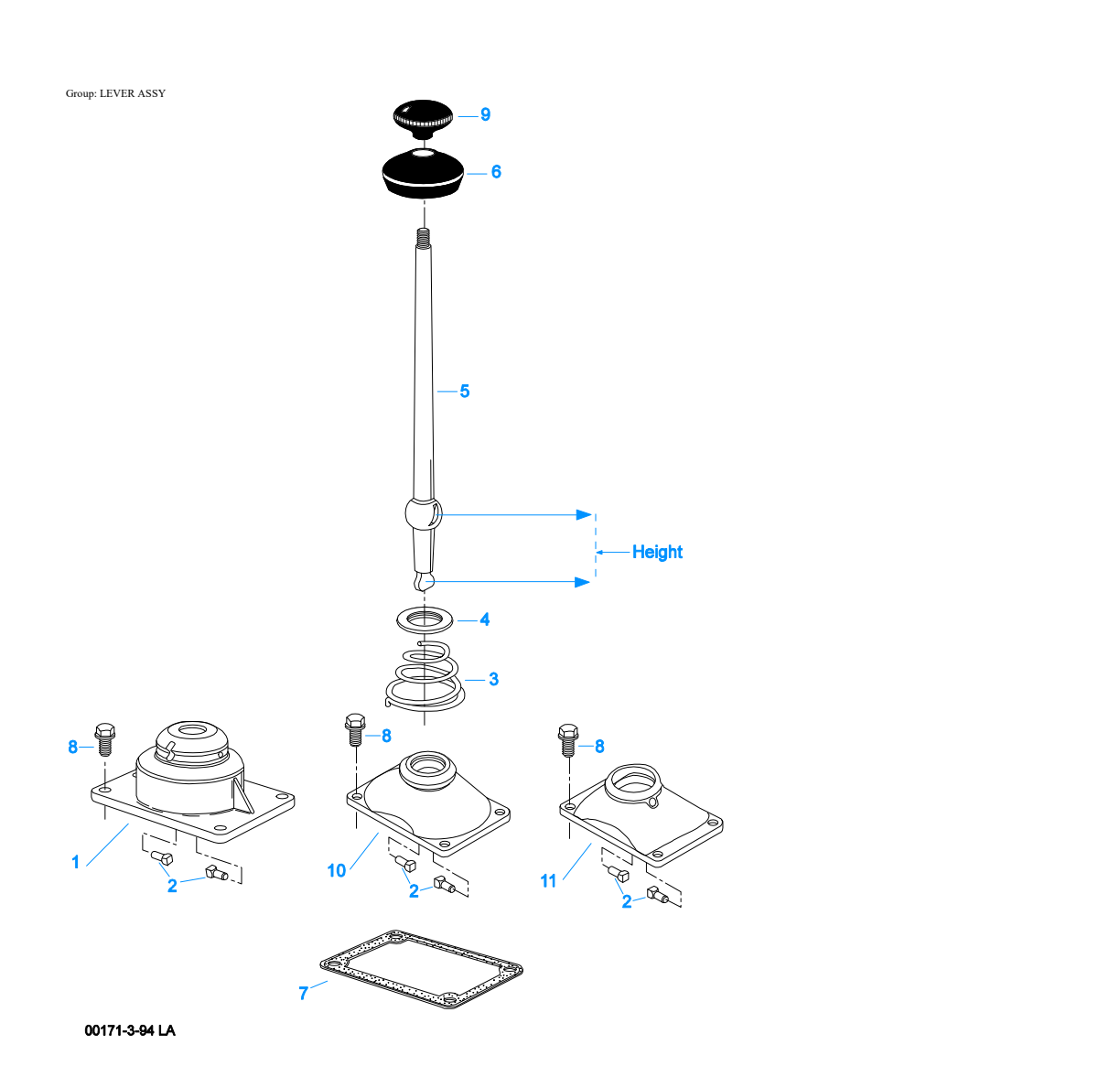

Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 21722 | Shift Lever 27-1/2" | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 241076 | Shift Lever 27-1/2" | 1 | USE WITH K-7061 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 4302823 | Shift Lever 33" | 1 | USE WITH A-6448 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
| 10 | K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart |
| 11 | K-7065 | Shift Lever Hsg Kit | 1 | Replaces 4302704, 4302711, A-6448. ALUMINUM HOUSING LOW - LEVER HEIGHT 2-7/8" | $52.90 | Add to Cart |

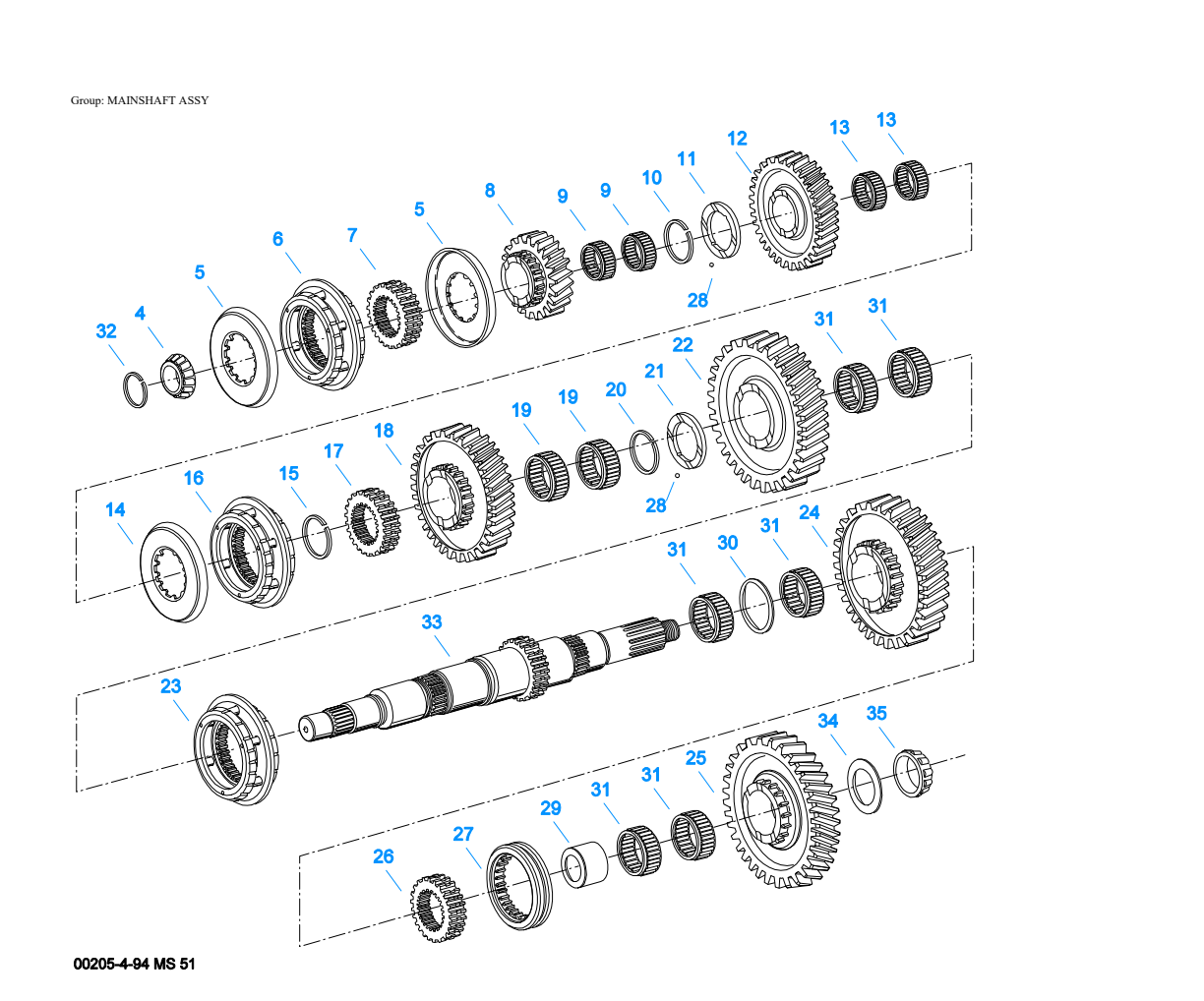

Mainshaft Assy
Item 7Item 6Item 5Item 11Item 8Item 27Item 9Item 9Item 17Item 21Item 19Item 5Item 24Item 12Item 28Item 31Item 26Item 20Item 4Item 14Item 25Item 18Item 22Item 35Item 30Item 13Item 10Item 19Item 29Item 32Item 31Item 34Item 15Item 31Item 16Item 31Item 31Item 31Item 23Item 13Item 33Item 28Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 710787 | Bearing Cone | 1 | $35.16 | Add to Cart | |
| 5 | 228306 | Synchronizer Cup | 2 | $43.31 | Add to Cart | |
| 6 | A-5693 | Synchronizer Assy 5/6 | 1 | Replaces A-5543. | $228.33 | Add to Cart |
| 7 | 3315738 | Clutch Hub 5/6 | 1 | $81.82 | Add to Cart | |
| 8 | 3315720 | 5TH Gear-mainshaft | 1 | $157.89 | Add to Cart | |
| 9 | 3315737 | Bearing | 2 | $26.96 | Add to Cart | |
| 10 | 3315728 | Snap Ring | 1 | Replaces 3315729. | $3.06 | Add to Cart |
| 11 | 3315727 | Washer | 1 | $28.00 | Add to Cart | |
| 12 | 3315715 | 4TH Gear-mainshaft | 1 | $151.82 | Add to Cart | |
| 13 | 4124075 | Bearing | 2 | $34.53 | Add to Cart | |
| 14 | 3315730 | Synchronizer Cup | 1 | $77.19 | Add to Cart | |
| 15 | 3315725 | Snap Ring | 1 | $3.33 | Add to Cart | |
| 16 | A-5725 | Synchronizer Assy 3/4 | 1 | Replaces A-5541. | $421.10 | Add to Cart |
| 17 | 3315723 | Clutch Hub 3/4 | 1 | $87.68 | Add to Cart | |
| 18 | 22075 | 3RD Gear-mainshaft | 1 | $210.44 | Add to Cart | |
| 19 | 3315722 | Bearing | 2 | $19.60 | Add to Cart | |
| 20 | 3315717 | Snap Ring | 1 | Replaces 3315718. | $4.63 | Add to Cart |
| 21 | 3315719 | Washer | 1 | $42.55 | Add to Cart | |
| 22 | 3315705 | 2ND Gear-mainshaft | 1 | $363.56 | Add to Cart | |
| 23 | A-5721 | Synchronizer Assy 1/2 | 1 | Replaces A-5540. | $558.39 | Add to Cart |
| 24 | 3315700 | 1ST Gear-mainshaft | 1 | $383.31 | Add to Cart | |
| 25 | 3315692 | Reverse Gear- Mainshaft | 1 | $310.27 | Add to Cart | |
| 26 | 3315696 | Clutch Hub Rev | 1 | $77.88 | Add to Cart | |
| 27 | 3315694 | Sliding Clutch | 1 | $108.52 | Add to Cart | |
| 28 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 29 | 3315698 | Bushing | 1 | $58.39 | Add to Cart | |
| 30 | 3315702 | Spacer | 1 | $14.60 | Add to Cart | |
| 31 | 3315703 | Bearing | 6 | $40.64 | Add to Cart | |
| 32 | 3313798 | Snap Ring | 1 | NO LONGER REQUIRED | $3.33 | Add to Cart |
| 33 | 23301 | Mainshaft | 1 | $465.98 | Add to Cart | |
| 34 | 3315704 | Washer | 1 | $45.54 | Add to Cart | |
| 35 | 5557003 | Bearing Cone | 1 | Replaces 5202047. | $165.84 | Superseded by K4160Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |
Remote Control

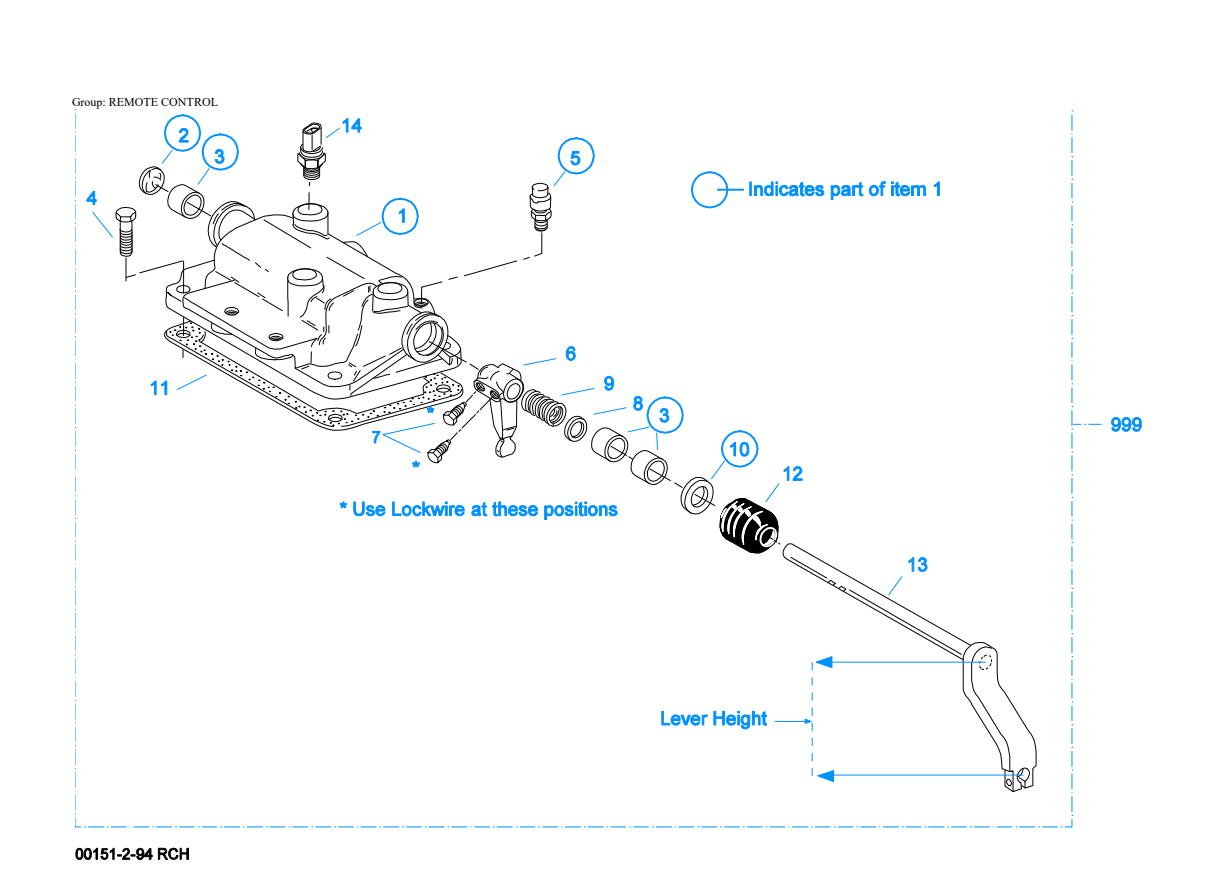

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316308 | Control Housing Assy | 1 | Replaces 221153316309. | $155.91 | Add to Cart |
| 1 | A-5537 | Control Housing Assy | 1 | Replaces 23263. W/NEUTRAL SWITCH OPENING | $229.56 | Add to Cart |
| 1 | A-5739 | Control Housing Assy | 1 | Replaces 3316309. TWO DRILLED AND TAPPED HOLES | $241.71 | Add to Cart |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | USE WITH 3316308 HOUSING ASSY | $14.64 | Add to Cart |
| 5 | 4300217 | Breather | 1 | $23.79 | Add to Cart | |
| 6 | 3316290 | Shift Finger | 1 | $108.97 | Add to Cart | |
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | A-5273 | Shaft & Lever Assy | 1 | LEVER HEIGHT 3-3/4" | $108.19 | Add to Cart |
| 13 | A-5312 | Shaft & Lever Assy | 1 | LEVER HEIGHT 85MM (3.35") | $122.12 | Add to Cart |
| 13 | A-5877 | No Longer Available | 1 | LEVER HEIGHT 5-1/2" | Call for availability | |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 999 | A-5741 | M/r Slave Control Assy | 1 | LEVER HEIGHT 3-3/4" SPRING AND WASHER NOT INCLUDED | $1,191.22 | Add to Cart |
| 999 | A-5881 | No Longer Available | 1 | LEVER HEIGHT 5-1/2" | Call for availability | |
| 999 | A-6083 | M/r Slave Control Assy | 1 | LEVER HEIGHT 3-3/4" SPRING AND WASHER INCLUDED | $3,363.20 | Add to Cart |
| 999 | K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart |

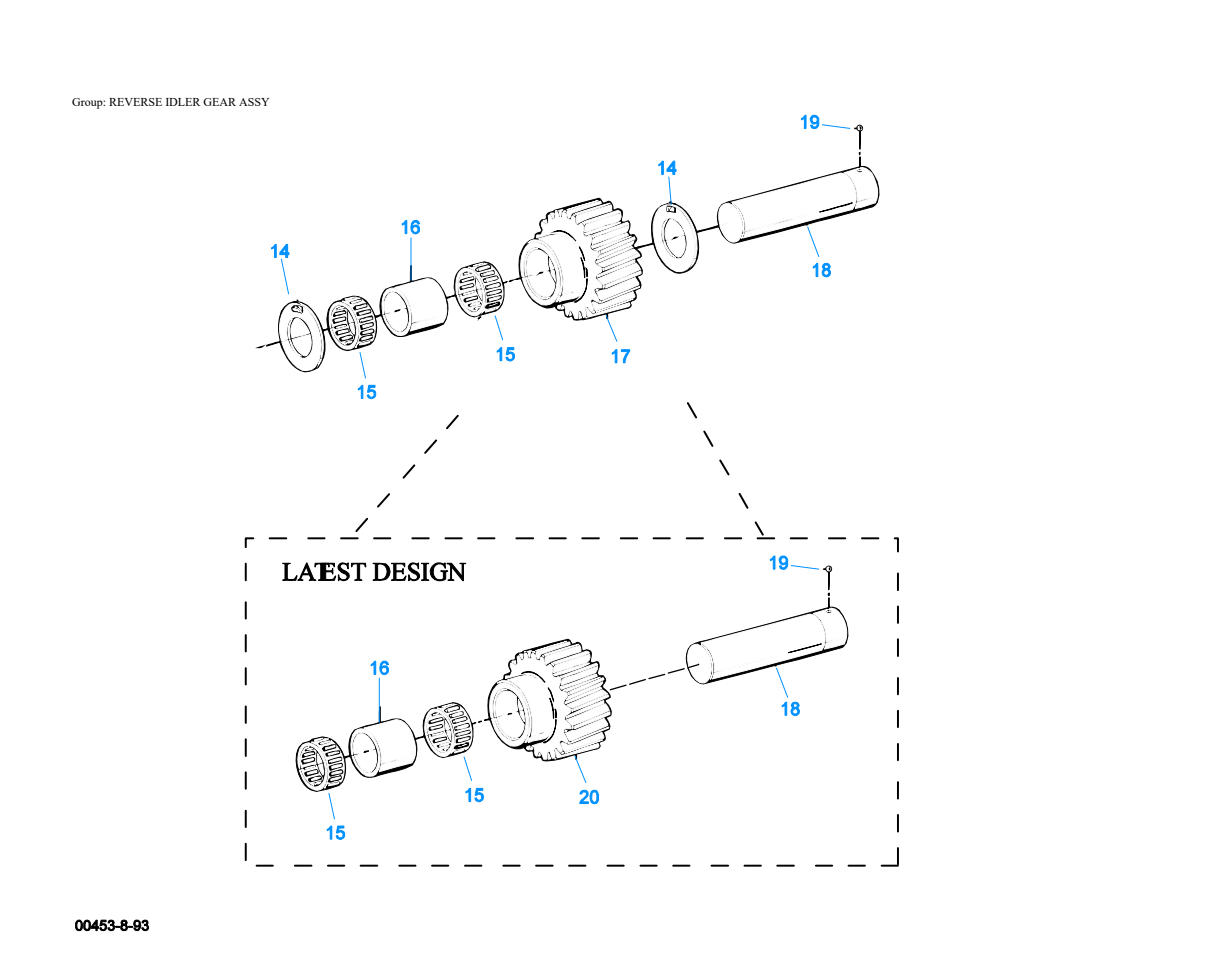

Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14 | 3315673 | Washer | 2 | $24.98 | Add to Cart | |
| 15 | 3315674 | Bearing | 2 | $19.40 | Add to Cart | |
| 16 | 3315676 | Spacer | 1 | $22.06 | Add to Cart | |
| 17 | K-3530 | Reverse Idler Gear Kit | 1 | Replaces 3315753. | $173.58 | Add to Cart |
| 18 | 3315672 | Reverse Idler Shaft | 1 | $133.45 | Add to Cart | |
| 19 | 10J06 | Steel Ball | 1 | 3/16" | $1.71 | Add to Cart |
| 20 | 4304320 | Reverse Idler Gear | 1 | $173.58 | Add to Cart |
Shift Bar Housing

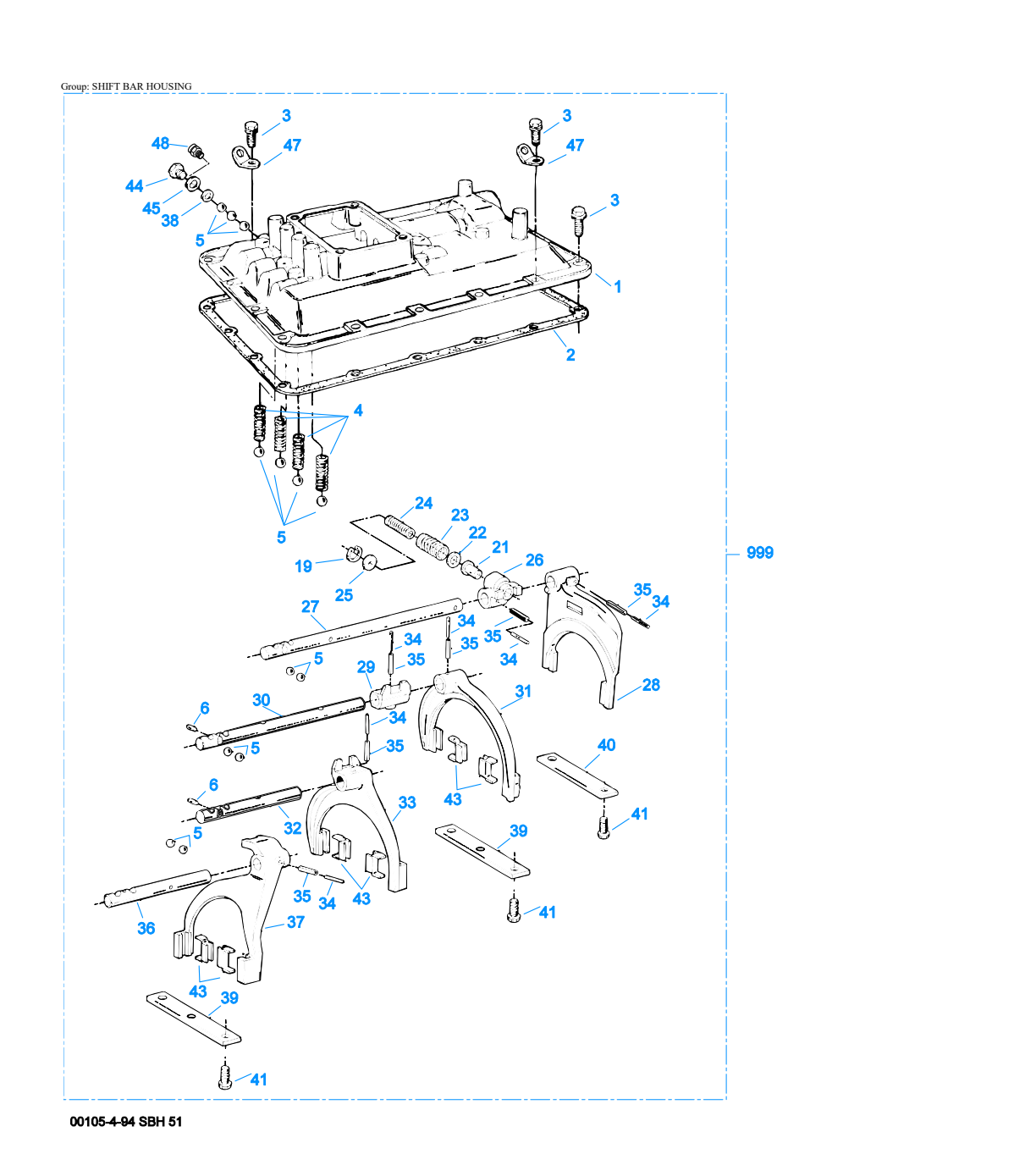

Item 1Item 4Item 47Item 5Item 22Item 3Item 44Item 5Item 47Item 39Item 38Item 34Item 3Item 24Item 5Item 5Item 35Item 36Item 30Item 34Item 43Item 41Item 5Item 32Item 34Item 35Item 19Item 34Item 41Item 48Item 6Item 3Item 3Item 43Item 37Item 39Item 40Item 2Item 6Item 33Item 31Item 26Item 28Item 27Item 41Item 21Item 43Item 29Item 25Item 34Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6744 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. | $190.54 | Add to Cart |
| 2 | 4300854 | Gasket | 1 | Replaces 3315678. | $4.98 | Add to Cart |
| 3 | X-8C-600 | Capscrew | 17 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 4 | 3315765 | Spring | 4 | $2.77 | Add to Cart | |
| 5 | 10J14 | Steel Ball | 13 | 7/16" | $1.81 | Add to Cart |
| 6 | 201044 | Pin | 2 | $2.91 | Add to Cart | |
| 19 | 21736 | Snap Ring | 1 | $2.02 | Add to Cart | |
| 21 | 3316296 | Plunger | 1 | $18.55 | Add to Cart | |
| 22 | 3316298 | Washer | 1 | $4.99 | Add to Cart | |
| 23 | 21723 | Spring | 1 | $10.31 | Add to Cart | |
| 24 | 21724 | Spring | 1 | $6.27 | Add to Cart | |
| 25 | 3316295 | Washer | 1 | $4.70 | Add to Cart | |
| 26 | 3316300 | Shift Block Rev | 1 | $82.30 | Add to Cart | |
| 27 | 23296 | Yoke Bar Rev | 1 | $89.28 | Add to Cart | |
| 28 | 3315897 | Yoke Assy Rev | 1 | $95.85 | Add to Cart | |
| 29 | 3315778 | Shift Block 1ST/2ND | 1 | $63.20 | Add to Cart | |
| 30 | 23297 | Yoke Bar 1ST/2ND | 1 | Replaces 3315759. | $89.28 | Add to Cart |
| 31 | 3315772 | Yoke Assy 1ST/2ND | 1 | Replaces 3315770. | $107.37 | Add to Cart |
| 32 | 23298 | Yoke Bar 3RD/4TH | 1 | Replaces 21804. | $82.58 | Add to Cart |
| 33 | 3315777 | Yoke Assy 3RD/4TH | 1 | Replaces 3315775. | $138.27 | Add to Cart |
| 34 | 1JM6028 | Pin | 6 | $2.24 | Add to Cart | |
| 35 | 1JM3528 | Pin | 6 | $1.78 | Add to Cart | |
| 36 | 23299 | Yoke Bar 5TH/6TH | 1 | Replaces 3315763. | $89.28 | Add to Cart |
| 37 | 3315782 | Yoke Assy 5TH/6TH | 1 | Replaces 3315780. | $126.95 | Add to Cart |
| 38 | 4301719 | Ball Retainer- Reverse | 1 | $1.76 | Add to Cart | |
| 39 | 4301279 | Shift Bar Retainer | 2 | Replaces 3315756. | $18.50 | Add to Cart |
| 40 | 3315757 | Shift Bar Retainer | 1 | $31.20 | Add to Cart | |
| 41 | 233043 | Capscrew | 11 | 3/8"-16X1" | $4.04 | Add to Cart |
| 43 | 227675 | Insert - Yoke Pad | 6 | $7.01 | Add to Cart | |
| 44 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 44 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 45 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 47 | 238370 | Lifting Eye | 2 | $4.99 | Add to Cart | |
| 48 | 22941 | Neutral Light Switch | 1 | SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 999 | S-7013 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. COMPLETE | $1,140.33 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller FS-6206A, with every part in the manual matched to our live inventory. We stock 220 of the 240 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the FS-6206A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | FS-6206A |
| Transmission type | 6-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 21 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-6206A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
