Eaton Fuller RTO-13109B-ATE Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTO-13109B-ATE is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

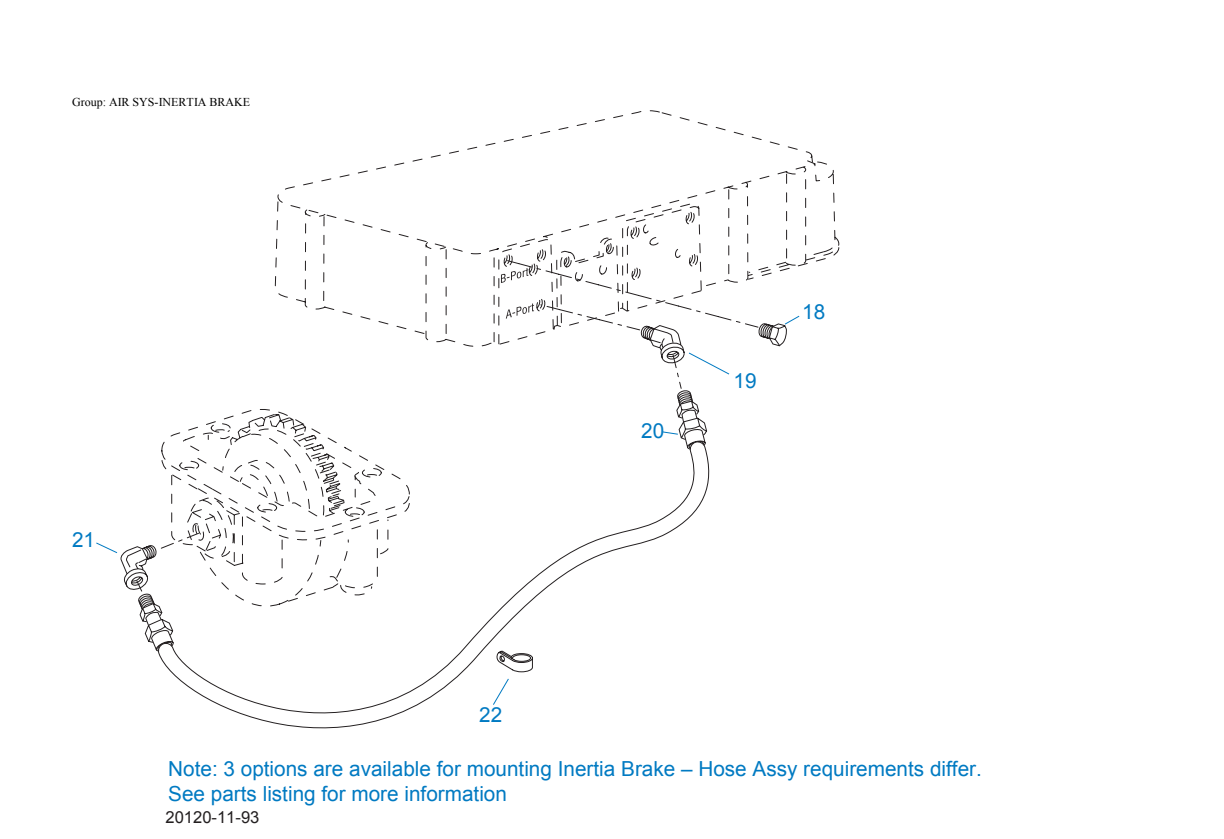

Air Sys-Inertia Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 18 | X-12-210 | Pipe Plug | 1 | 1/8" | — | Call for availability |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55506 | Hose Assy | 1 | 18" - ROTATED 6 BOLT POSITION | $18.10 | Add to Cart |
| 20 | 55508 | Hose Assy | 1 | 30" - 8 BOLT POSITION | $19.34 | Add to Cart |
| 20 | 55525 | Hose Assy | 1 | 17" - 6 BOLT POSITION | $17.77 | Add to Cart |
| 21 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 22 | 11665 | Clamp | 1 | $2.55 | Add to Cart |

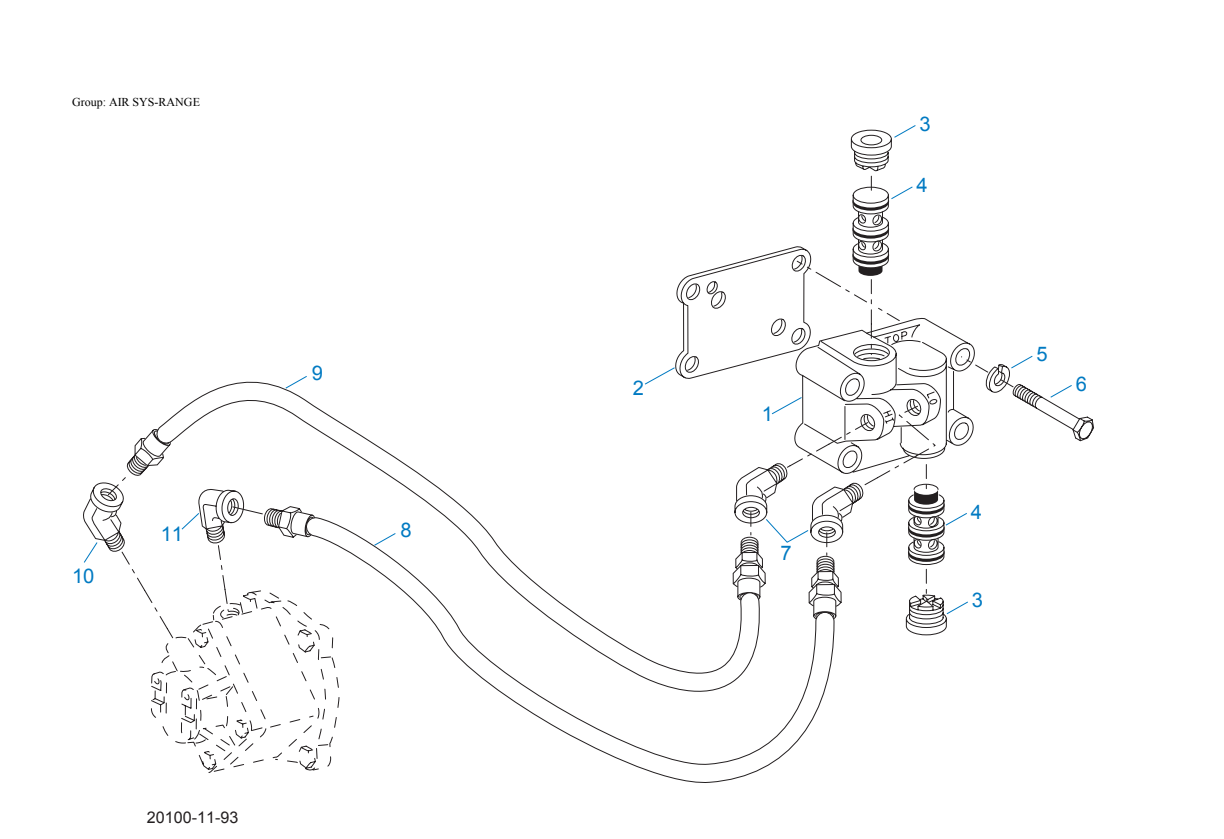

Air Sys-Range
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2979 | Range Valve Kit | 1 | Replaces A-5363. | — | Call for availability |
| 2 | 22551 | Gasket | 1 | — | Call for availability | |
| 3 | 22639 | Plug | 2 | — | Call for availability | |
| 4 | 4300810 | Insert Valve | 2 | Replaces 22641, 4303615. | $75.03 | Add to Cart |
| 5 | X-3-500 | Lockwasher | 4 | 5/16" | $1.66 | Add to Cart |
| 6 | X-8-546 | Screw | 4 | 5/16"-18X2" | — | Call for availability |
| 7 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 8 | 55525 | Hose Assy | 1 | 17" | $17.77 | Add to Cart |
| 9 | 55506 | Hose Assy | 1 | 18" | $18.10 | Add to Cart |
| 10 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 11 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |

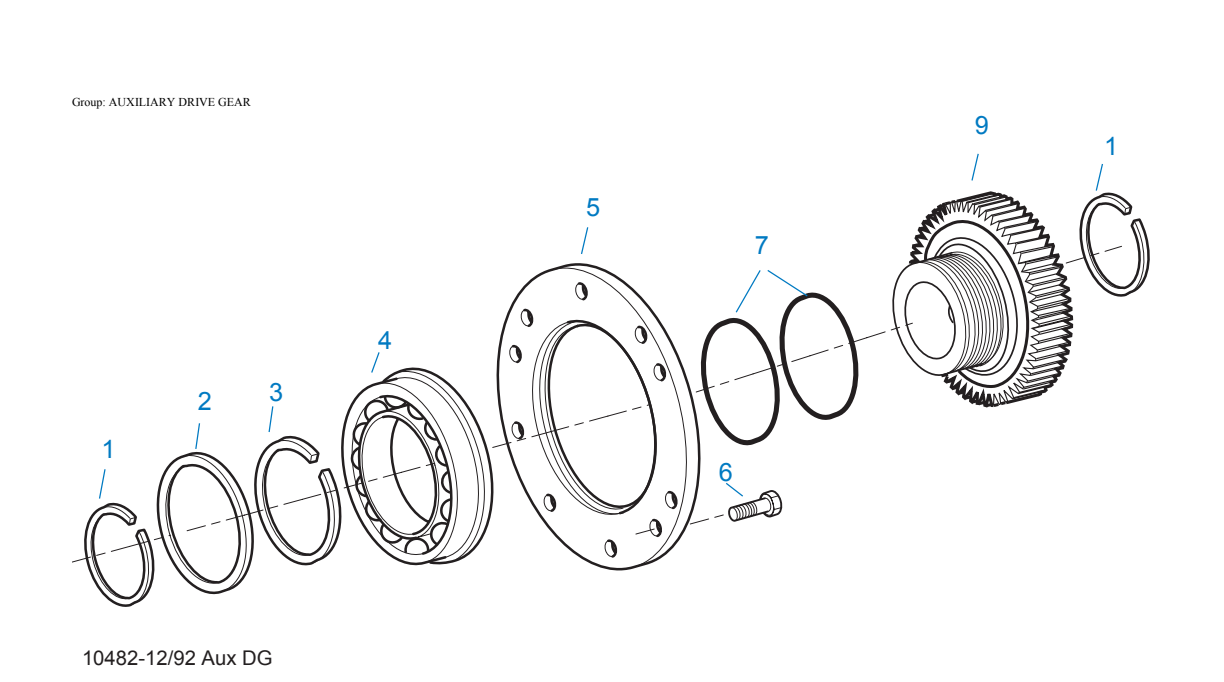

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | RTO ONLY | $29.52 | Add to Cart |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 9 | K-2630 | Repl Kit-drive Gear | 1 | Replaces 4300548. | — | Call for availability |

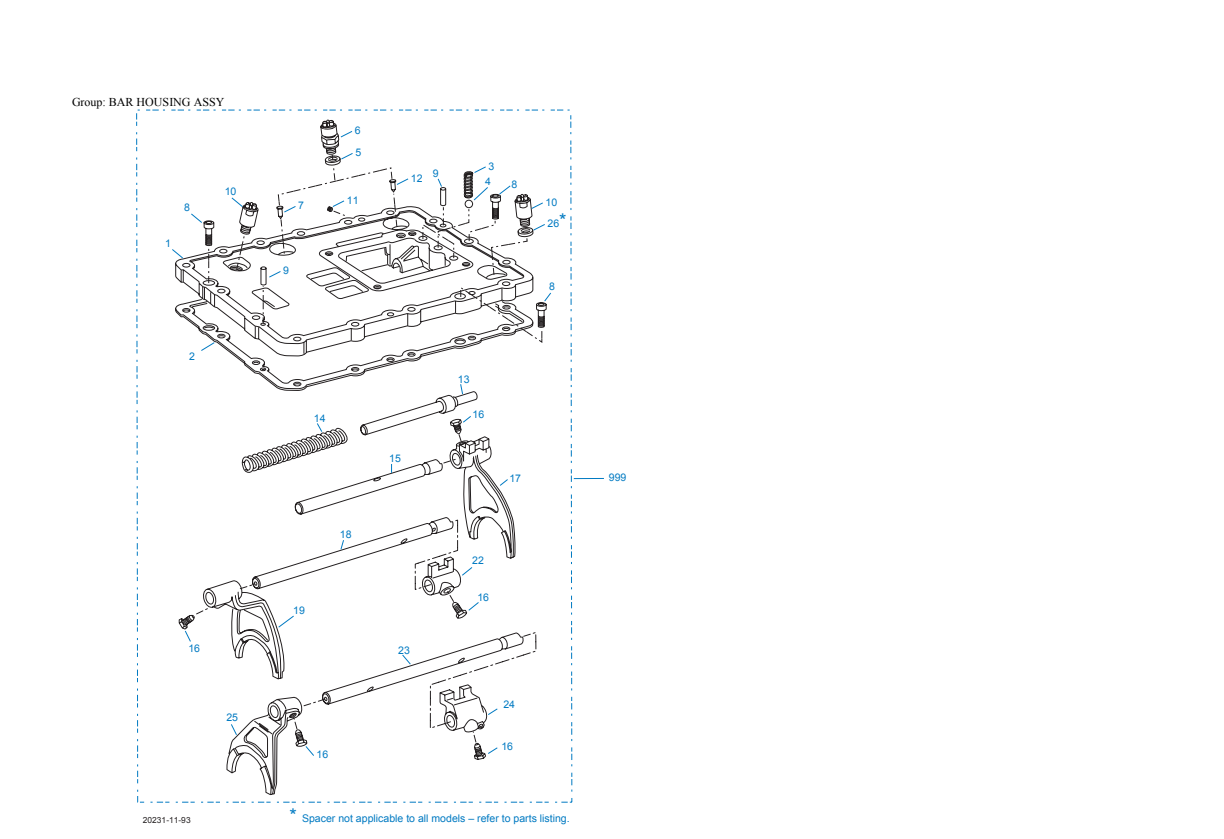

Bar Housing Assy
Item 6Item 5Item 3Item 12Item 9Item 4Item 8Item 10Item 8Item 7Item 11Item 10Item 26Item 1Item 9Item 8Item 2Item 13Item 14Item 16Item 15Item 17Item 18Item 22Item 16Item 19Item 16Item 23Item 24Item 25Item 16Item 16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2754 | Shift Bar Hsg Assy | 1 | Replaces 22596. HOUSING ONLY | — | Call for availability |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 1069 | Spring | 3 | $5.76 | Add to Cart | |
| 4 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 5 | 15900 | Gasket | 2 | $2.24 | Add to Cart | |
| 6 | 691744 | Shift Sensor Switch | 2 | Replaces 22565. | — | Call for availability |
| 7 | 691316 | Actuating Switch Pin | 1 | Replaces 23112. | — | Call for availability |
| 8 | X-8-691 | Capscrew | 3 | 3/8"-16X1" | — | Call for availability |
| 9 | 62516 | Roll Pin | 2 | Replaces 62521. | $1.84 | Add to Cart |
| 10 | K-2980 | Sensor Update Kit | 2 | Replaces 22567, K-2631. | — | Call for availability |
| 11 | X-12-102 | Plug | 1 | — | Call for availability | |
| 12 | K-3271 | Neutral Switch Kit | 1 | Replaces 22603. | — | Call for availability |
| 13 | 691314 | Actuating Shaft Switch | 1 | Replaces 22601. | — | Call for availability |
| 14 | 22604 | Spring | 1 | — | Call for availability | |
| 15 | 22600 | Yoke Bar | 1 | LOW/REVERSE | $134.69 | Add to Cart |
| 16 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 17 | 22434 | Yoke | 1 | LOW/REVERSE | — | Call for availability |
| 18 | 22593 | Yoke Bar | 1 | 1ST/2ND | — | Call for availability |
| 19 | 691600 | Shift Yoke | 1 | Replaces 4302994. 1ST/2ND | $301.54 | Add to Cart |
| 22 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 23 | 22594 | Yoke Bar | 1 | 3RD/4TH | — | Call for availability |
| 24 | 4303273 | Shift Block | 1 | Replaces 22602. 3RD/4TH | — | Call for availability |
| 25 | 691601 | Shift Yoke | 1 | Replaces 4302212. 3RD/4TH | $289.67 | Add to Cart |
| 26 | 23166 | Spacer | 1 | USE FOR RTO,B-RATIO,ATE MODELS ONLY | — | Call for availability |
| 999 | S-1876 | Shift Bar Hsg Assy | 1 | Replaces 22596. COMPLETE | — | Call for availability |
Case (Aux)
Item 7Item 8Item 8Item 1Item 3Item 8Item 4Item 6Item 9Item 8Item 5Item 13Item 14Item 10Item 11Item 2Item 15Item 12Item 7Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | |
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 3 | X-8L-611 | Capscrew | 6 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 4 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 5 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 6 | 23646 | Lifting Eye | 1 | — | Call for availability | |
| 7 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 8 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 8 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 9 | X-8L-602 | Capscrew | 16 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 9 | X-8L-605 | Capscrew | 1 | 3/8"-16X3" | $4.71 | Add to Cart |
| 9 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 10 | X-8L-602 | Capscrew | 8 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 11 | 22420 | Gasket | 2 | $4.83 | Add to Cart | |
| 12 | 16770 | Rear Bearing Cover | 2 | $108.95 | Add to Cart | |
| 13 | 21156 | Rear Housing | 1 | — | Call for availability | |
| 14 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 15 | 21073 | Expansion Plug | 1 | $29.98 | Add to Cart |
Case (Front)
Item 6Item 2Item 7Item 8Item 5Item 4Item 1Item 21Item 3Item 20Item 18Item 19Item 24Item 23Item 22Item 16Item 13Item 11Item 10Item 12Item 9Item 17Item 18Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1785 | Case Assy | 1 | Replaces 23583. | — | Call for availability |
| 2 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 3 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 4 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 5 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 6 | X-1-1005 | Nut | 2 | Replaces X11000. 5/8"-18 | $2.04 | Superseded by X11012Add to Cart |
| 7 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 8 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 9 | X-8-725 | Capscrew | 8 | 7/16"-14X7/8" NOT USED ON ATE MODELS | $2.42 | Add to Cart |
| 10 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. NOT USED ON ATE MODELS | $19.11 | Add to Cart |
| 11 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 12 | 22507 | Gasket | 1 | — | Call for availability | |
| 13 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 16 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 16 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 17 | 4302708 | Stud | 4 | Replaces 5966. | $3.21 | Superseded by 4306583Add to Cart |
| 18 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 19 | X-1-1005 | Nut | 6 | Replaces X11000. 5/8"-18 | $2.04 | Superseded by X11012Add to Cart |
| 20 | 22916 | Stud | 2 | — | Call for availability | |
| 21 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 22 | X-8-808 | Capscrew | 4 | 1/2"-13X1-1/4" | $2.75 | Add to Cart |
| 23 | X-10-802 | No Longer Available | 4 | 1/2" PLAIN | — | Call for availability |
| 24 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 24 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
Converter Housing Assy
Item 10Item 60Item 2Item 3Item 4Item 5Item 6Item 7Item 11Item 12Item 10Item 8Item 3Item 9Item 13Item 11Item 14Item 15Item 17Item 1Item 18Item 16Item 51Item 19Item 23Item 47Item 26Item 49Item 48Item 46Item 27Item 21Item 50Item 28Item 20Item 22Item 54Item 53Item 46Item 52Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8-6104 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 1 | X-8L-672 | Capscrew | 6 | 3/8"-16X3-1/4" | — | Call for availability |
| 1 | X-8L-681 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 2 | A-5587 | Valve Assy | 1 | — | Call for availability | |
| 3 | X-12-210 | Pipe Plug | 4 | 1/8" | — | Call for availability |
| 4 | 22532 | Gasket | 1 | — | Call for availability | |
| 5 | 23612 | Plate | 1 | — | Call for availability | |
| 6 | 22534 | Gasket | 1 | — | Call for availability | |
| 7 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 8 | K-3226 | Elbow Kit | 1 | Replaces 4300307. | — | Call for availability |
| 9 | 23109 | O-ring | 1 | — | Call for availability | |
| 10 | X-8L-601 | Capscrew | 2 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 11 | 23645 | Lifting Eye | 2 | 90 DEG. | — | Call for availability |
| 12 | K-2632 | Eng Speed Sensor Kit | 1 | Replaces 22569. | — | Call for availability |
| 13 | 22504 | O-ring | 1 | — | Call for availability | |
| 14 | 23573 | Instruction Tag | 3 | $1.79 | Add to Cart | |
| 15 | X-8-1202 | Screw | 3 | 3/4"-10X1" | — | Call for availability |
| 16 | K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | — | Call for availability |
| 17 | X-8C-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 18 | 691342 | Seal Ring | 1 | Replaces 5568503. | — | Call for availability |
| 19 | 22430 | O-ring | 1 | — | Call for availability | |
| 20 | 23220 | Filter Bowl | 1 | — | Call for availability | |
| 21 | X-8-6105 | Screw | 3 | Replaces X86106. 3/8"-16X1-1/4" | — | Call for availability |
| 22 | X-3-607 | Conical Washer | 3 | 3/8" | $2.88 | Add to Cart |
| 23 | 22510 | Oil Filter | 1 | — | Call for availability | |
| 24 | 23108 | O-ring | 1 | — | Call for availability | |
| 25 | 22512 | Nipple | 1 | — | Call for availability | |
| 26 | A-5732 | Relief Valve Assy | 1 | — | Call for availability | |
| 27 | 23029 | O-ring | 1 | — | Call for availability | |
| 28 | 23028 | Plug | 1 | — | Call for availability | |
| 46 | K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. 6 BOLT ACCESS | — | Call for availability |
| 46 | K-2625 | #1 Converter Hsg Kit | 1 | — | Call for availability | |
| 47 | 4302219 | Snap Ring | 1 | — | Call for availability | |
| 48 | 4302216 | Pump Gear | 1 | — | Call for availability | |
| 49 | X-1-1008 | Nut | 1 | 5/8"-18 | $2.32 | Add to Cart |
| 50 | 23487 | Seal Ring | 1 | — | Call for availability | |
| 51 | A-7119 | Filter Bypass Valve Assy | 1 | Replaces A-6067, A-6393. | — | Call for availability |
| 52 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 53 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 54 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 60 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |

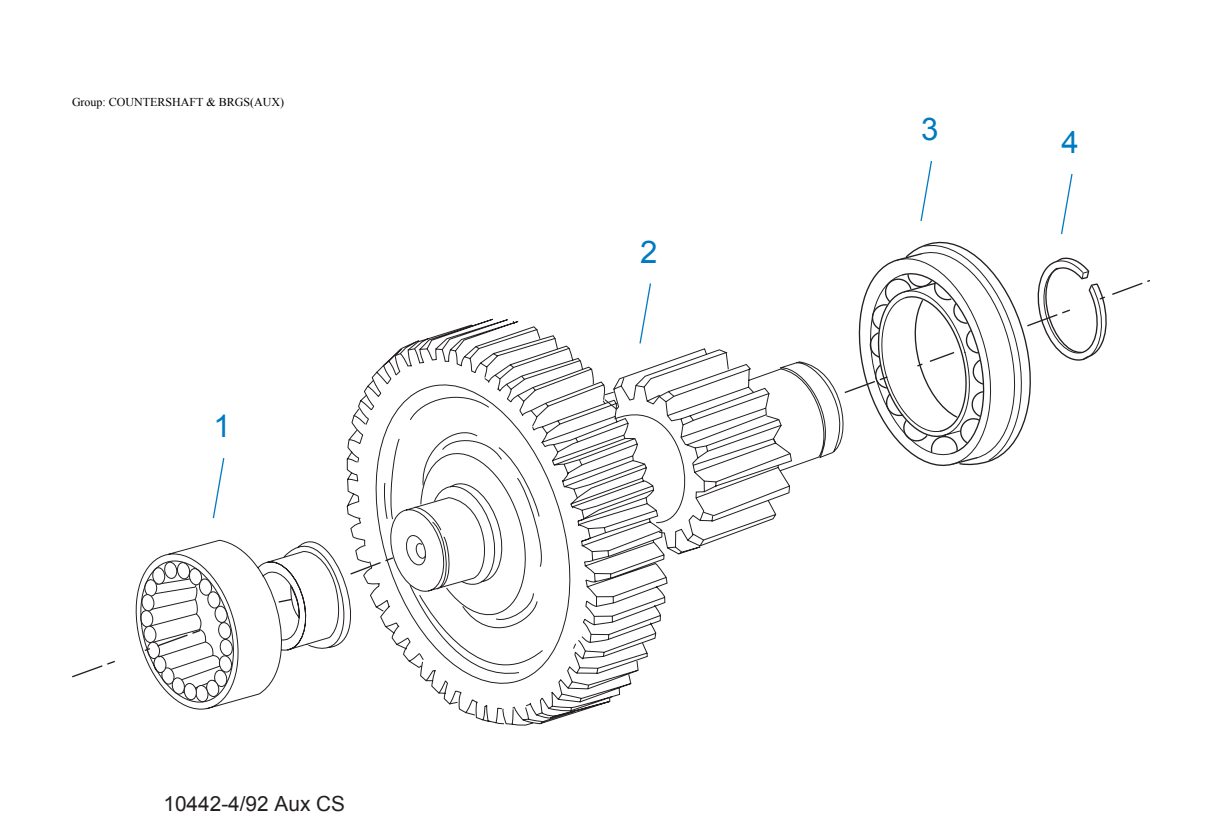

Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8879 | Bearing | 2 | $70.13 | Add to Cart | |
| 2 | A-4728 | Welded Countershaft Assy | 2 | C/S 19666 - D/G 19276 | $359.83 | Add to Cart |
| 3 | 81012 | Bearing | 2 | $103.37 | Add to Cart | |
| 4 | 11364 | Snap Ring | 2 | $2.68 | Add to Cart |
Countershaft Assy
Item 11Item 12Item 13Item 5Item 15Item 7Item 8Item 14Item 9Item 10Item 2Item 1Item 4Item 3Item 5Item 6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | — | No longer available — call for replacement | |
| 3 | K-2934 | Cntrshft-upper | 1 | Replaces 19549. | $357.67 | Add to Cart |
| 3 | K-3783 | Cntrshft-lower | 1 | Replaces 20804, 4301054, K-2935. | $315.43 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 4 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 21025 | 1ST Gear-cntrshft | 2 | Replaces 19629. | $81.66 | Add to Cart |
| 8 | 21264 | 2ND Gear-cntrshft | 2 | Replaces 19623. | $90.80 | Add to Cart |
| 9 | 21262 | Od Gear-cntrshft | 2 | Replaces 19639, 21027. | $239.18 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 11 | 4305665 | Drive Gear-cntrshft | 2 | Replaces 21018, 4305069. | $165.05 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |

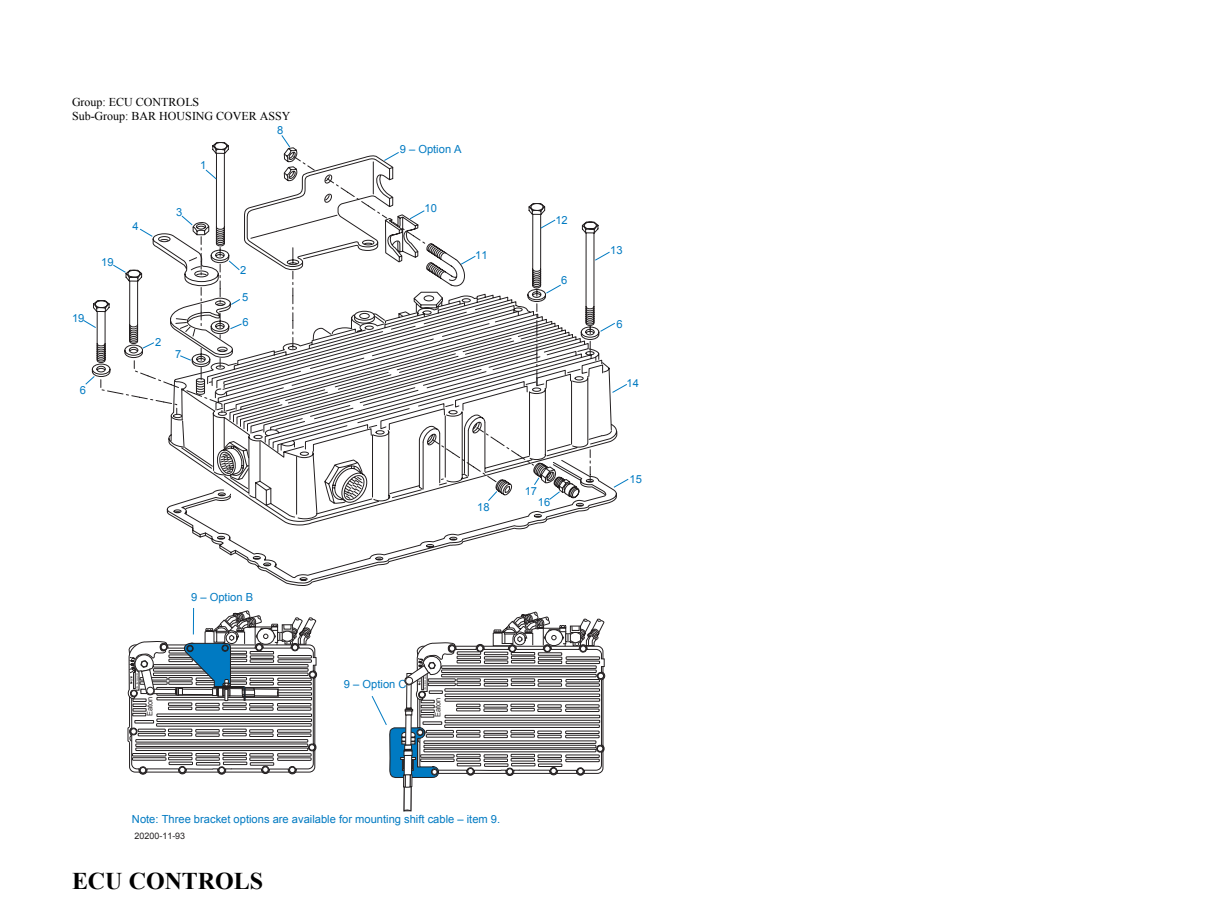

Ecu Controls
Item 8Item 9Item 1Item 3Item 10Item 12Item 4Item 11Item 13Item 19Item 2Item 6Item 5Item 19Item 6Item 6Item 2Item 7Item 6Item 15Item 17Item 18Item 16Item 9Item 9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 24 | K-2983 | Auto Shifter Kit | 1 | Replaces A-5517, K-2635. | — | Call for availability |
| 24 | K-2983R | Reman Autoshifter Kit | 1 | Replaces K-3080. | — | Call for availability |
| 25 | 14197 | O-ring | 1 | $4.68 | Add to Cart | |
| 26 | 691303 | Gasket | 1 | Replaces 22592. | — | Call for availability |
| 27 | X-10-600 | Washer | 4 | 3/8" | $1.13 | Add to Cart |
| 28 | X-8-6101 | Capscrew | 4 | 3/8"-16X1-1/2" | — | Call for availability |
| 45 | 22867 | Yoke | 4 | — | Call for availability | |
| 46 | X-16-700 | Nut | 4 | 7/16"-20 | — | Call for availability |
| 50 | 691744 | Shift Sensor Switch | 3 | Replaces 22565. | — | Call for availability |
| 28.001 | Ceemat Ecu P/n Chart | 1 | — | Call for availability | ||
| 1 | X-8-690 | Capscrew | 3 | 3/8"-16X5" | — | Call for availability |
| 2 | X-10-605 | Washer | 2 | 3/8" | $3.15 | Add to Cart |
| 3 | X-1-604 | Nut | 1 | 3/8"-24 | — | Call for availability |
| 4 | 4300049 | Shift Control Lever | 1 | 5/6 POSITION | — | Call for availability |
| 4 | 4300074 | Shift Control Lever | 1 | 7 POSITION | — | Call for availability |
| 5 | 4300042 | Shift Indicator Plate | 1 | 5 POSITION | — | Call for availability |
| 5 | 4300044 | Shift Indicator Plate | 1 | 6 POSITION | — | Call for availability |
| 5 | 4300045 | Shift Indicator Plate | 1 | 7 POSITION | — | Call for availability |
| 6 | 23473 | Washer | 15 | $5.20 | Add to Cart | |
| 7 | 22544 | Washer | 1 | — | Call for availability | |
| 8 | X-1-405 | Nut | 2 | Replaces X9402. | $1.40 | Add to Cart |
| 9 | 4300054 | Bracket | 1 | OPTION A - USE X-8-690 CAPSCREWS | — | Call for availability |
| 9 | 4300055 | Bracket | 1 | OPTION C - USE X-8-690 CAPSCREWS | — | Call for availability |
| 9 | 4300056 | Bracket | 1 | OPTION B - USE 2 PCS 4300051 AND X-8-6103 CAPSCREWS W/THIS BRACKET | — | Call for availability |
| 10 | 4300053 | Clamp | 1 | — | Call for availability | |
| 11 | 4300092 | -u- Bolt | 1 | — | Call for availability | |
| 12 | X-8-6100 | Capscrew | 1 | 3/8"-16X4-1/8" | — | Call for availability |
| 13 | X-8-647 | Capscrew | 9 | 3/8"-16X4-3/4" | $6.37 | Add to Cart |
| 15 | 4301116 | Gasket | 1 | — | Call for availability | |
| 16 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 17 | 9332 | Bushing | 1 | — | Call for availability | |
| 18 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 19 | X-8-615 | Capscrew | 2 | 3/8"-16X4-1/4" | — | Call for availability |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 5 | 23607 | Elbow | 1 | $7.43 | Add to Cart | |
| 6 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 7 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 8 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 9 | A-5373 | Filter Regulator Assy | 1 | Replaces 22677. 77 - 82 PSI | $127.18 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-440 | Screw | 2 | 1/4"-20X2-1/4" | $1.87 | Add to Cart |

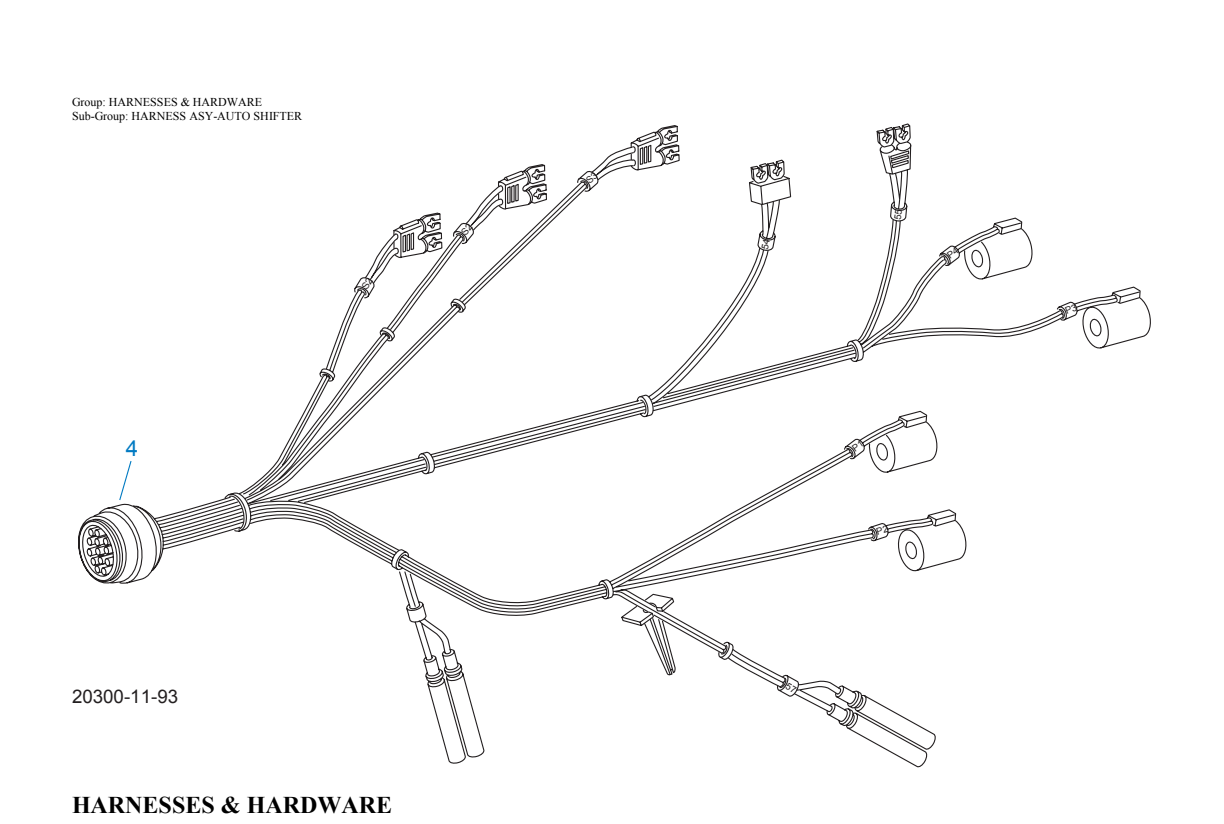

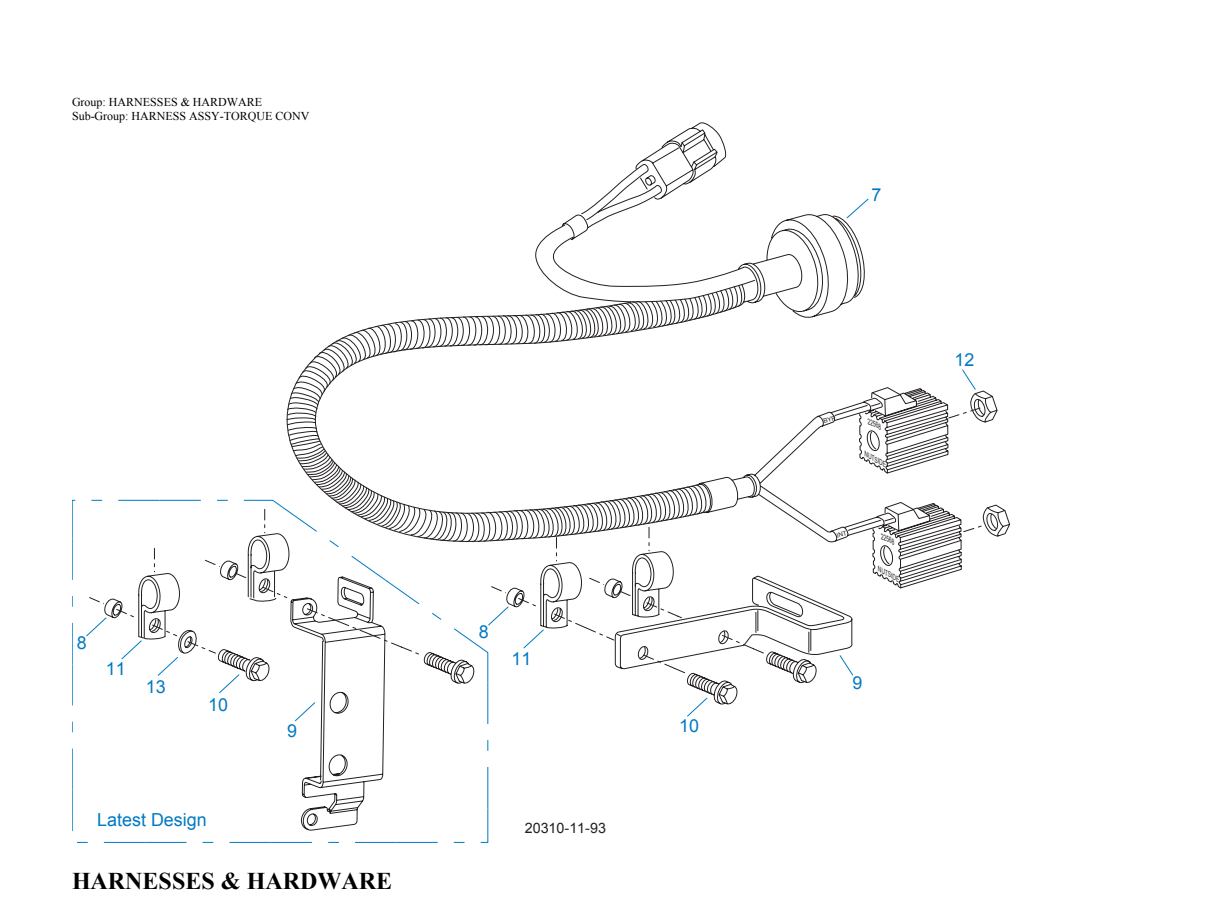

Harnesses & Hardware
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 7 | A-5519 | Harness Assy | 1 | — | Call for availability | |
| 8 | 4300689 | Spacer | 2 | — | Call for availability | |
| 9 | K-3201 | Bracket Kit | 1 | Replaces 4300625, 4303346. | — | Call for availability |
| 10 | X-8L-681 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 11 | 11665 | Clamp | 2 | $2.55 | Add to Cart | |
| 12 | X-1-809 | Jam Nut | 2 | 1/2"-20 | — | Call for availability |
| 13 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 14 | K-3201 | Bracket Kit | 1 | Replaces 4300625, 4303346. | — | Call for availability |
| 4 | K-2981 | Auto Shifter Kit | 1 | Replaces A-5518, K-2384. | — | Call for availability |

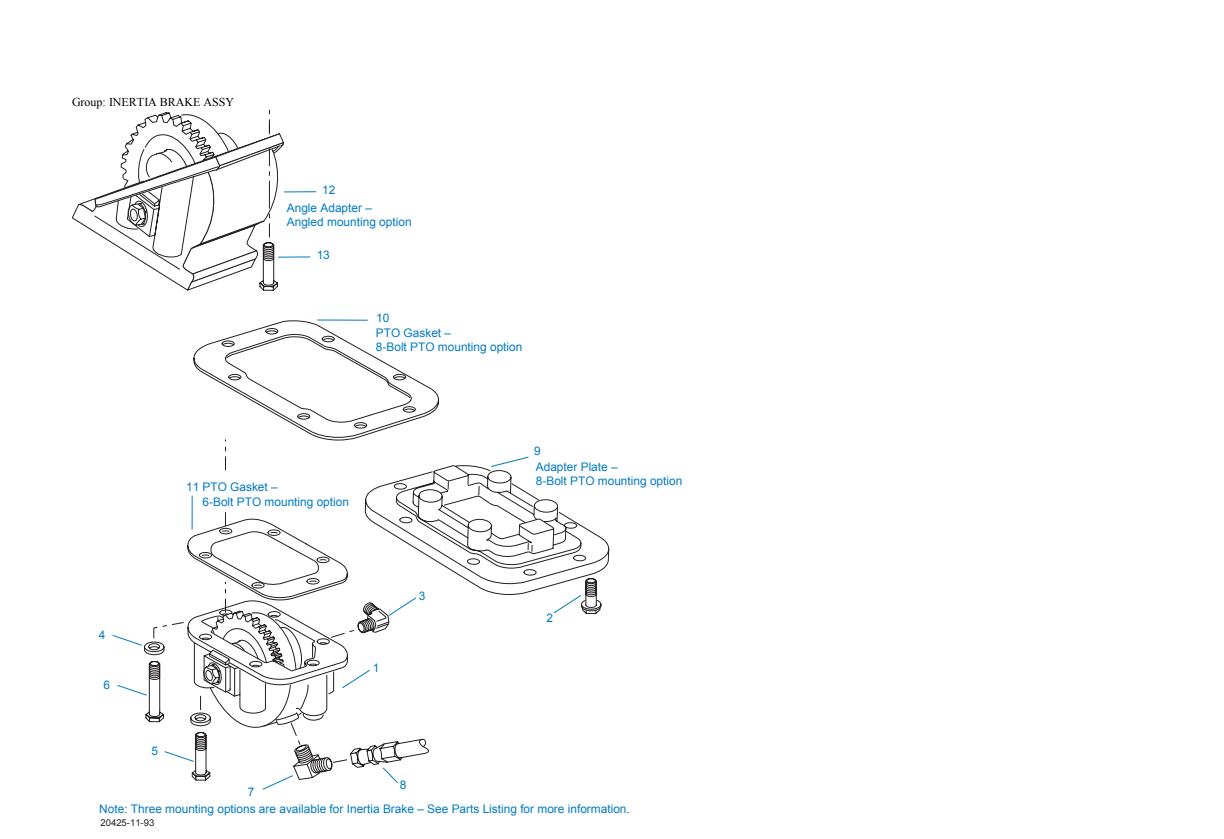

Inertia Brake Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2906 | Inertia Brake Kit | 1 | Replaces A-6200, A-6437. | — | Call for availability |
| 2 | X-8L-722 | Capscrew | 8 | Replaces X8L721. 7/16"-14X1-1/4" | $4.23 | Add to Cart |
| 3 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 4 | 23473 | Washer | 6 | $5.20 | Add to Cart | |
| 5 | X-8-636 | Screw | 4 | 3/8"-16X3-3/4" | $2.25 | Add to Cart |
| 6 | X-8-624 | Capscrew | 2 | 3/8"-16X4" | $2.55 | Add to Cart |
| 7 | 22424 | Elbow | 1 | 90 DEGREE | — | Call for availability |
| 7 | 23486 | Connector | 1 | STRAIGHT | — | Call for availability |
| 8 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | — | Call for availability |
| 8 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | — | Call for availability |
| 8 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 9 | 18471 | Adapter Plate | 1 | 8 BOLT POSITION | $123.62 | Superseded by K1712Add to Cart |
| 10 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 11 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 12 | 4302464 | Angle Adapter | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 13 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |

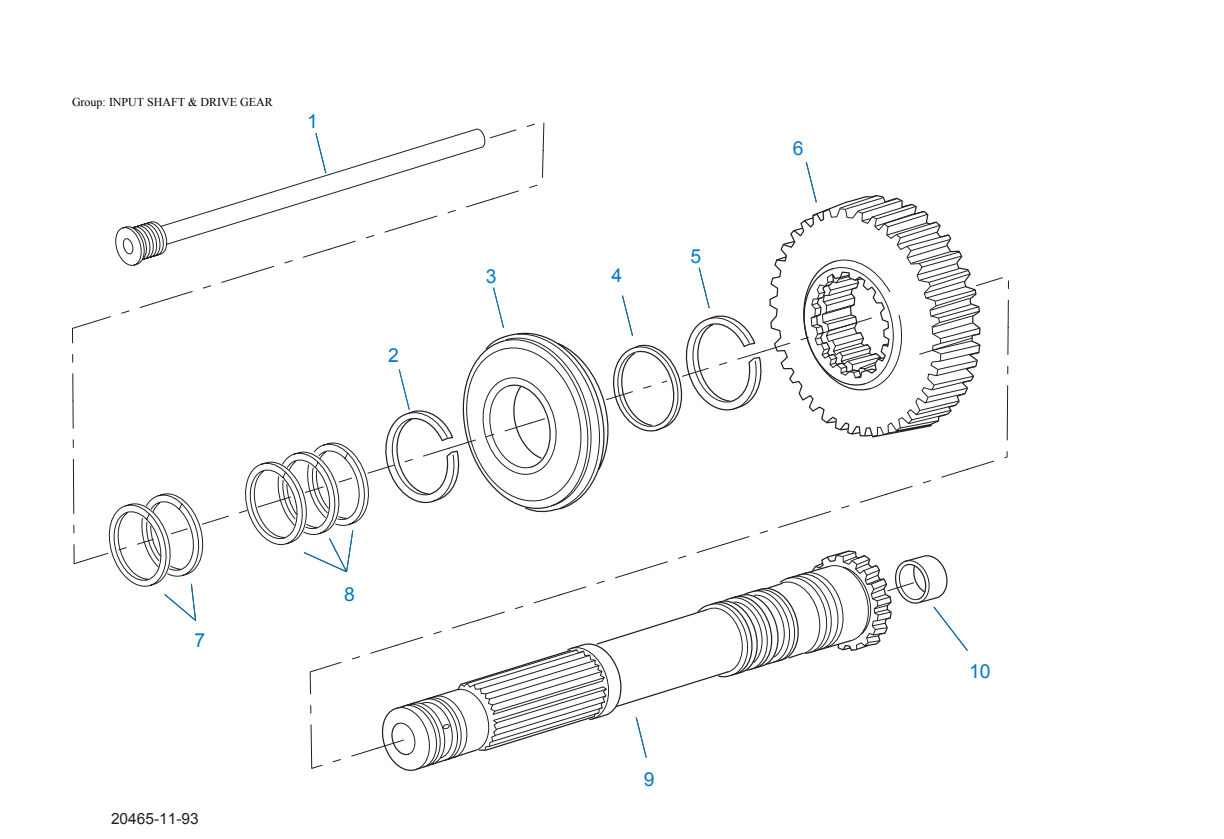

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23402 | Input Shaft Oil Tube | 1 | — | Call for availability | |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 19239 | Drive Gear | 1 | Replaces 21019, 4302458. | $215.28 | Add to Cart |
| 7 | 22428 | Piston Ring | 2 | — | Call for availability | |
| 8 | 23438 | Piston Ring | 3 | — | Call for availability | |
| 9 | S-1670 | Input Shaft Assy | 1 | Replaces 23395. | — | Call for availability |
| 10 | 20171 | Bushing | 1 | $6.86 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-2172 | Gasket Kit | 1 | — | Call for availability | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2289 | Basic Rebuild Kit | 1 | ATE | — | Call for availability | |
| K-2301 | Filter Regulator Kit | 1 | — | Call for availability | ||
| K-2314 | Oil Filter Kit | 1 | — | Call for availability | ||
| K-2385 | Auto-shifter Kit | 1 | — | Call for availability | ||
| K-2387R | Reman Hydra Valve Kit | 1 | Replaces K-2387, K-3085. | — | Call for availability | |
| K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. | — | Call for availability | |
| K-2390 | Stator Support Kit | 1 | — | Call for availability | ||
| K-2391 | Input Shaft Kit | 1 | — | Call for availability | ||
| K-2392R | Reman Pwr Synchro Kit | 1 | Replaces K-3079. | — | Call for availability | |
| K-2398 | Convertor Seal Kit | 1 | — | Call for availability | ||
| K-2403 | Oil Pan Retro Kit | 1 | STANDARD | — | Call for availability | |
| K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart | |
| K-2504 | Oil Pump Kit | 1 | — | Call for availability | ||
| K-2621 | Power Synco Lube Kit | 1 | — | Call for availability | ||
| K-2625 | #1 Converter Hsg Kit | 1 | — | Call for availability | ||
| K-2630 | Repl Kit-drive Gear | 1 | Replaces 4300548. B-RATIO | — | Call for availability | |
| K-2632 | Eng Speed Sensor Kit | 1 | Replaces 22569. | — | Call for availability | |
| K-2633 | Ball Switch Kit | 1 | — | Call for availability | ||
| K-2642 | 6 Bolt Rotated Line Kit | 1 | — | Call for availability | ||
| K-2643 | 6 Bolt Oil Line Kit | 1 | — | Call for availability | ||
| K-2644 | 8 Bolt Oil Line Kit | 1 | — | Call for availability | ||
| K-2646R | Reman 16-D Cnvtr Kit | 1 | Replaces K-3083. | — | Call for availability | |
| K-2647R | Reman 16-C Cnvtr Kit | 1 | Replaces K-3082. | — | Call for availability | |
| K-2754 | Shift Bar Hsg Assy | 1 | Replaces 22596. HOUSING ONLY | — | Call for availability | |
| K-2775 | Basic Overhaul Kit | 1 | AT | — | Call for availability | |
| K-2776 | Basic Overhaul Kit | 1 | ATE | — | Call for availability | |
| K-2802 | O-ring Kit-range | 1 | $19.17 | Add to Cart | ||
| K-2830 | Small Parts Kit | 1 | $294.67 | Add to Cart | ||
| K-2831 | Cylinder Kit-range | 1 | — | Call for availability | ||
| K-2874 | Throttle Sensor Kit | 1 | Replaces K-2325. 45" CABLE | — | Call for availability | |
| K-2875 | Throttle Sensor Kit | 1 | Replaces K-2505. 60" CABLE | — | Call for availability | |
| K-2876 | Throttle Sensor Kit | 1 | Replaces K-2324. 30" CABLE | — | Call for availability | |
| K-2877 | Sump Tube Return Kit | 1 | Replaces K-2620. | — | Call for availability | |
| K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | — | Call for availability | |
| K-2914 | Oil Pan Retro Kit | 1 | LOW PROFILE | $1,195.08 | Add to Cart | |
| K-2915 | Oil Pan Retro Kit | 1 | OFFSET | — | Call for availability | |
| K-2934 | Countershaft Repl Kit | 1 | Replaces 19549. | $357.67 | Add to Cart | |
| K-2980 | Sensor Update Kit | 1 | Replaces 22567, K-2631. | — | Call for availability | |
| K-2981 | Auto Shifter Kit | 1 | Replaces A-5518, K-2384. | — | Call for availability | |
| K-2982 | Auto-shifter Harness Ki | 1 | Replaces K-2396. 24 VOLT | — | Call for availability | |
| K-2983 | Auto Shifter Kit | 1 | Replaces A-5517, K-2635. | — | Call for availability | |
| K-2983R | Reman Autoshifter Kit | 1 | Replaces K-3080. | — | Call for availability | |
| K-2990 | 16" Conv. Rebuild Kit | 1 | — | Call for availability | ||
| K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | ||
| K-3783 | Countershaft Repl Kit | 1 | Replaces 20804, 22411, 4301054, K-2935. | $315.43 | Add to Cart | |
| S-1670 | Input Shaft Assy | 1 | Replaces 23395. | — | Call for availability | |
| S-1676 | Stator Support Assy | 1 | Replaces 23397. | — | Call for availability | |
| S-1785 | Case Assy | 1 | Replaces 23583. | — | Call for availability | |
| S-1876 | Shift Bar Hsg Assy | 1 | Replaces 22596. COMPLETE | — | Call for availability | |
| S-2015 | Converter Housing Assy | 1 | — | Call for availability | ||
| S-2113 | Rear Brg Cover Assy | 1 | Replaces 4302027. AT | — | Call for availability | |
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. ATE | $363.94 | Add to Cart | |
| S-2195 | Range Section Assy | 1 | B-RATIO-ATE | — | Call for availability | |
| S-2197 | Range Section Assy | 1 | B-RATIO-AT | — | Call for availability | |
| S-2199 | Range Section Assy | 1 | A-RATIO-ATE | — | Call for availability | |
| S-2369 | Oil Pan Cover Assy | 1 | LOW PROFILE | $553.94 | Add to Cart | |
| S-2370 | Oil Pan Assy | 1 | OFFSET | $660.53 | Add to Cart | |
| S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 4304396, 4304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 22915 | Sliding Clutch | 1 | $156.93 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 19202 | Mainshaft | 1 | Replaces 4302460. | $364.62 | Add to Cart |
| 7 | 23411 | Spacer | 1 | $170.51 | Add to Cart | |
| 8 | 23410 | Reduction Gear | 1 | Replaces 23556. | — | No longer available — call for replacement |
| 10 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 11 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 12 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 13 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |
Mainshaft Assy
Item 6Item 7Item 11Item 4Item 12Item 6Item 8Item 7Item 8Item 6Item 7Item 9Item 10Item 4Item 7Item 6Item 8Item 1Item 2Item 3Item 5Item 4Item 6Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 1 | K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart |
| 2 | S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 4 | $6.93 | Add to Cart | |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | — | No longer available — call for replacement |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 22412 | Sliding Clutch | 3 | — | No longer available — call for replacement | |
| 9 | 16754 | Lo Gear-mainshaft | 1 | $194.39 | Add to Cart | |
| 10 | 21024 | 1ST Gear-mainshaft | 1 | Replaces 19628. | $158.52 | Add to Cart |
| 11 | 19622 | 2ND Gear-mainshaft | 1 | Replaces 21263, 4300246. | $108.54 | Add to Cart |
| 12 | 21261 | Od Gear-mainshaft | 1 | Replaces 19638. | $115.15 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4301065 | Shift Diagram Label | 1 | 5 POS REVERSE FORWARD | — | Call for availability | |
| 4301066 | Shift Diagram Label | 1 | 5 POS REVERSE REARWARD | — | Call for availability | |
| 4301067 | Shift Diagram Label | 1 | 6 POS REVERSE FORWARD | $28.59 | Add to Cart | |
| 4301068 | Shift Diagram Label | 1 | 6 POS REVERSE REARWARD | — | Call for availability | |
| 4301120 | Shift Diagram Label | 1 | 7 POS REVERSE FORWARD | — | Call for availability | |
| 4301121 | Shift Diagram Label | 1 | 7 POS REVERSE REARWARD | — | Call for availability | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Lines-Inertia Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 9 | 22627 | Oil Restrictor | 1 | — | Call for availability | |
| 10 | 4302077 | Elbow | 1 | — | Call for availability | |
| 11 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | — | Call for availability |
| 11 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | — | Call for availability |
| 11 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 12 | 22424 | Elbow | 1 | 90 DEGREE | — | Call for availability |

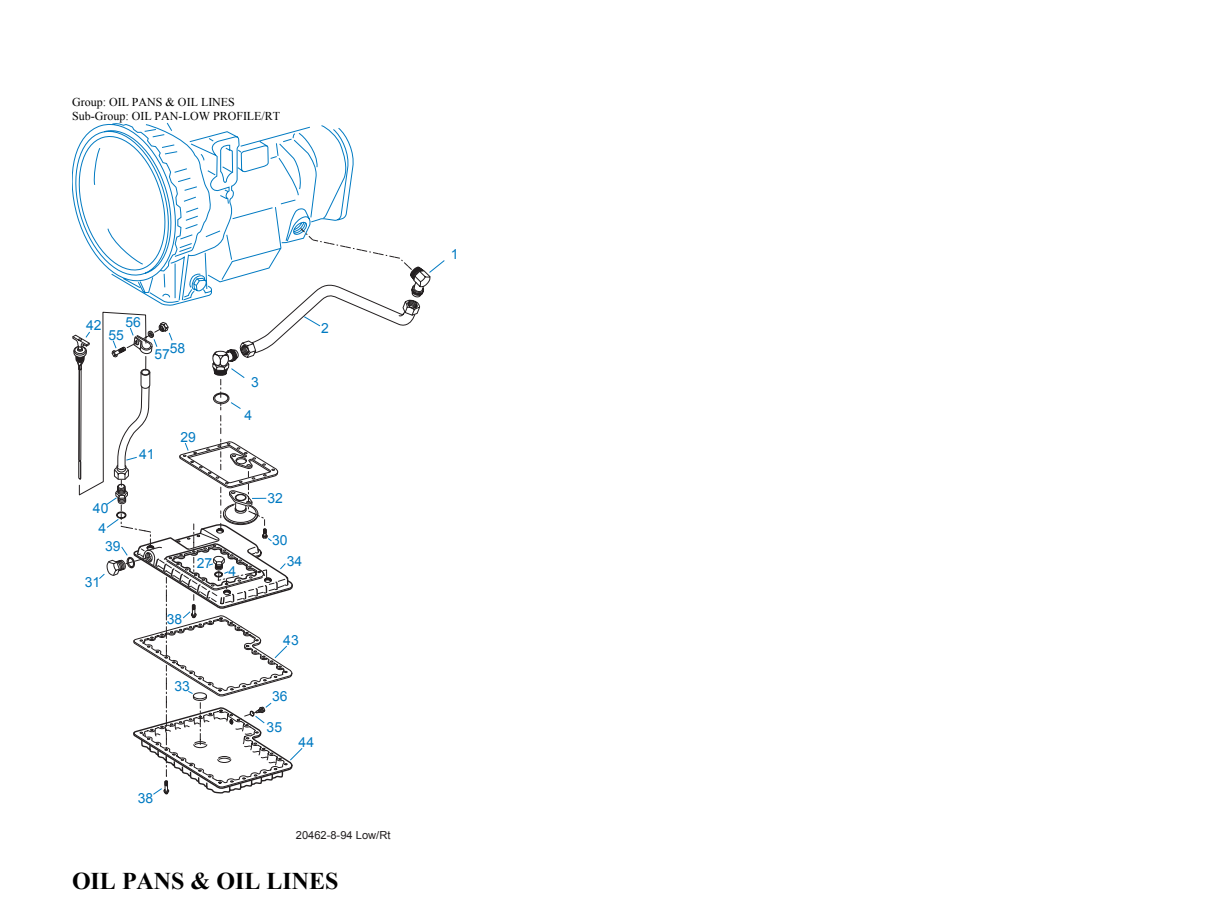

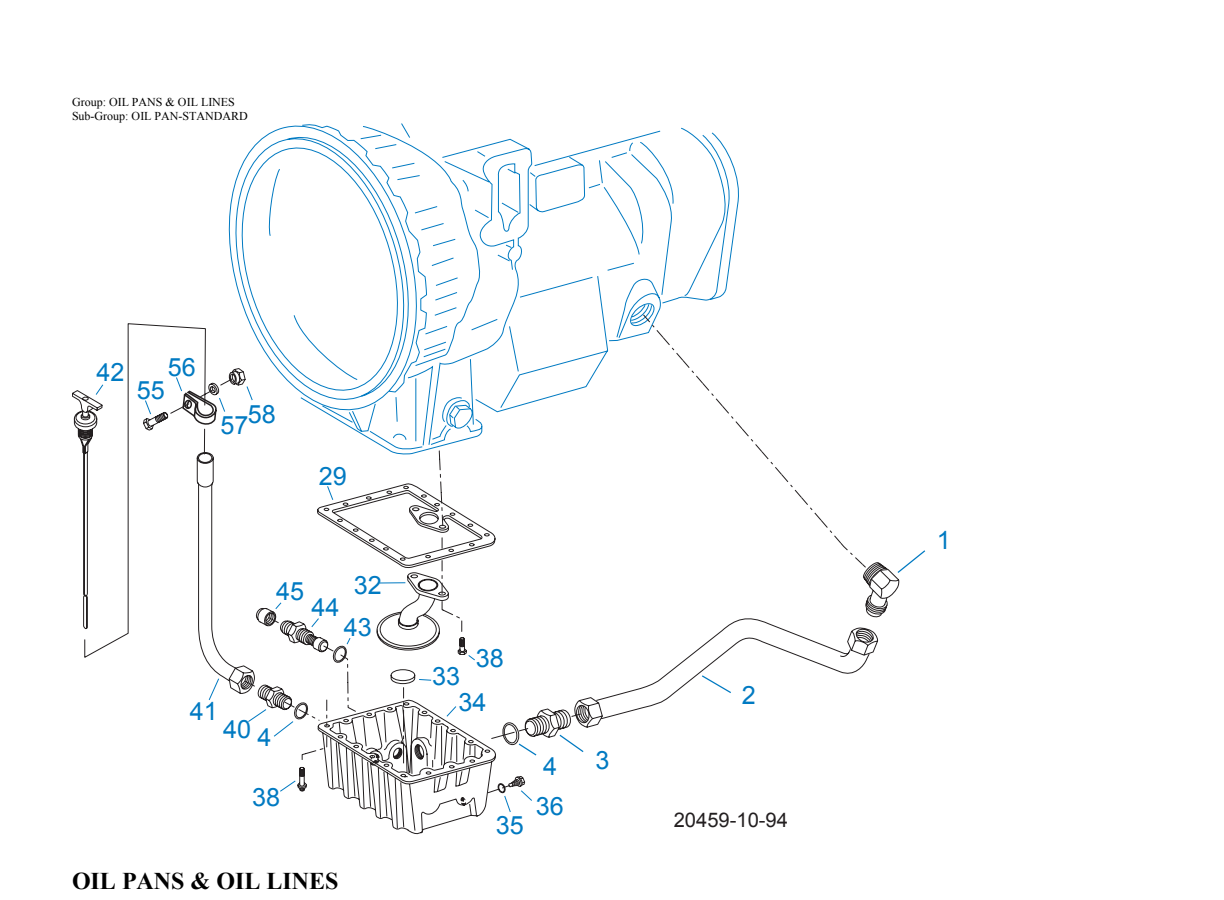

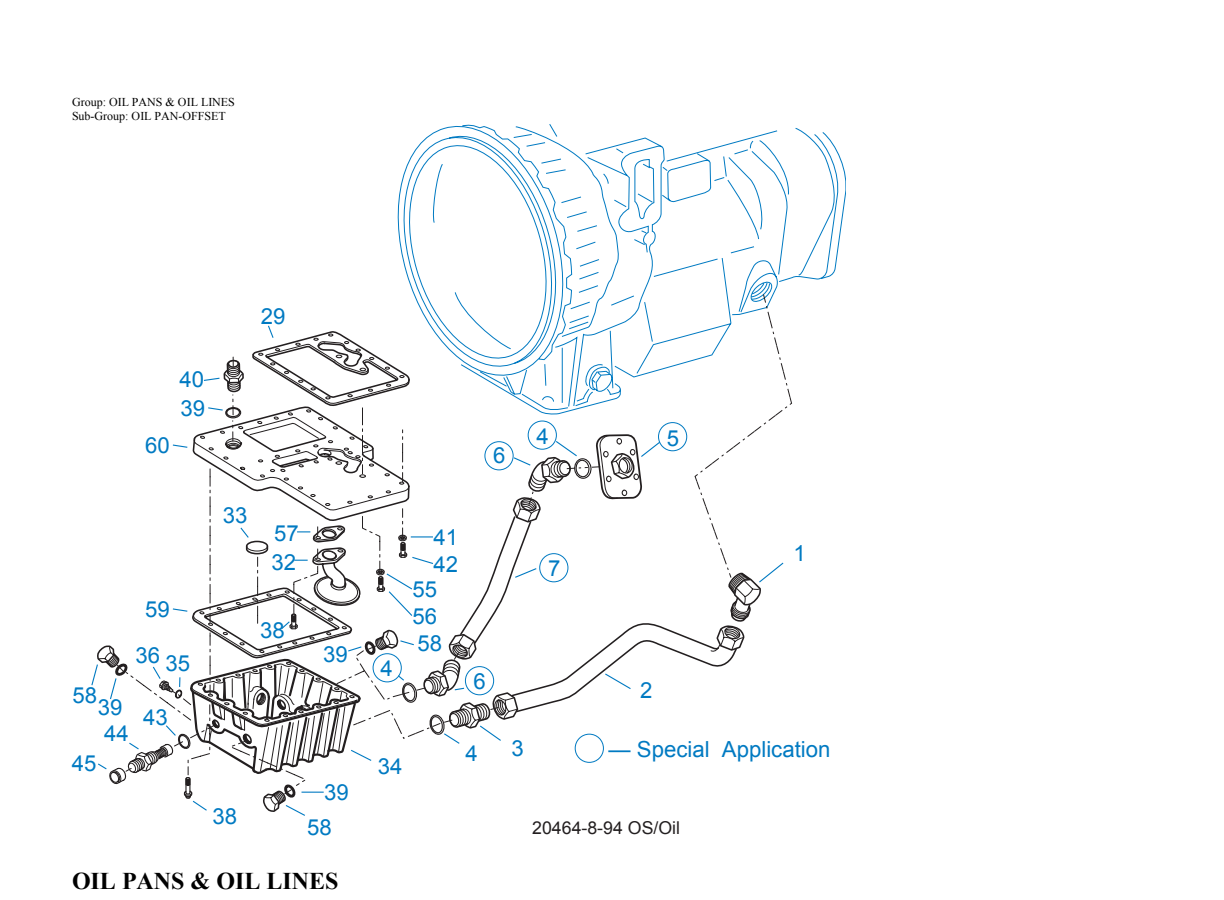

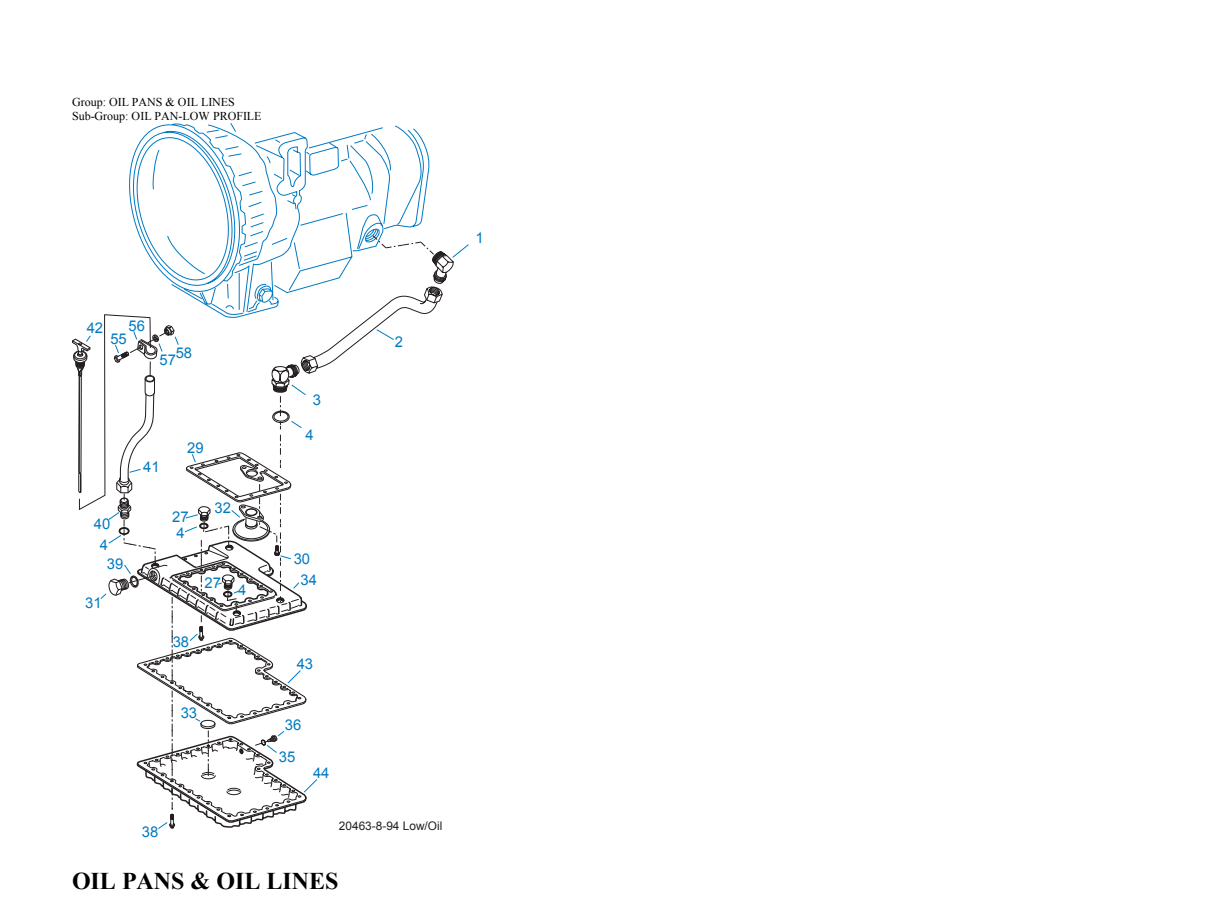

Oil Pans & Oil Lines
Item 1Item 42Item 56Item 55Item 2Item 58Item 57Item 3Item 4Item 29Item 41Item 32Item 27Item 40Item 4Item 4Item 39Item 30Item 27Item 34Item 4Item 31Item 38Item 43Item 33Item 36Item 35Item 44Item 38
Item 1Item 42Item 56Item 2Item 55Item 58Item 57Item 3Item 4Item 29Item 41Item 32Item 40Item 4Item 30Item 39Item 27Item 34Item 4Item 31Item 38Item 43Item 33Item 36Item 35Item 44Item 38
Item 29Item 40Item 39Item 4Item 5Item 60Item 6Item 33Item 57Item 41Item 1Item 32Item 42Item 7Item 55Item 59Item 56Item 38Item 58Item 36Item 39Item 35Item 4Item 6Item 58Item 2Item 39Item 43Item 44Item 4Item 3Item 45Item 34Item 39Item 38Item 58
Item 42Item 56Item 55Item 58Item 57Item 29Item 1Item 32Item 45Item 44Item 43Item 38Item 33Item 2Item 34Item 41Item 40Item 4Item 4Item 3Item 38Item 36Item 35Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4302599 | Sump Return Tube LH | 1 | — | Call for availability | |
| 3 | 4302597 | Elbow | 1 | 90 DEGREES | $62.95 | Add to Cart |
| 4 | 23109 | O-ring | 4 | — | Call for availability | |
| 27 | 22478 | Plug | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 30 | X-8C-500 | Capscrew | 2 | 18X1-1/4" | $2.52 | Add to Cart |
| 31 | 23028 | Plug | 1 | — | Call for availability | |
| 32 | 4302596 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 34 | 4302591 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 53 | 5/16"-18X1" | — | Call for availability |
| 39 | 23029 | O-ring | 1 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500511 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501028 | Dipstick | 1 | Replaces 5501016. STANDARD | — | Call for availability |
| 43 | 4302595 | Oil Pan Gasket | 1 | — | Call for availability | |
| 44 | 4302593 | Oil Cover | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4302598 | Sump Return Tube RH | 1 | — | Call for availability | |
| 3 | 22478 | Plug | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 4 | — | Call for availability | |
| 27 | 22478 | Plug | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 30 | X-8C-500 | Capscrew | 2 | 18X1-1/4" | $2.52 | Add to Cart |
| 31 | 23028 | Plug | 1 | — | Call for availability | |
| 32 | 4302596 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 34 | 4302591 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 53 | 5/16"-18X1" | — | Call for availability |
| 39 | 23029 | O-ring | 1 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500511 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501028 | Dipstick | 1 | Replaces 5501016. STANDARD | — | Call for availability |
| 43 | 4302595 | Oil Pan Gasket | 1 | — | Call for availability | |
| 44 | 4302593 | Oil Cover | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4301101 | Tube | 1 | Replaces 23778. | — | Call for availability |
| 3 | 23596 | Connector | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 1 | QUANTITY AS REQUIRED | — | Call for availability |
| 5 | 4301113 | Cover | 1 | — | Call for availability | |
| 6 | 22413 | Elbow | 2 | — | Call for availability | |
| 7 | 4301112 | Side Slope Tube | 1 | — | Call for availability | |
| 29 | 4301106 | Gasket | 1 | — | Call for availability | |
| 32 | 4301601 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 34 | 4301110 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 22 | 5/16"-18X1" | — | Call for availability |
| 39 | 23109 | O-ring | 4 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | X-3-507 | Conical Washer | 20 | 5/16" | — | Call for availability |
| 42 | X-8L-540 | Capscrew | 20 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 43 | 23029 | O-ring | 1 | — | Call for availability | |
| 44 | A-5754 | Valve Assy | 1 | — | Call for availability | |
| 45 | 4300452 | Cap | 1 | — | Call for availability | |
| 55 | 4301114 | Sealing Washer | 2 | — | Call for availability | |
| 56 | X-8L-540 | Capscrew | 2 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 57 | 4301109 | Gasket | 1 | — | Call for availability | |
| 58 | 22478 | Plug | 3 | — | Call for availability | |
| 59 | 4301108 | Gasket | 1 | — | Call for availability | |
| 60 | 4301107 | Adapter | 1 | — | Call for availability | |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4301101 | Tube | 1 | Replaces 23778. | — | Call for availability |
| 3 | 23596 | Connector | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 32 | 4301601 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 34 | 4300432 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 22 | 5/16"-18X1" | — | Call for availability |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500503 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501021 | Dipstick | 1 | Replaces 5501004. STANDARD | — | Call for availability |
| 43 | 23029 | O-ring | 1 | — | Call for availability | |
| 44 | A-5754 | Valve Assy | 1 | — | Call for availability | |
| 45 | 4300452 | Cap | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |

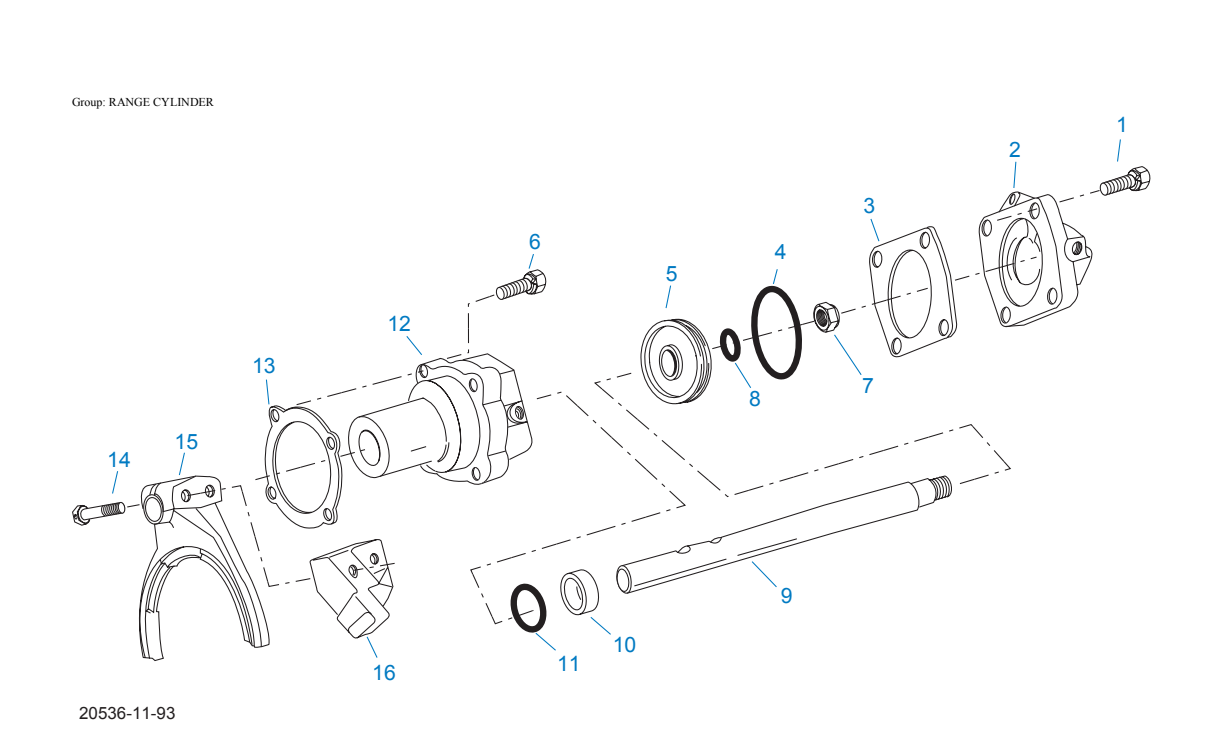

Range Cylinder
Item 1Item 2Item 3Item 6Item 4Item 5Item 12Item 13Item 7Item 8Item 15Item 14Item 9Item 10Item 11Item 16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 2 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart | |
| 3 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 4 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 7 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 8 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 9 | 19652 | Yoke Bar | 1 | $77.15 | Add to Cart | |
| 10 | 22542 | Bushing | 1 | $3.11 | Add to Cart | |
| 11 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 12 | A-5371 | Range Cylinder Assy | 1 | Replaces 22543. | $113.97 | Add to Cart |
| 13 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 14 | X-8-825 | Capscrew | 2 | 1/2"-13X2-3/8" | $5.14 | Add to Cart |
| 15 | 4301642 | Shift Yoke | 1 | — | Call for availability | |
| 16 | 23408 | Bracket | 1 | — | Call for availability |
Reverse Idler
Item 11Item 7Item 5Item 6Item 3Item 4Item 2Item 12Item 8Item 7Item 5Item 6Item 4Item 3Item 2Item 1Item 9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
Stator Support Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22496 | Seal Ring | 1 | — | Call for availability | |
| 2 | S-1676 | Stator Support Assy | 1 | Replaces 23397. | — | Call for availability |
| 3 | 23398 | Gasket | 1 | — | Call for availability | |
| 4 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 5 | 22464 | Spring | 1 | — | Call for availability | |
| 6 | 23616 | Plug | 1 | — | Call for availability | |
| 7 | X-8L-616 | Capscrew | 6 | 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 8 | 23401 | O-ring | 1 | — | Call for availability | |
| 9 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |

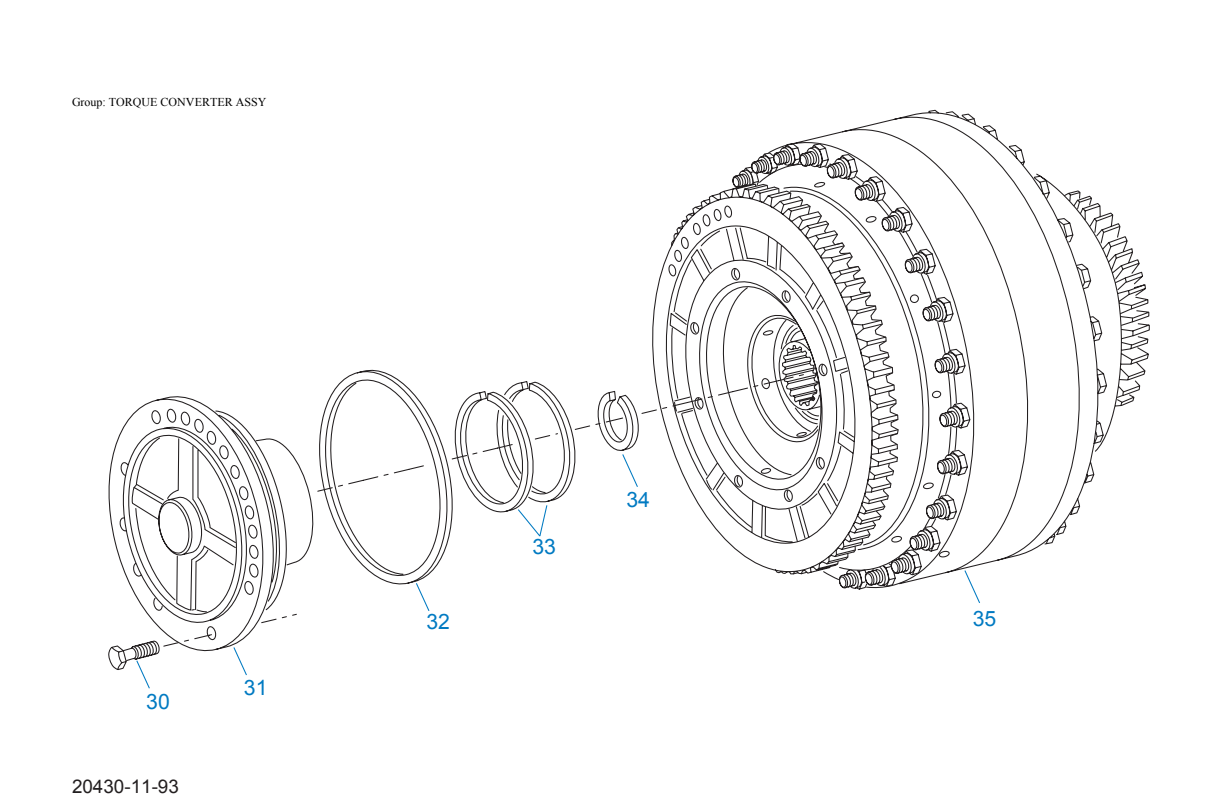

Torque Converter Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | X-8-645 | Capscrew | 8 | 3/8"-16X1" | $1.78 | Add to Cart |
| 31 | 4301426 | Pilot | 1 | — | Call for availability | |
| 32 | 22463 | O-ring | 1 | — | Call for availability | |
| 33 | 22497 | Seal Ring | 2 | — | Call for availability | |
| 34 | 22429 | Snap Ring | 1 | — | Call for availability | |
| 35 | K-2646R | Reman 16-D Cnvtr Kit | 1 | Replaces K-3083. | — | Call for availability |
| 35 | K-2647R | Reman 16-C Cnvtr Kit | 1 | Replaces K-3082. | — | Call for availability |
This is the complete factory parts breakdown for the Eaton Fuller RTO-13109B-ATE — every part in the manual, matched to our live inventory. We stock 211 of the 477 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Air Sys-Inertia Brake Air Sys-Range Auxiliary Drive Gear Bar Housing Assy Case (Aux) Case (Front) Converter Housing Assy Countershaft & Brgs(Aux) Countershaft Assy Ecu Controls Filter Regulator Harnesses & Hardware Inertia Brake Assy Input Shaft & Drive Gear Kits & Assemblies Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Lines-Inertia Brake Oil Pans & Oil Lines Range Cylinder Reverse Idler Stator Support Assy Torque Converter Assy
No parts match that search — try the part number with no dashes.
