Eaton Fuller RTO-14908LL Parts Manual
This is the Eaton Fuller Illustrated Parts List covering the RTO-14908LL transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | RTO-14908LL |
| Transmission type | 8-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Read the manual
This is the complete factory parts breakdown for the Eaton Fuller RTO-14908LL — every part in the manual, matched to our live inventory. We stock 410 of the 424 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Combination Cylinder Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/A-5000 Valve Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Cooler Reverse Idler Roadranger Valve Shift Bar Housing - Rto Slave Valve - A-
No parts match that search — try the part number with no dashes.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 21322 | Auxiliary Drive Gear | 1 | $260.01 | Add to Cart | |
| 8 | 4303673 | Spacer | 1 | Replaces 4302046. | $52.87 | Add to Cart |
| 9 | 5566508-BOX | Bearing | 1 | Replaces 5566503, 5566508. | $147.25 | Add to Cart |
| 10 | 4300894 | Retainer | 1 | $50.06 | Add to Cart | |
| 11 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 12 | 4303360 | Auxiliary Drive Gear | 1 | $213.15 | Add to Cart | |
| 13 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart |
Case (Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart |
| 2 | 5568511 | O-ring | 1 | $3.85 | Add to Cart | |
| 3 | K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart |
| 4 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 5 | S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart |
| 6 | 1009551 | Gasket - Red Edge | 1 | RED EDGE MOLDED GASKET - | $6.27 | Add to Cart |
| 6 | 4302247 | Gasket - Purple Edge Molded | 1 | NON EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS - .013 - .018 - NOT INTERCHANGABLE WITH ANY OTHER GASKET | $6.40 | Add to Cart |
| 7 | X-8L-611 | Capscrew | 4 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 6 | 3/8"-16X2" USE W/4303872 RBC | $3.24 | Add to Cart |
| 8 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 8 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 9 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 10 | 4305978 | Gasket | 2 | Replaces 4302246. | — | Call for availability |
| 11 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 12 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 13 | 4303353 | Rear Housing | 1 | Replaces 4303354. | $743.75 | Add to Cart |
| 14 | 4304653 | Shield | 1 | $7.90 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 86104 | Speedo Drive Gear | 1 | $89.10 | Add to Cart | |
| 20 | S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart |
| 21 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart |
| 22 | X-8L-616 | Capscrew | 6 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 23 | K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | — | Call for availability |
| 23 | K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | — | Call for availability |
| 24 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 25 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 26 | S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart |
| 26 | S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
Case (Front)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1545 | Case Assy | 1 | Replaces 21528. OLD DESIGN FOR USE W/INTEGRAL PUMP | $2,316.80 | Add to Cart |
| 1 | S-1549 | Case Assy | 1 | Replaces 21318. | — | Call for availability |
| 1 | S-2497 | Case Assy | 1 | Replaces 4303361. LATEST DESIGN FOR USE W/INTEGRAL PUMP | $1,827.75 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-5728 | Clutch Housing Assy | 1 | Replaces 4300259, A-4342. #1 PULL - ALUMINUM | $646.60 | Add to Cart |
| 8 | A-5992 | Clutch Housing Assy | 1 | Replaces 4301103. #1 PULL ALUM.(SPECIAL-LIGHTER WEIGHT) | $698.49 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
Combination Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5159 | Yoke Assy | 1 | Replaces 21333. RANGE | $228.57 | Add to Cart |
| 2 | A-5160 | Yoke Assy | 1 | Replaces 21335. REDUCTION | $116.06 | Add to Cart |
| 3 | 21330 | Cylinder | 1 | $203.12 | Add to Cart | |
| 4 | 21332 | Gasket | 1 | $2.27 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 7 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 8 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 9 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 10 | 14644 | O-ring | 1 | $4.17 | Add to Cart | |
| 11 | K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart |
| 12 | 20423 | O-ring | 1 | $12.75 | Add to Cart | |
| 13 | X-1-803 | Nut | 1 | 1/2"-20 | $1.87 | Add to Cart |
| 14 | 21329 | Cylinder Cover | 1 | $158.07 | Add to Cart | |
| 15 | 4301348 | O-ring | 1 | $1.56 | Add to Cart | |
| 16 | X-8L-631 | Capscrew | 5 | Replaces X8631. 3/8"-16X3-1/2" | $3.11 | Add to Cart |
| 17 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 18 | 13653 | O-ring | 3 | $3.00 | Add to Cart | |
| 19 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 20 | 21331 | Gasket | 1 | $2.35 | Add to Cart |
Countershaft & Brgs(Aux)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3500 | Countershaft Repl Kit | 2 | Replaces A-6843. | $434.16 | Add to Cart |
| 2 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |

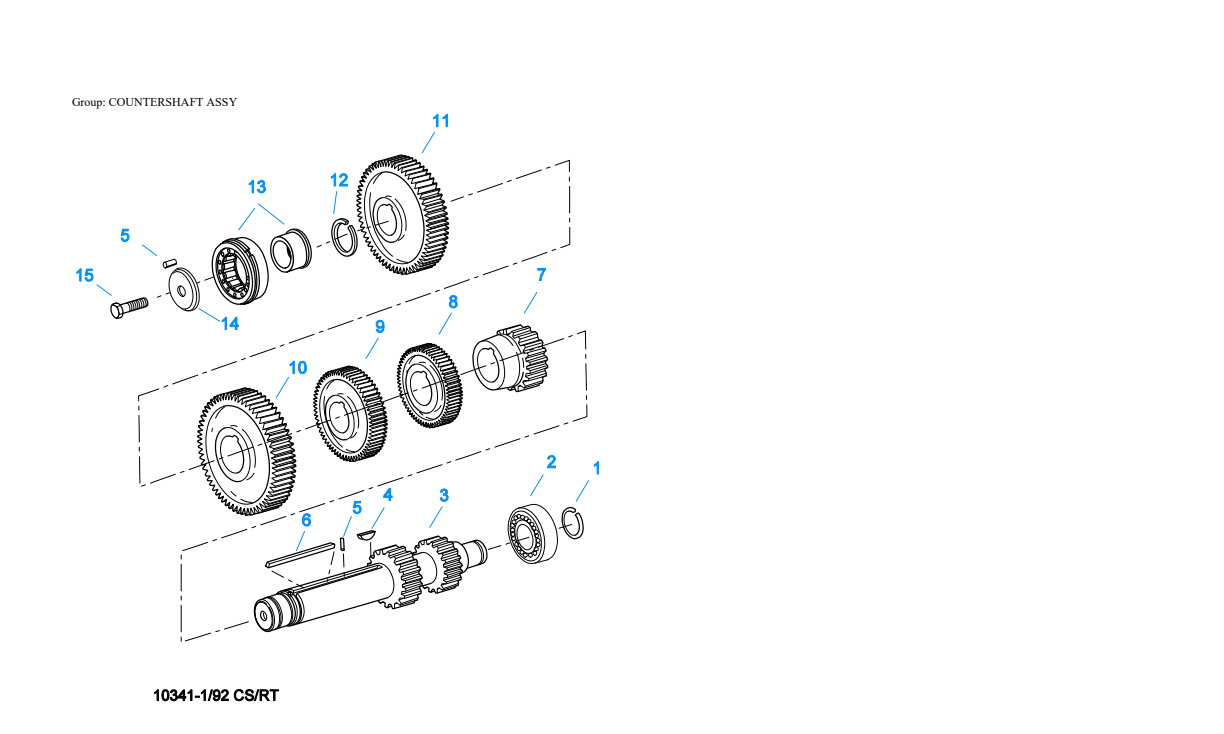

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 4303031 | Bearing | 2 | Replaces 14366. | $41.13 | Add to Cart |
| 3 | K-2934 | Cntrshft-w/rev & Lo | 2 | Replaces 19549. | $357.67 | Add to Cart |
| 4 | X-6-E | Key | 2 | — | No longer available — call for replacement | |
| 5 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4306076 | 1ST Gear-cntrshft | 2 | Replaces 19247, 20471. | $111.39 | Add to Cart |
| 8 | 20482 | 2ND Gear-cntrshft | 2 | Replaces 19615. | $101.39 | Add to Cart |
| 9 | 4305661 | Od Gear-cntrshft | 2 | Replaces 19631, 19633, 20481, 4302233, 20459. | $145.15 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | — | Call for availability |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 4305657 | Drive Gear-cntrshft | 2 | Replaces 19240, 21020. | $118.01 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
Filter Regulator
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

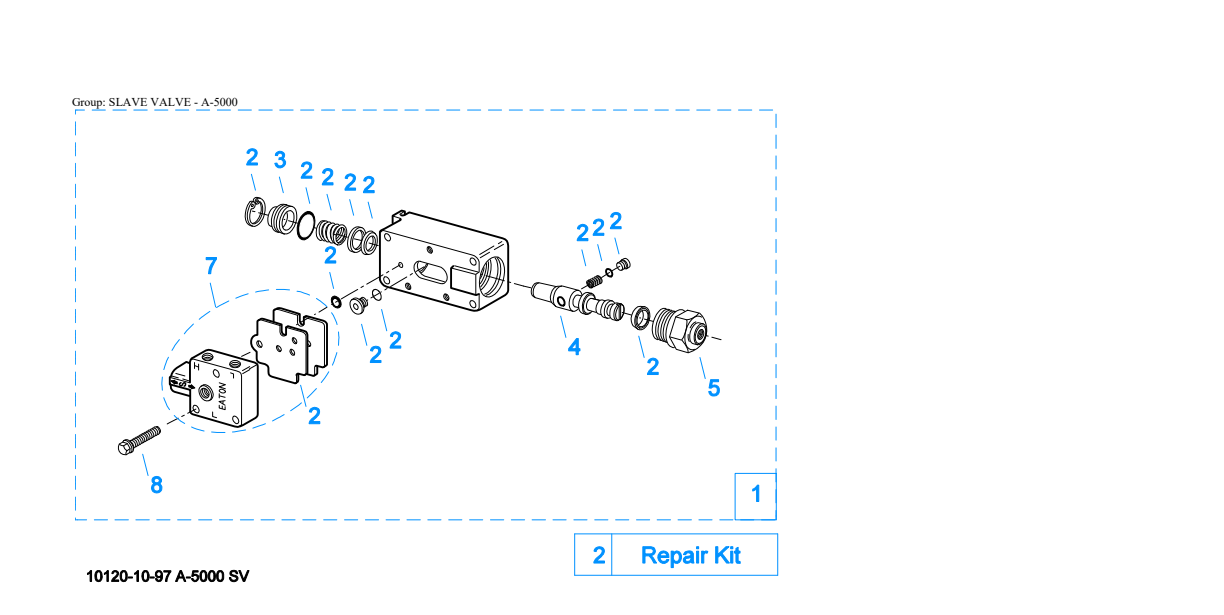

H & C W/A-5000 Valve
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $132.94 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55528 | Hose Assy | 1 | 36" | $22.77 | Add to Cart |
| 11 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |
| 20 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 21 | 15114 | O-ring | 2 | $1.59 | Add to Cart |
Input Shaft & Drive Gear
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 4301417 | Bearing | 1 | Replaces 81504. | — | Call for availability |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 4305659 | Main Drive Gear | 1 | Replaces 22030, 4302086, 22028. | $154.92 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 23566. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |
Integral Oil Pump
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | Roll Pin | 1 | — | Call for availability | |
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $76.59 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |

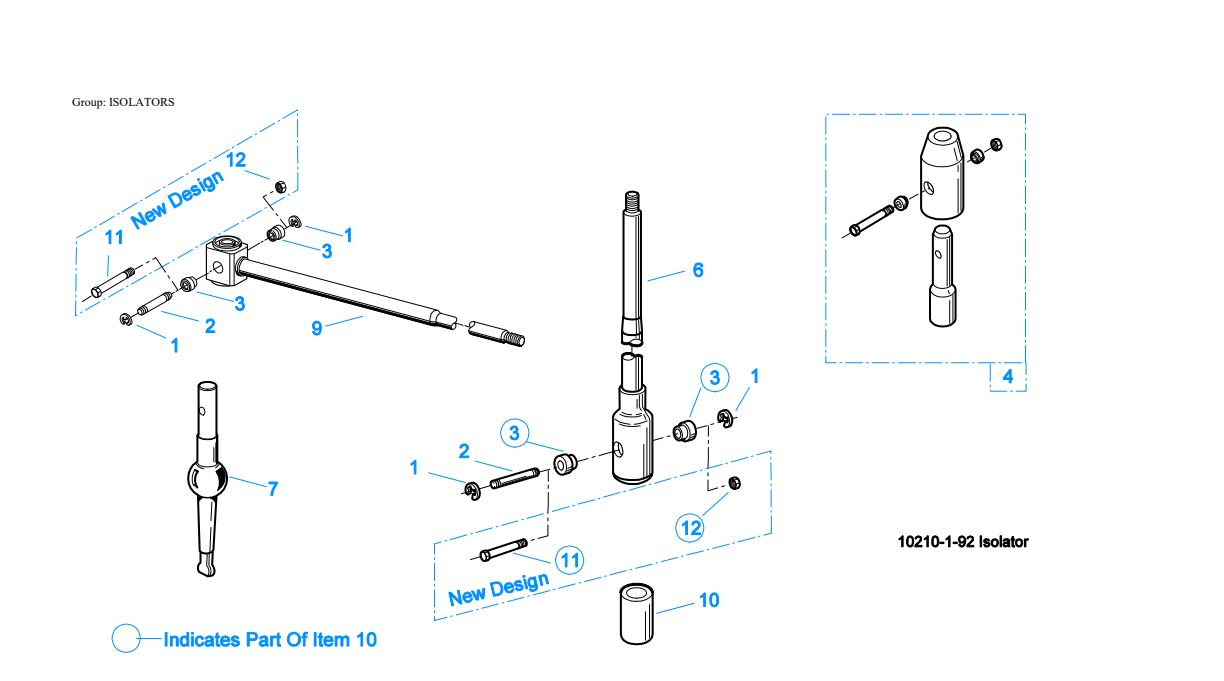

Isolators
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $2.39 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1457 | O-ring Kit | 1 | FOR INSERT VALVE | $5.84 | Add to Cart | |
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2054 | O-ring Kit | 1 | $21.62 | Add to Cart | ||
| K-2061 | Gasket Kit | 1 | $70.29 | Add to Cart | ||
| K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2402 | Cover & Screw Kit | 1 | Replaces 4300751. | $13.53 | Add to Cart | |
| K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | — | No longer available — call for replacement | |
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart | |
| K-2934 | Countershaft Repl Kit | 1 | Replaces 19549. | $357.67 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart | |
| K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart | |
| K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3233 | Basic Rebuild Kit | 1 | FOR USE WITH LATEST DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | $671.68 | Add to Cart | |
| K-3256 | Basic Rebuild Kit | 1 | FOR USE WITH OLD DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | $635.98 | Add to Cart | |
| K-3259 | Small Parts Kit | 1 | FOR USE WITH LATEST DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | $119.53 | Add to Cart | |
| K-3260 | Small Parts Kit | 1 | FOR USE WITH OLD DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | $115.53 | Add to Cart | |
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-. | $367.14 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3500 | Countershaft Repl Kit | 1 | Replaces A-6843. | $434.16 | Add to Cart | |
| K-4092 | Basic Overhaul Kit | 1 | Replaces K-3234. FOR USE WITH LATEST DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | $923.92 | Add to Cart | |
| K-4093 | Basic Overhaul Kit | 1 | Replaces K-3258. FOR USE WITH OLD DESIGN TRANSMISSION - SEE THE AUXILIARY DRIVE GEAR GROUP TO DETERMINE WHICH DESIGN YOU ARE SERVICING | — | Call for availability | |
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | — | Call for availability | |
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1445 | Shift Bar Hsg-rto | 1 | Replaces 20215, 21135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart | |
| S-1446 | Shift Bar Hsg-rtof | 1 | Replaces 20217, 21136. HOUSING ONLY (XF) | $999.67 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | — | No longer available — call for replacement | |
| S-1527 | Shift Bar Hsg Assy- Rto | 1 | Replaces 20215, 21135, 4302452. COMPLETE (X) | $1,530.41 | Add to Cart | |
| S-1528 | Shift Bar Hsg Assy- Rtof | 1 | Replaces 20217, 21136. COMPLETE (XF) | $1,372.01 | Add to Cart | |
| S-1545 | Case Assy | 1 | Replaces 21528. OLD DESIGN FOR USE W/INTEGRAL PUMP | $2,316.80 | Add to Cart | |
| S-1549 | Case Assy | 1 | Replaces 21318. | — | Call for availability | |
| S-1659 | Input Shaft | 1 | Replaces 23566. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2497 | Case Assy | 1 | Replaces 4303361. LATEST DESIGN FOR USE W/INTEGRAL PUMP | $1,827.75 | Add to Cart | |
| S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart | |
| S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart | |
| S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2581 | Roadranger Valve Assy | 1 | RTO-W/SHIFT PATTERN | $106.00 | Add to Cart | |
| S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart | |
| S-2712 | Range Section Assy | 1 | $3,986.00 | Add to Cart | ||
| S-2712R | Reman Range Section Assy | 1 | $3,352.35 | Add to Cart | ||
| S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart | |
| S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
Levers/Housings
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-1036M | Capscrew | 4 | Replaces X-8-1005M. M10 X 1.5 X 38MM | $2.27 | Add to Cart |
| 6 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $10.08 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $226.96 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |

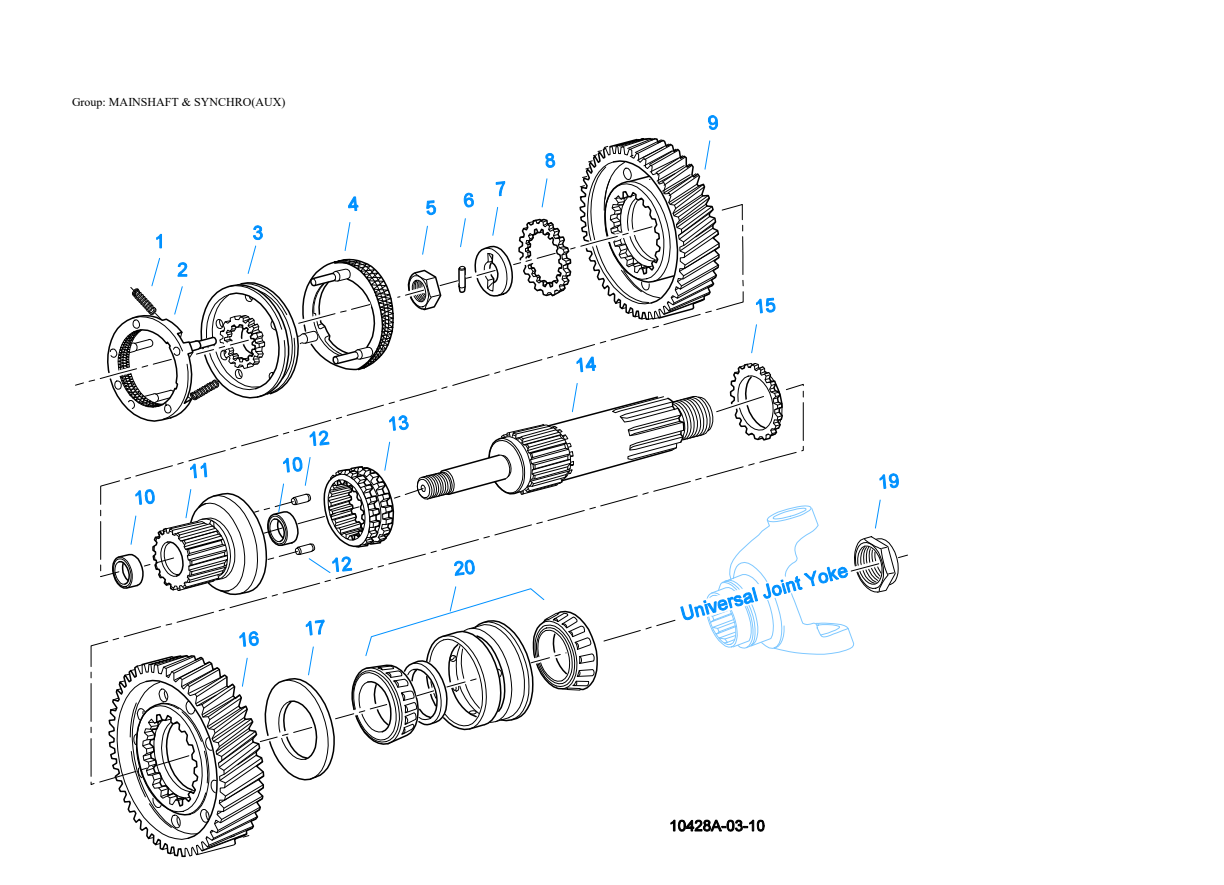

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 21365 | Nut | 1 | $5.90 | Add to Cart | |
| 6 | 17332 | Dowel Pin | 1 | $3.11 | Add to Cart | |
| 7 | 21347 | Washer | 1 | $16.95 | Add to Cart | |
| 8 | 21350 | Washer | 1 | $32.29 | Add to Cart | |
| 9 | 21319 | Reduction Gear | 1 | $314.41 | Add to Cart | |
| 10 | 21352 | Bushing | 2 | $5.70 | Add to Cart | |
| 11 | A-5156 | Mainshaft Assy | 1 | Replaces 21351. | $274.21 | Add to Cart |
| 12 | 21652 | Pin | 2 | $2.11 | Add to Cart | |
| 13 | 21360 | Sliding Clutch | 1 | $98.22 | Add to Cart | |
| 14 | 4303359 | Mainshaft | 1 | $203.53 | Add to Cart | |
| 15 | 21354 | Washer | 1 | $42.64 | Add to Cart | |
| 16 | 21361 | Deep Reduction Gear | 1 | $337.77 | Add to Cart | |
| 17 | 21358 | Washer | 1 | $33.50 | Add to Cart | |
| 19 | K-4122 | Hex Flange Crimped Nut Kit | 1 | Replaces 4302321, 4306520. | $34.01 | Add to Cart |
| 20 | 5556503-BOX | Bearing | 1 | Replaces 5556503. | $165.74 | Add to Cart |

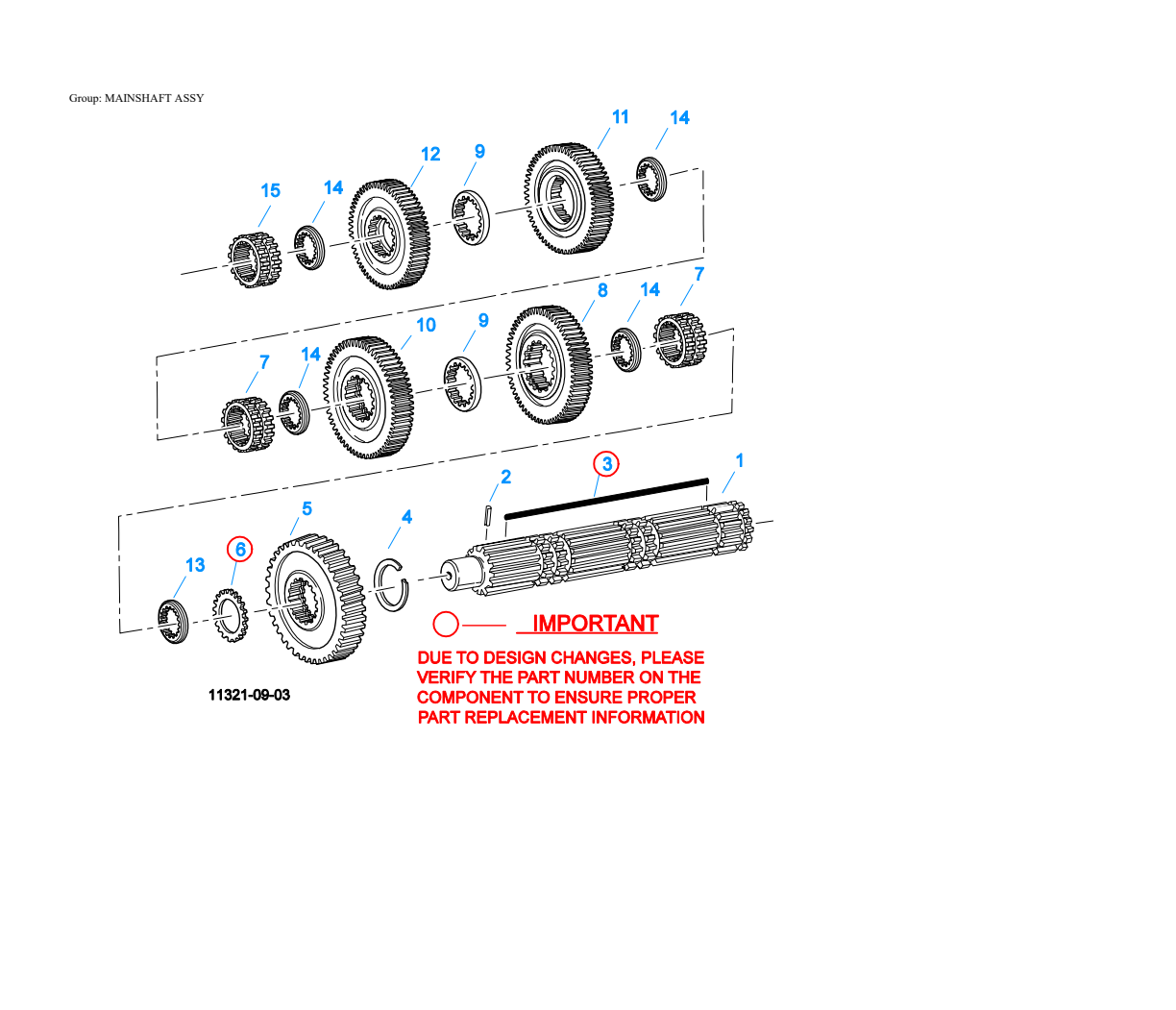

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. USED IN OLD DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $6.30 | Add to Cart |
| 3 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. USED IN LATEST DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $5.90 | Add to Cart |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | $93.74 | Add to Cart | |
| 6 | 14749 | Spacer | 1 | USED IN OLD DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $6.93 | Add to Cart |
| 6 | 4302047 | Spacer | 1 | USED IN LATEST DESIGN | $15.38 | Add to Cart |
| 7 | 4306648 | Sliding Clutch | 2 | Replaces 16118. | $42.03 | Add to Cart |
| 8 | 4303409 | Lo Gear-mainshaft | 1 | Replaces 4303407. | $159.18 | Add to Cart |
| 9 | 4303603 | Washer | 2 | $14.45 | Add to Cart | |
| 10 | 4303477 | 1ST Gear-mainshaft | 1 | Replaces 4303414. | $180.99 | Add to Cart |
| 11 | 4302384 | 2ND Gear-mainshaft | 1 | Replaces 4302385. | $195.59 | Add to Cart |
| 12 | 4305051 | Od Gear-mainshaft | 1 | Replaces 4302383. | $163.98 | Add to Cart |
| 13 | 4300830 | Washer .244-BLUE | 1 | $9.36 | Add to Cart | |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4306647 | Sliding Clutch | 1 | Replaces 22026, 4304317. | $39.27 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20466 | Shift Diagram Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Cooler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |
Reverse Idler
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $20.16 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 7 | 4303336 | Retaining Ring | 2 | $3.99 | Add to Cart | |
| 8 | 4303336 | Retaining Ring | 4 | $3.99 | Add to Cart | |
| 9 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |
Roadranger Valve
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586115 | Shift Diagram Medallion | 1 | RTO-W/SHIFT PATTERN | $28.59 | Add to Cart |
| 2 | K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart |
| 2 | K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart |
| 3 | 20496 | Lever | 1 | $18.41 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $1.23 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6915 | Roadranger Valve Assy | 1 | Replaces A-5015. STANDARD-W/LOGO | $88.11 | Add to Cart |
| 999 | A-7315 | Roadranger Valve Assy | 1 | Replaces A-5315. (LEFT OF DRIVER)-W/LOGO | $156.40 | Add to Cart |
| 999 | S-2581 | Roadranger Valve Assy | 1 | RTO-W/SHIFT PATTERN | $106.00 | Add to Cart |
Shift Bar Housing - Rto
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1445 | Shift Bar Hsg - Rto | 1 | Replaces 20215, 21135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $2.09 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart |
| 26 | 16131 | Shift Yoke | 1 | REVERSE/LO | $203.23 | Add to Cart |
| 27 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 28 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 29 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 30 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 31 | 19063 | Shift Block | 1 | 3RD/OD | $44.48 | Add to Cart |
| 32 | 20120 | Shift Block | 1 | Replaces 18924. 3RD/OD | $52.32 | Add to Cart |
| 33 | 18928 | Yoke Bar | 1 | Replaces 4302760. 3RD/OD | $84.83 | Add to Cart |
| 34 | 18922 | Shift Yoke | 1 | 1ST/2ND | $81.23 | Add to Cart |
| 35 | 18927 | Yoke Bar | 1 | 1ST/2ND | $90.07 | Add to Cart |
| 36 | 4302070 | Snap Ring | 1 | $256.36 | Add to Cart | |
| 37 | 4303225 | Actuator | 1 | $12.87 | Add to Cart | |
| 38 | 4305575 | Shift Yoke | 1 | Replaces 20450. 3RD/OD | $142.49 | Add to Cart |
| 39 | 18926 | Yoke Bar | 1 | REVERSE/LO | $83.31 | Add to Cart |
| 40 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 41 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 42 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1527 | Shift Bar Hsg Assy - Rto | 1 | Replaces 20215, 21135, 4302452. COMPLETE | $1,530.41 | Add to Cart |
Slave Valve - A-
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $132.94 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | — | No longer available — call for replacement |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTO-14908LL
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
