Eaton Fuller RTO-16908LL Parts List, Manual PDF & Diagrams
Complete unit, in stock
RTO-16908LL Eaton Fuller Transmission
from $4,395.00
+ $3,500.00 refundable core deposit
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4303673 | Spacer | 1 | Replaces 4302046. | $52.87 | Add to Cart |
| 2 | 5566508-BOX | Bearing | 1 | Replaces 5566503, 5566508. | $147.25 | Add to Cart |
| 3 | 4300894 | Retainer | 1 | $50.06 | Add to Cart | |
| 4 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 5 | 4303360 | Auxiliary Drive Gear | 1 | $213.15 | Add to Cart | |
| 6 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart |
Case (Aux)
Item 7Item 1Item 14Item 6Item 5Item 8Item 2Item 20Item 11Item 16Item 2Item 24Item 10Item 25Item 15Item 9Item 22Item 26Item 3Item 19Item 23Item 21Item 13Item 12Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart |
| 2 | 5568511 | O-ring | 1 | $3.05 | Add to Cart | |
| 3 | K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart |
| 4 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 5 | S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart |
| 6 | 1009551 | Gasket - Red Edge Molded | 1 | RED EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS .043 - | $6.27 | Add to Cart |
| 6 | 4302247 | Gasket - Purple Edge Molded | 1 | NON EDGE MOLDED GASKET - UNCOMPRESSED THICKNESS - .013 - .018 - NOT INTERCHANGABLE WITH ANY OTHER GASKET | $6.40 | Add to Cart |
| 7 | X-8L-611 | Capscrew | 4 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 6 | 3/8"-16X2" USE W/4303872 RBC | $3.24 | Add to Cart |
| 8 | X-8L-602 | Capscrew | 17 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 8 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 9 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 10 | 4305978 | Gasket | 2 | Replaces 4302246. | $7.06 | Superseded by 4309436Add to Cart |
| 11 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 12 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 13 | 4303353 | Rear Housing | 1 | Replaces 4303354. | $743.75 | Add to Cart |
| 14 | 4304653 | Shield | 1 | $7.90 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 86104 | Speedo Drive Gear | 1 | $89.10 | Add to Cart | |
| 20 | S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart |
| 21 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 22 | X-8L-616 | Capscrew | 6 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 23 | K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart |
| 23 | K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | $56.53 | Superseded by K4151Add to Cart |
| 24 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 25 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 26 | S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart |
| 26 | S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |
Case (Front)
Item 1Item 1Item 7Item 7Item 4Item 37Item 10Item 11Item 16Item 6Item 14Item 22Item 19Item 27Item 8Item 9Item 2Item 12Item 28Item 39Item 15Item 19Item 38Item 24Item 3Item 36Item 29Item 5Item 31Item 21Item 18Item 23Item 3Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2497 | Case Assy | 1 | Replaces 4303361. | $1,827.75 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-5728 | Clutch Housing Assy | 1 | Replaces 4300259, A-4342. #1 PULL - ALUMINUM | $838.91 | Add to Cart |
| 8 | A-5992 | Clutch Housing Assy | 1 | Replaces 4301103. #1 PULL ALUM.(SPECIAL-LIGHTER WEIGHT) | $698.49 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Bearing Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Bearing Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 21 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
Combination Cylinder
Item 1Item 2Item 11Item 17Item 1Item 9Item 13Item 18Item 3Item 6Item 19Item 8Item 4Item 16Item 20Item 14Item 12Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5159 | Yoke Assy | 1 | Replaces 21333. RANGE | $228.57 | Add to Cart |
| 2 | A-5160 | Yoke Assy | 1 | Replaces 21335. REDUCTION | $116.06 | Add to Cart |
| 3 | 21330 | Cylinder | 1 | $203.12 | Add to Cart | |
| 4 | 21332 | Gasket | 1 | $2.27 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 7 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 8 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 9 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 10 | 14644 | O-ring | 1 | $4.17 | Add to Cart | |
| 11 | K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart |
| 12 | 20423 | O-ring | 1 | $12.75 | Add to Cart | |
| 13 | X-1-803 | Nut | 1 | 1/2"-20 | $1.87 | Add to Cart |
| 14 | 21329 | Cylinder Cover | 1 | $158.07 | Add to Cart | |
| 15 | 4301348 | O-ring | 1 | $1.56 | Add to Cart | |
| 16 | X-8L-631 | Capscrew | 5 | Replaces X8631. 3/8"-16X3-1/2" | $3.11 | Add to Cart |
| 17 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 18 | 13653 | O-ring | 3 | $3.00 | Add to Cart | |
| 19 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 20 | 21331 | Gasket | 1 | $2.35 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3500 | Countershaft Repl Kit | 2 | Replaces A-6843. | $434.16 | Add to Cart |
| 2 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |
Countershaft Assy
Item 1Item 7Item 14Item 10Item 9Item 8Item 12Item 5Item 4Item 15Item 11Item 6Item 2Item 3Item 5Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 4303031 | Bearing | 2 | Replaces 14366. | $54.68 | Add to Cart |
| 3 | K-2934 | Cntrshft-w/rev & Lo | 2 | Replaces 19549. | $357.67 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4306076 | 1ST Gear-cntrshft | 2 | Replaces 19247, 20471. | $111.39 | Add to Cart |
| 8 | 20482 | 2ND Gear-cntrshft | 2 | Replaces 19615. | $101.39 | Add to Cart |
| 9 | 4305661 | Od Gear-cntrshft | 2 | Replaces 19631, 19633, 20481, 4302233, 20459. | $150.84 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 4305657 | Drive Gear-cntrshft | 2 | Replaces 19240, 21020. | $118.01 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |

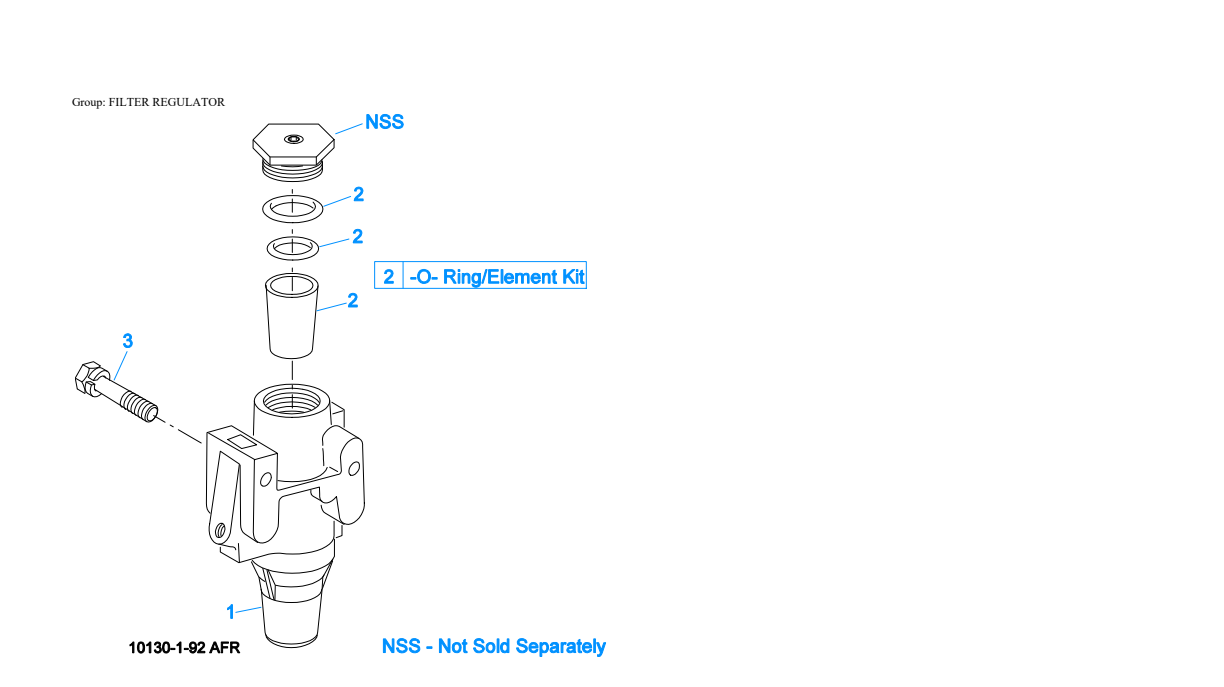

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

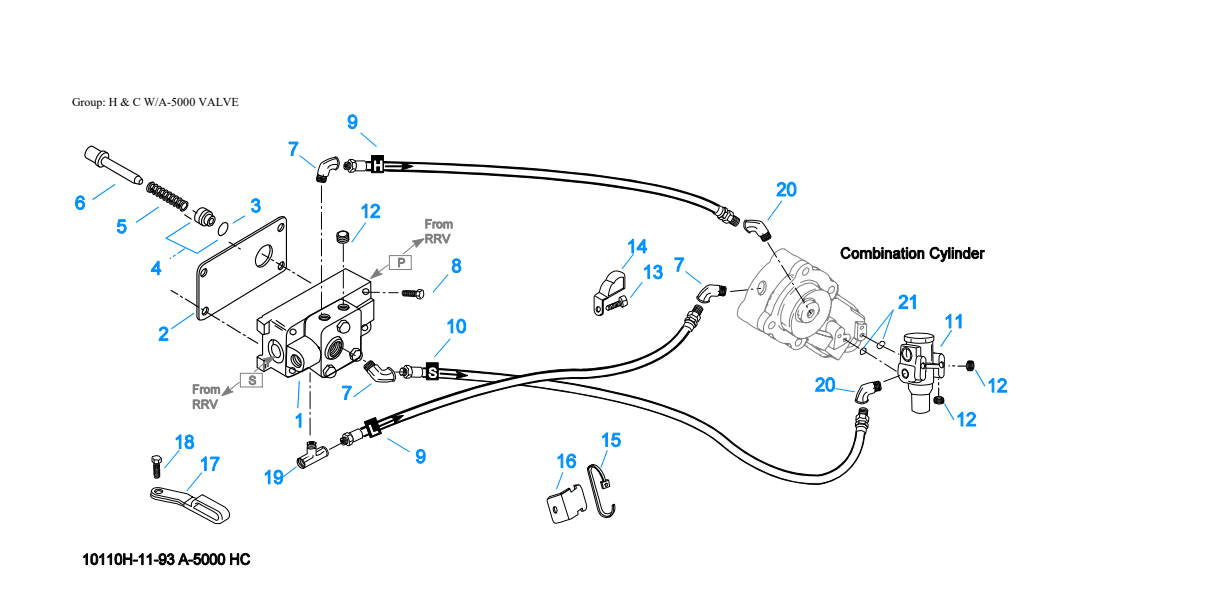

H & C W/A-5000 Valve
Item 4Item 1Item 17Item 12Item 11Item 1Item 9Item 12Item 10Item 7Item 12Item 15Item 20Item 9Item 5Item 7Item 6Item 14Item 20Item 7Item 3Item 18Item 2Item 16Item 8Item 21Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55528 | Hose Assy | 1 | 36" | $22.77 | Add to Cart |
| 11 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 21086 | Branch Tee | 1 | 1/8" | $13.10 | Add to Cart |
| 20 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 21 | 15114 | O-ring | 2 | $1.59 | Add to Cart |

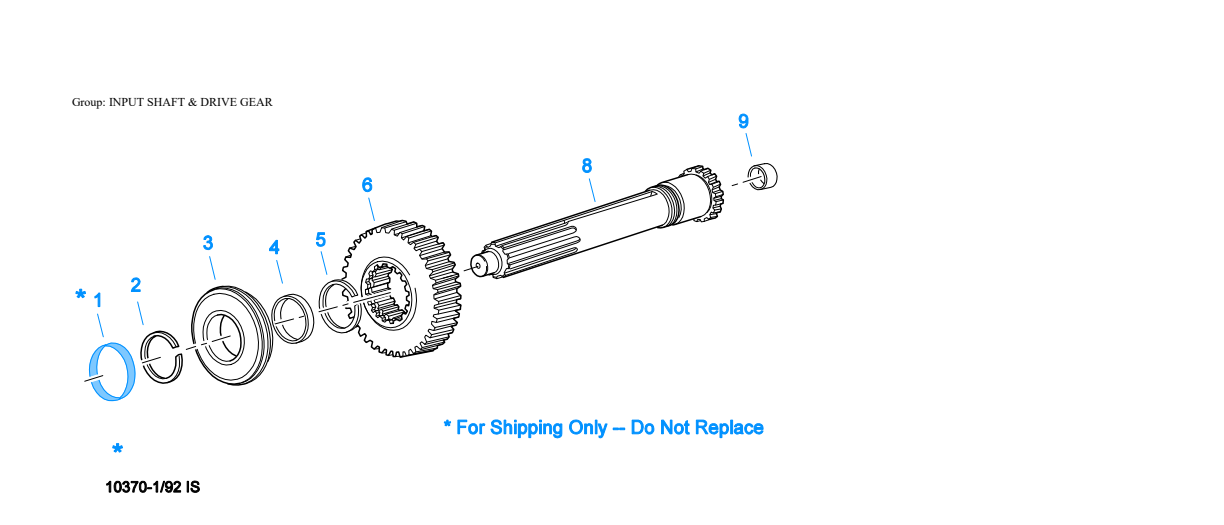

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 4301417 | Bearing | 1 | Replaces 81504. | $64.75 | Superseded by 4308451Add to Cart |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 4305659 | Main Drive Gear | 1 | Replaces 22030, 4302086, 22028. | $154.92 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 23566. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |

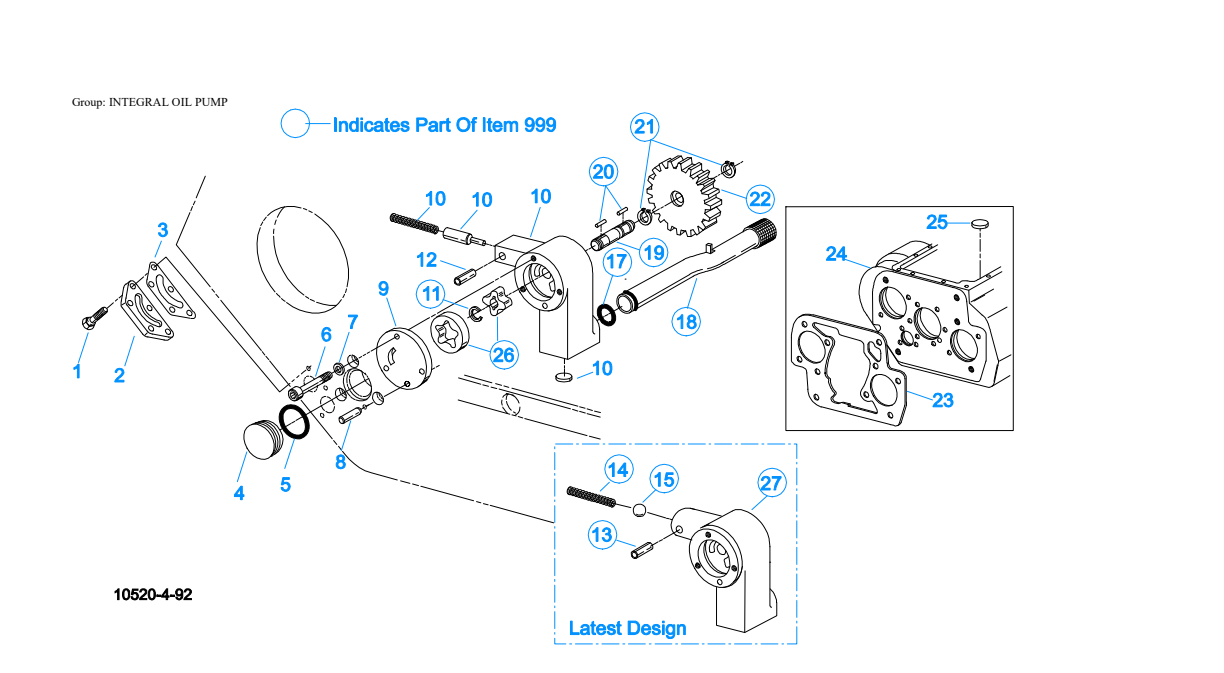

Integral Oil Pump
Item 9Item 4Item 7Item 8Item 26Item 18Item 2Item 21Item 6Item 3Item 2Item 5Item 2Item 22Item 1Item 10Item 23Item 10Item 20Item 10Item 13Item 7Item 10Item 12Item 11Item 19Item 17Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | Roll Pin | 1 | Call for availability | ||
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $367.14 | Add to Cart | |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-2497 | Case Assy | 1 | Replaces 4303361. | $1,827.75 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529. | $367.14 | Add to Cart |

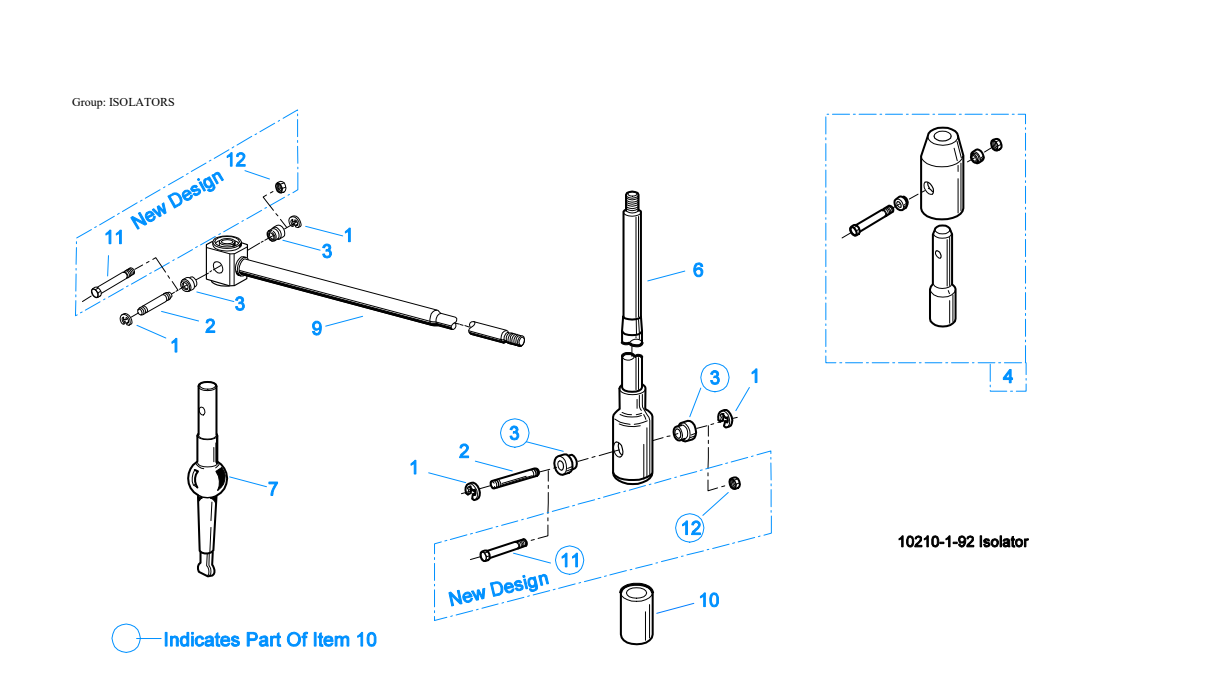

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1457 | O-ring Kit | 1 | FOR INSERT VALVE | $5.84 | Add to Cart | |
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2054 | O-ring Kit | 1 | $21.62 | Add to Cart | ||
| K-2061 | Gasket Kit | 1 | $70.29 | Add to Cart | ||
| K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2402 | Cover & Screw Kit | 1 | Replaces 4300751. | $13.53 | Add to Cart | |
| K-2427 | Piston Kit | 1 | Replaces 21337, 4301320. | $21.95 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart | |
| K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart | |
| K-2934 | Countershaft Repl Kit | 1 | Replaces 19549. | $357.67 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart | |
| K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart | |
| K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3233 | Basic Rebuild Kit | 1 | $671.68 | Add to Cart | ||
| K-3259 | Small Parts Kit | 1 | $119.53 | Add to Cart | ||
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3500 | Countershaft Repl Kit | 1 | Replaces A-6843. | $434.16 | Add to Cart | |
| K-4092 | Basic Overhaul Kit | 1 | Replaces K-3234. | $923.92 | Add to Cart | |
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1445 | Shift Bar Hsg-rto | 1 | Replaces 20215, 21135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart | |
| S-1446 | Shift Bar Hsg-rtof | 1 | Replaces 20217, 21136. HOUSING ONLY (XF) | $999.67 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1527 | Shift Bar Hsg Assy- Rto | 1 | Replaces 20215, 21135, 4302452. COMPLETE (X) | $1,530.41 | Add to Cart | |
| S-1528 | Shift Bar Hsg Assy- Rtof | 1 | Replaces 20217, 21136. COMPLETE (XF) | $1,372.01 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 23566. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2497 | Case Assy | 1 | Replaces 4303361. | $1,827.75 | Add to Cart | |
| S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart | |
| S-2502 | Rear Brg Cover Assy | 1 | Replaces 4303604, 4305827. MECHANICAL - 4:00 OPENING | $214.47 | Add to Cart | |
| S-2503 | Speedo Spacer Assy | 1 | Replaces 4302590. MECHANICAL | $163.12 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2581 | Roadranger Valve Assy | 1 | RTO-W/SHIFT PATTERN | $106.00 | Add to Cart | |
| S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart | |
| S-2712 | Range Section Assy | 1 | $3,986.00 | Add to Cart | ||
| S-2712R | Reman Range Section Assy | 1 | $3,352.35 | Add to Cart | ||
| S-2809 | Rear Bearing Cover Assy | 1 | Replaces 4302332, 4303872, 4304652, 4305830. PUSH-IN/THREAD-IN MAGNETIC PICK-UP | $218.01 | Add to Cart | |
| S-2859 | Rear Brg Cover Assy | 1 | Replaces 4302732, 4305826. MECHANICAL - 6:00 OPENING | $185.76 | Add to Cart |

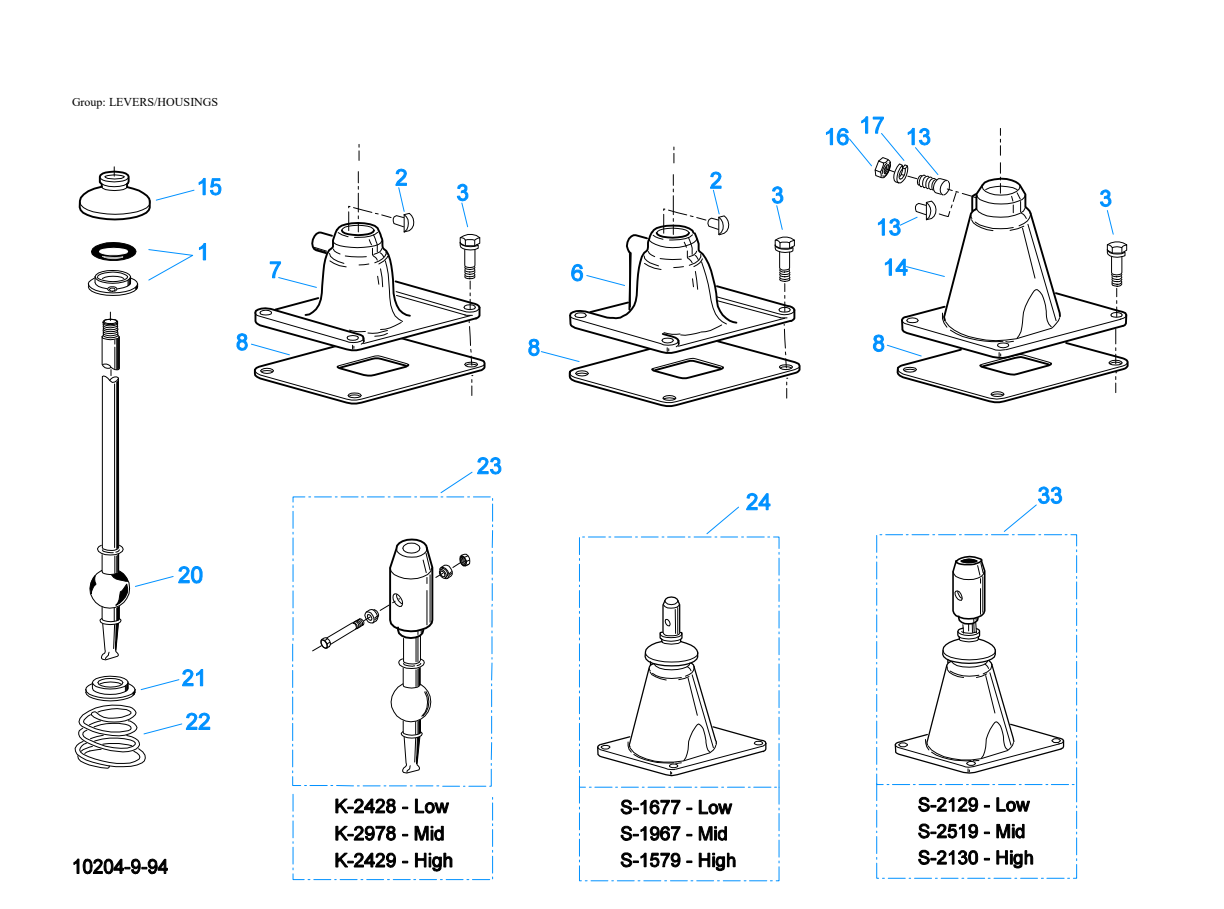

Levers/Housings
Item 17Item 14Item 7Item 24Item 8Item 15Item 8Item 16Item 13Item 8Item 6Item 3Item 2Item 1Item 2Item 33Item 23Item 3Item 3Item 21Item 22Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-1036M | Capscrew | 4 | Replaces X-8-1005M. M10 X 1.5 X 38MM | $2.27 | Add to Cart |
| 6 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $226.05 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |
Mainshaft & Synchro(Aux)
Item 1Item 2Item 6Item 9Item 4Item 3Item 8Item 16Item 10Item 19Item 11Item 5Item 15Item 10Item 14Item 13Item 7Item 12Item 12Item 20Item 17Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 21365 | Nut | 1 | $5.90 | Add to Cart | |
| 6 | 17332 | Dowel Pin | 1 | $3.11 | Add to Cart | |
| 7 | 21347 | Washer | 1 | $16.95 | Add to Cart | |
| 8 | 21350 | Washer | 1 | $32.29 | Add to Cart | |
| 9 | 21319 | Reduction Gear | 1 | $314.41 | Add to Cart | |
| 10 | 21352 | Bushing | 2 | $5.70 | Add to Cart | |
| 11 | A-5156 | Mainshaft Assy | 1 | Replaces 21351. | $274.21 | Add to Cart |
| 12 | 21652 | Pin | 2 | $2.11 | Add to Cart | |
| 13 | 21360 | Sliding Clutch | 1 | $98.22 | Add to Cart | |
| 14 | 4303359 | Mainshaft | 1 | $203.53 | Add to Cart | |
| 15 | 21354 | Washer | 1 | $42.64 | Add to Cart | |
| 16 | 21361 | Deep Reduction Gear | 1 | $337.77 | Add to Cart | |
| 17 | 21358 | Washer | 1 | $33.50 | Add to Cart | |
| 19 | K-4122 | Hex Flange Crimped Nut Kit | 1 | Replaces 4302321, 4306520. | $34.01 | Add to Cart |
| 20 | 5556503-BOX | Bearing | 1 | Replaces 5556503. | $165.74 | Add to Cart |
Mainshaft Assy
Item 7Item 7Item 10Item 1Item 11Item 5Item 2Item 12Item 6Item 9Item 8Item 9Item 14Item 14Item 14Item 3Item 13Item 4Item 15Item 14Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. USED IN OLD DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $6.30 | Add to Cart |
| 3 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. USED IN LATEST DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $5.90 | Add to Cart |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | $93.74 | Add to Cart | |
| 6 | 14749 | Spacer | 1 | USED IN OLD DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $6.93 | Add to Cart |
| 6 | 4302047 | Spacer | 1 | USED IN LATEST DESIGN TRANSMISSION - SEE IMPORTANT NOTE ON ILLUSTRATION | $15.38 | Add to Cart |
| 7 | 4306648 | Sliding Clutch | 2 | Replaces 16118. | $42.03 | Add to Cart |
| 8 | 4303409 | Lo Gear-mainshaft | 1 | Replaces 4303407. | $159.18 | Add to Cart |
| 9 | 4303603 | Washer | 2 | $14.45 | Add to Cart | |
| 10 | 4303477 | 1ST Gear-mainshaft | 1 | Replaces 4303414. | $180.99 | Add to Cart |
| 11 | 4302384 | 2ND Gear-mainshaft | 1 | Replaces 4302385. | $195.59 | Add to Cart |
| 12 | 4305051 | Od Gear-mainshaft | 1 | Replaces 4302383. | $163.98 | Add to Cart |
| 13 | 4300830 | Washer .244-BLUE | 1 | $9.36 | Add to Cart | |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4306647 | Sliding Clutch | 1 | Replaces 22026, 4304317. | $93.65 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20466 | Shift Diagram Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 2 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |

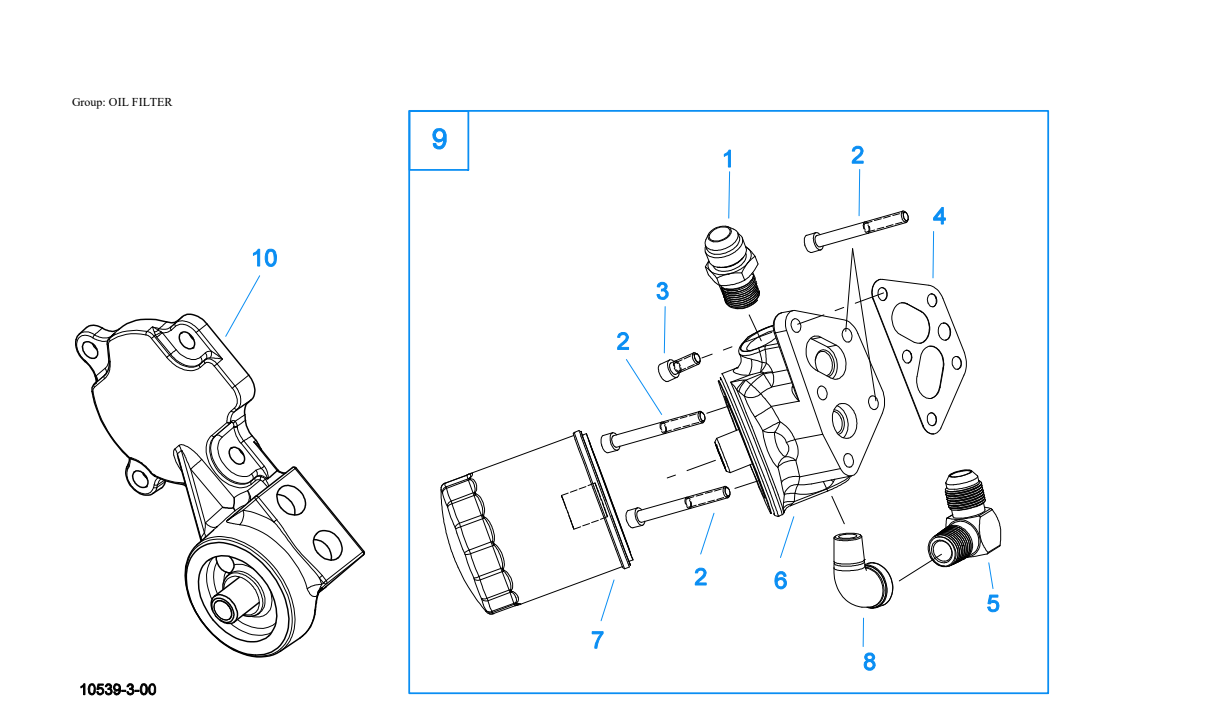

Oil Filter
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19419 | Connector | 1 | $9.93 | Add to Cart | |
| 2 | X-8-453 | Screw | 4 | $2.49 | Add to Cart | |
| 3 | X-8-452 | Screw | 1 | $2.75 | Add to Cart | |
| 4 | 4304820 | Gasket | 1 | $9.09 | Add to Cart | |
| 5 | 4301123 | Elbow | 1 | $18.13 | Add to Cart | |
| 6 | K-3441 | Oil Filter/adapter Kit | 1 | Replaces A-7174. | $256.71 | Add to Cart |
| 7 | 4304827 | Oil Filter Element | 1 | $28.15 | Add to Cart | |
| 8 | 17007 | Elbow | 1 | $12.99 | Add to Cart | |
| 9 | K-3441 | Oil Filter/adapter Kit | 1 | $256.71 | Add to Cart | |
| 10 | A-7300 | Aux Countershaft Cover Assy | 1 | $140.84 | Add to Cart |
Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 7 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 8 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 9 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |
Roadranger Valve
Item 4Item 10Item 2Item 10Item 2Item 7Item 7Item 2Item 2Item 1Item 2Item 2Item 7Item 3Item 6Item 2Item 11Item 10Item 5Item 2Item 12Item 5Item 14Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586115 | Shift Diagram Medallion | 1 | RTO-W/SHIFT PATTERN | $28.59 | Add to Cart |
| 2 | K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart |
| 2 | K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart |
| 3 | 20496 | Lever | 1 | $18.41 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6915 | Roadranger Valve Assy | 1 | Replaces A-5015. STANDARD-W/LOGO | $88.11 | Add to Cart |
| 999 | A-7315 | Roadranger Valve Assy | 1 | Replaces A-5315. (LEFT OF DRIVER)-W/LOGO | $156.40 | Add to Cart |
| 999 | S-2581 | Roadranger Valve Assy | 1 | RTO-W/SHIFT PATTERN | $106.00 | Add to Cart |

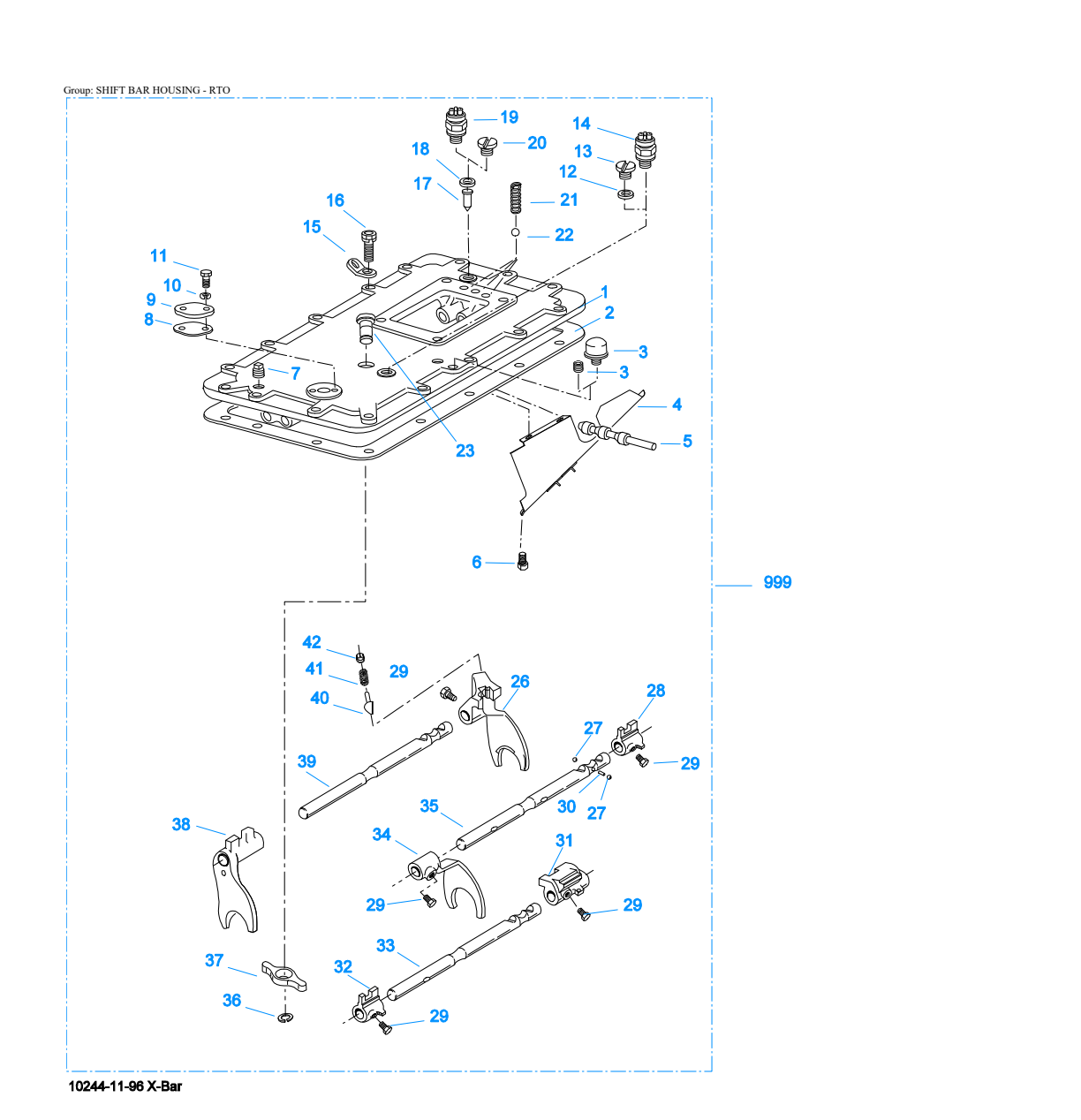

Shift Bar Housing - Rto
Item 1Item 7Item 17Item 6Item 12Item 14Item 15Item 10Item 22Item 29Item 4Item 34Item 39Item 35Item 36Item 16Item 28Item 5Item 23Item 40Item 29Item 18Item 38Item 3Item 30Item 19Item 42Item 29Item 41Item 11Item 33Item 8Item 27Item 27Item 21Item 32Item 31Item 29Item 37Item 20Item 29Item 26Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1445 | Shift Bar Hsg - Rto | 1 | Replaces 20215, 21135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | K-3104 | Actuator Pin Kit | 1 | Replaces 4303287. | $6.06 | Add to Cart |
| 26 | 16131 | Shift Yoke | 1 | REVERSE/LO | $203.23 | Add to Cart |
| 27 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 28 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 29 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 30 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 31 | 19063 | Shift Block | 1 | 3RD/OD | $44.48 | Add to Cart |
| 32 | 20120 | Shift Block | 1 | Replaces 18924. 3RD/OD | $52.32 | Add to Cart |
| 33 | 18928 | Yoke Bar | 1 | Replaces 4302760. 3RD/OD | $84.83 | Add to Cart |
| 34 | 18922 | Shift Yoke | 1 | 1ST/2ND | $81.23 | Add to Cart |
| 35 | 18927 | Yoke Bar | 1 | 1ST/2ND | $90.07 | Add to Cart |
| 36 | 4302070 | Snap Ring | 1 | $256.36 | Add to Cart | |
| 37 | 4303225 | Actuator | 1 | $12.87 | Add to Cart | |
| 38 | 4305575 | Shift Yoke | 1 | Replaces 20450. 3RD/OD | $142.49 | Add to Cart |
| 39 | 18926 | Yoke Bar | 1 | REVERSE/LO | $83.31 | Add to Cart |
| 40 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 41 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 42 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1527 | Shift Bar Hsg Assy - Rto | 1 | Replaces 20215, 21135, 4302452. COMPLETE | $1,530.41 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTO-16908LL, with every part in the manual matched to our live inventory. We stock 413 of the 423 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Rebuilding this unit? Every part below is priced and ready to order. If the RTO-16908LL is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear Case (Aux) Case (Front) Combination Cylinder Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/A-5000 Valve Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Cooler Oil Filter Reverse Idler Roadranger Valve Shift Bar Housing - Rto Slave Valve - A-
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTO-16908LL transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTO-16908LL |
| Transmission type | 8-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTO-16908LL
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
RTO-16908LL service manual
The Eaton Fuller RTO-16908LL service manual is the factory shop manual for this transmission: troubleshooting, disassembly and reassembly procedures, torque specifications and lubrication. It is free to view or download: RTO-16908LL service manual (PDF).
Use the illustrated parts list above to identify the part number you need, then order it on this page. Every part listed is priced and in stock at Pro Gear and Transmission, and complete RTO-16908LL units ship the same day.
