Meritor Out-of-Production Heavy-Duty Axle Parts Manual

View the official Meritor Out-of-Production Heavy-Duty Axle parts manual (PDF)Download PDFService Manual MM-5 (Single-Reduction Carriers)Service Manual MM-5B (Tandem Forward-Rear Units)

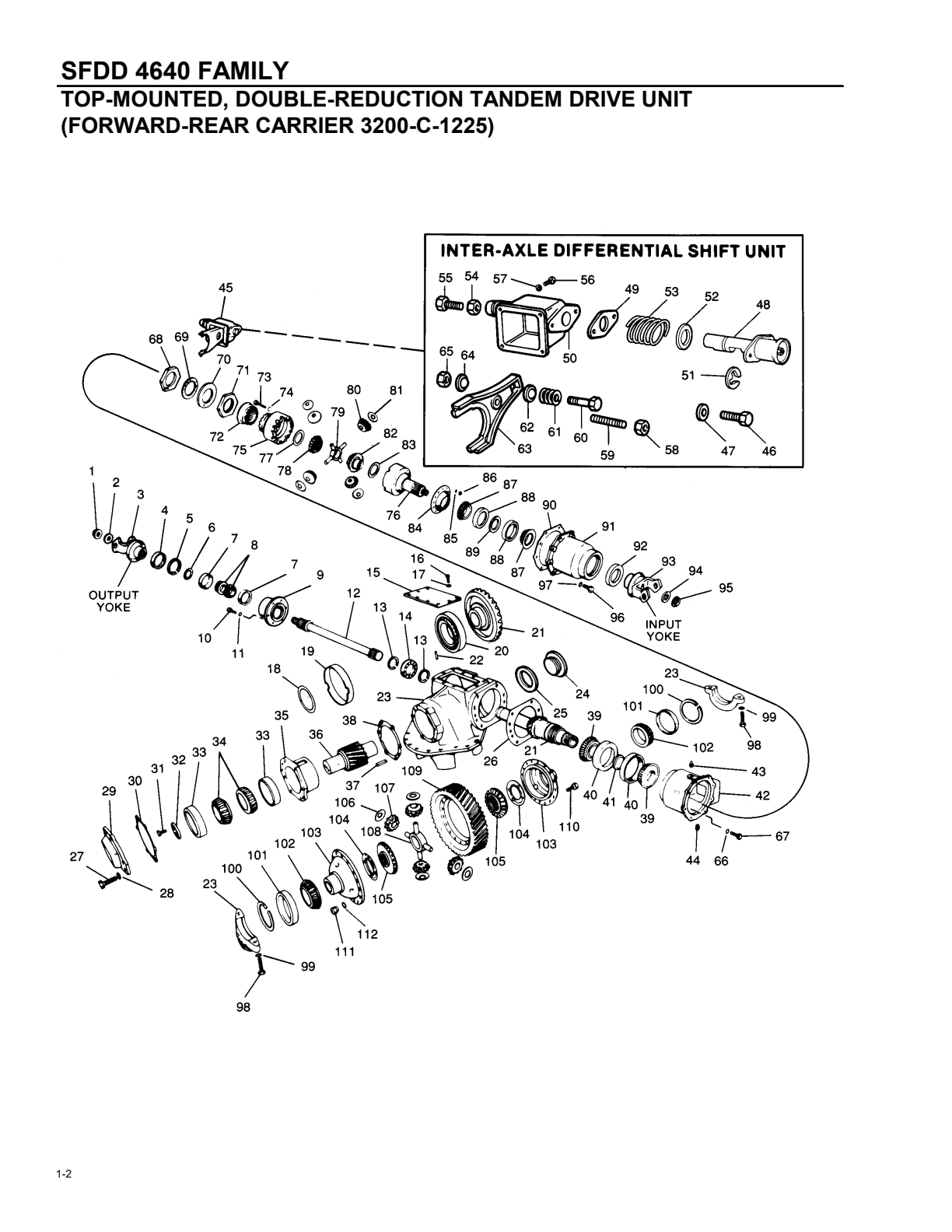

Sfdd 4640 Family

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
	A163200C1225	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		5 .76 6 .58 7 .06 7 .89 8 .07; , , , , ,; 8 .89 9 .02 10 .10 10 .16 11 .56; , , , ,	—	Call for availability
1	1227J946	Nut-thru Shaft	1		$21.32	Add to Cart
2	1229T1736	Washer-thru Shaft Nut	1		$21.60	Add to Cart
3		Yoke	1	See SECTION 5	—	Call for availability
4	A1805A261	Oil Seal-thru Shaft (output)	1		$46.88	Add to Cart
5	KIT1536	Snap Ring-bearing Thru Shaft As	As req.	see SECTION 6	$980.80	Add to Cart
6	1229C2057	Washer-thru Shaft Brg Thrust	1		—	Call for availability
8	A3238M143	Cage & Bearing Assy.	1		—	Call for availability
9A	2297A7021	Gasket-bearing Cage	1		—	Call for availability
10	S26122	Capscrew-bearing Cage	6		$1.74	Add to Cart
11	1229K1597	Washer-brg Cage Capscrew	6		$135.00	Add to Cart
12	3280F7260	Shaft-thru	1		—	No longer available — call for replacement
13	1854Z208	Snap Ring-inner & Outer Bearing	2		$950.60	Add to Cart
14	1228H190	Bearing-rear Radial	1		—	Call for availability
15	3855J62	Carrier Top Inspection Cover	1		—	Call for availability
15A	2808T722	Gasket-cover	1	Not shown	—	No longer available — call for replacement
16	10X1254	Capscrew-inspection Cover	1		—	Call for availability
16	S2662	Capscrew-inspection Cover	9	Contains thread locking adhesive	$102.00	Add to Cart
17	1229B1666	Washer-cover Capscrew	10		$427.40	Add to Cart
18	1829B652	Spacer-drive Gear Radial Brg	1	10 .16 & 11 .56 ratios only	—	Call for availability
19	1821N14	Sleeve-drive Bearing	1		—	Call for availability
20	1228W179	Bearing-drive Gear Radial	1		—	No longer available — call for replacement
20		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
22	1846Q225	Dowel-bearing	1		$17.90	Add to Cart
22	A23200C1225	Diff. Carrier & Cap Assy.	1		—	Call for availability
24	1850W23	Cover-cross Shaft Insp Hole	1		—	Call for availability
25	2808G189	Gasket-cover Plug	1	No Longer Available	—	Call for availability
26	2803L1442	Shim-inter-axle .003	3		—	No longer available — call for replacement
26	2803M1443	Shim-inter-axle .003 Diff. Forward .005	4		—	No longer available — call for replacement
26	2803N1444	Shim-inter-axle .003 Bearing .010	3		$423.50	Add to Cart
27	S29162	Capscrew-spur Pinion Cage Cover	6		$99.40	Add to Cart
28	1229Y1507	Washer-spur Pinion Cage Cover	6		$68.50	Add to Cart
29	3266Y155	Cover-cross Shaft Brg Cage	1		—	Call for availability
30	2803D1486	Shim-bearing .003	2		$169.40	Add to Cart
30	2803E1487	Shim-bearing .003 (pre-load) .005	8		$388.00	Add to Cart
30	2803F1488	Shim-bearing .003 .030	2		$114.30	Superseded by 2203E7857Add to Cart
31	S29102	Capscrew-shaft Brg Retainer	2		$58.00	Add to Cart
32	1829T618	Retainer-cross Shaft Bearing	1		—	No longer available — call for replacement
34	A3826T228	Cage-cross Shaft Bearing	1	No Longer Available	—	Call for availability
34		Pinion-cross Shaft & Helical Separately.	1	See SECTION 4; 1 -3	—	Call for availability
37	16X79	Key-square	1		$112.48	Add to Cart
38	2803D1486	Shim-gear .003	2		$169.40	Add to Cart
38	2803E1487	Shim-gear .003 Backlash .005	8		$388.00	Add to Cart
38	2803F1488	Shim-gear .003 .030	2		$114.30	Superseded by 2203E7857Add to Cart
39	42350	Cone-drive Pinion Inner & Outer Brg	2		—	Call for availability
40	42584	Cup-drive Pinion Inner & Outer Brg	2		$139.86	Add to Cart
41	KIT520	Spacer-drive Pinion As	As req.	See SECTION 6	—	No longer available — call for replacement
41	A13280T4570	Case-inter-axle Diff. Assy.	1		—	Call for availability
42A	2297N1938	Tube-inter-axle 4 .50"	1	Not shown	—	Call for availability
42A	2297P1940	Tube-inter-axle 4 .50" Diff. Hsg 4 .20"	1		$194.68	Add to Cart
43	1850T150	Plug-inter-axle Diff. Oil Drain	1		$66.20	Add to Cart
44	P112	Plug-inter-axle Diff. Oil Fill	1		$77.80	Add to Cart
44	A13280D2526	Housing-shift Assy. (complete)	1	No Longer Available	—	Call for availability
46	S2682	Bolt-shift Cover	2		$159.00	Add to Cart
47	1229B1666	Washer-shift Cover	2		$427.40	Add to Cart
47	A3261C289	Shift Assy. -air	1		$247.40	Add to Cart
49	2208M429	Gasket-shift Housing	1		$1.28	Add to Cart
50	3280D2526	Housing-shift	1	No Longer Available	—	Call for availability
51	1229W1245	Lock Ring-shift Spring	1		$198.00	Add to Cart
52	1229B1666	Washer-shift Spring	1		$427.40	Add to Cart
53	2258U411	Spring-shift	1		$211.00	Add to Cart
54	13X163	Nut-shift Shaft Bolt Jam	1		—	Call for availability
55	15X851	Bolt-shift Shaft Adj	1		—	No longer available — call for replacement
56	S2682	Capscrew-hsg To Carrier	4		$159.00	Add to Cart
57	1229K1597	Washer-hsg To Carrier	4		$135.00	Add to Cart
58	N161	Nut-adj Screw Jam	1		—	No longer available — call for replacement
59	26X142	Screw-adj	1		—	Call for availability
60	15X1330	Bolt-shift Fork	1		—	No longer available — call for replacement
61	2258R408	Spring-shift Fork	1		—	No longer available — call for replacement
62	1229M1599	Washer-shift Fork Anchor	1		—	Call for availability
63	A2297M871	Fork-shift Assy.	1	No Longer Available	—	Call for availability
64	1199V1712	Ball-shift Fork	1		$4,157.60	Add to Cart
65	NL161	Nut-bolt Fork	1		$122.00	Add to Cart
66	1229C1511	Washer-inter-axle Case Capscrew	8		$141.00	Add to Cart
67	S28142	Capscrew-inter- Short	5		$28.50	Add to Cart
67	S28162	Capscrew-inter- Short Axle Diff. Case Long	3		$61.80	Add to Cart
68	1227A547	Nut-pinion Brg Adj	1		$12.13	Add to Cart
69	1229V48	Retainer-pinion Brg Adj Nut	1		—	No longer available — call for replacement
70	1229A209	Lock-pinion Brg Jam Nut	1		$12.14	Add to Cart
71	1227F448	Nut-pinion Brg Jam	1		$88.88	Superseded by R000448Add to Cart
72	3280V2492	Collar-inter-axle Diff. Clutch	1		—	Call for availability
73	S28402	Bolt-inter-axle Diff. Case	12		—	Call for availability
73A	2297C7049	Thread Locking Liquid/diff. Case ( .34 Oz. Tube)	1	See NOTE following parts list.	$44.68	Add to Cart
73A	A13235V1374	Inter-axle Diff. Case & Nest Assy.	1	No Longer Available	—	Call for availability
74	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
74	A3235V1374	Inter-axle Diff. Case Assy.	1	No Longer Available	—	Call for availability
77	1229Y1611	Washer-i .a.d Side Gear Thrust	1		$329.70	Add to Cart
78	2234G319	Side Gear-inter-axle Diff. Rear Separately.	1		—	No longer available — call for replacement
79	3278R278	Spider-inter-axle Diff.	1		—	No longer available — call for replacement
80	2233W153	Pinion-inter-axle Diff.	4		$41.00	Add to Cart
81	1229R2878	Washer-inter-axle Diff. Pinion Thrust	4		—	No longer available — call for replacement
82	2234V724	Side Gear-inter-axle Diff. Front	1		—	No longer available — call for replacement
83	1229H2062	Washer-inter-axle Diff. Front Thrust	1		$62.60	Add to Cart
84	3280W2493	Oil Scoop-inter-axle Diff. (baffle)	1	No Longer Available	—	Call for availability
85	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
86	NL281	Nut-inter-axle Diff. Case	12		$76.00	Add to Cart
89	2203W7485	Spacer-bearing .273 As	As req.		—	Call for availability
89	2203X7486	Spacer-bearing .273 As .274	As req.		—	Call for availability
89	2203Y7487	Spacer-bearing .273 As .275	As req.		$42.11	Add to Cart
89	2203Z7488	Spacer-bearing .273 As .276	As req.		$42.54	Add to Cart
89	2203A7489	Spacer-bearing .273 As .277	As req.		$42.97	Add to Cart
89	2203B7490	Spacer-bearing .273 As .278	As req.		—	Call for availability
89	2203C7491	Spacer-bearing .273 As .279	As req.		—	Call for availability
89	2203E7493	Spacer-bearing .273 As .281	As req.		—	Call for availability
89	2203F7494	Spacer-bearing .273 As .282	As req.		—	Call for availability
89	2203G7495	Spacer-bearing .273 As .283	As req.		—	Call for availability
89	2203H7496	Spacer-bearing .273 As .284	As req.		—	Call for availability
89	2203J7498	Spacer-bearing .273 As .285	As req.		—	Call for availability
89	2203K7499	Spacer-bearing .273 As .286	As req.		—	Call for availability
89	2203L7500	Spacer-bearing .273 As .287	As req.		$46.51	Add to Cart
90	2297A7021	Gasket-inter-axle Diff. Housing	1		—	Call for availability
90	A3280T7248	Housing-inter-axle Diff. Assy.	1		—	Call for availability
92	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
93		Yoke-input	1	See SECTION 5	—	Call for availability
94	1229N1730	Washer-input Shaft	1		$52.70	Add to Cart
95	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
96	S27112	Capscrew-inter- Short	7		$185.00	Add to Cart
96	S27172	Capscrew-inter- Short Axle Housing Long	1	No Longer Available	—	Call for availability
97	1229E1513	Washer-inter-axle Hsg Capscrew	8		$174.00	Add to Cart
98	S214242	Capscrew-diff. Short	4		—	Call for availability
98	S214322	Capscrew-diff. Short Bearing Cap Long	4		—	Call for availability
99	1229T1554	Washer-diff. Brg Cap Capscrew	8		$236.00	Add to Cart
100	1244J1492	Ring-diff. Brg Adj .240 As	As req.		—	Call for availability
100	1244K1493	R.h & L .h .245	As req.		—	Call for availability
100	1244L1494	Ring-diff. Brg Adj .240 As .250	As req.		—	No longer available — call for replacement
100	1244M1495	Ring-diff. Brg Adj .240 As .255	As req.		—	No longer available — call for replacement
100	1244N1496	Ring-diff. Brg Adj .240 As .260	As req.		—	No longer available — call for replacement
100	1244P1498	Ring-diff. Brg Adj .240 As .265	As req.		$93.12	Add to Cart
102	A3235W1401	Case-diff. Assy	1		$3,065.21	Add to Cart
102	A13235W1401	Main Diff. Case & Nest Assy. Separately.	1	1 -5	$7,936.32	Add to Cart
	1229C991	Side Gear Thrust	2		—	Call for availability
	2234V828	Gear-diff. R.h & L .h	2	Available as KIT 2002; ,	$2,958.76	Add to Cart
	1829Q95	Pinion Thrust	4	see SECTION 6	—	Call for availability
	2233U47		4		—	No longer available — call for replacement
	3278P276	Diff.	1		—	Call for availability
		Spur	1	See SECTION 4	—	Call for availability
	2297C7049	Locking Liquid/diff. Case	1	.34 oz. tube See NOTE below.	$44.68	Add to Cart
	15X1458	Case	16	Available as KIT 1384	—	No longer available — call for replacement
	NL191	Case	16	See SECTION 6	—	Call for availability
	1229Y2443	Case Bolt Nospin Units Locking Liquid/differential Differential Case Halves In Meritor Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Bolts Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	16	should be used; axles; should be relatively oil free; holes; threads Assemble the; of Dri -Loc; torque; part no 2297-C-7049; without; case holes only.; Apply; torque; procedure	$352.60	Add to Cart
	A123200C1225	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		5 .76 6 .58 7 .06 8 .07 8 .89; , , , , ,; 9 .02 10 .10 10 .16 11 .56; , , ,	—	Call for availability
	S2682	Shaft Cover	6		—	Call for availability
	1229K1597	Shaft Cover	6		—	Call for availability
	3855K323	Shaft Rear Brg	1		—	Call for availability
	1844K375	Shaft Rear Brg	1	No Longer Available	—	Call for availability
	1854Z208	Ring-thru Shaft Rear Brg	2		$950.60	Add to Cart
	1228H190	Shaft Rear	1		—	Call for availability
	3855J62	Cover	1		—	Call for availability
	2297A7021	Cover (silastic)	1		—	Call for availability
	10X1254		1		—	Call for availability
	S2662		9	Contains thread locking adhesive	$102.00	Add to Cart
	1229B1666	Cover Capscrew	10		—	Call for availability
	A23200C1225	Carrier & Cap Assy.	1		—	Call for availability
	2808G189		1	No Longer Available	—	Call for availability
		Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
	3280G7313	Shaft	1		$861.23	Add to Cart
	42350	Pinion Inner Bearing	1		—	Call for availability
	42584	Pinion Inner Bearing	1		$139.86	Add to Cart
	KIT1560	Bearing As	As req.	see SECTION 6	—	Call for availability
	A3226Q147	Pinion Brg Assy.	1		—	Call for availability
	1229C1511	Pinion Brg Cage	8		—	Call for availability
	S28132	Pinion Brg Cage Pinion Outer Bearing Pinion Outer Bearing	8		—	Call for availability
	1229T2698	Pinion Outer Brg	1		—	No longer available — call for replacement
	A11805S149	Assy.	1		$102.79	Add to Cart
			1	See SECTION 5	—	Call for availability
	1229T1736	Nut	1		—	Call for availability
	1227J946		1		$21.32	Add to Cart
	S29162		6		$99.40	Add to Cart
	1229Y1507	Capscrew	6		—	Call for availability
	3266Y155	Shaft Brg Cage R.h	1		—	Call for availability
	2803L1442	Cage .003	3		—	No longer available — call for replacement
	2803M1443	.005	4		—	No longer available — call for replacement
	2803N1444	.010	3		$423.50	Add to Cart
	S29102		2		$58.00	Add to Cart
	1829T618	& Outer Cross Shaft Brg & Outer Cross Shaft Brg	1		—	No longer available — call for replacement
	A3826T228	Cage-spur Pinion & Cup Assy.	1	No Longer Available	—	Call for availability
		Shaft & Spur Pinion	1	See SECTION 4	—	Call for availability
	16X79	Separately.	1		—	Call for availability
	2803D1486	.003	2		$169.40	Add to Cart
	2803E1487	.005	8		$388.00	Add to Cart
	2803F1488	.030	2		$114.30	Superseded by 2203E7857Add to Cart
	1829B652	Gear Bearing	1	10 .16 & 11 .56 ratios only	—	Call for availability
	1821N14	Bearing	1		—	Call for availability
	1228W179	Gear Radial	1		—	No longer available — call for replacement
	1846Q225		1		$17.90	Add to Cart
	1850W23	Hole Cover	1		—	Call for availability
	S214242	Short	2		—	Call for availability
	S214322	Cap Long	2		—	Call for availability
	1229T1554	Brg Cap	4		—	Call for availability
	1244J1492	Brg Adj .240 As	As req.		—	Call for availability
	1244K1493	.h & R.h .245			—	Call for availability
	1244L1494	.250			—	No longer available — call for replacement
	1244M1495	.255			—	No longer available — call for replacement
	1244N1496	.260			—	No longer available — call for replacement
	1244P1498	.265 Bearing L .h & R.h Bearing L .h & R.h			$93.12	Add to Cart
	NL191	Case Bolt	16		—	Call for availability
	1229Y2443	Brg Capscrew	16		—	Call for availability
	2234V828	Side (front & Rear)	2		$2,958.76	Add to Cart
	1829Q95	Pinion Gear Thrust	4		—	Call for availability
	2233U47	Pinion	4		—	No longer available — call for replacement
	3278P276		1		—	Call for availability
	A3235W1401	Assy.	1		$3,065.21	Add to Cart
	A13235W1401	Case & Nest Assy.	1		$7,936.32	Add to Cart
	1229Y2443	Case Bolt Separately. Nospin Units Thread Locking Liquid/differential Assembling Differential Case Halves In Procedure Is As Follows: Excess Oil And Residue From The Threaded New Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required The Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	16	should be used; Meritor axles; should be relatively oil free; holes; the threads Assemble the; of Dri; torque; Meritor part no 2297-C-7049; bolts without; case holes only.; Apply; torque; procedure; 1 -9	$352.60	Add to Cart

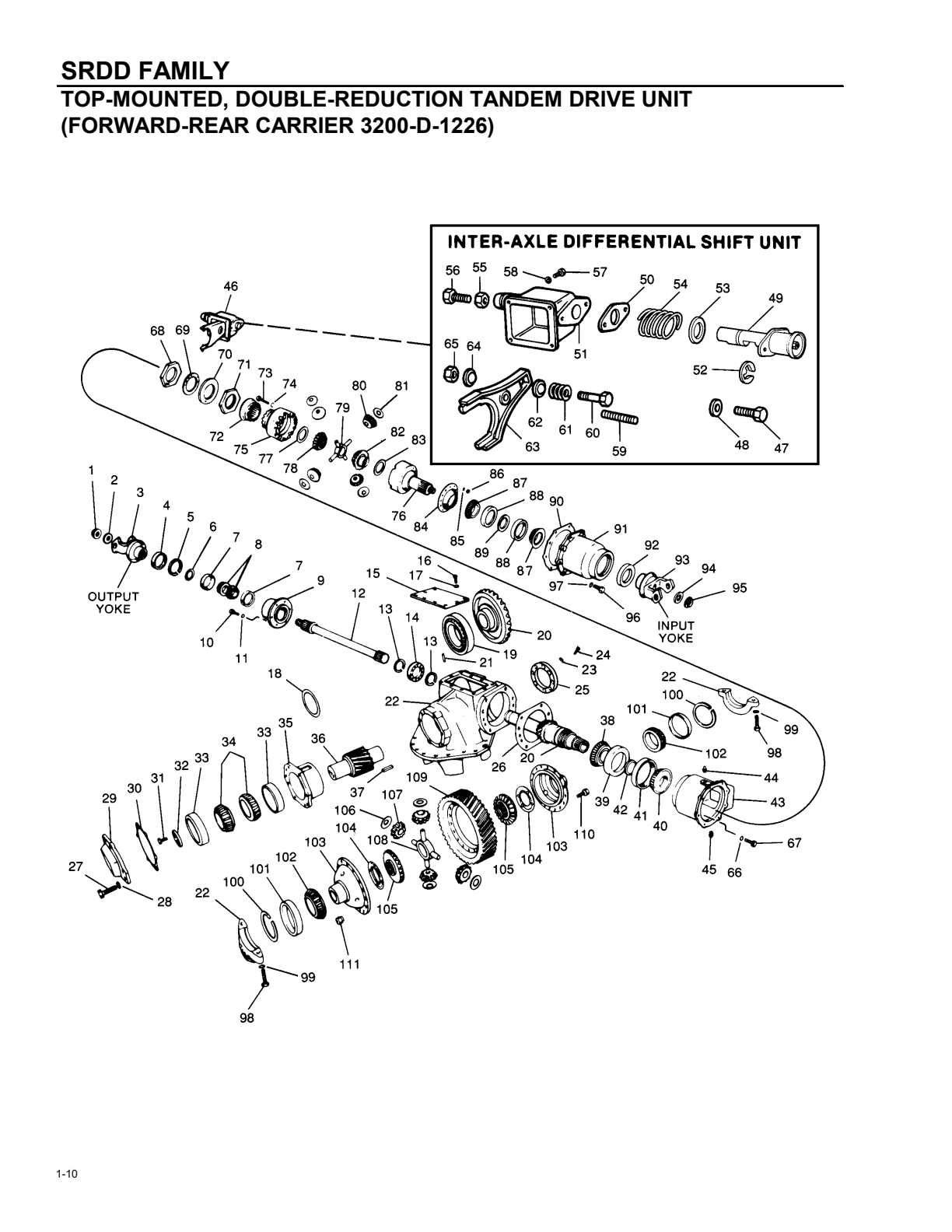

Srdd Family

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
	A303200D1226	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		4 .92 5 .21 5 .45 5 .78 5 .81; , , , , ,; 6 .44 6 .80 7 .49 7 .54 8 .30; , , , , ,; 8 .31 9 .20 9 .26 10 .26; , , ,	—	Call for availability
1	1227J946	Nut-thru Shaft	1		$21.32	Add to Cart
2	1229T1736	Washer-thru Shaft Nut	1		$21.60	Add to Cart
3		Yoke	1	See SECTION 5	—	Call for availability
4	A1805A261	Oil Seal-thru Shaft (output)	1		$46.88	Add to Cart
5	KIT1536	Snap Ring-bearing Thru Shaft	As req.	see SECTION 6	$980.80	Add to Cart
6	1229C2057	Washer-thru Shaft Brg Thrust	1		—	Call for availability
8	A3238M143	Cage & Bearing Assy.	1		—	Call for availability
9A	2297A7021	Gasket-bearing Cage	1		—	Call for availability
10	S26122	Capscrew-bearing Cage	6		$1.74	Add to Cart
11	1229K1597	Washer-brg Cage Capscrew	6		$135.00	Add to Cart
12	3280J7264	Shaft-thru	1		—	Call for availability
13	1854Z208	Snap Ring-inner & Outer Bearing	2		$950.60	Add to Cart
14	1228H190	Bearing-rear Radial	1		—	Call for availability
15	3866K557	Carrier Top Inspection Cover	1		—	Call for availability
15A	2297A7021	Gasket-cover	1		—	Call for availability
16	S2662	Capscrew-inspection Cover	10		$102.00	Add to Cart
17	1229B1666	Washer-cover Capscrew	10		$427.40	Add to Cart
18	1844R356	Spacer-drive Gear Radial Brg	1		—	No longer available — call for replacement
19	A11228R486	Bearing Assy.	1		$259.96	Add to Cart
19		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
21	1246J556	Dowel-bearing	1		—	No longer available — call for replacement
21	A23200D1226	Diff. Carrier & Cap Assy.	1		—	Call for availability
23	1229B1666	Washer-cover	4		$427.40	Add to Cart
24	S2662	Capscrew-cover	4		$102.00	Add to Cart
25	3866D550	Cover-cross Shaft	1		—	Call for availability
25A	2297A7021	Gasket-cover	1		—	Call for availability
26	2803L1442	Shim-forward .003	3		—	No longer available — call for replacement
26	2803M1443	Shim-forward .003 Bearing .005	4		—	No longer available — call for replacement
26	2803N1444	Shim-forward .003 .010	3		$423.50	Add to Cart
27		Capscrew-spur Pinion Cage Cover	6	No longer available	—	Call for availability
28	1229C1511	Washer-spur Pinion Cage Cover	6		$141.00	Add to Cart
29	3266X154	Cover-cage R.h	1	No Longer Available	—	Call for availability
30	2803H1438	Shim-bearing .003	7		—	No longer available — call for replacement
30	2803J1440	Shim-bearing .003 (pre-load) .005	8		—	No longer available — call for replacement
30	2803L2014	Shim-bearing .003 .010	6		—	No longer available — call for replacement
31	S2782	Capscrew-shaft Brg Retainer	2		—	Call for availability
32	1829S149	Retainer-bearing (washer)	1		—	Call for availability
33	66462	Cup-inner & Outer Brg	2		—	Call for availability
34	66225	Cone-inner & Outer Brg	2		—	Call for availability
34	A3826N222	Cage-cross Shaft Bearing Assy. Separately.	1	1 -11	—	Call for availability
		Pinion-cross Shaft & Helical	1	See SECTION 4	—	Call for availability
37	16X79	Key-square	1		$112.48	Add to Cart
39	42584	Cup-inner Bearing Front	1		$139.86	Add to Cart
41	42350	Cup-drive Pinion Bearing	1		—	Call for availability
42	KIT1560	Spacer-drive Pinion As	As req.	see SECTION 6	—	Call for availability
42	A3280P4462	Case-adapter Assy.	1		—	Call for availability
43A	2297N1938	Tube-inter-axle 4 .50"	1	Not shown	—	Call for availability
43A	2297P1940	Tube-inter-axle 4 .50" Diff. Hsg 4 .20"	1		$194.68	Add to Cart
44	1850T150	Plug-oil Drain	1		$66.20	Add to Cart
45	P112	Plug-oil Filler	1		$77.80	Add to Cart
45	A13280D2526	Housing-shift Assy. (complete)	1	No Longer Available	—	Call for availability
45	A3280D2526	Housing-shift Assy.	1	No Longer Available	—	Call for availability
47	S2682	Stud-shift Housing	2		—	Call for availability
48	1229B1666	Washer-shift Housing	2		$427.40	Add to Cart
48	A3261C289	Shift Assy. -air	1		$247.40	Add to Cart
50	2208M429	Gasket-shift Housing	1		$1.28	Add to Cart
51	3280D2526	Housing-shift	1	No Longer Available	—	Call for availability
52	1229W1245	Lock Ring-shift Spring	1		$198.00	Add to Cart
53	1229R798	Washer-shift Spring	1		—	No longer available — call for replacement
54	2258U411	Spring-shift Shaft Ret.	1		$211.00	Add to Cart
55	13X163	Nut-shift Shaft Bolt Jam	1		—	Call for availability
56	15X851	Bolt-shift Shaft Adj	1		—	No longer available — call for replacement
57	S2682	Capscrew-hsg To Carrier	4		$159.00	Add to Cart
58	1229K1597	Washer-hsg To Carrier	4		$135.00	Add to Cart
59	26X142	Screw-collar Set	1		—	Call for availability
59	LW1612	Lockwire-shift Collar	1	Not shown	$1.59	Add to Cart
60	15X1330	Bolt-shift Fork	1		—	No longer available — call for replacement
61	2258R408	Spring-shift Fork	1		—	No longer available — call for replacement
62	1229M1599	Washer-shift Fork Anchor	1		—	Call for availability
63	A2297M871	Fork-shift Assy.	1	No Longer Available	—	Call for availability
64	1199V1712	Ball-shift Fork	1		$4,157.60	Add to Cart
65	NL161	Nut-bolt Fork	1		$122.00	Add to Cart
66	1229C1511	Washer-inter-axle Case Capscrew	8		$141.00	Add to Cart
67	S28142	Capscrew-inter- Short	5		$28.50	Add to Cart
67	S28162	Capscrew-inter- Short Axle Diff. Case Long	3		$61.80	Add to Cart
68	1227A547	Nut-pinion Brg Adj	1		$12.13	Add to Cart
69	1229V48	Retainer-pinion Brg Adj Nut	1		—	No longer available — call for replacement
70	1229A209	Lock-pinion Brg Jam Nut	1		$12.14	Add to Cart
71	1227F448	Nut-pinion Brg Jam	1		$88.88	Superseded by R000448Add to Cart
72	3280V2492	Collar-inter-axle Diff. Clutch	1		—	Call for availability
73	S28402	Bolt-inter-axle Diff. Case	12		—	Call for availability
73A	2297C7049	Thread Locking Liquid/diff. Case ( .34 Oz. Tube)	1	See NOTE following parts list.	$44.68	Add to Cart
73A	A13235V1374	Inter-axle Diff. Case & Nest Assy.	1	No Longer Available	—	Call for availability
74	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
74	A3235V1374	Inter-axle Diff. Case Assy.	1	No Longer Available	—	Call for availability
77	1229Y1611	Washer-i .a.d Side Gear Thrust Separately.	1		$329.70	Add to Cart
78	2234G319	Side Gear-inter-axle Diff. Rear	1		—	No longer available — call for replacement
79	3278R278	Spider-inter-axle Diff.	1		—	No longer available — call for replacement
80	2233W153	Pinion-inter-axle Diff.	4		$41.00	Add to Cart
81	1229T1606	Washer-inter-axle Diff. Pinion Thrust	4		$33.40	Add to Cart
82	2234V724	Side Gear-inter-axle Diff. Front	1		—	No longer available — call for replacement
83	1229H2062	Washer-inter-axle Diff. Front Thrust	1		$62.60	Add to Cart
84	3280W2493	Oil Scoop-inter-axle Diff. (baffle)	1	No Longer Available	—	Call for availability
85	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
86	NL281	Nut-inter-axle Diff. Case	12		$76.00	Add to Cart
89	2203M7501	Spacer-bearing .288 As	As req.		—	Call for availability
89	2203N7502	Spacer-bearing .288 As .289	As req.		—	Call for availability
89	2203P7504	Spacer-bearing .288 As .290	As req.		—	Call for availability
89	2203Q7505	Spacer-bearing .288 As .291	As req.		—	Call for availability
89	2203R7506	Spacer-bearing .288 As .292	As req.		—	Call for availability
89	2203S7507	Spacer-bearing .288 As .293	As req.		$50.11	Add to Cart
89	2203T7508	Spacer-bearing .288 As .294	As req.		—	Call for availability
89	2203U7509	Spacer-bearing .288 As .295	As req.		—	Call for availability
89	2203V7510	Spacer-bearing .288 As .296	As req.		—	Call for availability
89	2203W7511	Spacer-bearing .288 As .297	As req.		—	Call for availability
89	2203X7512	Spacer-bearing .288 As .298	As req.		—	Call for availability
89	2203Y7513	Spacer-bearing .288 As .299	As req.		—	Call for availability
89	2203Z7514	Spacer-bearing .288 As .300	As req.		—	Call for availability
89	2203A7515	Spacer-bearing .288 As .301	As req.		—	Call for availability
89	2203B7516	Spacer-bearing .288 As .302	As req.		—	Call for availability
90	2297A7021	Gasket-inter-axle Diff. Housing	1		—	Call for availability
90	A3280T7248	Housing-inter-axle Diff. Assy.	1		—	Call for availability
92	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
93		Yoke-input	1	See SECTION 5	—	Call for availability
94	1229N1730	Washer-input Shaft	1		$52.70	Add to Cart
95	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
96	S27112	Capscrew-inter- Short	7		$185.00	Add to Cart
96	S27172	Capscrew-inter- Short Axle Housing Long	1	No Longer Available	—	Call for availability
97	1229E1513	Washer-inter-axle Hsg Capscrew	8		$174.00	Add to Cart
98	S212362	Capscrew-diff.	4		—	Call for availability
99	1229V1556	Washer-diff. Brg Cap Capscrew	4		$36.30	Add to Cart
100	1244R694	Ring-diff. Brg Adj .250 As	As req.		—	Call for availability
100	1244S695	R.h & L .h .255	As req.		—	Call for availability
100	1244T696	Ring-diff. Brg Adj .250 As .260	As req.		—	No longer available — call for replacement
100	1244U697	Ring-diff. Brg Adj .250 As .265	As req.		—	Call for availability
100	1244V698	Ring-diff. Brg Adj .250 As .270	As req.		—	Call for availability
100	1244W699	Ring-diff. Brg Adj .250 As .275	As req.		—	Call for availability
100	1244X700	Ring-diff. Brg Adj .250 As .280	As req.		—	Call for availability
100	1244Q771	Ring-diff. Brg Adj .250 As .245	As req.		—	Call for availability
100	1244R772	Ring-diff. Brg Adj .250 As .240	As req.		—	Call for availability
101	HM516410	Cup-diff. Bearing R.h & L .h	2		$61.01	Add to Cart
102	HM516449C	Cone-diff. Bearing R.h & L .h	2	1 -13	$115.05	Add to Cart
	A3235T1372	Assy	1		—	No longer available — call for replacement
	A13235T1372	Diff. Case & Nest Assy.	1		—	Call for availability
	1229E1773	Side Gear Thrust	2		$86.02	Add to Cart
	2234X830	Gear-diff. R.h & L .h	2		—	No longer available — call for replacement
	1229Q1031	Pinion Thrust	4		—	Call for availability
	2233W101		4		$235.28	Add to Cart
	3278F84	Diff.	1		$146.92	Add to Cart
		Spur	1	See SECTION 4	—	Call for availability
	15X1329	Case	12		—	Call for availability
	2297C7049	Locking Liquid/diff. Case	1	.34 oz. tube See NOTE below.	$44.68	Add to Cart
	1227Z1066	Case Separately. Nospin Units Thread Locking Liquid/differential Differential Case Halves In Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	12	should be used; Meritor axles; should be relatively oil free; holes; the threads Assemble the; of Dri; torque; part no 2297-C-7049; bolts without; case holes only.; Apply; torque; procedure	—	No longer available — call for replacement

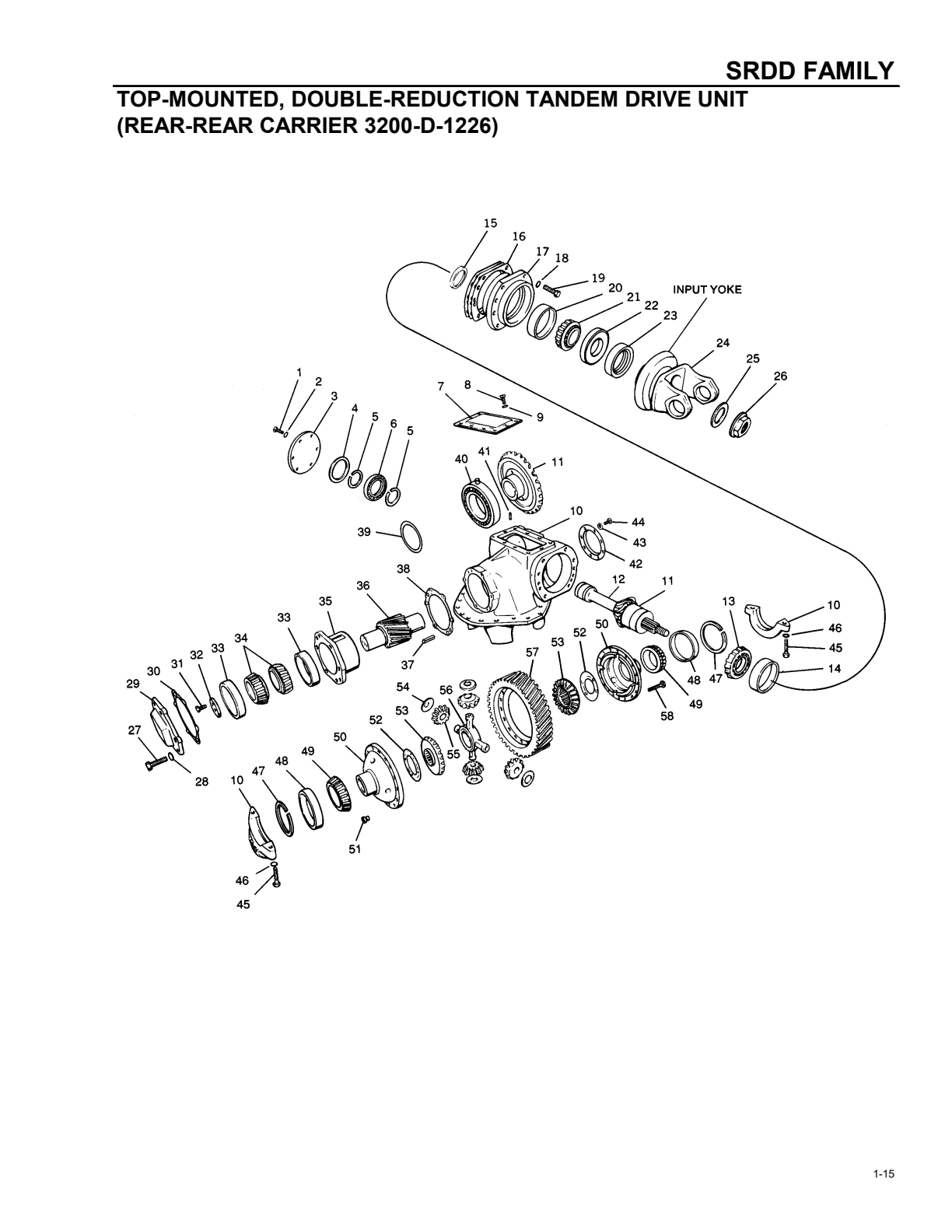

	A193200D1226	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		4 .92 5 .21 5 .45 5 .78 5 .81; , , , , ,; 6 .44 6 .80 7 .49 7 .54 8 .30; , , , , ,; 8 .31 9 .20 9 .26 10 .26; , , ,	—	Call for availability
1	S2662	Capscrew-thru Shaft Cover	8		$102.00	Add to Cart
2	1229B1666	Washer-thru Shaft Cover	8		$427.40	Add to Cart
3	3866D550	Cover-thru Shaft Rear Brg	1		—	Call for availability
4	1844K375	Spacer-thru Shaft Rear Brg	1	No Longer Available	—	Call for availability
5	1854Z208	Snap Ring-thru Shaft Rear Brg	2		$950.60	Add to Cart
6	1228H190	Bearing-thru Shaft Rear	1		—	Call for availability
7	3866K557	Top Cover	1		—	Call for availability
7A	2297A7021	Gasket-top Cover (silastic)	1		—	Call for availability
8	S2662	Capscrew-top Cover	10		$102.00	Add to Cart
9	1229B1666	Lockwasher-top Cover Capscrew	10		—	Call for availability
9	A23200D1226	Diff. Carrier & Cap Assy.	1		—	Call for availability
9		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
12	3280S7273	Thru Shaft	1		$826.68	Add to Cart
13	42350	Cone-inner Bearing	1		—	Call for availability
14	42584	Cup-inner Bearing	1		$139.86	Add to Cart
15	1229T2698	Spacer-bearing	1		—	No longer available — call for replacement
16	KIT1560	Shim-bearing Cage As	As req.	see SECTION 6	—	Call for availability
16	A3226Q147	Cage-pinion Brg Assy.	1		$361.71	Add to Cart
18	1229C1511	Washer-pinion Brg Cage	8		$141.00	Add to Cart
19	S28132	Capscrew-pinion Brg Assy.	8		$1,145.00	Add to Cart
22	A11805S149	Seal-oil Assy.	1		$102.79	Add to Cart
23	1229T2698	Spacer-outer Bearing	1		—	No longer available — call for replacement
24		Yoke-input	1	See SECTION 5	—	Call for availability
25	1229T1736	Washer-yoke Nut	1		$21.60	Add to Cart
26	1227J946	Nut-yoke	1		$21.32	Add to Cart
27		Capscrew-cross Shaft	6	No longer available	—	Call for availability
28	1229C1511	Lockwasher-capscrew	6		—	Call for availability
29	3266X154	Cover-cross Shaft Brg Cage R.h	1	No Longer Available	—	Call for availability
30	2803H1438	Shim-brg Cage .003	7		—	No longer available — call for replacement
30	2803J1440	Shim-brg Cage .003 (pre-load) .005	8		—	No longer available — call for replacement
30	2803L2014	Shim-brg Cage .003 .010	6		—	No longer available — call for replacement
31	S2782	Capscrew-retainer	2		—	Call for availability
32	1829S149	Washer-bearing Retainer	1		—	Call for availability
33	66462	Cup-inner & Outer Bearing	2		—	Call for availability
34	66225	Cone-inner & Outer Bearing	2		—	Call for availability
34	A3826N222	Cage-bearing & Cup Assy.	1		—	Call for availability
36		Cross Shaft & Spur Pinion	1	See SECTION 4	—	Call for availability
38	2803L1442	Shim-bearing .003	3		—	No longer available — call for replacement
38	2803M1443	Shim-bearing .003 Cage .005	4		—	No longer available — call for replacement
38	2803N1444	Shim-bearing .003 .010 Separately.	3		$423.50	Add to Cart
	1844R356	Gear Bearing	1		—	No longer available — call for replacement
	A1228R486	Gear Radial	1		—	No longer available — call for replacement
	1246J566		1		—	Call for availability
	3855K323	L .h	1		—	Call for availability
	2297A7021	(silastic)	1		—	Call for availability
	1229K1597	Screw	6		—	Call for availability
	S2682		6		$159.00	Add to Cart
	S212362	Bearing Cap	4		—	Call for availability
	1229V1556	Brg Cap	4		—	Call for availability
	1244R694	Brg Adj .250 As	As req.		—	Call for availability
	1244S695	.h & R.h .255			—	Call for availability
	1244T696	.260			—	No longer available — call for replacement
	1244U697	.265			—	Call for availability
	1244V698	.270			—	Call for availability
	1244W699	.275			—	Call for availability
	1244X700	.280			—	Call for availability
	1244Q771	.245			—	Call for availability
	1244R772	.240			—	Call for availability
	HM516410	Bearing L .h & R.h	2		—	Call for availability
	HM516449C	Bearing L .h & R.h	2		$115.05	Add to Cart
	A3235T1372	Assy.	1		—	No longer available — call for replacement
	A13235T1372	Case & Nest Assy.	1		—	Call for availability
	1227Z1066	Case Bolt	12		—	No longer available — call for replacement
	2234X830	Side (front & Rear)	2		—	No longer available — call for replacement
	1229Q1031	Pinion Gear Thrust	4		—	Call for availability
	2233W101	Pinion	4		$235.28	Add to Cart
	3278F84		1		$146.92	Add to Cart
			1	See SECTION 4	—	Call for availability
	2297C7049	Locking Liquid/diff. Case Separately. Nospin Units Thread Locking Liquid/differential Assembling Differential Case Halves In Procedure Is As Follows: Excess Oil And Residue From The Threaded New Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required The Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	1	.34 oz. tube See NOTE below.; should be used; Meritor axles; should be relatively oil free; holes; the threads Assemble the; of Dri; torque; part no 2297-C-7049; bolts without; case holes only.; Apply; torque; procedure; 1 -17	$44.68	Add to Cart

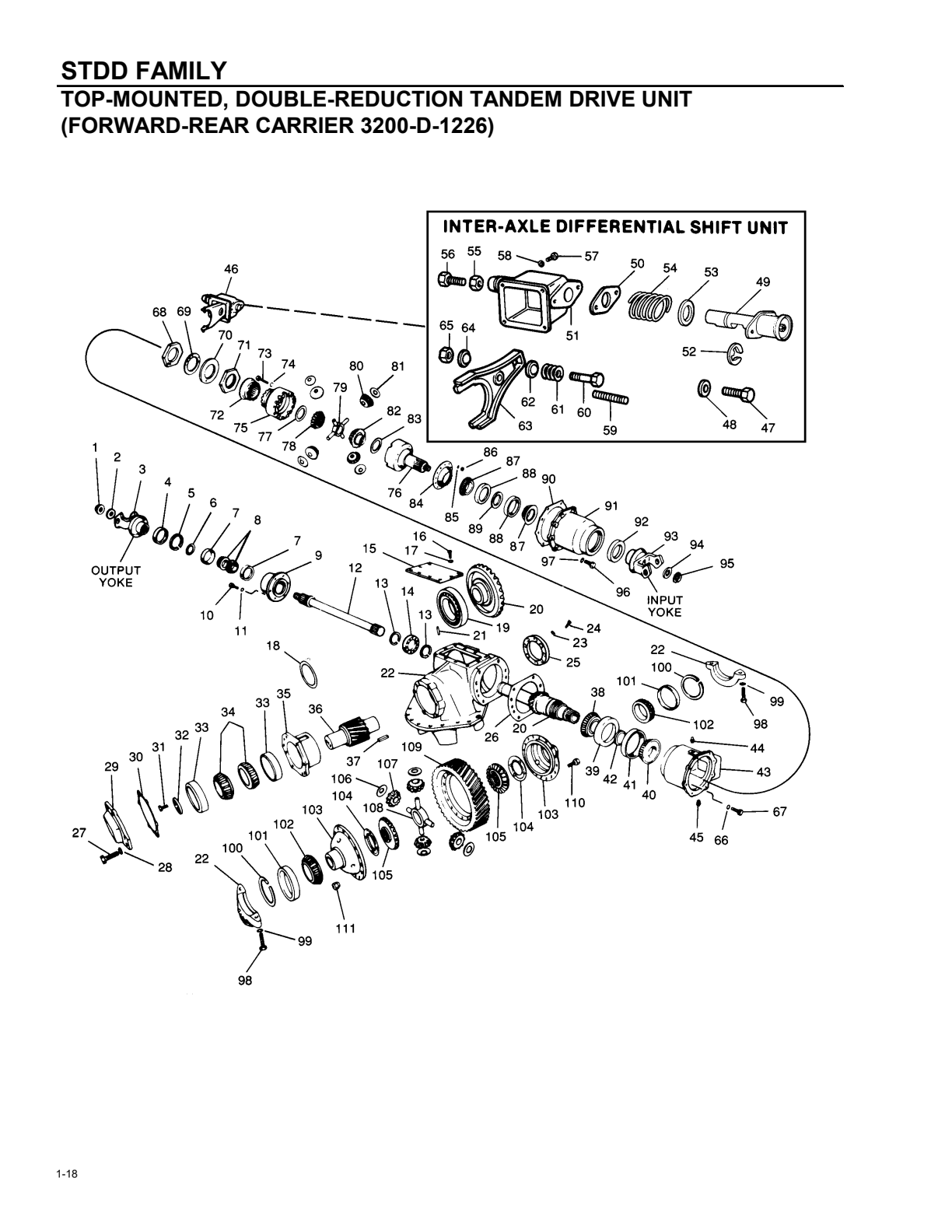

Stdd Family

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	1227J946	Nut-thru Shaft	1		$21.32	Add to Cart
2	1229T1736	Washer-thru Shaft Nut	1		$21.60	Add to Cart
3		Yoke	1	See SECTION 5	—	Call for availability
4	A1805A261	Oil Seal-thru Shaft (output)	1		$46.88	Add to Cart
5	KIT1536	Snap Ring-bearing Thru Shaft As	As req.	see SECTION 6	$980.80	Add to Cart
6	1229C2057	Washer-thru Shaft Brg Thrust	1		—	Call for availability
8	A3238M143	Cage & Bearing Assy.	1		—	Call for availability
9A	2297A7021	Gasket-bearing Cage	1		—	Call for availability
10	S26122	Capscrew-bearing Cage	6		$1.74	Add to Cart
11	1229K1597	Washer-brg Cage Capscrew	6		$135.00	Add to Cart
12	3280J7264	Shaft-thru	1		—	Call for availability
13	1854Z208	Snap Ring-inner & Outer Bearing	2		$950.60	Add to Cart
14	1228H190	Bearing-rear Radial	1		—	Call for availability
15	3866K557	Carrier Top Inspection Cover	1		—	Call for availability
15A	2297A7021	Gasket-cover	1		—	Call for availability
16	S2662	Capscrew-inspection Cover	10		$102.00	Add to Cart
17	1229B1666	Washer-cover Capscrew	10		$427.40	Add to Cart
18	1844R356	Spacer-drive Gear Radial Brg	1		—	No longer available — call for replacement
19	A11228R486	Bearing Assy.	1		$259.96	Add to Cart
19		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
21	1246J556	Dowel-bearing	1		—	No longer available — call for replacement
21	A23200D1226	Diff. Carrier & Cap Assy.	1		—	Call for availability
23	1229B1666	Washer-cover	8		$427.40	Add to Cart
24	S2662	Capscrew-cover	8		$102.00	Add to Cart
25	3866D550	Cover-cross Shaft	1		—	Call for availability
25A	2297A7021	Gasket-cover	1		—	Call for availability
26	2803L1442	Shim-forward .003	3		—	No longer available — call for replacement
26	2803M1443	Shim-forward .003 Bearing .005	4		—	No longer available — call for replacement
26	2803N1444	Shim-forward .003 .010	3		$423.50	Add to Cart
27		Capscrew-spur Pinion Cage Cover	6	No longer available	—	Call for availability
28	1229C1511	Washer-spur Pinion Cage Cover	6		$141.00	Add to Cart
29	3266X154	Cover-cage R.h	1	No Longer Available	—	Call for availability
30	2803H1438	Shim-bearing .003	7		—	No longer available — call for replacement
30	2803J1440	Shim-bearing .003 (pre-load) .005	8		—	No longer available — call for replacement
30	2803L2014	Shim-bearing .003 .010	6		—	No longer available — call for replacement
31	S2782	Capscrew-shaft Brg Retainer	2		—	Call for availability
32	1829S149	Retainer-bearing (washer)	1		—	Call for availability
33	66462	Cup-inner & Outer Brg	2		—	Call for availability
34	66225	Cone-inner & Outer Brg	2		—	Call for availability
34	A3826N222	Cage-cross Shaft Bearing Assy.	1		—	Call for availability
34		Pinion-cross Shaft & Helical Separately.	1	See SECTION 4; 1 -19	—	Call for availability
37	16X79	Key-square	1		$112.48	Add to Cart
39	42584	Cup-inner Bearing Front	1		$139.86	Add to Cart
41	42350	Cup-drive Pinion Bearing	1		—	Call for availability
42	KIT1560	Spacer-drive Pinion As	As req.	see SECTION 6	—	Call for availability
42	A3280P4462	Case-adapter Assy.	1		—	Call for availability
43A	2297N1938	Tube-inter-axle 4 .50"	1	Not shown	—	Call for availability
43A	2297P1940	Tube-inter-axle 4 .50" Diff. Hsg 4 .20"	1		$194.68	Add to Cart
44	1850T150	Plug-oil Drain	1		$66.20	Add to Cart
45	P112	Plug-oil Filler	1		$77.80	Add to Cart
45	A13280D2526	Housing-shift Assy. (complete)	1	No Longer Available	—	Call for availability
45	A3280D2526	Housing-shift Assy.	1	No Longer Available	—	Call for availability
47	S2682	Stud-shift Housing	2		—	Call for availability
48	1229B1666	Washer-shift Housing	2		$427.40	Add to Cart
48	A3261C289	Shift Assy. -air	1		$247.40	Add to Cart
50	2208M429	Gasket-shift Housing	1		$1.28	Add to Cart
51	3280D2526	Housing-shift	1	No Longer Available	—	Call for availability
52	1229W1245	Lock Ring-shift Spring	1		$198.00	Add to Cart
53	1229B1666	Washer-shift Spring	1		$427.40	Add to Cart
54	2258U411	Spring-shift Shaft Ret.	1		$211.00	Add to Cart
55	13X163	Nut-shift Shaft Bolt Jam	1		—	Call for availability
56	15X851	Bolt-shift Shaft Adj	1		—	No longer available — call for replacement
57	S2682	Capscrew-hsg To Carrier	4		$159.00	Add to Cart
58	1229K1597	Washer-hsg To Carrier	4		$135.00	Add to Cart
59	26X142	Screw-collar Set	1		—	Call for availability
59	LW1612	Lockwire-shift Collar	1	Not shown	$1.59	Add to Cart
60	15X1330	Bolt-shift Fork	1		—	No longer available — call for replacement
61	2258R408	Spring-shift Fork	1		—	No longer available — call for replacement
62	1229M1599	Washer-shift Fork Anchor	1		—	Call for availability
63	A2297M871	Fork-shift Assy.	1	No Longer Available	—	Call for availability
64	1199V1712	Ball-shift Fork	1		$4,157.60	Add to Cart
65	NL161	Nut-bolt Fork	1		$122.00	Add to Cart
66	1229C1511	Washer-inter-axle Case Capscrew	8		$141.00	Add to Cart
67	S28142	Capscrew-inter- Short	5		$28.50	Add to Cart
67	S28162	Capscrew-inter- Short Axle Diff. Case Long	3		$61.80	Add to Cart
68	1227A547	Nut-pinion Brg Adj	1		$12.13	Add to Cart
69	1229V48	Retainer-pinion Brg Adj Nut	1		—	No longer available — call for replacement
70	1229A209	Lock-pinion Brg Jam Nut	1		$12.14	Add to Cart
71	1227F448	Nut-pinion Brg Jam	1		$88.88	Superseded by R000448Add to Cart
72	3280V2492	Collar-inter-axle Diff. Clutch	1		—	Call for availability
73	S28402	Bolt-inter-axle Diff. Case	12		—	Call for availability
73A	2297C7049	Thread Locking Liquid/diff. Case ( .34 Oz. Tube)	1	See NOTE following parts list.	$44.68	Add to Cart
73A	A13235V1374	Inter-axle Diff. Case & Nest Assy.	1	No Longer Available	—	Call for availability
74	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
74	A3235V1374	Inter-axle Diff. Case Assy.	1	No Longer Available	—	Call for availability
77	1229Y1611	Washer-i .a.d Side Gear Thrust	1		$329.70	Add to Cart
78	2234G319	Side Gear-inter-axle Diff. Rear Separately.	1		—	No longer available — call for replacement
79	3278R278	Spider-inter-axle Diff.	1		—	No longer available — call for replacement
80	2233W153	Pinion-inter-axle Diff.	4		$41.00	Add to Cart
81	1229R2878	Washer-inter-axle Diff. Pinion Thrust	4		—	No longer available — call for replacement
82	2234V724	Side Gear-inter-axle Diff. Front	1		—	No longer available — call for replacement
83	1229H2062	Washer-inter-axle Diff. Front Thrust	1		$62.60	Add to Cart
84	3280W2493	Oil Scoop-inter-axle Diff. (baffle)	1	No Longer Available	—	Call for availability
85	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
86	NL281	Nut-inter-axle Diff. Case	12		$76.00	Add to Cart
89	2203M7501	Spacer-bearing .288 As	As req.		—	Call for availability
89	2203N7502	Spacer-bearing .288 As .289	As req.		—	Call for availability
89	2203P7504	Spacer-bearing .288 As .290	As req.		—	Call for availability
89	2203Q7505	Spacer-bearing .288 As .291	As req.		—	Call for availability
89	2203R7506	Spacer-bearing .288 As .292	As req.		—	Call for availability
89	2203S7507	Spacer-bearing .288 As .293	As req.		$50.11	Add to Cart
89	2203T7508	Spacer-bearing .288 As .294	As req.		—	Call for availability
89	2203U7509	Spacer-bearing .288 As .295	As req.		—	Call for availability
89	2203V7510	Spacer-bearing .288 As .296	As req.		—	Call for availability
89	2203W7511	Spacer-bearing .288 As .297	As req.		—	Call for availability
89	2203X7512	Spacer-bearing .288 As .298	As req.		—	Call for availability
89	2203Y7513	Spacer-bearing .288 As .299	As req.		—	Call for availability
89	2203Z7514	Spacer-bearing .288 As .300	As req.		—	Call for availability
89	2203A7515	Spacer-bearing .288 As .301	As req.		—	Call for availability
89	2203B7516	Spacer-bearing .288 As .302	As req.		—	Call for availability
90	2297A7021	Gasket-inter-axle Diff. Housing	1		—	Call for availability
90	A3280T7248	Housing-inter-axle Diff. Assy.	1		—	Call for availability
92	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
93		Yoke-input	1	See SECTION 5	—	Call for availability
94	1229N1730	Washer-input Shaft	1		$52.70	Add to Cart
95	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
96	S27112	Capscrew-inter- Short	7		$185.00	Add to Cart
96	S27172	Capscrew-inter- Short Axle Housing Long	1	No Longer Available	—	Call for availability
97	1229E1513	Washer-inter-axle Hsg Capscrew	8		$174.00	Add to Cart
98	S212362	Capscrew-diff.	4		—	Call for availability
99	1229V1556	Washer-diff. Brg Cap Capscrew	4		$36.30	Add to Cart
100	1244R694	Ring-diff. Brg Adj .250 As	As req.		—	Call for availability
100	1244S695	R.h & L .h .255	As req.		—	Call for availability
100	1244T696	Ring-diff. Brg Adj .250 As .260	As req.		—	No longer available — call for replacement
100	1244U697	Ring-diff. Brg Adj .250 As .265	As req.		—	Call for availability
100	1244V698	Ring-diff. Brg Adj .250 As .270	As req.		—	Call for availability
100	1244W699	Ring-diff. Brg Adj .250 As .275	As req.		—	Call for availability
100	1244X700	Ring-diff. Brg Adj .250 As .280	As req.		—	Call for availability
100	1244Q771	Ring-diff. Brg Adj .250 As .245	As req.		—	Call for availability
100	1244R772	Ring-diff. Brg Adj .250 As .240	As req.		—	Call for availability
101	HM516410	Cup-diff. Bearing R.h & L .h	2		$61.01	Add to Cart
102	HM516449C	Cone-diff. Bearing R.h & L .h	2	1 -21	$115.05	Add to Cart
	A3835P406	Assy	1	No Longer Available	—	Call for availability
	A113835P406	Diff. Case & Nest Assy.	1	No Longer Available	—	Call for availability
	1229E993	Side Gear Thrust	2		$74.24	Add to Cart
	2234W829	Gear-diff. R.h & L .h	2	Available as KIT 2001; ,	$235.36	Add to Cart
	1229D992	Pinion Thrust	4	see SECTION 6	$73.20	Add to Cart
	2233U99		4		$59.46	Add to Cart
	3278A79	Diff.	1		$246.48	Add to Cart
		Spur	1	See SECTION 4	—	Call for availability
	15X1329	Case	12		—	Call for availability
	2297C7049	Locking Liquid/diff. Case	1	.34 oz. tube See NOTE below.	$44.68	Add to Cart
	1227Z1066	Case Separately. Nospin Units Locking Liquid/differential Differential Case Halves In Meritor Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Bolts Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Maintenance Manual 1 For Complete	12	CASE; should be used; axles; should be relatively oil free; holes; threads Assemble the; of Dri -Loc; torque; part no 2297-C-7049; without; case holes only.; Apply; torque; to; procedure	—	No longer available — call for replacement
1	S2662	Capscrew-thru Shaft Cover	8		$102.00	Add to Cart
2	1229B1666	Washer-thru Shaft Cover	8		$427.40	Add to Cart
3	3866D550	Cover-thru Shaft Rear Brg	1		—	Call for availability
4	1844K375	Spacer-thru Shaft Rear Brg	1	No Longer Available	—	Call for availability
5	1854Z208	Snap Ring-thru Shaft Rear Brg	2		$950.60	Add to Cart
6	1228H190	Bearing-thru Shaft Rear	1		—	Call for availability
7	3866K557	Top Cover	1		—	Call for availability
7A	2297A7021	Gasket-top Cover (silastic)	1		—	Call for availability
8	S2662	Capscrew-top Cover	10		$102.00	Add to Cart
9	1229B1666	Lockwasher-top Cover Capscrew	10		—	Call for availability
9	A23200D1226	Diff. Carrier & Cap Assy.	1		—	Call for availability
9		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
12	3280S7273	Thru Shaft	1		$826.68	Add to Cart
13	42350	Cone-inner Bearing	1		—	Call for availability
14	42584	Cup-inner Bearing	1		$139.86	Add to Cart
15	1229T2698	Spacer-bearing	1		—	No longer available — call for replacement
16	KIT1560	Shim-bearing Cage As	As req.	see SECTION 6	—	Call for availability
16	A3226Q147	Cage-pinion Brg Assy.	1		$361.71	Add to Cart
18	1229C1511	Washer-pinion Brg Cage	8		$141.00	Add to Cart
19	S28132	Capscrew-pinion Brg Assy.	8		$1,145.00	Add to Cart
22	A11805S149	Seal-oil Assy.	1		$102.79	Add to Cart
23	1229T2698	Spacer-outer Bearing	1		—	No longer available — call for replacement
24		Yoke-input	1	See SECTION 5	—	Call for availability
25	1229T1736	Washer-yoke Nut	1		$21.60	Add to Cart
26	1227J946	Nut-yoke	1		$21.32	Add to Cart
27		Capscrew-cross Shaft	6	No longer available	—	Call for availability
28	1229C1511	Lockwasher-capscrew	6		—	Call for availability
29	3266X154	Cover-cross Shaft Brg Cage R.h	1	No Longer Available	—	Call for availability
30	2803H1438	Shim-brg Cage .003	7		—	No longer available — call for replacement
30	2803J1440	Shim-brg Cage .003 (pre-load) .005	8		—	No longer available — call for replacement
30	2803L2014	Shim-brg Cage .003 .010	6		—	No longer available — call for replacement
31	S2782	Capscrew-retainer	2		—	Call for availability
32	1829S149	Washer-bearing Retainer	1		—	Call for availability
33	66462	Cup-inner & Outer Bearing	2		—	Call for availability
34	66225	Cone-inner & Outer Bearing	2		—	Call for availability
34	A3826N222	Cage-bearing & Cup Assy.	1		—	Call for availability
36		Cross Shaft & Spur Pinion	1	See SECTION 4	—	Call for availability
38	2803L1442	Shim-bearing .003	3		—	No longer available — call for replacement
38	2803M1443	Shim-bearing .003 Cage .005	4		—	No longer available — call for replacement
38	2803N1444	Shim-bearing .003 .010 Separately.	3		$423.50	Add to Cart
	1844R356	Gear Bearing	1		—	No longer available — call for replacement
	A1228R486	Gear Radial	1		—	No longer available — call for replacement
	1246J566		1		—	Call for availability
	3855K323	L .h	1		—	Call for availability
	2297A7021	(silastic)	1		—	Call for availability
	1229K1597	Screw	6		—	Call for availability
	S2682		6		$159.00	Add to Cart
	S212362	Bearing Cap	4		—	Call for availability
	1229V1556	Brg Cap	4		—	Call for availability
	1244R694	Brg Adj .250 As	As req.		—	Call for availability
	1244S695	.h & R.h .255			—	Call for availability
	1244T696	.260			—	No longer available — call for replacement
	1244U697	.265			—	Call for availability
	1244V698	.270			—	Call for availability
	1244W699	.275			—	Call for availability
	1244X700	.280			—	Call for availability
	1244Q771	.245			—	Call for availability
	1244R772	.240			—	Call for availability
	HM516410	Bearing L .h & R.h	2		—	Call for availability
	HM516449C	Bearing L .h & R.h	2		$115.05	Add to Cart
	A3835P406	Assy.	1	No Longer Available	—	Call for availability
	A113835P406	Case & Nest Assy.	1	No Longer Available	—	Call for availability
	1227Z1066	Case Bolt	12		—	No longer available — call for replacement
	2234W829	Side (front & Rear)	2		$235.36	Add to Cart
	1229D992	Pinion Gear Thrust	4		$73.20	Add to Cart
	2233U99	Pinion	4		$59.46	Add to Cart
	3278A79		1		$246.48	Add to Cart
			1	See SECTION 4	—	Call for availability
	2297C7049	Locking Liquid/diff. Case Separately. Nospin Units Locking Liquid/differential Differential Case Halves In Meritor Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Bolts Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	1	.34 oz. tube See NOTE below.; should be used; axles; should be relatively oil free; holes; threads Assemble the; of Dri -Loc; torque; part no 2297-C-7049; without; case holes only.; Apply; torque; procedure; 1 -25	$44.68	Add to Cart

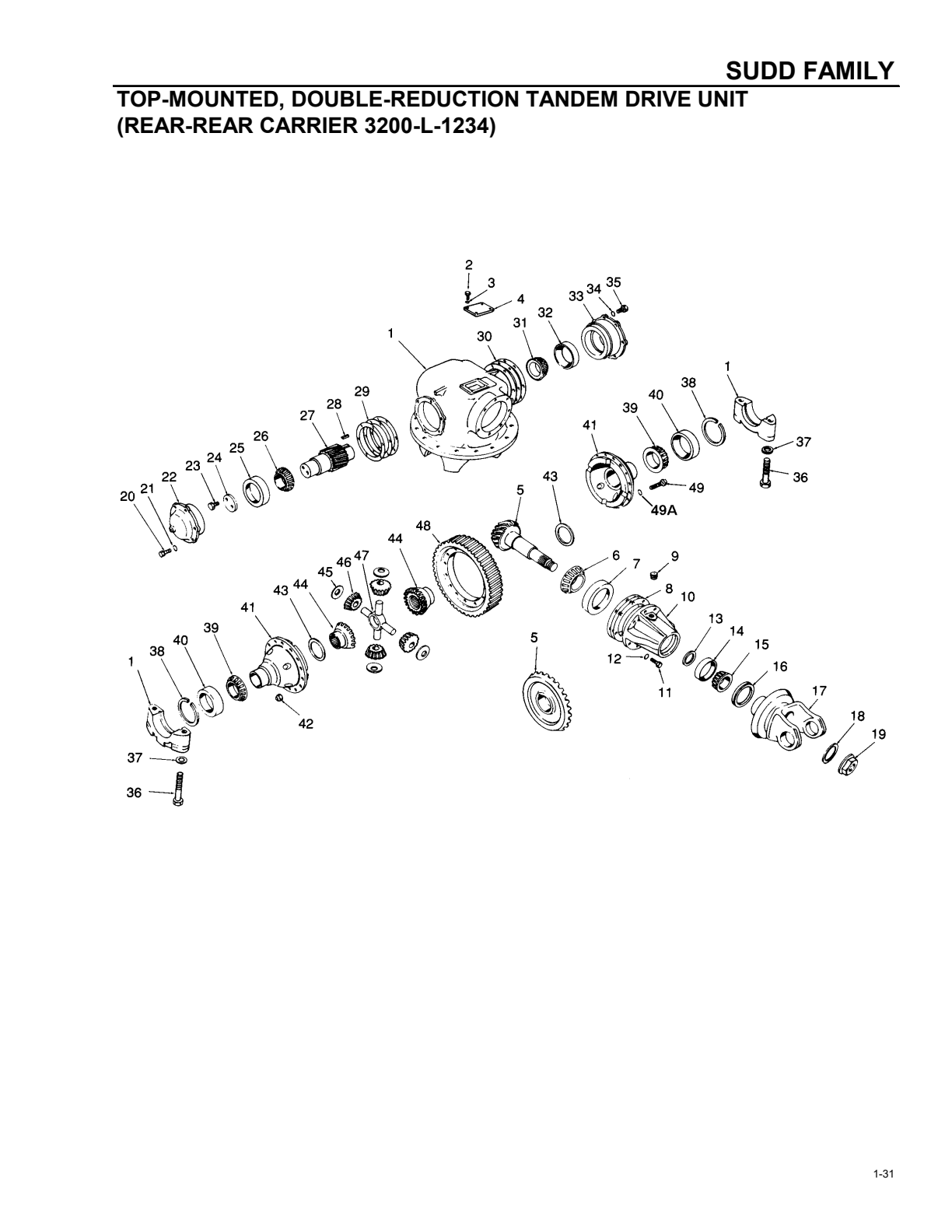

Sudd Family

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
	A173200E1227	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		6 .38 7 .03 7 .24 7 .79 7 .93; , , , , ,; 7 .98 8 .69 8 .84 8 .93 9 .00; , , , , ,; 9 .76 9 .86 10 .14 11 .08; , , ,	—	Call for availability
	1227J946	Shaft (output)	1		—	Call for availability
	1229T1736	Shaft Nut	1		—	Call for availability
			1	See SECTION 5	—	Call for availability
	A1805A261	Seal-thru Shaft (output)	1		$46.88	Add to Cart
	KIT1536	Ring-bearing Thru Shaft As	As req.	see SECTION 6	$980.80	Add to Cart
	1229C2057	Shaft Brg Thrust Inner & Outer Inner & Outer	1		—	Call for availability
	A3238M143	& Bearing Assy.	1		—	Call for availability
	2297A7021	Cage	1		—	Call for availability
	S26122	Cage	6		—	Call for availability
	1229K1597	Cage Capscrew	6		—	Call for availability
	3280F7260		1		—	No longer available — call for replacement
	1854Z208	Ring-inner & Outer Bearing	2		$950.60	Add to Cart
	1228H190	Radial	1		—	Call for availability
	3855J62	Top Inspection Cover	1		—	Call for availability
	S2662	Cover	10		—	Call for availability
	1229B1666	Capscrew	10		—	Call for availability
	1829B652	Gear Radial Brg	1		—	Call for availability
	1821N14	Bearing	1		—	Call for availability
	1228W179	Gear Radial	1		—	No longer available — call for replacement
		Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
	1246Y389		1		—	No longer available — call for replacement
	A23200E1227	Carrier & Cap Assy.	1		—	Call for availability
	1229B1666	Cover Capscrew	8		—	Call for availability
	3266C159	Shaft	1	No Longer Available	—	Call for availability
	2297A7021		1		$37.96	Add to Cart
	2803L1442	.003	3		—	No longer available — call for replacement
	2803M1443	Forward .005	4		—	No longer available — call for replacement
	2803N1444	.010	3		$423.50	Add to Cart
	S29162	Pinion Cage Cover	6		—	Call for availability
	1229Y1507	Pinion Cage Cover	6		—	Call for availability
	3266Y155		1	No Longer Available	—	Call for availability
	2803D1486	Shaft .003	2		—	Call for availability
	2803E1487	(pre-load) .005	8		—	Call for availability
	2803F1488	.030	2		$114.30	Superseded by 2203E7857Add to Cart
	S29102	Brg Retainer	2		—	Call for availability
	1829T618	Shaft Bearing & Outer Brg & Outer Brg	1		—	No longer available — call for replacement
	A3826T228	Shaft Bearing Assy. Separately.	1	No Longer Available; 1 -27	—	Call for availability
		Pinion-cross Shaft & Helical	1	See SECTION 4	—	Call for availability
37	16X79	Key-square	1		$112.48	Add to Cart
35A	2803D1486	Shim-gear .003	2		$169.40	Add to Cart
35A	2803E1487	Shim-gear .003 Backlash .005	8		$388.00	Add to Cart
35A	2803F1488	Shim-gear .003 .030	2		$114.30	Superseded by 2203E7857Add to Cart
35A	42350	Cone-drive Pin Inner Bearing	2		—	Call for availability
35A	42584	Cup-drive Pin Inner Bearing	2		$139.86	Add to Cart
42	KIT520	Spacer-drive Pinion As	As req.	see SECTION 6	—	No longer available — call for replacement
42	A13280T4570	Case-adapter Assy.	1		—	Call for availability
43A	2297N1938	Tube-inter-axle 4 .50"	1	Not shown	—	Call for availability
43A	2297P1940	Tube-inter-axle 4 .50" Diff. Hsg 4 .20"	1		$194.68	Add to Cart
44	1850T150	Plug-oil Drain	1		$66.20	Add to Cart
45	P112	Plug-oil Filler	1		$77.80	Add to Cart
45	A13280D2526	Housing-shift Assy. (complete)	1	No Longer Available	—	Call for availability
45	A3280D2526	Housing-shift Assy.	1	No Longer Available	—	Call for availability
47	S2682	Stud-shift Housing	2		—	Call for availability
48	1229B1666	Washer-shift Housing	2		$427.40	Add to Cart
48	A3261C289	Shift Assy. -air	1		$247.40	Add to Cart
50	2208M429	Gasket-shift Housing	1		$1.28	Add to Cart
51	3280D2526	Housing-shift	1	No Longer Available	—	Call for availability
52	1229W1245	Lock Ring-shift Spring	1		$198.00	Add to Cart
53	1229R798	Washer-shift Spring	1		—	No longer available — call for replacement
54	2258U411	Spring-shift Shaft Ret.	1		$211.00	Add to Cart
55	13X163	Nut-shift Shaft Bolt Jam	1		—	Call for availability
56	15X851	Bolt-shift Shaft Adj	1		—	No longer available — call for replacement
57	S2682	Capscrew-hsg To Carrier	4		$159.00	Add to Cart
58	1229K1597	Washer-hsg To Carrier	4		$135.00	Add to Cart
59	26X142	Screw-collar Set	1		—	Call for availability
59	LW1612	Lockwire-shift Collar	1	Not shown	$1.59	Add to Cart
60	15X1330	Bolt-shift Fork	1		—	No longer available — call for replacement
61	2258R408	Spring-shift Fork	1		—	No longer available — call for replacement
62	1229M1599	Washer-shift Fork Anchor	1		—	Call for availability
63	A2297M871	Fork-shift Assy.	1	No Longer Available	—	Call for availability
64	1199V1712	Ball-shift Fork	1		$4,157.60	Add to Cart
65	NL161	Nut-bolt Fork	1		$122.00	Add to Cart
66	1229C1511	Washer-inter-axle Case Capscrew	8		$141.00	Add to Cart
67	S28142	Capscrew-inter- Short	5		$28.50	Add to Cart
67	S28162	Capscrew-inter- Short Axle Diff. Case Long	3		$61.80	Add to Cart
68	1227A547	Nut-pinion Brg Adj	1		$12.13	Add to Cart
69	1229V48	Retainer-pinion Brg Adj Nut	1		—	No longer available — call for replacement
70	1229A209	Lock-pinion Brg Jam Nut	1		$12.14	Add to Cart
71	1227F448	Nut-pinion Brg Jam	1		$88.88	Superseded by R000448Add to Cart
72	3280V2492	Collar-inter-axle Diff. Clutch	1		—	Call for availability
73	S28402	Bolt-inter-axle Diff. Case	12		—	Call for availability
73A	2297C7049	Thread Locking Liquid/diff. Case ( .34 Oz. Tube)	1	See NOTE following parts list.	$44.68	Add to Cart
73A	A13235V1374	Inter-axle Diff. Case & Nest Assy.	1	No Longer Available	—	Call for availability
74	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
74	A3235V1374	Inter-axle Diff. Case Assy.	1	No Longer Available	—	Call for availability
77	1229Y1611	Washer-i .a.d Side Gear Thrust Separately.	1		$329.70	Add to Cart
78	2234G319	Side Gear-inter-axle Diff. Rear	1		—	No longer available — call for replacement
79	3278R278	Spider-inter-axle Diff.	1		—	No longer available — call for replacement
80	2233W153	Pinion-inter-axle Diff.	4		$41.00	Add to Cart
81	1229R2878	Washer-inter-axle Diff. Pinion Thrust	4		—	No longer available — call for replacement
82	2234V724	Side Gear-inter-axle Diff. Front	1		—	No longer available — call for replacement
83	1229H2062	Washer-inter-axle Diff. Front Thrust	1		$62.60	Add to Cart
84	3280W2493	Oil Scoop-inter-axle Diff. (baffle)	1	No Longer Available	—	Call for availability
85	1229C1511	Washer-inter-axle Diff. Case	12		$141.00	Add to Cart
86	NL281	Nut-inter-axle Diff. Case	12		$76.00	Add to Cart
89	2203W7485	Spacer-bearing .273 As	As req.		—	Call for availability
89	2203X7486	Spacer-bearing .273 As .274	As req.		—	Call for availability
89	2203Y7487	Spacer-bearing .273 As .275	As req.		$42.11	Add to Cart
89	2203Z7488	Spacer-bearing .273 As .276	As req.		$42.54	Add to Cart
89	2203A7489	Spacer-bearing .273 As .277	As req.		$42.97	Add to Cart
89	2203B7490	Spacer-bearing .273 As .278	As req.		—	Call for availability
89	2203C7491	Spacer-bearing .273 As .279	As req.		—	Call for availability
89	2203E7493	Spacer-bearing .273 As .281	As req.		—	Call for availability
89	2203F7494	Spacer-bearing .273 As .282	As req.		—	Call for availability
89	2203G7495	Spacer-bearing .273 As .283	As req.		—	Call for availability
89	2203H7496	Spacer-bearing .273 As .284	As req.		—	Call for availability
89	2203J7498	Spacer-bearing .273 As .285	As req.		—	Call for availability
89	2203K7499	Spacer-bearing .273 As .286	As req.		—	Call for availability
89	2203L7500	Spacer-bearing .273 As .287	As req.		$46.51	Add to Cart
90	2297A7021	Gasket-inter-axle Diff. Housing	1		—	Call for availability
90	A3280T7248	Housing-inter-axle Diff. Assy.	1		—	Call for availability
92	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
93		Yoke-input	1	See SECTION 5	—	Call for availability
94	1229N1730	Washer-input Shaft	1		$52.70	Add to Cart
95	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
96	S27112	Capscrew-inter- Short	7		$185.00	Add to Cart
96	S27172	Capscrew-inter- Short Axle Housing Long	1	No Longer Available	—	Call for availability
97	1229E1513	Washer-inter-axle Hsg Capscrew	8		$174.00	Add to Cart
98	S214442	Capscrew-diff.	4		$39.76	Add to Cart
99	1229T1554	Washer-diff. Brg Cap Capscrew	8		$236.00	Add to Cart
100	1244R694	Ring-diff. Brg Adj .250 As	As req.		—	Call for availability
100	1244S695	R.h & L .h .255	As req.		—	Call for availability
100	1244T696	Ring-diff. Brg Adj .250 As .260	As req.		—	No longer available — call for replacement
100	1244U697	Ring-diff. Brg Adj .250 As .265	As req.		—	Call for availability
100	1244V698	Ring-diff. Brg Adj .250 As .270	As req.		—	Call for availability
100	1244W699	Ring-diff. Brg Adj .250 As .275	As req.		—	Call for availability
100	1244X700	Ring-diff. Brg Adj .250 As .280	As req.		—	Call for availability
100	1244Q771	Ring-diff. Brg Adj .250 As .245	As req.		—	Call for availability
100	1244R772	Ring-diff. Brg Adj .250 As .240	As req.		—	Call for availability
101	HM516410	Cup-diff. Bearing R.h & L .h	2		$61.01	Add to Cart
102	HM516449C	Cone-diff. Bearing R.h & L .h	2	1 -29	$115.05	Add to Cart
	A3835B340	Assy	1		—	Call for availability
	A643835B340	Diff. Case & Nest Assy.	1		—	Call for availability
	1229E993	Side Gear Thrust	2	Available as	$74.24	Add to Cart
	2234T826	Gear-diff. R.h & L .h	2	KIT 2004 (with spider)	$1,131.67	Add to Cart
	1229D992	Pinion Thrust	4	KIT 2476 (less spider)	$73.20	Add to Cart
	2233C159		4	see SECTION 6	—	No longer available — call for replacement
	3278A79	Diff.	1		$246.48	Add to Cart
		Spur	1	See SECTION 4	—	Call for availability
	15X1497	Case	12		—	No longer available — call for replacement
	2297C7049	Locking Liquid/diff. Case	1	.34 oz. tube See NOTE below.	$44.68	Add to Cart
	NL191	Case	12		—	Call for availability
	1229Y2443	Case Bolt Separately. Nospin Units Locking Liquid/differential Differential Case Halves In Meritor Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Bolts Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	12	should be used; axles; should be relatively oil free; holes; threads Assemble the; of Dri -Loc; torque; part no 2297-C-7049; without; case holes only.; Apply; torque; procedure	$352.60	Add to Cart
	A93200L1234	Differential Carrier Assembly (complete) Less Yoke (for Yokes See Section 5) ,		6 .38 7 .03 7 .24 7 .79 7 .93; , , , , ,; 7 .98 8 .69 8 .84 8 .93 9 .00; , , , , ,; 9 .76 9 .86 10 .14 11 .08; , , ,	—	Call for availability
	A23200L1234	Diff. Carrier & Cap Assy.	1		—	Call for availability
2	S2682	Capscrew-thru Shaft Cover	4		$159.00	Add to Cart
3	1229B1666	Washer-thru Shaft Cover	4		$427.40	Add to Cart
4	3855R70	Cover-top	1		—	Call for availability
4		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
6	H715345	Cone-inner Bearing	1		$113.73	Add to Cart
7	H715311	Cup-inner Bearing	1		$58.98	Add to Cart
8	2803V802	Shim-drive Pinion .003	1		—	No longer available — call for replacement
8	2803C705	Shim-drive Pinion .003 Bearing Cage .005	1		$104.50	Add to Cart
8	2803D706	Shim-drive Pinion .003 .010	5		$78.00	Add to Cart
9		Plug-pinion Cage Filler	1	No longer available	—	Call for availability
9	A3226K89	Cage-drive Pinion Bearing Assy.	1		—	Call for availability
11	S29142	Capscrew-bearing Cage	7		—	No longer available — call for replacement
12	1229Y1507	Washer-brg Cage Capscrew	7		$68.50	Add to Cart
13	KIT1559	Spacer-pinion Bearing As	As req.	See SECTION 6	$1,229.91	Add to Cart
14	HM807010	Cup-outer Bearing	1		$40.37	Add to Cart
15	HM807046	Cone-outer Bearing	1		$128.37	Add to Cart
16	A1805S149	Oil Seal Assy.	1		$136.24	Add to Cart
17		Yoke-input	1	See SECTION 5	—	Call for availability
18	1229T1736	Washer-yoke Nut	1		$21.60	Add to Cart
19	1227J946	Nut-yoke	1		$21.32	Add to Cart
20	S29142	Capscrew-bearing Cage	6		—	No longer available — call for replacement
21	1229Y1507	Washer-cage Capscrew	6		$68.50	Add to Cart
21	A3838Y155	Cover-cross Shaft Brg Cage-l .h	1		—	Call for availability
23	S29102	Capscrew-cross Shaft Spur Pinion	2		$58.00	Add to Cart
24	1829Q615	Retainer-cross Shaft Bearing	1		—	Call for availability
25	65500	Cup-cross Shaft Outer Bearing	1		$69.06	Add to Cart
26	65237	Cone-cross Shaft Outer Bearing	1		$150.87	Add to Cart
27		Helical Pinion	1	See SECTION 4	—	Call for availability
28	16X82	Key-square	1		—	Call for availability
29	2803V126	Shim-cross .003	1		—	No longer available — call for replacement
29	2803N14	Shim-cross .003 Shaft Bearing .005	4		—	No longer available — call for replacement
29	2803P16	Shim-cross .003 Cage-l .h .030	1		—	No longer available — call for replacement
30	2803Z1300	Shim-cross .003	4		—	No longer available — call for replacement
30	2803A1301	Shim-cross .003 Shaft Bearing .005	1		$94.40	Add to Cart
30	2803Z2002	Shim-cross .003 Cage-r.h .010	3		$40.84	Add to Cart
31	65237	Cone-inner Bearing	1		$150.87	Add to Cart
32	65500	Cup-inner Bearing	1		$69.06	Add to Cart
32	A3838Z130	Cage-cross Shaft Brg Assy.-r.h	1		—	No longer available — call for replacement
34	1229Y1507	Washer-bearing Cage	6		$68.50	Add to Cart
35	S29142	Capscrew-bearing Cage	6		—	No longer available — call for replacement
36	S214442	Capscrew-bearing Cap	4		$39.76	Add to Cart
37	1229T1554	Washer-brg Cap Capscrew Separately.	4		$236.00	Add to Cart
	1244R694	Brg Adj .250		As	—	Call for availability
	1244S695	.h & R.h .255	As req.		—	Call for availability
	1244T696	.260			—	No longer available — call for replacement
	1244U697	.265			—	Call for availability
	1244V698	.270			—	Call for availability
	1244W699	.275			—	Call for availability
	1244X700	.280			—	Call for availability
	1244Q771	.245			—	Call for availability
	1244R772	.240			—	Call for availability
	HM516410	& Outer Diff. Bearing	2		$61.01	Add to Cart
	HM516449C	& Outer Diff. Bearing	2		$115.05	Add to Cart
	A3835B340	Case Assy.	1		—	Call for availability
	A643835B340	Case & Nest Assy.	1		—	Call for availability
	NL191	Case Bolt	12		—	Call for availability
	2234T826	Side L .h & R.h	2	KIT 2004 (with spider)	$1,131.67	Add to Cart
	3278A79		1		$246.48	Add to Cart
	1229Y2443	Case Bolt	12		—	Call for availability
	2297C7049	Locking Liquid/diff. Case Bolt Separately. Nospin Units Thread Locking Liquid/differential Differential Case Halves In Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	1	.34 oz. tube See NOTE below.; should be used; Meritor axles; should be relatively oil free; holes; the threads Assemble the; of Dri; torque; part no 2297-C-7049; bolts without; case holes only.; Apply; torque; procedure; 1 -33	$44.68	Add to Cart

Sr, Su SW-170 Family

Item	Part No.	Description	Qty	Notes	Price
1	3297W75	Thru-shaft	1		$886.45	Add to Cart
2	2297A7021	Gasket-thru-shaft	1		—	Call for availability
2	2208N924	Gasket-thru-shaft Bearing Cage	1	bearing cage	—	Call for availability
3	A3226P640	Thru-shaft Brg	1	† *	—	Call for availability
3	A3226F786	Thru-shaft Brg Cage Assy.	1	† *; cage assy.	—	Call for availability
4	1229C1511	Washer-thru-shaft	6		$141.00	Add to Cart
4	1229E1513	Washer-thru-shaft Brg Cage	6	brg cage	$174.00	Add to Cart
5	S28112	Capscrew-thru-	6		$85.20	Add to Cart
5	S27112	Capscrew-thru- Shaft Brg Cage	6	shaft brg cage	$185.00	Add to Cart
8	KIT1536	Snap Ring- Thru		As	$980.80	Add to Cart
8		Snap Ring- Thru	As req.	See SECTION; shaft; 6	—	Call for availability
8	6SEESECTION	Snap Ring- Thru	As req.	shaft; 6	—	Call for availability
9	1229T3062	Spacer-thru-shaft	1		$87.06	Add to Cart
10	A1205N1496	Oil Seal-thru-shaft	1		$38.48	Add to Cart
11	1199Z3146	Sleeve-thru-shaft	1		$267.80	Add to Cart
12		Thru-shaft Yoke	1	See SECTION; 5	—	Call for availability
12	5SEESECTION	Thru-shaft Yoke	1	5	—	Call for availability
13	1229T1736	Washer-thru-shaft	1		$21.60	Add to Cart
14	1227J946	Nut-thru-shaft	1		$21.32	Add to Cart
15	1227D472	Nut-drive Gear	1		$62.92	Add to Cart
16	15X1167	Screw-drive Gear	1		$197.36	Add to Cart
16	A23200M1833	Screw-drive Gear	1	Diff. carrier &	$3,628.39	Add to Cart
16	A23200M1625	Screw-drive Gear	1	Diff. carrier &	—	Call for availability
18	1246M455	Dowel-helical Gear	2		$292.60	Add to Cart
19	P112	Plug-filler	1		$77.80	Add to Cart
20	A1199Z3328	Oil Filter-screen	1		$80.30	Add to Cart
21	JM515610	Cup-input Shaft	1		$55.98	Add to Cart
22	JM515649	Cone-input Shaft	1		$117.70	Add to Cart
23	2234G787	Gear-inter-axle Diff.	1		—	Call for availability
23	2234W855	Gear-inter-axle Diff.	1		—	Call for availability
23	2234F890	Gear-inter-axle Diff. Rear Side	1	rear side	$604.02	Add to Cart
23		Gear-inter-axle Diff.	1	No longer available; separately.; 1 -35	—	Call for availability
24	S26262	Capscrew-inter-axle	8		$7.54	Add to Cart
25	1229K1597	Washer-inter-axle	16		$135.00	Add to Cart
26	NL261	Nut-inter-axle Diff.	8		$102.00	Add to Cart
26	A3235M1209	Nut-inter-axle Diff.	1	Inter-axle diff. case; †	—	Call for availability
26	A13235X1532	Nut-inter-axle Diff. , Assy.	1	Inter-axle diff. case; †; ,; assy.	$608.59	Add to Cart
26	A23235M1209	Nut-inter-axle Diff.	1	Inter-axle diff. case &; †	—	Call for availability
26	A3235X1532	Nut-inter-axle Diff. , Nest Assy.	1	Inter-axle diff. case &; †; ,; nest assy.	$1,831.78	Add to Cart
28	3278Q251	Spider-inter-axle Diff.	1		—	Call for availability
28	3278N300	Spider-inter-axle Diff.	1		$191.16	Add to Cart
29	2233E213	Pinion-inter-axle Diff.	4		$416.81	Add to Cart
29	2233K245	Pinion-inter-axle Diff.	4		$54.50	Add to Cart
30	1229R1032	Washer-inter-axle	4		$124.00	Add to Cart
30	1229Q2929	Washer-inter-axle Diff. Pinion Thrust	4	diff. pinion thrust	$131.40	Add to Cart
31	3892E4061	Gear-drive Helical	1		$1,881.45	Add to Cart
31		Gear-drive Helical Fwd Inter-axle Diff.	1	See ITEM 32; fwd inter-axle diff.	—	Call for availability
32	2234L792	Gear-inter-axle Diff.	1		—	Call for availability
32	2234M845	Gear-inter-axle Diff.	1		—	Call for availability
32	3892W4963	Gear-inter-axle Diff. Forward Side	1	forward side	$1,293.22	Add to Cart
34	1229G2529	Washer-inter-axle	1		—	Call for availability
34	1229L2742	Washer-inter-axle	1		$118.03	Add to Cart
34	A3280W6419	Washer-inter-axle	1	Input shaft & ball	—	Call for availability
34	MPS2678	Washer-inter-axle	1	Input shaft & ball	—	Call for availability
34	A3297K115	Washer-inter-axle Assy.	1	Input shaft & ball; assy.	—	Call for availability
36	1898E57	Ball-input Shaft	1	Not shown	—	Call for availability
37	1246Q615	Pin-spirol	1	Not shown	—	No longer available — call for replacement
38	1246S539	Pin-shift Fork Roll	1		—	Call for availability
39	3296J62	Shift Fork-clutch Collar	1		—	Call for availability
39	3296L90	Shift Fork-clutch Collar	1		$594.71	Add to Cart
40		Clutch Collar-input	1	No longer available	—	Call for availability
40	3107P16	Clutch Collar-input	1		$1,269.34	Add to Cart
41	S28122	Stopscrew-push Rod	1		—	Call for availability
41A	N681	Nut-stopscrew Push	1		$26.20	Add to Cart
42	2297A7021	Gasket-helical Gear	1		—	Call for availability
42	A13266N1080	Gasket-helical Gear	1	Cover assy.-; *	—	Call for availability
43A	1246Q615	Pin-spirol	1	Not shown	—	No longer available — call for replacement
43B	3196B28	Tube-helical Gear	1	Not shown	$59.40	Add to Cart
43B		Tube-helical Gear	1	No longer available; separately.	—	Call for availability
43C	3780R382	O-ring-helical Gear	1	Not shown	—	Call for availability
43E	2297L5420	Shaft-oil Pump	1	Not shown	—	Call for availability
43E	2297U5143	Shaft-oil Pump	1	Not shown	—	Call for availability
44	2297E2293	Adapter-oil Filter	1		—	Call for availability
45	1229E1669	Washer-oil Filter	2		$152.00	Add to Cart
46	S25102	Capscrew-oil Filter	2		$263.00	Add to Cart
47	3892K4249	Gear-pump Driven	1		—	Call for availability
47	3892K4353	Gear-pump Driven	1		—	No longer available — call for replacement
47		Gear-pump Driven	1	No longer available; Oil pump assy.; (5)	—	Call for availability
47	A13303L12	Gear-pump Driven	1	Oil pump assy.; (5)	—	Call for availability
47	5A13303L12	Gear-pump Driven	1	Oil pump assy.; (5)	—	Call for availability
49	3208B28	Gasket-oil Pump	1	Not shown	—	No longer available — call for replacement
50	1229K1597	Washer-oil Pump	7		$135.00	Add to Cart
50A	S26102	Capscrew-oil Pump	7		$178.00	Add to Cart
50A	S2682	Capscrew-oil Pump	7		$159.00	Add to Cart
51	3280V5040	Oil Filter	1		$29.27	Add to Cart
52	3280V6964	Shield-oil Filter	1		$70.24	Add to Cart
53	1244Z1430	Spacer-oil Filter Shield	2		—	Call for availability
54	1229E1669	Washer-oil Filter	2		$152.00	Add to Cart
55	S2552	Capscrew-oil Filter	2		—	Call for availability
56	1228B262	Bearing-drive Pinion	1	All except	$294.39	Add to Cart
56A	1228A261	Bearing-drive Pinion	1	For 7 .40 ratio only	—	Call for availability
57	1229L1624	Snap Ring-drive	1	All except	$47.00	Add to Cart
57A	1229K1623	Snap Ring-drive	1	For 7 .40 ratio only	$205.00	Add to Cart
57A		Snap Ring-drive	1	See SECTION; Drive gear & pinion; 4	—	Call for availability
57A	4SEESECTION	Snap Ring-drive	1	Drive gear & pinion; 4	—	Call for availability
59	78250AC	Cone-drive Pinion	2		$199.93	Add to Cart
60	78551	Cup-drive Pinion	2		$55.81	Add to Cart
61	KIT1554	Shim Spacer-drive		As	$2,160.95	Add to Cart
61		Shim Spacer-drive	As req.	See SECTION; pinion bearing; 6	—	Call for availability
61	6SEESECTION	Shim Spacer-drive	As req.	pinion bearing; 6	—	Call for availability
62	2203Z6604	Shim-drive .003	4		$69.32	Add to Cart
62	2203A6605	Shim-drive .003	3	pinion brg .005	$74.44	Add to Cart
62	2203B6606	Shim-drive .003	1	cage .010	$75.92	Add to Cart
62	A3226Z598	Shim-drive .003	1	Drive pinion brg	—	Call for availability
60		Cage & Cup Assy. Is Replaced		No longer available; separately.; is replaced; by A1 -3303-L-12; 1 -37	—	Call for availability
64	1229C1511	Washer-drive	9		$141.00	Add to Cart
65	S28122	Capscrew-drive	9		$76.00	Add to Cart
65	10X1669	Capscrew-drive Pinion Brg Cage	9	pinion brg cage	$321.70	Add to Cart
66	3892J4014	Gear-driven Helical	1		$1,271.15	Add to Cart
67	1229K2429	Washer-drive Pinion	1		$57.52	Add to Cart
68	1227P900	Nut-drive Pinion	1		$89.34	Add to Cart
69	3198E109	Shaft-oil Pump Idler	1		—	Call for availability
69	S28362	Shaft-oil Pump Idler	1	gear	—	Call for availability
70	1228D524	Bearing-oil Pump	1	†	—	No longer available — call for replacement
70	A1228Z572	Bearing-oil Pump Idler Gear	1	†; idler gear	—	Call for availability
71	1229C1511	Washer-oil Pump	1		$141.00	Add to Cart
71	1229W1505	Washer-oil Pump	2	idler gear	$305.00	Add to Cart
72	NL281	Nut-oil Pump Idler	1		$76.00	Add to Cart
72	KIT3301	Nut-oil Pump Idler	1	Gear-oil pump idler	—	Call for availability
72	KIT3301A	Nut-oil Pump Idler	1	Gear-oil pump idler	—	Call for availability
74	1244D1460	Spacer-oil Pump	1		—	Call for availability
75	1854Z338	Snap Ring-oil Pump	1		—	Call for availability
76	1229C1511	Washer-helical Gear	14		$141.00	Add to Cart
77	S28122	Capscrew-helical	14		$76.00	Add to Cart
78	2258U411	Spring-push Rod	1		$211.00	Add to Cart
79	2297X2494	Push Rod	1		$120.99	Add to Cart
79	KIT2266	Push Rod	1	Air shift assy.; Includes attaching	—	Call for availability
79		Push Rod	1	See SECTION; 6 hardware	—	Call for availability
79	6SEESECTION	Push Rod	1	6 hardware	—	Call for availability
83	HM813841	Cone-input Shaft	1		—	Call for availability
83	HM813844	Cone-input Shaft Forward Bearing	1	forward bearing	$77.19	Add to Cart
84	HM813810	Cup-input Shaft	1		$45.58	Add to Cart
85	2203C6607	Shim-input .003	3	Available as	$170.60	Add to Cart
85	2203D6608	Shim-input .003	4	shaft brg .005; KIT 1573	—	No longer available — call for replacement
85	2203E6609	Shim-input .003	1	cage .010; See SECTION 6	$117.30	Add to Cart
85	A3226T644	Shim-input .003	1	Input cage & brg	—	Call for availability
85	A3226J790	Shim-input .003	1	Input cage & brg	—	Call for availability
87	1229C1511	Washer-input Brg	6		$141.00	Add to Cart
88	S28122	Capscrew-input	6		$76.00	Add to Cart
88	S28132	Capscrew-input Brg Cage	6	brg cage	$1,145.00	Add to Cart
89	A1205J2428	Oil Seal Assy.	1		$104.91	Superseded by A1205R2592Add to Cart
89		Oil Seal Assy.	1	No longer available; separately.	—	Call for availability
90	DEFR541	Deflector-	1		$13.75	Add to Cart
91		Input Shaft Yoke Assy.	1	See SECTION; 5	—	Call for availability
91	5SEESECTION	Input Shaft Yoke Assy.	1	5	—	Call for availability
92	1229N1730	Washer-input Shaft	1		$52.70	Add to Cart
93	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
94	1229N1626	Washer-diff. Carrier	14		$127.50	Add to Cart
94	1229U1503	Washer-diff. Carrier To Axle Housing	14	to axle housing	$130.00	Add to Cart
95	SN10221	Stud-diff. Carrier To	10	Not shown	$118.00	Add to Cart
95	SN10201	Stud-diff. Carrier To	1	axle housing (short)	$35.50	Superseded by 4X1921Add to Cart
96	SN10281	Stud-diff. Carrier To	2	Not shown	$369.60	Add to Cart
97	SN10361	Stud-diff. Carrier To	2	Not shown	$127.36	Add to Cart
98	S210162	Bolt-diff. Carrier To Housing	9	housing	$75.80	Add to Cart
99	N1101	Nut-diff. Carrier To	14		$21.40	Add to Cart
100	15X1315	Capscrew-lock	4		$135.00	Superseded by S2562Add to Cart
101	1220B1094	Lock-adjusting Ring	2		$92.60	Add to Cart
102	2214K89	Ring-diff. Bearing	1		$213.36	Add to Cart
105	15X1522	Bolt-diff. Case To Gear	16	Available as	$174.10	Add to Cart
106	1229U1503	Washer-diff. Case	16	KIT 944	$130.00	Add to Cart
107	NL1101	Nut-diff. Case To Gear	16		$70.40	Add to Cart
107	B233235B730	Nut-diff. Case To Gear	1	SR, SU	$3,552.85	Add to Cart
107	A773235Z728	Nut-diff. Case To Gear	1	SR, SU	$2,481.22	Add to Cart
115	A3235H1438	Assy. Sw	1		$1,244.86	Add to Cart
116	A3235E1435	Std Ratio	1	SW	—	Call for availability
116	B43235B730	Std Ratio	1	SR, SU	—	Call for availability
109	A663235Z728	Sr, Su	1		—	Call for availability
112 ,113	A13235H1438	& Nest Sw	1		—	Call for availability
116	A13235E1435	Sw	1		—	Call for availability
	1229E993	Washer-diff. Sr,	2		$74.24	Add to Cart
109	1229L3002	Side Gear Su	2	thrust (main) SW	—	Call for availability
110	2234T358	Side Gear- Sr,su	2		$372.14	Add to Cart
110	2234S851	Side Gear- Sr,su	2	diff. (main) SW	$1,491.40	Add to Cart
111	3278A79	Spider-diff. Sr,su	1		$246.48	Add to Cart
111	3278A79	Spider-diff. Sr,su	1	(main) SW	$246.48	Add to Cart
111	3278W3359	Spider-diff. Sr,su	1	(main) SW	—	Call for availability
111	3278A7910	Spider-diff. Sr,su	1		—	Call for availability
112	2233C159	Gear-diff. Sr,su	4		—	No longer available — call for replacement
112	2233C159	Gear-diff. Sr,su	4	pinion (main) SW	—	No longer available — call for replacement
112	2233V1789	Gear-diff. Sr,su	4	pinion (main) SW	—	Call for availability
112	2233C15910	Gear-diff. Sr,su	4		—	Call for availability
113	1229D992	Washer-diff. Sr,su	4		$73.20	Add to Cart
113	1229D992	Washer-diff. Sr,su	4	pinion SW	$73.20	Add to Cart
113	1229K30019	Washer-diff. Sr,su	4	pinion SW	—	Call for availability
113	1229D99210	Washer-diff. Sr,su	4	thrust (main)	—	Call for availability
114	1229U1503	Washer-diff. Case	12		$130.00	Add to Cart
115	S21028A2	Bolt-diff. Case Halves	8		$191.10	Add to Cart
116	S21020A2	Bolt-diff. Case Halves	4		$35.00	Add to Cart
117	2297C7049	Thread Locking Liquid/	1	See NOTE below	—	Call for availability
117	34OZTUBE	Thread Locking Liquid/	1	diff. case (not shown)	—	Call for availability
118	52387	Cone-diff. Brg L .h	1		$151.29	Add to Cart
119	52618	Cup-diff. Bearing L .h	1		$60.66	Add to Cart
120	2214M91	Ring-diff. Bearing	1		$191.23	Add to Cart
120	1898Z1066	Ring-diff. Bearing	2	Dowel-pin diff.	$73.00	Add to Cart
122	S114402	Capscrew-diff.	4		$89.04	Add to Cart
123	1229M1625	Washer-diff. Brg Cap	4		$41.80	Add to Cart
123	3235H1438SPECIFY	Washer-diff. Brg Cap 6/82 Thread Locking Assembling Differential Recommended Procedure 1 Wipe Excess Oil And 2 If New Bolts Are Being Case With These Coated 3 If The Original Bolts Are Should Be Used As A Thread The Bolts And	4	thru 6/82 Service with A1; -3235-E-1435; 6/82; THREAD LOCKING; LIQUID/DIFFERENTIAL; assembling differential; be used; case; recommended procedure; is; 1 Wipe excess oil and; relatively oil free; residue; 2 If new bolts are being; Assemble the; used; case with these coated; bolts; 3 If the original bolts are; 2297-C-7049; reused; should be used as a; holes only.; thread; Thread the bolts and; tighten	—	Call for availability
123	PARTNO2297C7049	Washer-diff. Brg Cap	4	Do not apply; Meritor	—	Call for availability
123	1FORCOMPLETE	Washer-diff. Brg Cap	4	to Meritor Maintenance; Manual	—	Call for availability
	C413200G605	Carrier Assy.-std Diff. 2 .38"-24 Diff. Spline All * , , 170 Gearing 2 .25"-10 Input Spline Less Yoke , ,			—	Call for availability
	C843200G605	Carrier Assy.-std Diff. 2 .50"-50 Diff. Spline All * , , 170 Gearing 2 .25"-10 Input Spline Less Yoke , ,			—	Call for availability
		1 -41		see SECTION 5	—	Call for availability
1	1227D940	Nut-drive Pinion	1		$35.66	Add to Cart
2	1229N1730	Washer-drive Pinion	1		$52.70	Add to Cart
2		Input Yoke Assembly	1	See SECTION 5	—	Call for availability
4	DEFR503	Deflector-input Yoke	1		—	Call for availability
5	S28162	Capscrew-bearing Cage	8		$61.80	Add to Cart
6	1229C1511	Washer-bearing Cage	8		$141.00	Add to Cart
6	A3266D160	Pinion Cage Cover & Seal Assy.	1		—	Call for availability
8	A1805F162	Oil Seal-pinion Cage Cover	1		$181.60	Add to Cart
9	2208H424	Gasket-pinion Cage Cover	1		—	No longer available — call for replacement
10	H715334	Cone-drive Pinion Inner & Outer Bearing	2		$132.26	Add to Cart
11	H715311	Cup-drive Pinion Inner & Outer Bearing	2		$58.98	Add to Cart
11	A3226F188	Bearing Cage & Cup Assy.	1		$2,145.43	Superseded by KIT1589Add to Cart
13	2203L1260	Shim-bearing .003	1		$169.80	Add to Cart
13	2203A469	Shim-bearing .003 Cage .005	1		$97.40	Add to Cart
13	2203B470	Shim-bearing .003 .010	3		$110.20	Add to Cart
14	KIT521	Spacer-pinion Bearing As	As req.	See SECTION 6	$2,126.82	Add to Cart
15		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
16	1228B262	Bearing-drive Pinion	1	All ratios except 7 .40	$294.39	Add to Cart
16	1228A261	Bearing-drive Pinion Spigot	1	7 .40 ratio only	—	Call for availability
17	1229L1624	Snap Ring-spigot Bearing	1	All ratios except 7 .40	$47.00	Add to Cart
17	1229K1623	Snap Ring-spigot Bearing Drive Pinion	1	7 .40 ratio only	$205.00	Add to Cart
17	A23200G605	Differential Carrier & Cap Assembly	1		$2,588.22	Add to Cart
17	1246D342	Dowel-bearing Cap	2		$469.00	Add to Cart
20	S114442	Capscrew-bearing Cap	4		—	Call for availability
21	1229M1625	Washer-bearing Cap	4		$41.80	Add to Cart
22	P212	Plug-oil Fill & Inspection	1		$77.50	Add to Cart
23	15X1167	Screw-drive Gear Thrust	1		$197.36	Add to Cart
24	1227D472	Nut-drive Gear Thrust Screw	1		$62.92	Add to Cart
25	2214M91	Ring-diff. Bearing L .h	1		$191.23	Add to Cart
25	2214K89	Ring-diff. Bearing L .h Adjusting R.h	1		$213.36	Add to Cart
26	1229E1669	Washer-adjusting Ring Lock	4		$152.00	Add to Cart
27	S256P2	Capscrew-adjusting Ring Lock	4		$18.90	Add to Cart
28	1220B1094	Lock-adjusting Ring	2		$92.60	Add to Cart
29	52618	Cup-diff. Bearing L .h	1		$60.66	Add to Cart
30	52387	Cone-diff. Bearing L .h	1		$151.29	Add to Cart
33	15X1522	Bolt-diff. Case To Gear	16	Available as KIT 944	$174.10	Add to Cart
34	1229U1503	Washer-diff. Case To Gear	16	See SECTION 6	$130.00	Add to Cart
35	NL1101	Nut-diff. Case To Gear Separately.	16		$70.40	Add to Cart
	B233235B730	Sr, Su Std Ratio	1		—	Call for availability
	A773235Z728	Differential Sr, Su Case Fast Ratio	1		$2,481.22	Add to Cart
	A3235H1438	Assembly Sw Std Ratio	1		—	Call for availability
	A3235E1435	Sw Fast Ratio	1		—	Call for availability
	B43235B730	Sr, Su Std Ratio	1		—	Call for availability
	A663235Z728	Differential Sr, Su Case And Fast Ratio	1		—	Call for availability
	A13235H1438	Nest Sw Assembly Std Ratio	1		—	Call for availability
	A13235E1435	Sw Fast Ratio	1		—	Call for availability
37	1229U1503	Washer-diff. Case Halves	12		$130.00	Add to Cart
38	S21020A2	Bolt-diff. Case Halves (short)	4		$35.00	Add to Cart
39	S21028A2	Bolt-diff. Case Halves (long)	8		$191.10	Add to Cart
40	2297C7049	Thread Locking Liquid/diff. Case	1	.34 oz. tube See NOTE below	$44.68	Add to Cart
41	1229E993	Washer-main Diff. Sr, Su	2		$74.24	Add to Cart
41	1229L3002	Washer-main Diff. Sr, Su Side Gear Thrust Sw	2		$81.36	Add to Cart
42	2234T358	Gear-main Sr, Su	2	2 .38"-24 diff. spline	$372.14	Add to Cart
42	2234S851	Gear-main Sr, Su Diff. Side Sw	2	2 .50"-24 diff. spline	$1,491.40	Add to Cart
43	3278A79	Spider-main Sr, Su	1		$246.48	Add to Cart
43	3278A79	Spider-main Sr, Su Diff. Sw	1	After 6/82	$246.48	Add to Cart
43	3278W3352	Spider-main Sr, Su	1	7/70 thru 6/82	—	Call for availability
44	2233C159	Gear-diff. Sr, Su	4		—	No longer available — call for replacement
44	2233C159	Gear-diff. Sr, Su Pinion (main) Sw	4	After 6/82	—	No longer available — call for replacement
44	2233V1782	Gear-diff. Sr, Su	4	7/70 thru 6/82	—	Call for availability
45	1229D992	Washer-diff. Sr, Su	4		$73.20	Add to Cart
45	1229D992	Washer-diff. Sr, Su Pinion Thrust Sw	4	After 6/82	$73.20	Add to Cart
45	1229K30012	Washer-diff. Sr, Su (main) Separately. A1 -3235-E-1435 Or A1 -3235-H-1438 Thread Locking Liquid/differential Differential Case Halves In Procedure Is As Follows: Excess Oil And Residue From The Threaded Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	4	7/70 thru 6/82; Specify; should be used; Meritor axles; should be relatively oil free; holes; the threads Assemble the; of Dri; torque; Meritor part no 2297-C-7049; bolts without; case holes only.; Apply; torque; procedure; 1 -43	—	Call for availability

Sr, Su SW-270/280 Family

Item	Part No.	Description	Qty	Notes	Price
270	C463200X1324	1 .48-1 Helical Ratio 270 Gearing With Inter-axle , Diff. 2 .38"-46 Input Spline Less Yokes ,		* All	—	Call for availability
270	A543200X1324	Same As C46-3200-X-1324 Except 280 Gearing Carrier Assy. Std Diff. 2 .50"-50 Diff. Spline , , ,		9 .14 10 .13 10 .97; , ,	—	Call for availability
270	C653200X1324	1 .48-1 Helical Ratio 270 Gearing With Inter-axle , Diff. 2 .38"-46 Input Spline Less Yokes ,		* All	—	Call for availability
270	A733200M1833	Same As C65-3200-X-1324 Except 280 Gearing 5		9 .14 10 .13 10 .97; , ,	—	Call for availability
1	3297W75	Thru-shaft	1		$886.45	Add to Cart
2	2208N924	Gasket-thru-shaft Bearing Cage	1		—	Call for availability
2	A3226F786	Thru-shaft Brg Cage Assy.	1	No Longer Available	—	Call for availability
4	1229E1513	Washer-thru-shaft Brg Cage	6		$174.00	Add to Cart
5	S27102	Capscrew-thru-shaft Brg Cage	6		$50.50	Add to Cart
8	KIT1536	Snap Ring- Thru-shaft	As req.	See SECTION 6	$980.80	Add to Cart
9	1229T3062	Spacer-thru-shaft Outer Bearing	1		$87.06	Add to Cart
10	A1205N1496	Oil Seal-thru-shaft	1		$38.48	Add to Cart
12		Thru-shaft Yoke Assy.	1	See SECTION 5	—	Call for availability
13	1229T1736	Washer-thru-shaft Output Yoke	1		$21.60	Add to Cart
14	1227J946	Nut-thru-shaft Output Yoke	1		$21.32	Add to Cart
15	1227D472	Nut-drive Gear Thrust Screw	1		$62.92	Add to Cart
16	15X1167	Screw-drive Gear Thrust	1		$197.36	Add to Cart
16	A23200M1833	Diff. Carrier & Cap Assy.	1		$3,628.39	Add to Cart
18	1246M455	Dowel-helical Gear Cover To Carrier	2		$292.60	Add to Cart
19	P112	Plug-filler	1		$77.80	Add to Cart
20	A1199Z3328	Oil Filter-screen Assy.	1		$80.30	Add to Cart
21	JM515610	Cup-input Shaft Rear Bearing	1		$55.98	Add to Cart
22	JM515649	Cone-input Shaft Rear Bearing	1		$117.70	Add to Cart
23	2234F890	Gear-inter-axle Diff. Rear Side	1		$604.02	Add to Cart
23	A13235X1532	Inter-axle Diff. Case Assy.	1		$608.59	Add to Cart
23	A3235X1532	Inter-axle Diff. Case & Nest Assy.	1		$1,831.78	Add to Cart
24	S26262	Capscrew-inter-axle Diff. Case	8		$7.54	Add to Cart
24A	2297C7049	Thread Locking Liquid/diff. Case .34 Oz. Tube (not Shown)	1	See NOTE at end of parts list.	$44.68	Add to Cart
26	1229Q2929	Washer-inter-axle Pinion Thrust Separately.	4	1 -45	$131.40	Add to Cart
27	2233K245	Pinion-inter-axle Diff.	4		$54.50	Add to Cart
27	3278N300	Pinion-inter-axle Diff. Diff.	1		$191.16	Add to Cart
27	1229K1597	Pinion-inter-axle Diff. Diff.	16		$135.00	Add to Cart
30	NL261	Nut-inter-axle Diff.	8		$102.00	Add to Cart
30	3892Y4965	Nut-inter-axle Diff. Helical Fwd Inter-axle Side Gear Assy.	1		$1,353.26	Add to Cart
30	1229L2742	Nut-inter-axle Diff. Side Gear Thrust	1		$118.03	Add to Cart
30	A13297K115	Input Shaft & Ball Assy.	1		$5,247.28	Add to Cart
35A	1898E57	Shaft	1	Not shown	—	Call for availability
35A	1246Q615	Pin	1	Not shown	—	No longer available — call for replacement
36	1246S539	Pin-roll	1		—	Call for availability
36	3296L90	Pin-roll Fork	1		$594.71	Add to Cart
36	3107P16	Pin-roll Collar-input Shaft	1		$1,269.34	Add to Cart
36	S28122	Pin-roll Rod	1		—	Call for availability
36	N681	Pin-roll Push Rod	1		—	Call for availability
36	2297A7021	Pin-roll Case (silastic)	1		—	Call for availability
36	A3266A807	Pin-roll Case Assy.	1	No Longer Available	—	Call for availability
43	3196B28	Plug-adapter Case Case	1	Not shown	—	Call for availability
43	3780R382	Plug-adapter Case Case	1	Not shown	—	Call for availability
46	1246Q615	Pin	1	Not shown	—	No longer available — call for replacement
46	2297E2293	Pin Filter	1	No Longer Available	—	Call for availability
46	1229E1669	Pin Filter Adapter	2		—	Call for availability
46	S25102	Pin Filter Adapter	2		—	Call for availability
46	3892K4353	Pin Driven	1		—	No longer available — call for replacement
46	A13303L12	Pin Pump Assy. (complete)	1		—	Call for availability
46	3208B28	Pin Pump	1	Not shown	—	No longer available — call for replacement
46	1229K1597	Pin Pump	7		—	Call for availability
46	S26102	Pin Pump	7		—	Call for availability
46	3280V5040	Pin Filter	1		$29.27	Add to Cart
46	A3280F8430	Pin Filter	1		—	No longer available — call for replacement
46	1244Z1430	Pin Filter Shield	2	Not shown Used on old style only.; No Longer Available	—	Call for availability
46	1229E1669	Pin Filter Shield	2		—	Call for availability
46	S256P2	Pin Filter Shield	2		—	Call for availability
46	3198E109	Pin Pump Idler Gear	1		—	Call for availability
46	S28362	Pin	1		—	Call for availability
46	1229C1511	Pin Pump Idler Gear	1		—	Call for availability
46	A1228Z572	Pin Pump Idler Gear	1		—	Call for availability
46	3892J4352	Pin Pump Drive Pump Idler Gear Ring-oil Pump Idler Gear	1	No Longer Available	—	Call for availability
66	NL281	Nut-oil Pump Idler Gear	1		$76.00	Add to Cart
66	1229L1624	Nut-oil Pump Idler Gear Ring-drive Pinion	1	All ratios except 7 .40	$47.00	Add to Cart
66	1229K1623	Nut-oil Pump Idler Gear Separately.	1	For 7 .40 ratio only	—	Call for availability
	1228B262	Pinion Spigot	1	All ratios except 7 .40	—	Call for availability
	1228A261		1	For 7 .40 ratio only	$228.62	Add to Cart
		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
	78250AC	Pinion Bearing	2		$199.93	Add to Cart
	78551	Pinion Bearing	2		$55.81	Add to Cart
	KIT1554	Spacer-drive Pinion Brg	As req.	See SECTION 6	$2,160.95	Add to Cart
	2203Z6604	.003	3		$69.32	Add to Cart
	2203A6605	Brg .005	4		—	Call for availability
	2203B6606	.010	1		$75.92	Add to Cart
	A3226Z598	Drive Pinion Brg Cage & Cup Assy.	1		$711.21	Add to Cart
	1229C1511	Bearing Cage	9		—	Call for availability
	10X1669	Brg Cage	9		—	Call for availability
	3892B4708	Helical	1		$1,574.87	Add to Cart
	1229K2429	Pinion	1		—	Call for availability
79	1227P900	Nut-drive Pinion	1		$89.34	Add to Cart
79	1229C1511	Nut-drive Pinion Case To Carrier	14		—	Call for availability
79	S28122	Nut-drive Pinion Case To Carrier	14		—	Call for availability
79	2258U411	Nut-drive Pinion Rod	1		—	Call for availability
83	2297X2494	Push Rod	1		$120.99	Add to Cart
83	KIT2266	Push Rod Shift Assy.	1	Includes attaching hardware; See SECTION 6	$56.11	Add to Cart
83	HM813844	Push Rod Shaft Bearing	1		$77.19	Add to Cart
83	HM813810	Push Rod Shaft Bearing	1		$45.58	Add to Cart
83	2203C6607	Push Rod .003	3	Available as KIT 1573	—	Call for availability
83	2203D6608	Push Rod Bearing .005	4	See SECTION 6	—	No longer available — call for replacement
83	2203E6609	Push Rod .010	1		—	Call for availability
83	A13226J790	Input Cage & Brg Cup Assy.	1		$347.67	Add to Cart
83	1229C1511	Push Rod Brg Cage	6		—	Call for availability
83	S28132	Push Rod Brg Cage	6		—	Call for availability
83	A1205J2428	Push Rod Seal Assy. -input Shaft	1		$104.91	Superseded by A1205R2592Add to Cart
92	DEFR541	Deflector-companion Yoke	1		$13.75	Add to Cart
92		Deflector-companion Yoke Assy. -input Shaft	1	See SECTION 5	—	Call for availability
92	1229N1730	Deflector-companion Yoke Shaft	1		—	Call for availability
95	1227D940	Nut-input Shaft	1		$35.66	Add to Cart
95	1229U1503	Nut-input Shaft Carrier To Housing	14		—	Call for availability
95	SN10201	Nut-input Shaft Carrier To Short	1	Not shown	$35.50	Superseded by 4X1921Add to Cart
95	SN10281	Nut-input Shaft Housing Medium	2	Not shown	—	Call for availability
95	SN10361	Nut-input Shaft Long	2	Not shown	—	Call for availability
95	S210162	Nut-input Shaft Carrier To Housing	9		—	Call for availability
99	N1101	Nut-diff. Carrier To Housing	5		$21.40	Add to Cart
99	15X1315	Nut-diff. Carrier To Housing Adj Ring	4		$135.00	Superseded by S2562Add to Cart
99	1220B1094	Nut-diff. Carrier To Housing Ring	2		$92.60	Add to Cart
102	2214M91	Ring-diff. Bearing Adj L .h	1		$191.23	Add to Cart
103	2214K89	Ring-diff. Bearing Adj R.h Brg R.h	1		$213.36	Add to Cart
103	52618	Ring-diff. Bearing Adj R.h Brg L .h Brg R.h	1		$60.66	Add to Cart
103	52387	Ring-diff. Bearing Adj R.h Brg L .h Separately.	1	1 -47	$151.29	Add to Cart
	B233235B730	Sr, Su Std Ratio	1		—	Call for availability
	A773235Z728	Sr, Su Diff. Case Fast Ratio	1		$2,481.22	Add to Cart
	A3235H1438	Sw	1		$1,244.86	Add to Cart
113	A3235E1435	Sw Fast Ratio	1		—	Call for availability
113	B43235B730	Sr, Su Std Ratio	1		—	Call for availability
113	A663235Z728	Sr, Su Diff. Case Fast Ratio	1		—	Call for availability
113	A13235H1438	Std Ratio Nest Sw Std Ratio	1		—	Call for availability
113	A13235E1435	Sw Fast Ratio	1		—	Call for availability
113	3278Q381	Sr,su	1		$171.33	Add to Cart
113	3278W3354	Sw	1		—	Call for availability
113	3278Q3815	Std Ratio			—	Call for availability
113	2233C159	Sr,su	4		—	No longer available — call for replacement
113	2233V1784	Std Ratio (main) Sw	4		—	Call for availability
113	2233C1595	Std Ratio			—	Call for availability
113	1229D992	Sr,su	4		$73.20	Add to Cart
113	1229K30014	Sw	4		—	Call for availability
113	1229D9925	Std Ratio (main)			—	Call for availability
113	S21020A2	Std Ratio Case Short	4		—	Call for availability
113	S21028A2	Std Ratio Long	8		—	Call for availability
113	2297C7049	Std Ratio Locking Liquid/diff. Case .34 Oz. Tube (not Shown)	1	See NOTE below.	$44.68	Add to Cart
113	1229U1503	Std Ratio Case Bolt	12		—	Call for availability
113	15X1522	Std Ratio Case To Gear	16	Available as	—	Call for availability
113	1229U1503	Std Ratio Bolt	16	KIT 944	—	Call for availability
113	NL1101	Std Ratio Case Bolt	16	See SECTION 6	—	Call for availability
113	2234T358	Std Ratio Gear- Sr,su	2	2 .38"-24 spline	$372.14	Add to Cart
113	2234S851	Std Ratio (main) Sw	2	2 .50"-50 spline	—	Call for availability
113	1229E993	Std Ratio Side Sr, Su	2		—	Call for availability
113	1229L3002	Std Ratio Thrust Sw Separately. 6/82 Service With A1 -3235-E-1435 Thread Locking Liquid/differential Differential Case Halves Procedure Is As Follows: Excess Oil And Residue From The Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	2	(5) After; or A1 -3235-H-1438; adhesive should be used; in Meritor; holes should be relatively oil free; threaded; on the threads Assemble the; of; torque; Meritor part no 2297-C-7049; bolts; ,; differential case holes only.; torque; bolts	$81.36	Add to Cart
270	A373200M1625	1 .48-1 Helical Ratio 270 Gearing Without Inter- , Axle Diff. 2 .38"-46 Input Spline Less Yokes ,		* All	—	Call for availability
270	A603200X1324	Same As A37-3200-M-1625 Except 280 Gearing Carrier Assy. Std Diff. 2 .50"-50 Diff. Spline , , ,		9 .14 10 .13 10 .97; , ,	—	Call for availability
270	A573200X1324	1 .48-1 Helical Ratio 270 Gearing Without Inter- , Axle Diff. 2 .38"-46 Input Spline Less Yokes ,		* All	—	Call for availability
270	A583200X1324	Same As A57-3200-X-1324 Except 280 Gearing 5		9 .14 10 .13 10 .97; , ,	—	Call for availability
12		Thru-shaft Yoke Assy. (output)	1	See SECTION 5	—	Call for availability
18	1229M1625	Washer-bearing Cap	4		$41.80	Add to Cart
19	S214402	Capscrew-bearing Cap	4		—	Call for availability
20	1246D342	Dowel-bearing Cap	4	Not shown	$469.00	Add to Cart
21	1229L1624	Snap Ring-spigot Bearing	1	All ratios except 7 .40	$47.00	Add to Cart
21	1229K1623	Snap Ring-spigot Bearing	1	For 7 .40 ratio only	$205.00	Add to Cart
22	1228B262	Bearing-drive Pinion Spigot	1	All ratios except 7 .40	$294.39	Add to Cart
22	1228A261	Bearing-drive Pinion Spigot	1	For 7 .40 ratio only	—	Call for availability
22		Drive Gear & Pinion Assy.	1	See SECTION 4	—	Call for availability
24	78250AC	Cone-drive Pinion Inner Bearing	1		$199.93	Add to Cart
25	78551	Cup-drive Pinion Inner Bearing	1		$55.81	Add to Cart
26	KIT1554	Shim Spacer-drive Pinion Brg	As req.	See SECTION 6	$2,160.95	Add to Cart
27	2203Z6604	Shim-drive .003	3		$69.32	Add to Cart
27	2203A6605	Shim-drive .003 Pinion Brg .005	4		$74.44	Add to Cart
27	2203B6606	Shim-drive .003 Cage .010 Separately.	1		$75.92	Add to Cart
	S28122	Brg Cage	9		—	Call for availability
	78551	Pinion Outer Bearing	1		$55.81	Add to Cart
	78250AC	Pinion Outer Bearing	1		$199.93	Add to Cart
	MPS33566	Helical	1		—	Call for availability
	1229K2429	Pinion Nut	1		—	Call for availability
35	1227P900	Nut-drive Pinion	1		$89.34	Add to Cart
35	1229U1503	Nut-drive Pinion Carrier To Housing	14		—	Call for availability
35	S210162	Nut-drive Pinion Carrier To Housing	9		—	Call for availability
35	SN10201	Nut-drive Pinion Carrier To Short	1	Not shown	$35.50	Superseded by 4X1921Add to Cart
35	SN10281	Nut-drive Pinion Housing Medium	2	Not shown	—	Call for availability
35	SN10361	Nut-drive Pinion Long	2	Not shown	—	Call for availability
35	N1101	Nut-drive Pinion Carrier To Housing	5		$21.40	Add to Cart
35	1246M455	Nut-drive Pinion Carrier	2		—	Call for availability
35	P112	Nut-drive Pinion Carrier	1		—	Call for availability
35	A3297M117	Input Shaft & Nut Assy. Shaft Rear Brg Case Inner	1		—	Call for availability
35	A13266B834	Nut-drive Pinion Case Assy.	1	Less oil pump	—	Call for availability
35	2297A7021	Nut-drive Pinion Case To Carrier	1		—	Call for availability
35	3221H8	Nut-drive Pinion	1		—	Call for availability
35	1229C1511	Nut-drive Pinion Case To Carrier	14		—	Call for availability
35	S28122	Nut-drive Pinion Case To Carrier	14		—	Call for availability
35	KIT1554	Nut-drive Pinion Bearing	As req.	See SECTION 6	—	Call for availability
35	29620	Nut-drive Pinion Case Outer Brg	1		—	Call for availability
35	29685	Nut-drive Pinion Shaft Outer Brg	1		$65.79	Add to Cart
35	MPS33566	Nut-drive Pinion Drive	1	See SECTION 6	—	Call for availability
35	A3266Y831	Nut-drive Pinion Assy.	1	No Longer Available	—	Call for availability
35	1227K1597	Nut-drive Pinion Assy.	9		—	Call for availability
35	S26102	Nut-drive Pinion Assy.	9		—	Call for availability
35	A1205J2428	Nut-drive Pinion Seal Assy. -cover	1		$104.91	Superseded by A1205R2592Add to Cart
54	3264C133	Deflector -yoke	1		—	Call for availability
54		Deflector -yoke Assy.	1	See SECTION 5	—	Call for availability
54	1229N1730	Deflector -yoke Nut	1		—	Call for availability
57	1227D940	Nut-yoke	1		$35.66	Add to Cart
57	15X1315	Nut-yoke Adj Ring	4		$135.00	Superseded by S2562Add to Cart
57	1220B1094	Nut-yoke Ring	2		—	Call for availability
60	2214M91	Ring-diff. Bearing Adj L .h	1		$191.23	Add to Cart
61	2214K89	Ring-diff. Bearing Adj R.h	1		$213.36	Add to Cart
61	52618	Ring-diff. Bearing Adj R.h Brg L .h Brg R.h	1		$60.66	Add to Cart
61	52387	Ring-diff. Bearing Adj R.h Brg L .h Brg R.h	1		$151.29	Add to Cart
61	15X1522	Ring-diff. Bearing Adj R.h To Gear	16	Available as	$174.10	Add to Cart
61	1229U1503	Ring-diff. Bearing Adj R.h To Gear	16	KIT 944	$130.00	Add to Cart
68	NL1101	Nut-case To Gear Separately. And 3892-G-4557 Must Be Replaced	16	See SECTION 6; MPS-3356; at the; 1 -51	$70.40	Add to Cart
76A	A3235E1435	Sw Fast Ratio	1		—	Call for availability
76A	B43235B730	Sr, Su Std Ratio	1		—	Call for availability
76A	A663235Z728	Diff. Case Sr, Su Nest Fast Ratio	1		—	Call for availability
76A	A13235H1438	Sw Std Ratio	1		—	Call for availability
76A	A13235E1435	Sw Fast Ratio	1		—	Call for availability
76A	1229E993	Std Ratio Side Sr, Su	2		—	Call for availability
76A	1229L3002	Std Ratio Thrust Sw	2		$81.36	Add to Cart
76A	2234T358	Std Ratio Gear- Sr,su	2	2 .38"-24 spline	$372.14	Add to Cart
76A	2234S851	Std Ratio (main) Sw	2	2 .50"-50 spline	—	Call for availability
76A	3278Q381	Sr,su	1		$171.33	Add to Cart
76A	3278W3354	Sw	1		—	Call for availability
76A	3278Q3815	Std Ratio			—	Call for availability
76A	1229D992	Sr,su	4		$73.20	Add to Cart
76A	1229K30014	Sw	4		—	Call for availability
76A	1229D9925	Std Ratio (main)			—	Call for availability
76A	2233C159	Sr,su	4		—	No longer available — call for replacement
76A	2233V1784	Std Ratio (main) Sw	4		—	Call for availability
76A	2233C1595	Std Ratio			—	Call for availability
76A	1229U1503	Std Ratio Case Bolt	12		—	Call for availability
76A	S21020A2	Std Ratio Case Short	4		—	Call for availability
76A	S21028A2	Std Ratio Long	8		—	Call for availability
76A	2297C7049	Std Ratio Locking Liquid/diff. Case .34 Oz. Tube (not Shown) Separately. 6/82 Service With A1 -3235-E-1435 Thread Locking Liquid/differential Differential Case Halves Procedure Is As Follows: Excess Oil And Residue From The Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No Meritor Maintenance Manual 1 For Complete	1	See NOTE below.; or A1 -3235-H-1438; adhesive should be used; in Meritor; holes should be relatively oil free; threaded; on the threads Assemble the; of; torque; Meritor part no 2297-C-7049; bolts; ,; differential case holes only.; torque; bolts; 2297-C-7049	$44.68	Add to Cart
	S214402	Cap	4		—	Call for availability
	1229M1625	Cap	4		—	Call for availability
3	1898Z1066	Dowel-bearing Cap	4	Not shown	—	Call for availability
3	15X1315	Dowel-bearing Cap Adj Ring	4		$135.00	Superseded by S2562Add to Cart
5	1220B1094	Lock-adjusting Ring	2		$92.60	Add to Cart
5	A23200M1833	Diff. Carrier & Cap Assy.	1		$3,628.39	Add to Cart
7	2214M91	Ring-diff. Brg Adj L .h	1		$191.23	Add to Cart
8	2214K89	Ring-diff. Brg Adj R.h Brg Adj R.h	1		$213.36	Add to Cart
8	52618	Ring-diff. Brg Adj R.h Brg Adj L .h Brg Adj R.h	1		—	Call for availability
8	52387	Ring-diff. Brg Adj R.h Brg Adj L .h	1		—	Call for availability
8	B233235B730	Sr, Su Std Ratio	1		—	Call for availability
8	A773235Z728	Sr, Su Differential Fast Ratio	1		$2,481.22	Add to Cart
8	A3235H1438	Ring-diff. Brg Adj R.h Assy. Sw Std Ratio	1		$1,244.86	Add to Cart
8	A3235E1435	Sw Fast Ratio	1		—	Call for availability
8	B43235B730	Sr, Su Std Ratio	1		—	Call for availability
8	A663235Z728	Differential Case Sr, Su Nest Assy. Fast Ratio	1		—	Call for availability
8	A13235H1438	Sw Std Ratio	1		—	Call for availability
8	A13235E1435	Sw Fast Ratio	1		—	Call for availability
8	3278Q381	Sr,su	1		$171.33	Add to Cart
8	3278W3354	Sw	1		—	Call for availability
8	3278Q3815	Ring-diff. Brg Adj R.h	1		—	Call for availability
8	2233C159	Sr,su	4		—	No longer available — call for replacement
8	2233V1784	Ring-diff. Brg Adj R.h (main) Sw	4		—	Call for availability
8	2233C1595	Ring-diff. Brg Adj R.h	1		—	Call for availability
8	1229D992	Sr,su	4		$73.20	Add to Cart
8	1229K30014	Sw	4		—	Call for availability
8	1229D9925	Ring-diff. Brg Adj R.h (main)	1		—	Call for availability
8	S21020A2	Ring-diff. Brg Adj R.h Case Short	4		$35.00	Add to Cart
8	S21028A2	Ring-diff. Brg Adj R.h Long	8		$191.10	Add to Cart
8	2297C7049	Ring-diff. Brg Adj R.h Locking Liquid/diff. Case .34 Oz. Tube (not Shown)	1	See NOTE following parts list.	$44.68	Add to Cart
8	1229U1503	Ring-diff. Brg Adj R.h Case Bolt	12	Not shown	$130.00	Add to Cart
8	15X1522	Ring-diff. Brg Adj R.h To Gear	16	Available as KIT 944	$174.10	Add to Cart
8	1229U1503	Ring-diff. Brg Adj R.h Bolt	16	See SECTION 6	$130.00	Add to Cart
8	NL1101	Ring-diff. Brg Adj R.h Bolt	16		—	Call for availability
8	2234T358	Ring-diff. Brg Adj R.h Gear- Sr,su	2	2 .38"-24 spline	$372.14	Add to Cart
8	2234S851	Ring-diff. Brg Adj R.h (main) Sw Separately. 6/82 Service With A1 -3235-E-1435	2	2 .50"-50 spline; or A1 -3235-H-1438	$1,491.40	Add to Cart
	1229E993	Side Sr, Su	2		—	Call for availability
	1229L3002	Thrust Sw	2		$81.36	Add to Cart
	15X1167		1		$197.36	Add to Cart
26	1227D472	Nut-thrust Screw	1		$62.92	Add to Cart
27	1246M455	Dowel-diff. Carrier	2		$292.60	Add to Cart
28	P112	Plug-diff. Carrier	1		$77.80	Add to Cart
28	1229U1503	Plug-diff. Carrier To Housing	14		$130.00	Add to Cart
28	SN10201	Plug-diff. Carrier Carrier Short	1	Not shown	$35.50	Superseded by 4X1921Add to Cart
28	SN10281	Plug-diff. Carrier Housing Meduim	2	Not shown	$369.60	Add to Cart
28	SN10361	Plug-diff. Carrier Long	2	Not shown	$127.36	Add to Cart
28	S210162	Plug-diff. Carrier Carrier To Housing	9		$75.80	Add to Cart
32	N1101	Nut-diff. Carrier To Hsg Studs	5	Not shown	$21.40	Add to Cart
33	3297S97	Input Shaft	1		$2,009.64	Add to Cart
33	29685	Input Shaft Shaft Rear Bearing	1		$65.79	Add to Cart
33	A13266B834	Input Shaft Case Assy.	1	Less oil pump	—	Call for availability
33	A3266L792	Reference A, Pg 1 -57)	1	Used with optional oil pump	—	Call for availability
33	29620	Input Shaft Case Inner Brg	1		—	Call for availability
33	3221H8	Input Shaft	1	Not shown	—	Call for availability
33	1229C1511	Input Shaft Case To Carrier	14		—	Call for availability
33	S28122	Input Shaft Case To Carrier	14		—	Call for availability
33	2297A7021	Input Shaft Case To Carrier	1		—	Call for availability
33	KIT1554	Input Shaft Bearing Case Outer Brg Shaft Outer Brg	As req.	See SECTION 6	—	Call for availability
33	MPS33566	Input Shaft Helical	1	See SECTION 6	—	Call for availability
33	A3266P1446	Input Shaft Assy.	1		—	Call for availability
33	A1205N1496	Input Shaft Seal Assy. -cover	1		$38.48	Add to Cart
33	1229K1597	Input Shaft Assy.	9		—	Call for availability
33	S26102	Input Shaft Assy.	9		—	Call for availability
33	2297A7021	Input Shaft Assy. (silastic)	1		—	Call for availability
33	3264T124	Input Shaft	1		—	Call for availability
33		Input Shaft Input Assy.	1	See SECTION 5	—	Call for availability
33	1229T1736	Input Shaft Nut	1		—	Call for availability
33	1227J946	Input Shaft	1		—	Call for availability
33	1229L1624	Input Shaft Ring-spigot Bearing	1	All ratios except 7 .40	$47.00	Add to Cart
33	1229K1623	Input Shaft	1	For 7 .40 ratio only	—	Call for availability
33	1228B262	Input Shaft Pinion Spigot	1	All ratios except 7 .40	—	Call for availability
33	1228A261	Input Shaft	1	For 7 .40 ratio only	—	Call for availability
33	78250AC	Input Shaft Pinion Inner Bearing	1		$199.93	Add to Cart
33	78551	Input Shaft Pinion Inner Brg	1		—	Call for availability
33	KIT1554	Input Shaft Pinion Brg	As req.	See SECTION 6	—	Call for availability
33	2203Z6604	Input Shaft .003	3		—	Call for availability
33	2203A6605	Input Shaft Cage .005	4		—	Call for availability
33	2203B6606	Input Shaft .010	1		—	Call for availability
33	A3226Z598	Pinion Brg Cage Assy.	1		$711.21	Add to Cart
33	1229C1511	Input Shaft Cage	9		—	Call for availability
33	S28122	Input Shaft Cage Separately. And 3892-G-4557 Must Be Replaced	9	MPS-3356; at the; 1 -55	—	Call for availability
	78551	Pinion Outer Brg	1		—	Call for availability
	78250AC	Pinion Outer Brg	1		—	Call for availability
	MPS33566	Driven	1	See SECTION 6	—	Call for availability
67	1227P900	Nut-drive Pinion Separately. And 3892-G-4557 Must Be Replaced Thread Locking Liquid/differential Differential Case Halves Procedure Is As Follows: Excess Oil And Residue From The Bolts Are Being Used A Yellow Coating , With These Coated Bolts To The Required Original Bolts Are Reused Or Regular Be Used As A Thread Locking Adhesive The Bolts And Tighten To The Required Do Not Apply Meritor Part No 2297-C-7049 Meritor Maintenance Manual 1 For Complete	1	MPS-3356; at the; adhesive should be used; in Meritor; holes should be relatively oil free; threaded; on the threads Assemble the; of; torque; Meritor part no 2297-C-7049; bolts; ,; differential case holes only.; torque; bolts	$89.34	Add to Cart

Axle Housing Assemblies

Item	Part No.	Description	Qty	Notes	Price
1		Axle Housing Assembly + J -		As specified; J	—	Call for availability
2	J1199B1666	Wiper-inner Wheel Seal J	2	J No Longer Available	—	Call for availability
2	A1205T696	I Seal-inner Wheel	2		—	Call for availability
5	I592A	I Cup-inner Bearing J	2	J _j	—	Call for availability
7	J1227W517	Adjuster Nut-inner Wheel Bearing	2		—	Call for availability
7	1229U1009	Washer-wheel Brg Adj Nut	2	1,	$14.84	Superseded by R002304Add to Cart
7	1227R330	Adjuster Nut-outer Wheel Bearing I	2	--l	$20.80	Superseded by R002305Add to Cart
11	JN1101	L Nut-carrier To Housing I	18	I	—	Call for availability
11	1229U1503	I Washer-carrier To Housing I	18	I; I	$130.00	Add to Cart
11	1250E473	Plug-drain Hole (magnetic)	1		$16.72	Add to Cart
11	I2297A7021	Gasket-carrier To Hsg (silastic) I 7 '	1	I; 7 '	—	Call for availability
15	SN10201	I Stud-carrier To Housing ,	18	_j; ,	$35.50	Superseded by 4X1921Add to Cart
16	A1199P1394	Breather Assy. -housing	1		$175.80	Superseded by A1199W4053Add to Cart
17	P212	Plug-filler J J No Longer Used Replaced By Silastic.	1	J J; 2-3	$77.50	Add to Cart
1		Axle Housing Assembly		As specified	—	Call for availability
2	1244U879	Wiper-inner Wheel Seal	2		$60.96	Add to Cart
3	A1205Z1820	Seal-inner Wheel	2		$165.50	Add to Cart
8	1227W517	Adjuster Nut-inner Wheel Bearing	2		$20.68	Superseded by R002303Add to Cart
9	1229U1009	Washer-wheel Brg Adj Nut	2		$14.84	Superseded by R002304Add to Cart
10	1227R330	Adjuster Nut-outer Wheel Bearing	2		$20.80	Superseded by R002305Add to Cart
11	N1101	Nut-carrier To Housing	18		$21.40	Add to Cart
12	1229U1503	Washer-carrier To Housing	18		$130.00	Add to Cart
13	1250E473	Plug-drain Hole (magnetic)	1		$16.72	Add to Cart
13	2297A7021	Gasket-carrier To Hsg (silastic)	1		—	Call for availability
15	SN10201	Stud-carrier To Housing	18		$35.50	Superseded by 4X1921Add to Cart
17	P212	Plug-filler No Longer Used Replaced By Silastic.	1		$77.50	Add to Cart
2	JA11244C393	Wiper-inner Wheel Seal J	2	J No Longer Available	—	Call for availability
2	A1205X700	I Seal-inner Wheel	2		$42.98	Add to Cart
7	J1227A547	Adjuster Nut-inner Wheel Bearing	2		—	Call for availability
7	1229V48	Washer-wheel Brg Adj Nut I,	2	I -I	—	No longer available — call for replacement
7	1227F448	Adjuster Nut-outer Wheel Bearing	2	I	$88.88	Superseded by R000448Add to Cart
11	1250C471	Plug-drain Hole (magnetic)	1	' No Longer Available	—	Call for availability
11	I2297A7021	Gasket-carrier To Hsg (silastic) I	1	I I --1	—	Call for availability
17		Plug-filler 1 1 No Longer Used Replaced By Silastic.	1	No longer available; I J; 2-5	—	Call for availability

Sr, Su SW-170 Family

Item	Part No.	Description	Qty	Notes	Price
1		Axle Housing Assembly		As specified	—	Call for availability
2	1199B1666	Wiper-oil Seal Inner Sr	2	No Longer Available	—	Call for availability
2	1244U879	Su	2		$60.96	Add to Cart
2	2245E31	Sw	2		$484.29	Add to Cart
3	A1205T696	Oil Seal-inner Sr	2		—	Call for availability
3	A1205Q2487	Oil Seal-inner Sr	2	Unitized seal wiper included; ,	$150.94	Add to Cart
3	A1205T774	Su	2		$45.44	Add to Cart
3	A1205S1657	Sw	2		$117.01	Add to Cart
8	1227W517	Nut-adjusting Inner Sr, Su	2		$20.68	Superseded by R002303Add to Cart
8	1227A547	Sw	2		$12.13	Add to Cart
9	1229U1009	Washer-adjusting Sr, Su	2		$14.84	Superseded by R002304Add to Cart
9	1229V48	Washer-adjusting Sr, Su Nut Sw	2		—	No longer available — call for replacement
10	1227R330	Nut-adjusting Outer Sr, Su	2		$20.80	Superseded by R002305Add to Cart
10	1227F448	Sw	2		$88.88	Superseded by R000448Add to Cart
11	N1101	Nut-carrier To Housing Stud	5	Forward-rear only	$21.40	Add to Cart
12	1229U1503	Washer-carrier To Housing	14		$130.00	Add to Cart
13	1250E473	Plug-magnetic Drain	1		$16.72	Add to Cart
13	2297A7021	Gasket (silastic)	1		—	Call for availability
15	SN10201	Stud-carrier To Short	1		$35.50	Superseded by 4X1921Add to Cart
15	SN10281	Stud-carrier To Short Housing Meduim	2	Forward-rear only	$369.60	Add to Cart
15	SN10361	Long	2		—	Call for availability
15	4X1445	Stud-carrier To Short	4	Rear-rear only	$171.40	Add to Cart
16	S210162	Bolt-carrier To Housing	9	Forward-rear only	$75.80	Add to Cart
16	S210162	Short	6		—	Call for availability
16	S210242	Meduim	2	Rear-rear only	—	Call for availability
16	10X1599	Long	2		—	Call for availability
17	A1199P1394	Breather Assy.	1		$175.80	Superseded by A1199W4053Add to Cart
18	P28S	Plug-heat Indicator Assy. No Longer Used Replaced By Silastic.	1	2-7	$103.50	Add to Cart

Sr, Su SW-270/280 Family

Item	Part No.	Description	Qty	Notes	Price
1		Axle Housing Assembly		As specified	—	Call for availability
2	1244U879	Wiper-housing Sr, Su	2		$60.96	Add to Cart
2	2245E31	Wiper-housing Sr, Su Spindle Oil Seal Sw	2		$484.29	Add to Cart
3	A1205T774	Oil Seal Assy. -inner Sr, Su	2		$45.44	Add to Cart
3	A1205S1657	Sw	2		$117.01	Add to Cart
8	1227W517	Nut-inner Wheel Sr, Su	2		$20.68	Superseded by R002303Add to Cart
8	1227A547	Nut-inner Wheel Sr, Su Bearing Adjuster Sw	2		$12.13	Add to Cart
9	1229U1009	Lockwasher- Sr, Su	2		$14.84	Superseded by R002304Add to Cart
9	1229V48	Lockwasher- Sr, Su Adjuster Nut Sw	2		—	No longer available — call for replacement
10	1227R330	Nut-outer Wheel Sr, Su	2		$20.80	Superseded by R002305Add to Cart
10	1227F448	Nut-outer Wheel Sr, Su Bearing Adjuster Sw	2		$88.88	Superseded by R000448Add to Cart
11	N1101	Nut-carrier To Housing Stud	5		$21.40	Add to Cart
12	1229U1503	Washer-carrier To Housing	14		$130.00	Add to Cart
13	1250E473	Plug-magnetic Drain	1		$16.72	Add to Cart
13	2297A7021	Gasket-carrier To Hsg (silastic)	1		—	Call for availability
15	SN10201	Stud-carrier To Short	1		$35.50	Superseded by 4X1921Add to Cart
15	SN10281	Stud-carrier To Short Housing Meduim	2		$369.60	Add to Cart
15	SN10361	Long	2		—	Call for availability
16	S210162	Bolt-carrier To Housing	9		$75.80	Add to Cart
17	A1199P1394	Breather Assy.	1		$175.80	Superseded by A1199W4053Add to Cart
18	P28S	Plug-heat Indicator Assy. No Longer Used Replaced By Silastic.	1	2-9	$103.50	Add to Cart

Axle Shaft Assemblies

Item	Part No.	Description	Qty	Notes	Price
1		Axle Shaft		As specified; See chart below	—	Call for availability
2	2208X440	Gasket	4		$69.20	Add to Cart
3	A1205X596	Oil Seal Assy.	2		—	Call for availability
4	A1199F1696	Wiper	2		—	Call for availability
5	1229X518	Washer-shakeproof	16		$191.00	Add to Cart
6	1246V1166	Dowel	16		$19.60	Add to Cart
7	N1101	Nut Body Forging Dia. Length Number (in .) (in .)	16	NUMBER HOLE BOLT; SPLINE; OF SIZE CIRCLE HOLE; SIZE; HOLES (IN .) (IN .) TYPE; (IN .)	$21.40	Add to Cart
7	265838	3202-U-8185 2 .38 37 .37	2	8 .73 7 .00 Taper; 55-50	—	Call for availability
7	265838	3202-V-8186 2 .38 45 .62	2	8 .73 7 .00 Taper; 55-50	—	Call for availability
7	265838	3202-W-8187 2 .38 41 .25	2	8 .73 7 .00 Taper; 55-50	—	Call for availability
7	265838	3202-X-8188 2 .38 49 .62 And Puller Holes	2	8 .73 7 .00 Taper; 55-50	—	Call for availability
3	A1205N612	Oil Seal Assy.	2		—	Call for availability
4	A1199S1917	Wiper	2		$231.58	Add to Cart
7	N1101	Nut Body Forging Dia. Number (in .)	16	NUMBER HOLE BOLT; SPLINE; OF SIZE CIRCLE HOLE; LENGTH SIZE; HOLES (IN .) (IN .) TYPE; (IN .) (IN .)	$21.40	Add to Cart
7	303838	3202-B-4032 2 .12	34	8 .73 7 .00 Taper; 87 2 .35-46	—	Call for availability
7	303838	3202-S-4023 2 .12 And Puller Holes	46	8 .73 7 .00 Taper; 12 2 .35-46; 3-3	—	Call for availability
3	A1205X596	Oil Seal Assy. Special	2		—	Call for availability
3	A1205U619	Oil Seal Assy. Special Standard	2		$144.22	Add to Cart
4	A1199F1696	Wiper Special	2		—	Call for availability
4	A1199H1698	Wiper Special Standard	2		$117.22	Add to Cart
7	303838	3202-L-3496 2 .25 37 .18	2	8 .73 7 .00 Taper; 35-46	—	Call for availability
7	303838	3202-C-3669 2 .25 46 .96 And Puller Holes	2	8 .73 7 .00 Taper; 35-46	—	Call for availability
7	303838	3202-L-3496 2 .25	37	8 .73 7 .00 Taper; 18 2 .35-46	—	Call for availability
7	303838	3202-M-3497 2 .25 And Puller Holes	45	8 .73 7 .00 Taper; 03 2 .35-46; 3-5	—	Call for availability

Sr, Su SW-170 Family

Item	Part No.	Description	Qty	Notes	Price
1		Axle Shaft		As specified; See chart below	—	Call for availability
2	2208X440	Gasket Rp Rr, , Up Ur ,	4	Use 1/2 the qty. for oil lube hub	$69.20	Add to Cart
2	2208W907	Wp Wr ,	4		$54.60	Add to Cart
3	A1205N612	Oil Seal Assy. Rp Rr ,	2		—	Call for availability
3	A1205U619	Up Ur ,	2	Omit for oil lube hub	$144.22	Add to Cart
3	A1205R1656	Wp	2		$153.42	Add to Cart
3	A1205S1657	Wr	2		$117.01	Add to Cart
4	A1199S1917	Wiper Rp Rr ,	2		$231.58	Add to Cart
4	A1199H1698	Up Ur ,	2	Omit for oil lube hub	$117.22	Add to Cart
4	A1199F1696	Wp Wr ,	2		—	Call for availability
5	1229X518	Washer-shakeproof	16		$191.00	Add to Cart
6	1246V1166	Dowel	16		$19.60	Add to Cart
7	N1101	Nut Body Forging Dia. Length Lube Number (in) (in) Holes	16	NO. HOLE BOLT; OF SIZE CIRCLE HOLE; SPLINE; HOLES (IN) (IN) TYPE; (IN)	$21.40	Add to Cart
7	303838	3202-B-3538 2 .25 41 .00 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	303838	3202-S-4309 2 .25 43 .40 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	343838	3202-U-6053 2 .25 39 .22 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	343838	3202-W-6055 2 .25 41 .72 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	303838	3202-L-6252 2 .25 42 .56 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	303838	3202-T-7378 2 .25 43 .97 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	303838	3202-P-7712 2 .25 39 .96 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
7	315850	3202-C-7777 2 .38 44 .18 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
7	315850	3202-D-7778 2 .38 41 .71 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
7	315850	3202-K-7785 2 .38 56 .18 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
7	315850	3202-L-7786 2 .38 53 .72 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
7	315850	3202-A-7801 2 .38 48 .31 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
7	315850	3202-B-7802 2 .38 45 .84 Yes Holes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability

Sr, Su SW-270/280 Family

Item	Part No.	Description	Qty	Notes	Price
1		Axle Shaft		As specified; See chart below.	—	Call for availability
2	2208X440	Gasket Sr, Su	4		$69.20	Add to Cart
2	2208W907	Sw	4		$54.60	Add to Cart
3	A1205U619	Oil Seal Outer Assy. (optional Sr, Su	2	Used with grease lube only.	$144.22	Add to Cart
3	A1205R1656	Oil Seal Outer Assy. (optional Sr, Su On Original Designs Only.) Sw	2		$153.42	Add to Cart
4	A1199H1698	Wiper-outer Seal (optional Sr, Su	2	Used with grease lube only.	$117.22	Add to Cart
4	A1199F1696	Wiper-outer Seal (optional Sr, Su On Original Designs Only.) Sw	2		—	Call for availability
5	1229X518	Washer-shakeproof	16		$191.00	Add to Cart
6	1246V1166	Dowel	16		$19.60	Add to Cart
7	N1101	Nut	16		$21.40	Add to Cart
8	SC10231	Stud-axle Shaft Body Forging Dia. Length Lube Number (in) (in) Holes	16	Reference only. Not shown; NO. HOLE BOLT; OF SIZE CIRCLE HOLE; SPLINE; HOLES (IN) (IN) TYPE; (IN)	$268.10	Add to Cart
8	343838	3202-U-6053 2 .25 39 .22 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
8	343838	3202-W-6055 2 .25 41 .72 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
8	303838	3202-B-3538 2 .25 41 .00 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
8	303838	3202-S-4309 2 .25 43 .40 No	2	8 .73 7 .00 Taper; 38-24	—	Call for availability
8	315850	3202-C-7777 2 .38 44 .18 Yes	2	8 .73 7 .25 Taper; 55-50	—	Call for availability
8	315850	3202-D-7778 2 .38 41 .71 Yes Holes	2	8 .73 7 .25 Taper; 55-50; 3-7	—	Call for availability

Drive Gear & Pinion Assemblies

Item	Part No.	Description	Qty	Notes	Price
	A3534410	Drive Gear & Pinion Assemblies — & Pinion Assemblies Fwd/rear Gear Set			—	No longer available — call for replacement
	A3534413	Drive Gear & Pinion Assemblies — Rear/rear Gear Set			$3,002.92	Add to Cart
	3891E1045	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	A353769	Drive Gear & Pinion Assemblies — & Pinion Assemblies Fwd/rear Gear Set			—	Call for availability
	A353768	Drive Gear & Pinion Assemblies — Rear/rear Gear Set			—	Call for availability
	3891Q953	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891P952	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891N950	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891M949	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	A367507	Drive Gear & Pinion Assemblies — & Pinion Assemblies Fwd/rear Gear Set			—	Call for availability
	A367508	Drive Gear & Pinion Assemblies — Rear/rear Gear Set			$4,996.05	Add to Cart
	3891Z1326	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891J842	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	A93889L272	Drive Gear & Pinion Assemblies — & Pinion Assemblies Fwd/rear Gear Set			—	Call for availability
	A103889L272	Drive Gear & Pinion Assemblies — Rear/rear Gear Set			—	No longer available — call for replacement
	3891T748	Drive Gear & Pinion Assemblies — Helical Pinion *			$3,627.18	Add to Cart
	3891K843	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891M793	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	3891V1296	Drive Gear & Pinion Assemblies — Helical Pinion *			—	Call for availability
	A367503	Drive Gear & Pinion Assemblies — Rear/rear Gear Set			—	Call for availability

SUDD Family (forward -Rear) SUDD Family (rear-Rear)

Item	Part No.	Description	Qty	Notes	Price
	A3534410	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	No longer available — call for replacement
	3892G787	Sudd Family (forward -rear) Sudd Family (rear-rear) — Gear & Pinion Helical Gear *			—	Call for availability
	3892C783	Sudd Family (forward -rear) Sudd Family (rear-rear) — Gear & Pinion Helical Gear *			—	Call for availability
	A353769	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability
	3892D784	Sudd Family (forward -rear) Sudd Family (rear-rear) — Gear & Pinion Helical Gear *			—	Call for availability
	3892W1817	Sudd Family (forward -rear) Sudd Family (rear-rear) — Gear & Pinion Helical Gear *			—	Call for availability
	A3534410NO	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability
	3892F786	Sudd Family (forward -rear) Sudd Family (rear-rear) — Gear & Pinion Helical Gear *			—	Call for availability
	A353769NO	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability
	A353386	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability
	A359261	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			$3,231.89	Add to Cart
	A353386NO	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability
	A359261NO	Sudd Family (forward -rear) Sudd Family (rear-rear) — Drive -rear) Gear Set			—	Call for availability

Sr, Su SW-170 Family

Item	Part No.	Description	Qty	Notes	Price
	SW170FAMILY	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A370248	Sr, Su SW-170 Family — Gear & Pinion			$3,535.44	Add to Cart
	A376546	Sr, Su SW-170 Family — Gear & Pinion			—	No longer available — call for replacement
	A371444	Sr, Su SW-170 Family — Gear & Pinion			—	No longer available — call for replacement
	A377663	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A381342	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A371424	Sr, Su SW-170 Family — Gear & Pinion			$4,084.05	Add to Cart
	A373544	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A373022	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A370261	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A35954	Sr, Su SW-170 Family — Gear & Pinion			$3,029.43	Add to Cart
	A35978	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A35972	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A35970	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A36134	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A36036	Sr, Su SW-170 Family — Gear & Pinion			—	No longer available — call for replacement
	A35968	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A36102	Sr, Su SW-170 Family — Gear & Pinion			—	Call for availability
	A36100	Sr, Su SW-170 Family — Gear & Pinion			$6,203.72	Add to Cart

Sr, Su SW-270/280 Family

Item	Part No.	Description	Qty	Notes	Price
	A370248	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			$3,535.44	Add to Cart
	A376546	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	No longer available — call for replacement
	A371444	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	No longer available — call for replacement
	A377663	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A381342	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A371424	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			$4,084.05	Add to Cart
	A373544	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A373022NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A370261NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A384641	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A40998	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A381081NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A373022	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A370261	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A370247NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A376548	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A371447NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A377665NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A381344NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A371427NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A373546NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A373024	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability
	A370263NLA	Sr, Su SW-270/280 Family — SW-270/280 Family , & Pinion Assy.			—	Call for availability

SFDD 4640 Family (forward -Rear Yokes for 3200 -C -1225 Carrier) I SFDD 4640 Family (rear-Rear Yokes for 3200 -C -1225 Carrier)

Item	Part No.	Description	Qty	Notes	Price
	C1225CARRIER	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	A3280U6729	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	17N45461X	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$314.26	Add to Cart
	A3280Z6734	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	18N42711X	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$352.02	Add to Cart
	A13280T6754	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	17NYS3241A1	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$390.87	Add to Cart
	A13280X6758	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	17NYS3240A1	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			—	Call for availability
	A13280T7118	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	18NYS323A1	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			—	Call for availability
	A33280T6754	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	17N46951X	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$500.26	Add to Cart
	A23280X6758	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	17N46871X	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$406.69	Add to Cart
	A33280T7118	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier) — To{of Axle 2			—	Call for availability
	18N43571X	Sfdd 4640 Family (forward -rear Yokes For 3200 -c -1225 Carrier) I Sfdd 4640 Family (rear-rear Yokes For 3200 -c -1225 Carrier)			$378.49	Add to Cart

I SRDD Family (forward -Rear Yokes for 3200 -D -1226 Carrier) SRDD Family (rear-Rear Yokes for 3200 -D -1226 Carrier)

Item	Part No.	Description	Qty	Notes	Price
	1226CARRIER	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	A3280U6729	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N45461X	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$314.26	Add to Cart
	A3280Z6734	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18N42711X	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$352.02	Add to Cart
	A13280T6754	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17NYS3241A1	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$390.87	Add to Cart
	A23280X6758	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N46871X	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$406.69	Add to Cart
	A13280T7118L	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18NYS323A1J	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			—	Call for availability
	A33280T6754	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N46951X	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$500.26	Add to Cart
	A33280T7118	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18N43571X	I Srdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) Srdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$378.49	Add to Cart

I STDD Family (forward -Rear Yokes for 3200 -D -1226 Carrier) I STDD Family (rear-Rear Yokes for 3200 -D -1226 Carrier)

Item	Part No.	Description	Qty	Notes	Price
	1226CARRIER	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	A3280U6729	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	17N45461X	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$314.26	Add to Cart
	A3280Z6734	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	18N42711X	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$352.02	Add to Cart
	A23280U6755	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	16NYS325A2	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			—	Call for availability
	A23280T6754	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	17NYS3241A2	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$436.39	Add to Cart
	A13280T7118J	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	18NYS323A1J	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			—	Call for availability
	A33280T6754	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	17N46951X	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$500.26	Add to Cart
	A23280X6758	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	17N46871X	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$406.69	Add to Cart
	A33280T7118	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier) — To{of Axle			—	Call for availability
	18N43571X	I Stdd Family (forward -rear Yokes For 3200 -d -1226 Carrier) I Stdd Family (rear-rear Yokes For 3200 -d -1226 Carrier)			$378.49	Add to Cart

I SUDD Family (forward -Rear Yokes for 3200 -E -1227 Carrier) SUDD Family (rear-Rear Yokes for 3200 -L -1234 Carrier)

Item	Part No.	Description	Qty	Notes	Price
	1227CARRIER	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	A3280U6729	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N45461X	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$314.26	Add to Cart
	A3280Z6734	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18N42711X	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$352.02	Add to Cart
	A23280U6755	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	16NYS325A2	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			—	Call for availability
	A23280T6754	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17NYS3241A2	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$436.39	Add to Cart
	A13280T7118L	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18NYS323A1	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			—	Call for availability
	A33280T6754	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N46951X	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$500.26	Add to Cart
	A23280X6758	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	17N46871X	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$406.69	Add to Cart
	A33280T7118	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier) — Yoke Assemblies To{of Axle			—	Call for availability
	18N43571X	I Sudd Family (forward -rear Yokes For 3200 -e -1227 Carrier) Sudd Family (rear-rear Yokes For 3200 -l -1234 Carrier)			$378.49	Add to Cart

I SR, SU SW-170, 270 & 280 Family (forward -Rear) SR, SU SW-170 Family (rear-Rear) SR, SU SW-270/280 Family (rear-Rear)

Item	Part No.	Description	Qty	Notes	Price
	A3260W75	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N45961X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$646.13	Add to Cart
	A3260U73	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	18N43221X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$480.17	Add to Cart
	A3260Q95	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	No longer available — call for replacement
	92NYS3852A	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$1,164.85	Add to Cart
	3260Q121	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N46401	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	3260P120	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N46371	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	3260L116J	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	18N43371	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$270.06	Add to Cart
	3260M117J	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	82NYS3274J	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	A3280E6583	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	A13280X3274	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	16N46891X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$367.52	Add to Cart
	A13280H4246	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N46891X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	No longer available — call for replacement
	A23280S3581	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	72NYS3654A2	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	A3260Z208	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	176N4201X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	A13280R5452	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	18N42551X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$540.29	Add to Cart
	A13280M3029	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	82NYS3626A1	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	A3260Q121	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N46411X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$255.71	Add to Cart
	A3260P120	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	17N46381X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			—	Call for availability
	A3260L116	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	18N43381X	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$459.30	Add to Cart
	A3260M117	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — To{of Axle Production I Part Number			—	Call for availability
	82NYS3274A	I Sr, Su SW-170, 270 & 280 Family (forward -rear) Sr, Su SW-170 Family (rear-rear) Sr, Su SW-270/280 Family (rear-rear) — I Service Part Number			$764.03	Add to Cart

Service Kits

Item	Part No.	Description	Qty	Notes	Price
1	A1199H1698	Wiper-oil Seal Axle Shaft Oil Seal	1	repair kit.	$117.22	Add to Cart
1	IA1205U619	I Seal-oil SR/SU/SW-170	1	270 & 280 forward-rear; I 1; ,	—	Call for availability
3	2208X440	Gasket And Rear-rear	4		$69.20	Add to Cart
1	2233C159	Pinion-diff. Main Diff. Nest	4	kit with spider.	—	No longer available — call for replacement
2	2234T358	Gear-diff. Side SR/SU-170 270 ,	2	& 280	$372.14	Add to Cart
3	3278A79	Spider-diff. Forward-rear &	1	rear-rear.	$246.48	Add to Cart
4	1229D992	Washer-diff. Pinion Thrust	4		$73.20	Add to Cart
5	1229E993	Washer-thrust	2		$74.24	Add to Cart
1	2208N404	Gasket Gasket & Shim	1	kit.	$152.30	Add to Cart
2	2208M429	Gasket SFD/SFDD-4640	1	forward-rear	$1.28	Add to Cart
3	2208X440	Gasket	4		$69.20	Add to Cart
4	2803L1442	Shim .003	1		—	No longer available — call for replacement
5	2803M1443	Shim .005	1		—	No longer available — call for replacement
6	2803N1444	Shim .010	1		$423.50	Add to Cart
7	2803D1486	Shim .003	2		$169.40	Add to Cart
8	2803E1487	Shim .005	8		$388.00	Add to Cart
9	2203E7857	Shim .010	6		$114.30	Add to Cart
10	2808D680	Gasket	1		—	No longer available — call for replacement
11	2808J686	Gasket	1		—	No longer available — call for replacement
12	2808T722	Gasket	1		—	No longer available — call for replacement
13	2808A807	Gasket	1		—	No longer available — call for replacement
14	2808Z858	Gasket	1		—	No longer available — call for replacement
1	2208C315	Gasket Gasket & Shim	1	kit. RDF & RDR.	$353.90	Add to Cart
2	2208X440	Gasket	4		$69.20	Add to Cart
3	2803H1438	Shim .003	7		—	No longer available — call for replacement
4	2803J1440	Shim .005	8		—	No longer available — call for replacement
5	2803L1442	Shim .003	3		—	No longer available — call for replacement
6	2803M1443	Shim .005	4		—	No longer available — call for replacement
7	2803N1444	Shim .010	3		$423.50	Add to Cart
8	2803L2014	Shim .010	6		—	No longer available — call for replacement
9	2808A651	Gasket	1		—	Call for availability
10	2808B652	Gasket	1	6-1	—	No longer available — call for replacement
2	2208M429	Gasket	1		$1.28	Add to Cart
4	2803H1438	Shim .003	7		—	No longer available — call for replacement
5	2803J1440	Shim .005	8		—	No longer available — call for replacement
6	2803L1442	Shim .003	3		—	No longer available — call for replacement
7	2803M1443	Shim .005	4		—	No longer available — call for replacement
8	2803N1444	Shim .010	3		$423.50	Add to Cart
9	2803L2014	Shim .010	6		—	No longer available — call for replacement
10	2808A651	Gasket	1		—	Call for availability
11	2808B652	Gasket	1		—	No longer available — call for replacement
12	2808D680	Gasket	1		—	No longer available — call for replacement
13	2808J686	Gasket	1		—	No longer available — call for replacement
14	2808A807	Gasket	1		—	No longer available — call for replacement
15	2808Z858	Gasket	1		—	No longer available — call for replacement
1	2208D1096	Gasket Gasket & Shim	1	kit.	$53.70	Add to Cart
2	2208X440	Gasket SR/SU/SW-170	4	rear-rear.	$69.20	Add to Cart
3	2208Y441	Gasket	3		—	No longer available — call for replacement
4	2203L1260	Shim .003	1		$169.80	Add to Cart
5	2203A469	Shim .005	1		$97.40	Add to Cart
6	2203B470	Shim .010	3		$110.20	Add to Cart
7	2208H424	Gasket	1		—	No longer available — call for replacement
1	2208X440	Gasket Gasket & Shim	4	kit. UDD forward-rear.	$69.20	Add to Cart
2	2208Y415	Gasket	1		$138.60	Add to Cart
3	2208M429	Gasket	1		$1.28	Add to Cart
4	2208D446	Gasket	1		$68.50	Add to Cart
5	2208K505	Gasket	1		—	No longer available — call for replacement
6	2208L506	Gasket	1		—	No longer available — call for replacement
7	2208M507	Gasket	1		—	No longer available — call for replacement
8	2803D1486	Shim .003	2		$169.40	Add to Cart
9	2803E1487	Shim .005	8		$388.00	Add to Cart
10	2203E7857	Shim .010	6		$114.30	Add to Cart
11	2803V2102	Shim-bearing .003	1		—	No longer available — call for replacement
12	2803W2103	Cage .005	5		—	No longer available — call for replacement
13	2803X2104	.010	3		—	No longer available — call for replacement
14	2808T722	Gasket	1		—	No longer available — call for replacement
3	2208L506	Gasket	1		—	No longer available — call for replacement
4	2208M507	Gasket	2		—	No longer available — call for replacement
5	2803D1486	Shim .003	2		$169.40	Add to Cart
6	2803E1487	Shim .005	8		$388.00	Add to Cart
7	2203E7857	Shim .010	6		$114.30	Add to Cart
8	2803V2102	Shim-bearing .003	1		—	No longer available — call for replacement
9	2803W2103	Cage .005	5		—	No longer available — call for replacement
10	2803X2104	.010	3		—	No longer available — call for replacement
11	2808T722	Gasket	1		—	No longer available — call for replacement
3	2803N14	Shim .005	4		—	No longer available — call for replacement
4	2803P16	Shim .030	1		—	No longer available — call for replacement
5	2803V126	Shim .003	1		—	No longer available — call for replacement
6	2803C705	Shim .005	1		$104.50	Add to Cart
7	2803D706	Shim .010	5		$78.00	Add to Cart
8	2803V802	Shim .003	1		—	No longer available — call for replacement
9	2803Z1300	Shim .003	4		—	No longer available — call for replacement
10	2803A1301	Shim .005	1		$94.40	Add to Cart
11	2803Z2002	Shim-side Cap .010	3		$40.84	Add to Cart
12	2808Y727	Gasket	1		$3.62	Add to Cart
2	2208Y545	Gasket	1		—	No longer available — call for replacement
3	2208X570	Gasket	1		$15.23	Add to Cart
4	2808A651	Gasket	1		—	Call for availability
5	2803H1438	Shim .003	7		—	No longer available — call for replacement
6	2803J1440	Shim .005	8		—	No longer available — call for replacement
7	2803L1442	Shim .003	3		—	No longer available — call for replacement
8	2803M1443	Shim .005	4		—	No longer available — call for replacement
9	2803N1444	Shim .010	3		$423.50	Add to Cart
10	2803L2014	Shim .010	6		—	No longer available — call for replacement
3	2208D446	Gasket	1		$68.50	Add to Cart
4	2208K505	Gasket	1		—	No longer available — call for replacement
5	2208M507	Gasket	1		—	No longer available — call for replacement
6	2208Y545	Gasket	1		—	No longer available — call for replacement
7	2208X570	Gasket	1		$15.23	Add to Cart
8	2808A651	Gasket	1		—	Call for availability
9	2803H1438	Shim .003	7		—	No longer available — call for replacement
10	2803J1440	Shim .005	8		—	No longer available — call for replacement
11	2803L1442	Shim .003	3		—	No longer available — call for replacement
12	2803M1443	Shim .005	4		—	No longer available — call for replacement
13	2803N1444	Shim .010	3		$423.50	Add to Cart
14	2803L2014	Shim .010	6		—	No longer available — call for replacement
1	2203S3789	Shim/spacer .169 Drive Pinion Bearing	1	shim spacer kit.	$40.39	Add to Cart
2	2203T3790	Shim/spacer .170 SFD/SFDD-4640	1	forward-rear &	$40.39	Add to Cart
3	2203U3791	Shim/spacer .171 Udd Forward-rear	1		—	No longer available — call for replacement
4	2203V3792	Shim/spacer .172	1		—	Call for availability
5	2203W3793	Shim/spacer .173	1		$41.40	Add to Cart
6	2203X3794	Shim/spacer .174	1		—	No longer available — call for replacement
7	2203Y3795	Shim/spacer .180	1		—	No longer available — call for replacement
8	2203Z3796	Shim/spacer .186	1		$42.47	Add to Cart
9	2203A3797	Shim/spacer .192	1		$41.58	Add to Cart
10	2203B3798	Shim/spacer .198	1		$43.53	Add to Cart
11	2203C3799	Shim/spacer .204	1	6-3	$43.74	Add to Cart
1	2203L1078	Shim/spacer .248 Shim/spacer Pinion	2	bearing kit.	$144.04	Add to Cart
2	2203M1079	Shim/spacer .249 SR/SU/SW-170	2	rear-rear.	$124.18	Add to Cart
3	2203N1080	Shim/spacer .250	2		$144.30	Add to Cart
4	2203P1082	Shim/spacer .251	2		$149.74	Add to Cart
5	2203Q1083	Shim/spacer .252	2		$146.52	Add to Cart
6	2203R1084	Shim/spacer .253	2		$151.36	Add to Cart
7	2203S1085	Shim/spacer .259	2		$147.38	Add to Cart
8	2203T1086	Shim/spacer .265	2		$81.10	Add to Cart
9	2203U1087	Shim/spacer .271	2		$142.90	Add to Cart
10	2203V1088	Shim/spacer .277	2		$133.64	Add to Cart
11	2203W1089	Shim/spacer .283	2		$160.54	Add to Cart
1	15X1522	Bolt-diff. Case Gear To Case	16	bolt kit.	$174.10	Add to Cart
1	INL1101	I Locknut-diff. Case SR/SU/SW-170	16	270 & 280 forward-rear; I 16; ,	—	Call for availability
3	1229U1503	Washer-diff. Case Bolt And Rear-rear	16		$130.00	Add to Cart
1	15X1458	Bolt-diff. Case Gear To Case	16	bolt kit.	—	No longer available — call for replacement
1	INL191	I Locknut-diff. Case SFD-4640 Forward-rear	16	& rear-rear; I 16	—	Call for availability
3	1229Y2443	Washer-diff. Case Bolt New Style Carrier.	16		$352.60	Add to Cart
1	1229L2430	Snap Ring .088 Bearing Thru-shaft	2	snap ring kit.	$169.96	Add to Cart
2	1229M2431	Snap Ring .091 SFDD-4640 Tdd ,	2	& UDD forward-rear.	$135.80	Add to Cart
3	1229N2432	Snap Ring .094 Sr, Su SW-170 ,	2	& 270/280 forward-rear.	$52.24	Add to Cart
4	1229P2434	Snap Ring .097	2		$49.51	Add to Cart
5	1229Q2435	Snap Ring .100	2		$132.76	Add to Cart
6	1229R2436	Snap Ring .103	2		$98.24	Add to Cart
7	1229S2437	Snap Ring .106	2		$47.32	Add to Cart
8	1229T2438	Snap Ring .109	2		$115.48	Add to Cart
9	1229U2439	Snap Ring .112	2		$169.96	Add to Cart
1	2203U7899	Shim/spacer .326 Pinion Bearing	2	shim/spacers	$77.18	Add to Cart
2	2203V7900	Shim/spacer .327 SR/SU/SW-170	2	270 & 280; ,	$77.96	Add to Cart
3	2203W7901	Shim/spacer .328	2		$80.20	Add to Cart
4	2203X7902	Shim/spacer .329	2		$79.53	Add to Cart
5	2203Y7903	Shim/spacer .330	2		$80.29	Add to Cart
6	2203Z7904	Shim/spacer .331	2		$81.10	Add to Cart
7	2203A7905	Shim/spacer .332	2		$79.40	Add to Cart
8	2203B7906	Shim/spacer .338	2		$82.75	Add to Cart
9	2203C7907	Shim/spacer .345	2		$83.56	Add to Cart
10	2203D7908	Shim/spacer .352	2		$84.42	Add to Cart
11	2203E7909	Shim/spacer .359	2		$77.18	Add to Cart
1	2803U1165	Spacer .234 Pinion Bearing	2	cage spacer kit.	—	No longer available — call for replacement
2	2803V1166	Spacer .236 Udr Rear-rear.	2		—	No longer available — call for replacement
3	2803W1167	Spacer .240	2		$87.20	Add to Cart
4	2803X1168	Spacer .244	2		—	No longer available — call for replacement
5	2803Y1169	Spacer .248	2		$84.45	Add to Cart
6	2803Z1170	Spacer .252	2		—	No longer available — call for replacement
7	2803A1171	Spacer .254	2		—	No longer available — call for replacement
8	2803L1286	Spacer .232	2		—	No longer available — call for replacement
1	2203F1956	Shim/spacer .183 Bevel Pinion Bearing	2	service shim kit.	—	No longer available — call for replacement
2	2203G1957	Shim/spacer .189 SFD/SFDD-4640	2	TDD forward-rear.; ,	—	No longer available — call for replacement
3	2203H1958	Shim/spacer .196	2		—	No longer available — call for replacement
4	2203J1960	Shim/spacer .206	2		—	No longer available — call for replacement
5	2203K1961	Shim/spacer .210	2		$885.00	Add to Cart
6	2203L1962	Shim/spacer .217	2		—	No longer available — call for replacement
7	2203M1963	Shim/spacer .183	2		—	No longer available — call for replacement
8	2203N1964	Shim/spacer .184	2		—	No longer available — call for replacement
9	2203P1966	Shim/spacer .185	2		—	No longer available — call for replacement
10	2203Q1967	Shim/spacer .186	2		—	No longer available — call for replacement
11	2203R1968	Shim/spacer .187	2		$130.98	Add to Cart
12	2203S1969	Shim/spacer .188	2		$132.16	Add to Cart
13	2203T1970	Shim/spacer .189	2		—	No longer available — call for replacement
1	2203C8115	Shim .003 Shim & Gasket	1	kit.	$185.00	Add to Cart
2	2203D8116	Shim .005 SR/SU/SW-170	3	forward-rear	$83.60	Add to Cart
3	2203E8117	Shim .010	4		$97.00	Add to Cart
4	3208Y25	Gasket	1		$68.36	Add to Cart
5	2208X440	Gasket	4		$69.20	Add to Cart
1	2203C6607	Shim .003 Shim Bearing	5	cage kit.	$170.60	Add to Cart
1	I2203D6608	I Shim .005 SR/SU/SW-170	5	270 & 280 forward-rear; I 5; ,	—	Call for availability
3	2203E6609	Shim .010	2		$117.30	Add to Cart
1	2234V724	Side Gear-inter-axle Diff. Front Inter-axle Diff.	1	nest kit with spider.	—	No longer available — call for replacement
2	2234G319	Side Gear-inter-axle Diff. Rear SFDD-4640 &	1	UDD forward-rear;	—	No longer available — call for replacement
3	2233W153	Pinion-inter-axle Diff. Tdd Forward-rear	4	new style carriers	$41.00	Add to Cart
4	1229T1606	Washer-thrust	4		$33.40	Add to Cart
5	1229H2062	Washer-inter-axle Diff. Thrust	1		$62.60	Add to Cart
6	1229Y1611	Washer-inter-axle Diff. Side Gear Thrust	1		$329.70	Add to Cart
7	3278R278	Spider-inter-axle Diff.	1		—	No longer available — call for replacement
1	2234W829	Side Gear-diff. R.h & L .h Main Differential	2	nest kit with spider.	$235.36	Add to Cart
2	2233U99	Pinion-diff. Tdd Forward-rear	4	new style carrier.	$59.46	Add to Cart
3	3278A79	Spider-diff.	1		$246.48	Add to Cart
5	1229E993	Washer-diff. Side Gear Thrust	2	6-5	$74.24	Add to Cart
1	2234V828	Side Gear-diff. R.h & L .h Main Differential	2	nest kit with spider.	$2,958.76	Add to Cart
2	2233U47	Pinion-diff. SFD-4640 New	4	style carrier.	—	No longer available — call for replacement
3	3278P276	Spider-main Diff.	1		—	Call for availability
4	1829Q95	Washer-diff. Pinion Thrust	4		$27.44	Add to Cart
5	1229C991	Washer-diff. Side Gear Thrust	2		$130.00	Add to Cart
1	2234T826	Side Gear-diff. R.h & L .h Main Differential	2	nest kit with spider.	$1,131.67	Add to Cart
2	2233C159	Pinion-diff. Udd/udr	4		—	No longer available — call for replacement
1	3892W4963	Gear-inter-axle Diff. Forward Side Iad Repair Kit	1	with case halves	$1,293.22	Add to Cart
2	1229L2742	Washer-side Gear Iad Thrust SR-170; Sr, Su	1	SW-270/280; ,	$118.03	Add to Cart
2	IA2234F890	I Gear-inter-axle Diff. Rear Side Forward-rear. 3200-X-1324	1	only.; I 1	—	Call for availability
4	A13235X1532	Iad Assy.	1		—	Call for availability
3	A2234F890	Gear-inter-axle Diff. Rear Side Forward-rear. 3200-X-1324	1	only.	—	No longer available — call for replacement
4	3278N300	Spider-diff.	1		$191.16	Add to Cart
5	2233K245	Pinion-diff.	4		$54.50	Add to Cart
6	1229Q2929	Washer-iad Pinion Thrust	4		$131.40	Add to Cart
4	2233K245	Pinion-diff.	4		$54.50	Add to Cart
5	1229Q2929	Washer-iad Pinion Thrust	4		$131.40	Add to Cart
1	2234S851	Gear-diff. Side Main Differential	2	nest kit with spider.	$1,491.40	Add to Cart
2	1229L3002	Washer-thrust SW-170 Forward-rear	2	& rear-rear.	$81.36	Add to Cart
3	2233C159	Pinion-diff. Sr, Su SW-270/280 ,	4	forward-rear &	—	No longer available — call for replacement
4	1229D992	Washer-diff. Pinion Thrust Rear-rear.	4		$73.20	Add to Cart
5	3278Q381	Spider-diff.	1		$171.33	Add to Cart
1	2233K245	Pinion-diff. Iad Nest Kit Less	4	side gear.	$54.50	Add to Cart
1	I1229Q2929	I Washer-iad Pinion Thrust SR/SU/SW-170	4	270 & 280 forward-rear.; I 4; ,	—	Call for availability
3	3278N300	Spider-diff. 3200-X-1324	1	only.	$191.16	Add to Cart
1	2233K245	Pinion-diff. Iad Nest Kit With	4	side gear, less case	$54.50	Add to Cart
2	1229Q2929	Washer-iad Pinion Thrust Halves SR/SU/SW-170	4	270 & 280; ,	$131.40	Add to Cart
3	3278N300	Spider-diff. Forward-rear. 3200-X-1324	1	only.	$191.16	Add to Cart
4	A2234F890	Gear-iad Rear Side	1		—	No longer available — call for replacement
5	3892W4963	Gear-iad Forward Side	1		$1,293.22	Add to Cart
6	1229L2742	Washer-iad Forward Side Gear Thrust	1		$118.03	Add to Cart
1	10X1334	Air Shift Assy.	4	kit with attaching hardware; Screw; I I	—	Call for availability
2	A13261V308	Assy. SR/SU/SW-170	1	forward-rear.; Air shift	$56.11	Superseded by KIT2266Add to Cart
3	1229D992	Washer-diff. Pinion Thrust I	4	I	$73.20	Add to Cart
4	1229E993	Washer-diff. Side Gear Thrust	2		$74.24	Add to Cart
1	A3303P1030	Pump Assy. Pump Update	1	kit for 1 .00 to 1 .00 drive	$536.09	Add to Cart
2	1229E1669	Washer-flat SR/SU/SW-170	6	270 & 280; ,	$152.00	Add to Cart
3	MS2080451	Capscrew	6		$143.50	Add to Cart
4	2297Z5278	Adaptor	1		$19.20	Add to Cart
5	3280V8394	Filter-oil	1		$34.67	Add to Cart
6	3280Z8398	Filter	1		$37.60	Superseded by 3264N1522Add to Cart
7	A3297N1288	Input Assy.	1		$3,763.44	Add to Cart
8	A3226H1126	Cage-bearing	1		$339.22	Add to Cart
9	S2814A2	Capscrew	7		$40.10	Add to Cart
10	1229C1511	Washer-flat	7		$141.00	Add to Cart
11	3266M1313	Cover-helical Gear	1		$2,181.65	Add to Cart
12	A2297D5334	Filter-screen	1		$83.74	Add to Cart
13	5X1034	O-ring	2		$45.20	Add to Cart
14	2258Z1118	Spring	1		$26.10	Add to Cart
15	2297U5273	Valve-relief	1		$90.40	Add to Cart
16	3296Q1187	Fork-shift	1		$115.26	Add to Cart
17	A43261Q1057	Air Shift Assy.	1		—	Call for availability
18	A1205X2728	Seal	1		—	Call for availability
19	2203K9241	Shim .003	1		$74.20	Add to Cart
20	2203L9242	Shim .005	1		$82.60	Add to Cart
21	2203M9243	Shim .010	4		$96.00	Add to Cart
22	HM813844	Cone	1		$77.19	Add to Cart
23	1227D940	Nut	1	6-7	$35.66	Add to Cart
2	1229E1669	Washer-flat .756 To 1 .00 Overdrive	6		$152.00	Add to Cart
3	MS2080451	Capscrew SR/SU/SW-170	6		$143.50	Add to Cart
11	3266Q1317	Cover-helical Gear	1		$2,211.42	Add to Cart
17	HM813844	Cone	1		$77.19	Add to Cart
18	A43261Q1057	Air Shift Assy.	1		—	Call for availability
19	A1205X2728	Seal	1		—	Call for availability
20	1227D940	Nut	1		$35.66	Add to Cart
21	2203K9241	Shim .003	1		$74.20	Add to Cart
22	2203L9242	Shim .005	1		$82.60	Add to Cart
23	2203M9243	Shim .010	4		$96.00	Add to Cart
3	52387	Cone-diff. Bearing L .h Rear-rear	1		$151.29	Add to Cart
4	52618	Cup-diff. Bearing L .h	1		$60.66	Add to Cart
5	H715343	Cone-drive Pinion Inner	1		$126.63	Add to Cart
6	H715311	Cup-drive Pinion Inner & Outer	2		$58.98	Add to Cart
7	H715334	Cone-drive Pinion Outer	1		$132.26	Add to Cart
8	1228B262	Bearing-drive Pinion Spigot	1		$294.39	Add to Cart
9	A1805F162	Oil Seal Assy.	1		$181.60	Add to Cart
3	52387	Cone-diff. Bearing L .h Forward-rear.	1	3200-G-1255 only	$151.29	Add to Cart
5	78250AC	Cone-drive Pinion Bearing	2		$199.93	Add to Cart
6	78551	Cup-drive Pinion Bearing	2		$55.81	Add to Cart
7	1228B262	Bearing-drive Pinion Spigot	1		$294.39	Add to Cart
8	HM813841	Cone-forward Input Shaft Bearing	1		—	Call for availability
9	HM813810	Cup-forward Input Shaft Bearing	1		$45.58	Add to Cart
10	JM515649	Cone-input Shaft Bearing	1		$117.70	Add to Cart
11	JM515610	Cup-input Shaft Bearing	1		$55.98	Add to Cart
14	1228D524	Bearing-oil Pump Idler Gear	1		—	No longer available — call for replacement
15	R945007	Oil Seal Assy. -input Shaft	1		$108.48	Add to Cart
16	A1205N1496	Oil Seal Assy. -thru Shaft	1		$38.48	Add to Cart
3	52387	Cone-diff. Bearing L .h Spigot Bearing	1		$151.29	Add to Cart
4	52618	Cup-diff. Bearing L .h SR/SU/SW-170	1	forward-rear.	$60.66	Add to Cart
5	78250AC	Cone-drive Pinion Bearing 3200-G-1255	2	only	$199.93	Add to Cart
7	1228A261	Bearing-drive Pinion Spigot	1		—	Call for availability
3	52387	Cone-diff. Bearing L .h Input Bearing	1	cone HM-813844 instead	$151.29	Add to Cart
4	52618	Cup-diff. Bearing L .h Of HM-813841	1		$60.66	Add to Cart
5	78250AC	Cone-drive Pinion Bearing SR/SU/SW-170	2	270 & 280 forward-rear.; ,	$199.93	Add to Cart
6	78551	Cup-drive Pinion Bearing 3200-X-1324	2	only	$55.81	Add to Cart
8	HM813844	Cone-forward Input Shaft Bearing	1		$77.19	Add to Cart
14	A1228Z572	Bearing-oil Pump Idler Gear	1		—	Call for availability
1	HM516449C	Cone-diff. Bearing R.h & L .h Complete Carrier	2	bearing kit.	$115.05	Add to Cart
2	HM516410	Cup-diff. Bearing R.h & L .h Rdf Rdr New ,	2	style carrier.	$61.01	Add to Cart
3	42350	Cone-drive Pinion Bearing	1		—	Call for availability
5	42584	Cup-inner Bearing Front	1		$139.86	Add to Cart
7	66225	Cone-inner & Outer Bearing	2		—	Call for availability
8	66462	Cup-inner & Outer Bearing	2		—	Call for availability
9	A11228R486	Bearing Assy.	1		$259.96	Add to Cart
10	1228H190	Roller-bearing	1		$265.53	Add to Cart
11	A11805S149	Seal Assy.	1		$102.79	Add to Cart
12	A1805A261	Seal Assy.	1	6-9	$46.88	Add to Cart
1	42350	Cone-drive Pinion Bearing Complete Carrier	1	bearing kit.	—	Call for availability
3	42584	Cup-inner Bearing Front	1		$139.86	Add to Cart
5	1828P68	Roller-bearing	1		—	No longer available — call for replacement
6	66225	Cone-inner & Outer Bearing	2		—	Call for availability
7	66462	Cup-inner & Outer Bearing	2		—	Call for availability
8	A11228R486	Bearing Assy.	1		$259.96	Add to Cart
9	1828L38	Roller-bearing	1		—	Call for availability
12	A1205K713	Seal Assy.	1		$54.54	Add to Cart
13	A1205N1496	Seal Assy.	1		$38.48	Add to Cart
2	HM516410	Cup-diff. Bearing R.h & L .h Tdd Tda-f , ,	2	forward-rear, old style	$61.01	Add to Cart
3	42350	Cone-drive Pinion Bearing Carriers	1		—	Call for availability
7	1828P68	Bearing-roller	1		—	No longer available — call for replacement
8	66225	Cone-inner & Outer Bearing	2		—	Call for availability
9	66462	Cup-inner & Outer Bearing	2		—	Call for availability
10	A11228R486	Bearing Assy.	1		$259.96	Add to Cart
13	1228L194	Bearing-ball	1		$69.05	Add to Cart
14	A1205K713	Seal Assy.	1		$54.54	Add to Cart
15	A1805F162	Seal Assy.	2		$181.60	Add to Cart
2	HM516410	Cup-diff. Bearing R.h & L .h Tdf Tdr New ,	2	style carriers	$61.01	Add to Cart
11	A1205K713	Seal Assy.	1		$54.54	Add to Cart
12	A1205N1496	Seal Assy.	1		$38.48	Add to Cart
3	1228H190	Bearing-rear Radial Carriers	1		—	Call for availability
4	42350	Cone-drive Pinion Bearing	1		—	Call for availability
6	42584	Cup-inner Bearing Front	1		$139.86	Add to Cart
8	66462	Cone-inner & Outer Bearing	2		—	Call for availability
9	66225	Cup-inner & Outer Bearing	2		—	Call for availability
11	HM516449C	Cone-diff. Bearing R.h & L .h	2		$115.05	Add to Cart
12	HM516410	Cup-diff. Bearing R.h & L .h	2		$61.01	Add to Cart
15	A1805A261	Oil Seal Assy.	1		$46.88	Add to Cart
16	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
2	HM516410	Cup-diff. Bearing R.h & L .h Udd Forward-rear	2		$61.01	Add to Cart
4	42584	Cup-drive Pinion Bearing	2		$139.86	Add to Cart
5	1228H190	Bearing-rear Radial	1		—	Call for availability
8	1228W179	Roller-bearing	1		—	No longer available — call for replacement
13	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
14	A1805A261	Oil Seal Assy.	1		$46.88	Add to Cart
1	HM516449C	Cone-diff. Bearing Inner & Outer Complete Carrier	2	bearing kit.	$115.05	Add to Cart
2	HM516410	Cup-diff. Bearing Inner & Outer Udr Rear-rear	2		$61.01	Add to Cart
3	HM807046	Cone-outer Bearing	1		$128.37	Add to Cart
4	HM807010	Cup-outer Bearing	1		$40.37	Add to Cart
5	H715345	Cone-inner Bearing	1		$113.73	Add to Cart
6	H715311	Cup-inner Bearing	1		$58.98	Add to Cart
7	65237	Cone-inner Bearing	2		$150.87	Add to Cart
8	65500	Cup-inner Bearing	2		$69.06	Add to Cart
9	A1805S149	Oil Seal Assy.	1	6-11	$136.24	Add to Cart
2	HM516410	Cup-diff. Bearing R.h & L .h Udf Forward-rear	2		$61.01	Add to Cart
9	A11805S149	Oil Seal Assy.	1		$102.79	Add to Cart
10	A1805A261	Oil Seal Assy.	1		$46.88	Add to Cart
1	1228H190	Bearing-thru Shaft Rear Complete Carrier	1	bearing kit.	—	Call for availability
6	A1805A261	Oil Seal-output Thru Shaft	1		$46.88	Add to Cart
7	1228W179	Bearing-drive Gear Radial	1		—	No longer available — call for replacement
10	42584	Cup-drive Pinion Inner & Outer Brg	2		$139.86	Add to Cart
11	42350	Cone-drive Pinion Inner & Outer Brg	2		—	Call for availability
12	A1205M325	Oil Seal Assy. -input	1		$49.04	Add to Cart
2	1228W179	Bearing-drive Gear Radial SFD-4640 New	1	style carrier.	—	No longer available — call for replacement
5	42584	Cup-drive Pinion Inner Brg	1		$139.86	Add to Cart
6	42350	Cone-drive Pinion Inner Brg	1		—	Call for availability
11	A11805S149	Oil Seal Assy.	2		$102.79	Add to Cart
1	A13297K115	Input Shaft & Ball		assembly.; I 1 I Shaft-input	$5,247.28	Add to Cart
2	HM813844	Shaft Bearing SR/SU/SW-170	1	3200-G-1255 only.; Cone-input	$77.19	Add to Cart
1	3892D4710	Helical Helical Gear Kit.		I 1 I Gear-drive	$1,418.40	Add to Cart
2	3892F4712	Driven Sr, Su SW-270/280 ,	1	forward & rear; Gear-helical	$1,128.61	Add to Cart

No Spin Chart

Item	Part No.	Description	Qty	Notes	Price
	3800H554	No Spin Chart — Carrier			—	Call for availability
	225023	No Spin Chart — No Spline			—	Call for availability
	A3230L12	No Spin Chart — Spin Chart No Spin Number			—	Call for availability
	3200D1226	No Spin Chart — Carrier			—	Call for availability
	235046	No Spin Chart — No Spline			—	Call for availability
	A3230J36	No Spin Chart — Spin Chart No Spin Number			—	Call for availability
	3800A755	No Spin Chart — Carrier			—	Call for availability
	228120	No Spin Chart — No Spline			—	Call for availability
	A3230D4	No Spin Chart — Spin Chart No Spin Number			—	Call for availability
	3200X1324	No Spin Chart — Carrier			—	Call for availability
	237524	No Spin Chart — No Spline			—	Call for availability
	A3230W23	No Spin Chart — Spin Chart No Spin Number			$3,510.99	Add to Cart
	3800Z624	No Spin Chart — Carrier			—	Call for availability
	A3230B28	No Spin Chart — Spin Chart No Spin Number			—	Call for availability
	3800D758	No Spin Chart — Carrier			—	Call for availability
	3200G1255	No Spin Chart — Carrier			—	Call for availability
	3800G579	No Spin Chart — Carrier			—	Call for availability
	3200L1234	No Spin Chart — Carrier			—	Call for availability
	A3230P42	No Spin Chart — Spin Chart No Spin Number			—	Call for availability
	3800J582	No Spin Chart — Carrier			—	Call for availability
	3200G605	No Spin Chart — Carrier			—	Call for availability
	250050	No Spin Chart — No Spline			—	Call for availability
	A3230N1028	No Spin Chart — Spin Chart No Spin Number			$22,726.53	Add to Cart

This is the complete factory parts breakdown for the Meritor Out-of-Production Heavy-Duty Axle — every part in the manual, matched to our live inventory. We stock 922 of the 2121 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search — try the part number with no dashes.
