Muncie F22 Series Parts List & Service Manual

View the official Muncie PTO F22 parts manual (PDF)Download PDF

F22 Exploded Views: Detail A - Output Shaft Assembly

Item 4 Item 1 Item 2 Item 3 Item 4 Item 5 Item 3 Item 7 Item 8 Item 9 Item 10 Item 12 Item 13 Item 14 Item 15 Item 1 Item 11

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
1	10T21017	Bearing	1	$74.28	Add to Cart
2	24T36470	Snap Ring Output ,	1	$2.28	Add to Cart
3	21T62472	Thrust Washer	2	$18.94	Add to Cart
4	10T62471	Needle Bearing	1	$34.82	Add to Cart
5	02T64595	Gear Drive	1		Call for availability
	06TA6477	Output Shaft: ⅞ " -13T		$576.70	Add to Cart
	06TA6478	Output Shaft: 1 .25" Round W/ ⁵⁄₁₆" Key		$664.52	Add to Cart
	06TA6472	Output Shaft: ¾ " -1 1T			Call for availability
	06TA6630	Output Shaft: Uni 6T			Call for availability
7	12T39023	O-Ring	2	$5.18	Add to Cart
8	49T65367	Friction Disc	9	$26.68	Add to Cart
9	49T36258	Spacer Disc	8	$15.04	Add to Cart
10	27T61827	Spring	1	$17.17	Add to Cart
11	49T64056	Piston	1	$127.96	Add to Cart
12	12T64059	O-Ring	1	$5.18	Add to Cart
13	49T64057	Piston Cup	1	$124.14	Add to Cart
14	24T39182	Snap Ring	1	$6.99	Add to Cart
15	10T39072	Bearing	1	$32.54	Add to Cart
	26T01627	⁵⁄₁₆" Woodruff Key	1	$5.78	Add to Cart

Detail B - Housing Assembly

Item 5 Item 1 Item 2 Item 3 Item 4 Item 7 Item 4 Item 2 Item 8 Item 3 Item 10 Item 1 Item 9 Item 6 Item 5

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Price
	01T66140	Housing - “BB” Output			Call for availability
1	01T66167	Housing - “TA”, “BA”, & “1X ” Outputs	1		Call for availability
	01T66168	Housing - “TN” Output			Call for availability
	01T66324	Housing - “UU” Output			Call for availability
2	12T36878	O-Ring	1	$5.27	Add to Cart
3	25T65492	Plug - Not Used On “TN” Output	1		Call for availability
4	11T63830	Oil Seal	1	$18.50	Add to Cart
1	07T64145	Input Shaft	1		Call for availability
2	10T65008	Tapered Roller Bearing	1		Call for availability
3	03T64153	Input Gear (47 Tooth)	1		Call for availability
4	21T62316	Washer	1		Call for availability
5	19T65087	Shoulder Bolt	3		Call for availability

Detail C - Input Assembly

Item	Part No.	Description	Qty	Price
6	49T66139	Input Carrier	1		Call for availability
7	27T63431	Coil Spring	4	$3.92	Add to Cart
8	24T65083	Snap Ring	3		Call for availability
9	19T36846	Hex Socket Set Screw	1	$2.98	Add to Cart
10	10T65009	Tapered Roller Bearing	1		Call for availability

Detail D - Rear Cover Assembly

Item	Part No.	Description	Qty	Price
1	12T36872	O-Ring	1	$18.06	Add to Cart
2	12T36280	O-Ring	2	$2.33	Add to Cart
3	15TA6474	Cover, Standard		$365.78	Add to Cart
3	15TA6475	Cover, Muncie Start®		$272.19	Add to Cart
4	19T36588	Cap Screw	3	$2.15	Add to Cart
5	19T62950	Cap Screw	2	$3.53	Add to Cart
6	35T43600	Solenoid Valve		$376.57	Add to Cart
6	35T62496	Solenoid Valve (Muncie Start®)		$376.33	Add to Cart
7	49T62436	Solenoid Clamp Ring	1	$6.00	Add to Cart

F20GSK Gasket Kit and F20RBK Rebuild Kit Contents

Part No.	Description	Price
10T21017	Qty. Qty. Bearing - 1	$74.28	Add to Cart
10T39072	Bearing - 1	$32.54	Add to Cart
10T62471	Needle Bearing - 1	$34.82	Add to Cart
10T65008	Bearing - 1		Call for availability
10T65009	Bearing - 1		Call for availability
11T63830	Shaft Seal 1 1	$18.50	Add to Cart
12T36280	O-Ring 2 2	$2.33	Add to Cart
12T36872	O-Ring 1 1	$18.06	Add to Cart
12T36878	Housing O-Ring 1 1	$5.27	Add to Cart
12T39023	O-Ring 2 2	$5.18	Add to Cart
12T64059	Piston O.D. O-Ring 1 1 Gasket 1 1	$5.18	Add to Cart
21T62472	Thrust Washer - 2	$18.94	Add to Cart
21T62316	Tabbed Washer - 1		Call for availability
24T36470	Snap Ring, Output - 1	$2.28	Add to Cart
24T39182	Snap Ring - 1	$6.99	Add to Cart
24T65083	Snap Ring - 1		Call for availability
27T61827	Piston Return Spring - 1	$17.17	Add to Cart
27T63431	Coil Spring - 4	$3.92	Add to Cart
49T36258	Spacer Disc - 8	$15.04	Add to Cart
49T36259	Friction Disc - 9	$19.33	Add to Cart

F22 Installation Kits

Part No.	Description	Notes	Price
20TK6669	F22 Stud Kit	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)		Call for availability
48TK6670	F22 Single Mode Kit	In kit 48TK6664 (1)		Call for availability
48TK6671	F22 Dual Mode Kit	In kit 48TK6665 (1)	$515.08	Add to Cart
34T42527	Wiring Harness, Reduced	In kit 48TK6666 (1)	$44.84	Add to Cart
48TK6672	F22 Safety Label & Instruction Kit	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)		Call for availability
28T35442	Zip Tie	In kit 48TK6664 (6), 48TK6665 (6)	$2.22	Add to Cart
30T60223	Pressure Switch	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)	$147.87	Add to Cart
36T42362	Switch Dash Bracket	In kit 48TK6664 (1), 48TK6665 (1)	$7.40	Add to Cart
36MK5660	Bracket Bolt Kit	In kit 48TK6664 (1), 48TK6665 (1)	$4.61	Add to Cart
37T35674	Grommet	In kit 48TK6664 (1), 48TK6665 (1)	$2.82	Add to Cart
30T35687	2-Position Rocker Switch	In kit 48TK6664 (1)	$66.82	Add to Cart
30T41975	3-Position Rocker Switch	In kit 48TK6665 (1)	$70.50	Add to Cart
36T42380	Face Plate - Single Mode	In kit 48TK6664 (1)	$6.96	Add to Cart
36T42383	Face Plate - Dual Mode	In kit 48TK6665 (1)	$8.71	Add to Cart
43T42792	90 Elbow - SAE -4 Orb To -4 Orfs	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)	$18.78	Add to Cart
43T65280	90 Elbow - M10 To -4 Orfs	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)	$14.78	Add to Cart
45T65570	Hose Assembly	In kit 48TK6664 (1), 48TK6665 (1), 48TK6666 (1)	$61.77	Add to Cart
32MSR12V	12 V Light 36T42380	In kit 48TK6665 (1)	$14.21	Add to Cart

48TK6670 - F22 Single Mode Kit

Item	Part No.	Description	Qty
2	34T43989	Module Harness	1	Call for availability
3	34T43990	PTO Harness	1	Call for availability
4	34T43992	Mode Switch Harness		Call for availability
5	34T43988	Medium Duty Harness	1	Call for availability

48TK6671 - F22 Dual Mode Kit

Item	Part No.	Description	Qty
2	34T43989	Module Harness	1	Call for availability
3	34T43990	PTO Harness	1	Call for availability
4	34T43987	Mode Switch Harness		Call for availability
5	34T43988	Medium Duty Harness	1	Call for availability

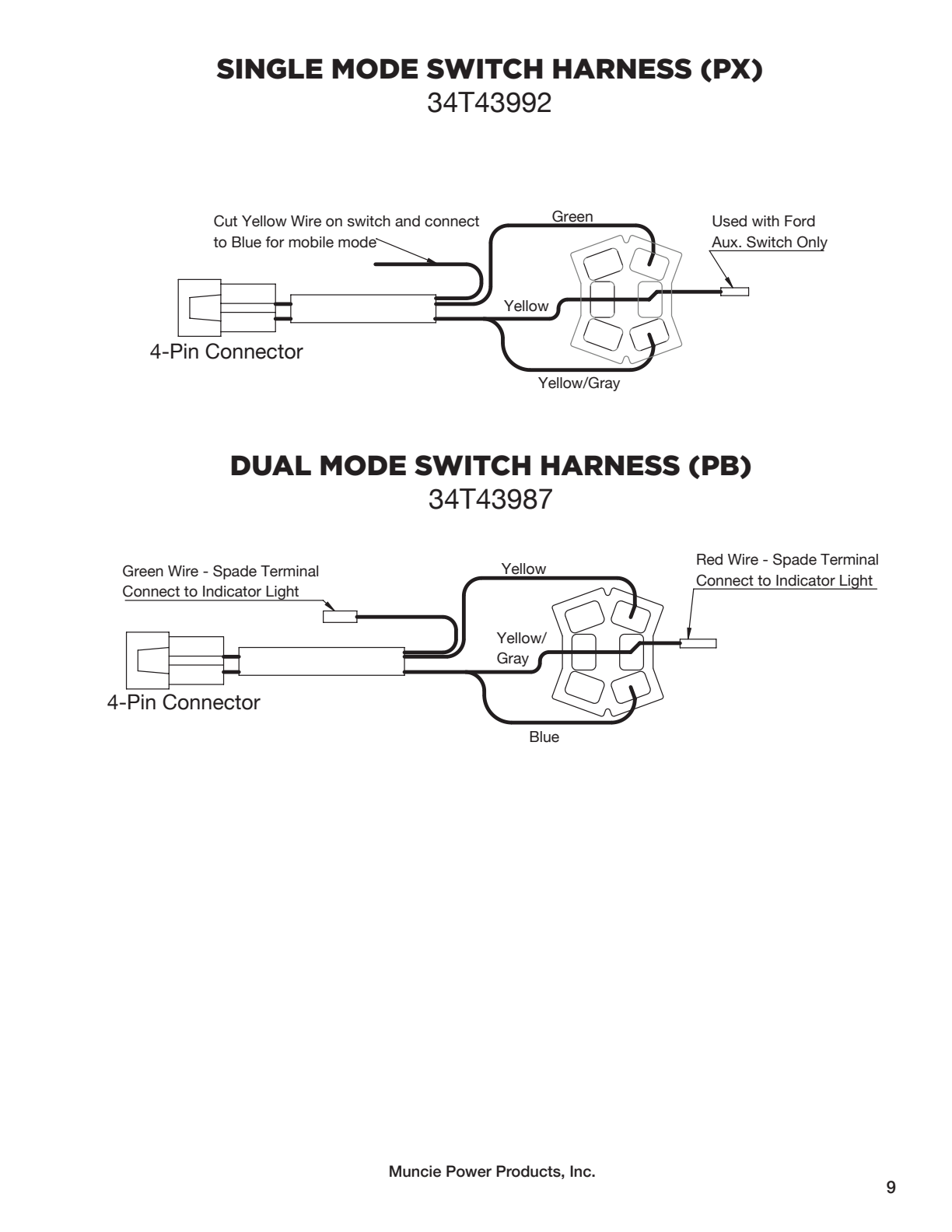

Wiring Harnesses

Item	Part No.	Description	Qty	Notes	Price
	34T43992	Mode Switch Harness On Switch And Connect Mode Wire On Switch And Connect Mobile Mode Yellow	Single			Call for availability
	34T43987	Mode Switch Harness	Dual			Call for availability

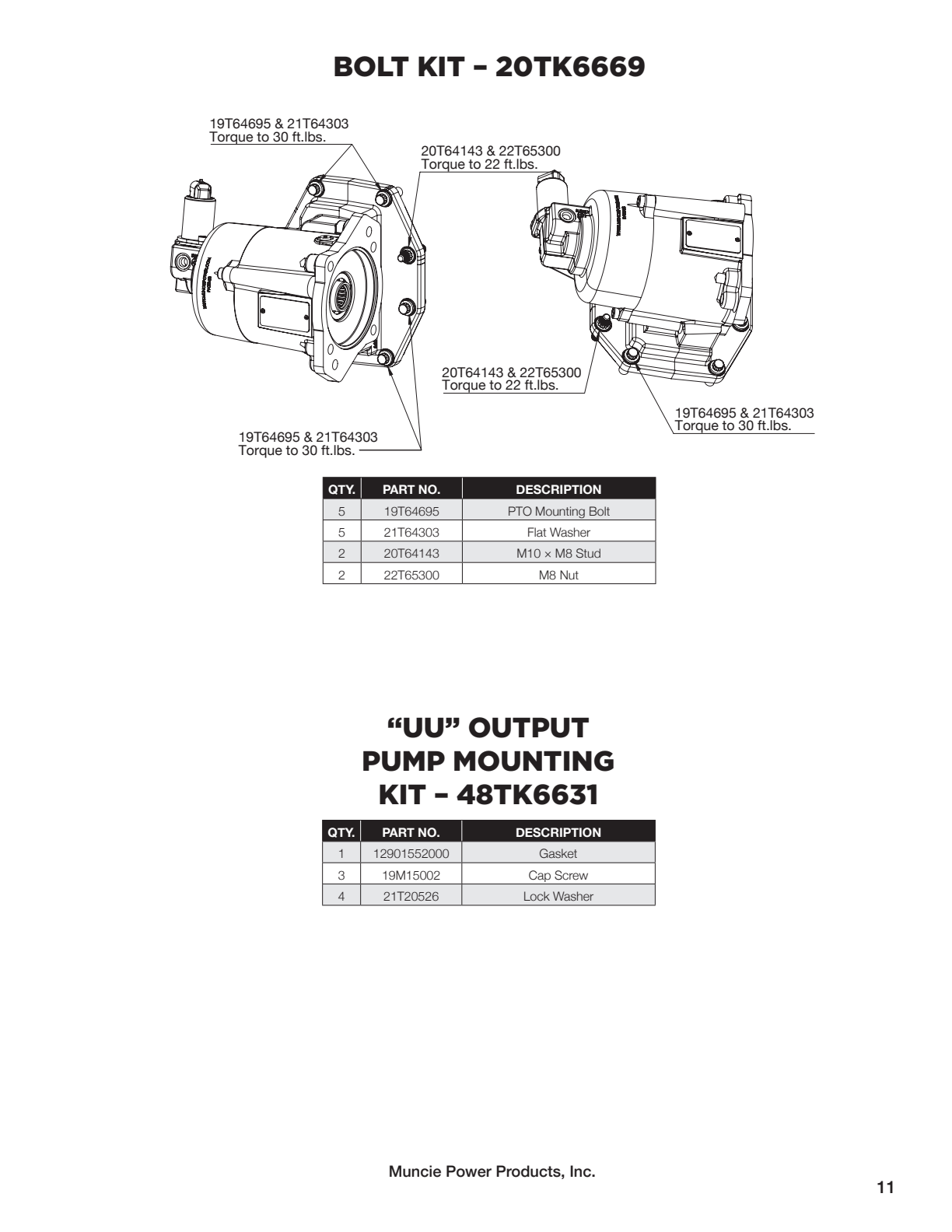

Bolt Kit 20TK6669

Part No.	Description	Price
19T64695	PTO Mounting Bolt	$8.86	Add to Cart
21T64303	Flat Washer	$3.65	Add to Cart
20T64143	M10 × M8 Stud	$19.39	Add to Cart
22T65300	M8 Nut	$21.11	Add to Cart
19M15002	Cap Screw		Call for availability
21T20526	Lock Washer	$4.09	Add to Cart

“uu” Output Pump Mounting Kit - 48TK6631

Item	Part No.	Description	Qty	Notes	Price
	12901552000	Gasket	1			Call for availability

Other Parts Shown in This Manual

Part No.	Description	Price
13T64490	Gasket	$81.73	Add to Cart
F20GSK	F20 Gasket Kit	$168.72	Add to Cart
F20RBK	F20 Rebuild Kit	$582.31	Add to Cart
38T63053	Pwm Module Reprogram 38t63052	$407.57	Add to Cart
48TK6631	Uni Pump Installation Kit	$16.93	Add to Cart

F22 Model Number Construction

Item	Part No.	Description	Qty	Notes	Price

F22 Dimensions

Item	Part No.	Description	Qty	Notes	Price

This is the complete factory parts breakdown for the Muncie PTO F22, with every part in the manual matched to our live inventory. We stock 70 of the 105 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search. Try the part number with no dashes.

This Muncie Parts & Service Manual covering the F22 PTO helps you identify the correct gears, shafts, kits and service parts for your power take-off before you order. 70 of the parts it lists are in stock to buy on this page.

Models covered	F22
PTO type	Muncie PTO
Document	Parts & Service Manual (Muncie)
Length	13 pages
Format	PDF, free to view or download
