Muncie FR3C Series Parts List & Service Manual

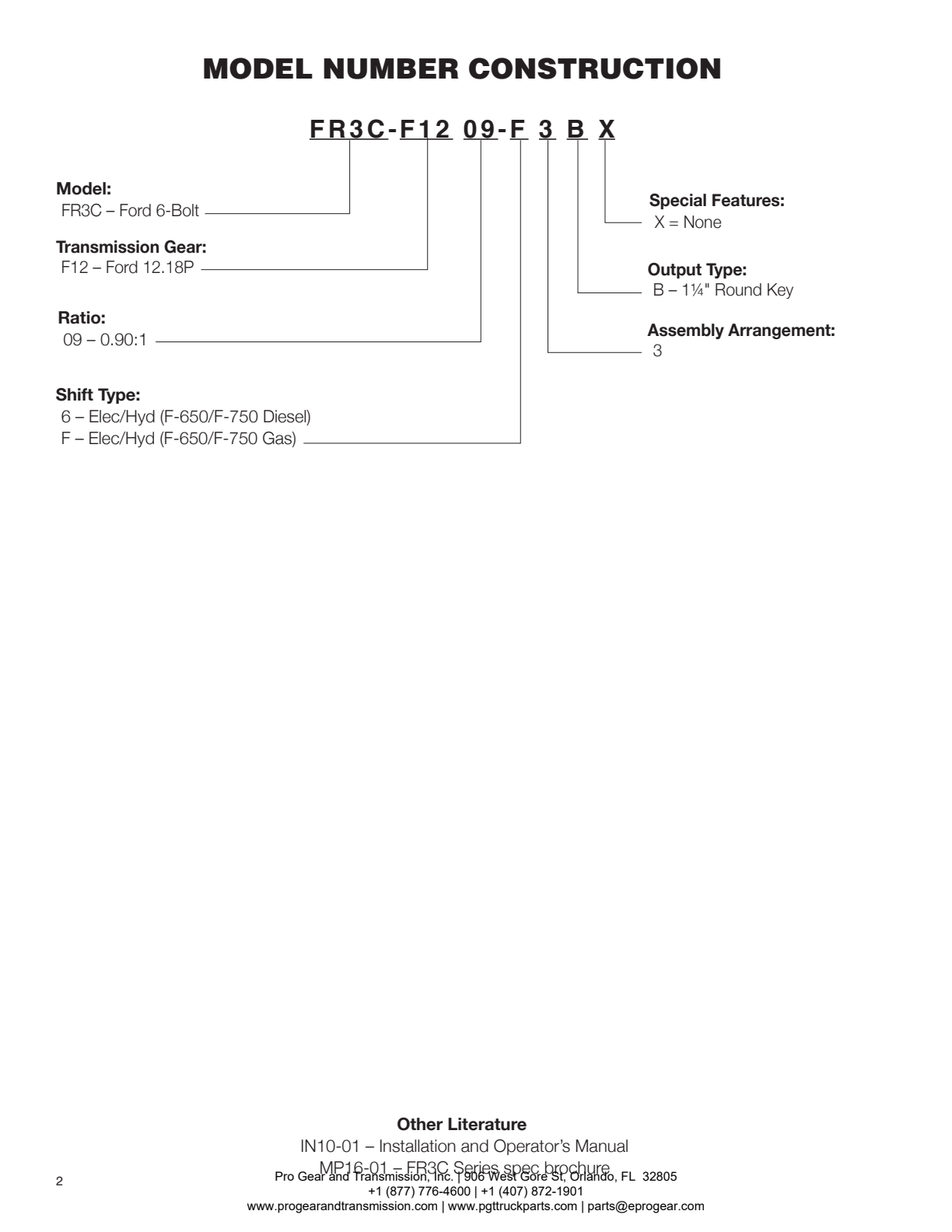

Model Number Construction
Exploded View
Item 3Item 1Item 2Item 7Item 20Item 17Item 22Item 6Item 24Item 25Item 26Item 8Item 27Item 28Item 9Item 30Item 29Item 23Item 21Item 3Item 4Item 14Item 18Item 19Item 16Item 15Item 13Item 12Item 11Item 10Item 5Item 31Item 32Item 33Item 35Item 36Item 34Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 01T61819 | Housing | 1 | Call for availability | ||
| 2 | 11T61821 | Shaft Seal | 1 | $59.33 | Add to Cart | |
| 3 | 10T21017 | Output Bearing | 1 | $74.28 | Add to Cart | |
| 4 | 24T35480 | Snap Ring | 1 | $6.51 | Add to Cart | |
| 5 | 26T01627 | Woodruff Key | 1 | $5.78 | Add to Cart | |
| 6 | 06T61820 | Output Shaft | 1 | Call for availability | ||
| 7 | 49T37008 | Needle Bearing | 1 | Call for availability | ||
| 8 | 49T61803 | Friction Disc | 7 | $19.33 | Add to Cart | |
| 9 | 49T36258 | Spacer Disc | 6 | $15.04 | Add to Cart | |
| 10 | 12T36540 | O-Ring | 1 | $11.58 | Add to Cart | |
| 11 | 24T39182 | Snap Ring | 1 | $6.99 | Add to Cart | |
| 12 | 12T39023 | O-Ring | 2 | $5.18 | Add to Cart | |
| 13 | 12T36863 | O-Ring | 1 | $11.73 | Add to Cart | |
| 14 | 15T62484 | Cover | 1 | $457.17 | Add to Cart | |
| 15 | 19T35237 | Cap Screw | 3 | $5.22 | Add to Cart | |
| 16 | 43T42757 | Orifice | 1 | $19.41 | Add to Cart | |
| 17 | 08T42756 | Idler Shaft | 1 | $105.14 | Add to Cart | |
| 18 | 07T42755 | Input Shaft | 1 | $69.69 | Add to Cart | |
| 19 | 12T35577 | O-Ring | 2 | $2.41 | Add to Cart | |
| 20 | 49TA5304 | Drag Element | 2 | $65.18 | Add to Cart | |
| 21 | 10T39145 | Needle Bearing | 2 | $72.02 | Add to Cart | |
| 22 | 03T61917 | Input Gear | 1 | $642.12 | Add to Cart | |
| 23 | 04T61918 | Idler Gear | 1 | $558.50 | Add to Cart | |
| 24 | 10T42016 | Thrust Plate | 1 | $43.29 | Add to Cart | |
| 25 | 21T39080 | Spacer | 2 | $18.59 | Add to Cart | |
| 26 | 02TA6098 | Output Gear | 1 | $931.70 | Add to Cart | |
| 27 | 27T61827 | Spring | 1 | $17.17 | Add to Cart | |
| 28 | 49T61822 | Piston | 1 | $127.96 | Add to Cart | |
| 29 | 49T39022 | Piston Cup | 1 | $124.14 | Add to Cart | |
| 30 | 10T39072 | Bearing | 1 | $32.54 | Add to Cart | |
| 31 | 19T62950 | Cap Screw | 2 | $3.53 | Add to Cart | |
| 32 | 35T43600 | Solenoid Valve | 1 | $376.57 | Add to Cart | |
| 33 | 49T62436 | Solenoid Retaining Ring | 1 | $6.00 | Add to Cart | |
| 34 | 43T42664 | Lubrication Tube Assembly | 1 | $74.87 | Add to Cart | |
| 35 | 12T36280 | O-Ring | 1 | $2.33 | Add to Cart | |
| 36 | 19T34789 | Set Screw | 2 | $10.92 | Add to Cart |
FR3C Installation Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 43T42793 | Metric Straight X Orsf | $34.10 | Add to Cart | |||
| 43T42792 | Elbow Fitting | $18.78 | Add to Cart |
FR3C Installation Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 45T42791 | Hose Assembly | $82.38 | Add to Cart | |||
| 20TK5215 | Stud Kit | $105.56 | Add to Cart | |||
| 20T37914 | Shoulder Studs | $15.04 | Add to Cart | |||
| 13T41973 | Mounting Gasket, Not Included With Stud Kit 20TK5215 | $70.08 | Add to Cart | |||
| 22T39282 | Spiralock Nuts | $2.77 | Add to Cart | |||
| 19T42075 | 12-Point Cap Screws | $11.67 | Add to Cart | |||
| 20T37952 | Step Stud | $13.58 | Add to Cart | |||
| 22T37605 | Whiz-Lock Nut | $2.28 | Add to Cart |
FR3C Activation Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 36T42362 | Dash Bracket | $7.40 | Add to Cart | |||
| 30T60223 | Pressure Switch With -2 SAE Fitting | $147.87 | Add to Cart |
FR3C Activation Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 34T43730 | Wire Harness, “6X” Diesel Shift System | $403.23 | Add to Cart | |||
| 48TK5684 | Elec/Hyd Shift/System “6X” Diesel | $600.51 | Add to Cart | |||
| 34T43735 | Wire Harness, “FX” Gas Shift System | $403.23 | Add to Cart | |||
| 48TK5680 | Elect/Hyd Shift System “FX” Gas | $600.51 | Add to Cart | |||
| 36T42380 | Face Plate | $6.96 | Add to Cart | |||
| 30T35687 | Rocker Switch | $66.82 | Add to Cart | |||
| 34T43740 | Wire Harness, “6B” Diesel Shift System | $403.23 | Add to Cart | |||
| 48TK5682 | Elec/Hyd Shift/System “6B” Diesel | $600.51 | Add to Cart | |||
| 34T43745 | Wire Harness, “FB” Gas Shift System | $403.23 | Add to Cart | |||
| 48TK5676 | Elect/Hyd Shift System “FB” Gas | $934.77 | Add to Cart | |||
| 36T42383 | Face Plate | $8.71 | Add to Cart | |||
| 30T41975 | Rocker Switch | $70.50 | Add to Cart |
Remote Mount Pressure Switch Kit 48TK5527 and Heat Shield Kit 49TK5533
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 43T43215 | Straight -4 Male Jic X ⅛" Female NPT | $9.75 | Add to Cart | |||
| 49TK5533 | Heat Shield – | $677.47 | Add to Cart | |||
| 30T60228 | Pressure Switch With ⅛" NPT Fitting | $172.61 | Add to Cart | |||
| 48TK5470 | Wire Extension | $17.00 | Add to Cart | |||
| 19M10001 | 5-16X18-¾" Hex Bolt | $2.33 | Add to Cart | |||
| 45T43308 | Stainless Steel Braided Hose 18" | $133.59 | Add to Cart | |||
| 49T43356 | Loop Clamp | $5.68 | Add to Cart | |||
| 43M68014 | SAE O-Ring 90 X -4 Jic | $19.98 | Add to Cart | |||
| 49T43320 | Heat Shield | $1,028.56 | Add to Cart | |||
| 48TK5557 | Heat Shield Fastener Kit | $36.39 | Add to Cart |
