Muncie MD1 Series Parts List & Service Manual
Model Number Construction
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Detail A Output Shaft Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 06TA6274 | $1,109.35 | Add to Cart | ||||
| 06TA6296 | Output Shaft | Call for availability | ||||
| 06TA6397 | Assembly | Call for availability | ||||
| 06TA6399 | $851.37 | Add to Cart | ||||
| 06TA6415 | MD1 Assembly | Call for availability | ||||
| 06TA6416 | A | Call for availability | ||||
| 06TA6418 | B | Call for availability | ||||
| 06TA6421 | 1 | Call for availability | ||||
| 06TA6425 | Output Shaft | Call for availability | ||||
| 1 | 06TA6426 | Assembly | 1 | Call for availability | ||
| 1 | 06TA6427 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6428 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6429 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6430 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6431 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6432 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6433 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6434 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6435 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6436 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6437 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6438 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6439 | Assembly (Alternate) | alternate part number | Call for availability | ||
| 1 | 06TA6440 | Assembly (Alternate) | alternate part number | Call for availability |
Detail B - Housing Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 10T43098 | Tapered Roller Bearing | 1 | $72.13 | Add to Cart | |
| 01T43462 | Housing - 1 Arrangement | $716.25 | Add to Cart | |||
| 2 | 01T43433 | Housing - 3 Arrangement | 1 | $716.25 | Add to Cart | |
| 01T43513 | Housing - 5 Arrangement | $716.25 | Add to Cart | |||
| 3 | 24T35999 | Plug | 1 | Call for availability | ||
| 4 | 12T39023 | O-Ring | 2 | $5.18 | Add to Cart | |
| 5 | 19T36082 | Set Screw C - Rear | 1 | $6.51 | Add to Cart | |
| 18TK6341 | Shim; .005" (Blue) Shim; .003" (Green) Shim; .010" (Brown) Shim; .020" (Yellow) Shim; .025" (White) Shim; .030" (Orange) | $170.13 | Add to Cart | |||
| 7 | 49T43434 | Valve Body Lock Ring | 1 | $11.95 | Add to Cart | |
| 9 | 19T33134 | Cap Screw | 3 | $6.14 | Add to Cart | |
| 10 | 15T61745 | Remote Mt. Sol. Cover | 1 | $69.86 | Add to Cart |
Detail D - Input Gear Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18T42642 | Square Washer | 2 | $40.35 | Add to Cart | |
| 2 | 10T43096 | Input Bearing (07-15 Ratios) | $51.23 | Add to Cart | ||
| 2 | 10T43287 | Input Bearing (05/06 Ratios) | $44.01 | Add to Cart | ||
| 3 | 07T43110 | Idler Shaft | 1 | $48.32 | Add to Cart | |
| 4 | 27T43291 | Belleville Washer | 2 | $3.08 | Add to Cart | |
| 5 | 25T41643 | Plug | 1 | Call for availability | ||
| 03T43085 | Input Gear 05 Ratio 20T/50T | $767.49 | Add to Cart | |||
| 03T43084 | Input Gear 06 Ratio 22T/50T | $767.49 | Add to Cart | |||
| 03T43083 | Input Gear 07 Ratio 24T/50T | $745.16 | Add to Cart | |||
| 03T43082 | Input Gear 08 Ratio 26T/50T | $767.49 | Add to Cart | |||
| 6 | 03T43081 | Input Gear 09 Ratio 27T/50T | 1 | $767.49 | Add to Cart | |
| 03T43080 | Input Gear 10 Ratio 28T/50T | $767.49 | Add to Cart | |||
| 03T43086 | Input Gear 11 Ratio 31T/50T | $767.49 | Add to Cart | |||
| 03T43087 | Input Gear 12 Ratio 31T/50T | $767.49 | Add to Cart | |||
| 03T43077 | Input Gear 15 Ratio 34T/50T | $767.49 | Add to Cart |
Detail E - Output Cover Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 7 | 19T36588 | Cap Screw | 4 | $2.15 | Add to Cart | |
| 8 | 11T64141 | Shaft Seal | 1 | $18.33 | Add to Cart | |
| 9 | 12T34003 | O-Ring | 1 | $20.22 | Add to Cart | |
| 10 | 10T43097 | Output Bearing | 1 | $62.77 | Add to Cart | |
| 15TA6359 | “A” Output Assembly | Call for availability | ||||
| 15TA6360 | “B”, “P”, Output Flange Version 15TA6379) | $387.69 | Add to Cart | |||
| 15TA6361 | “S”, Output Flange Version 15TA6380) | Call for availability | ||||
| 15TA6362 | “6”, “7”, Output Flange | Call for availability | ||||
| 15TA6363 | “C", Output Flange Version 15TA6381) | $498.24 | Add to Cart | |||
| 15TA6378 | “I”, Output Flange | $591.39 | Add to Cart | |||
| 11 | 15TA6365 | “4”, “2”, “X” Output Flange | 1 | $201.39 | Add to Cart | |
| 15TA6366 | “A” Output Flange MD1-A10**-**5*AB* Only | Call for availability | ||||
| 15TA6369 | “S” Output Flange MD1-A10**-**5*SB* Only (Wetspline 15TA6382) | Call for availability | ||||
| 15TA6372 | “P” Output Flange MD1-A10**-**5*BB* Only (Wetspline 15TA6383) | $408.23 | Add to Cart | |||
| 15TA6375 | “C” Output Flange MD1-A10**-**5*CB* Only | $480.49 | Add to Cart | |||
| 12 | 19T38266 | Cap Screw | 1 | $3.57 | Add to Cart | |
| 13 | 21T20092 | Flat Washer | 1 | $24.83 | Add to Cart | |
| 14T31499 | 1410 Companion Flange (Muncie “4”) | $457.60 | Add to Cart | |||
| 14 | 14T37498 | DIN 120 Companion Flange (Muncie “2”) | $448.51 | Add to Cart |

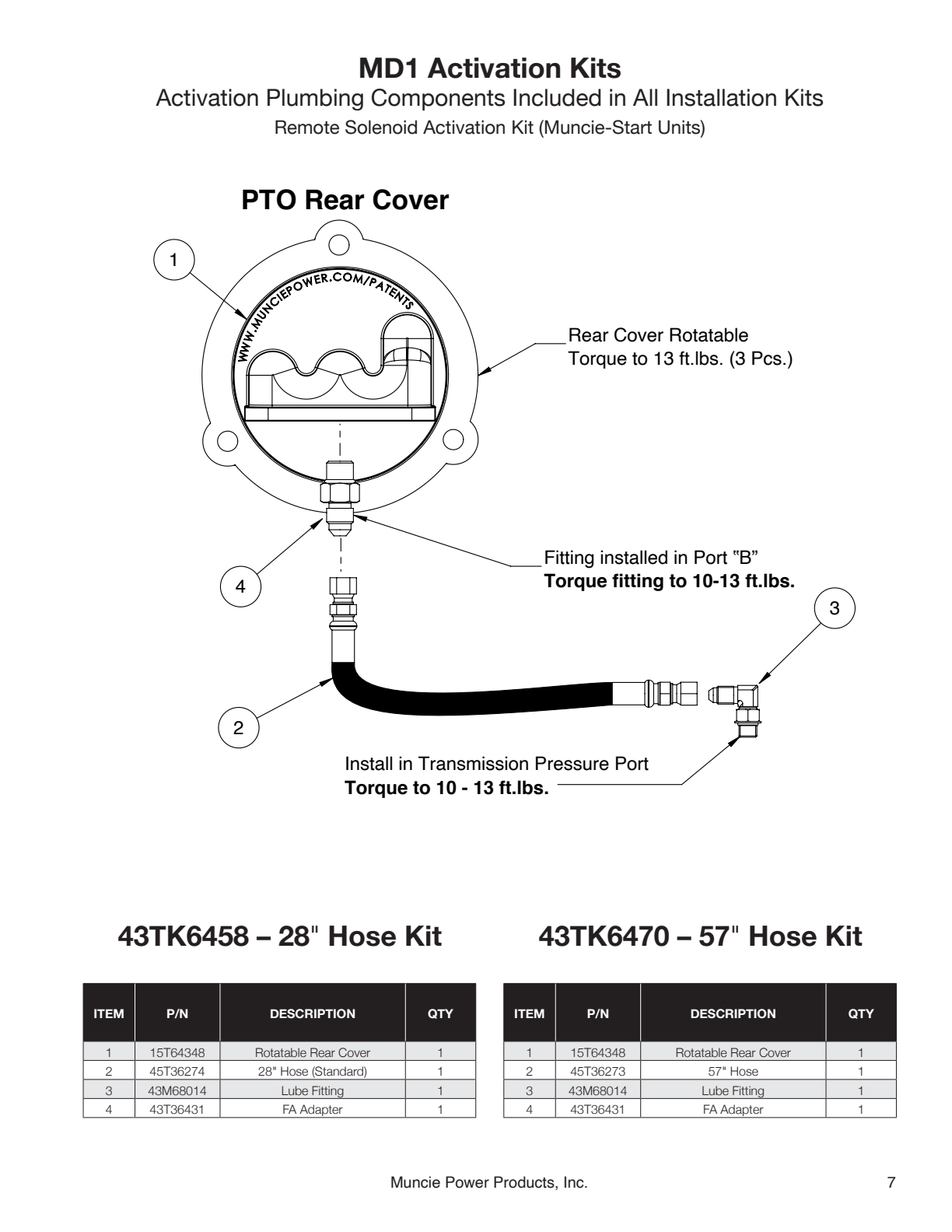

MD1 Activation Kits and Hose Kits
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15T64348 | Rotatable Rear Cover | $55.39 | Add to Cart | ||
| 2 | 45T36274 | 28" Hose (Standard) | $72.83 | Add to Cart | ||
| 3 | 43M68014 | Lube Fitting | $19.98 | Add to Cart | ||
| 4 | 43T36431 | FA Adapter | $5.71 | Add to Cart | ||
| 1 | 15T64348 | Rotatable Rear Cover 1 | 1 | $55.39 | Add to Cart | |
| 2 | 45T36273 | 57" Hose 1 | 1 | $96.88 | Add to Cart | |
| 3 | 43M68014 | Lube Fitting 1 | 1 | $19.98 | Add to Cart | |
| 4 | 43T36431 | FA Adapter 1 | 1 | $5.71 | Add to Cart |
MD1-RBK-05 Rebuild Kit, Ratios 05 & 06
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 12T43296 | Snap Ring | 1 | $2.83 | Add to Cart | |
| 6 | 27T62870 | Spring | 1 | Call for availability | ||
| 7 | 49T43127 | Spacer Disc | 7 | Call for availability | ||
| 8 | 49T43128 | Friction Disc | 8 | Call for availability | ||
| 11 | 21T43294 | Thrust Washer | 2 | $8.45 | Add to Cart | |
| 13 | 10T43603 | Needle Bearing | 1 | $38.11 | Add to Cart | |
| 14 | 12T43295 | Snap Ring | 1 | $2.83 | Add to Cart | |
| 16 | 10T43098 | Tapered Bearing | 1 | $72.13 | Add to Cart | |
| 21 | 18TK6341 | Shim Kit | 1 | $170.13 | Add to Cart | |
| 30 | 15T62484 | Square Washer | 2 | $457.17 | Add to Cart | |
| 31 | 10T43287 | Input Bearing | 2 | $44.01 | Add to Cart | |
| 33 | 27T43291 | Belleville Washer | 2 | $3.08 | Add to Cart | |
| 38 | 10T43097 | Output Bearing | 1 | $62.77 | Add to Cart | |
| MD1-GSK | - MD1 Gasket Kit | 1 | Call for availability |
MD1-RBK-07 Rebuild Kit, Ratios 07-15
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 12T43296 | Snap Ring | 1 | $2.83 | Add to Cart | |
| 6 | 27T62870 | Spring | 1 | Call for availability | ||
| 7 | 49T43127 | Spacer Disc | 7 | Call for availability | ||
| 8 | 49T43128 | Friction Disc | 8 | Call for availability | ||
| 11 | 21T43294 | Thrust Washer | 2 | $8.45 | Add to Cart | |
| 13 | 10T43603 | Needle Bearing | 1 | $38.11 | Add to Cart | |
| 14 | 12T43295 | Snap Ring | 1 | $2.83 | Add to Cart | |
| 16 | 10T43098 | Tapered Bearing | 1 | $72.13 | Add to Cart | |
| 21 | 18TK6341 | Shim Kit | 1 | $170.13 | Add to Cart | |
| 30 | 15T62484 | Square Washer | 2 | $457.17 | Add to Cart | |
| 31 | 10T43096 | Input Bearing | 2 | $51.23 | Add to Cart | |
| 33 | 27T43291 | Belleville Washer | 2 | $3.08 | Add to Cart | |
| 38 | 10T43097 | Output Bearing | 1 | $62.77 | Add to Cart | |
| MD1-GSK | - MD1 Gasket Kit | 1 | Call for availability |
MD1-GSK - MD1 Gasket Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 12T36472 | O-Ring | 1 | $12.75 | Add to Cart | |
| 5 | 12T36869 | O-Ring | 2 | $5.94 | Add to Cart | |
| 15 | 12T42978 | Ring Seal | 1 | $24.83 | Add to Cart | |
| 19 | 12T39023 | O-Ring | 2 | $5.18 | Add to Cart | |
| 22 | 12T36701 | O-Ring | 1 | $5.42 | Add to Cart | |
| 36 | 11T64141 | Shaft Seal | 1 | $18.33 | Add to Cart | |
| 37 | 12T34003 | O-Ring | 1 | $20.22 | Add to Cart |
20TK6353 - Stud Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 19T64314 | Cap Screw | 8 | $4.55 | Add to Cart | ||
| 30T62753 | Alignment Stud | 2 | Call for availability | |||
| 21T64303 | Flat Washers | 8 | $3.65 | Add to Cart |

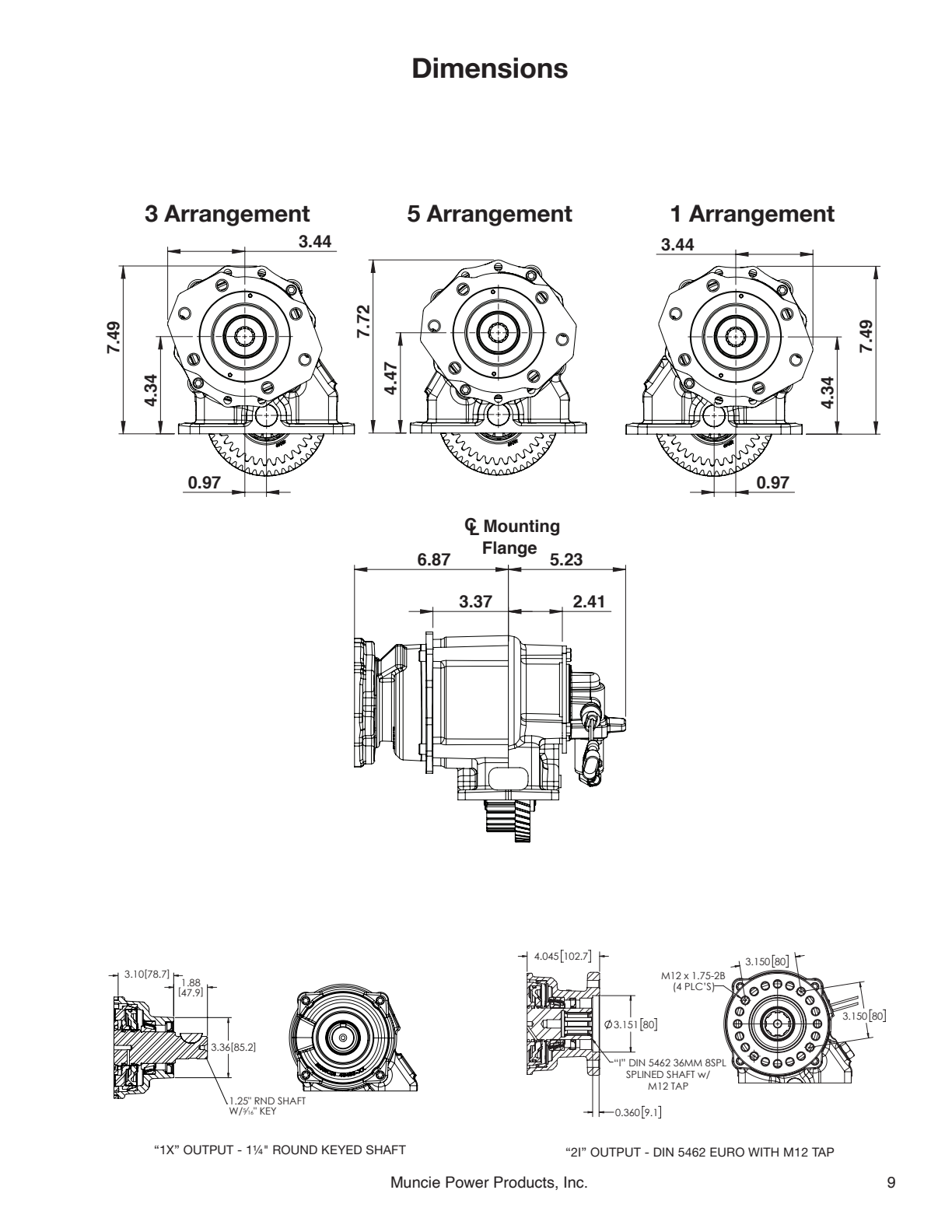

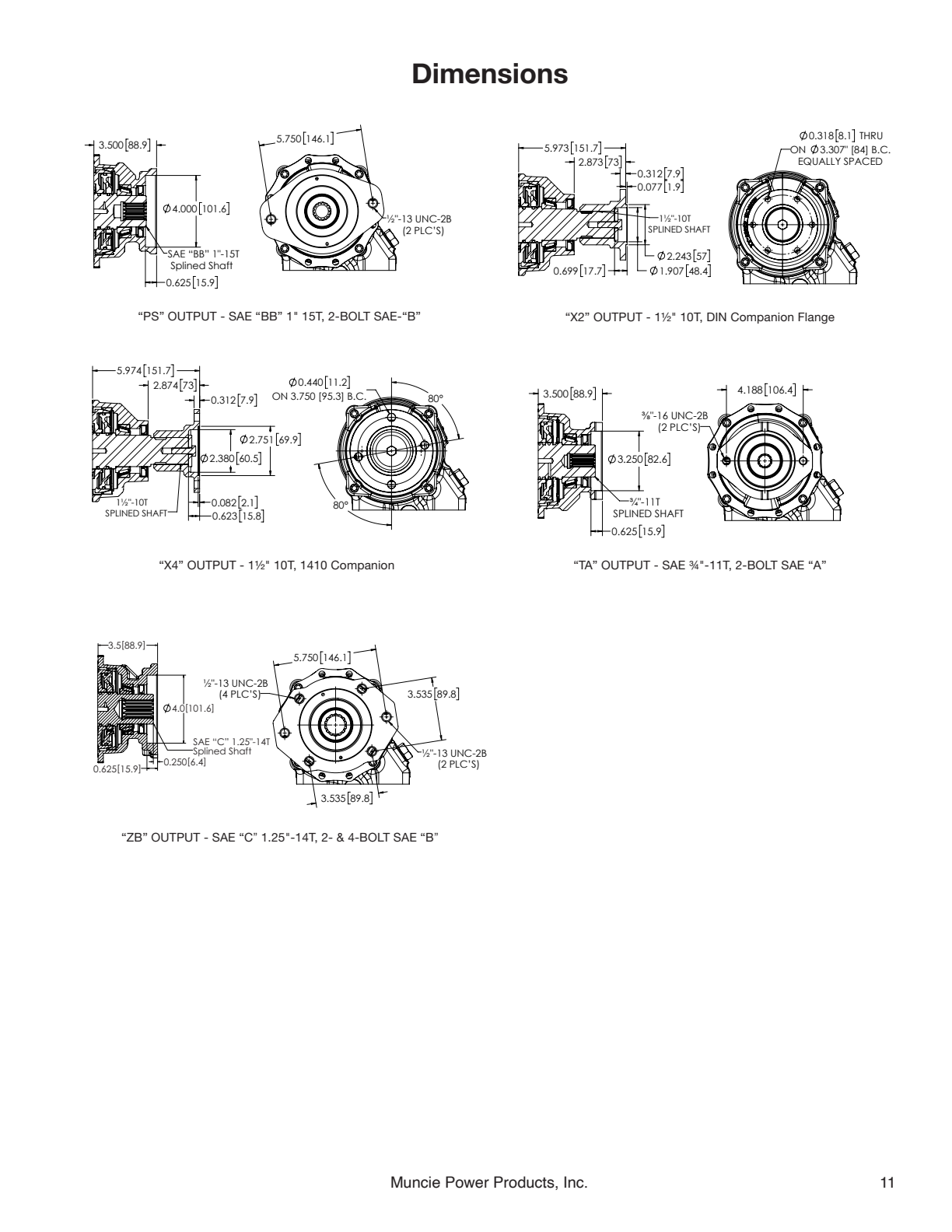

MD1 Dimensions
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Other Parts Shown in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 15TA6379 | MC1 Series Wet Spline Output Flange | $293.17 | Add to Cart | |||
| 15TA6381 | MC1 Series Service Cover Assembly Wet Spline | $340.68 | Add to Cart | |||
| 43TK6458 | Pressure Lube Kit A30 | $79.79 | Add to Cart | |||
| 43TK6470 | A30 Pressure Lube Kit Top - 57" Hose Kit | $79.79 | Add to Cart | |||
| 20TK6353 | Installation Bolt Kit | $91.52 | Add to Cart |
