Muncie PowerClutch Series Parts List & Service Manual
Parts List and Description
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21T31159 | Thrust Washer (Spur Gear) | 2 | Call for availability | ||
| 1A | 21T34621 | Thrust Washer (S60, S70) | 4 | $16.91 | Add to Cart | |
| 2 | 10T34006 | Bearing (All) | 2 | $36.00 | Add to Cart | |
| 2A | 10T34620 | Thrust Bearing (S60, S70) Gear Listing Table 1 Next Page | 2 | $46.25 | Add to Cart | |
| 4 | 18T34007 | Spacer (Spur Gear) | 1 | Call for availability | ||
| 4A | 18T34622 | Spacer (S60, S70) | 1 | $22.88 | Add to Cart | |
| 5 | 10T35552 | Bearing | 1 | Call for availability | ||
| 6 | 24T24315 | Snap Ring | 1 | $5.92 | Add to Cart | |
| 7 | 49T35524 | Thrust Plate | 1 | Call for availability | ||
| 8 | 15T35954 | End Cover (Assy 8/93 & Later) | 1 | $325.47 | Add to Cart | |
| 9 | 12T34003 | O -Ring Housing | 2 | $20.22 | Add to Cart | |
| 01T35956 | 6-Bolt Mounting | 1 | Call for availability | |||
| 01T35958 | 8-Bolt Mounting | 1 | Call for availability | |||
| 11 | 12T35949 | O -Ring | 2 | $3.57 | Add to Cart | |
| 12 | 13T34022 | Gasket | 1 | $4.77 | Add to Cart | |
| 13 | 16T33999 | Cover, Inspection | 1 | Call for availability | ||
| 14 | 19T34028 | Hexhead Capscrew | 4 | $5.35 | Add to Cart | |
| 15 | 19T35785 | Set Screw Half Dog Point – | 1 | $3.61 | Add to Cart | |
| 16 | 07T35947 | Shaft, Input Idler Gear Listing Table 1 Next Page | 1 | $133.50 | Add to Cart | |
| 18 | 10T35551 | Bearing | 1 | Call for availability | ||
| 19 | 24T35480 | Snap Ring | 2 | $6.51 | Add to Cart | |
| 20 | 21T29017 | Thrust Washer Shaft, Output | 2 | $30.01 | Add to Cart | |
| 06T35445 | 1 .25 Round | 1 | Call for availability | |||
| 06T35549 | 7/8-13 Spline (‘D ’ Hyd .) | 1 | Call for availability | |||
| 06T35385 | 7/8-13 Spline (F85-‘D ’ ‘G ’ Hyd) , | 1 | Call for availability | |||
| 22 | 26T01627 | Woodruff Key | 1 | $5.78 | Add to Cart | |
| 23 | 02T35454 | Gear, Inner Clutch | 1 | $148.59 | Add to Cart | |
| 24 | 49T33564 | Friction Disc | 8 | $15.34 | Add to Cart | |
| 25 | 49T33563 | Spacer Disc | 7 | $12.04 | Add to Cart | |
| 26 | 27T34005 | Spring | 1 | Call for availability | ||
| 27 | 49T35547 | Thrust Plate | 1 | Call for availability | ||
| 28 | 10T35553 | Thrust Race | 2 | Call for availability | ||
| 29 | 10T28908 | Thrust Bearing | 2 | Call for availability | ||
| 30 | 49T35548 | Piston | 1 | Call for availability | ||
| 31 | 12T34002 | O -Ring | 1 | Call for availability | ||
| 32 | 12T34030 | O -Ring | 1 | Call for availability | ||
| 33 | 25T21684 | Pipe Plug 1/8–27 (As Req .) | 4 | $2.31 | Add to Cart | |
| 34 | 19T32740 | Hexhead Capscrew | 8 | $2.77 | Add to Cart | |
| 35 | 10T27485 | Bearing | 1 | Call for availability | ||
| 36 | 11T37790 | Oil Seal End Cover, Output | 1 | $13.58 | Add to Cart | |
| 15T35452 | Standard For Rd Shaft | 1 | Call for availability | |||
| 14T35550 | ‘D ’ Hyd Option . | 1 | Call for availability | |||
| 14T35384 | ‘D ’ Hyd Option (F85) . | 1 | Call for availability | |||
| 14T35642 | ‘G ’ Hyd Op (Req 14T35550) Capscrews Hyd Flange . | 1 | Call for availability | |||
| 19T34174 | Socket Capscrew (‘D ’ ‘G ’) , | 4 | $6.13 | Add to Cart | ||
| 19T35657 | Socket Capscrew (‘G ’ Hyd) | 4 | $6.51 | Add to Cart | ||
| 19T35386 | Socket Capscrew (F85–‘D ’) | 2 | $12.04 | Add to Cart | ||
| 39 | 24T35481 | Spiral Snap Ring | 1 | $10.99 | Add to Cart | |
| 19MK4717 | Mounting Kit ‘G ’ Hyd Only . | 1 | $29.14 | Add to Cart | ||
| 16TK3833 | Optional Pulse Generator Includes: | $503.77 | Add to Cart | |||
| 40 | 16T35523 | Cover, Mag Pickup | 1 | $272.76 | Add to Cart | |
| 41 | 25T35999 | Plug | 1 | $7.71 | Add to Cart | |
| 42 | 31T35108 | Mag Pickup | 1 | $240.17 | Add to Cart | |
| 43 | 21T35109 | Seal Nut | 1 | $74.98 | Add to Cart | |
| 34MA1415 | Wire Harness Installation Kits | 1 | $24.12 | Add to Cart | ||
| 48M81200 | 12 Volt Elect/Air Shift | 1 | Call for availability | |||
| 48M82400 | 24 Volt Elect/Air Shift | 1 | Call for availability | |||
| 48M81210 | 12 Volt Elect/Hyd Shift | 1 | Call for availability | |||
| 48M82410 | 24 Volt Elect/Hyd Shift | 1 | Call for availability | |||
| 48M61251 | 12 Volt Manual Air Shift | 1 | Call for availability | |||
| 48M62451 | 24 Volt Manual Air Shift Mounting Gaskets | 1 | Call for availability | |||
| 13M13541 | Allison Gasket .031 (U60) | 1 | $18.39 | Add to Cart | ||
| 13M35091 | .010 6-Bolt | 1 | $2.33 | Add to Cart | ||
| 13M35092 | .020 6-Bolt | 1 | $2.33 | Add to Cart | ||
| 13M35151 | .010 8-Bolt | 2 | $5.22 | Add to Cart | ||
| 13M35152 | .020 8-Bolt Gasket And Seal Kits -13 Items: 9(2), 11(2), 12(1), Units) 31(1), 32(1), 36(1), And 25T34522(2) Rebuild Kits -13 Spur Gear PC (W/Build Date | 2 | $6.09 | Add to Cart | ||
| 20MK7700 | For PC6S 6-Bolt | Call for availability | ||||
| 20MK8800 | For PC8S 8-Bolt | $26.68 | Add to Cart | |||
| 20MK6605 | For PC6S -F85 6-Bolt | $51.69 | Add to Cart |
Gear Data
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 03T36008 | 20/28 6.1P 25°PA | Call for availability | ||||
| 03T36003 | 23/28 7P 25°PA 30°46'48" | Call for availability | ||||
| 03T35702 | 34/18 8.55P 21 °PA | Call for availability | ||||
| 03T35321 | 34/20 8.55P 21 °PA | Call for availability | ||||
| 03T35159 | 26/14 6.48P 17.65°PA | Call for availability | ||||
| 03T39165 | 26/22 6.48P 17.65°PA | Call for availability | ||||
| 03T96455 | 25/22 7P 17.5°PA | Call for availability | ||||
| 03T35002 | 20/22 6P 17.5°PA | Call for availability | ||||
| 03T34019 | 24/14 6P 20°PA Spur | Call for availability | ||||
| 03T35324 | 24/15 6P 20°PA Spur | Call for availability | ||||
| 03T39289 | 24/18 6P 20°PA Spur | Call for availability | ||||
| 03T34102 | 24/22 6/8P 20° Spur | Call for availability | ||||
| 03T36095 | 24/28 6/8P 20° Spur | Call for availability | ||||
| 1648LH | -C61 -C70 -F85 -M65 | PA 32° | Call for availability | |||
| 1037LH | -S60 -S70 -U60 -U68 | PA 26° | Call for availability |

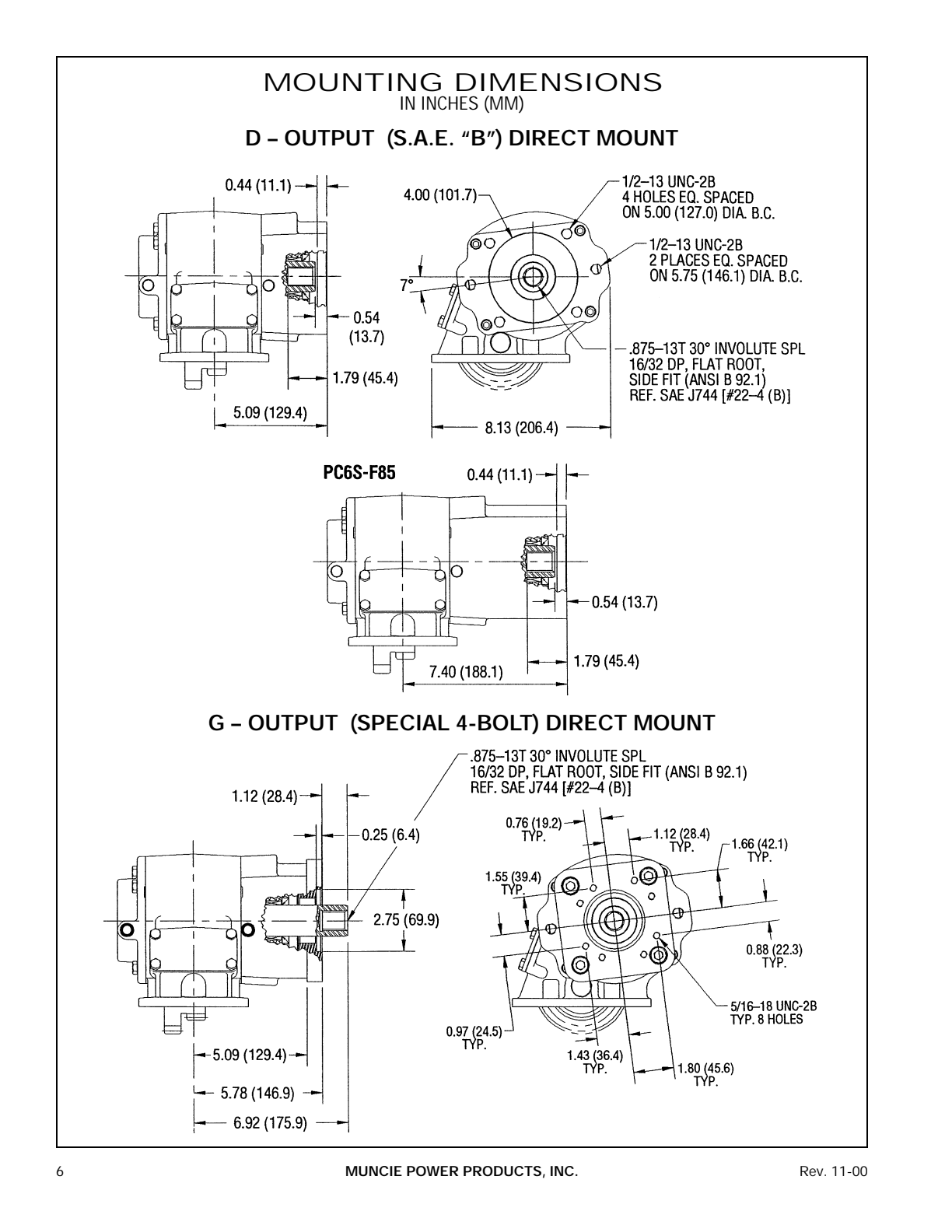

Powerclutch Mounting Dimensions
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Powerclutch Electric-Air Shift System: Kit No. 48M81200 12V Electric Air Shift
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 30M12020 | Switch Assembly | 1 | $86.56 | Add to Cart | |
| 2 | 33T36299 | Fuse Assembly | 1 | $11.93 | Add to Cart | |
| 3 | 35M30692 | 12V Solenoid Valve | 1 | $314.26 | Add to Cart | |
| 4 | 30T37954 | Pressure Switch | 1 | $172.61 | Superseded by 30T60228Add to Cart | |
| 5 | 31M15759 | Press. Protection Valve | 1 | $120.08 | Add to Cart | |
| 6 | 34T36941 | Wiring Pigtail | 1 | $38.67 | Add to Cart | |
| 7 | 44MB2164 | Pipe Nipple | 1 | $5.22 | Add to Cart | |
| 8 | 44MB6844 | Male Connector | 3 | $9.14 | Add to Cart | |
| 9 | 44MB6842 | Male Connector | 1 | $6.66 | Add to Cart | |
| 10 | 25T21684 | Pipe Plug (As Required) | 2 | $2.31 | Add to Cart | |
| 11 | 34M18250 | Female Spade Connector | 3 | $2.93 | Add to Cart | |
| 12 | 34M18009 | Ring Terminal | 2 | $2.82 | Add to Cart | |
| 13 | 37M18144 | Electric Wire 12 Ft | 1 | Call for availability | ||
| 14 | 31M14732 | Pressure Safety Switch | 1 | $87.43 | Add to Cart | |
| 15 | 44MB2254 | Street Tee | 1 | $13.58 | Add to Cart | |
| 16 | 44MB0942 | Reducer Bushing (Not With Kit No. 48M81200) | 1 | $3.90 | Add to Cart | |
| 17 | 45M44430 | Air Tubing 30 Ft | 1 | $64.95 | Add to Cart | |
| 18 | 45M4R536 | Lube Hose Assembly | 1 | $62.22 | Add to Cart | |
| 43MS5644 | Street Tee (F85 Only) Kit No. 48M82400, Substitute: | 1 | $27.88 | Add to Cart | ||
| 1 | 30M24020 | 24V Switch Assembly | 1 | $86.56 | Add to Cart | |
| 3 | 35M31692 | 24V Solenoid Valve | 1 | $314.26 | Add to Cart | |
| 3 | 35M12340 | 12V Solenoid Valve | 1 | Call for availability | ||
| 5 | 43MX044S | Screen Adapter | 2 | $25.66 | Add to Cart | |
| 9 | 25T21684 | Pipe Plug (As Required) (Not With Kit No. 48M81210) | 2 | $2.31 | Add to Cart | |
| 3 | 35M24340 | 24V Solenoid Valve | 1 | $420.60 | Add to Cart |

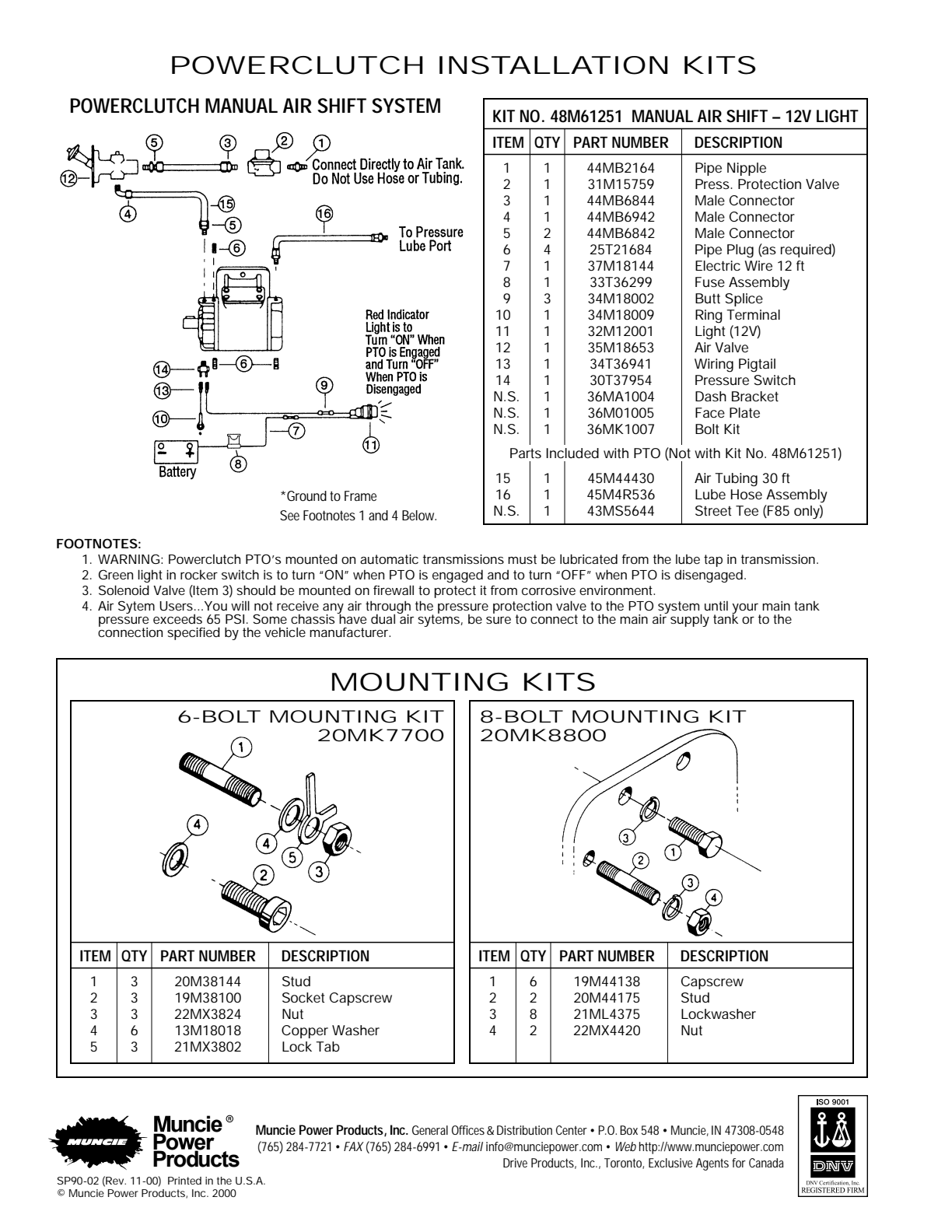

Powerclutch Manual Air Shift System: Kit No. 48M61251 Manual Air Shift - 12V Light
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 44MB2164 | Pipe Nipple | 1 | $5.22 | Add to Cart | |
| 2 | 31M15759 | Press. Protection Valve | 1 | $120.08 | Add to Cart | |
| 3 | 44MB6844 | Male Connector | 1 | $9.14 | Add to Cart | |
| 4 | 44MB6942 | Male Connector | 1 | $10.62 | Add to Cart | |
| 5 | 44MB6842 | Male Connector | 2 | $6.66 | Add to Cart | |
| 6 | 25T21684 | Pipe Plug (As Required) | 4 | $2.31 | Add to Cart | |
| 7 | 37M18144 | Electric Wire 12 Ft | 1 | Call for availability | ||
| 8 | 33T36299 | Fuse Assembly | 1 | $11.93 | Add to Cart | |
| 9 | 34M18002 | Butt Splice | 3 | $2.93 | Add to Cart | |
| 10 | 34M18009 | Ring Terminal | 1 | $2.82 | Add to Cart | |
| 11 | 32M12001 | Light (12V) | 1 | $44.73 | Add to Cart | |
| 12 | 35M18653 | Air Valve | 1 | $209.42 | Add to Cart | |
| 13 | 34T36941 | Wiring Pigtail | 1 | $38.67 | Add to Cart | |
| 14 | 30T37954 | Pressure Switch | 1 | $172.61 | Superseded by 30T60228Add to Cart | |
| N.S. | 36MA1004 | Dash Bracket | 1 | $49.06 | Add to Cart | |
| N.S. | 36M01005 | Face Plate | 1 | $7.44 | Add to Cart | |
| N.S. | 36MK1007 | Bolt Kit With Kit No. 48M61251) | 1 | $5.27 | Add to Cart | |
| 15 | 45M44430 | Air Tubing 30 Ft | 1 | $64.95 | Add to Cart | |
| 16 | 45M4R536 | Lube Hose Assembly | 1 | $62.22 | Add to Cart | |
| N.S. | 43MS5644 | Street Tee (F85 Only) | 1 | $27.88 | Add to Cart |
6-Bolt Mounting Kit 20MK7700
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20M38144 | Stud | 3 | Call for availability | ||
| 2 | 19M38100 | Socket Capscrew | 3 | $5.50 | Add to Cart | |
| 3 | 22MX3824 | Nut | 3 | $2.28 | Add to Cart | |
| 4 | 13M18018 | Copper Washer | 6 | $2.41 | Add to Cart | |
| 5 | 21MX3802 | Lock Tab | 3 | $2.41 | Add to Cart |
8-Bolt Mounting Kit 20MK8800
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19M44138 | Capscrew | 6 | $3.72 | Add to Cart | |
| 2 | 20M44175 | Stud | 2 | $5.30 | Add to Cart | |
| 3 | 21ML4375 | Lockwasher | 8 | $2.00 | Add to Cart | |
| 4 | 22MX4420 | Nut | 2 | $2.28 | Add to Cart |
This is the complete factory parts breakdown for the Muncie PTO PowerClutch, with every part in the manual matched to our live inventory. We stock 87 of the 138 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This Muncie Parts & Service Manual covering the PowerClutch PTO helps you identify the correct gears, shafts, kits and service parts for your power take-off before you order. 87 of the parts it lists are in stock to buy on this page.
| Models covered | PowerClutch |
| PTO type | Muncie PTO |
| Document | Parts & Service Manual (Muncie) |
| Length | 9 pages |
| Format | PDF, free to view or download |
What’s inside
- Parts List and Description
- Gear Data
- 6-Bolt Mounting Kit 20MK7700
- 8-Bolt Mounting Kit 20MK8800
- Exploded views with Muncie part numbers
