Muncie RX Series Parts List & Service Manual
Parts List and Description
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21T21760 | Washer | 1 | $20.54 | Add to Cart | |
| 2 | 10T21677 | Bearing (All Spur Gear) 2-7⁄16" | 2 | $48.78 | Add to Cart | |
| 10T20494 | Bearing (All Helical Gear) 1 -15⁄16" | 2 | $64.86 | Add to Cart | ||
| 3 | 18T21675 | Sleeve Listing | 1 | $159.45 | Add to Cart | |
| 5 | 10T23679 | Bearing | 1 | $107.52 | Add to Cart | |
| 6 | 21T21667 | Washer | 5 | $13.45 | Add to Cart | |
| 7 | 10T27216 | Bearing | 2 | $10.16 | Add to Cart | |
| 8 | 10T21676 | Bearing (All Spur Gears 1 -7⁄16" & W80) | 1 | $128.56 | Add to Cart | |
| 10T20479 | Bearing (All Helical Gears Except W80) Listing | 1 | $41.77 | Add to Cart | ||
| 12T36899 | O -Ring Listing | 2 | $2.31 | Add to Cart | ||
| 12 | 26T01627 | Woodruff Key | 1 | $5.78 | Add to Cart | |
| 26T20105 | Square Key (Old Style) | 1 | $5.42 | Add to Cart | ||
| 13 | 10T21017 | Bearing | 2 | $74.28 | Add to Cart | |
| 11T37002 | Seal | 1 | $22.00 | Add to Cart | ||
| 13T21670 | Gasket | 2 | Call for availability | |||
| 16 | 15T34763 | Cap | 1 | Call for availability | ||
| 17 | 19T33233 | Cap Screw | 12 | $4.09 | Add to Cart | |
| 02T35174 | (18) 03T35177 (18/13) | Call for availability | ||||
| 02T35592 | (22) 03T39286 (25/15) | Call for availability | ||||
| 02T27325 | (12) 03T27323 (22/14) | Call for availability | ||||
| 02T25547 | (19) 03T25545 (21/13) | Call for availability | ||||
| 02T32748 | (22) 03T28017 (25/15) | Call for availability | ||||
| 02T21591 | (17) 03T21665 (18/12) | Call for availability | ||||
| 02T24280 | (20) 03T24283 (22/14) | Call for availability | ||||
| 02T21590 | (20) 03T21664 (22/14) | Call for availability | ||||
| 02T24083 | (23) 03T24077 (26/16) | Call for availability | ||||
| 12T36900 | O -Ring | 2 | $4.09 | Add to Cart | ||
| 19 | 08T36896 | Shaft | 1 | Call for availability | ||
| 21 | 19T31664 | Cap Screw | 2 | $7.44 | Add to Cart | |
| 22 | 28T24419 | Yoke | 1 | $84.10 | Add to Cart | |
| 23 | 28T22019 | Poppet Retainer | 2 | $23.57 | Add to Cart | |
| 24 | 27T22021 | Spring | 2 | $7.57 | Add to Cart | |
| 25 | 28T20486 | Ball | 2 | $4.55 | Add to Cart | |
| 26 | 28T34746 | Eye Bolt | 1 | $26.55 | Add to Cart | |
| 27 | 22T21723 | Nut | 1 | $2.82 | Add to Cart | |
| 28 | 17T34786 | Shift Rod | 1 | Call for availability | ||
| 11T36365 | Seal | 2 | Call for availability | |||
| 13T21610 | Gasket | 1 | $8.86 | Add to Cart | ||
| 31 | 16T34788 | Shift Cover | 1 | $198.49 | Add to Cart | |
| 26T24874 | Roll Pin | 1 | $5.27 | Add to Cart | ||
| 33 | 01T34757 | Housing (Assembly 1 Or 4) | 1 | Call for availability | ||
| 01T34758 | Housing (Assembly 2 Or 3) | Call for availability | ||||
| 34 | 15T34323 | Cap | 1 | $32.91 | Add to Cart | |
| 35 | 07T36895 | Input Idler Shaft | 1 | $32.21 | Add to Cart | |
| 36 | 19T34789 | Set Screw | 1 | $10.92 | Add to Cart | |
| 37 | 30T38111 | Indicator Switch (White) (Incl 12T36526 O-Ring) . | 1 | $41.70 | Add to Cart | |
| 20MK6601 | Mounting Kit Gasket & Seal Kit* (Incl .10,14, 15,18, 29, 30, 32, 25T34623) | 1 | $28.06 | Add to Cart |

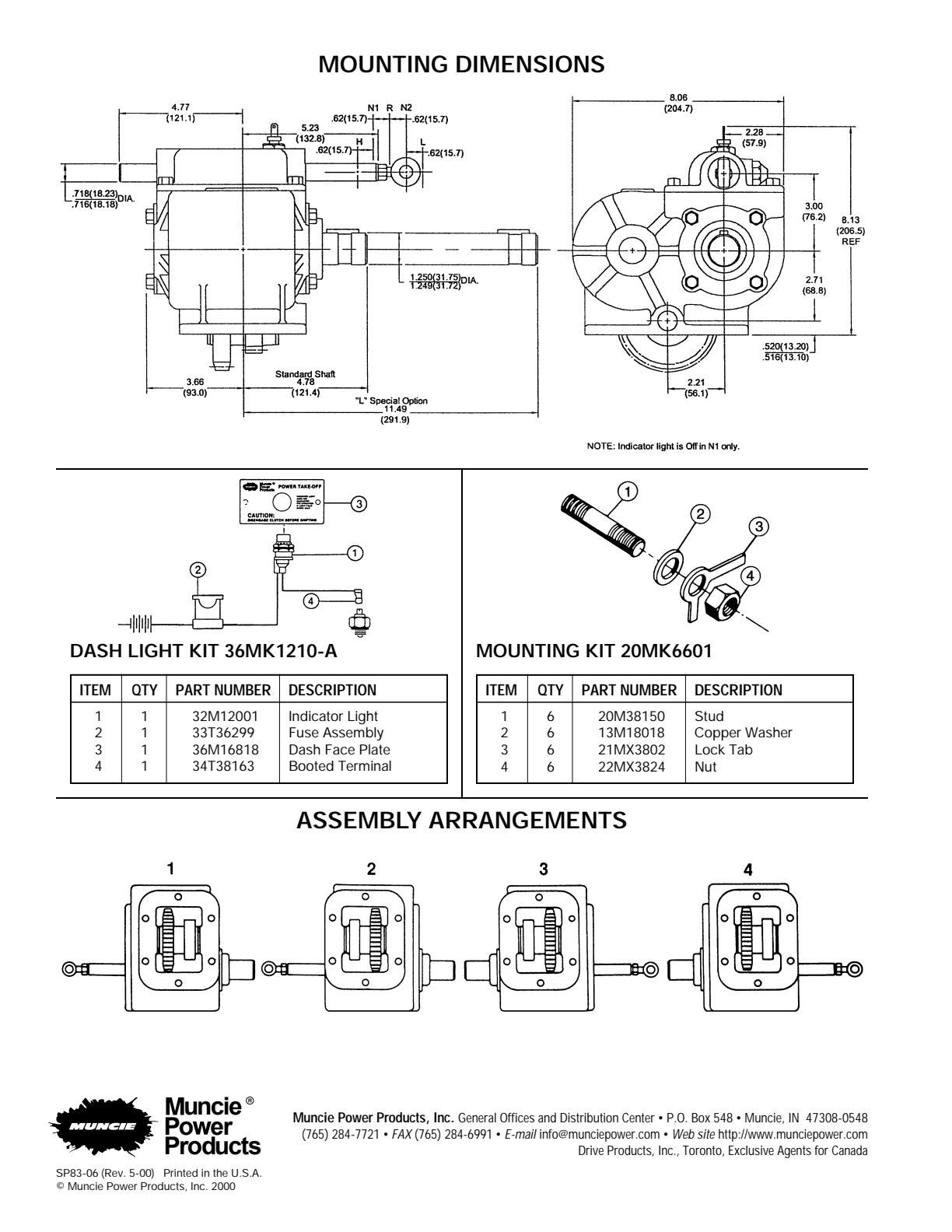

Dash Light Kit 36MK1210-A
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 32M12001 | Indicator Light | 1 | $44.73 | Add to Cart | |
| 2 | 33T36299 | Fuse Assembly | 1 | $11.93 | Add to Cart | |
| 3 | 36M16818 | Dash Face Plate | 1 | $4.85 | Add to Cart | |
| 4 | 34T38163 | Booted Terminal | 1 | $8.77 | Add to Cart |
Mounting Kit 20MK6601
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20M38150 | Stud | 6 | $5.05 | Add to Cart | |
| 2 | 13M18018 | Copper Washer | 6 | $2.41 | Add to Cart | |
| 3 | 21MX3802 | Lock Tab | 6 | $2.41 | Add to Cart | |
| 4 | 22MX3824 | Nut | 6 | $2.28 | Add to Cart |
Other Parts Shown in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 25T34623 | Rubber Plug | $13.01 | Add to Cart | |||
| 36MK1210-A | Dash Plate And Light Kit | $71.52 | Add to Cart |
This is the complete factory parts breakdown for the Muncie PTO RX, with every part in the manual matched to our live inventory. We stock 41 of the 57 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This Muncie Parts & Service Manual covering the RX PTO helps you identify the correct gears, shafts, kits and service parts for your power take-off before you order. 41 of the parts it lists are in stock to buy on this page.
| Models covered | RX |
| PTO type | Muncie PTO |
| Document | Parts & Service Manual (Muncie) |
| Length | 5 pages |
| Format | PDF, free to view or download |
What’s inside
- Parts List and Description
- Dash Light Kit 36MK1210-A
- Mounting Kit 20MK6601
- Other Parts Shown in This Manual
- Exploded views with Muncie part numbers
