Spicer CM6052-B Parts Manual
Drive Gear Group -I Nput
Item B-13Item B-11AItem B-22Item B-23Item B-2Item B-3Item B-4Item B-6Item A-5Item B-11Item B-7Item B-9Item B-10Item B-14Item B-16Item B-20Item B-21Item B-17Item B-3Item B-19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550930 | Cone -Main Drive Gear Bearing | 1 | $64.20 | Add to Cart | |
| A-3 | 550929 | Cup -Main Drive Gear Bearing | 1 | $28.81 | Add to Cart | |
| N .S. | 313240-3X | Baffle And Shim Kit | 1 | $33.38 | Add to Cart | |
| A-4 | 47-468-2 | Baffle- Oil Ring Drive Gear | $33.38 | Superseded by 3132403XAdd to Cart | ||
| A-5 | 47-228-2 | -2* Spacer/Shim | 1 | Call for availability | ||
| A-6 | 47-468-1 | * Baffle -Bearing Cap | I | $3.55 | Add to Cart | |
| A-7 | 550228 | Cup Bearing -Drive Gear Pocket | 1 | $17.18 | Add to Cart | |
| A-s• | 550183 | Cone Beari Ng -Drive Gear Pocket | 1 | Call for availability | ||
| • Included | IN313240-3X | Kit | Call for availability | |||
| • Use | 313240-3X | Baffle And Shim Kit When Any Of These Parts Are Replaced | $33.38 | Add to Cart |
Mainshalt Group -Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-11111 | 63-362-4 | Mainshaft (Overall Length 22 9/32 ") Before S/N -27999647 | Call for availability | |||
| B-11111 | 63-362-3 | Mainshaft (Overall Length 2213/32 ") (Ford) Before S/N -2799647 | Call for availability | |||
| B-11111 | 63-362-5 | Mainshaft (Overall Length 22 9/32 ") Starting & After S/N -2799647 | Call for availability | |||
| B-11111 | 63-362-6 | Mainshaft (Overall Length 22 13/32 ")(Ford) Starting & After | Call for availability | |||
| B-2 | 63-8-1 | Gear-1 St Speed (57T) | 1 | Call for availability | ||
| B-2 | 63-8-23 | Gear-1 St Speed (57T) Special Back Tapered Clutch Teeth | 1 | Call for availability | ||
| B-3 | 550938 | Bearing -1 St And Rev. Gear Needle Assy. | 2 | Call for availability | ||
| B-4 | 330884 | Thrust Washer-1 St And 2nd Gear | 1 | Call for availability | ||
| B-5 | 63-381-1 | Snap Ring | 1 | Call for availability | ||
| B-6 | 63-8-4 | Gear-2nd Speed (47T) 6052A, 6052D Before S/ N -2799647 | $495.74 | Add to Cart | ||
| B-6 | 63-8-15 | Gear-2nd Speed (48T) 6052B ,6252B ,6352B Before S/N -2799647 | Call for availability | |||
| B-6 | 63-8-16 | Gear-2nd Speed (46T) 6052C,6253A Before S/N -2799647 | Call for availability | |||
| B-6 | 63-8-24 | Gear-2nd Speed (47T) 6052A,6052D Starting & After S/N -2799647 | $319.51 | Add to Cart | ||
| B-6 | 63-8-26 | Gear-2nd Speed (48T) 6052B ,6252B ,6253B Starting & After | Call for availability | |||
| B-6 | 63-8-25 | Gear-2nd Speed (46T) 6052C,6253A Starting & After S/N -2799647 | 1 | Call for availability | ||
| B-7 | 550983 | Bearing -Split Needle 2nd Speed Gear Starting And After | Call for availability | |||
| B-8 | 63-47-1 | Thrust Washer-Split Needle Bearing Starting & After S/N -2799647 | 1 | $34.50 | Add to Cart | |
| B-9 | 62-466-14 | Clutch Gear-2nd And 3rd | 1 | Call for availability | ||
| B-10 | 62-381-8 | Snap Ring | 1 | Call for availability | ||
| B-11 | 310227X | Synchronizer-2nd And 3rd | 1 | $581.86 | Add to Cart | |
| B-11 | 310795X | Synchronizer-2nd And 3rd (Speciai)(Not Synchronized On 2nd) | 1 | Call for availability | ||
| B-11A | 62-466-17 | Clutch Collar (Used In Units With No Synchronizers | 1 | Call for availability | ||
| B-12 | 63-8-21 | Gear-3rd Speed (40T) 6252B ,6253B | 1 | Call for availability | ||
| B-12 | 62-8-40 | Gear-3rd Speed (39T) 6052A | 1 | Call for availability | ||
| B-12 | 62-8-43 | Gear-3rd Speed (37T) 6052C | 1 | $498.37 | Add to Cart | |
| B-12 | 62-8-66 | Gear-3rd Speed (38T) 6052D ,6253A | 1 | Call for availability | ||
| B-12 | 62-8-82 | Gear-3rd Speed (41T) 6052B | 1 | Call for availability | ||
| B-13 | 62-8-42 | Gear-4th Speed (30T) 6052A | 1 | Call for availability | ||
| B-13 | 62-8-49 | Gear-4th Speed (24T) 6253B | 1 | Call for availability | ||
| B-13 | 62-8-50 | Gear-4th Speed (32T) 6052B | 1 | Call for availability | ||
| B-13 | 62-8-51 | Gear-4th Speed (35T) 6252B | 1 | Call for availability | ||
| B-13 | 62-8-68 | Gear-4th Speed (25T) 6253A | 1 | Call for availability | ||
| B-13 | 62-8-78 | Gear-4th Speed (28T) 6052C,6052D | 1 | Call for availability | ||
| B-14 | 62-37-29 | Spacer-Sleeve 4th Gear | 1 | Call for availability | ||
| B-15 | 425-SP | Pin -Spacer Sleeve | 1 | $3.23 | Add to Cart | |
| B-16 | 1001-W | Thrust Washer-4th Gear | 1 | Call for availability | ||
| B-17 | 62-381-4 | Snap Ring -4th Speed Thrust Washer | 1 | Call for availability | ||
| B-18 | 312766X | Synchronizer-4th & 5th 6052A,6052B ,6052C ,6052D ,6253B | 1 | $913.98 | Add to Cart | |
| B-18 | 313007X | Synchronizer-4th & 5th 6252B .6253A | 1 | Call for availability | ||
| B-18A | 62-466-23 | Clutch Collar-4th & 5th (Used In Units With No Synchronhizers) | 1 | Call for availability | ||
| B-19 | 63-465-4 | Clutch Collar-1 St And Reverse | 1 | Call for availability | ||
| B-19 | 63-465-3 | Clutch Collar-1 St & Rev. (Used In Units With Back Tapered Clutch Teeth) | 1 | Call for availability | ||
| B-20 | 63-8-3 | Gear-Reverse (57T) | Call for availability | |||
| B-20 | 63-8-22 | Gear-Reverse (57T) Special With Back Tapered Clutch Teeth | Call for availability | |||
| B-21 | 330871 | Thrust Washer | Call for availability | |||
| B-22 | 550612 | Cone -Mainshaft Rear | Call for availability | |||
| B-23 | 550929 | Cup -Mainshaft Rear | Call for availability | |||
| B-23 | 62-37-22 | Spacer-Used In Place Of Speedometer Drive Gear | Call for availability | |||
| B-26 | 500898 | Nut-1 1/4 " -18 Hex Head Self-Locking | $93.21 | Add to Cart | ||
| Ill Use | 313240-3X | Baffle And Shim Kit When Any Of These Parts Are Replaced | $33.38 | Add to Cart |
Countershaft Group
Item C-13Item C-3Item C-4Item C-5Item C-6Item C-4Item C-7Item C-8Item C-9Item C-10Item C-12Item C-11Item C-2Item D-5Item D-1Item D-2Item D-3Item D-4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 63-30-1 | Countershaft (15T) | 1 | Call for availability | ||
| C-2 | 500010-8 | Wood Ruff Key | 4 | $2.89 | Add to Cart | |
| C-3 | 63-196-1 | Gear-2nd Speed (22T) 6052A,6052D | 1 | Call for availability | ||
| C-3 | 63-196-14 | Gear-2nd Speed (21T) 6052B ,6252B ,6253B | 1 | Call for availability | ||
| C-3 | 63-196-16 | Gear-2nd Speed (23T) 6052C,6253A | 1 | Call for availability | ||
| C-4 | 63-37-1 | Spacer-2nd 3rd 4th And 5th Speeds | 2 | Call for availability | ||
| C-5 | 55-196-33 | Gear-3rd Speed (31T) 6052A | 1 | Call for availability | ||
| C-5 | 62-196-54 | Gear-3rd Speed (29T) 6052B | 1 | Call for availability | ||
| C-5 | 62-196-31 | Gear-3rd Speed (33T) 6052C | 1 | Call for availability | ||
| C-5 | 62-196-43 | Gear-3rd Speed (32T) 6253A,6052D | 1 | Call for availability | ||
| C-5 | 62-196-35 | Gear-3rd Speed (30T) 6252B ,6253B | 1 | Call for availability | ||
| C-6 | 62-196-29 | Gear-4th Speed (40T) 6052A | 1 | Call for availability | ||
| C-6 | 62-196-15 | Gear-4th Speed (38T) 6052B | 1 | Call for availability | ||
| C-6 | 62-196-52 | Gear-4th Speed (42T) 6052C,6052D | 1 | Call for availability | ||
| C-6 | 63-196-18 | Gear-4th Speed (46T) 6253B | 1 | Call for availability | ||
| C-6 | 63-196-19 | Gear-4th Speed (44T) 6253A | 1 | Call for availability | ||
| C-6 | 63-196-24 | Gear-4th Speed (35T) 6252B | 1 | Call for availability | ||
| C-7 | 63-1-1 | Gear-Countershaft Drive (46T) 6052A,6052B ,6052D | 1 | Call for availability | ||
| C-7 | 63-1-3 | Gear-Countershaft Drive (44T) 6052C | 1 | Call for availability | ||
| C-7 | 63-1-4 | Gear-Countershaft Drive (42T) 6253A | 1 | Call for availability | ||
| C-7 | 63-1-6 | Gear-Countershaft Drive (40T) 6253B | 1 | Call for availability | ||
| C-8 | 70-381-6 | Snap Ring -Countershaft Drive Gear | Call for availability | |||
| C-9 | 550934 | Cone -Front Bearing | Call for availability | |||
| C-10 | 550933 | Gup -Front Bearing | Call for availability | |||
| C-11 | 550936 | Cone -Taper Rear Bearing | Call for availability | |||
| C-12 | 550935 | Cup -Taper Rear Bearing | Call for availability | |||
| C-13 | 313439X | Shim Kit To Adjust Countershaft End Play | Call for availability |
Reverse Idler Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 63-5-1 | Gear-Reverse Idler | 1 | Call for availability | ||
| D-2 | 97-37-1 | Bearing Spacer | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing -Roller Assy. | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| D-5 | 63-60-1 | Shaft-Reverse Idler | 1 | $33.08 | Add to Cart | |
| 313597X | CM6052 | -A & D 63 -8 -24 2nd Gear, 63 -362 -5 Mainshaft | 1 | Call for availability | ||
| 313598X | CM6052 | -A & D (Ford M/S) 63 -8 -24 2nd Gear, 63 -362 -6 Mainshaft | 1 | Call for availability | ||
| 313599X | CM6052 | -C 63 -8 -25 2nd Gear, 63 -362 -5 Mainshaft | 1 | Call for availability | ||
| 313602X | CM6052 | -C (Ford M/S) 63 -8 -25 2nd Gear, 63 -362 -6 Mainshaft | 1 | Call for availability | ||
| 313603X | CM6052 | -B 6252 -B 6253 -B 63 -8 -26 2nd Gear, 63 -362 -5 Mainshaft | 1 | Call for availability | ||
| 313604X | CM6052 | -B 6252 -B 6253 -B (Ford M/S) 63 -8 -26 2nd Gear, 63 -362 -6 Mainshaft | 1 | Call for availability |
Drive Gear Table <s>
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2411 | 31/32 " 8 .925 " 11 /2 " -10 .983 " 63-35-45-1X* 63 -35 -3 | Call for availability | ||||
| 2812 | 15/16 11 9 .896 " 13/4 " · 10 1 .180" 63 -35-50-lX* 63 -35 -25 | Call for availability |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1111 | 63-223-2 | Gasket | 1 | Call for availability | ||
| F-1111 | 63-223-4 | Gasket (Ford) | 1 | Call for availability | ||
| F-3111 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4111 | 60-463-10-1 | X Oil Seal (Includes Installation Sleeves) | 1 | Call for availability | ||
| F-5 | 545002-4 | Bolt-3/8 " -16 X 1 1/8 " Hex Head Self-Locking | 6 | $6.93 | Add to Cart |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 63-352-2 | Gasket-Clutch Housing | 1 | $17.19 | Add to Cart | |
| E-3 | Clutch Housing (See Clutch Housing Table Page) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| E-4 | 46-96-2-1X | Hand Hole Cover Assy. | 1 | $44.01 | Add to Cart | |
| E-5 | 128C-20 | Bushing -Clutch Release | 4 | $8.55 | Add to Cart | |
| E-6 | 500169-5 | Zerk Fitting -Grease | 2 | Call for availability | ||
| E-7 | 545008 | Bolt-5/8 " -11 X 1 1/4 " Hex Head Self-Locking | 7 | Call for availability | ||
| E-7 | 545008-3 | Bolt-5/8 " -1 1 X 1 3/4 " Hex Head Self-Locking (Ford Case Dana Front) | 7 | Call for availability | ||
| E-8 | 545028 | Bolt-7/16 " -14 X 1 1/4 " Hex Head Self-Locking | 1 | $3.00 | Add to Cart | |
| E-8 | 545028-1 | Bolt-7/16 " -14 X 1 5/8 " Hex Head Self-Locking (Ford Case Dana Front) | 1 | Call for availability |
Countershaft Front Bearing Cap (ford Case with Apron Front)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-9 | 63-223-5 | Gasket | 1 | Call for availability | ||
| E-10 | 63-22-2 | Bearing Cap | 1 | Call for availability | ||
| E-11 | 330800 | Bolt-3/8 " -16 X 3/4 " Hex Head Self-Locking | 4 | Call for availability |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case (C63-15-2-1 63-15-1 -1X)(C63-15-12 63-15-11 -1X) | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| G-4 | 252-SP | Pins -Nameplate | 4 | Call for availability | ||
| N .S. | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| G-5 | 500100 | Plug -Filler | 1 | Call for availability | ||
| G-6 | 62-39-3 | Drain Plug -Magnetic Square Head (63-15-1 -1X) | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug -Magnetic Recessed Head (63-15-11 -1X 63-15-15-1X) | 1 | $9.50 | Add to Cart | |
| G-7 | 266-D | Plug -5/8 " -1 1 X 7/16 " Hex Head | 3or5 | Call for availability | ||
| G-8 | 97-324-2 | Gasket-PTO Aperture (8 Bolt) | 1 | $6.27 | Add to Cart | |
| G-9 | 73-267-1 | Cover-PTO Aperture (8 Bolt) : | 1 | $160.99 | Add to Cart | |
| G-10 | 545012 | Bolt-7/16 " -14 X 3/4 " Flanged Hex Head Self-Locking | 8 | $3.23 | Add to Cart | |
| G-11 | 97-324-1 | Gasket-PTO Aperture (6 Bolt) | 1 | $3.91 | Add to Cart | |
| G-1 | I50-267-2 | Cover-PTO Aperture (6 Bolt) | 1 | Call for availability | ||
| G-13 | 330800 | Bolt-3/8 " -16 X 3/4 " Hex Head Self-Locking | 6 | Call for availability | ||
| 111 Use | 313240-3X | Baffle And Shim Kit When Any Of These Parts Are Replaced | $33.38 | Add to Cart |
Mainshaft Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Cap-Rear Bearing (See Table Page 7) | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | |||
| 63-223 | -3 Gasket | 1 | Call for availability | |||
| 63-223-6 | Gasket -(Used With Brake Mounting) | 1 | Call for availability | |||
| H-4 | 63-463-1 | Oil Seai -(Ford Only) | 1 | Call for availability | ||
| H-4 | 60-463 | -8 Oil Seal- (3.756 " O.D.) | 1 | Call for availability | ||
| H-4 | 71-463-12 | Oil Seal -(3.543 " O.D.) | 1 | Call for availability | ||
| H-5 | 60-475-1 | Bushing -Speedometer(S/ 16 " I .D. Flanged) | 1 | $32.75 | Add to Cart | |
| H-5 | 30-475-1 | Bushing Speedometer (1 /4" I D.) | 1 | Call for availability | ||
| H-6 | 545001 | ·1 Bolt-1 /2 " -13 X 1 3/8 "(See BearingCaptablefor Qty.) : | A/R | $2.49 | Add to Cart | |
| H-6 | 545008 | Bolt- 5/8 " -11 X 1 1/4 " (See Bearing Cap Table For Oty.) | AIR | Call for availability | ||
| H-6 | 545008-1 | Bolt- 5/8 " -1 1 X 1 1 /2 " (See Bearing Captable ForQty.) | A/R | Call for availability | ||
| H-6 | 330180 | ·10 Stud 1/2 " -20 X 21/8 " (Used With Ford Bearing Cap) | 6 | Call for availability | ||
| and | 500371 | ·5 Nut-1 /2 " -20 Hex (Used With Ford Bearing Cap) | 4 | Call for availability | ||
| and | 55-334-1 | Plug- ( Used When There Is No Speedometer Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S. | 545106 | Plug Speedometer Outlet (Ford Only} | 1 | Call for availability | ||
| N .S. | 545021 | Plug Electronic Sensor Hole | 1 | $18.89 | Add to Cart | |
| H-8 | 55-451-1 | Sleeve -1 1/4 " Long Speedometer Driven Gear | 1 | Call for availability | ||
| H-8 | 44-473 | -1 Sleeve -5 " Long -Speedometer Driven Gear | 1 | Call for availability | ||
| H-8 | 97-454 | ·2-1X Sleeve- 1 1/4 " Long -Speedometer Driven Gear (With Seal) | 1 | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 63-223-1 | Gasket | 1 | Call for availability | ||
| J-2 | 63-22-1 | Cap -Bearing | 1 | Call for availability | ||
| J-3 | 330564 | ·3 Hook -Lift | 1 | Call for availability | ||
| J-4 | 545001 | Bolt -1/2"-13 X 1 1/2 " Hex Head Self-Locking | 4 | $2.49 | Add to Cart | |
| B Use | 313240-3X | Baffle And Shim Kit When Any Of These Parts Are Replaced | $33.38 | Add to Cart |
Cwtch Housing Release Shaft Hole
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 120YS | 213,4 | version * (see the manual's footnote) | Call for availability | |||
| 3161FA | E For Pull Type | Release | Call for availability | |||
| 312098X | 128C-20 C62-518-25 2 6" 1" 35/8 | 21/2 " | version * (see the manual's footnote) | Call for availability | ||
| 62-518-27-1X | 128C-20 C102C-430-3 2 51/16 " 1 " 3 " 1 1/211 | Call for availability | ||||
| 62-518-29-1X | 128C-20 C62-518 -13 2 61/2 " 1 " 33/4" 1 1/2 | Call for availability | ||||
| 62-518-30 | ·1X 128C-20 C62-518 ·13 2 61/2 " ,, 43/16 " 1 1/2 | Call for availability | ||||
| 62-518-31 | ·1X• 128C-20 C73 ·518 ·5 2 61/2 " 1 " 43/ 16" 1 1/2 | Call for availability | ||||
| 62-518-32-1 | X 128C-20 C102C-521 1 61/2 " 1 " 33/411 1 1/2 | Call for availability | ||||
| 62-518 | ·35 ·1X 128C ·20 C62 ·518 ·13 2 61/2 " 1 " 43/16 " 1 1/2 | Call for availability | ||||
| 73-518-3 | C73 ·518-2 2 55/8 " 1 " 23/4 " 3 | version * (see the manual's footnote) | Call for availability | |||
| 313243 | 6 Bolt Apron As Purchased ·2 61/2 " 1 " 319/32 | 21/2 " | version * (see the manual's footnote) | Call for availability | ||
| 313249 | 4 Bolt Apron As Purchased 2 61/2 " 1 " 319/32 | 21/2 " | version * (see the manual's footnote) | Call for availability |
Parts Listed Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-163-16-1 | Shifter Housing (Casting No. C63-16-2) 1 1 -! | Call for availability | ||||
| 63-16-9 | Shifter Housing (Casting No. C63-16-2-1) 1 1 1 | Call for availability | ||||
| OR63-16-3 | Shifter Housing (Casting No C63-16-4) - - - - 1 | 1 1 1 1 1 | Call for availability | |||
| R-247-72-1 | Spring -Shift Rod Poppet Ball 3 3 3 3 3 | 3 3 3 3 3 | Call for availability | |||
| R-350-80-1 | Ball Shift Rod Poppet 3 3 3 3 3 | 3 3 3 3 3 | Call for availability | |||
| R-463-67-5 | Shift Rod -1 St And Reverse 1 1 1 1 | Call for availability | ||||
| OR63-67-2 | Shift Rod -1 St And Reverse - - - - 1 | 1 1 1 1 1 | Call for availability | |||
| R-563-66-1 | -1X Shift Fork & Clip Assy.- 1st And Reverse 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-746-486-1 | Clip 2 2 2 2 2 | 2 2 2 2 2 | Call for availability | |||
| R-8500598-15 | Roll Pin -1st And Reverse Shift Rod 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-963-354-1 | Shift Rod Bracket- 1st And Reverse 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-1062-438 | -2 Pin -1 St And Reverse Shift Finger Plunger 2 2 2 2 2 | 2 2 2 2 2 | Call for availability | |||
| R-11545063 | Screw-Shift Fork And Bracket 4 4 4 4 4 | 4 4 4 4 4 | Call for availability | |||
| R-1232-12 | ·1 Interlock 2 2 2 2 2 | 2 2 2 2 2 | Call for availability | |||
| R-1362-67-22 | Shift Rod -2nd And 3rd 1 1 1 1 - | Call for availability | ||||
| OR62-67-13 | Shift Rod -2nd And 3rd - - - - 1 | 1 1 , 1 1 | Call for availability | |||
| R-1462 | -66 -25 Shttt Fork-2nd And 3rd 1 1 1 1 | Call for availability | ||||
| OR62 | -66 -20 Shift Fork-2nd And 3rd - - - - 1 | 1 1 1 1 1 | Call for availability | |||
| R-1562 | -354 -4 Shift Rod Bracket-2nd And 3rd 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-16289 | -SP Pi N -Interlock 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-1763-67-4 | Shift Rod -4th And 5th 1 1 1 1 | Call for availability | ||||
| 63-67-3 | Shift Rod -4th And 5th 1 | 1 1 1 1 1 | Call for availability | |||
| R-1862-66-27 | Shift Fork-4th And 5th 1 1 1 1 | Call for availability | ||||
| R-19545021 | Plug -Interlock 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-20500166-12 | Expansion Plug -7/8 " Dia 3 3 3 3 3 | 3 3 3 3 3 | Call for availability | |||
| R-2138P-1 | Retainer-1st And Reverse Shift Finger Plunger 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-2230-72-6 | Spring 1st And Reverse Shift (281 Bs -21/8 ") 1 | 1 1 | Call for availability | |||
| OR62-72-8 | Spring -1 St And Reverse Shift (60 Lbs -2 1/64") 1 | Call for availability | ||||
| OR63-72-1 | Spring - 1st And ReverseShift(31 1bs -1 27/32 ") - - 1 1 1 | - 1 - - 1 | Call for availability | |||
| 82-72-3 | Spring -1 St And Reverse Shift (15 1bs.- 2 3/8 ") | 1 | Call for availability | |||
| R-2350-80-4 | Ball -Back-Up Switch 1 1 1 1 | 1 1 | Call for availability | |||
| R-24330366 | Plug -Back-Up Switch Hole 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| R-25312268 | Breather Assembly 1 1 1 1 | Call for availability | ||||
| OR4328X | Breather Assembly 1 | 1 1 1 1 1 | Call for availability | |||
| K-162-155-8 | Gasket- Shifter Housing 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| K-2330564-1 | Lift Hook 2 2 2 2 2 | 2 2 2 2 2 | Call for availability | |||
| K-3545002 | -4 Bolt-3/8 " -16 1 1/8 " Hex Head Self-Locking 14 14 14 14 14 | 14 14 14 14 14 | Call for availability | |||
| 63-16-1-1X | Assy. | Call for availability |

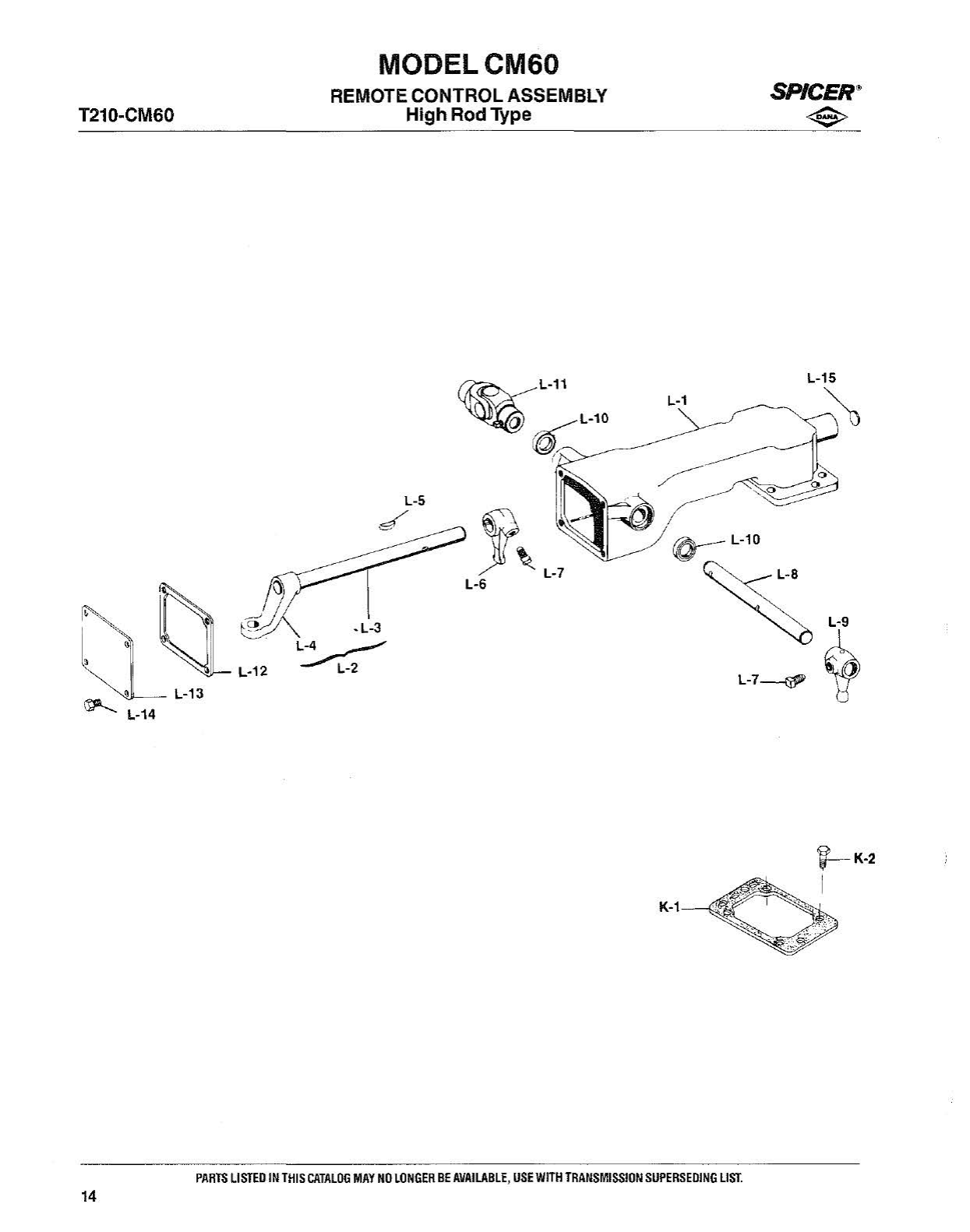

Parjs Listed Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-16-8-1X | Cover Assembly (Casting No. 62-16-78) 1 1 | 1 1 | Call for availability | |||
| 47-16-9-1X | Cover Assembly (Casting No. 62-16-78-lX) | 1 1 | Call for availability | |||
| 47-16-10-1X | Cover Assembly (Casting No. 62 ·16 ·96} I | 1 | Call for availability | |||
| 311860X | Cover Assembly (Casting No. 62-19 ·96) I | 1 | Call for availability | |||
| L-2310647X | Shift Finger Rod And Bracket Assembly 1 1 | 1 1 | Call for availability | |||
| OR310879X | Shift Finger Rod And Bracket Assembly - - - | - 1 1 - - | Call for availability | |||
| 311661X | Shift Finger Rod And Bracket Assembly | 1 1 | Call for availability | |||
| L-5500007-19 | I Woodruff Key-#1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| L-662-6-24 | Finger-I N Ner Shift 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| L-7545011 | Bolt-7 I 16 " -20 X 7/8 " Head Hex Self-Locking 2 2 2 | 2 2 2 2 | Call for availability | |||
| OR545063 | Bolt-7/ 16 " -20 X 13/16 " Square Head Self-Locking - - - | 2 | Call for availability | |||
| L-882-65-5 | Rod -Remote Control Shift 1 1 | 1 1 1 1 - - | Call for availability | |||
| OR82-65-22 | Rod -Remote Control Shift (Counter Sunk Spots At 90 | Call for availability | ||||
| L-982-6-7 | Finger-Outer Shift 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| L-1028P-19 | Seal -Remote Control Shift Rod 2 2 | 2 2 2 2 2 2 | Call for availability | |||
| L-1110380-SF | U-Joint Assembly-Control 1 1 | 1 1 1 | Call for availability | |||
| L-1282R118-1 | Gasket- Aperture Cover 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| L-1382-96R1 | Aperture Cover 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| L-14545005-1 | Bolt-5/1 6 ' 1 -18 X 5/8 " Hex Head Self-Locking 4 4 4 | 4 4 4 4 4 | Call for availability | |||
| L-15500166-16 | Expansion Plug -1 1/16 " : 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| K-162-155-7 | Gasket- Shifter Housing To Control Cover 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| K-2545028-4 | Bolt-7/16 " -14 X 1 1/4 " HexHeadSelf-Lockint 4 4 | 4 4 4 4 4 4 | Call for availability |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210 | CM60 | And End Yokes -Case Table | Call for availability | |||
| T210 | 1550 | 57/8 " 4-1 -3781 35/8 " F-33/4 " 4 -2-669 1550 | Call for availability | |||
| T210 | 1610 | 67/8 " 5 -1 -3141 35/8 " F-6 | Call for availability | |||
| T210 | 1710 | 8 " 6-1 -2221 3 1/4 " F-7 3/4 " 5 -2 -779 1650 | Call for availability | |||
| T210 | 1810 | 8 " 6.5-1 -2121 33/411 F -73/ 4 " 6 -2 -779 1710 | Call for availability |
Parts Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1390-27 | Handle -Shift Lever 1 1 | 1 | Call for availability | |||
| P-2250-1121 | Shift Leve r-26 1/4 " Straight 1 | Call for availability | ||||
| 250-1122 | Shift Lever- 29 1/4 " Straight | 1 | Call for availability | |||
| 250-1621 | Shift Lever-30 " Straight | 1 1 | Call for availability | |||
| 250-1537 | Shift Lever- 35 " Straight | 1 | Call for availability | |||
| 250-1896 | Shift Lever- 28 " Bent 1 | Call for availability | ||||
| 250-2075 | Shift Lever- 29 3/16 " Bent 1 | Call for availability | ||||
| 250-2163 | Shift Lever- 31 29/64 " Bent | 1 | Call for availability | |||
| 250-2330 | Shift Lever-Lower Lever-5 .20 " Straight | 1 | Call for availability | |||
| 250-2388 | Shift Lever-24 5/8" Bent - - - 1 - - | Call for availability | ||||
| 250-2316 | Shift Lever-Lower Lever | 1 | Call for availability | |||
| 2502315 | Shift Lever - 26 1W Bent · · · · · | 1 | Call for availability | |||
| 47-16-3X | Dome Assembly- 2 Overall Height 1 1 1 - - - | Call for availability | ||||
| 47-16-4X | Dome Assembly- 3 5/32 '' Overall Height 1 | Call for availability | ||||
| 47-16-5X | Dome Assembly-3 5/8 " Overall Height 1 | 1 1 1 | manual lists 47-16-5X - we stock the base part 47-16-5 | Call for availability | ||
| 47-16-7X | Dome Assembly-5 5/32 " Overall Height | 1 1 1 | Call for availability | |||
| 47-16-7-28X | Dome Assembly-5 5/32 " Overall Height | 1 | Call for availability | |||
| P-3286-SP | Pin -Shift Lever Collar 1 1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| P-4550-7 | Collar- Compression 1 1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| P-5560-25 | Spring Compression 1 1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| P-6540-13 | Cup -Compression 1 1 1 I 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| P-7690-6 | Washer-Friction 1 1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| P-847-16-3 | Dome- Shift Lever (C62 ·16·24-1) 1 1 1 | Call for availability | ||||
| 47-16-4 | Dome -Shift Lever (C62-16-30-1) 1 | Call for availability | ||||
| 47-16-5 | Dome -Shift Lever (C62-16-67) 1 | 1 1 1 | $127.15 | Add to Cart | ||
| 47-16-7 | Dome- Shift Lever (C62-16-125) | 1 1 1 | Call for availability | |||
| P-962-381-7 | Snap Ring Rock Shaf1 1 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| P-10530-15 | Shaft- Shift Lever Rock 1 1 1 1 1 1 | 1 1 1 1 1 | Call for availability | |||
| K-162-155-7 | Gasket-Dome To Shifter Housing 1 1 1 1 1 | 1 1 1 1 1 1 | Call for availability | |||
| K-2545028-4 | Screw- 7/16 " -14 X 1 1/4" Hex Head Self-Locking 4 4 4 4 4 4 | 4 4 4 4 4 | Call for availability |

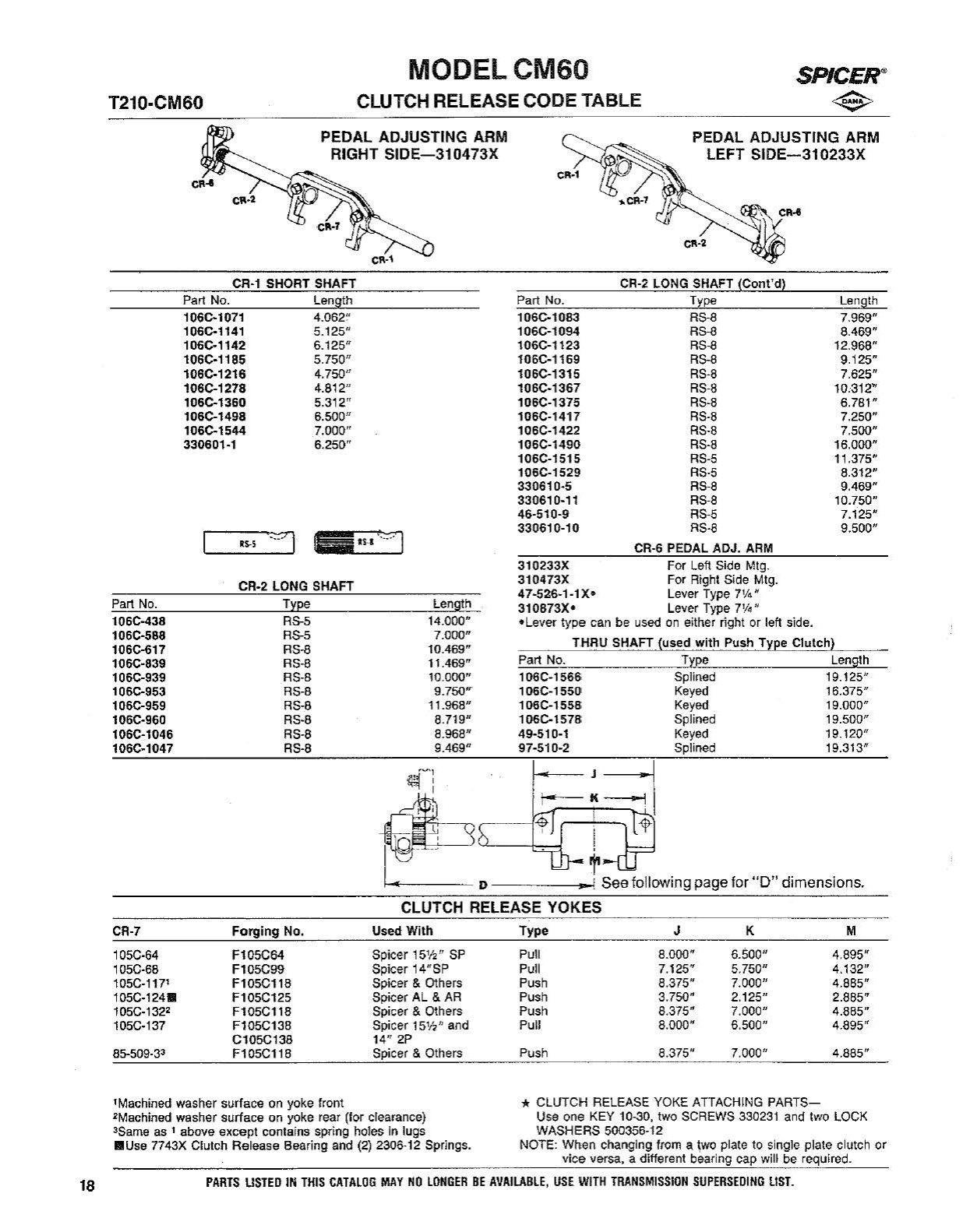

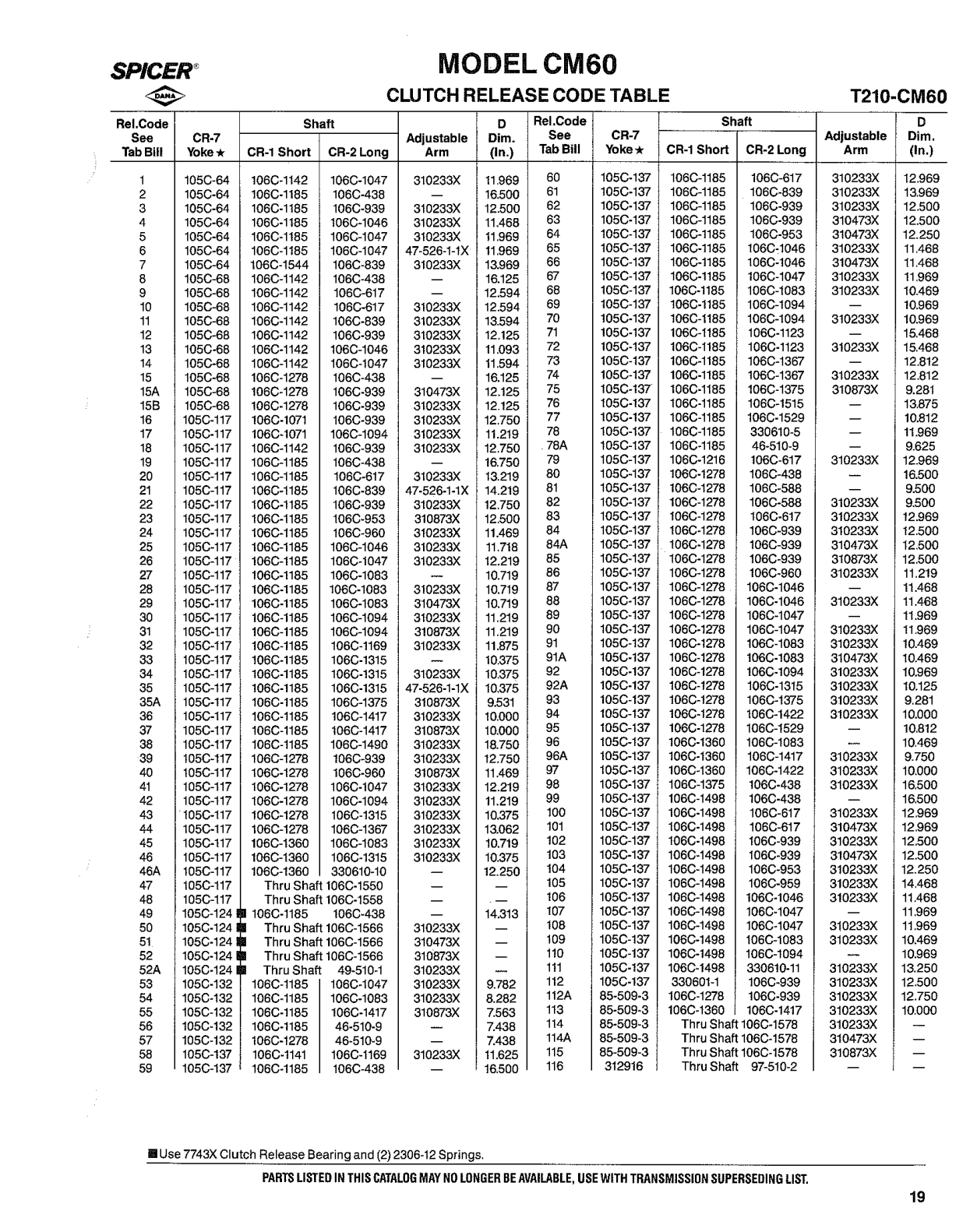

Clutch Release Code Table
Basic Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210-CM60 | Basic Overhaul Kits | Call for availability | ||||
| 313400-57X | Major Overhaul Kit | 1 | $1,251.54 | Superseded by 634001XAdd to Cart | ||
| 500010-8 | Woodruff Key-Countershaft 2nd ,3rd ,4th & Cis Drive Gear | 4 | $2.89 | Add to Cart | ||
| 500898 | N Ut-Mainshaft | 1 | Call for availability | |||
| 425-SP | Pin -4th Mainshaft Gear Sleeve | 1 | $3.23 | Add to Cart | ||
| 313432-20X | Minor Overhaul Kit | 1 | $1,257.51 | Add to Cart | ||
| 313429-14X | Shifter Housing Small Parts Repair Kit | 1 | Call for availability | |||
| 313401-14X | Thrust Washer Kit | 1 | Call for availability | |||
| 500936 | Countershaft Rear Taper Cone | 1 | Call for availability | |||
| 550183 | Rear Output Front Cone | 1 | Call for availability | |||
| 550228 | Rear Output Front Cup | 1 | $17.18 | Add to Cart | ||
| 550612 | Main Shaft Rear Cone | 1 | Call for availability | |||
| 550886 | Roller /IIssy. Reverse Idler Gear | 2 | Call for availability | |||
| 550929 | Drive Gear Cup | 1 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear Cone | 1 | $64.20 | Add to Cart | ||
| 550933 | Countershaft Front Cup | 1 | Call for availability | |||
| 550934 | Countershaft Front Cone | 1 | Call for availability | |||
| 550935 | Countershaft Rear Taper Cup | 1 | Call for availability | |||
| 550938 | 1st And Reverse Mainshaft Needle /IIssy | 2 | Call for availability | |||
| 550983 | Needle Split 2nd Gear | 1 | Call for availability | |||
| 60-463-8 | · Oil Seal -Rear Bearing Cap (3 .756 " O.D .) | 1 | $18.84 | Add to Cart | ||
| 60-463-10-1X | Oil Seal Kit (W/Installation Sleeves} -Drive Gear Brg Cap | 1 | $37.74 | Add to Cart | ||
| 545077 | Bearing Lubricant-Packet | Call for availability | ||||
| 545080 | Anaerobic Sealant- Mainshaft Nut • | Call for availability | ||||
| 2342-5 | Service Manual · | 1 | Call for availability | |||
| 2734 | Bulletin -Thrust Washer Installation | 1 | Call for availability | |||
| 2759 | Bulletin Drive Gear Replacement : | 1 | Call for availability | |||
| 2770 | Bulletin -Pocket Bearing Lubrication | 1 | Call for availability | |||
| 2783 | Bulletin Mainshaft Nut Anaerobic Sealant | 1 | Call for availability | |||
| 312475-29X | Gasket Kit | 1 | No longer available - Call for replacement | |||
| 313024-22X | Snap Ring Kit | 1 | Call for availability | |||
| 313240-3X | Baffle And S.him Kit-Drive Gear | 1 | $33.38 | Add to Cart | ||
| 313439X | Countershaft Rear Bearing Shim Kit | 1 | Call for availability | |||
| 38P-1 | Retainer-1 St And Rev. Shift Finger Plunger | 1 | Call for availability | |||
| 289-SP | Pin - Interlock · | 1 | Call for availability | |||
| 30-72-6 | Spring -1 St And Rev. Shift Finger Plunger | 1 | $2.72 | Add to Cart | ||
| 32-12-1 | Interlock | 2 | Call for availability | |||
| 32-59-3 | Plug-Shift Rod Thimble | 1 | Call for availability | |||
| 500166-12 | Plug -Shift Rod Hole Expansion | 3 | Call for availability | |||
| 500598-15 | Pin -1 St And Reverse Shift Rod Roll | 1 | Call for availability | |||
| 47-72-1 | Spring Shift Rod Poppet Ball | 3 | $3.15 | Add to Cart | ||
| 50-80-1 | Ball -Shift Rod Poppet | 3 | $2.70 | Add to Cart | ||
| 62-438-2 | Pin 1st And Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | ||
| 330871 | Mainshaft Rear | 1 | Call for availability | |||
| 974-W | Reverse Idler Bearing | 2 | Call for availability | |||
| 330884 | 1st And 2nd Speed Mainshaft Gear | 1 | Call for availability | |||
| 1001-W | 4th Speed Mainshaft Gear | 1 | Call for availability | |||
| 62-155-7 | Control Housing | 1 | $9.44 | Superseded by 6215513Add to Cart | ||
| 62-155-8 | Shifter Housing | 1 | Call for availability | |||
| 63-223-1 | Countershaft Rear Bearing Cap | 1 | Call for availability | |||
| 63-223-2 | Drive Gear Bearing Cap | 1 | Call for availability | |||
| 63-223-3 | Mainshaft Rear Bearing Cap | 1 | Call for availability | |||
| 63-223-4 | Drive Gear Bearing Cap (Ford) | 1 | Call for availability | |||
| 63-223-5 | Countershaft Front Bearing Cap (Ford) | 1 | Call for availability | |||
| 63-223-6 | Mainshaft Rear Bearing Cap (Bendix Brake Cap) | 1 | Call for availability | |||
| 63-223-7 | Mainshaft Rear Bearing Cap (Ford) | 1 | Call for availability | |||
| 82-118-1 | Remote Control Aperture Cover | 1 | Call for availability | |||
| 97-324-1-1X | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart | ||
| 97-324-2-1X | 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | $6.27 | Add to Cart | ||
| 2749 | Bulletin -Gasket Installation | 1 | Call for availability | |||
| 62-381-4 | 4th Speed Mainshaft Gear | 1 | Call for availability | |||
| 62-381-8 | 2nd And 3rd Speed Mainshaft Gear | 1 | Call for availability | |||
| 63-381-1 | 1st And 2nd Speed Mainshaft Gear | 1 | Call for availability | |||
| 70-381-6 | Countershaft Drive Gear | 1 | Call for availability | |||
| 47-228-1-1 | Mainshaft Bearing | 9 | Call for availability | |||
| 47-228-2-2 | Mainshaft Front Bearing | 1 | Call for availability | |||
| 47-228-2-10 | Spacer-Mainshaft Rear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 47-468-1 | Baffle | 1 | $3.55 | Add to Cart | ||
| 47-468-2 | Baffle -Oil Ring | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 2789 | Bulletin -Baffle And Shim Kit Installation | 1 | Call for availability | |||
| 63-228-2-1 | Shim -Rear Bearing | 4 | Call for availability | |||
| 312477-36X | Small Parts Repair Kit (Not Included In Any Overhaul Kit) | Call for availability |
Supersession List (bills of Material)

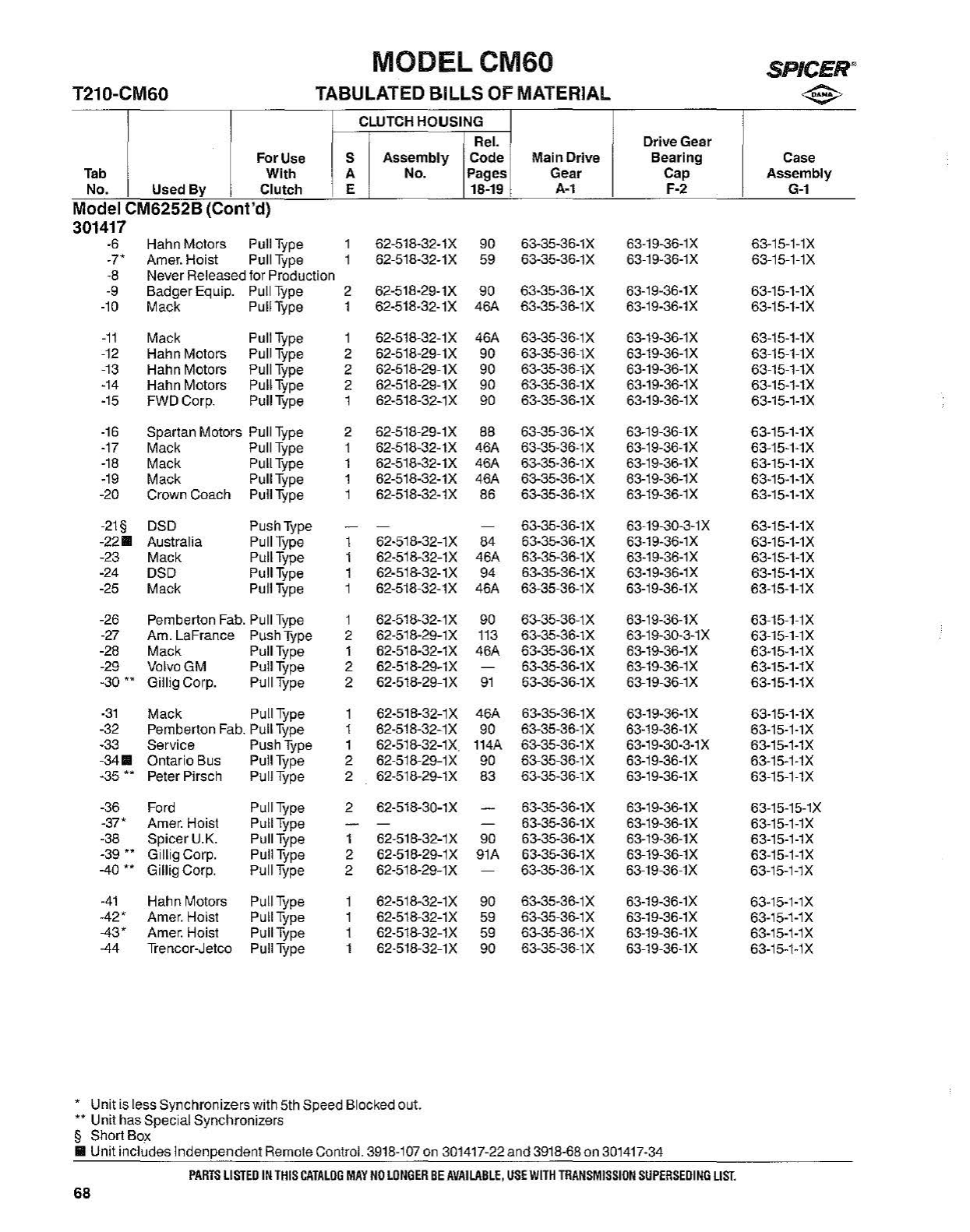

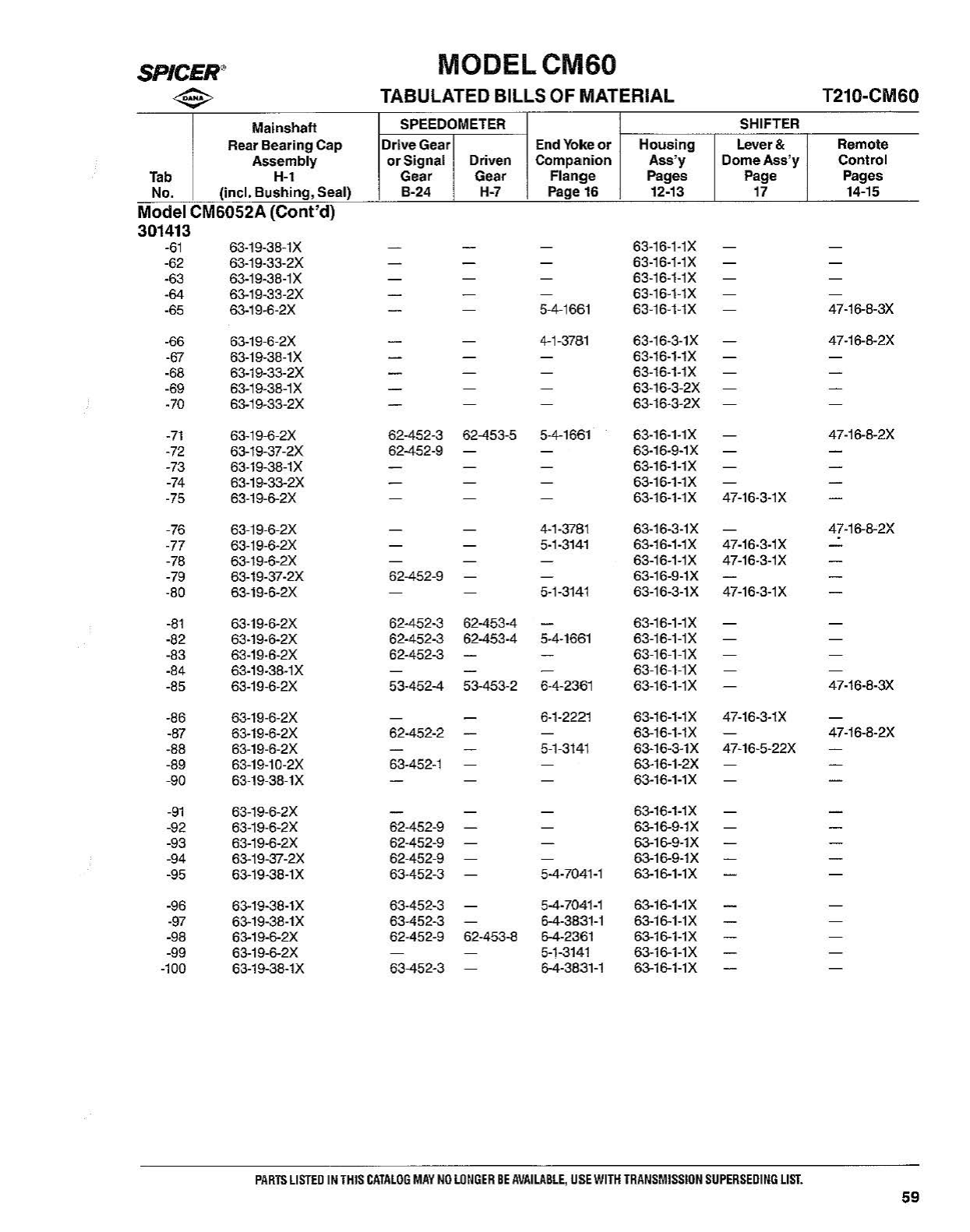

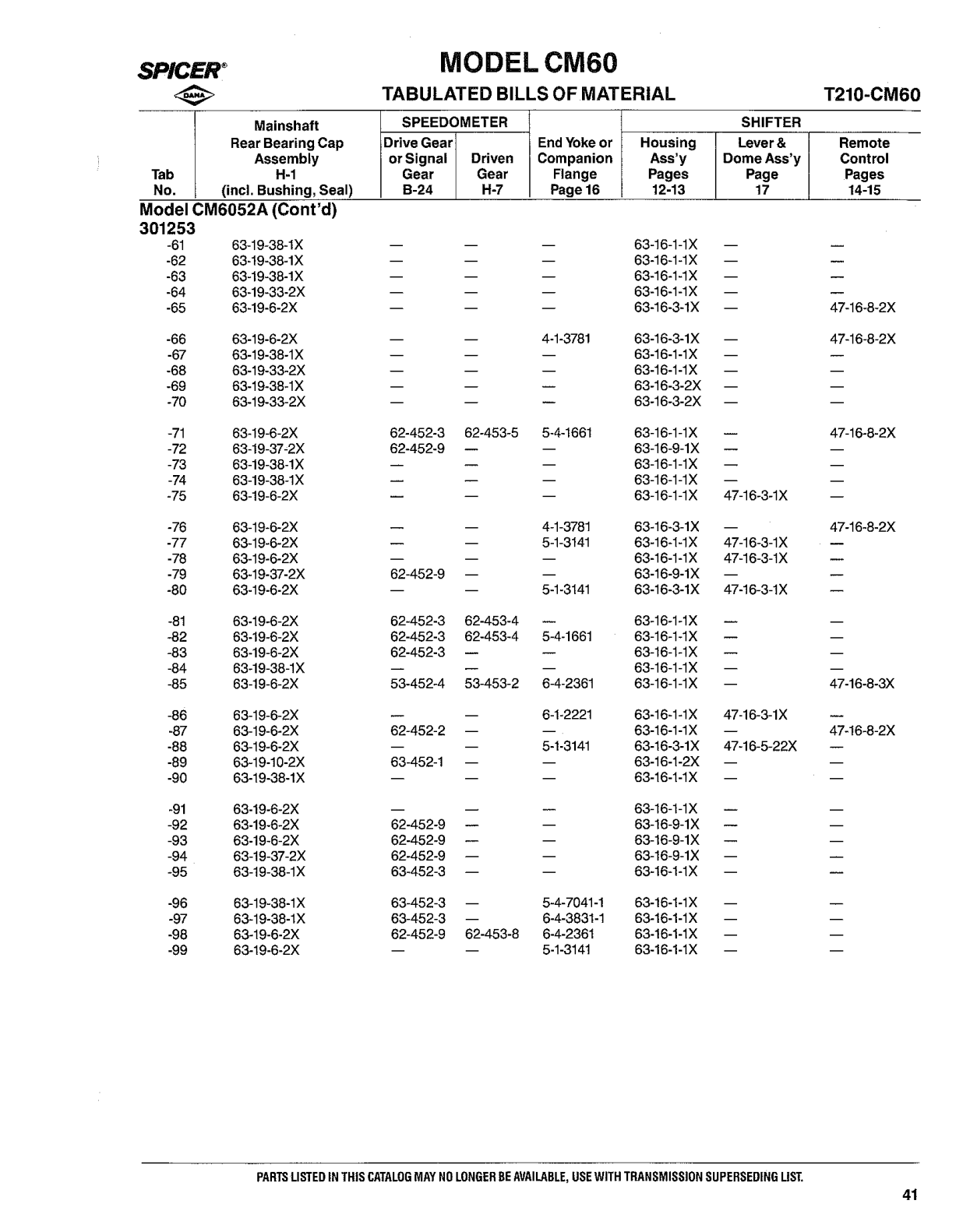

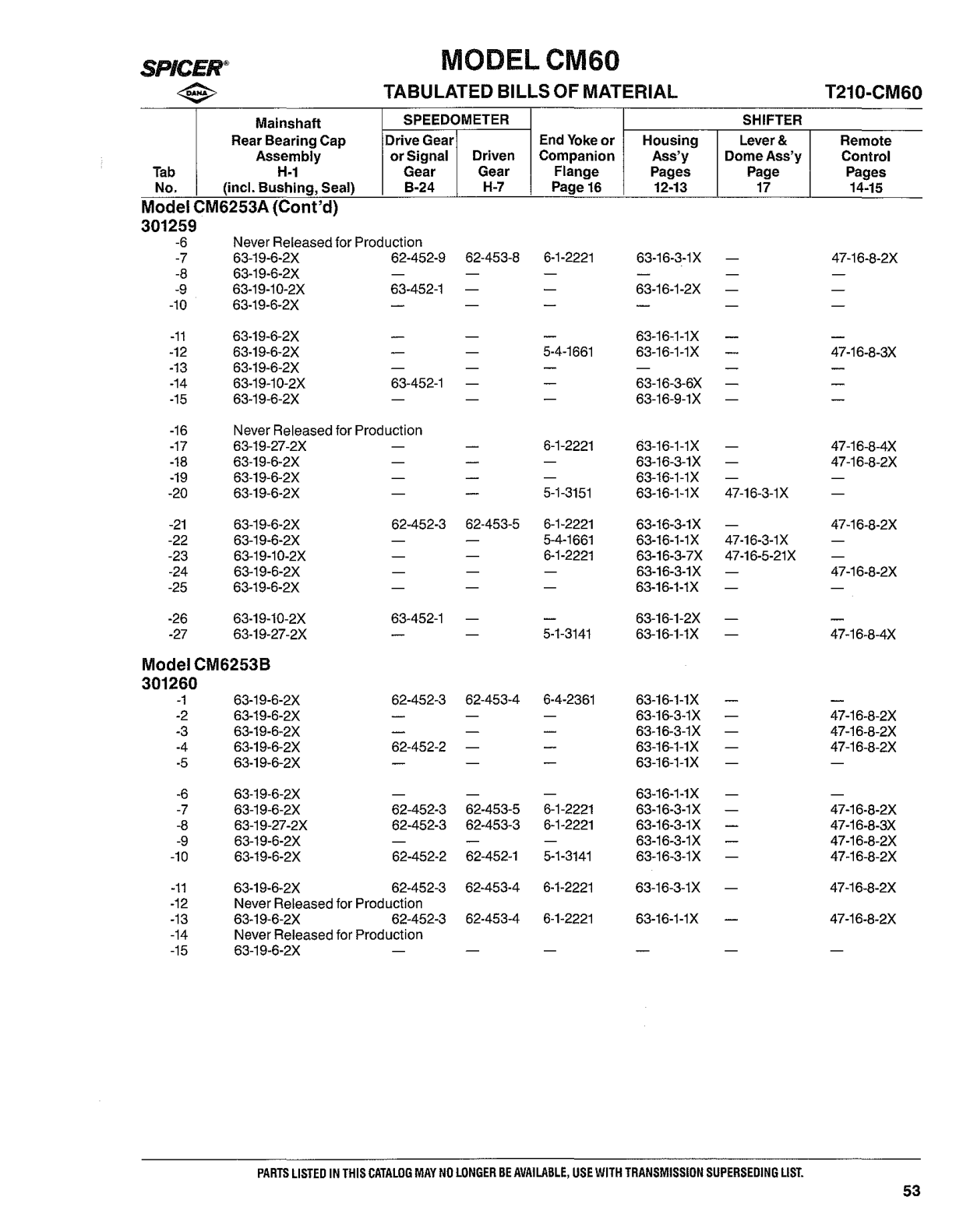

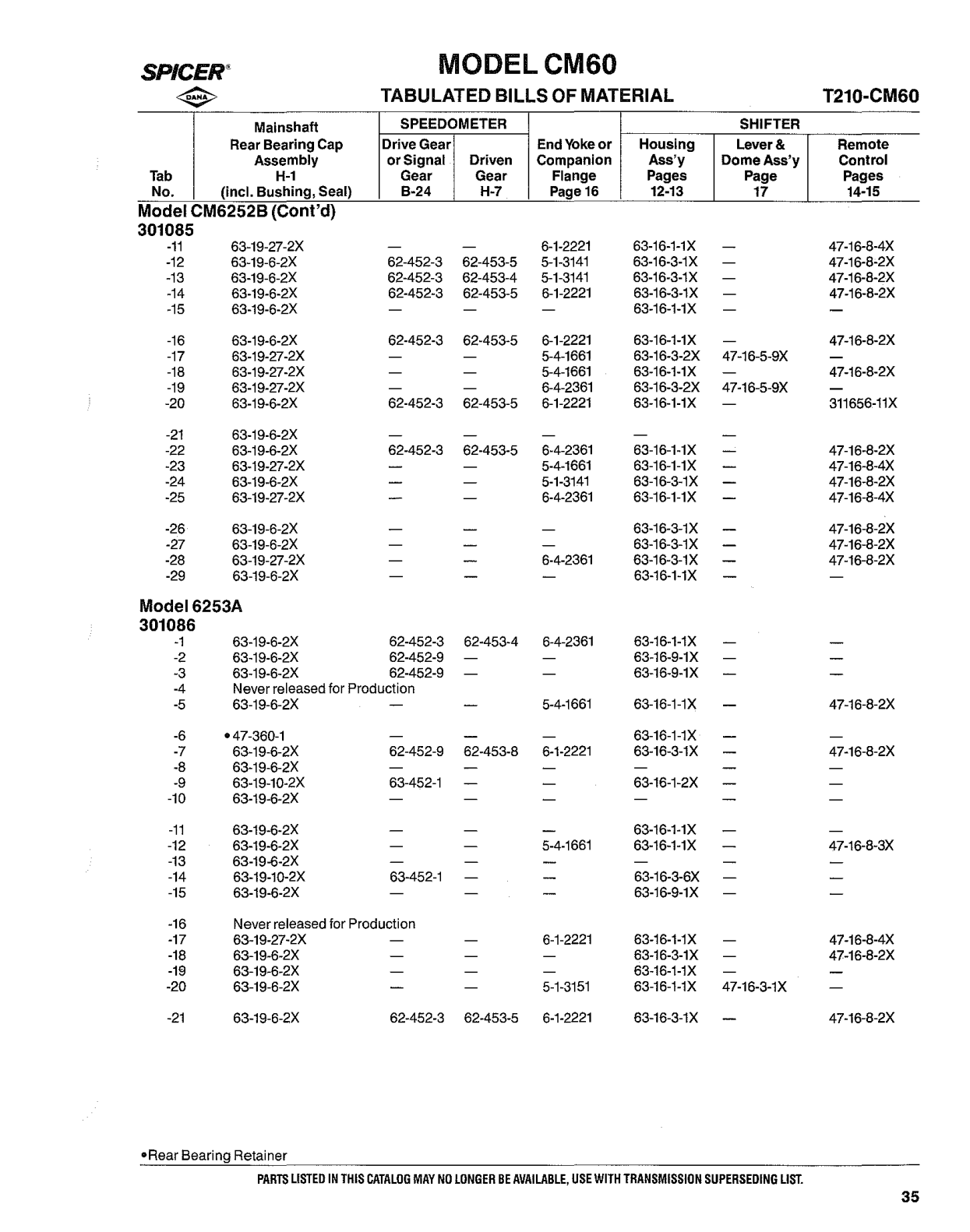

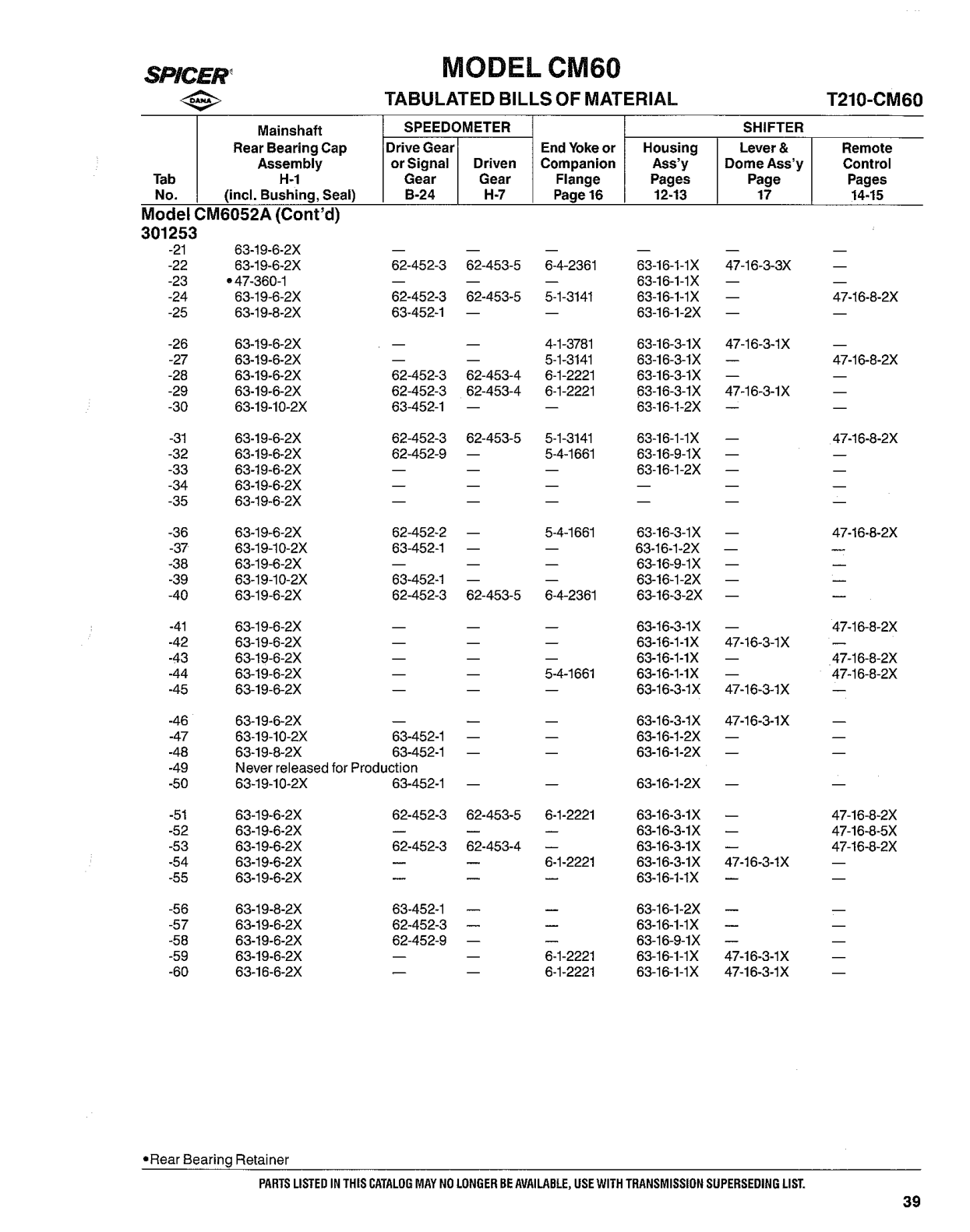

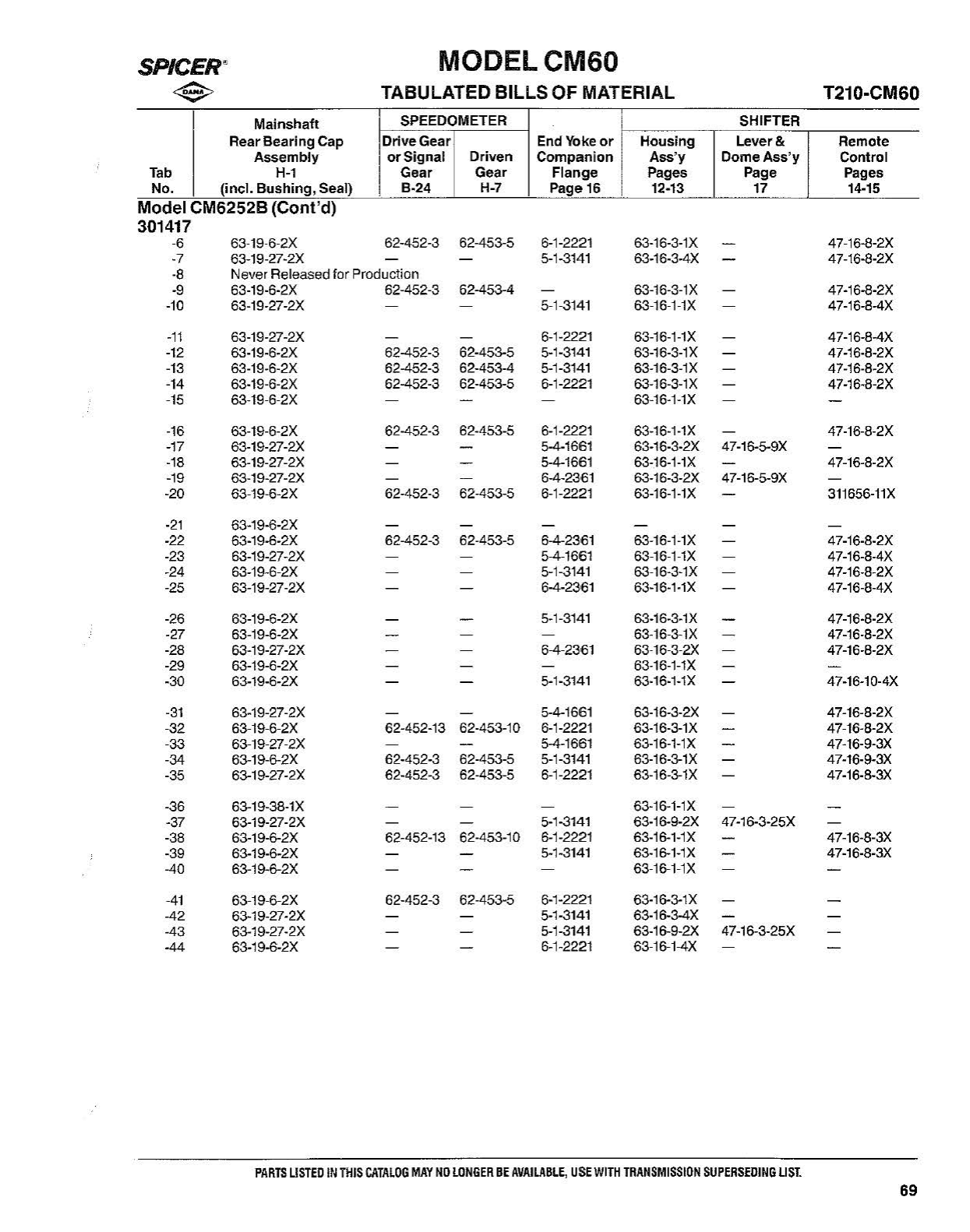

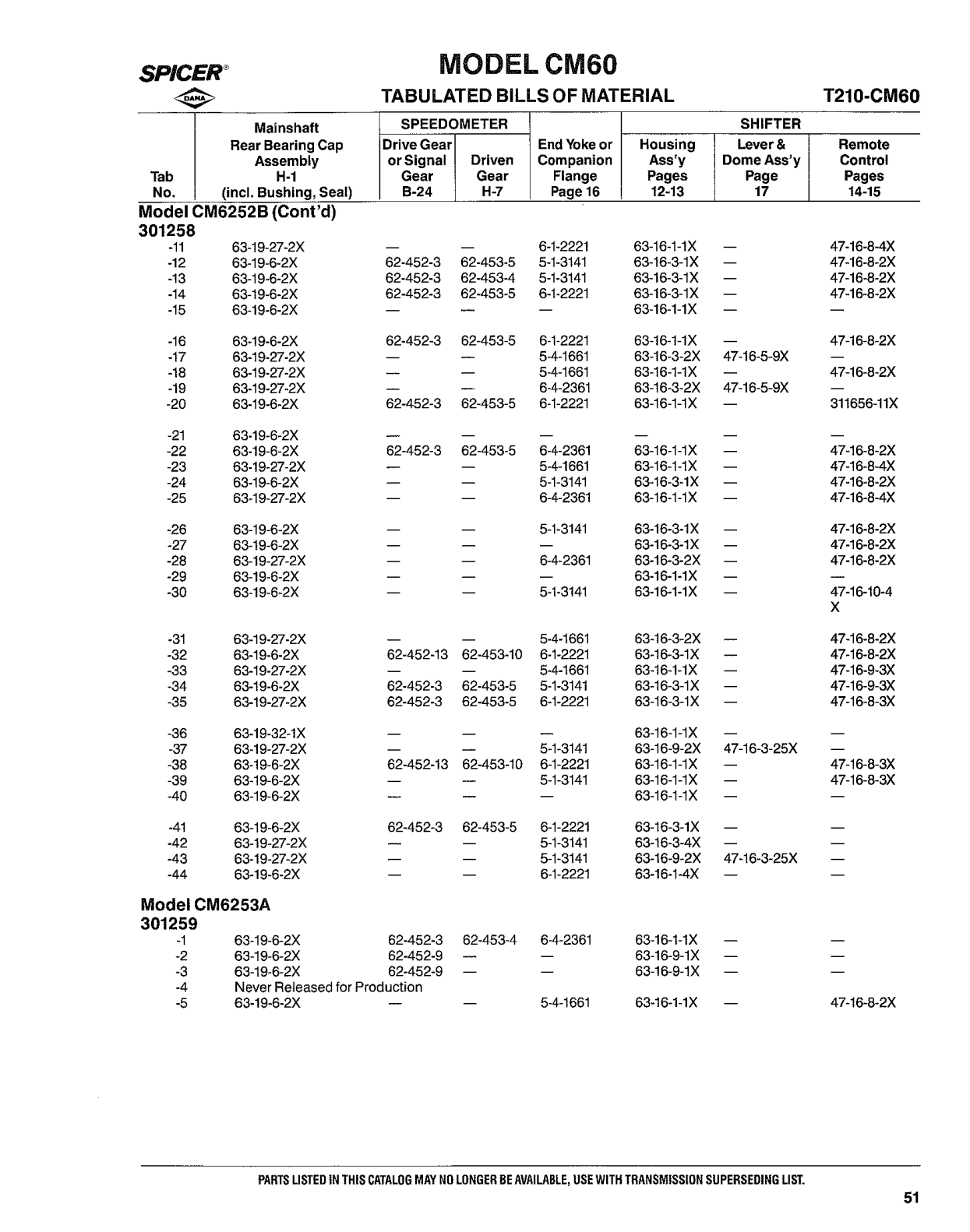

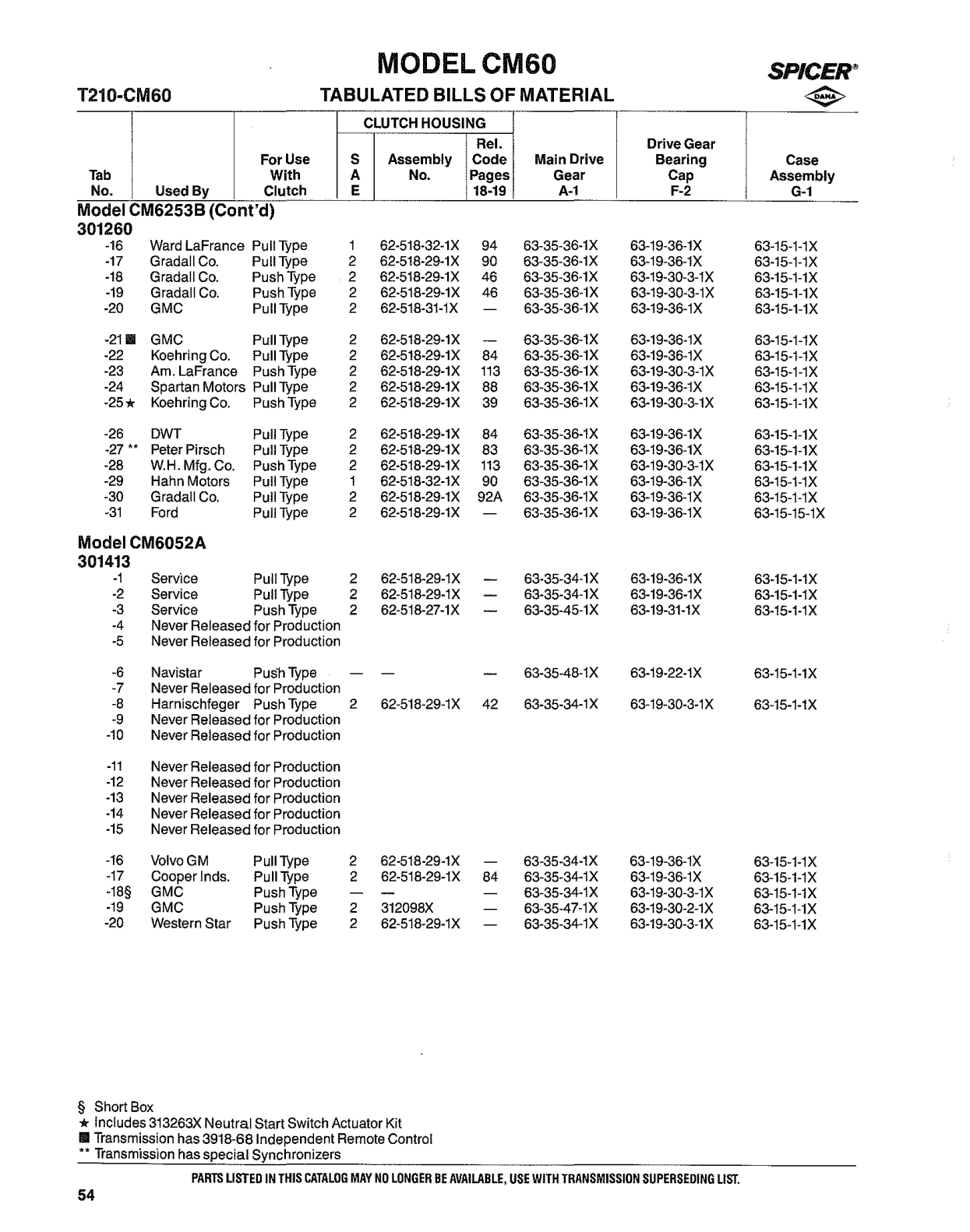

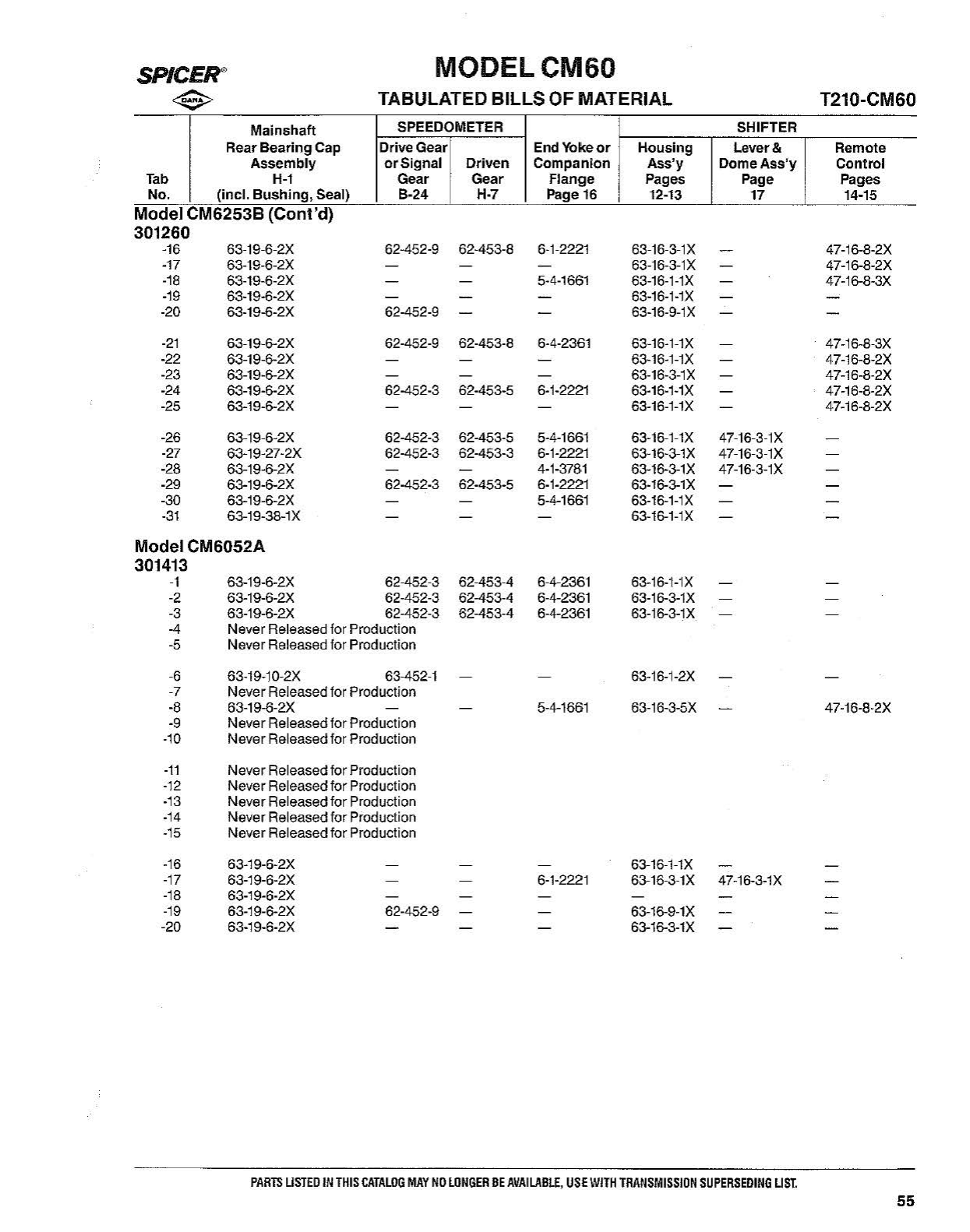

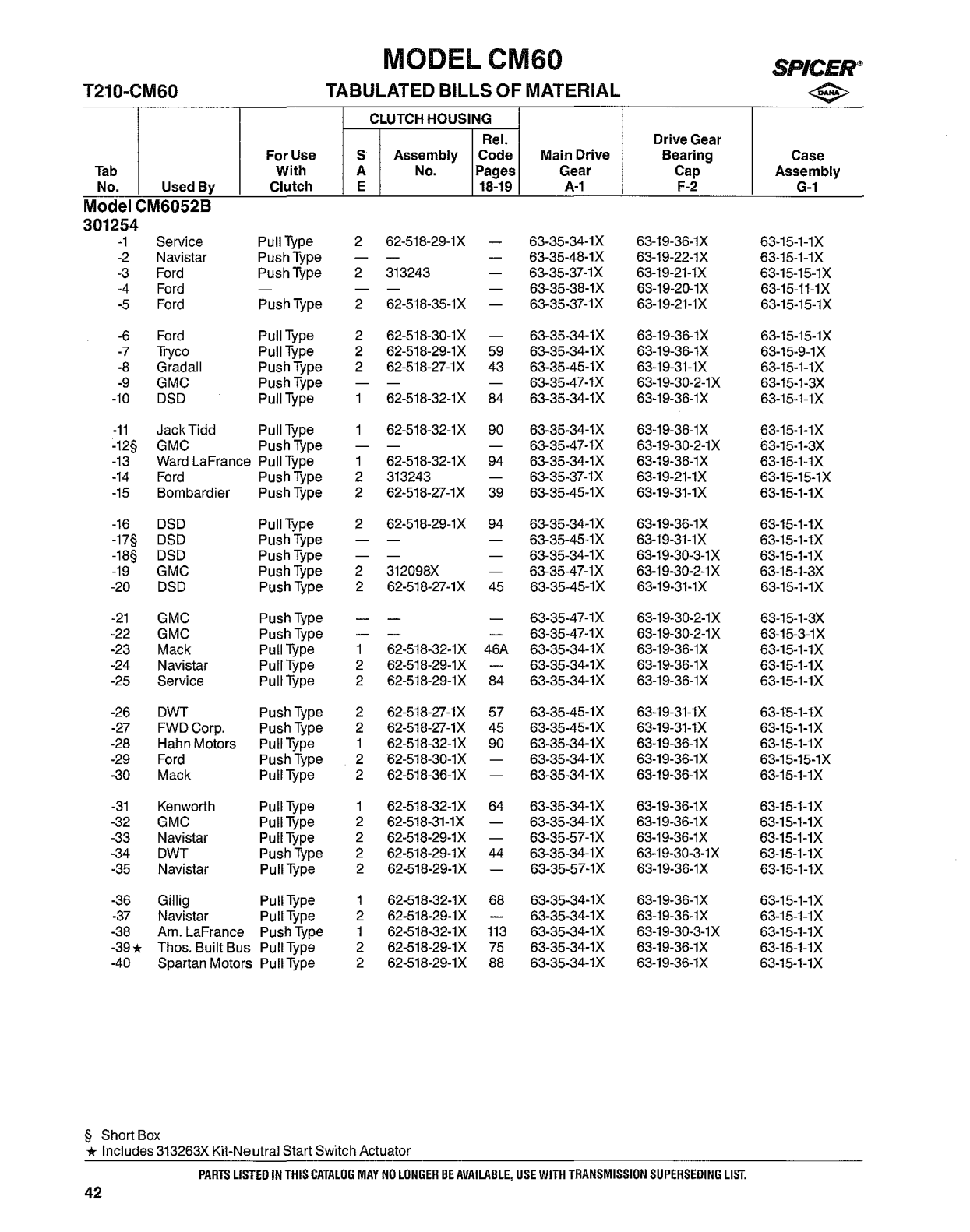

Tabulated Bills of Material
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission CM60-Series, with every part in the manual matched to our live inventory. We stock 57 of the 335 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the CM6052-B transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | CM6052-B |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 74 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
