Spicer ES62-5A Parts Manual
Drive Gear Group ·input
Item A-3Item A-4Item A-5Item B-2Item B-3Item B-4Item B-5Item B-7Item B-10Item B-8Item B-9Item B-12Item B-24Item B-13Item B-23Item B-14Item B-13Item B-16Item A-3Item A-2Item B-19Item B-3Item B-17Item B-1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 550930 | Cone - Main Drive Gear Bearing | 2 | $64.20 | Add to Cart | |
| A-3 | 550929 | Cup - Main Drive Gear Bearing | 2 | $28.81 | Add to Cart | |
| A-4 | 47-468-2 | Baffle - Ring Drive Gear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | |
| A-5 | 47-228-2-2 | * Spacer/shim - Drive Gear Bearing | 1 | Call for availability | ||
| A-6 | 47-468-1 | * Baffle - Bearing Cap | 1 | $3.55 | Add to Cart | |
| A-7 | 550931 | Cone - Drive Gear Pocket Bearing | 1 | $34.78 | Add to Cart |
Mainshaft Group · Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 53-362-3 | Mainshaft | 1 | $571.08 | Add to Cart | |
| B-1 | 53-362-8 | Mainshaft (1 314" -10 Spline Industrial) | 1 | Call for availability | ||
| B-2 | 67-8-6 | Gear- 1st Speed (42T) | 1 | $560.13 | Add to Cart | |
| B-3 | 550932 | Bearing- 1st & Rev. Gear Needle Assy. | 2 | $40.03 | Add to Cart | |
| B-4 | 330866 | Thrust Washer- 1st Speed Gear | 1 | Call for availability | ||
| B-5 | 27-381-5 | Snap Ring -1 St Speed Thrust Washer | 1 | $3.07 | Add to Cart | |
| B-6 | 67-8-5 | Gear- 2nd Speed (36T) ES62 ·5A, ES62-5D, ES62-5E | 1 | $581.61 | Add to Cart | |
| B-7 | 59482-1-1X | Bearing Kit- 2nd Speed Needle (includes 61 Needles) | 1 | $18.84 | Add to Cart | |
| B-8 | 59-466-3 | Gear- 2nd & 3rd Clutch (40T) | 1 | $217.97 | Add to Cart | |
| B-9 | 46-381-1 | Snap Ring - 2nd & 3rd Clutch Gear | 1 | $4.22 | Add to Cart | |
| B-10 | 313823X | Synchronizer- 2nd & 3rd | 1 | No longer available - Call for replacement | ||
| 8-11 | 67-8-3 | Gear - 3rd Speed (35T) ES62-5A | 1 | $628.73 | Add to Cart | |
| 8-11 | 67-8-4 | Gear- 3rd Speed (33T) ES62-5D, ES62-5E | 1 | $721.78 | Add to Cart | |
| B-12 | 67-47-1 | Thrust Washer- 3rd & 4th Speed | 1 | $35.44 | Add to Cart | |
| B-13 | 53-381-2 | Snap Ring - 3rd & 4th Thrust Washer | 2 | $6.40 | Add to Cart | |
| B-14 | 67-8-1 | Gear- 4th Speed (27T) ES62-5D, ES62-5E | 1 | $469.61 | Add to Cart | |
| B-14 | 67-8-2 | Gear- 4th Speed (29T) ES62-5A | 1 | $487.31 | Add to Cart | |
| B-15 | 1016-W | Thrust Washer- 4th Speed | 1 | $83.44 | Add to Cart | |
| B-16 | 313822X | Synchronizer -4th & 5th Speed | 1 | No longer available - Call for replacement | ||
| B-17 | 47-465-1 | Clutch Corar -1 St & Rev. | 1 | $215.92 | Add to Cart | |
| B-18 | 53-8-1 | Gear- Reverse {42T) | 1 | $403.79 | Add to Cart | |
| B-19 | 330867 | Thrust Washer- Reverse Gear | 1 | Call for availability | ||
| B-20 | 313240-3X | Spacer & Shim Kit (to Adjust Mainshaft End Play) | 1 | $33.38 | Add to Cart | |
| B-20 | 53-37-1 | Spacer (used In Place Of Speedometer Drive Gear) | 1 | Call for availability | ||
| B-23 | 53-205-1 | Washer- 1 1/4" Flat | 1 | $4.42 | Add to Cart | |
| B-24 | 501200 | Nut- Mainshaft (1 1/4"-18 Hex) | 1 | $15.74 | Add to Cart |
Technologies Gears ·and ·related Parts

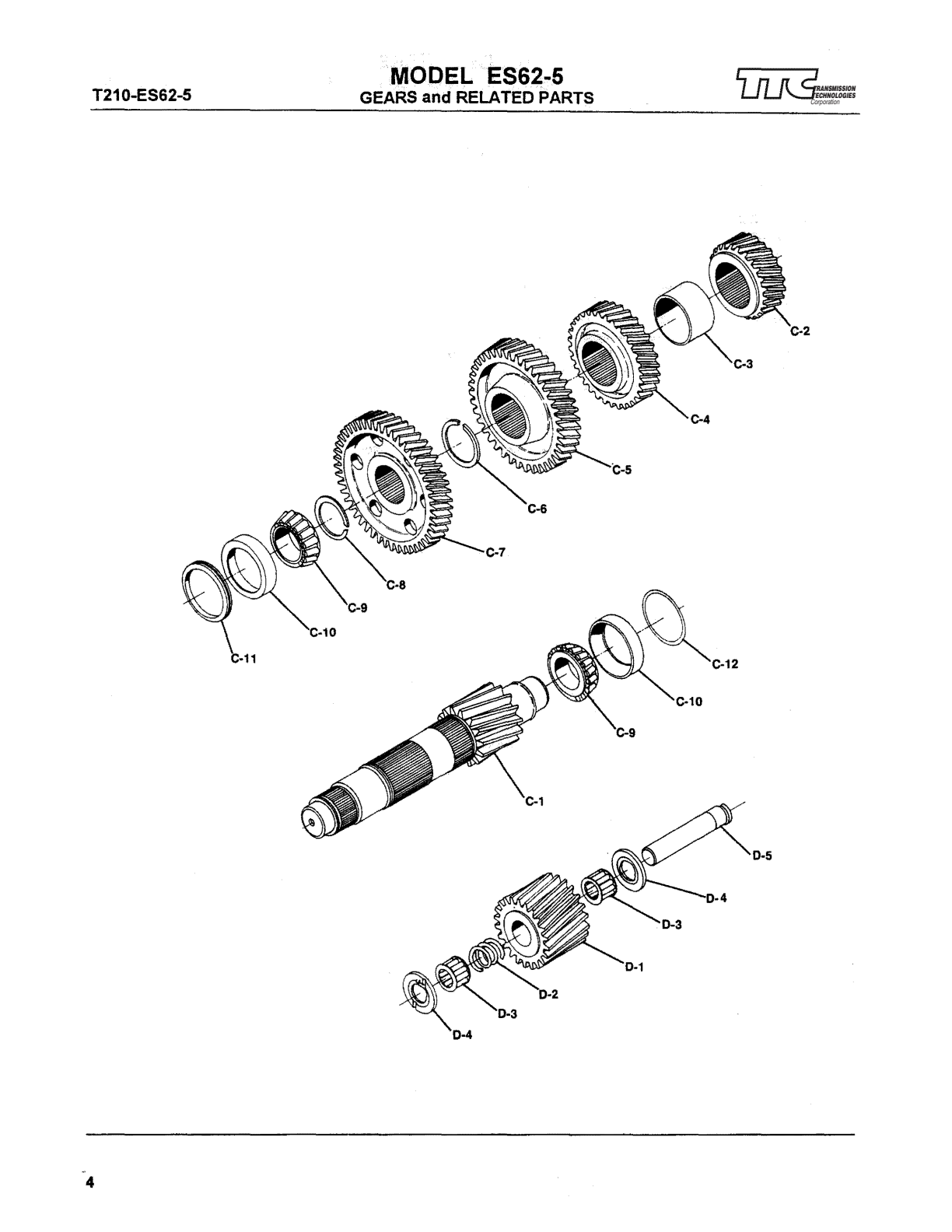

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 53-30-3 | (12T) | 1 | $635.17 | Add to Cart | |
| C-1 | 59-30-1 | Countershaft (12T) (for Rear Pto Drive) | 2 | Call for availability | ||
| C-2 | 67-196-5 | Gear- 2nd Speed (19T) ES62-5A, ES62-5D ES62 -50 | 1 | $330.96 | Add to Cart | |
| C-3 | 59-37-1 | Spacer - 2nd & 3rd Speed Gear | 1 | $65.92 | Add to Cart | |
| C-4 | 67-196-4 | Gear- 3rd Speed (32T) ES62 -50 ES62-5E | 1 | $429.78 | Add to Cart | |
| C-4 | 67-196-3 | Gear - 3rd Speed (30T) ES62-5A | 1 | $596.01 | Add to Cart | |
| C-5 | 67-196-1 | Gear- 4th Speed (43T) ES62 -50 ES62-5E | 1 | $549.33 | Add to Cart | |
| C-5 | 67-196-2 | Gear- 4th Speed (41T) ES62-5A | 1 | $691.63 | Add to Cart | |
| C-6 | 59-381-2 | Snap Ring - 4th Speed Gear | 1 | Call for availability | ||
| C-7 | 67-1-1 | Gear- Countershaft Drive (43T) ES62-5E | 1 | Call for availability | ||
| C-7 | 67-1-2 | ,gear- Countershaft Drive (43T) ES62-5A, ES62-5D | 1 | Call for availability | ||
| C-8 | 59-381-1 | Snap Ring - Countershaft Drive Gear | 1 | $1.85 | Add to Cart | |
| C-9 | 550927 | Bearing - Cone Countershaft | 2 | $32.85 | Add to Cart | |
| C-10 | 550375 | Bearing - Cup Countershaft | 2 | $17.99 | Add to Cart | |
| C-11 | 47-37-3 | Spacer - Front Bearing Countershaft | 1 | Call for availability | ||
| C-12 | 313438X | Shim Kit- Countershaft Rear Bearing | 1 | $6.73 | Add to Cart | |
| D-1 | 67-5-1 | Gear - Reverse Idler (17T) | 1 | Call for availability | ||
| D-2 | 97-37-1 | Spacer - Reverse Idler Bearing | 1 | $2.43 | Add to Cart | |
| D-3 | 550886 | Bearing - Roller Reverse Idler | 2 | $11.32 | Add to Cart | |
| D-4 | 974-W | Thrust Washer | 2 | $41.88 | Add to Cart | |
| D-5 | 63-60-1 | Shaft - Reverse Idler | 1 | $33.08 | Add to Cart |
Companion Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1480/1550 | 4-1-6041 | 4-1 -6051X 9x3 | Call for availability |
Clutch Housing Group
Item G-16Item E-1Item G-9Item G-10Item G-2Item G-7Item G-11Item G-12Item G-5Item G-3Item F-3Item F-4Item G-6Item F-1Item G-14Item G-15Item F-5Item E-6Item E-7Item E-8Item E-3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 47-352-1 | Gasket | 1 | $12.59 | Add to Cart | |
| E-3 | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S. | 128C-20 | Bushing- (312256X & 312830X) | 2 | $8.55 | Add to Cart | |
| E-4 | 46-96-2-1X | Hand Hole Cover Assy. | 1 | $44.01 | Add to Cart | |
| E-4 | 545001 | Size 1/T-13 X 1 1/4 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-1 | Size 1/2"-13 X 1 318 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-5 | Size 1/T-13 X 1 1/8 | version * (see the manual's footnote) | Call for availability | ||
| E-4 | 545001-6 | Size 1/2"-13 X 1 518 | version * (see the manual's footnote) | Call for availability |
Countershaft Front BRG. CAP (ford Only- Case 59-15-5-2X)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-6 | 47-223-5 | Gasket- Countershaft Front Bearing Cap | 1 | Call for availability | ||
| E-7 | 60-22-28 | Cap - Countershaft Front Bearing | 1 | Call for availability | ||
| E-8 | 330801-1 | Bolt- 7/16"-14 X 7/8" Hex Head Self-locking | 4 | $2.67 | Add to Cart |
Drive Gear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 47-223-1 | Gasket | 1 | $6.27 | Add to Cart | |
| F-3 | Cap Drive Gear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| F-4 | 60-463-10-1X | Oil Seal - (includes Instauation Sleeves) | 1 | $37.74 | Add to Cart | |
| F-5 | 545002-1 | Bolt- 3/8"-16 X 7/8" Hex Head Self-locking | 4 | $2.23 | Add to Cart |
Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| G-3 | NP-96 | Nameplate | 1 | $2.16 | Add to Cart | |
| N .S. | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| G-5 | 500100 | Filler Plug | 1 | Call for availability | ||
| G-6 | 62-39-3 | Drain Plug - Magnetic Square Head | 1 | $9.27 | Add to Cart | |
| G-6 | 62-39-4 | Drain Plug Magnetic Recessed Head | 1 | $9.50 | Add to Cart | |
| G-7 | 545002-10 | Bolt- 3/8"-16 X 1/T Hex Head (left Hand Side) | 2 | Call for availability | ||
| G-8 | 330923 | Oil Trough | 1 | Call for availability | ||
| G-9 | 545009 | Bolt- 5/16''-18 X 5/8" Flanged Head Self-locking | 1 | Call for availability | ||
| G-10 | 307-D | Plug -112"-13 X 112" Hex Head | 2 | Call for availability | ||
| and | 266-D | Plug - 5/8" -11 X 7/16" Hex Head | 2 | Call for availability | ||
| N .S. | 545089-1 | Plug - 9/16"-12 X 3/4" Hex Head, Brake Anchor Bar | 6 | $1.67 | Add to Cart | |
| G-11 | 97-324-2 | Gasket- 8 Bolt P.t.o. Aperture Cover | 1 | $6.27 | Add to Cart | |
| G-12 | 73-267-1 | Cover- 8 Bolt P.t.o. Aperture | 1 | $160.99 | Add to Cart | |
| G-13 | 545012 | Bolt- 7/16"-14 X 3/4" Flanged Hex Head Self-locking | 8 | $3.23 | Add to Cart | |
| G-14 | 97-324-1 | Gasket- 6 Bolt P.t.o. Aperture Cover | 1 | $3.91 | Add to Cart | |
| G-15 | 50-267-2 | Cover- 6 Bolt P.t.o. Aperture | 1 | $122.97 | Add to Cart | |
| G-16 | 330800 | Bolt- X 3/4" Hex Head Self-locking | 6 | Call for availability |
Mainshaft Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 60-463-8 | Oil Seal -malnshaft Rear Bearing Cap | 1 | $18.84 | Add to Cart | |
| H-2 | 63-463-1 | Oil Seal (ford Only) | 1 | $28.23 | Add to Cart | |
| H-4 | Cap -mainshaft Rear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| H-6 | 47-223 | ·3 Gasket-mainshaft Rear Bearing Cap | 1 | Call for availability | ||
| H-6 | 53-223-1 | Gasket-mainshaft Rear Bearing Cap | Call for availability | |||
| H-6 | 60-223-7 | Gasket-mainshaft Rear Bearing Cap (ford Only) | 1 | Call for availability | ||
| H-7 | 545001 | Bolt-V2 " -13 X 1¥4" Hex Head Self Locking | 4 | $2.49 | Add to Cart | |
| and | 545008 | Bolt-% " -1 1 X 1V4" Hex Head Self Locking (for Brake Cap) | 2 | Call for availability | ||
| and | 55-334-1 | Plug -speedometer Hole (use W/o Driven Gear) | 1 | $88.44 | Add to Cart | |
| N.S. | 545021 | Plug -speedometer Outlet (electronic Bearing Caps) | 1 | $18.89 | Add to Cart | |
| H-9 | 55-454-1 | Sleeve -length 1 Y4" Speedometer Driven Gear | 1 | No longer available - Call for replacement | ||
| H-9 | 44-473-1 | Sleeve -length 5 " Speedometer Driven Gear | 1 | Call for availability | ||
| H-9 | 97-454 | ·2 ·1X Sleeve -length 1 V4" Speedometer Driven Gear (with Seal) | 1 | Call for availability | ||
| H-10 | 545002 | ·1 Bolt-countershaft Rear Bearing Cap | 4 | $1.98 | Add to Cart |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 59-22 | ·1 Cap -countershaft Rear Bearing | 1 | Call for availability | ||
| K-2 | 330564 | ·3 Lift Hook-countershaft Rear Bearing Cap | 1 | Call for availability |
Technologies Clutch Housing Dimensions T21 O-ES62-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 46-518-21 | 1XC102C-477 | 3 SY1s" 1 " 545001 | -5 | Call for availability | ||
| 46-518 | 23C46-518-18-1 | 2 5% " 1 " 545001 | Call for availability | |||
| 47-518 | 5C47-518 | -6 2 6112" 1 Ya" 211Y32" 2112" 545001 | -6 | Call for availability | ||
| 47-518-10-1X | C47-518-11 | 2 43J4" 545001 | -5 | Call for availability | ||
| 59-518-1 | 1X128C-20 | Special 2 6% " 1 " 33J4" 1112" 545001 | -1 | Call for availability | ||
| 312256X* | 128C-20C46-518 | -16 2 6 " 1 " 3% " 21f2" 545001 | -5 | Call for availability | ||
| 312830X | 128C-20C | 1 02C-530-1 2 6Y1e" 1 " 21%2" 2% " 545001 | -5 | Call for availability |
Corporation Shifter Housing Assembly T210-ES62 .S
Item R-22Item R-21Item R-8Item R-2Item R-6Item R-9Item R-23Item K-3Item R-20Item K-2Item R-19Item R-1Item R-25Item R-8Item K-1Item R-17Item R-18Item R-7Item R-5Item R-4Item R-11Item R-3Item R-9Item R-6Item R-10Item R-15Item R-6Item R-14Item R-13Item R-6Item R-12Item R-16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-1 | 47-16-1-1 | Shifter Housing | 1 | $450.25 | Add to Cart | |
| R-2 | 47-67-1 | Rod - 1 St And Reverse Shift | 1 | $52.73 | Add to Cart | |
| R-3 | 59-66-1-1X | Fork & Clip Assy. - 1 St And Reverse Shift | 1 | No longer available - Call for replacement | ||
| R-4 | Fork- 1 St And Reverse Shift | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-5 | 46-486-2 | Clip · Shift Fork | 2 | $1.78 | Add to Cart | |
| R-6 | 330639 | Bolt- 3/8"-24 X 3/4" Square Head Self-locking | 4 | $10.21 | Superseded by 745DAdd to Cart | |
| R-7 | 53-354-1 | Bracket- 1 St And Reverse Shift Rod | 1 | $243.80 | Add to Cart | |
| R-8 | 62-438-2 | Pin - 1 St And Reverse Shift Finger Plunger | 2 | $6.27 | Add to Cart | |
| R-9 | 50-80-1 | Ball - Shift Rod Poppet And Interlock | 4 | $2.70 | Add to Cart | |
| R-10 | 46-67-5 | Rod - 2nd And 3rd Shift | 1 | $78.92 | Add to Cart | |
| R-11 | 277-SP | Pin - Interlock | 1 | $1.93 | Add to Cart | |
| R-12 | 53-66-3-1X | Fork- 2nd And 3rd Shift | 1 | $398.71 | Superseded by 536632XAdd to Cart | |
| R-13 | Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| R-14 | 53-486-1 | Clip- Shift Fork | 2 | $12.30 | Add to Cart | |
| R-15 | 47-67-2 | Rod -4th And 5th Shift | 1 | $60.87 | Add to Cart | |
| R-16 | 53-66-1 | Fork -4th And 5th Shift | 1 | $1,191.84 | Superseded by 536611XAdd to Cart | |
| R-17 | 545021 | Plug - Interlock | 1 | $18.89 | Add to Cart | |
| R-18 | 330894 | Expansion Plug - 3/4" (aluminum) | 3 | Call for availability | ||
| R-19 | 50-80-4 | Ball - Backup Switch | 2 | $7.01 | Add to Cart | |
| R-20 | 330366 | Plug - Backup Switch Hole | 1 | $15.51 | Add to Cart | |
| R-21 | 50-80-1 | Ball - Shift Rod Poppet | 3 | $2.70 | Add to Cart | |
| R-22 | 47-72-1 | Spring - Shift Rod Poppet | 3 | $3.15 | Add to Cart | |
| R-23 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| R-25 | 38P-1 | Retainer- Shift Finger Plunger 1 St And Reverse | 1 | Call for availability | ||
| K-1 | 47-155-1 | Gasket · Shifter Housing | 1 | $12.59 | Add to Cart | |
| K-2 | 330564-1 | Lift Hook- Shifter Housing | 2 | $3.15 | Add to Cart | |
| K-3 | 545002 | Bolt- 3/8"-16 X 1 " Hex Head Self-locking | 6 | $1.98 | Add to Cart | |
| and | 545002-4 | Bolt- 3/8"-16 X 1 1/8" Hex Head Self-locking (for Lift Hook) | 2 | $6.93 | Add to Cart | |
| N .S | 313262X | Neutral Start Switch Actuator Kit (see Tab Bills) | 1 | Call for availability | ||
| N .S | 47-16-1-SX | 62 -72 -8 60# 2Y64 | version * (see the manual's footnote) | Call for availability | ||
| N .S | 47-16-1 | -1 1X 30-72 -6 28# 2% | version * (see the manual's footnote) | $450.25 | Superseded by 471611Add to Cart | |
| N .S | 47-16-1-12X | 82-72-3 15# 2% | version * (see the manual's footnote) | Call for availability |
Parts Listed Below Are Not Included in Assembly
Item L-14Item L-6Item L-1Item L-11Item L-10Item L-15Item L-5Item L-13Item L-12Item L-10Item L-9Item L-8Item L-7Item L-3Item L-2Item K-8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 47-16-8-1X | Cover Assembly (casting No 62-16-78) 1 | 1 | Call for availability | |||
| 47-16-9-1X | Cover Assembly (casting No 62-16-78-1) | 1 | Call for availability | |||
| 47-16-12-1X | Cover Assembly (casting No 62-16-128) | 1 | Call for availability | |||
| L-1 | Remote Control Cover 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| N .S | 82-24-3 | Bushing -remote Control Cover 4 4 | 4 4 | $21.66 | Add to Cart | |
| L-2 | 310647X | Shift Finger Rod & Bracket Assembly 1 | 1 | Call for availability | ||
| L-2 | 310879X | Shift Finger Rod & Bracket Assembly | 1 | Call for availability | ||
| L-2 | 312003X | Shift Finger Rod & Bracket Assembly | 1 | Call for availability | ||
| L-3 | Rod -shift Finger 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-4 | Bracket-shift Finger Rod 1 | 1 1 1 | Not sold separately - order the sub-assembly it belongs to | Call for availability | ||
| L-5 | 500007-19 | Woodruff Key-no 11 (part Of Assembly) 1 | 1 1 1 | Call for availability | ||
| L-6 | 62-6-24 | Finger-inner Shift 1 | 1 1 1 | Call for availability | ||
| L-7 | 545011 | Bolt-7f1 " -20x71a" Hex Head Self-locking 2 2 | 2 2 | $16.57 | Add to Cart | |
| L-8 | 82-65-5 | Rod -remote Control Shift 1 | 1 1 1 | $22.31 | Add to Cart | |
| L-9 | 82-6-7 | Finger-outer Shift 1 | 1 1 1 | $171.09 | Add to Cart | |
| L-10 | 28P-19 | Seal -remote Control Shift Rod 2 2 | 2 2 | Call for availability | ||
| L-11 | 10380-SF | U -joint Assembly-control 1 1 | 1 1 | Call for availability | ||
| L-12 | 82-118-1 | Gasket-aperture Cover 1 | 1 1 1 | Call for availability | ||
| L-13 | 82-96-1 | Aperture Cover 1 | 1 1 1 | Call for availability | ||
| L-14 | 545005-1 | Bolt-Sf1 " -1 8x% " Hex Head Self-locking 4 4 | 4 4 | Call for availability | ||
| L-15 | 500166-16 | Expansion Plug-1111 " 1 | 1 1 1 | Call for availability | ||
| N .S | 311903X | Boot Kit-remote Control | 1 | Call for availability | ||
| N .S | 82-483-1 | Boot | 1 | Call for availability | ||
| N .S | 82-483-2 | Boot-cup Type | 1 | Call for availability | ||
| N .S | LW-3-9 | Lockwire 3 | Call for availability | |||
| K-4 | 62-155-13 | Gasket-shifter Housing To Control Cover 1 | 1 1 1 | $9.44 | Add to Cart | |
| K-8 | 545028-4 | Bolt-7f1 " -14x1 1f4 "hexheadself-locking 4 4 | 4 4 | No longer available - Call for replacement |
Remote Control Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311528-7X | Remote Control Cover Assembly (see Tab Bills) | 1 | Call for availability | |||
| L-1 | 47-16-13 | Remote Control Cover | 1 | Call for availability | ||
| L-16 | 500007-17 | Woodruff Key #91 | 1 | Call for availability | ||
| L-17 | 62-65-26 | Shaft-inner Shift Finger | 1 | Call for availability | ||
| L-18 | 62-6-30 | Shift Finger-inner | 1 | Call for availability | ||
| L-19 | 545063 | Bolt-7:46 " -20 X 13ft6 Hex Head Self-locking | 1 | $6.27 | Add to Cart | |
| L-20 | 62-16-92 | End Cover-remote Control | 1 | Call for availability | ||
| L-21 | 310926X | Cam And Stud Assembly-selection Lever | 1 | Call for availability | ||
| L-22 | 62-6-59 | Lever-upper Selection | 1 | Call for availability | ||
| L-23 | 500381-4 | Nut-v ,a " -20 | 1 | Call for availability | ||
| L-24 | 62-65-27 | Rod -outer Shift Lever | 1 | Call for availability | ||
| L-25 | 47-6-1 | Lever--outer Shift | 1 | Call for availability | ||
| L-26 | 545002-7 | Bolt-o/8 " -16 X 11 12 | 1 | version * (see the manual's footnote) | $2.33 | Add to Cart |
| L-27 | 258-W | Washer-shift Lever Rod | 2 | Call for availability | ||
| L-28 | 62-381-13 | Snap Ri Ng | 1 | Call for availability | ||
| L-29 | 62-155-11 | Gasket-end Cover | 1 | Call for availability | ||
| L-30 | 500357-10 | Lock Washer 5/ta | 1 | version * (see the manual's footnote) | Call for availability | |
| L-31 | 545005-2 | Bolt-5/ta"-18 X 7/a | 2 | version * (see the manual's footnote) | $1.66 | Add to Cart |
| L-32 | 500397-22 | Bolt-Sfta"-18 X 2V2 | 1 | version * (see the manual's footnote) | Call for availability |
Parts Listed Below Are Not Included in Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-4 | 62-155-13 | Gasket-shifter Housing To Control Cover | 1 | $9.44 | Add to Cart | |
| K-8 | 545028-4 | Bolt-7!t " -14 X 1% " Hex Head Self-locki Ng | 4 | No longer available - Call for replacement | ||
| P-1 | 390-27 | Handle -shift Lever 1 1 | 1 | Call for availability | ||
| P-2 | 250-1121 | Shift Lever 26V4" Straight 1 | Call for availability | |||
| P-2 | 250-1122 | Shift Lever 29Y4" Straight | 1 | Call for availability | ||
| P-2 | 250-1621 | Shift Lever 30 " Straight 1 | 1 | Call for availability | ||
| P-2 | 250-1537 | Shift Lever 1 | Call for availability | |||
| P-2 | 250-2464 | Shift Lever-lower End (3 .5") r-1 | 1 | Call for availability | ||
| P-2 | 47-16-3X | Dome Assembly-2% " Overall Height 1 1 | 1 | Call for availability | ||
| P-2 | 47-16-SX | Dome Assembly-3% " Overall Height 1 1 1 | 1 | Call for availability | ||
| P-3 | 286-SP | Pin -shift Lever Collar 1 1 1 1 | 1 1 | $2.95 | Add to Cart | |
| P-4 | 55Q-7 | Collar-compression 1 1 1 1 | 1 1 | $3.15 | Add to Cart | |
| P-5 | 560-25 | Spring -cqmpression 1 1 1 1 | 1 1 | Call for availability | ||
| P-6 | 54Q-13 | Cup -compression 1 1 1 1 | 1 1 | No longer available - Call for replacement | ||
| P-7 | 690-6 | Washer-friction 1 1 1 1 | 1 1 | Call for availability | ||
| P-8 | 47-16-3 | Dome -shift Lever 1 | 1 | Call for availability | ||
| P-8 | 47-16-5 | Dome -shift Lever 1 1 1 | 1 | $127.15 | Add to Cart | |
| P-9 | 62-381-7 | Snap Ring -rock Shaft " 1 1 1 1 | 1 1 | $8.10 | Add to Cart | |
| P-10 | 53Q-15 | Shaft-shift Lever Rock 1 1 1 1 | 1 1 | $6.27 | Add to Cart | |
| K-8 | 545002 | X 1Va" Hex Head Self-locking 4 4 4 4 | 4 4 | Call for availability |

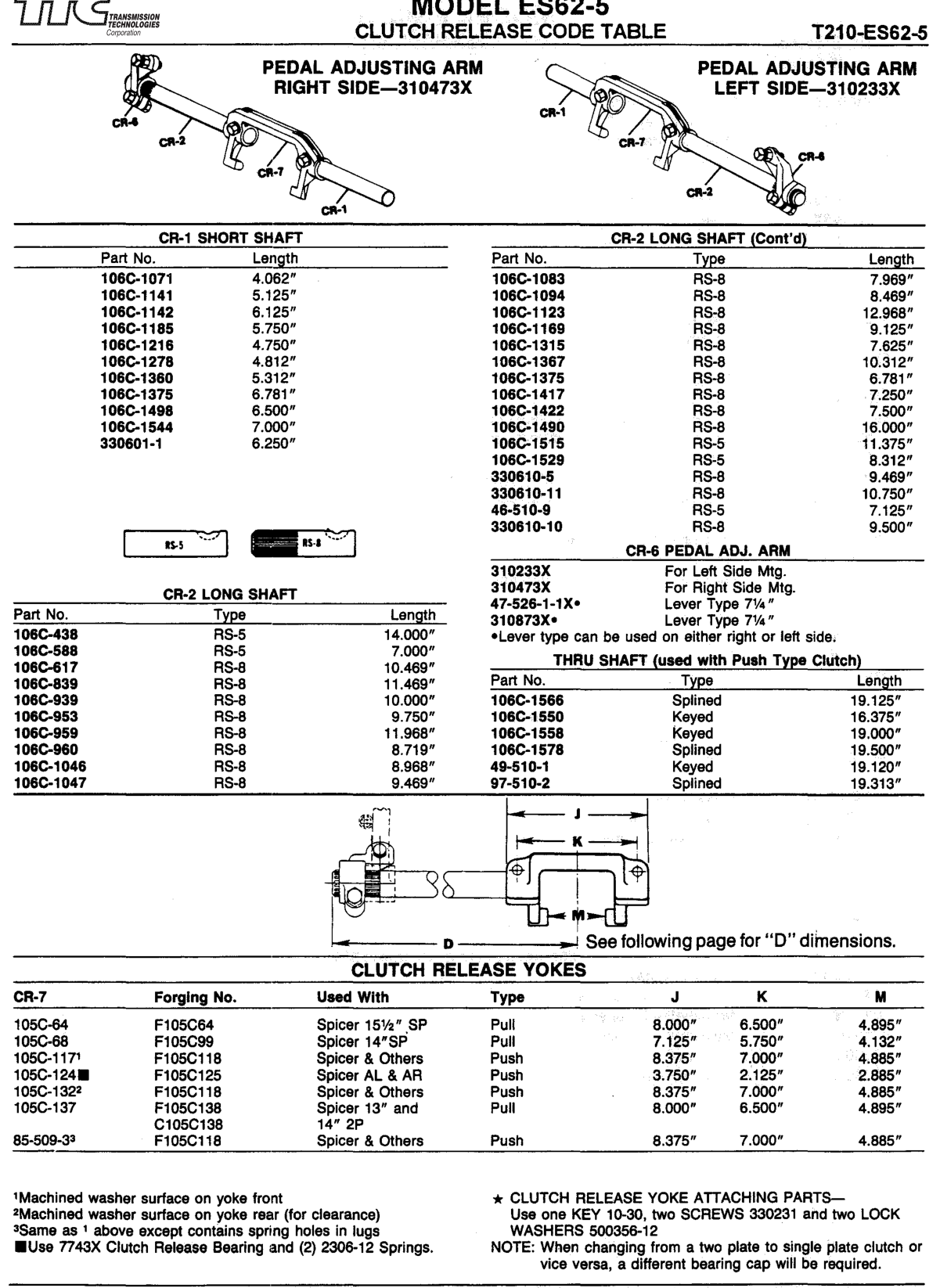

Clutch Release Code Table
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 158 | 1050-681060 | .1278 1060-939 310233X 12.125 76 1050-137 1060-1185 1060-1515 - | 13 .875 | Call for availability | ||
| 16 1050. | 1171060-1071 | 1060-939 310233X 12.750 77 1050 ·137 1060-1185 1060-1529 - | 10.812 | Call for availability | ||
| 17 1050-117 | 1060-1071 | 1060-1094 310233X 11 .219 78 1050-137 1060-1185 330610-5 - | 11 .969 | Call for availability | ||
| 18 1050-117 | 1060-1142 | 1060-939 310233X 12.750 78A 1050-137 1060-1185 46 ·510-9 - | 9.625 | Call for availability | ||
| 19 1050-117 | 1060-1185 | 1060-438 - 16.750 79 1050-137 1060-1216 1060-617 310233X | 12.969 | Call for availability | ||
| 20 1050-117 | 1060 | ·1185 1060-617 310233X 13 .219 80 1050-137 1060 ·1278 1060-438 - | 16.500 | Call for availability | ||
| 21 1050-117 | 1060-1185 | 1060-839 47-526-1 ·1X 14.219 81 1050-137 1060-1278 1060-588 - | 9.500 | Call for availability | ||
| 22 1050-117 | 1060-1185 | 1060-939 310233X 12.750 82 1050-137 1060-1278 1060-588 310233X | 9.500 | Call for availability | ||
| 23 1050-117 | 1060-1185 | 1060-953 310873X 12.500 83 1050-137 1060-1278 1060-617 310233X | 12.969 | Call for availability | ||
| 24 1050-117 | 1060-1185 | 1060-960 310233X 11 .469 84 1050-137 1060-1278 1060 ·939 310233X | 12.500 | Call for availability | ||
| 25 1050-117 | 1060-1185 | 1060-1046 310233X 11 .718 84A 1050-137 1060-1278 1060-939 310473X | 12.500 | Call for availability | ||
| 26 1050-117 | 1060-1185 | 1060-1047 310233X 12.219 85 1050-137 1060-1278 1060-939 310873X | 12.500 | Call for availability | ||
| 27 1050-117 | 1060 | ·1185 1060-1083 - 10.719 86 1050-137 106C-1278 1060-960 310233X | 11 .219 | Call for availability | ||
| 28 1050-117 | 1060-1185 | 1060-1083 310233X 10.719 87 1050-137 1060-1278 1060-1046 - | 11 .468 | Call for availability | ||
| 29 1050-117 | 1060-1185 | 1060-1083 310473X 10.719 88 1050-137 1060-1278 1060-1046 310233X | 11 .468 | Call for availability | ||
| 30 1050-117 | 1060-1185 | 1060-1094 310233X 11 .219 89 1050 ·137 1060-1278 1060-1047 - | 11 .969 | Call for availability | ||
| 31 1050-117 | 1060-1185 | 1060-1094 310873X 11 .219 90 1050-137 1060-1278 1060-1047 310233X | 11 .969 | Call for availability | ||
| 32 1050-117 | 1060-1185 | 1060-1169 310233X 11 .875 91 1050-137 1060. .1278 1060-1083 310233X | 10.469 | Call for availability | ||
| 33 1050-117 | 1060-1185 | 1060-1315 - 10.375 91A 1050-137 1060-1278 1060-1083 310473X | 10.469 | Call for availability | ||
| 34 1050-117 | 1060-1185 | 1060-1315 310233X 10.375 92 1050-137 1060-1278 1060-1094 310233X | 10.969 | Call for availability | ||
| 35 1050-117 | 1060-1185 | 1060-1315 47-526-1 -1X 10.375 92A 1050-137 1060-1278 1060. .1315 310233X | 10.125 | Call for availability | ||
| 35A 1050-117 | 1060-1185 | 1060 ·1375 310873X 9.531 93 1050-137 1060. .1278 1060. .1375 310233X | 9.281 | Call for availability | ||
| 36 105C-117 | 1060-1185 | 1060-1417 310233X 10.000 94 1050-137 1060-1278 1060-1422 310233X | 10.000 | Call for availability | ||
| 37 1050-117 | 1060-1185 | 1060-1417 310873X 10.000 95 1050-137 1060-1278 1060-1529 - | 10.812 | Call for availability | ||
| 38 105C-117 | 1060-1185 | 1060-1490 310233X 18 .750 96 1050-137 1060-1360 1060-1083 - | 10.469 | Call for availability | ||
| 39 1050-117 | 1060-1278 | 1060-939 310233X 12.750 96A 1050-137 1060-1360 1060-1417 310233X | 9.750 | Call for availability | ||
| 40 1050-117 | 1060-1278 | 1060-960 310873X 11 .469 97 1050-137 1060-1360 1060-1422 310233X | 10.000 | Call for availability | ||
| 41 1050-117 | 1060-1278 | 1060-1047 310233X 12.219 98 1050-137 1060-1375 1060-438 310233X | 16.500 | Call for availability | ||
| 42 1050-117 | 1060-1278 | 1060-1094 310233X 11 .219 99 1050-137 1060-1498 106C-438 - | 16.500 | Call for availability | ||
| 43 1050 | 1171060 | .1278 106C-1315 310233X 10.375 100 1050-137 1060-1498 1060-617 310233X | 12.969 | Call for availability | ||
| 44 1050-117 | 1060 | .1278 1060-1367 310233X 13 .062 101 1050-137 1060-1498 1060-617 310473X | 12.969 | Call for availability | ||
| 45 1050-117 | 1060 | .1360 1060-1083 310233X 10.719 102 1050-137 1060. .1498 1060-939 310233X | 12.500 | Call for availability | ||
| 46 1050-117 | 1060-1360 | 1060-1315 310233X 10.375 103 1050-137 1060-1498 1060-939 310473X | 12.500 | Call for availability | ||
| 46A 1050-117 | 1060-1360 | 330610-10 - 12 .250 104 1050-137 1060-1498 1060-953 310233X | 12.250 | Call for availability | ||
| 49 1050-124 | 1060-1185 | I 1 osc-438 14.313 107 1050-137 1060-1498 1060-1047 - | 11 .969 | Call for availability | ||
| 53 1050-132 | 1060-1185 | 1060. .1047 310233X 9 .782 112 1050-137 330601 ·1 1060-939 310233X | 12.500 | Call for availability | ||
| 54 1050-132 | 106C | ·1185 1060-1083 310233X 8 .282 112A 85-509 ·3 1060 ·1278 1060-939 310233X | 12.750 | Call for availability | ||
| 55 1050. | 1321060-1185 | 1060-1417 310873X 7 .563 113 85-509 ·3 1060-1360 1060-1417 310233X | 10.000 | Call for availability | ||
| 56 1050-132 | 1060-1185 | 46-510-9 - 7 .438 114 85-509-3 Thru Shaft 1060-1578 310233X | Call for availability | |||
| 57 1050 | 1321060-1278 | 46-510-9 - 7 .438 114A 85-509-3 Thru Shaft 1060-1578 310473X | Call for availability | |||
| 58 1050-137 | 1060-1141 | 1060-1169 310233X 11 .625 115 85-509 ·3 Thru Shaft 1060-1578 310873X | Call for availability | |||
| 59 1050-137 | 1060-1185 | 1060-438 - 16.500 116 312916 Thru Shaft 97-510-2 - | Call for availability |
THRU Shaft (used with Push Type Clutch}
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 106C-10714-062 | 106C-1083 RS-8 7 | .969" | Call for availability | |||
| 106C-11415-125 | 106C-1094 RS-8 8 | .469" | Call for availability | |||
| 106C-11426-125 | 106C-1123 RS-8 12 | .968" | Call for availability | |||
| 106C-11855-750 | 106C-1169 RS-8 9.125 | version * (see the manual's footnote) | Call for availability | |||
| 106C-12164-750 | 106C-1315 RS-8 7.625 | version * (see the manual's footnote) | Call for availability | |||
| 106C-12784-812 | 106C-1367 RS-8 10 | .312" | Call for availability | |||
| 106C-13605-312 | 106C-1375 RS-8 6 | .781 " | Call for availability | |||
| 106C-13756-781 | 106C-1417 RS-8 7 | .250" | Call for availability | |||
| 106C-14986-500 | 106C-1422 RS-8 7.500 | version * (see the manual's footnote) | Call for availability | |||
| 106C-15447-000 | 106C-1490 RS-8 16 | .000" | Call for availability | |||
| 330601-16-250 | 106C-1515 RS-5 11 | .375" | Call for availability | |||
| 330610-5 | RS-8 9 | .469" | $80.92 | Add to Cart | ||
| 330610-11 | RS-8 10 | .750" | Call for availability | |||
| 46-510-9 | RS-5 7 | .125" | Call for availability | |||
| 330610-10 | RS-8 9 | .500" | $88.67 | Add to Cart | ||
| 310233X | For Left Side Mtg | Call for availability | ||||
| 310473X | For Right Side Mtg. | Call for availability | ||||
| 47-526-1 | -1X• Lever Type 7V4 | version * (see the manual's footnote) | Call for availability | |||
| 310873X | Lever Type 7V4 | version * (see the manual's footnote) | Call for availability | |||
| 106C-438 | RS-514-000 | •lever Type Can Be Used On Either Right Or Left Side. | Call for availability | |||
| 106C-939 | RS-810-000 | 106C-1566 Splined 19.125 | version * (see the manual's footnote) | Call for availability | ||
| 106C-953 | RS-89-750 | 106C-1550 Keyed 16 .375 | version * (see the manual's footnote) | Call for availability | ||
| 106C-959 | RS-811-968 | 106C-1558 Keyed 19.000 | version * (see the manual's footnote) | Call for availability | ||
| 106C-960 | RS-88-719 | 106C-1578 Splined 19.500 | version * (see the manual's footnote) | Call for availability | ||
| T21O | .fS62 -5 Basic Overhaul Kits | Corporation | Call for availability | |||
| 500008-37 | Woodruff Key- #f | 4 | $2.76 | Add to Cart | ||
| 53-205-1 | Washer- Mainshaft | 1 | $4.42 | Add to Cart | ||
| 501200 | Nut - Mainshaft | 1 | $15.74 | Add to Cart | ||
| 313401-13X | Thrust Washer Kit | 1 | $169.55 | Add to Cart | ||
| 313429-6X | Shifter Housing Repair Parts Kit | 1 | Call for availability | |||
| 313432-31X | Minor Overhaul Kit | 1 | $589.11 | Add to Cart | ||
| 550375 | Countershaft- Cup | 2 | Call for availability | |||
| 550927 | Countershaft- Cone | 2 | Call for availability | |||
| 550886 | Reverse Idler Shaft | 2 | Call for availability | |||
| 550929 | Drive Gear And Mainshaft Rear- Cup | 2 | $28.81 | Add to Cart | ||
| 550930 | Drive Gear And Mainshaft Rear- Cone | 2 | $64.20 | Add to Cart | ||
| 550931 | Drive Gear - Pocket | 1 | $34.78 | Add to Cart | ||
| 550932 | 1 St And Reverse Mainshaft Needle Bearing Assy. | 2 | $40.03 | Add to Cart | ||
| 59482-1 | -1X Needle Roller Bearing And Spacer Kit | 1 | Call for availability | |||
| 60-463-8 | Oil Seal - Mainshaft Rear | 1 | $18.84 | Add to Cart | ||
| 60-463-10-1X | Oil Seal • Drive Gear | 1 | $37.74 | Add to Cart | ||
| 63-463-1 | Oil Seal - Mainshaft Rear (ford Only) | 1 | $28.23 | Add to Cart | ||
| 545007 | Bearing Lubricant | 1 | Call for availability | |||
| 545080-1 | Loctite | 1 | Call for availability | |||
| 2770 | Bearing Lube Instructions | 1 | Call for availability | |||
| 2783 | Loctite Application Instructions For Mainshaft Nut | 1 | Call for availability | |||
| 47-228-1 | -1 Adjusting Shim - Mainshaft Rear | 9 | Call for availability | |||
| 47-228-2-2 | Shim - Mainshaft Front | 1 | Call for availability | |||
| 47-228-2-10 | Spacer- Mainshaft Rear | 1 | $33.38 | Superseded by 3132403XAdd to Cart | ||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 313438X | Shim Kit- Counters Haft Rear | 1 | $6.73 | Add to Cart | ||
| 59-482-1 | -1X | Call for availability | ||||
| 2360 | Service Manual | Call for availability | ||||
| 974-W | Countershaft- Reverse Idler | 2 | Call for availability | |||
| 1016-W | Mainshaft- 4th Speed | 1 | Call for availability | |||
| 330818 | Mainshaft- 3rd And 4th Speed | 1 | $35.44 | Superseded by 67471Add to Cart | ||
| 330866 | Mainshaft - 1 St Speed | 1 | Call for availability | |||
| 330867 | Mainshaft - Reverse | 1 | Call for availability |
Corporation Basic Overhaul KITS T210-ES62-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313429-6X | Shifter Housing Repair Parts Kit | 1 | Call for availability | |||
| 50-80-1 | Ball - Shift Rod Poppet And Interlock | 7 | $2.70 | Add to Cart | ||
| 50-80-4 | Ball - Backup Switch | 2 | $7.01 | Add to Cart | ||
| 62-438-2 | Plunger- 1 St And Reverse | 2 | Call for availability | |||
| 47-72-1 | Spring Shift Rod Poppet | 3 | $3.15 | Add to Cart | ||
| 62-72-8 | Spring - Shift Finger Plunger 1 St And Reverse | 1 | No longer available - Call for replacement | |||
| 312475-28X | Gasket Kit | 1 | $72.07 | Add to Cart | ||
| 82-118-1 | Remote Control • Aperture Cover | 1 | Call for availability | |||
| 47-155-1 | Shifter Housing | 1 | Call for availability | |||
| 62-155-13 | Control Cover | 1 | $9.44 | Add to Cart | ||
| 47-223-1 | Drive Gear Bearing Cap | 1 | $6.27 | Add to Cart | ||
| 47-223-2 | Countershaft Rear Bearing Cap | 1 | Call for availability | |||
| 47-223-3 | Mainshaft Rear Bearing Cap | 1 | $5.49 | Add to Cart | ||
| 47-223-4 | Mainshaft Rear Bearing Cap -for Brake Mounting | 1 | Call for availability | |||
| 47-223-5 | Countershaft Front Bearing Cap | 1 | Call for availability | |||
| 53-223-1 | Mainshaft Rear Bearing Cap - For Brake Mounting | 1 | Call for availability | |||
| 63-223-7 | Mainshaft Rear Bearing Cap - For Ford Only | 1 | Call for availability | |||
| 47-352-1 | Clutch Housing | 1 | $12.59 | Add to Cart | ||
| 97-324-1-1X | P .t.o (6 Holes) Kit | 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | Call for availability | ||
| 97-324-2-1X | P .t.o (8 Holes) Kit | 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | Call for availability | ||
| 313024-18X | Snap Ring Kit | 1 | $106.29 | Add to Cart | ||
| 27-381-5 | Mainshaft | 2 | Call for availability | |||
| 46-381-1 | Countershaft And Mainshaft | 2 | Call for availability | |||
| 53-381-2 | Mainshaft | 2 | Call for availability | |||
| 59-381-2 | Countershaft 4th Speed | Call for availability | ||||
| 313438X | Shim Kit- Countershaft Rear | 1 | $6.73 | Add to Cart | ||
| 47-228-3-1 | Shim - Rear Bearing | 4 | Call for availability | |||
| 2759 | Bulletin - Drive Gear Replacement | 1 | Call for availability | |||
| 2789 | Bulletin - Baffle And Shim Kit | 1 | Call for availability |
Clutch Housing Rei Drive Gear
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| T210-ES62-5 | Tabulated Bills · Of Material | Corporation | Call for availability |
Corporation Tabula TED Bills OF Material T210-ES62-5
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 | 53-19-26-2X | 53-452-5 47-16-1 -sx | Call for availability | |||
| -2 | 53-19-24-2X | 53 -452 ·5 47-16-1 -sx | $307.54 | Add to Cart | ||
| -1 | 53-19-24-2X | 53-452-5 47-16-1 -sx | $307.54 | Add to Cart | ||
| -2 | 53-19-26-2X | 53-452-5 47-16-1 -sx | Call for availability |
No parts match that search. Try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission ES62-5A, with every part in the manual matched to our live inventory. We stock 125 of the 350 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the ES62-5A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | ES62-5A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 28 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
