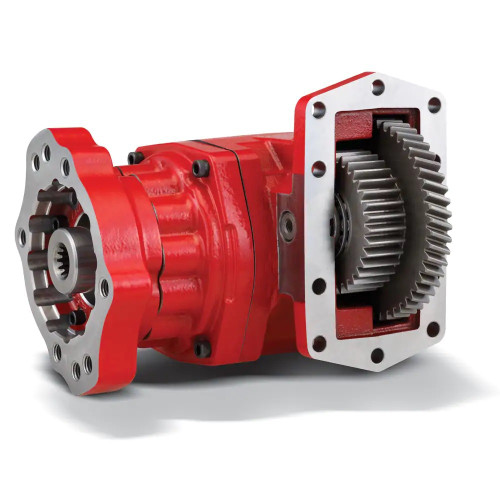

The Chelsea 288GCFJP-M3RF is a 288 Series Heavy Duty Constant Mesh Power Take-Off built on the proven 281 Series platform. This 10-bolt PTO carries a continuous duty torque rating of up to 390 lb-ft and is engineered for demanding applications including refuse, vacuum, aerial, and snow and ice equipment. The 288 Series features a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and a positive stop on driveline outputs that protects oil seals from coupling damage. The round output shaft (1-inch, 1/4-inch key) pairs with nine available speed ratios. Wet Spline lubrication technology is incorporated to extend pump shaft life. Available from Pro Gear and Transmission.
Features
10-Bolt constant mesh mounting configuration
Continuous duty torque rating up to 390 lb-ft
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing between housing and bearing cap for improved clamp load
Positive stop on driveline outputs eliminates oil seal damage from shaft couplings
Wet Spline lubrication option extends pump shaft life
Round output shaft: 1-inch diameter with 1/4-inch key
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft, 1-inch diameter, 1/4-inch key
- Continuous Duty Torque: Up to 390 lb-ft
- Intermittent Torque Rating: 340 lb-ft
- Output Power: 56+ HP (41-50 kW)
- Lubrication: Pressure Lube with Wet Spline option available
- Bearing Cap Material: Ductile Iron
- Housing Material: Cast Iron
- Speed Ratios Available: Nine
- Application Markets: Refuse, Vacuum, Aerial, Snow and Ice
Additional Information
The 288 Series replaces the Chelsea 287 Series PTO. Key engineering improvements over the 287 Series include ductile iron bearing caps (117% stronger), an o-ring sealing configuration to reduce vibrational effects from modern engine designs, and rotatable cast iron flanges that reduce interference clearance issues. A hose is included with the unit. Parker reference documents for this series include the 281/288 Series Parts List (HY25-2281-M1/US) and the 267/281/288/871/878 Series Owner's Manual.Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
