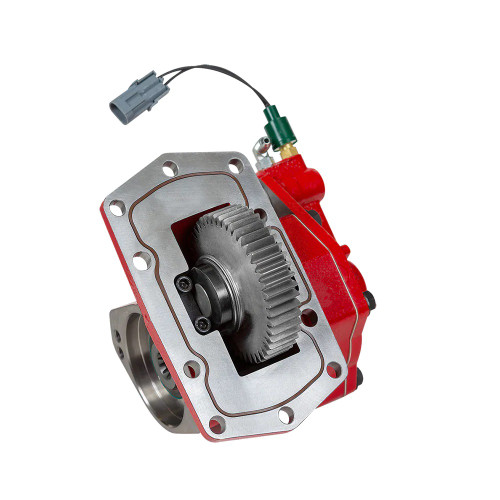

The Chelsea 210FMMFP-K455 or 210FMMFPK455 is a 210 Series Power Take-Off designed for the Ford 10R140 TorqShift 10-speed automatic transmission. It uses hydraulic shift and mounts via a Ford 10-bolt pattern. The 210 Series carries an intermittent torque rating of up to 235 lb-ft and uses a 46-tooth spur input gear (MF designation) with a 46/36 gear ratio delivering 144% output speed. Internal lubrication is built in. The series incorporates Chelsea's patented noise-suppression system and Electronic Overspeed Control, and is compatible with both 2WD and 4WD applications. Typical uses include service trucks, tow and recovery, small dump trucks, and aerial equipment. Call us to confirm proper fit for your specific truck and pump configuration.
Features
Chelsea 210 Series PTO, part number 210FMMFP-K455 or 210FMMFPK455
Designed for Ford 10R140 TorqShift 10-speed automatic transmission, 2WD and 4WD
Hydraulic shift with Ford 10-bolt mounting pattern
46-tooth spur input gear (MF) with 46/36 gear ratio - 144% output speed
Up to 235 lb-ft intermittent torque capacity
Patented noise-suppression system with Electronic Overspeed Control (EOC)
Internal lubrication and integrated cartridge valve with single hose connection
Tech Specs
- Product Series: 210
- Shift Type: Hydraulic
- Mounting Type: Ford 10-Bolt
- Input Gear: 46-Tooth Spur (MF designation)
- Gear Ratio: 46/36 - 144% Output Speed
- Intermittent Torque Rating: Up to 235 lb-ft (319 Nm)
- Continuous Operation: No
- Lubrication: Internal
- Compatibility: Ford 10R140 TorqShift 10-Speed Automatic Transmission
- Application: 2WD and 4WD
Additional Information
The Chelsea 210 Series pairs with the Ford 10R140 transmission to serve demanding work-truck applications including tow and recovery, service bodies, small dump trucks, fire and rescue, aerial, and water drilling equipment. Parker Chelsea's single hose connection and integrated cartridge valve and pressure switch are designed to reduce installation time. The 210 Series is referenced in the 210/810 Series Owner's Manual and 210 Series Parts List published by Parker Chelsea. For fit verification or application questions, contact Pro Gear and Transmission directly.Parts Manual: Chelsea 210 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
