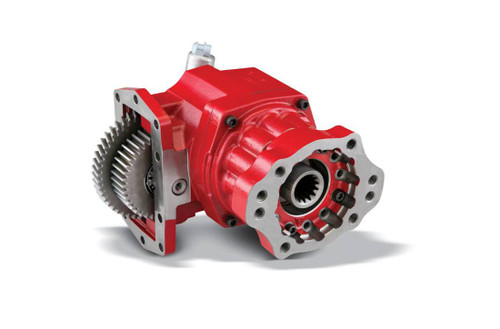

281GCFJP-B3SV Chelsea PTO Assembly

Chelsea

Listing Price: $4,804.91
Sale Price: $3,517.19

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GCFJPB3SV
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281GCFJP-B3SV or 281GCFJPB3SV is a 281 Series hydraulically shifted hot-shift Power Take-Off built for automatic transmissions with a 10-bolt aperture, commonly fitted to Allison transmissions. The 281 Series is an evolution of the 280 Series, adding a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and 80% thicker steel discs in the clutch pack to resist premature tooth wear. The series supports nine speed ratios spanning low and high ranges, and the rotatable cast-iron flanges reduce interference issues at the pump mount. A wet spline lubrication option is available that provides 7 to 10 times greater shaft life. Call us to confirm proper fit for your specific transmission and application.

Features

281 Series hydraulic (PowerShift) hot-shift PTO for 10-bolt automatic transmission apertures, commonly Allison
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap improves clamp load and resists vibrational effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Rotatable cast-iron flanges reduce pump clearance interference
Wet spline lubrication option delivers 7 to 10 times greater shaft life
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic Hot-Shift)
  • Compatible Transmission Manufacturer: Allison
  • Continuous Operation: Yes
  • Series Continuous Torque Rating: 390 lb-ft (529 Nm) - verify actual rating on application pages
  • Speed Ratios: Nine, including low and high
  • Series Output Power: 56+ HP (51+ kW)
  • Series Shaft Power: 37 HP at 500 RPM; 74 HP at 1000 RPM
  • Lubrication: Pressure Lube or Wet Spline options
  • Part Number: 281GCFJP-B3SV or 281GCFJPB3SV

Additional Information

Chelsea PTO 281 Series model break down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
