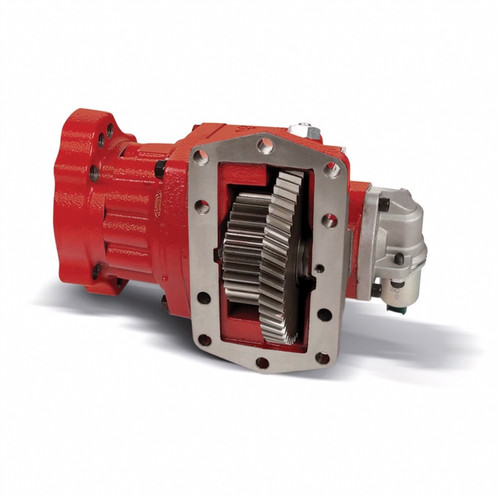

281GGFJW-D5RY Chelsea PTO Assembly

The Chelsea 281GGFJW-D5RY or 281GGFJWD5RY is a 281 Series hydraulic PowerShift (hot shift) power take-off designed for automatic transmissions with a 10-bolt aperture, commonly used on Allison transmissions. The 281 Series is an evolution of the 280 Series, adding a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% thicker clutch pack to resist premature tooth wear. Nine speed ratios cover both low and high speed applications. Output options within the series include SAE B and SAE C pump flanges, ISO and DIN flanges, and driveline configurations. Electronic Overspeed Control (EOC) and the SmartStart feature are available to protect driven equipment and reduce start-up shock load. Call us to confirm proper fit for your transmission and application.

Features

Hydraulic PowerShift (hot shift) operation for 10-bolt automatic transmission apertures, including Allison
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap for reduced vibration effects and improved clamp load
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Wet Spline Lubrication option for 7 to 10 times greater shaft life
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment
Rotatable cast iron flanges reduce interference and improve pump clearance
Positive stop for driveline outputs eliminates oil seal damage from coupling

Tech Specs

• Mounting Type: 10-Bolt
• Shift Type: Hydraulic PowerShift (Hot Shift)
• Continuous Operation: Yes
• Transmission Compatibility: Allison automatic transmissions (10-bolt aperture)
• Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, DIN Flange, Driveline
• Speed Ratios: Nine (including low and high speeds)
• Lubricant Options: Pressure Lube (P), Wet Spline (W)
• Series Continuous Torque: 390 lb-ft (529 Nm) - see application pages for actual rating
• Series Output Power: 56+ HP (51+ kW)
• Electronic Overspeed Control (EOC): Included

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
