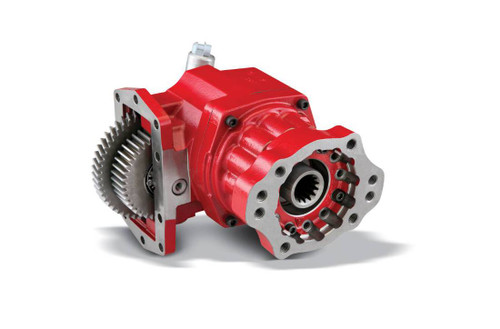

281GGFJW-D8RK Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GGFJW-D8RK or 281GGFJWD8RK, is a hydraulically shifted hot-shift PTO designed for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. The 281 Series is an evolution of the proven 280 Series, with a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap to improve clamp load, and an 80% thicker clutch pack to resist premature tooth wear. Nine speed ratios cover both low and high-speed applications. Rotatable cast iron flanges reduce interference fitment issues with pump mounting. The wet spline lubrication option extends shaft life by 7 to 10 times. SmartStart reduces shock load at engagement, and Electronic Overspeed Control (EOC) protects driven equipment. Common markets include fire and rescue, refuse, truck cranes, and pumper-cleaner applications. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Hydraulic hot-shift (PowerShift) operation for 10-bolt automatic transmission aperture, including Allison and Caterpillar
Ductile iron bearing cap - 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap improves clamp load and reduces vibrational effects
80% thicker steel discs in the clutch pack resist premature tooth wear
Nine speed ratios available, including low and high-speed options
Wet spline lubrication option provides 7 to 10 times greater shaft life
SmartStart reduces engagement shock load; Electronic Overspeed Control (EOC) protects driven equipment
Rotatable cast iron flanges reduce pump clearance interference; positive stop for driveline outputs eliminates oil seal damage

Tech Specs

• Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
• Shift Type: Hydraulic hot-shift (PowerShift)
• Continuous Torque: 390 lb-ft (529 Nm) - see application pages for actual ratings
• Output Type: SAE B pump flange, SAE C pump flange, ISO 7652 pump flange, driveline
• Output Shaft Options: SmartStart round shaft (1-1/4 in. with 5/16 in. key), 3/4 in. 11-tooth pump spline, SAE B 7/8 in. 13-tooth pump spline, SAE C 1-1/4 in. 14-tooth pump spline, DIN 5462 pump spline, 1410 companion flange, DIN 120 flange, DIN 100 flange
• Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM
• Speed Ratios: Nine ratios including low and high-speed
• Lubricant Options: Pressure lube or wet spline
• Continuous Operation: Yes

Additional Information

Reference documents for the Chelsea 281 Series include the 281/288 Series Parts List (HY25-2281-M1/US), the 267/281/288/871/878 Series Owner's Manual, and the 281 Series Sales Literature. Additional service notices covering this series include PTO-PNI-292, which addresses the 281, 288, 871, and 878 Series. Contact Pro Gear and Transmission if you need assistance locating the correct service documentation for your application.

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
