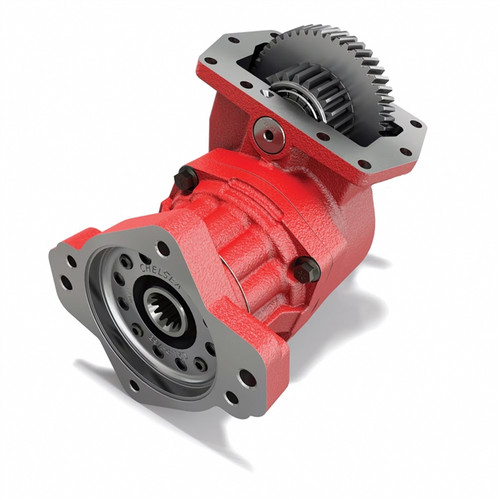

The Chelsea 878XBFJP-M5XV or 878XBFJPM5XV is a constant-mesh Power Take-Off assembly from the Chelsea 878 Series, designed to mount on Allison and CAT 10-bolt transmissions. The 878 Series delivers up to 670 lb-ft of continuous-duty torque in the smallest package available at that rating. A ductile iron bearing cap, 117% stronger than gray iron, anchors the design, while an O-ring sealing configuration between the housing and bearing cap reduces vibration-related wear and improves clamp load. Nine speed ratios cover both low and high ranges. Rotatable cast-iron flanges minimize interference clearance issues on driveline outputs, and the Wet Spline Lubrication option extends shaft life 7 to 10 times compared to standard configurations. Hydraulic hose is included. Call us to confirm proper fit for your application.
Features
Ductile iron bearing cap, 117% stronger than gray iron, reduces failure from vibration
O-ring sealing between housing and bearing cap improves clamp load and resists vibrational effects
Single continuous-duty torque rating up to 670 lb-ft (878 Series)
Nine speed ratios including dedicated low and high speeds
Rotatable cast-iron flanges reduce interference clearance issues on driveline outputs
Wet Spline Lubrication option provides 7 to 10 times greater output shaft life
Hydraulic hose included, no separate order required
Tech Specs
- Transmission Mount: Allison and CAT 10-Bolt
- Shift Type: Constant Mesh
- Continuous Torque (Series Rating): 670 lb-ft / 908 Nm (verify actual rating on application pages)
- Output Power (Series): 56+ HP / 51+ kW
- Shaft Power (Series): 64 HP at 500 RPM, 128 HP at 1,000 RPM
- Speed Ratios: Nine, including low and high
- Lubrication: Pressure Lube (P) or Wet Spline (W) options
- Housing Material: Cast Iron
- Bearing Cap Material: Ductile Iron
- Output Shaft Options (Series): SAE B 7/8 in. 13T pump spline, SAE BB 1 in. 15T pump spline, SAE C 1-1/4 in. 14T pump spline, DIN 5462 pump spline, 1410 Series companion flange, DIN 120 flange, DIN 100 flange
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
