Air Systems
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 19470 | Slave Valve Assembly | $133.29 | Superseded by K2424Add to Cart | ||
| 5 | A-5000 | Slave Valve Assembly | $133.29 | Add to Cart | ||
| A-3991 | Slave Valve Assembly | Call for availability | ||||
| or | A-4688 | Slave Valve Assembly | No longer available - Call for replacement | |||
| A-4488 | Selector Valve | $269.02 | Superseded by K2030Add to Cart | |||
| or | A-4490 | Selector Valve (rt) | Call for availability | |||
| 9 | X-9-1001 | Nut 5/8"-11 | Call for availability | |||
| 84001 | Connector Assembly 1/ 16" Pipe | $6.95 | Add to Cart | |||
| or | 82501 | Connector 1/16" Pipe | $3.08 | Add to Cart | ||
| and | 83501 | Grip Nut | $1.97 | Add to Cart | ||
| and | 83001 | Compression Sleeve | $2.82 | Add to Cart | ||
| or | 84502 | Elbow 1/ 8" Pipe | No longer available - Call for replacement | |||
| and | 83501 | Grip Nut | $1.97 | Add to Cart | ||
| and | 83001 | Compression Sleeve | $2.82 | Add to Cart | ||
| 15 | 84101 | Connector 1/ 8" 11yton Tubing | $8.46 | Add to Cart | ||
| and | 83501 | Grip Nut | $1.97 | Add to Cart | ||
| and | 83001 | Compression Sleeve | $2.82 | Add to Cart | ||
| 19 | 12880 | Street Ell 1/ 8" | $5.59 | Add to Cart | ||
| or | 21086 | Branch Tee | $13.10 | Add to Cart | ||
| 21 | 12845 | Street Ell 1/ 8" | $5.13 | Add to Cart | ||
| X-12-208 | Plug 1/ 8" | $2.30 | Add to Cart | |||
| 23 | 7935 | Breather | $4.12 | Add to Cart | ||
| 25 | 68526 | Nylon Tubing White 50' | $15.71 | Add to Cart | ||
| 27 | 80000 | Sheathing 50' | Call for availability | |||
| 30 | 13571 | "o'' Ring Clamp | $2.11 | Add to Cart | ||
| 32 | 55535 | Hose 19" | $18.81 | Superseded by 55507Add to Cart | ||
| or | 55507 | Hose 20" | $18.81 | Add to Cart | ||
| 33 | 55535 | Hose 11:- | $18.81 | Superseded by 55507Add to Cart | ||
| or | 55507 | Hose 20" | $18.81 | Add to Cart | ||
| 35 | 55527 | Hose 15" | $21.47 | Add to Cart | ||
| A-4740 | Filter - Regular Assembly | $74.68 | Add to Cart | |||
| 41 | X-8S-412 | Capscrew1/4"-20 2-1/4" | Call for availability | |||
| or | X-8C-412 | Capscrew 1/ 4"-20 X 2 1/4" | $2.11 | Add to Cart | ||
| or | 82503 | Connector 1/ 16" Pipe | Call for availability | |||
| or | 83502 | Grip Nut | $2.72 | Add to Cart | ||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 84004 | Connector Assembly | $11.29 | Add to Cart | |||
| or | 82504 | Connector 1/ 8" Pipe | Call for availability | |||
| or | 83502 | Grip Nut | $2.72 | Add to Cart | ||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 114 | 85001 | Elbow Assembly | $14.54 | Add to Cart | ||
| or | 84501 | Elbow 1/ 8" Pipe | Call for availability | |||
| or | 83502 | Grip Nut | $2.72 | Add to Cart | ||
| 115 | 84003 | Connector Assembly 5/32" Tube | $12.54 | Add to Cart | ||
| or | 82503 | Connector 5/32" Tube | Call for availability | |||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 75120 | Nylon Tubing 5/32" Red 50' | $61.45 | Add to Cart | |||
| 117 | 75320 | Nylon Tubing 5/32" Black 50' | $61.61 | Add to Cart | ||
| 80120 | Sheathing Black 50' | Call for availability | ||||
| 4 | 19470 | Slave Valve Assembly | $133.29 | Superseded by K2424Add to Cart | ||
| 5 | A-5000 | Slave Valve Assembly | $133.29 | Add to Cart | ||
| 7 | A-3991 | Sla V E V A L V E A S S E M B L Y | Call for availability | |||
| or | A-4688 | Slave Valve Assembly | No longer available - Call for replacement | |||
| 12845 | Street Ell 1/ 8" | $5.13 | Add to Cart | |||
| 56 | 19570 | Sleeve | $28.12 | Superseded by K2079Add to Cart | ||
| 5 7 | 19481 | G A S K E T | $3.87 | Add to Cart | ||
| 5 8 | 19572 | Sp R I N G Replaced By 21268 | $1.76 | Superseded by 21268Add to Cart | ||
| or | 21268 | Spring | $1.76 | Add to Cart | ||
| 59 | 19571 | Pin | Call for availability | |||
| or | 20649 | Pin | $26.15 | Add to Cart | ||
| 61 | 6392 | Spring | $3.89 | Add to Cart | ||
| 62 | 12571 | Sleeve | Call for availability | |||
| 63 | 15758 | Gasket | $2.25 | Add to Cart | ||
| 64 | 15102 | Pin | No longer available - Call for replacement | |||
| 66 | X-8L-411 | Ca P S C Re W 1 / 4 " - 2 0 X 1-3/4" | $14.93 | Add to Cart | ||
| or | X-8L-411 | Capscrew 1/ 4" -20 1-34" | $14.93 | Add to Cart | ||
| 68 | X-8C-401 | Capscrew 1/4"-20 X 1-1/8" | $4.03 | Add to Cart | ||
| 6 9 | X-8C-411 | C A P S C Re W 1/4"-20 X 1-3/4" | $2.55 | Add to Cart | ||
| 8 4 | 55527 | Ho S E 1 5 " | $21.47 | Add to Cart | ||
| 85 | 55507 | Hose 20" | $18.81 | Add to Cart | ||
| 87 | 55525 | Hose 17" | $17.77 | Add to Cart | ||
| 88 | 55506 | Hose 18" | $18.10 | Add to Cart | ||
| 100 | 22034 | Sleeve | Call for availability | |||
| 101 | 14142 | "o" Ring | $1.96 | Add to Cart | ||
| K-2079 | Sleeve Kit | $28.12 | Add to Cart |
Air Systems - Roadranger Valve
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 19470 | Slave Valve Assembly | $133.29 | Superseded by K2424Add to Cart | ||
| 5 | A-5000 | Slave Valve Assembly | $133.29 | Add to Cart | ||
| 11 | A-5015 | Roadranger Valve Assembly | $88.11 | Superseded by A6915Add to Cart | ||
| or | A-5044 | Roadranger Valve Assembly | $129.92 | Superseded by S2553Add to Cart | ||
| or | A-5315 | Roadranger Valve Assembly | $156.40 | Superseded by A7315Add to Cart | ||
| 16 | X-9-802 | Nut | $1.87 | Add to Cart | ||
| 19 | 12880 | Street Ell 1/ 8" | $5.59 | Add to Cart | ||
| 21 | 12845 | Street Ell 1/ 8" | $5.13 | Add to Cart | ||
| 22 | X-12-208 | Plug 1/ 8" | $2.30 | Add to Cart | ||
| 30 | 13571 | "o" Ring Clamp | $2.11 | Add to Cart | ||
| 32 | 55507 | Hose 20" | $18.81 | Add to Cart | ||
| 37 | 55527 | Hose 15" | $21.47 | Add to Cart | ||
| A-4740 | Filter - Regular Assembly | $74.68 | Add to Cart | |||
| 41 | X-8C-412 | Capscrew 1/4"-20 X 2-1/4" | $2.11 | Add to Cart | ||
| 112 | 84003 | Connector Assembly 1/ 16" Pipe | $12.54 | Add to Cart | ||
| or | 82503 | Connector 1/ 16" Pipe | Call for availability | |||
| or | 83502 | Grip Nut | $2.72 | Add to Cart | ||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 114 | 85001 | Elbow Assembly 1/ 8" Pipe | $14.54 | Add to Cart | ||
| or | 84501 | Elbow 1-/8" Pipe | Call for availability | |||
| or | 83502 | Grip Nut - | $2.72 | Add to Cart | ||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 115 | 84003 | Connector Assembly 5/32" Tube | $12.54 | Add to Cart | ||
| or | 82503 | Connector 5/32" Tube | Call for availability | |||
| or | 83502 | Grip Nut | $2.72 | Add to Cart | ||
| or | 83002 | Compression Sleeve | $2.82 | Add to Cart | ||
| 116 | 75120 | Nylon Tubing 5/32" Red 50' | $61.45 | Add to Cart | ||
| 117 | 75320 | Nylon Tubing 5/32" Black 50' | $61.61 | Add to Cart | ||
| 118 | 75520 | Nylon Tubing 5/32" Green 50' | $47.29 | Add to Cart | ||
| 119 | 75720 | Nylon Tubing 5/32" Blue 50' | $43.25 | Add to Cart | ||
| 120 | 80120 | Sheathing 50' | Call for availability | |||
| 121 | 75920 | Nylon Tubing 5/32" Brown 50' | $52.47 | Add to Cart | ||
| 19470 | Slave Valve Assembly | $133.29 | Superseded by K2424Add to Cart | |||
| A-5000 | Slave Valve Assembly | $133.29 | Add to Cart | |||
| 12880 | Street Ell 1/ 8" | $5.59 | Add to Cart | |||
| 12845 | Street Ell 1/ 8" | $5.13 | Add to Cart | |||
| 19481 | Gasket | $3.87 | Add to Cart | |||
| 21268 | Spring | $1.76 | Add to Cart | |||
| 20649 | Pin | $26.15 | Add to Cart |
Air Controls
Item 18Item 80Item 23Item 18Item 81Item 22Item 82Item 21Item 26Item 82Item 15Item 19Item 25Item 87Item 84Item 16Item 85Item 86Item 85Item 90Item 88Item 121Item 89Item 20Item 93Item 89Item 92Item 92Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 15 | 17922 | Dentent | 1 | Call for availability | ||
| 16 | 17918 | Spring | 1 | Call for availability | ||
| 17920 | Retainer | 1 | Call for availability | |||
| 18 | 17919 | Spring | 1 | Call for availability | ||
| 19 | 17923 | "o" Ring | 1 | Call for availability | ||
| 20 | 18143 | Valve Body | 1 | Call for availability | ||
| 21 | 18397 | Seal | 1 | Call for availability | ||
| 22 | 18623 | Cover (rto) | 1 | Call for availability | ||
| or | 18625 | Cover | 1 | Call for availability | ||
| 23 | 18660 | Actuator | 1 | $20.00 | Add to Cart | |
| 24 | 18661 | "o'' Ring | 1 | $3.90 | Add to Cart | |
| 25 | 18662 | Retainer | 1 | $23.20 | Add to Cart | |
| 26 | 18714 | Seat | 1 | $12.82 | Add to Cart | |
| 27 | X-8S-154 | Screw Replacfjd By X-13-214 | 1 | Call for availability | ||
| or | X-13-214 | Screw 8-32 X 11/16" | 3 | $2.40 | Add to Cart | |
| 80 | 20107 | Medallion Rt-rto | 1 | $28.59 | Add to Cart | |
| or | 21818 | Medallion Rt | 1 | Call for availability | ||
| or | 21820 | Medallion Rto | 1 | $28.59 | Add to Cart | |
| or | 21819 | Medallion Rt | 1 | Call for availability | ||
| or | 21821 | Medallion Rto | 1 | Call for availability | ||
| 81 | 20456 | Actuator | 1 | Call for availability | ||
| or | 21809 | Actuator (A-5315) | 1 | Call for availability | ||
| 82 | 20109 | Spring | 3 | Call for availability | ||
| 20105 | Retainer | 1 | Call for availability | |||
| 84 | 20106 | Seal | 1 | Call for availability | ||
| 85 | 20110 | Spring | 2 | Call for availability | ||
| 86 | 20102 | Ball 5/32" | 3 | Call for availability | ||
| 87 | 20174 | Detent | 1 | Call for availability | ||
| 88 | 20103 | Retainer | 1 | Call for availability | ||
| 89 | 20104 | "o" Ring | 1 | Call for availability | ||
| 90 | 20108 | Spring | 1 | Call for availability | ||
| 91 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 92 | X-8-202 | Screw | 2 | $2.20 | Superseded by X8213Add to Cart | |
| 93 | 20496 | Lever | 1 | $18.41 | Add to Cart | |
| 121 | 22113 | Wave Washer | 1 | Call for availability | ||
| K-1550 | Repair Kit Selector Valve | No longer available - Call for replacement | ||||
| K-1922 | Repair Kit Roadranger Valve | $50.56 | Add to Cart | |||
| K-2055 | Repair Kit Roadranger Valve | $24.90 | Add to Cart | |||
| 101 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 102 | 20875 | "o" Ring | 1 | $2.57 | Add to Cart | |
| 105 | 20850 | Body" | 1 | Call for availability | ||
| 106 | 20854 | Piston ' | 1 | $97.04 | Add to Cart | |
| 108 | 20849 | Cap | 1 | $37.47 | Add to Cart | |
| 109 | 20860 | Spring | 1 | Call for availability | ||
| 15114 | "o" Ring | 2 | $1.59 | Add to Cart | ||
| 111 | 20859 | Seal | 1 | Call for availability | ||
| 112 | 20857 | Washer | 1 | Call for availability | ||
| 20861 | Seal | 1 | Call for availability | |||
| 114 | 20862 | "o" Ring | 1 | Call for availability | ||
| 115 | 20853 | Plate | 1 | Call for availability | ||
| 116 | 20852 | Gasket | 1 | Call for availability | ||
| 117 | 20851 | Cap | 1 | Call for availability | ||
| 118 | X-8C-413 | Capscrew 1/4"-20 | 3 | $4.86 | Add to Cart | |
| K-1613 | Replacement Kit Cap | $65.98 | Add to Cart | |||
| K-1698 | Repair Kit Filter | $16.42 | Add to Cart | |||
| K-1699 | Repair Kit Slave Valve (A-46BB) | $17.70 | Add to Cart | |||
| K-1935 | Repair Kit Slave Valve | $38.38 | Add to Cart | |||
| S-1516 | Replacement Assembly Cap | No longer available - Call for replacement |

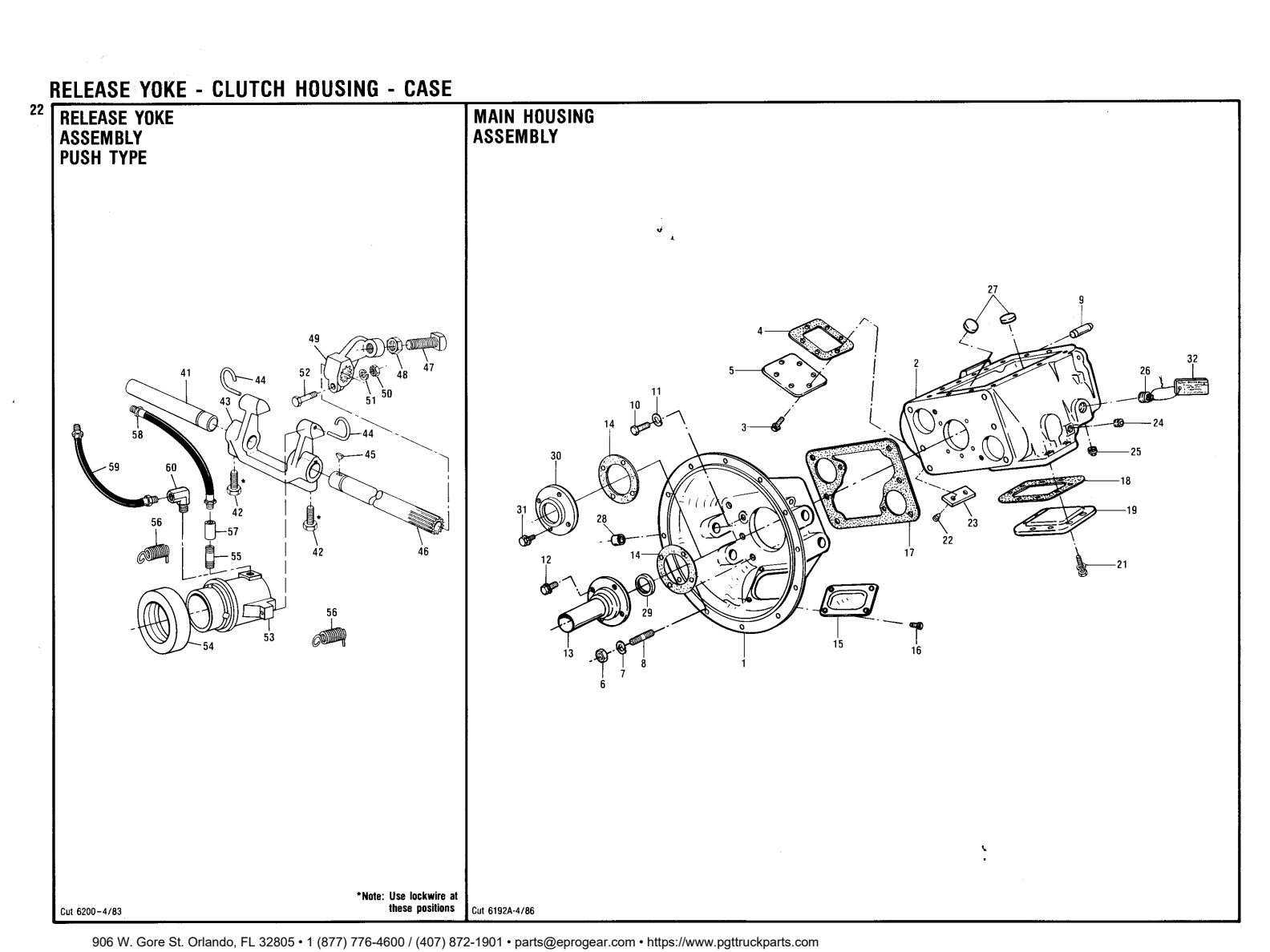

Release Yoke - Clutch Housing - Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-3711 | Clutch Housing Assembly #2 | $1,403.49 | Add to Cart | |||
| or | S-1085 | Clutch Housing Assembly #1 | Call for availability | |||
| 2 | 16800 | Case Order S-1321 | 1 | Call for availability | ||
| X-8S-601 | Capscrew 3/8"-16 X 3/4" | 6 | $4.14 | Add to Cart | ||
| or | X-8-686 | Capscrew 3/8"-16 X 3/4" | 6 | $1.97 | Add to Cart | |
| 4 | 1684 | Gasket | 1 | Call for availability | ||
| 5 | 14575 | Pto Cover | 1 | $14.97 | Add to Cart | |
| 6 | X-1-1000 | Nut 5/8"-18 | 6 | Call for availability | ||
| 7 | X-3-1000 | Lockwasher 5/8" | 6 | $1.69 | Add to Cart | |
| 8 | 1632 | Stud | 6 | $3.29 | Superseded by 14554Add to Cart | |
| 9 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 10 | X-8-808 | Capscrew 1/2"-13 X 1-1 / 4" | 2 | $2.75 | Add to Cart | |
| or | X-8L-808 | Capscrew 1/2"-13 X 1-1/4" | 2 | $3.11 | Add to Cart | |
| 11 | X-3-801 | Lockwasher 1/ 2" | 2 | $1.58 | Add to Cart | |
| 12 | X-8-678 | Capscrew 3/8"-16 X 1" | 4 | Call for availability | ||
| or | X-8L-604 | Capscrew 3/8"-16 X 1-1 /4" Push | 2 | $2.34 | Add to Cart | |
| and | X-3-600 | Lockwasher 3/8" Push | 2 | $1.33 | Add to Cart | |
| 13 | 15020 | Front Bearing Cover 1-3/ 4" Shaft | 1 | $262.73 | Add to Cart | |
| or | 16324 | Front Bearing Cover. 1-3/ 4" Shaft | Call for availability | |||
| or | 15491 | Front Bearing Cover 1-1 /2" Shaft | $241.30 | Add to Cart | ||
| or | 15647 | Front Bearing Cover 1-1 /2" Shaft | $233.44 | Add to Cart | ||
| or | 15727 | Front Bearing Cover 1-1 /2" Shaft | $237.42 | Add to Cart | ||
| or | 15265 | Front Bearing Cover 1-1 /2" Shaft | $242.47 | Add to Cart | ||
| or | 16277 | Front Bearing Cover 1-1 /2" Shaft | $84.38 | Add to Cart | ||
| 14 | 15059 | Gasket | 1 | $1.68 | Add to Cart | |
| 1565 | Hand Hole Cover | 1 | $11.29 | Superseded by 4305231Add to Cart | ||
| or | 11453 | Hand Hole Cover Pull | 1 | $10.20 | Superseded by 4305230Add to Cart | |
| 16 | X-8L-509 | Capscrew 5/16"-18 X 1/ 12" | 4 | $7.31 | Superseded by 239614Add to Cart | |
| 17 | 15060 | Gasket | 1 | $19.49 | Add to Cart | |
| 18 | 16929 | Gasket | 1 | Call for availability | ||
| 19 | 16596 | Pto Cover | 1 | $19.11 | Superseded by 4302809Add to Cart | |
| 21 | X-8L-703 | Gapscrew 7/16"-14 X 1" | 8 | $2.42 | Superseded by X8725Add to Cart | |
| or | X-8-724 | Capscrew 7/16"-14 X 1" | 8 | Call for availability | ||
| X-8-725 | Capscrew-7/16"-14 X 7/8" | $2.42 | Add to Cart | |||
| 22 | X-13-206 | Self-tapping Screw | 2 | $1.50 | Add to Cart | |
| 23 | 57000 | Name Plate | 1 | Call for availability | ||
| 24 | X-12-800 | Pipe Plug 1/2" | 1 | Call for availability | ||
| 25 | X-12-1201 | Pipe Plug 3/4" | 1 | Call for availability | ||
| or | X-12-1202 | Pipe Plug 3/4" | 1 | $4.53 | Superseded by X121207Add to Cart | |
| X-12-2001 | Pipe Plug 1-1/4" | Call for availability | ||||
| or | X-12-2002 | Pipe Plug 1-1/4" | 1 | Call for availability | ||
| 27 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 28 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 29 | 16020 | Oil Seal For 1-1 /2" Shaft | 1 | Call for availability | ||
| 30 | 15019 | Front Bearing Cover | 1 | $117.35 | Add to Cart | |
| 31 | X-8L-604 | Capscrew 3/8"-16 X 1-1/4" | 4 | $2.34 | Add to Cart | |
| 32 | 19564 | Lube Instruction Plate (english) | 1 | $3.64 | Add to Cart | |
| or | 19683 | Lube Instruction Plate (french) | 1 | Call for availability | ||
| 41 | 14494 | Pedal Shaft | 1 | $17.00 | Add to Cart | |
| 42 | X-7-603 | Bolt 3/8"-24 X 1" | 2 | $1.79 | Add to Cart | |
| 43 | 12817 | Release Yoke | 1 | $134.76 | Add to Cart | |
| 44 | 9293 | Spring | 2 | $3.46 | Add to Cart | |
| 46 | 1984 | Pedal Shaft (std.) #1 Hsg. | 1 | $65.18 | Add to Cart | |
| or | 1983 | Pedal Shaft (std.) #2 Hsg. | 1 | $49.67 | Add to Cart | |
| 47 | X-8-802 | Set Screw 1/ 2" | 1 | $3.48 | Add to Cart | |
| 48 | X-9-800 | Nut 1/ 2" | 1 | $3.46 | Add to Cart | |
| 49 | 1966 | Adjusting Arm | 1 | $261.49 | Add to Cart | |
| 50 | X-1-600 | Nut 3/8" | 1 | $1.36 | Add to Cart | |
| 51 | X-3-600 | Lockwasher 3/8" | 1 | $1.33 | Add to Cart | |
| 52 | X-7-601 | Bolt 3/8"-24 X 1-3/4" | 1 | $3.67 | Add to Cart | |
| 53 | 8696 | Bearing Carrier (std.) | 1 | $517.47 | Add to Cart | |
| 54 | 6168 | Bearing Carrier | 1 | Call for availability | ||
| 55 | 3230 | Nipple 1/8" | 1 | $5.82 | Add to Cart | |
| 56 | 4425 | Spring | 2 | $3.71 | Add to Cart | |
| 57 | 3233 | Pipe Coupling 1/ 8" | 1 | $5.18 | Add to Cart | |
| 58 | 51006 | Hose Assembly 8" | 1 | $31.89 | Add to Cart | |
| 59 | 51016 | Hose Assembly 6-1 /2" | 1 | $31.73 | Add to Cart | |
| 60 | 12880 | Elbow | $5.59 | Add to Cart | ||
| A-219 | Adjusting Arm Assembly | $861.99 | Add to Cart | |||
| A-2268 | Release Yoke Kit | $228.95 | Add to Cart | |||
| S-1321 | Case Assembly | Call for availability |
Lever Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8L-604 | Capscrew 3/8"-16 X 1-1/4" | 4 | $2.34 | Add to Cart | |
| 16398 | Housing Shift Lever High | 1 | Call for availability | |||
| or | 17167 | Housing Shift Lever High | 1 | Call for availability | ||
| 60 | 10427 | Boot | $4.05 | Add to Cart | ||
| 61 | 14456 | Housing Shift Lever Low | Call for availability | |||
| or | 17168 | Housing Shift Lever Low | 1 | $219.19 | Superseded by K1631Add to Cart | |
| 6541 | Pin | 1 | $36.68 | Add to Cart | ||
| 63 | 1642 | Gasket Replaced By 19870 | 1 | Call for availability | ||
| or | 19870 | Gasket Amno | 1 | Call for availability | ||
| 17600 | Gear Shift Lever (std.) Low | 1 | $327.38 | Add to Cart | ||
| or | 18482 | Gear Shift Lever High | 1 | $369.68 | Add to Cart | |
| 65 | 2538 | Retainer | $5.42 | Add to Cart | ||
| 66 | 2536 | Spring | $5.59 | Add to Cart | ||
| 17162 | "o" Ring (special) Amno | Call for availability | ||||
| 69 | 18229 | Pin | Call for availability | |||
| 70 | 4530 | Housing Shift Lever Low | Call for availability | |||
| or | 17163 | Housing Shift Lever Low | Call for availability | |||
| or | 18298 | Housing Shift Lever Low | $103.90 | Superseded by K1476Add to Cart | ||
| 71 | 7467 | Stud Replaced By 11934 | 4 | Call for availability | ||
| 72 | X-1-600 | Nut 3/8"-24 | 4 | $1.36 | Add to Cart | |
| 73 | X-3-600 | Lockwa$her 3/8" | 4 | $1.33 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | No longer available - Call for replacement | ||
| 79 | 14236 | Stud | 4 | Call for availability | ||
| 80 | X-3-600 | Lockwasher 3/8" | 1 | $1.33 | Add to Cart | |
| X-1-600 | Nut 3/8"-24 | 1 | $1.36 | Add to Cart | ||
| 14461 | Pin | 1 | Call for availability | |||
| 110 | 21247 | Lever Assembly (std.) | 1 | $327.38 | Add to Cart | |
| 19124 | ~ | 2 | $1.56 | Add to Cart | ||
| 112 | 21246 | Bushing ~ | 2 | $2.02 | Add to Cart | |
| 113 | 21245 | Pin | 1 | $3.56 | Superseded by K3467Add to Cart | |
| 21235 | Lever (std.) Low | 1 | $111.77 | Add to Cart | ||
| or | 21236 | Lever (std.) High | 1 | $111.26 | Add to Cart | |
| 120 | 21767 | 90° Lever | 1 | $369.68 | Add to Cart | |
| A-5274 | Isolator '.jj!) | 1 | Call for availability | |||
| 122 | 22120 | Adapter | 1 | Call for availability | ||
| K-1476 | Replacement Kit Lever | $103.90 | Add to Cart | |||
| K-1584 | Shift Lever Kit High | $309.59 | Add to Cart | |||
| K-1630 | Replacement Kit Lever | $136.74 | Superseded by K2973Add to Cart | |||
| K-1631 | Replacement Kit Lever | $219.19 | Add to Cart | |||
| K-2003 | Pin And Bushing Kit | $5.31 | Add to Cart | |||
| K-2101 | Isolator Lever Kit Low | Call for availability | ||||
| K-2102 | Isolator Lever Kit High | Call for availability |

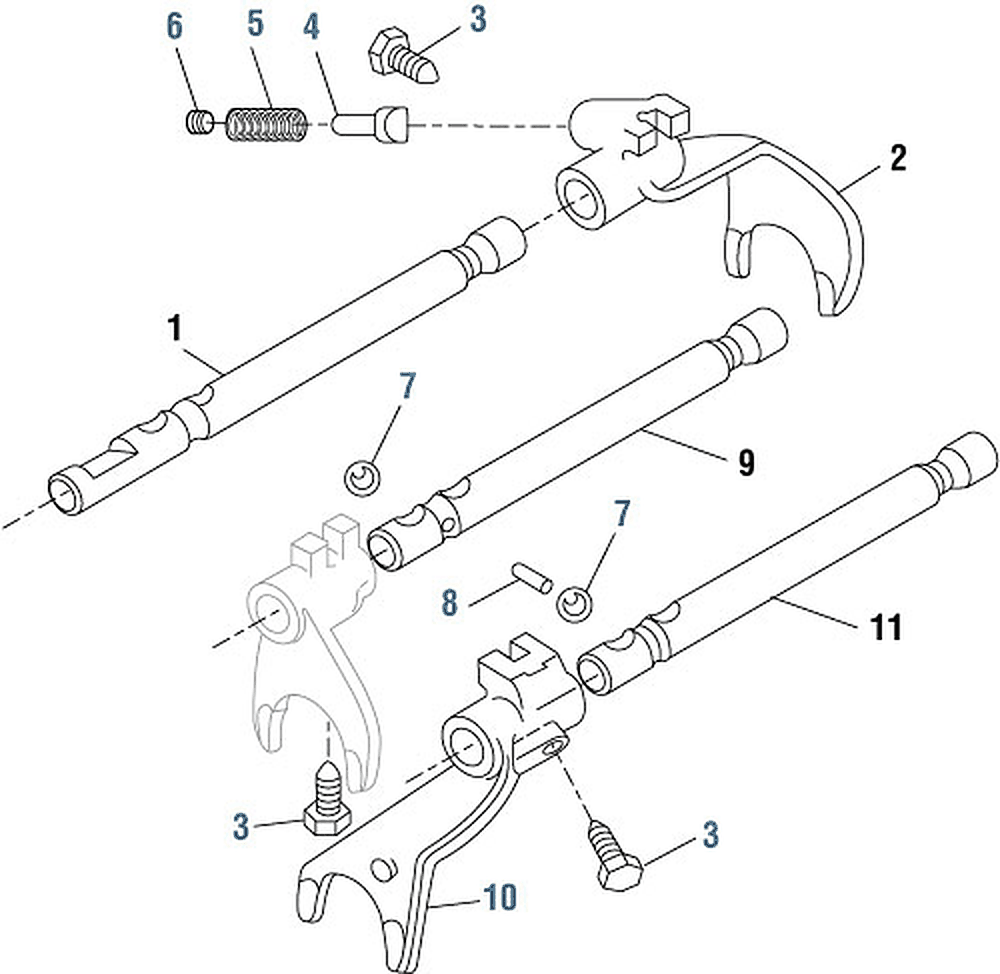

Bar Housing - Yokes And Bars
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20311 | Shift Bar Housing | 1 | Call for availability | |||
| 2 | 15605 | Gasket | 1 | $8.33 | Add to Cart | |
| 4 | X-8L-604 | Capscrew 3/8"-16 X 1-1/4" | 11 | $2.34 | Add to Cart | |
| 17177 | Air Valve Shaft | 1 | $17.23 | Superseded by 20332Add to Cart | ||
| 6 | X-14-800 | Steel Ball 1/ 2" | 3 | $1.78 | Add to Cart | |
| 7 | 1064 | Spring | 3 | $5.33 | Add to Cart | |
| X-12-404 | Pipe Plug 1/4" | 1 | $1.97 | Add to Cart | ||
| or | 15276 | Breather | 1 | $8.22 | Superseded by 4304602Add to Cart | |
| 9 | 15917 | Plug | 1 | $2.91 | Superseded by 4303656Add to Cart | |
| 15900 | Gasket | 1 | $2.24 | Add to Cart | ||
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | 17178 | Plug Netural Switch Hole | 1 | $5.22 | Superseded by 4303655Add to Cart | |
| 17179 | Gasket | 1 | $2.25 | Add to Cart | ||
| 14 | 17105 | Lifting Eye r,p1ace<1 By 20815 | 2 | $2.88 | Superseded by 20815Add to Cart | |
| or | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 15 | X-8L-602 | Capscrew 3/8"-16 X 1-1/2" | 2 | $1.72 | Add to Cart | |
| 16 | X-12-404 | Pipe Plug 1/ 4 | 1 | $1.97 | Add to Cart | |
| or | X-12-602 | Pipe Plug 3/8" | 1 | Call for availability | ||
| or | X-12-603 | Pipe Plug 3/8" | 1 | $4.40 | Add to Cart | |
| 17 | 15132 | Spring Cover | 1 | $5.57 | Add to Cart | |
| 18 | 15133 | Gasket | $1.58 | Add to Cart | ||
| 19 | X-BL-600 | Capscrew 3/8"-16 X 1" | 2 | Call for availability | ||
| 20 | 18217 | Clip | 1 | Call for availability | ||
| 21 | 18218 | Actuating Ring | 1 | Call for availability | ||
| 26 | 15910 | Yoke Bar - Reverse | 1 | $31.17 | Add to Cart | |
| 27 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 29 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 30 | 3220 | Lock Screw | 3 | $4.28 | Add to Cart | |
| 31 | 15096 | Shift Yoke - Reverse | 1 | $285.98 | Add to Cart | |
| 32 | X-14-1200 | Steel Ball 3/4" | 2 | $2.83 | Add to Cart | |
| 33 | 15100 | Yoke Bar 2nd Speed | 1 | $31.52 | Add to Cart | |
| 34 | 15097 | Shift Yoke 2nd Speed | 1 | $87.60 | Add to Cart | |
| 35 | 16300 | Shift Yoke - Direct H_,k.,t | 1 | $83.72 | Add to Cart | |
| 36 | 1634 | Pin | 1 | $3.13 | Add to Cart | |
| 37 | 15101 | Yoke Bar - Direct | 1 | Call for availability | ||
| 83 | 20199 | Cover | 1 | $13.20 | Add to Cart | |
| 84 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 85 | X-8-406 | Capscrew 1/4"-20 X 3/4" | 2 | $1.71 | Add to Cart | |
| 86 | X-3-400 | Lockwasher 1/4" | 2 | $1.17 | Add to Cart | |
| 12639 | Neutral Light Switch (nio) | 1 | $42.29 | Superseded by 22941Add to Cart | ||
| or | 22941 | Neutral Switch (nioj | 1 | $42.29 | Add to Cart | |
| 104 | 16830 | Reverse Light Switch (nic) | 1 | $17.31 | Superseded by 22940Add to Cart | |
| or | 22940 | Reverse Switch (nic) | 1 | $17.31 | Add to Cart | |
| S-1442 | Shift Bar Housing Assembly | Call for availability | ||||
| S-1476 | Shift Bar Housing Assembly | Call for availability | ||||
| K-2018 | Also See Pages 29 And 31 | No longer available - Call for replacement |
Mainshaft Countershaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18657 | Bearing | 2 | $55.14 | Add to Cart | |
| 2 | 14286 | Snap Ring | 2 | $2.20 | Add to Cart | |
| 19210 | Gear Countershaft | 2 | $291.97 | Add to Cart | ||
| or | 19299 | Gear Countershaft | 2 | $304.69 | Add to Cart | |
| 4 | 19296 | Gear Countershaft | 2 | $235.22 | Add to Cart | |
| or | 19300 | Gear Countershaft | 2 | $217.68 | Add to Cart | |
| 5 | 19211 | Gear Countershaft | 2 | $279.72 | Add to Cart | |
| 6 | 19212 | Gear Countershaft | 2 | Call for availability | ||
| 7 | 19209 | Countershaft | 2 | No longer available - Call for replacement | ||
| 8 | 16662 | Key | 2 | $12.01 | Add to Cart | |
| 9 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 10 | X-6-128 | Key | 2 | $2.57 | Add to Cart | |
| 11 | 18658 | Bearing | 2 | $72.27 | Add to Cart | |
| 12 | 15050 | Snap Ring | 2 | $5.91 | Add to Cart | |
| 30 | 16227 | Gear Mainshaft Reverse | 1 | $211.23 | Add to Cart | |
| 31 | 16805 | Mainshaft | 1 | $612.73 | Add to Cart | |
| 32 | A-3990 | Key And Pin Assembly | 1 | $45.49 | Add to Cart | |
| 33 | 15446 | Washer .259-.261 (orange) | 4 | $19.65 | Add to Cart | |
| or | 17259 | Washer .264-.266 {purple) | $15.44 | Add to Cart | ||
| or | 17260 | Washer .269-.271 | $19.73 | Add to Cart | ||
| or | 17261 | Washer .274-,276 (black) | Call for availability | |||
| or | 17262 | Washer .. 279-. 281 (red) | Call for availability | |||
| 34 | 16226 | Sliding Clwtch | 2 | $72.60 | Add to Cart | |
| 35 | 19206 | Gear Mainshaft 2nd | 1 | $133.85 | Add to Cart | |
| 36 | 19205 | Gear Main Shaft 1st | 1 | $184.37 | Add to Cart | |
| or | 17434 | Washer .263-.265 {purple) | $127.69 | Add to Cart | ||
| or | 17435 | Washer .268-.270 | $180.71 | Add to Cart | ||
| or | 17436 | Washer .273-.275 | $64.61 | Add to Cart | ||
| or | 17437 | Washer . 278-. 280 (red) | $132.92 | Add to Cart | ||
| or | 21664 | Washer .259-.261 (orange) | $18.53 | Add to Cart | ||
| or | 21665 | Washer .263-.265 (purple) | $18.05 | Add to Cart | ||
| or | 21666 | Washer .268-.270 (yellow) | $28.43 | Add to Cart | ||
| or | 21667 | Washer . 273-. 275 (black) | $28.40 | Add to Cart | ||
| or | 21668 | Washer .278-.280 (red) | $23.23 | Add to Cart | ||
| 38 | 19295 | Gear Mainshaft 4th (rt) | 1 | Call for availability | ||
| or | 19298 | Gear Mainshaft 0/D (rtoj | 1 | Call for availability | ||
| or | 21663 | Gear Mainshaft 4th | 1 | $104.71 | Add to Cart | |
| or | 21670 | Gear Mainshaft 0/D (rto) | 1 | No longer available - Call for replacement | ||
| 39 | 19207 | Gear Mainshaft 3rd | 1 | $197.19 | Add to Cart | |
| 15980 | Snap Ring | 1 | $5.60 | Add to Cart | ||
| 41 | 18349 | Sliding Clutch | 1 | Call for availability | ||
| or | 21662 | Sliding Clutch | 1 | $124.49 | Add to Cart | |
| K-2018 | M/s 0/D Update Kit | No longer available - Call for replacement | ||||
| K-2019 | M/s 4th Update Kit | No longer available - Call for replacement |
Drive Gear - Idler - Mainshaft Bearing Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15253 | Snap Ring | $5.67 | Add to Cart | ||
| 81551 | Bearing | $79.17 | Superseded by 4301863Add to Cart | |||
| 3 | 15971 | Spacer | $44.76 | Add to Cart | ||
| 4 | 18441 | Input Shaft 1-3/4" Push | Call for availability | |||
| or | 18444 | Input Shaft 1-3/ 4" | 1 | Call for availability | ||
| or | 18442 | Input Shaft 1-3/ 4" Push | 1 | Call for availability | ||
| or | 18443 | Input Shaft 1-1 /2" Push | 1 | Call for availability | ||
| or | 18445 | Input Shaft 1-1 /2" | 1 | $224.10 | Superseded by S1254Add to Cart | |
| or | 18446 | Input Shaft 1-3/4" Pull | 1 | $364.58 | Superseded by S1255Add to Cart | |
| 5 | 15977 | Bushing ::lmnopo | $6.93 | Add to Cart | ||
| 7 | 19284 | Gear Main Drive (rt) | 1 | Call for availability | ||
| or | 19297 | (rto) | 1 | Call for availability | ||
| or | 21661 | Gear Main Drive (rt) | 1 | $226.22 | Add to Cart | |
| or | 21669 | Gear Main Drive (rtoj | 1 | No longer available - Call for replacement | ||
| X-1-803 | Nut 1/ 2" | 2 | $1.87 | Add to Cart | ||
| 17 | X-10-801 | Washer 1'/2" | 2 | $1.15 | Add to Cart | |
| 18 | 16789 | Washer | 2 | $29.91 | Add to Cart | |
| 15045 | Bearing | 2 | $6.48 | Add to Cart | ||
| 20 | 16234 | Gear Idler | 2 | $245.78 | Add to Cart | |
| 21 | 16794 | Idler Shaft Order S-1334 | 2 | Call for availability | ||
| 62506 | Roll Pin | 2 | $1.26 | Add to Cart | ||
| 30 | 16790 | Washer | 1 | $97.85 | Add to Cart | |
| 31 | 1813 | Spring | 6 | $1.68 | Add to Cart | |
| 32 | 16793 | Ring | 1 | $262.17 | Add to Cart | |
| 33 | 81505 | Bearing | 1 | $76.28 | Add to Cart | |
| 34 | 15981 | Retainer | 2 | $20.69 | Add to Cart | |
| 15748 | Lockwasher | 2 | $2.85 | Add to Cart | ||
| 36 | X-8-600 | Capscrew3/8"-16 X 1" | 4 | $4.05 | Add to Cart | |
| 37 | 16792 | Retainer | 1 | $140.79 | Add to Cart | |
| 38 | 14993 | Snap Ring | 1 | $4.76 | Add to Cart | |
| S-1250 | Input Shaft Assembly | $475.30 | Add to Cart | |||
| S-1251 | Input Shaft Assembly | $447.45 | Add to Cart | |||
| S-1252 | Input Shaft Assembly | $323.98 | Add to Cart | |||
| S-1253 | Input Shaft Assembly | $256.66 | Add to Cart | |||
| S-1254 | Input Shaft Assembly | $224.10 | Add to Cart | |||
| S-1255 | Input Shaft Assembly | $364.58 | Add to Cart | |||
| S-1334 | Idler Shaft Assembly | $227.04 | Add to Cart |

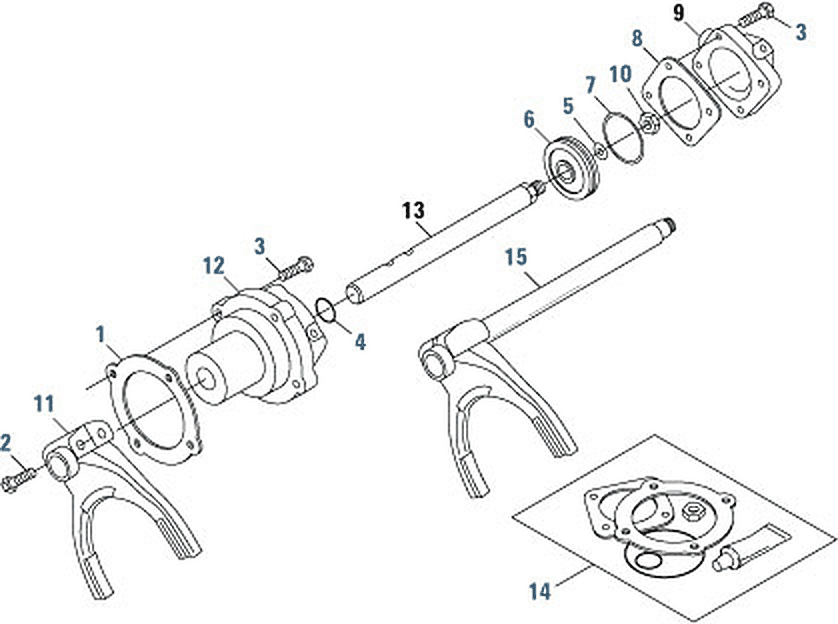

Cylinder Assemblies
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14347 | Gasket | 1 | $2.29 | Add to Cart | ||
| 2 | X-7-810 | Bolt 1/2"-20 X 2" | 2 | $1.89 | Superseded by X7809Add to Cart | |
| X-8L-604 | Capscrew 3/8"-16 X 1-1/4" | 8 | $2.34 | Add to Cart | ||
| 14765 | "o" Ring | 1 | $2.70 | Add to Cart | ||
| 14345 | "o" Ring ::suv | $1.84 | Add to Cart | |||
| 14341 | Piston | 1 | $26.70 | Add to Cart | ||
| 14344 | "o" Ring | 1 | $8.00 | Add to Cart | ||
| 8 | 14349 | Gasket | $5.36 | Add to Cart | ||
| 19599 | Cylinder Cover | 1 | $100.47 | Add to Cart | ||
| X-1-1010 | Nut 5/8"-18 ::stuv | 1 | $2.11 | Add to Cart | ||
| 11 | 16775 | Shift Yoke | 1 | $82.40 | Superseded by 22823Add to Cart | |
| 16778 | Range Cylinder | 1 | $181.93 | Add to Cart | ||
| 16993 | Yoke Bar | 1 | $193.71 | Superseded by A6162Add to Cart | ||
| K-1431 | Cylinder Kit Range | $229.35 | Add to Cart | |||
| K-1447 | "o" Ring Kit All | $17.42 | Add to Cart | |||
| K-1450 | "o" Ring Kit Range | $12.61 | Add to Cart | |||
| K-1451 | "o' - Ring Kit Intermediate | $8.63 | Add to Cart | |||
| K-1457 | "o" Ring Kit Valve | $5.84 | Add to Cart |

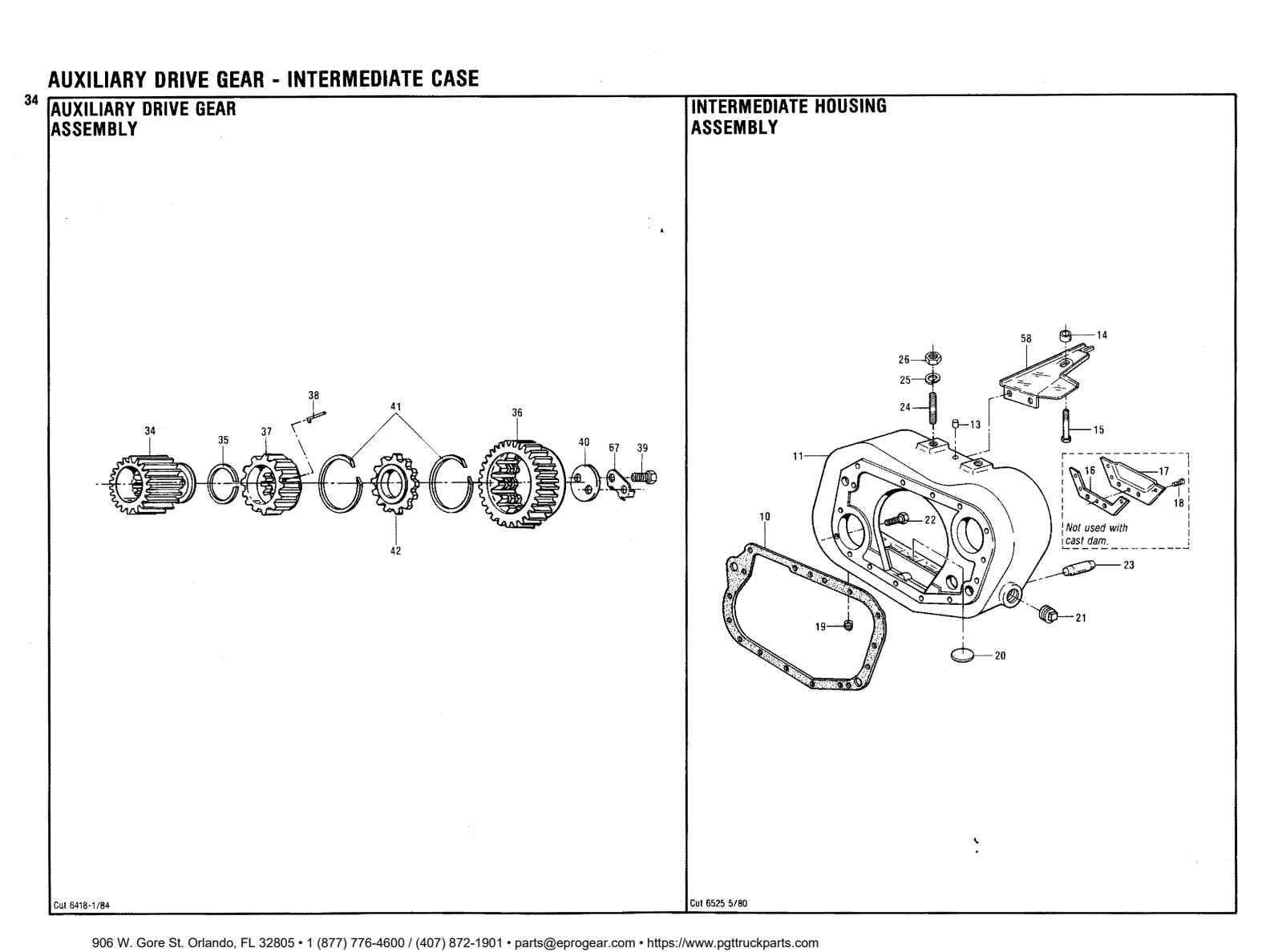

Auxiliary Drive Gear - Intermediate Case
Item 58Item 26Item 25Item 38Item 41Item 24Item 36Item 37Item 15Item 35Item 40Item 67Item 39Item 18Item 10Item 42Item 23Item 21Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10 | 15061 | Gasket | 1 | $17.52 | Add to Cart | |
| 11 | 16810 | Case Order S-1405 | 1 | Call for availability | ||
| 13 | 15701 | Plug | 1 | $2.34 | Add to Cart | |
| 16824 | Spacer | 1 | $25.53 | Add to Cart | ||
| 15 | X-8-430 | Capscrew 1/ 4"-20 X 7/8" | 1 | Call for availability | ||
| 16 | 16827 | Gasket | 1 | $2.85 | Add to Cart | |
| 17 | 16828 | Oil Reservoir Plate | 1 | Call for availability | ||
| 18 | X-12-215 | Drive Screw | 4 | Call for availability | ||
| 19 | X-12-1201 | Pipe Plug 3/4" | 1 | Call for availability | ||
| or | X-12-1202 | Pipe Plug 3/4" Magnetic | 1 | $4.53 | Superseded by X121207Add to Cart | |
| 20 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 21 | X-12-2001 | Pipe Plug 1-1/4" | 1 | Call for availability | ||
| 22 | X-8-679 | Capscrew 3/8"-16 1-3/4" | 4 | $2.42 | Add to Cart | |
| and11 | X-8-680 | Capscrew 3/8"-16 X 1 '1/2" | $1.97 | Add to Cart | ||
| 23 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 24 | 6579 | Stud 5/8" | 2 | Call for availability | ||
| or | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| and | X-8-1005 | Capscrew 5/8"-11 1-1/4" | 2 | $8.23 | Add to Cart | |
| or | 1712 | Plug | 2 | $5.64 | Superseded by 23104Add to Cart | |
| 25 | X-3-1000 | Lockwasher 5/8" | 2 | $1.69 | Add to Cart | |
| 26 | X-1-1000 | Nut 5/8"-18 | 2 | Call for availability | ||
| 35 | 16812 | Snap Ring | 1 | $21.48 | Add to Cart | |
| 36 | 16815 | Gear Mainshaft | 1 | $187.90 | Add to Cart | |
| 37 | 16811 | Sliding Clutch | 1 | $168.89 | Add to Cart | |
| 38 | 16816 | Retainer | 1 | $1.75 | Add to Cart | |
| 39 | X-7-501 | Bolt 5/16"-24 X 1" | 2 | $1.99 | Add to Cart | |
| 40 | 16795 | Retainer | 1 | $64.53 | Add to Cart | |
| 41 | 16798 | Snap Ring | 2 | $5.21 | Add to Cart | |
| 42 | 16799 | Washer | 2 | $69.76 | Add to Cart | |
| 58 | 17504 | Oil Trough | 1 | $69.95 | Add to Cart | |
| 67 | 19688 | Lockwasher | 1 | $1.84 | Add to Cart | |
| K-1019 | Replacement Kit | $69.95 | Add to Cart |

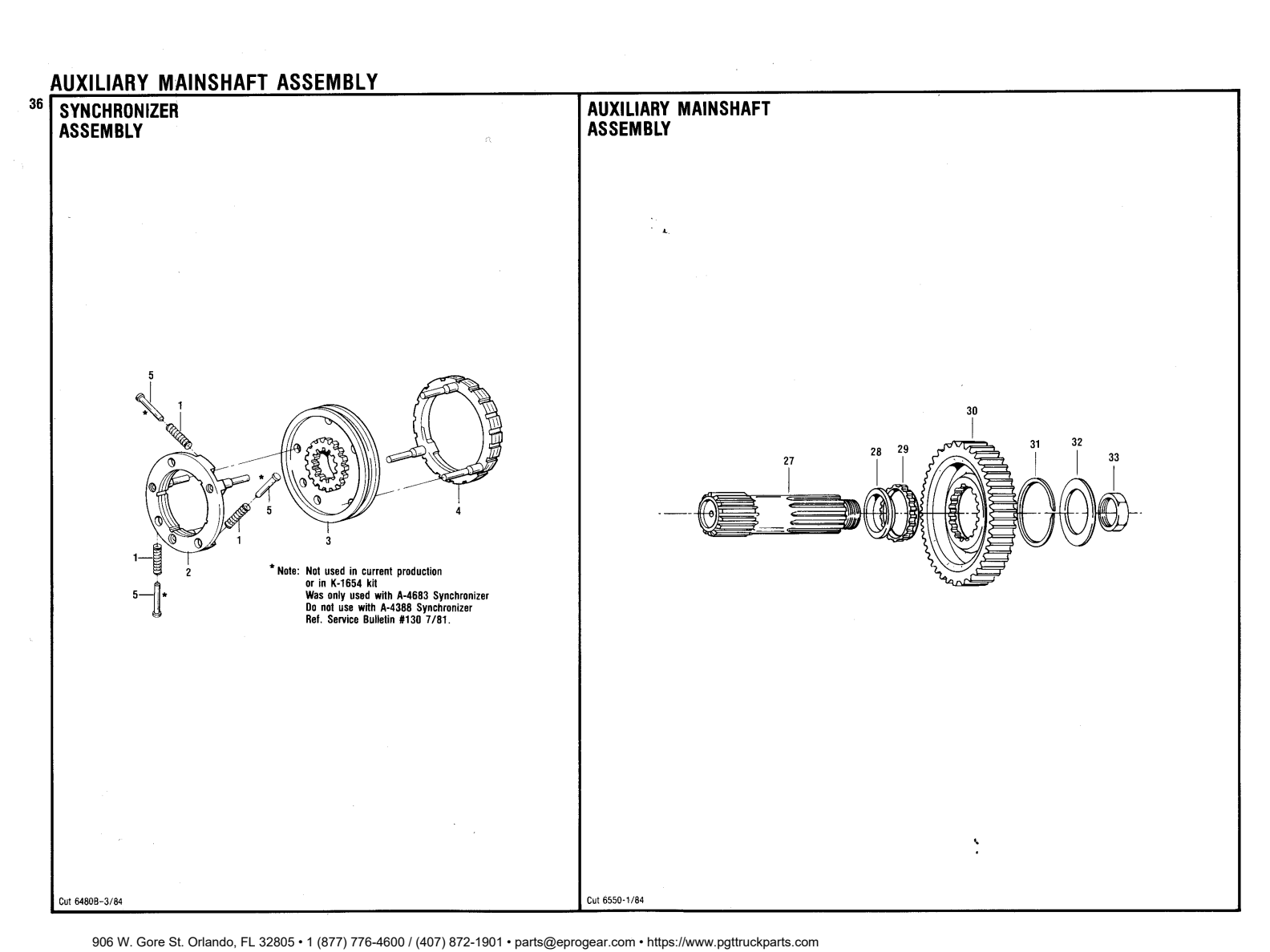

Auxiliary Mainshaft Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | A-4683 | Synchronizer High | 1 | Call for availability | ||
| or | A-4938 | Synchronizer High 0.J.II | Call for availability | |||
| or | A-5180 | Synchronizer High | Call for availability | |||
| 3 | 16759 | Sliding Clutch | 1 | Call for availability | ||
| or | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-4416 | Synchronizer Low | 1 | Call for availability | ||
| or | A-4937 | Synchronizer Low Qjaii | 1 | Call for availability | ||
| or | A-5179 | Synchronizer Low | 1 | Call for availability | ||
| 19154 | Pin | 3 | Call for availability | |||
| 27 | 19204 | Mainshaft | 1 | No longer available - Call for replacement | ||
| 28 | 14332 | Washer | 1 | $24.93 | Add to Cart | |
| 29 | 14331 | Spacer | 1 | $38.64 | Add to Cart | |
| 30 | 19165 | Gear Mainshaft Low | 1 | $835.69 | Add to Cart | |
| 31 | 14327 | Snap Ring | 1 | $2.85 | Add to Cart | |
| 32 | 19542 | Washer < | 1 | $122.58 | Add to Cart | |
| 33 | 11956 | Nut Replaced By 22254 | 1 | $15.84 | Superseded by 22254Add to Cart | |
| or | 22254 | Nut | 1 | $15.84 | Add to Cart | |
| K-1945 | Synchronizer Kit | Call for availability | ||||
| K-1946 | Synchronizer Kit | Call for availability | ||||
| K-1948 | Replacement Kit Sliding | Call for availability |
Auxiliary Countershaft - Auxiliary Housing
Item 50Item 53Item 80Item 81Item 65Item 71Item 76Item 61Item 70Item 75Item 46Item 62Item 45Item 52Item 44Item 50Item 69Item 49Item 84Item 83Item 55Item 82Item 59Item 60Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 6 | 16817 | Bearing | $57.07 | Add to Cart | ||
| 7 | A-4096 | Countershaft Assembly | 2 | $827.01 | Add to Cart | |
| 8 | 81008 | Bearing Replaced By | 2 | $59.71 | Superseded by 81052Add to Cart | |
| or | 81052 | Bearing | 2 | $59.71 | Add to Cart | |
| 9 | 16723 | Snap Ring | $2.12 | Add to Cart | ||
| 43 | 16724 | Rear Bearing Cover | 2 | $18.78 | Add to Cart | |
| 44 | X-8L-600 | Capscrew 3/8"-16 | 8 | $1.76 | Add to Cart | |
| or | X-8-686 | Capscrew 3/8"-16 | 8 | $1.97 | Add to Cart | |
| 45 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 46 | 20208 | Rear Bearing Cover | 1 | Call for availability | ||
| or | 20812 | Rear Bearing Cover | 1 | Call for availability | ||
| or | 22041 | Rear Bearing Cover | 1 | Call for availability | ||
| or | 22042 | Rear Bearing Cover | Call for availability | |||
| 47 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 48 | 2237 | Plug Replaced By 20226 | 1 | $4.15 | Superseded by 20226Add to Cart | |
| or | 20226 | Plug | 1 | $4.15 | Add to Cart | |
| 49 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 50 | X-8-616 | Capscrew 3/8"-16 | 5 | $3.01 | Superseded by X8L616Add to Cart | |
| and | X-8-681 | Capscrew 3/8"-16 | 1 | $4.00 | Add to Cart | |
| or | X-8L-605 | Capscrew 3/8"-16 | 5 | $4.71 | Add to Cart | |
| 52 | 14337 | Oil Seal Replaced By | 1 | $30.59 | Superseded by K2262Add to Cart | |
| or | 19109 | Oil Seal Replaced By | 1 | Call for availability | ||
| or | 21036 | Oil Seal | 1 | $18.84 | Superseded by K2256Add to Cart | |
| 53 | 14375 | Spacer Speedo Replacement | 1 | $36.80 | Superseded by 20192Add to Cart | |
| 55 | X-13-217 | Drive Screw Bcdez | 4 | $1.36 | Add to Cart | |
| 59 | 16843 | Rear Housing | 1 | Call for availability | ||
| or | 17391 | Rear Housing Wloil Cooler | Call for availability | |||
| or | 18765 | Rear Housing | Call for availability | |||
| or | 18764 | Rear Housing order5-1300 | 1 | Call for availability | ||
| 18787 | Order 5-1300 | 1 | Call for availability | |||
| 60 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 61 | X-8L-604 | Capscrew 3/8"-16 X 1-1/2" | 8 | $2.34 | Add to Cart | |
| and | X-8L-602 | Capscrew 3/8"-16 X 1-1/4" | 9 | $1.72 | Add to Cart | |
| and | X-8L-614 | Capscrew 3/8"-16 X 2" | 2 | $3.24 | Add to Cart | |
| 62 | 14367 | Bearing | 1 | $451.69 | Add to Cart | |
| 64 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 65 | 17178 | Plug Magnetic Speedo | 1 | $5.22 | Superseded by 4303655Add to Cart | |
| 69 | 19709 | Collar 1,kn | 1 | $2.04 | Add to Cart | |
| 70 | 19727 | Hose Clamp | 1 | $4.37 | Add to Cart | |
| 71 | X-8L-601 | Capscrew 3/8"-16 X 3/4" | 1 | $6.35 | Add to Cart | |
| 72 | 16807 | Spacer | 2 | $12.59 | Add to Cart | |
| 75 | 14142 | "o" Ring ;,k | 1 | $1.96 | Add to Cart | |
| 76 | 20226 | Plug ;,kn | 1 | $4.15 | Add to Cart | |
| 77 | 20224 | Plug Magnetic | 1 | $9.19 | Add to Cart | |
| 78 | 20225 | "o'' Ring Use Wlplug | 1 | $2.06 | Add to Cart | |
| or | 13679 | "o'' Ring | 1 | $2.60 | Add to Cart | |
| 80 | 20807 | Oil Seal | 1 | Call for availability | ||
| 81 | 20808 | Oil Seal Slinger | Call for availability | |||
| 82 | K-2091 | Oil Seal And Slinger | Call for availability | |||
| 83 | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 84 | X-8L-600 | Capscrew 3/8"-16 X 1" | 2 | $1.76 | Add to Cart | |
| K-1019 | Replacement Kit Oil Trough | $69.95 | Add to Cart | |||
| K-1037 | Replacement Kit Reservoir | $20.30 | Add to Cart | |||
| S-1001 | Rear Housing Assembly | Call for availability | ||||
| S-1300 | Rear Housing Assembly | Call for availability | ||||
| S-1301 | Rear Housing Assembly | Call for availability | ||||
| S-1428 | Rear Bearing Cover Assembly | Call for availability | ||||
| K-1932 | Oil Seal Kit | Call for availability | ||||
| K-1938 | Rear Bearing Cover Assembly | Call for availability | ||||
| S-1538 | Rear Bearing Cover Assembly | Call for availability | ||||
| S-1563 | Rear Bearing Cover Assembly | Call for availability | ||||
| S-1565 | Rear Bearing Cover Assembly | $204.52 | Add to Cart | |||
| 22039 | ~040 - 22041 - 22042 Rear Bearing | Call for availability |
Countershaft Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 85002 | Elbow Assembly 1/ 8" Pipe | $13.93 | Add to Cart | ||
| and | 83501 | Grip Nut | 1 | $1.97 | Add to Cart | |
| and | 83001 | Compression Sleeve | 1 | $2.82 | Add to Cart | |
| 3 | 84002 | Connector Assembly 1/ 8" Pipe | 2 | $7.06 | Add to Cart | |
| or | 82502 | Connector 1/ 8" Pipe | $2.88 | Add to Cart | ||
| and | 83501 | Grip Nut | $1.97 | Add to Cart | ||
| and | 83001 | Compression Sleeve | $2.82 | Add to Cart | ||
| 5 | 84101 | Connector 1/ 8" Nylon Tubing | 1 | $8.46 | Add to Cart | |
| and | 83501 | Grip Nut | $1.97 | Add to Cart | ||
| and | 83001 | Compression Sleeve | $2.82 | Add to Cart | ||
| 6 | A-4740 | Regulator Filter Assembly | 1 | $74.68 | Add to Cart | |
| 10 | 16929 | Gasket | 1 | Call for availability | ||
| 11 | 18471 | Adapter Plate | 1 | $123.62 | Superseded by K1712Add to Cart | |
| 12 | X-8L-722 | Capscrew 7/16"-14 X 1-1/4" | $4.23 | Add to Cart | ||
| 13 | 1684 | Gasket | 1 | Call for availability | ||
| 14 | 16656 | Pto Brake Housing | 1 | $214.48 | Add to Cart | |
| 15 | X-8L-604 | Capscrew3/8"-16 X 1-1/4" | 6 | $2.34 | Add to Cart | |
| 16 | 62515 | Roll Pin | 1 | $1.31 | Add to Cart | |
| 17 | 16658 | Piston | 1 | $51.30 | Add to Cart | |
| 18 | 16660 | "o" Ring | $5.97 | Add to Cart | ||
| 19 | 16661 | Gasket | 1 | $5.99 | Add to Cart | |
| 20 | 16659 | Pto Brake Cover | 1 | $70.79 | Add to Cart | |
| X-3-600 | Lockwasher 3/8" | 2 | $1.33 | Add to Cart | ||
| 22 | X-8-607 | Capscrew 3/8"-16 X 2-1/4" | 2 | $3.06 | Superseded by X8L607Add to Cart | |
| or | X-8L-607 | Capscrew ,3/8"-16 X 2-1/4" | 2 | $3.06 | Add to Cart | |
| 27 | 8000 | Sheathing | Call for availability | |||
| 40 | 13571 | "o" Ring | $2.11 | Add to Cart | ||
| 60 | 16859 | Actuator Valve | $49.95 | Add to Cart | ||
| 61 | 16914 | Bracket | $5.88 | Add to Cart | ||
| 62 | 16924 | Clamp | $2.91 | Add to Cart | ||
| 66 | 82010 | Nylon Tubing Black (20') | $4.84 | Add to Cart | ||
| 113 | 84004 | Connector Assembly | $11.29 | Add to Cart | ||
| or | 82504 | Connector 1/ 8" Pipe | 1 | Call for availability | ||
| or | 83502 | Grip Nut | 1 | $2.72 | Add to Cart | |
| or | 83002 | Compression Sleeve | 1 | $2.82 | Add to Cart | |
| 114 | 85001 | Elbow Assembly 1/ 8" Pipe | 2 | $14.54 | Add to Cart | |
| or | 84501 | Elbow 1/ 8" Pipe | 2 | Call for availability | ||
| or | 83502 | Grip Nut | 2 | $2.72 | Add to Cart | |
| or | 83002 | Compression Sleeve | 2 | $2.82 | Add to Cart | |
| 115 | 84003 | Connector Assembly | 2 | $12.54 | Add to Cart | |
| or | 82503 | Connector 5/32" Tube | 2 | Call for availability | ||
| or | 83502 | Grip Nut | 2 | $2.72 | Add to Cart | |
| or | 83002 | Compression Sleeve | 2 | $2.82 | Add to Cart | |
| 117 | 75320 | Nylon Tubing 5/32" | 1 | $61.61 | Add to Cart | |
| K-2075 | Brake Kit TCB-6 | $419.73 | Add to Cart | |||
| K-2074 | Brake Kit TCB-8 | $494.77 | Add to Cart | |||
| K-2076 | Repair Kit Brake Tcb | $127.76 | Add to Cart | |||
| K-1712 | Adapter Plate Kit | $123.62 | Add to Cart |
Yokes - Flanges Speedometer Drive - Magnetic
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 86068 | 6 | $90.04 | Add to Cart | |||
| 86068 | 6 | $90.04 | Add to Cart | |||
| 86067 | 4 | Call for availability | ||||
| 86127 | 6 | $128.85 | Add to Cart | |||
| 86127 | 6 | $128.85 | Add to Cart | |||
| 86128 | A | $38.46 | Add to Cart | |||
| 86087 | 13 A | $57.52 | Add to Cart | |||
| 86111 | 14 A | $67.30 | Add to Cart | |||
| 86086 | 14 A | Call for availability | ||||
| 86123 | C | $109.02 | Add to Cart | |||
| 86126 | C | $78.56 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RT-6613, with every part in the manual matched to our live inventory. We stock 387 of the 605 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Air Systems Air Systems - Roadranger Valve Air Controls Release Yoke - Clutch Housing - Case Lever Assembly Bar Housing - Yokes And Bars Mainshaft Countershaft Drive Gear - Idler - Mainshaft Bearing Assembly Cylinder Assemblies Auxiliary Drive Gear - Intermediate Case Auxiliary Mainshaft Assembly Auxiliary Countershaft - Auxiliary Housing Countershaft Brake Yokes - Flanges Speedometer Drive - Magnetic
No parts match that search. Try the part number with no dashes.
More RT/RTO-6613 exploded views and service kits
Additional diagrams for the RT/RTO-6613 family, with service kits and interchange numbers. Click a number on a diagram to highlight that part.

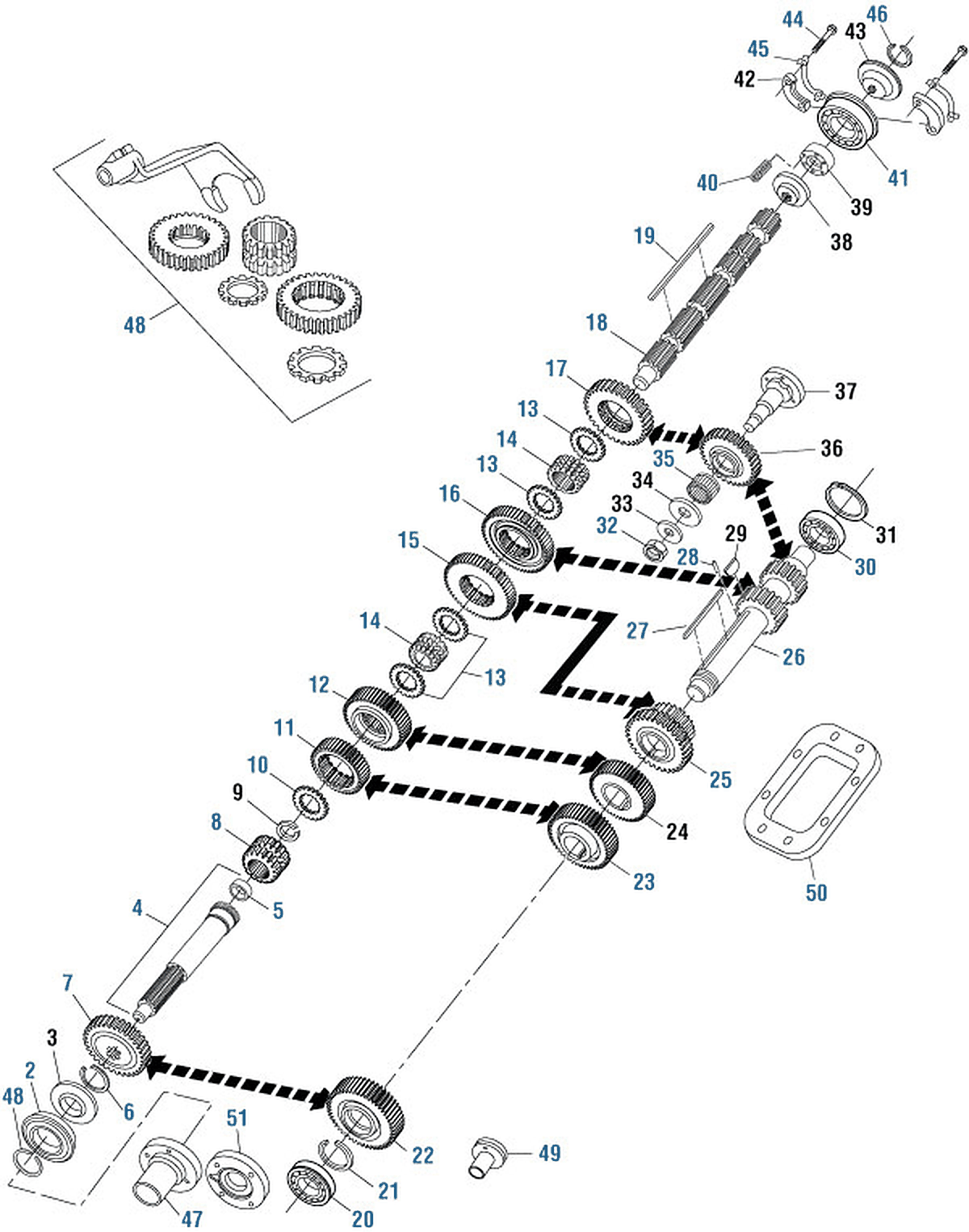

Main Case Components - Additional Diagram
Item 49Item 20Item 21Item 22Item 47Item 51Item 6Item 48Item 2Item 3Item 7Item 4Item 5Item 8Item 9Item 10Item 11Item 12Item 14Item 50Item 23Item 24Item 25Item 26Item 30Item 31Item 27Item 13Item 28Item 29Item 36Item 37Item 32Item 33Item 34Item 35Item 48Item 15Item 16Item 13Item 14Item 14Item 17Item 18Item 19Item 40Item 38Item 39Item 41Item 42Item 45Item 43Item 46Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15253 | Ring, Retaining | Interchanges with Navistar 1676128C1 | $5.67 | Add to Cart | |
| 2 | 3088-4301863 | Bearing (21 Rollers) | Interchanges with BCA MU1209TM, Fuller 4301863 | $78.36 | Add to Cart | |
| 2 | 3088-81551 | Bearing (10 Rollers) | Interchanges with BCA 209SLV, Navistar 369980C91 | $42.93 | Add to Cart | |
| 3 | 15971 | Spacer | $44.76 | Add to Cart | ||
| 4 | S-1254 | Shaft, Input (1-1/2in Push) (12.22in Long) | Interchanges with Fuller 18445, Navistar 166248C91 | $224.10 | Add to Cart | |
| 4 | S-1255 | Shaft, Input (1-3/4in Pull) (.98in Dia. Pilot) | Interchanges with Fuller 18446, Navistar 501234C1 | $364.58 | Add to Cart | |
| 4 | S-1253 | Shaft, Input (1-3/4in Pull) (1.18 Dia. Pilot) | Interchanges with Fuller 18444, Navistar 445105C93 | $256.66 | Add to Cart | |
| 5 | 15977 | Bushing | Interchanges with Navistar 398045C1 | $6.93 | Add to Cart | |
| 6 | 15973 | Ring, Retaining | Interchanges with Navistar 1662525C1 | $5.80 | Add to Cart | |
| 7 | 21661 | Gear, Main Drive (rt 6613) | Interchanges with Navistar 1660385C1 | $226.22 | Add to Cart | |
| 7 | 19294 | Gear, Main Drive (rt 6613) | Interchanges with Navistar 1658844C91 | $121.97 | Add to Cart | |
| 7 | 21669 | Gear, Main Drive (rto 6613) | Call for availability | |||
| 8 | 21662 | Clutch, Sliding | Interchanges with Navistar 1658957C1 | $124.49 | Add to Cart | |
| 8 | 18439 | Clutch, Sliding | Interchanges with Navistar 486789C1 | $106.03 | Add to Cart | |
| 9 | 15980 | Ring, Retaining | $5.60 | Add to Cart | ||
| 10 | 21664 | Washer, Thrust (.260in Thk) | Interchanges with Navistar 1658950C1 | $18.53 | Add to Cart | |
| 10 | 21665 | Washer, Thrust (.264in Thk) | Interchanges with Navistar 1658951C1 | $18.05 | Add to Cart | |
| 10 | 21666 | Washer, Thrust (.269in Thk) | Interchanges with Navistar 1658952C1 | $28.43 | Add to Cart | |
| 10 | 21667 | Washer, Thrust (.274in Thk) | Interchanges with Navistar 1658953C1 | $28.40 | Add to Cart | |
| 11 | 21663 | Gear, 4th (rt 6613) | Interchanges with Navistar 1660387C1 | $104.71 | Add to Cart | |
| 11 | 21670 | Gear, O.D. (rto 6613) | Call for availability | |||
| 11 | 19295 | Gear (RT6613) (use K-2018, K-2018) | Call for availability | |||
| 12 | 19207 | Gear, 3rd | Interchanges with Navistar 584878C1 | $197.19 | Add to Cart | |
| 13 | 15446 | Washer, Thrust (.260in Thk) | Interchanges with Navistar 369345C1 | $19.65 | Add to Cart | |
| 13 | 17259 | Washer, Thrust (.265in Thk) | Interchanges with Navistar 450665C1 | $24.32 | Add to Cart | |
| 13 | 17260 | Washer, Thrust (.270in Thk) | Interchanges with Navistar 450666C1 | $19.73 | Add to Cart | |
| 13 | 17261 | Washer, Thrust (.275in Thk) | Interchanges with Navistar 450667C1 | $23.10 | Add to Cart | |
| 13 | 17262 | Washer, Thrust (.280in Thk) | Interchanges with Navistar 450668C1 | $23.88 | Add to Cart | |
| 14 | 16226 | Clutch, Sliding | Interchanges with Navistar 398055C1 | $72.60 | Add to Cart | |
| 15 | 19206 | Gear, 2nd | Interchanges with Navistar 584879C1 | $133.85 | Add to Cart | |
| 16 | 19205 | Gear, 1st | Interchanges with Navistar 584880C1 | $184.37 | Add to Cart | |
| 17 | 16227 | Gear, Reverse | Interchanges with Navistar 369353C2, Fuller 15439 | $211.23 | Add to Cart | |
| 18 | 16805 | Mainshaft | Interchanges with Navistar 432332C1 | $612.73 | Add to Cart | |
| 19 | A-3990 | Assembly, Key | Interchanges with Fuller 16225, Navistar 398054C11 | $45.49 | Add to Cart | |
| 20 | 3088-18657 | Bearing | Interchanges with Fuller 18657 | $73.52 | Add to Cart | |
| 21 | 14286 | Ring, Retaining | Interchanges with Navistar 292783C1 | $2.20 | Add to Cart | |
| 22 | 19210 | Gear, C.s.drive (rt 6613) | Interchanges with Navistar 584874C1 | $291.97 | Add to Cart | |
| 22 | 19299 | Gear, C.s.drive (rto 6613) | Interchanges with Navistar 584873C1 | $304.69 | Add to Cart | |
| 23 | 19300 | Gear, O.D. (rto 6613) | Interchanges with Navistar 584869C1 | $217.68 | Add to Cart | |
| 23 | 19296 | Gear, 4th (rt 6613) | Interchanges with Navistar 584870C1 | $235.22 | Add to Cart | |
| 24 | 19211 | Gear, 3rd | $279.72 | Add to Cart | ||
| 25 | A-4918 | Gear, 2nd/PTO | Interchanges with Fuller 19212, Navistar 584871C1 | $792.41 | Add to Cart | |
| 26 | 19209 | Countershaft | Interchanges with Navistar 584875C1 | $368.63 | Add to Cart | |
| 27 | 16662 | Key | Interchanges with Navistar 407758C1, Fuller 15668 | $12.01 | Add to Cart | |
| 28 | 31AX532 | Pin | Interchanges with Fuller 62511, Navistar 19756R1. Sold as a 10-pack | $21.70 | Add to Cart | |
| 29 | X-6-128 | Key | $2.57 | Add to Cart | ||
| 30 | 3088-18658 | Bearing | Interchanges with Fuller 18658 | $97.63 | Add to Cart | |
| 31 | 15050 | Ring, Retaining | $2.48 | Add to Cart | ||
| 32 | 20AX5 | Nut (1/2in-20) | Interchanges with Fuller X-1-803. Sold as a 5-pack | $12.60 | Add to Cart | |
| 33 | X-10-801 | Washer | $1.15 | Add to Cart | ||
| 34 | 16789 | Washer | $29.91 | Add to Cart | ||
| 35 | 3088-15045 | Bearing | Interchanges with Fuller 15045 | $14.50 | Add to Cart | |
| 36 | 16234 | Gear, Reverse Idler | $245.78 | Add to Cart | ||
| 37 | S-1334 | Assembly, Shaft | $227.04 | Add to Cart | ||
| 38 | 16790 | Washer | $97.85 | Add to Cart | ||
| 39 | 16793 | Ring | $262.17 | Add to Cart | ||
| 40 | 1813 | Spring | Interchanges with Navistar 982413R1 | $1.68 | Add to Cart | |
| 41 | 81505 | Bearing | Interchanges with BCA 117L, Navistar 619219C91 | $76.28 | Add to Cart | |
| 42 | 15981 | Retainer | $20.69 | Add to Cart | ||
| 43 | 16792 | Retainer | $140.79 | Add to Cart | ||
| 44 | 4AX1 | Screw (3/8in-16 X 1in) | Call for availability | |||
| 45 | 15748 | Strap, Lock | Interchanges with Navistar 369359C1, Fuller 15332 | $2.85 | Add to Cart | |
| 46 | 14993 | Ring, Retaining | Interchanges with Navistar 291782C1, Mack 342SH442 | $4.76 | Add to Cart | |
| 47 | 16277 | 1-1/2in, Push) (use W/ S-1254 | Interchanges with Navistar 1662526C1 | $84.38 | Add to Cart | |
| 48 | K-2018 | Kit, Mainshaft Gear Update | Includes (1) 21665, (1) 21664, (1) 21662, (1) 21663, (1) 21661, (1) 16300. Interchanges with Navistar 1658844C91 | $477.54 | Add to Cart | |
| 49 | 16658 | Piston, Countershaft Brake | Interchanges with Navistar 432136C1 | $51.30 | Add to Cart | |
| 50 | 16596 | Pto | Interchanges with Navistar 430359C1 | $17.70 | Add to Cart | |
| 51 | 15019 | 1-3/4in Pull | $117.35 | Add to Cart |

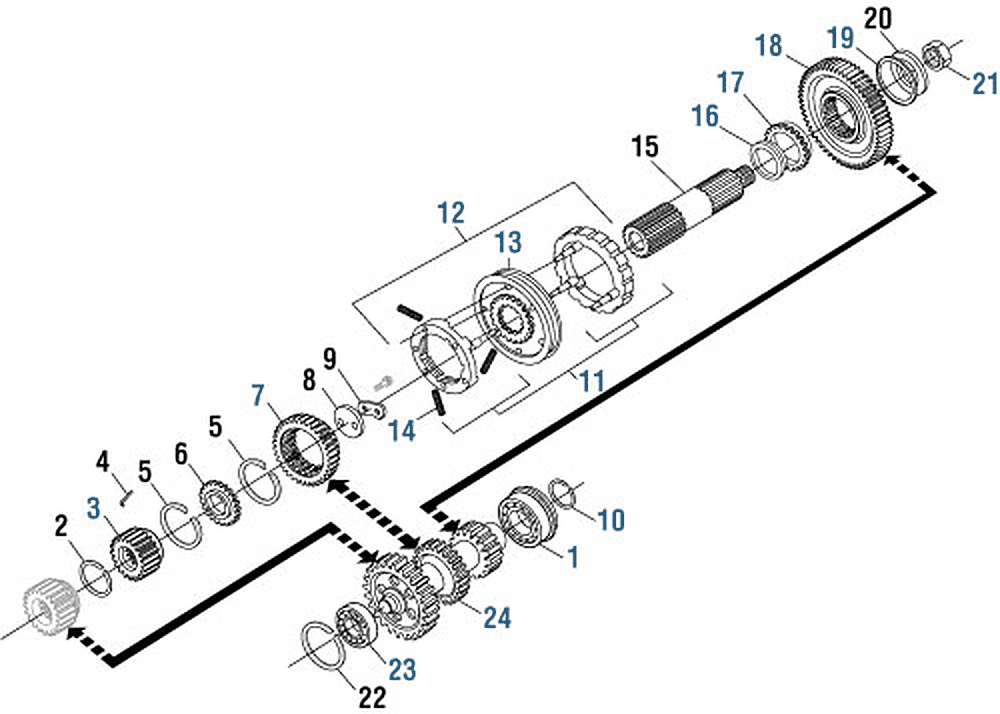

Auxiliary Components - Additional Diagram
Item 20Item 19Item 21Item 18Item 17Item 16Item 15Item 12Item 13Item 11Item 21Item 22Item 23Item 24Item 24Item 23Item 22Item 1Item 2Item 3Item 4Item 5Item 6Item 5Item 7Item 8Item 9Item 10Item 14Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 46AX464 | Bearing | Interchanges with Mack 46AX464 | $69.47 | Add to Cart | |
| 2 | 16812 | Ring, Retaining | $21.48 | Add to Cart | ||
| 3 | 16811 | Clutch, Sliding | Interchanges with Navistar 432338C1 | $168.89 | Add to Cart | |
| 4 | 16816 | Retainer | $1.75 | Add to Cart | ||
| 5 | 16798 | Ring, Retaining | $5.21 | Add to Cart | ||
| 6 | 16799 | Washer | $69.76 | Add to Cart | ||
| 7 | 16815 | Gear | Interchanges with Navistar 432344C1 | $187.90 | Add to Cart | |
| 8 | 16795 | Retainer | $64.53 | Add to Cart | ||
| 9 | 19688 | Lock | $1.84 | Add to Cart | ||
| 10 | 16723 | Ring, Retaining | Interchanges with Navistar 200380S1 | $2.12 | Add to Cart | |
| 11 | K-2446 | Kit, Synchronizer (big Pin) (w/o Clutch) | K-1946 Type. Interchanges with Fuller K-1946, Navistar 1648304C92 | $190.79 | Add to Cart | |
| 11 | K-2445 | Kit, Synchronizer (small Pin) (w/o Clutch) | K-1945 Type. Interchanges with Fuller K-1945, Navistar 478713C96 | $213.48 | Add to Cart | |
| 12 | K-2448 | Synchronizer Assembly | Includes (1) K-2446, (1) 20323. Big Pin) (K-1948 Type. Interchanges with Fuller K-1948, Navistar 1648303C92 | $196.05 | Add to Cart | |
| 13 | 20323 | Clutch, Sliding (big Pin) | Interchanges with Navistar 1648326C1 | $122.31 | Add to Cart | |
| 13 | 16759 | Clutch, Sliding (small Pin) | Interchanges with Fuller 15937 | $114.46 | Add to Cart | |
| 14 | 14897 | Spring | Interchanges with Navistar 292779C1, Mack 366SH219 | $1.40 | Add to Cart | |
| 15 | 19204 | Mainshaft | Call for availability | |||
| 16 | 14332 | Washer | Interchanges with Navistar 292788C1 | $24.93 | Add to Cart | |
| 17 | 14331 | Washer | Interchanges with Navistar 292787C1 | $38.64 | Add to Cart | |
| 18 | 19165 | Gear, Low | Interchanges with Navistar 584867C1 | $835.69 | Add to Cart | |
| 19 | 14327 | Ring, Retaining | Interchanges with Navistar 327361R1 | $2.85 | Add to Cart | |
| 20 | 19542 | Washer | $122.58 | Add to Cart | ||
| 21 | 1227-W-1375 | Nut | Interchanges with Fuller 11956 | $209.39 | Add to Cart | |
| 21 | 22254 | Nut, Flanged | Interchanges with Navistar 1677264C1, Navistar 1677264 | $15.84 | Add to Cart | |
| 22 | 16807 | Ring, Retaining | $12.59 | Add to Cart | ||
| 23 | 67AX287 | Bearing | Interchanges with Navistar 43615HB | $78.64 | Add to Cart | |
| 24 | A-4096 | Countershaft Assembly | Interchanges with Navistar 432345C1 | $827.01 | Add to Cart |
Auxiliary Housing Components - Additional Diagram
Item 23Item 22Item 2Item 3Item 4Item 5Item 6Item 1Item 7Item 17Item 19Item 20Item 21Item 8Item 9Item 9Item 10Item 11Item 12Item 14Item 13Item 15Item 16Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302248 | Gasket | Interchanges with Navistar 292792C1, Mack 123SH46 | $4.48 | Add to Cart | |
| 2 | X-8L-614 | Screw (2in Lg.) | $3.24 | Add to Cart | ||
| 2 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Fuller X-8L-604. Sold as a 5-pack | $19.35 | Add to Cart | |
| 2 | 6AX1309X | Screw (3/8in-16 X 1-1/2in) | Interchanges with Fuller X-8L-602. Sold as a 5-pack | $14.90 | Add to Cart | |
| 3 | 3088-14367 | Kit, Bearing | $271.00 | Add to Cart | ||
| 4 | 17097 | Gasket | Interchanges with Navistar 443439C1, Fuller 5877 | $2.77 | Add to Cart | |
| 5 | 16724 | $18.78 | Add to Cart | |||
| 6 | 6AX1359X | Screw (3/8in-16 X 1in) | Interchanges with Fuller X-8L-686, Navistar 1670574C1 | $2.77 | Add to Cart | |
| 7 | 15532 | Gasket | Interchanges with Navistar 349852C1 | $3.19 | Add to Cart | |
| 8 | 153KB15 | Bushing | Interchanges with Fuller 7992. Sold as a 10-pack | $47.29 | Add to Cart | |
| 9 | 20226 | Plug | $4.15 | Add to Cart | ||
| 10 | 56AX533 | O-ring | Sold as a 10-pack | $29.30 | Add to Cart | |
| 11 | 17179 | Gasket | Interchanges with Navistar 212376S1 | $2.25 | Add to Cart | |
| 12 | 49AX224 | Plug, Magnetic | Interchanges with Fuller 17178, Navistar 56070R1. Sold as a 5-pack | $39.93 | Add to Cart | |
| 13 | 6J2245 | O-ring (use W/ Plug) | Interchanges with Fuller 20224 | $9.19 | Add to Cart | |
| 13 | 13679 | O-ring (use W/ Sensor) | $2.60 | Add to Cart | ||
| 14 | 20224 | Plug | $9.19 | Add to Cart | ||
| 15 | 20807 | Seal, Oil | Interchanges with Navistar 1693416C1 | $26.60 | Add to Cart | |
| 16 | 20808 | Slinger | $14.52 | Add to Cart | ||
| 17 | K-2262 | Kit, Seal, Oil | Includes (1) 20807, (1) 20808, (1) 15532, (1) 21364, (1) 19709, (1) 17106. Interchanges with Fuller K-1932, Navistar 1681103C91 | $30.59 | Add to Cart | |
| 18 | 14375 | Spacer (speedo Gear Replacement) | $36.80 | Superseded by 20192Add to Cart | ||
| 19 | 19709 | Collar | Interchanges with Navistar 3289882R1 | $2.04 | Add to Cart | |
| 20 | 17106 | Washer | Interchanges with Navistar 442540C1 | $1.63 | Add to Cart | |
| 21 | X-8-616 | Screw (2-3/4in Lg.) | $3.01 | Superseded by X8L616Add to Cart | ||
| 21 | X-8-605 | Screw (3in Lg.) | $4.71 | Superseded by X8L605Add to Cart | ||
| 22 | 36AX3 | Washer, Lock | Interchanges with Fuller X-3-600, Eaton 90416. Sold as a 10-pack | $21.30 | Add to Cart | |
| 23 | 15061 | Gasket, Intermediate Housing | Interchanges with Navistar 369376C1 | $17.52 | Add to Cart |
Range Cylinder Components - Additional Diagram
Item 1Item 2Item 3Item 4Item 3Item 5Item 6Item 7Item 8Item 11Item 12Item 13Item 14Item 15Item 9Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14347 | Gasket | Interchanges with Navistar 292793C1, Mack 126SH129 | $2.29 | Add to Cart | |
| 2 | X-7-810 | Screw (1/2in-20 X 2in) | Interchanges with Navistar 292815C1 | $1.89 | Superseded by X7809Add to Cart | |
| 3 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Sold as a 5-pack | $19.35 | Add to Cart | |
| 4 | 14765 | O-ring | Interchanges with Navistar 424193C1, CAT 5F1678 | $2.70 | Add to Cart | |
| 5 | 446GC1131 | O-ring | Sold as a 10-pack | $24.20 | Add to Cart | |
| 6 | 14341 | Piston | Interchanges with Navistar 292791C1, Mack 314SH48 | $26.70 | Add to Cart | |
| 7 | 14344 | O-ring | Interchanges with Navistar 424194C1 | $8.00 | Add to Cart | |
| 8 | 14349 | Gasket | Interchanges with Navistar 292795C1, Mack 126SH130 | $5.36 | Add to Cart | |
| 9 | 19599 | Cylinder | $100.47 | Add to Cart | ||
| 10 | NL-110-1 | Nut, Locking (5/8in-18) | $70.40 | Add to Cart | ||
| 10 | 20AX7 | Nut (5/8in-18) | Sold as a 6-pack | $15.36 | Add to Cart | |
| 11 | 22823 | Fork, Shift | Interchanges with Navistar 1693341C1 | $82.40 | Add to Cart | |
| 12 | 16778 | Cylinder, Range | $181.93 | Add to Cart | ||
| 13 | 16993 | Rail, Yoke | $193.71 | Superseded by A6162Add to Cart | ||
| 14 | K-1450 | Kit, O-ring, Range Cylinder | Includes (1) 14765, (1) 14344, (1) 56AX556, (1) 14349, (1) 14347, (1) NL110-1, (1) 3088-71206. Interchanges with Navistar 469267C91, Fuller K-2802 | $12.61 | Add to Cart | |
| 15 | A-6163 | Assembly, Yoke (range) (latest Design) | $130.85 | Add to Cart |
Intermediate Cylinder Components - Additional Diagram
Item 14Item 9Item 8Item 18Item 7Item 16Item 15Item 13Item 14Item 11Item 12Item 6Item 4Item 5Item 3Item 2Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16813 | Fork, Shift | $244.76 | Add to Cart | ||
| 2 | 3220 | Screw, Lock | Interchanges with Navistar 44042H | Call for availability | ||
| 3 | 14632 | Gasket | Interchanges with Navistar 302841C1 | $2.06 | Add to Cart | |
| 4 | 16801 | O-ring | Interchanges with Fuller 14644, Navistar 302848C1. Sold as a 10-pack | $26.60 | Add to Cart | |
| 5 | 16801 | Cylinder, Intermediate | $222.98 | Add to Cart | ||
| 6 | 18507 | Rail, Yoke | $205.24 | Add to Cart | ||
| 7 | X-8L-507 | Screw (5/16in-18 X 1-1/2in) | $2.32 | Add to Cart | ||
| 8 | 13653 | O-ring | Interchanges with Navistar 891555R1, Fuller 14205 | $3.00 | Add to Cart | |
| 9 | 15719 | Plug | Interchanges with Navistar 363047C1 | $5.86 | Add to Cart | |
| 10 | 19974 | Valve, Insert | Interchanges with Navistar 363048C92, Fuller 15512 | $52.92 | Add to Cart | |
| 11 | 14643 | Piston (use W/ 14641) | $29.22 | Add to Cart | ||
| 12 | 18506 | Gasket (use W/ 14641) | Interchanges with Navistar 486358C1 | $1.43 | Add to Cart | |
| 13 | 261SB51 | Nut (7/16in-20) (use W/ 14641) | Interchanges with Fuller X-1-702, Navistar 1681723C1. Sold as a 10-pack | $24.60 | Add to Cart | |
| 14 | 14621 | O-ring | Interchanges with Navistar 302854C1, CAT 6F6673 | $2.65 | Add to Cart | |
| 15 | 15720 | Gasket | Interchanges with Navistar 361676C1 | $2.25 | Add to Cart | |
| 16 | 21676 | Cylinder (w/ A-5015 & A-5315) | Interchanges with Navistar 1670575C1 | $110.58 | Add to Cart | |
| 16 | 16963 | Cylinder (w/ Selector Valve) | $218.74 | Add to Cart | ||
| 17 | 36AX22 | Washer, Lock (5/16in) | Interchanges with Fuller X-3-500. Sold as a 25-pack | $54.25 | Add to Cart | |
| 18 | K-1447 | Kit, O-ring, Range & Intermediate Cylinder | Includes (1) 14765, (1) 14621, (1) 14344, (1) 14645, (1) 446GC1131, (1) 122SB99, (1) 14349, (1) 18506, (1) 20AX7, (1) 261SB51, (1) 3088-71206. Interchanges with Navistar 469266C91, Fuller A-4033 | $17.42 | Add to Cart | |
| 18 | K-1451 | Kit, O-ring, Intermediate Cylinder | Includes (1) 14645, (1) 14621, (1) 122SB99, (1) 261SB51. Interchanges with Navistar 479000C91, Fuller A-3518 | $8.63 | Add to Cart | |
| 18 | K-1457 | Kit, O-ring, Insert Valve | Includes (3) 13653. Interchanges with Navistar 365507C91 | $5.84 | Add to Cart |
Cover Components - Additional Diagram
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20209 | Gasket | Interchanges with Navistar 1651860C1 | $2.29 | Add to Cart | |
| 2 | 1MR2297 | Switch, Reverse | Interchanges with Fuller 22940, Fuller 16830. Sold as a 5-pack | $78.05 | Add to Cart | |
| 3 | 15900 | Gasket | $2.24 | Add to Cart | ||
| 4 | 49AX233 | Plug | Interchanges with Fuller X-12-602, Eaton 90323 | Call for availability | ||
| 5 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Fuller X-8L-604. Sold as a 5-pack | $19.35 | Add to Cart | |
| 6 | 15605 | Gasket | Interchanges with Fuller 14723, Navistar 369331C1 | $8.33 | Add to Cart | |
| 7 | 15133 | Gasket | Interchanges with Navistar 344533C1 | $1.58 | Add to Cart | |
| 8 | 4304602 | Breather | Interchanges with Fuller 23605 | $8.22 | Add to Cart | |
| 9 | 4AX1 | Screw (3/8in-16 X 1in) | Interchanges with Navistar 60000R91, Fuller X-8L-600 | $1.76 | Add to Cart | |
| 10 | 49AX224 | Plug, Magnetic | Interchanges with Fuller 17178, Navistar 56070R1. Sold as a 5-pack | $39.93 | Add to Cart | |
| 11 | 17179 | Gasket | Interchanges with Navistar 212376S1 | $2.25 | Add to Cart | |
| 12 | 1064 | Spring | Interchanges with Navistar 41031V | $5.33 | Add to Cart | |
| 13 | 48AX17 | Ball (1/2in Dia.) | Interchanges with Fuller X-14-800. Sold as a 10-pack | $27.90 | Add to Cart | |
| 14 | 6AX1309X | Screw (3/8in-16 X 1-1/2in) | Interchanges with Fuller X-8L-602. Sold as a 5-pack | $14.90 | Add to Cart | |
| 15 | 2536 | Spring, Shift Lever | Interchanges with Navistar 44028HA | $5.59 | Add to Cart |
Shifter Components - Additional Diagram
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15910 | Rail, Reverse Shift | $31.17 | Add to Cart | ||
| 2 | 15096 | Yoke, Reverse Shift | $285.98 | Add to Cart | ||
| 3 | 3220 | Screw | Interchanges with Navistar 87919H, Fuller 4670 | Call for availability | ||
| 4 | 10019 | Plunger | Interchanges with Navistar 972561R1, Mack 306SH19 | $22.91 | Add to Cart | |
| 5 | 6392 | Spring | Interchanges with Navistar 87919H, Fuller 4670 | $3.89 | Add to Cart | |
| 6 | 8968 | Plug | Interchanges with Fuller X-14-1200, Navistar 1662475C1 | $4.91 | Add to Cart | |
| 7 | 48AX12 | Ball | Sold as a 10-pack | $32.00 | Add to Cart | |
| 8 | 1634 | Pin | Interchanges with Navistar 41052V | $3.13 | Add to Cart | |
| 9 | 15100 | Rail, 2nd Shift | $31.52 | Add to Cart | ||
| 10 | 16300 | Yoke, Direct Shift | Interchanges with Navistar 398050C1 | $83.72 | Add to Cart | |
| 11 | 15101 | Rail, Direct Shift | $27.36 | Add to Cart |
This is the official Eaton Fuller 6613 Series Illustrated Parts List (document TRIP-0600), covering the RT-6613 and RTO-6613 13-speed heavy-duty truck transmissions. Use it to identify every serviceable part in your 6613-series unit (service kits, assemblies, gears, shafts and housings) before you order replacements.
| Models covered | RT-6613, RTO-6613 |
| Transmission type | 13-speed, twin-countershaft, heavy duty |
| Document | TRIP-0600 Illustrated Parts List (Eaton / Fuller) |
| Length | 49 pages |
| Format | PDF, free download |
What’s inside
- Service kits & assemblies, with recommended stocking quantities
- Roadranger® valve & selector valve repair kits
- Air system and air control parts
- Case & clutch housings
- Shift bar housings & lever assemblies
- Mainshaft & countershaft assemblies
- Drive gears, idler & auxiliary drive gears
- Rear housing assemblies
- Transmission clutch brake (TCB) repair kits
- Exploded parts diagrams with OEM part numbers
6613-series parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller 13-speed transmissions, including the 6613 series:
- Remanufactured RTO-6613 transmissions, fully rebuilt units, ready to ship
- RT-6613 13-speed shift pattern diagram (P/N 21817)
- All Eaton Fuller transmission parts & units
- Search our catalog for RT-6613
Not sure which transmission you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
