Eaton Fuller RT-7608LL Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RT-7608LL is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

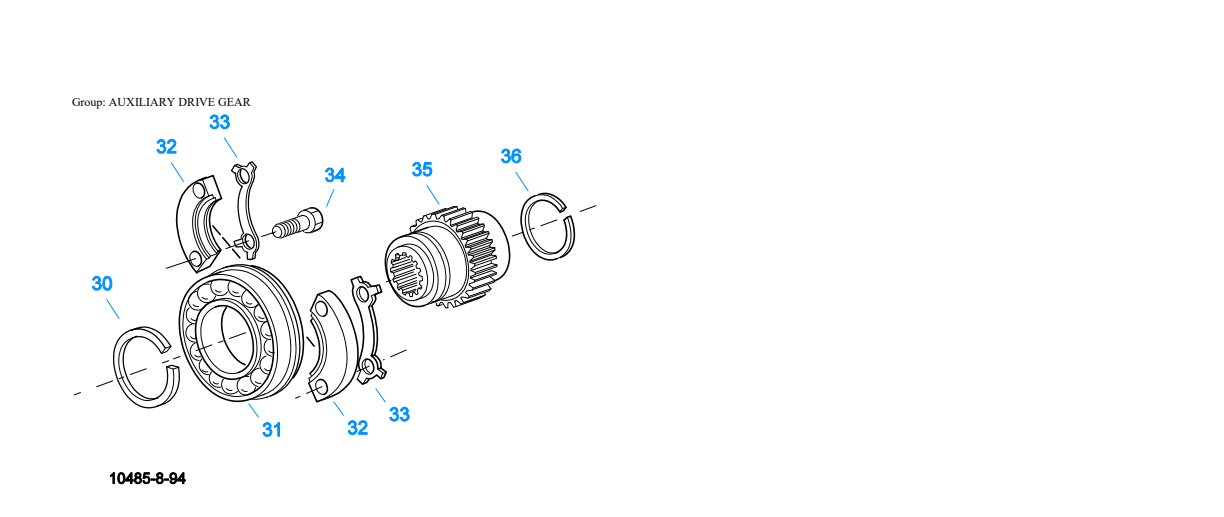

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | 15994 | Snap Ring | 1 | $18.63 | Add to Cart | |
| 31 | 81505 | Bearing | 1 | $76.28 | Add to Cart | |
| 32 | 23064 | Retainer | 2 | $26.45 | Add to Cart | |
| 33 | K-2425 | Lock Screw Kit | 1 | Replaces 23066. | $3.64 | Add to Cart |
| 34 | X-8-645 | Capscrew | 4 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 35 | 22371 | Auxiliary Drive Gear | 1 | $401.78 | Add to Cart | |
| 36 | 14993 | Snap Ring | 1 | $4.76 | Add to Cart |
Case (Aux)
Item 7Item 17Item 4Item 1Item 18Item 5Item 4Item 6Item 8Item 9Item 10Item 14Item 16Item 11Item 5Item 15Item 20Item 5Item 24Item 25Item 23Item 2Item 12Item 22Item 21Item 3Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-605 | Capscrew | 5 | 3/8"-16X3" | $4.71 | Add to Cart |
| 2 | S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart |
| 3 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 5 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8-686 | Capscrew | 8 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 9 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" USE W/20815 LIFTING EYES | $1.76 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 11 | 16724 | Rear Brg Cover | 2 | $18.78 | Add to Cart | |
| 12 | 17097 | Gasket | 2 | $2.77 | Add to Cart | |
| 14 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | X-8L-609 | Capscrew | 9 | 3/8"-16X1-3/4" | $2.11 | Add to Cart |
| 14 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | S-1300 | No Longer Available | 1 | Replaces 18764, 18787. | Call for availability | |
| 15 | S-1301 | No Longer Available | 1 | Replaces 18765. USE W/OIL COOLER | Call for availability | |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | X-8-682 | Capscrew | 1 | 3/8"-16X3" | $2.17 | Add to Cart |
| 18 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 19 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 22 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 23 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 24 | K-1037 | Reservoir Repl Kit | 1 | Replaces 17503. | $20.30 | Add to Cart |
| 25 | X-13-217 | Drive Screw | 4 | $1.36 | Add to Cart |

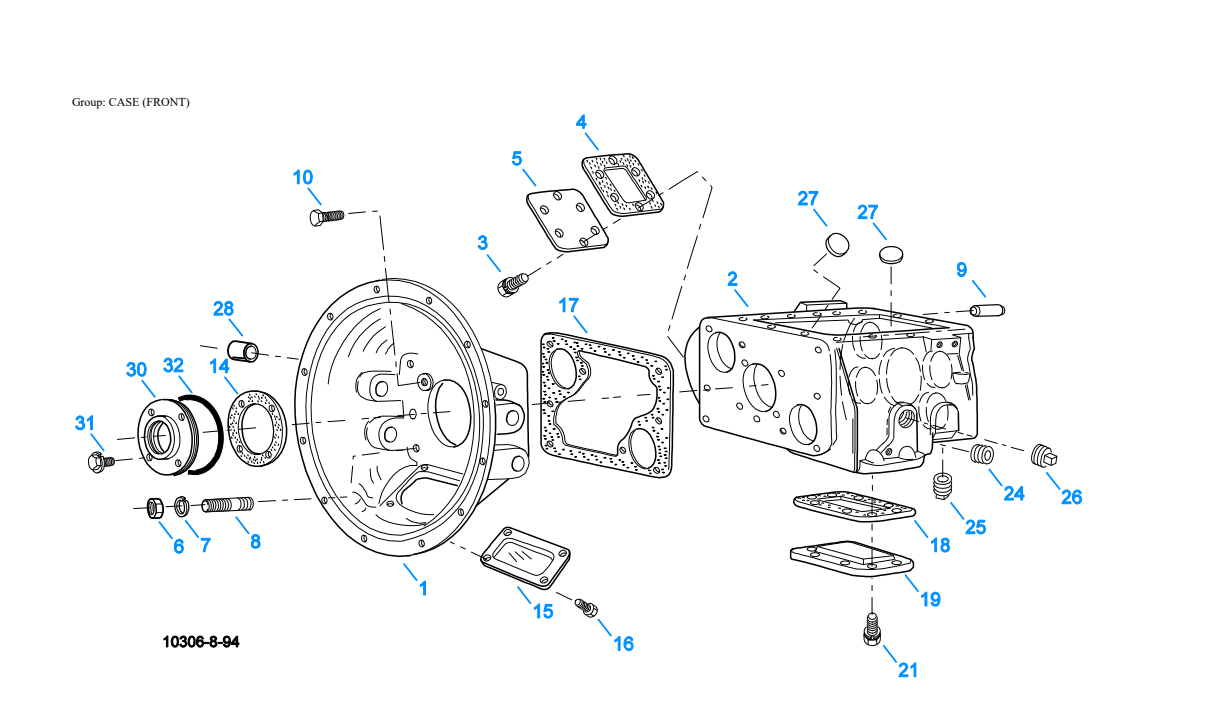

Case (Front)
Item 5Item 32Item 27Item 3Item 14Item 18Item 30Item 25Item 17Item 16Item 1Item 6Item 10Item 8Item 15Item 26Item 9Item 4Item 7Item 2Item 24Item 27Item 28Item 19Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-3711 | Clutch Housing Assy | 1 | #2 PULL | $1,403.49 | Add to Cart |
| 1 | S-1085 | Clutch Housing Assy | 1 | Replaces 18130. #1 PULL | Call for availability | |
| 2 | S-1616 | Case Assy | 1 | Replaces 23060. | $3,388.36 | Add to Cart |
| 3 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 4 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 5 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 6 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 7 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 8 | 14554 | Stud | 6 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 9 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 10 | X-8L-808 | Capscrew | 2 | 1/2"-13X1-1/4" | $3.11 | Add to Cart |
| 12 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | 20789 | Gasket | 1 | $8.94 | Add to Cart | |
| 15 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 15 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 16 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 17 | 20579 | Gasket | 1 | $4.17 | Add to Cart | |
| 18 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 19 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 21 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 24 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 25 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 26 | X-12-2002 | Pipe Plug | 1 | 1-1/4" | Call for availability | |
| 27 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 28 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 30 | 20777 | Front Brg Cover | 1 | 1-3/4" SHAFT | $113.11 | Add to Cart |
| 30 | 20785 | Front Brg Cover | 1 | 2" SHAFT | Call for availability | |
| 32 | 20635 | O-ring | 1 | $5.44 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23261 | Bearing | 2 | $86.49 | Add to Cart | |
| 2 | A-5317 | Welded Countershaft Assy | 2 | D/G 22369 - C/S 22368 | $626.29 | Add to Cart |
| 3 | 81052 | Bearing | 2 | Replaces 81008. | $59.71 | Add to Cart |
| 4 | 16723 | Snap Ring | 2 | $2.12 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20832 | Bearing | 4 | $77.58 | Add to Cart | |
| 2 | 14286 | Snap Ring | 2 | $2.20 | Add to Cart | |
| 3 | 20576 | Drive Gear-cntrshft | 2 | $201.55 | Add to Cart | |
| 4 | 20583 | Pto Gear-cntrshft | 2 | $170.20 | Add to Cart | |
| 5 | 20587 | 3RD Gear-cntrshft | 2 | $161.17 | Add to Cart | |
| 6 | A-5030 | Welded Countershaft Assy | 2 | C/S 20795 - 2ND 20834 | $791.62 | Add to Cart |
| 7 | 20604 | Key | 2 | $6.20 | Add to Cart | |
| 8 | 20628 | Snap Ring | 2 | $9.78 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

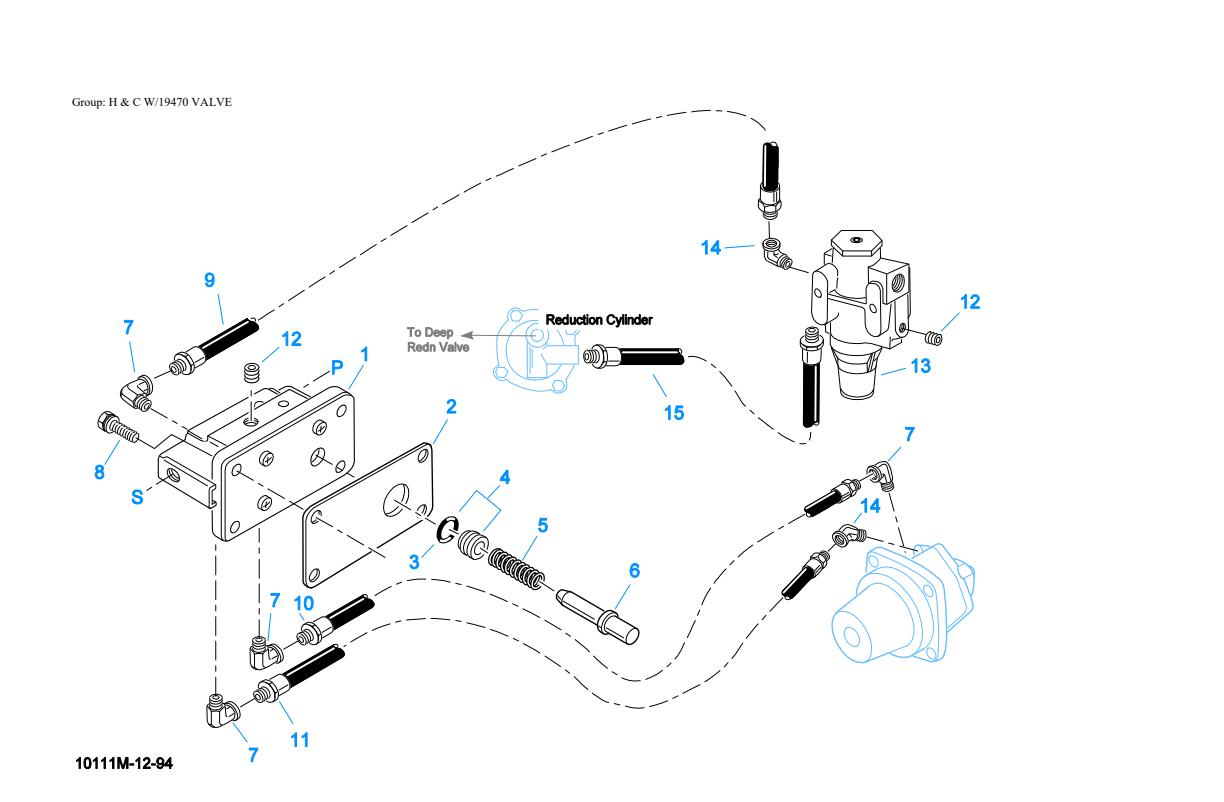

H & C W/19470 Valve
Item 7Item 7Item 7Item 7Item 11Item 1Item 14Item 14Item 2Item 12Item 12Item 15Item 8Item 9Item 4Item 3Item 5Item 10Item 13Item 6Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 4 | K-2079 | Sleeve Kit | 1 | Replaces 19570. | $28.12 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20649 | Pin | 1 | $26.15 | Add to Cart | |
| 7 | 12845 | Elbow | 4 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55507 | Hose Assy | 1 | 20" | $18.81 | Add to Cart |
| 10 | 55506 | Hose Assy | 1 | 18" | $18.10 | Add to Cart |
| 11 | 55507 | Hose Assy | 1 | 20" | $18.81 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 14 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 15 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |

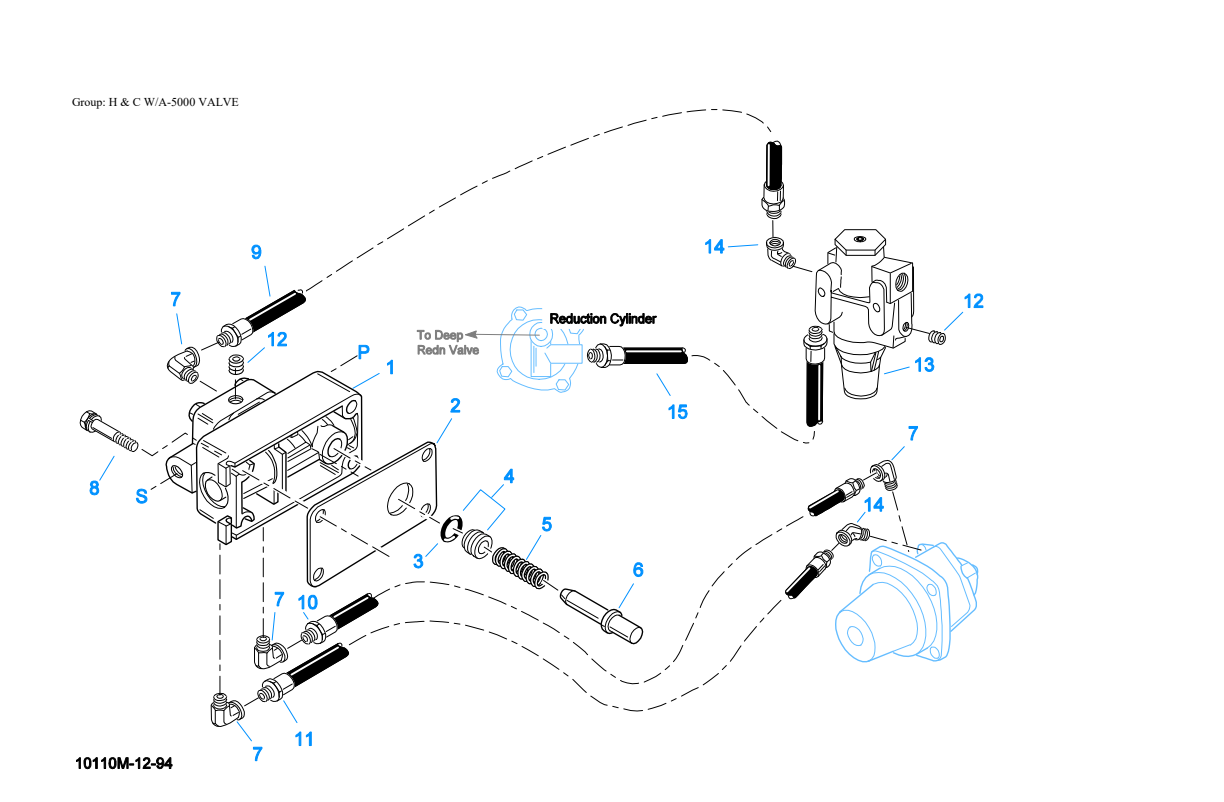

H & C W/A-5000 Valve
Item 7Item 7Item 7Item 7Item 11Item 1Item 9Item 14Item 6Item 2Item 4Item 12Item 8Item 5Item 12Item 10Item 14Item 13Item 3Item 15Item 6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 4 | K-2079 | Sleeve Kit | 1 | Replaces 19570. | $28.12 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20649 | Pin | 1 | $26.15 | Add to Cart | |
| 7 | 12845 | Elbow | 4 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55507 | Hose Assy | 1 | 20" | $18.81 | Add to Cart |
| 10 | 55506 | Hose Assy | 1 | 18" | $18.10 | Add to Cart |
| 11 | 55507 | Hose Assy | 1 | 20" | $18.81 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 14 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 15 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16723 | Snap Ring | 1 | $2.12 | Add to Cart | |
| 2 | 4301855 | Bearing | 1 | Replaces 81568. | $75.27 | Add to Cart |
| 3 | 20778 | Spacer | 1 | $55.82 | Add to Cart | |
| 4 | A-5021 | Input Shaft Assy | 1 | Replaces 20787. 2" PULL - USE W/FBC 20785 | $443.57 | Add to Cart |
| 4 | A-5022 | Input Shaft Assy | 1 | Replaces 20788. 1-3/4" PULL - USE W/FBC 20777 | $293.62 | Add to Cart |
| 4 | A-5083 | Input Shaft Assy | 1 | Replaces 21001. 1-3/4" PULL W/.9835 PILOT-USE W/FBC 20777 | Call for availability | |
| 5 | 15977 | Bushing | 1 | $6.93 | Add to Cart | |
| 6 | 15973 | Snap Ring | 1 | $5.80 | Add to Cart | |
| 7 | 21671 | Main Drive Gear | 1 | $206.79 | Add to Cart |

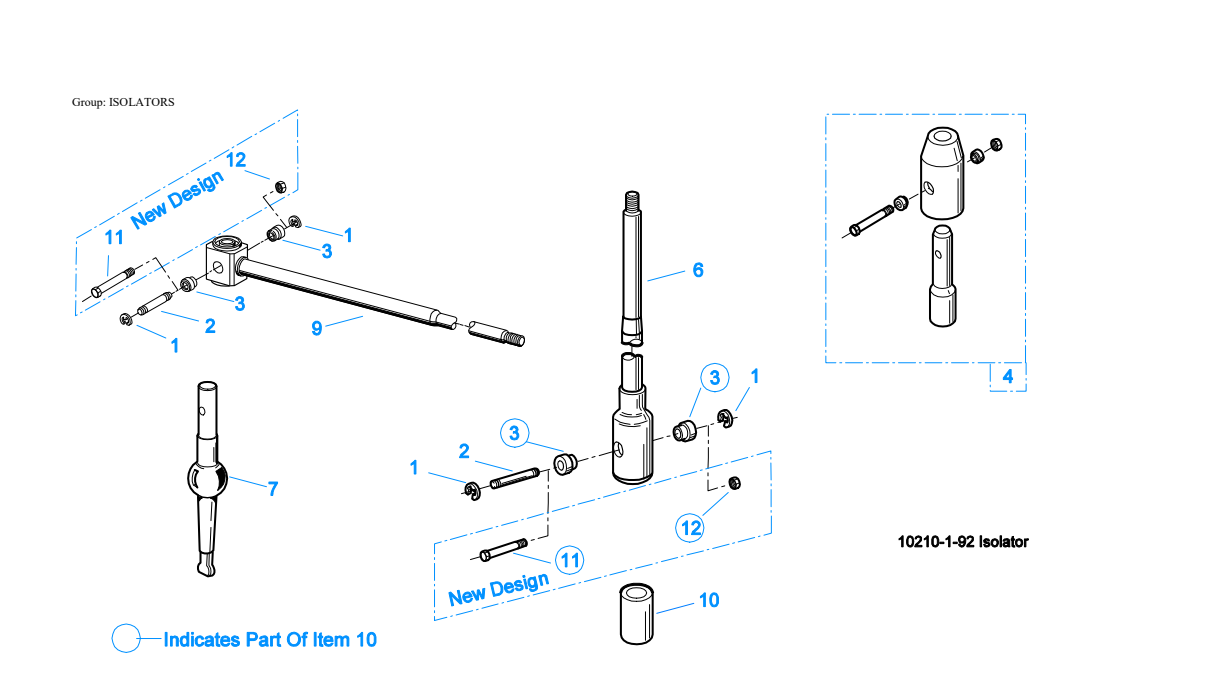

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1037 | Reservoir Repl Kit | 1 | Replaces 17503. | $20.30 | Add to Cart | |
| K-1432 | Cyl Kit-range | 1 | $263.84 | Add to Cart | ||
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1457 | O-ring Kit | 1 | FOR INSERT VALVE | $5.84 | Add to Cart | |
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1546 | Repl Kit-mainshaft | 1 | Replaces 15948, 18134. | $215.80 | Add to Cart | |
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1644 | Quill Replacement Kit | 1 | Replaces 16833, 16834. | $43.76 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR A-4740 FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1700 | Oil Cooler Kit | 1 | Call for availability | |||
| K-1704 | Pump Installation Kit | 1 | Call for availability | |||
| K-1922 | Master Valve Repair Kit | 1 | FOR A-5015 VALVE | $50.56 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1995 | Basic Overhaul Kit | 1 | $1,314.42 | Add to Cart | ||
| K-2002 | O-ring Kit | 1 | FOR RANGE & REDUCTION CYLINDERS | $19.78 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2047 | Basic Rebuild Kit | 1 | $1,398.71 | Add to Cart | ||
| K-2078 | O-ring Kit - Splitter | 1 | FOR REDUCTION CYLINDER | $10.58 | Add to Cart | |
| K-2079 | Sleeve Kit | 1 | Replaces 19570. FOR SLAVE VALVE | $28.12 | Add to Cart | |
| K-2107 | Cylinder Kit - Redn | 1 | $306.16 | Add to Cart | ||
| K-2109 | Small Parts Kit | 1 | $214.12 | Add to Cart | ||
| K-2110 | Gasket Kit | 1 | Replaces K-1781. | $58.21 | Add to Cart | |
| K-2256 | Oil Seal Kit | 1 | Replaces 14337, 19109, 21036. | $18.84 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2425 | Lock Screw Kit | 1 | Replaces 23066. | $3.64 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart | |
| K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| S-1085 | Clutch Housing Assy | 1 | Replaces 18130. | Call for availability | ||
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. FOR A-5000 VALVE | No longer available - Call for replacement | ||
| S-1616 | Case Assy | 1 | Replaces 23060. | $3,388.36 | Add to Cart | |
| S-1617 | Case Assy | 1 | Replaces 22366. INTERMEDIATE CASE | $900.83 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-1807 | Shift Bar Hsg | 1 | Replaces 23062, 4300408, S-1615. HOUSING ONLY | $355.15 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart | |
| S-2404 | Shift Bar Hsg Assy | 1 | Replaces 4300408. COMPLETE | Call for availability | ||
| S-2548 | Roadranger Valve Assy | 1 | Replaces A-5039. RT - W/SHIFT DIAGRAM MEDALLION | $123.34 | Add to Cart |

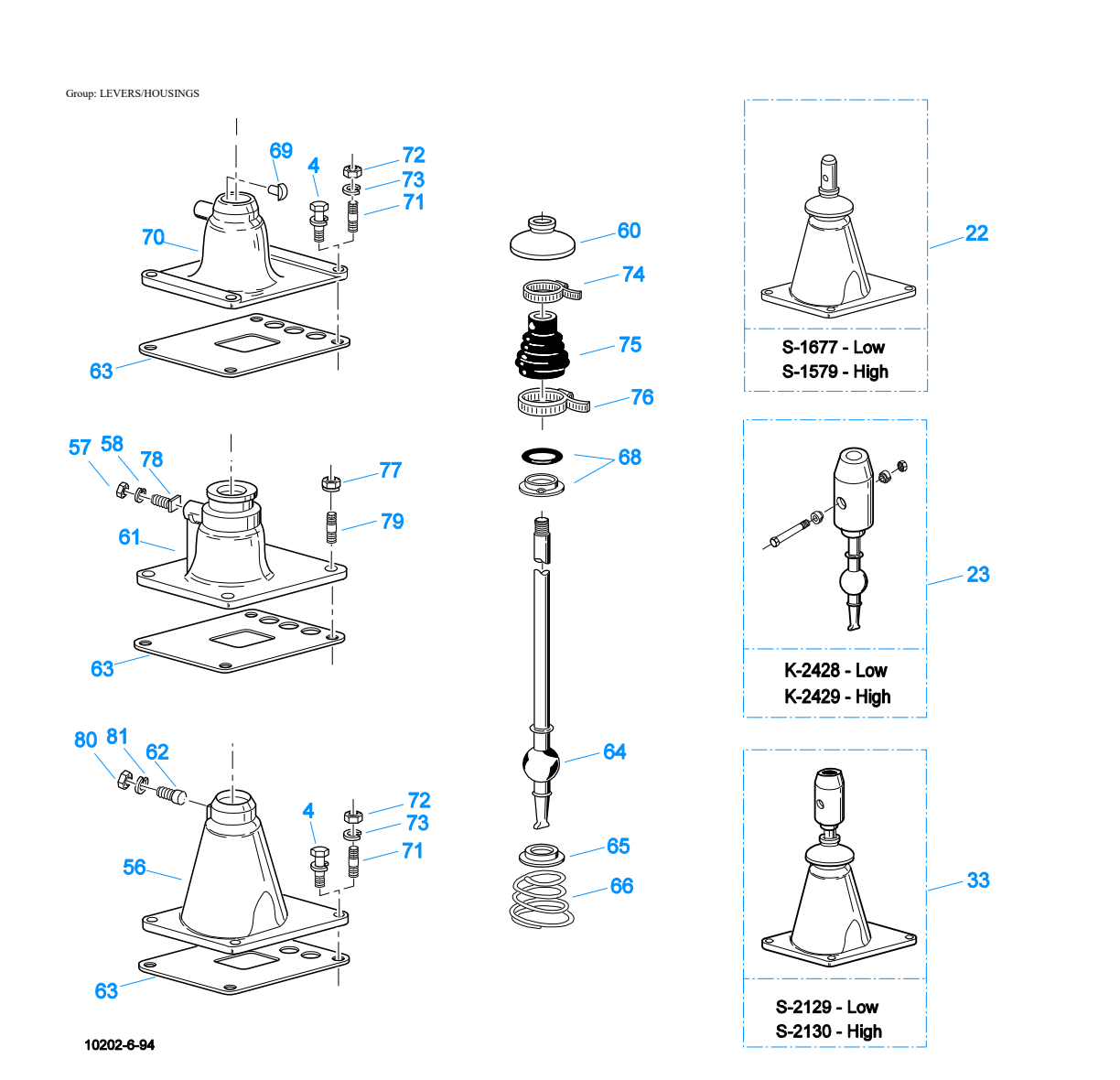

Levers/Housings
Item 33Item 71Item 77Item 74Item 71Item 80Item 4Item 4Item 57Item 66Item 60Item 64Item 76Item 65Item 63Item 63Item 61Item 56Item 68Item 81Item 79Item 23Item 58Item 73Item 75Item 69Item 63Item 73Item 72Item 72Item 22Item 70Item 78Item 62Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 22 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 22 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630K-. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | Call for availability | |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | No longer available - Call for replacement | ||
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | Call for availability | |
| 78 | 14461 | Pin | 1 | Call for availability | ||
| 79 | 14236 | No Longer Available | 4 | Call for availability | ||
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |

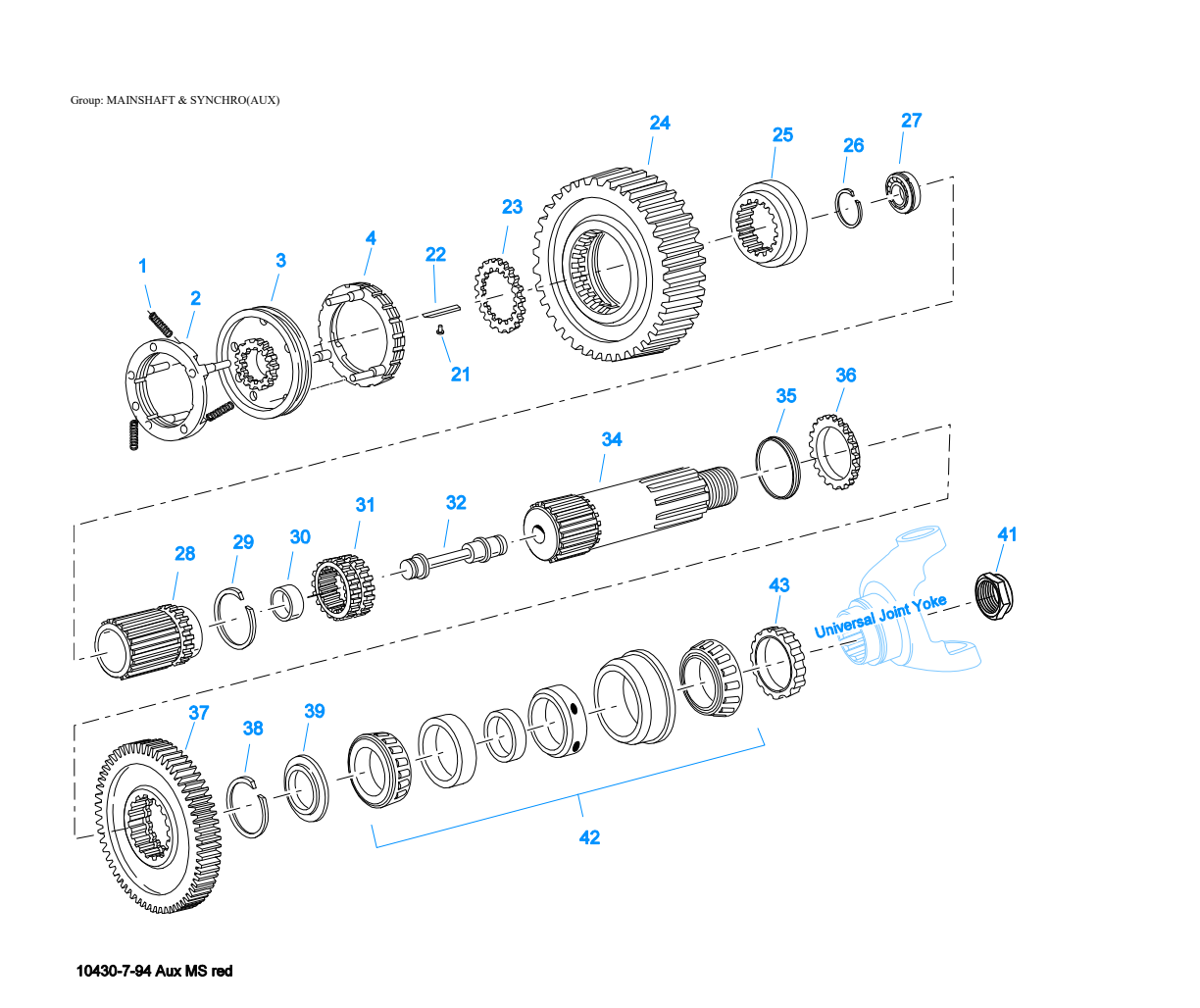

Mainshaft & Synchro(Aux)
Item 1Item 41Item 24Item 22Item 26Item 29Item 4Item 27Item 42Item 36Item 43Item 3Item 34Item 21Item 32Item 23Item 30Item 25Item 31Item 28Item 38Item 35Item 39Item 2Item 37Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 21 | 14832 | Pin | 1 | $6.50 | Add to Cart | |
| 22 | A-3697 | Key & Pin Assy | 1 | Replaces 15516. | $29.22 | Add to Cart |
| 23 | 15932 | Washer .202-.204 Black | 1 | $21.09 | Add to Cart | |
| 23 | 17257 | Washer .206-.208 Purple | 1 | $21.47 | Add to Cart | |
| 23 | 17258 | Washer .210-.212 Yellow | 1 | $22.70 | Add to Cart | |
| 24 | 22370 | Lo Gear-mainshaft | 1 | $536.58 | Add to Cart | |
| 25 | 18193 | Mainshaft Coupler | 1 | Replaces 15938. | $117.22 | Add to Cart |
| 26 | 14291 | Snap Ring | 1 | $4.23 | Add to Cart | |
| 27 | 81547-BOX | Bearing | 1 | Replaces 81547. | $7.51 | Add to Cart |
| 28 | K-1546 | Repl Kit-mainshaft | 1 | Replaces 15948, 18134. | $215.80 | Add to Cart |
| 29 | 18135 | Snap Ring | 1 | $2.04 | Add to Cart | |
| 30 | 16516 | Bushing | 1 | $5.41 | Add to Cart | |
| 31 | 15959 | Sliding Clutch | 1 | $145.28 | Add to Cart | |
| 32 | K-1644 | Quill Replacement Kit | 1 | Replaces 16833, 16834. | $43.76 | Add to Cart |
| 34 | A-4738 | Mainshaft Assy | 1 | Replaces 19213. | $222.63 | Add to Cart |
| 35 | 14332 | Washer | 1 | $24.93 | Add to Cart | |
| 36 | 18250 | Spacer | 1 | Replaces 16308. | $33.74 | Add to Cart |
| 37 | 20022 | Reduction Gear | 1 | Replaces 19283. | $250.90 | Add to Cart |
| 38 | 14327 | Snap Ring | 1 | $2.85 | Add to Cart | |
| 39 | 16310 | Washer | 1 | $27.13 | Add to Cart | |
| 41 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |
| 42 | 14367 | Bearing | 1 | $451.69 | Add to Cart | |
| 43 | 20192 | Rotor | 1 | $36.80 | Add to Cart |

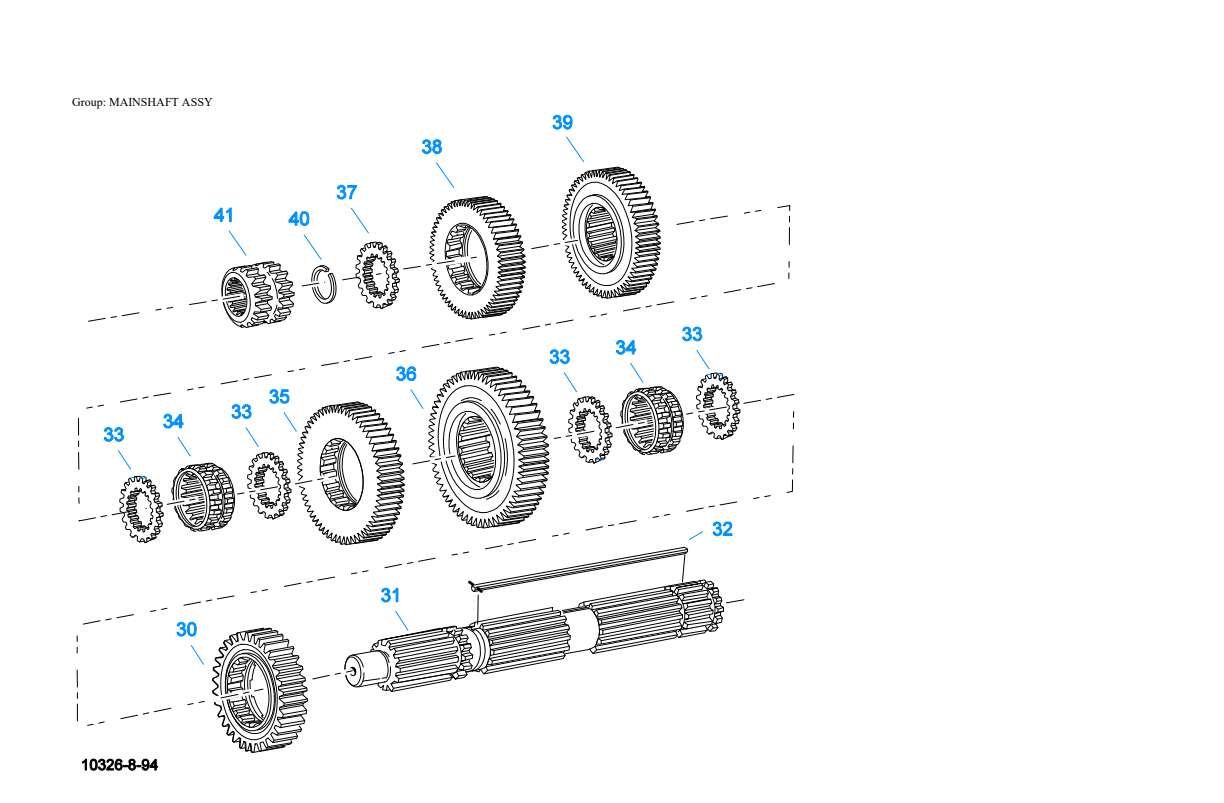

Mainshaft Assy
Item 35Item 38Item 39Item 36Item 32Item 31Item 34Item 30Item 33Item 37Item 33Item 33Item 34Item 33Item 40Item 41Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | 20597 | Reverse Gear- Mainshaft | 1 | $361.68 | Add to Cart | |
| 31 | 20614 | Mainshaft | 1 | $273.67 | Add to Cart | |
| 32 | A-4989 | Key & Pin Assy | 1 | $18.20 | Add to Cart | |
| 33 | 20617 | Washer .259-.261 Orange | 4 | $25.54 | Add to Cart | |
| 33 | 20618 | Washer .263-.265 Purple | 4 | $28.02 | Add to Cart | |
| 33 | 20619 | Washer .268-.270 Yellow | 4 | $26.42 | Add to Cart | |
| 33 | 20620 | Washer .273-.275 Black | 4 | $29.82 | Add to Cart | |
| 33 | 20621 | Washer .278-.280 Red | 4 | $30.87 | Add to Cart | |
| 34 | 20615 | Sliding Clutch | 2 | $106.54 | Add to Cart | |
| 35 | 20593 | 1ST Gear-mainshaft | 1 | $244.22 | Add to Cart | |
| 36 | 20794 | Lo Gear-mainshaft | 1 | $266.26 | Add to Cart | |
| 37 | 21664 | Washer .259-.261 Orange | 1 | $18.53 | Add to Cart | |
| 37 | 21665 | Washer .263-.265 Purple | 1 | $18.05 | Add to Cart | |
| 37 | 21666 | Washer .268-.270 Yellow | 1 | $28.43 | Add to Cart | |
| 37 | 21667 | Washer .273-.275 Black | 1 | $28.40 | Add to Cart | |
| 37 | 21668 | Washer .278-.280 Red | 1 | $23.23 | Add to Cart | |
| 38 | 21672 | 3RD Gear-mainshaft | 1 | $209.98 | Add to Cart | |
| 39 | 20833 | 2ND Gear-mainshaft | 1 | $225.01 | Add to Cart | |
| 40 | 15980 | Snap Ring | 1 | $5.60 | Add to Cart | |
| 41 | 21662 | Sliding Clutch | 1 | $124.49 | Add to Cart |

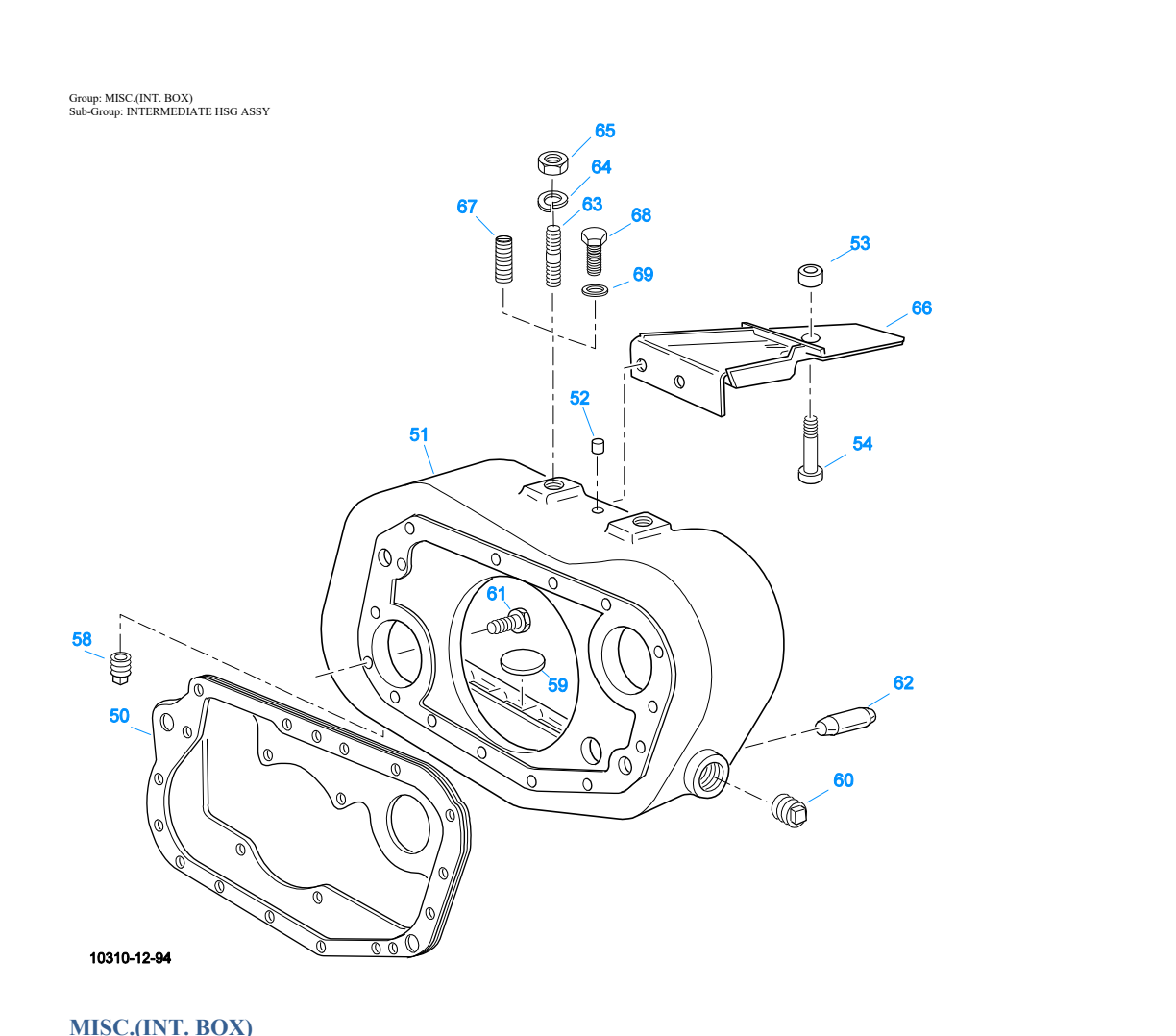

Misc.(Int. Box)
Item 67Item 68Item 62Item 59Item 58Item 65Item 66Item 52Item 54Item 69Item 60Item 50Item 61Item 51Item 63Item 64Item 53Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 50 | 4300799 | Gasket | 1 | Replaces 23063. | $158.40 | Add to Cart |
| 51 | S-1617 | Case Assy | 1 | Replaces 22366. | $900.83 | Add to Cart |
| 52 | 15701 | Plug | 1 | $2.34 | Add to Cart | |
| 53 | 23101 | Spacer | 1 | $7.19 | Add to Cart | |
| 54 | X-8-410 | Capscrew | 1 | Replaces X-8-430. 1/4"-20X7/8" | $1.50 | Add to Cart |
| 58 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 59 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 60 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 61 | X-8-680 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.97 | Add to Cart |
| 61 | X-8L-604 | Capscrew | 13 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 62 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 63 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 64 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 65 | X-1-1012 | Hex Nut | 2 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 66 | 23019 | Oil Trough | 1 | $35.36 | Add to Cart | |
| 67 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 68 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 69 | 20814 | Spacer | 2 | $2.70 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 18683 | Warning Label | 1 | Call for availability | |||
| 19064 | Warning Label | 1 | Call for availability | |||
| 20466 | Shift Diagram Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

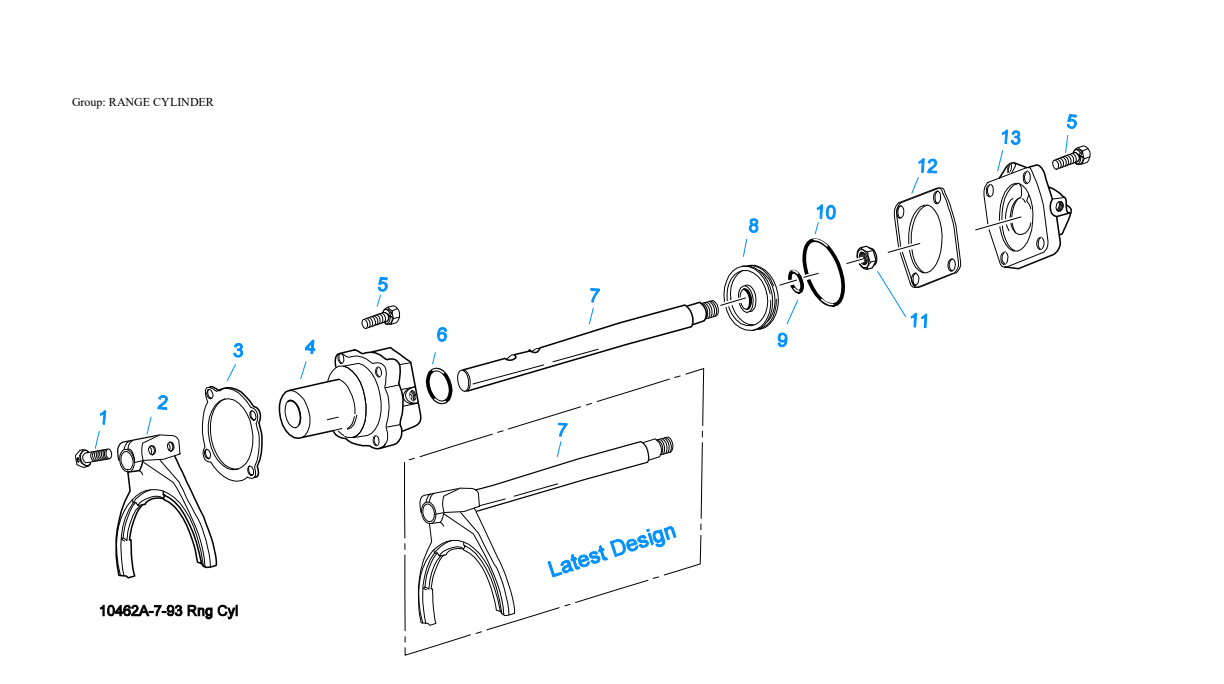

Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 16777 | Auxiliary Cylinder | 1 | $95.19 | Add to Cart | |
| 5 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 16776 | Yoke Bar | 1 | $167.97 | Superseded by A6159Add to Cart | |
| 7 | A-6159 | Welded Yoke Assy | 1 | Replaces 4301651. | $167.97 | Add to Cart |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 13 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart |

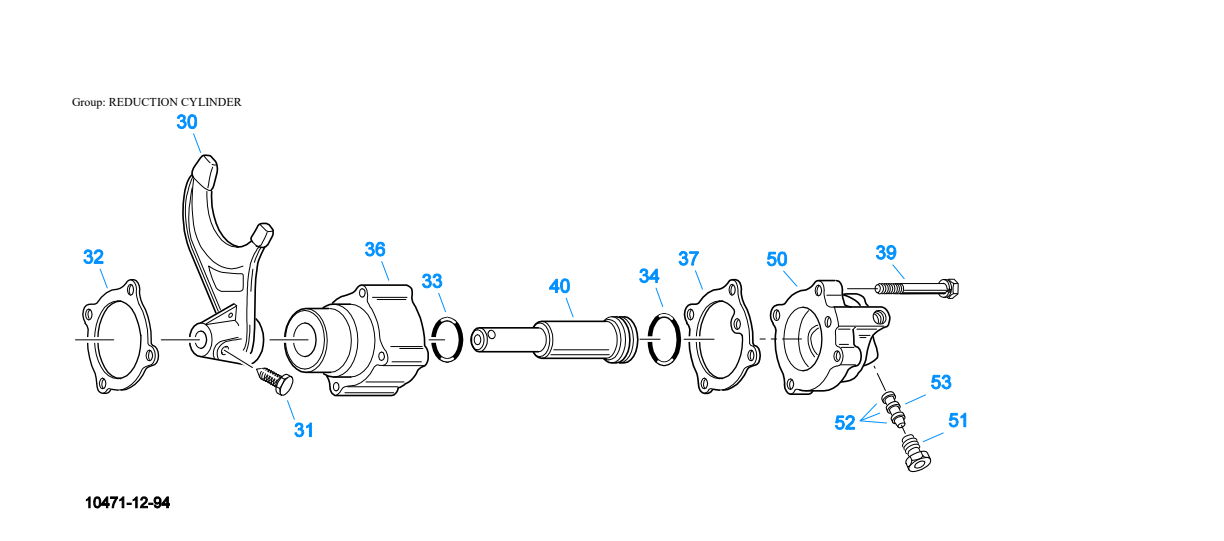

Reduction Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | 16517 | Shift Yoke | 1 | $217.17 | Add to Cart | |
| 31 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 32 | 14632 | Gasket | 1 | $2.06 | Add to Cart | |
| 33 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 34 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 36 | 21210 | Auxiliary Cylinder | 1 | $94.30 | Add to Cart | |
| 37 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 39 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 40 | 21233 | Yoke Bar & Piston | 1 | $60.64 | Add to Cart | |
| 50 | K-3331 | Splitter Vlv Repl Kit | 1 | Replaces 43009274304031, 4304032, A-6862. | $103.52 | Add to Cart |
| 51 | 15719 | Plug | 1 | $5.86 | Add to Cart | |
| 52 | 13653 | O-ring | 3 | $3.00 | Add to Cart | |
| 53 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |

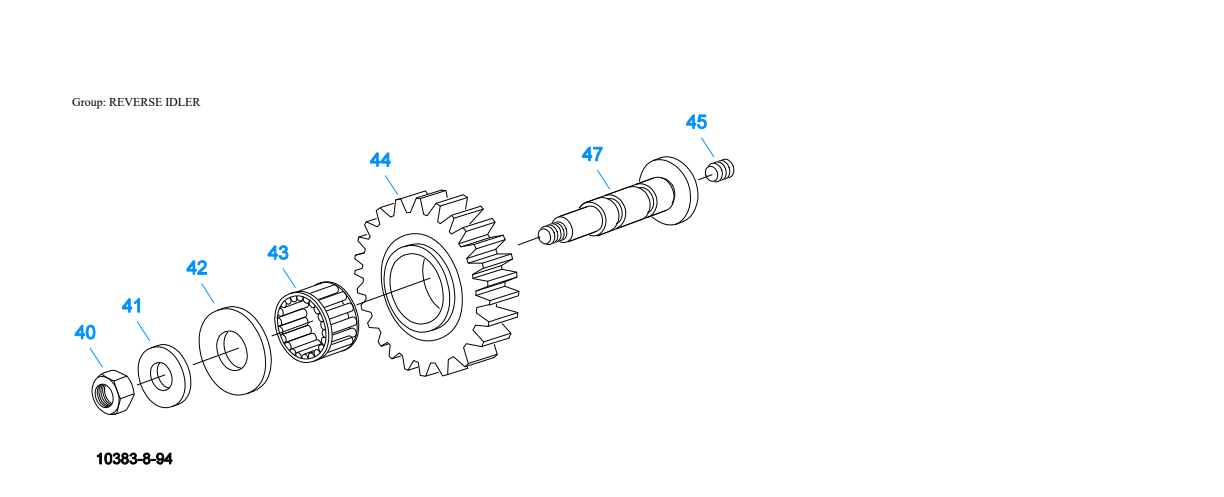

Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 40 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 41 | 20613 | Washer | 2 | $3.67 | Add to Cart | |
| 42 | 20612 | Washer | 2 | $26.45 | Add to Cart | |
| 43 | 15045 | Bearing | 2 | $6.48 | Add to Cart | |
| 44 | 20608 | Idler Gear | 2 | $157.54 | Add to Cart | |
| 45 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 47 | 23316 | Idler Shaft | 2 | Replaces 20610. | $164.55 | Add to Cart |
Roadranger Valve
Item 2Item 1Item 11Item 7Item 1Item 2Item 6Item 2Item 3Item 2Item 2Item 2Item 2Item 10Item 2Item 10Item 5Item 10Item 12Item 7Item 7Item 5Item 7Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 21691 | Logo Medallion | 1 | Replaces 4302349, 4300370. (OLD DESGIN) FULLER LOGO (LEFT OF DRIVER) | No longer available - Call for replacement | |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586115 | Shift Diagram Medallion | 1 | RT | $28.59 | Add to Cart |
| 2 | K-1922 | Master Valve Repair Kit | 1 | FOR A-5015 VALVE | $50.56 | Add to Cart |
| 2 | K-2055 | Master Valve Repair Kit | 1 | FOR A-5315 VALVE | $24.90 | Add to Cart |
| 2 | K-3192 | Master Valve Repair Kit | 1 | FOR A-6915 VALVE | $31.63 | Add to Cart |
| 2 | K-3194 | Master Valve Repair Kit | 1 | FOR A-7315 VALVE | $41.55 | Add to Cart |
| 3 | 20496 | Lever | 1 | $18.41 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces x-8-202. | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | $1.87 | Add to Cart | |
| 7 | 84001 | Connector Assy | 4 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 4 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 14 | 84002 | Connector Assy | 1 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 14 | 84004 | Connector Assy | 1 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 14 | 84006 | Connector Assy | 1 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 999 | A-6915 | Roadranger Valve Assy | 1 | Replaces A-5015. STANDARD-W/LOGO | $88.11 | Add to Cart |
| 999 | A-7315 | Roadranger Valve Assy | 1 | Replaces A-5315. (LEFT OF DRIVER)-W/LOGO | $156.40 | Add to Cart |
| 999 | S-2548 | Roadranger Valve Assy | 1 | Replaces A-5039. RT - W/SHIFT DIAGRAM MEDALLION | $123.34 | Add to Cart |

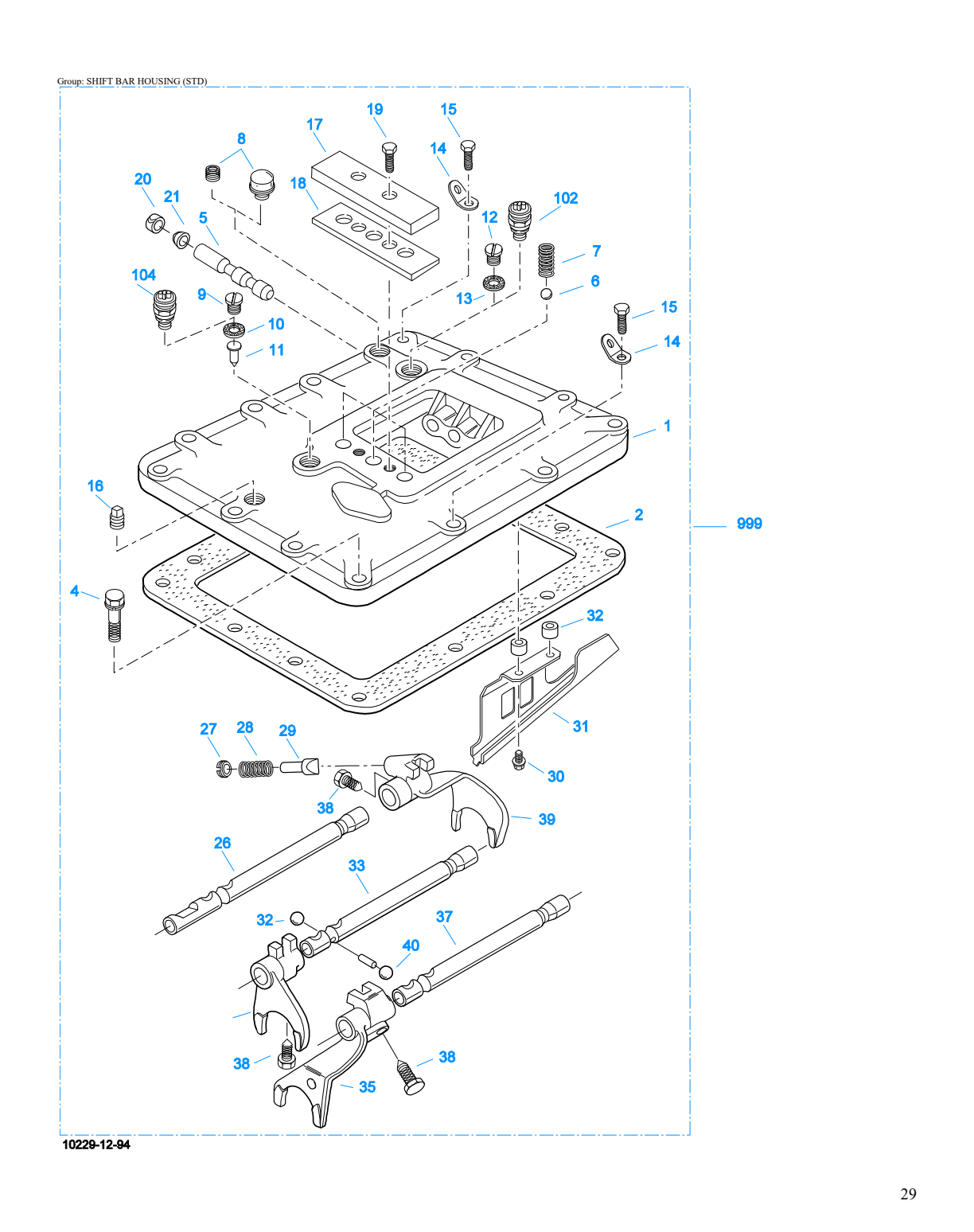

Shift Bar Housing (Std)
Item 1Item 2Item 5Item 104Item 8Item 28Item 21Item 38Item 14Item 38Item 17Item 12Item 15Item 15Item 11Item 9Item 14Item 20Item 6Item 10Item 29Item 16Item 35Item 32Item 7Item 27Item 13Item 26Item 39Item 30Item 31Item 19Item 37Item 18Item 38Item 33Item 32Item 102Item 4Item 40Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1807 | Shift Bar Hsg | 1 | Replaces 23062, 4300408, S-1615. HOUSING ONLY | $355.15 | Add to Cart |
| 2 | 15605 | Gasket | 1 | $8.33 | Add to Cart | |
| 4 | X-8L-604 | Capscrew | 13 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 7 | 1064 | Spring | 3 | $5.33 | Add to Cart | |
| 8 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 8 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 13 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 14 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 15 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 17 | 15132 | Spring Cover | 1 | $5.57 | Add to Cart | |
| 18 | 15133 | Gasket | 1 | $1.58 | Add to Cart | |
| 19 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 20 | 18217 | No Longer Available | 1 | USE W/17177 SHAFT ONLY NOT REQUIRED W/NEW 20332 SHAFT | Call for availability | |
| 21 | 18218 | No Longer Available | 1 | USE W/17177 SHAFT ONLY NOT REQUIRED W/NEW 20332 SHAFT | Call for availability | |
| 26 | 15910 | Yoke Bar | 1 | REVERSE/LO | $31.17 | Add to Cart |
| 27 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 28 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 29 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 30 | X-8-429 | Cap Screw | 2 | 1/4"-20X3/4" | Call for availability | |
| 31 | 23020 | Oil Trough | 1 | $13.99 | Add to Cart | |
| 32 | 23101 | Spacer | 2 | $7.19 | Add to Cart | |
| 33 | 15100 | Yoke Bar | 1 | 1ST/2ND | $31.52 | Add to Cart |
| 34 | 20624 | Shift Yoke | 1 | 1ST/2ND | $349.49 | Add to Cart |
| 35 | 20622 | Shift Yoke | 1 | 3RD/4TH | $197.37 | Add to Cart |
| 36 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 37 | 15101 | Yoke Bar | 1 | 3RD/4TH | $27.36 | Add to Cart |
| 38 | 3220 | Lockscrew | 3 | $4.28 | Add to Cart | |
| 39 | 20626 | Shift Yoke | 1 | REVERSE/LO | $350.26 | Add to Cart |
| 40 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 102 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 104 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 999 | S-2404 | Shift Bar Hsg Assy | 1 | Replaces 4300408. COMPLETE | Call for availability |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RT-7608LL, with every part in the manual matched to our live inventory. We stock 364 of the 391 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/19470 Valve H & C W/A-5000 Valve Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Misc.(Int. Box) Miscellaneous Range Cylinder Reduction Cylinder Reverse Idler Roadranger Valve Shift Bar Housing (Std) Slave Valve - Slave Valve - A-
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RT-7608LL transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RT-7608LL |
| Transmission type | 8-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 35 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RT-7608LL
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
