Eaton Fuller RTLO-11118A-MT Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTLO-11118A-MT is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 1 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 8 | 21599 | Washer | 2 | $16.47 | Add to Cart | |
| 9 | K-3189 | Replt Kit-drive Gear | 1 | Replaces 4300467, 4303558, K-2312. | $195.66 | Add to Cart |
Case (Aux)
Item 4Item 5Item 5Item 17Item 1Item 18Item 6Item 19Item 7Item 4Item 21Item 23Item 14Item 8Item 2Item 5Item 20Item 5Item 3Item 15Item 16Item 11Item 22Item 12Item 13Item 9Item 10Item 4Item 5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-611 | Capscrew | 5 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 2 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 3 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 5 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | $4.15 | Add to Cart | |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 11 | 4300925 | Rear Bearing Cover | 2 | Replaces 4300185. | $32.54 | Add to Cart |
| 12 | 4300186 | Gasket | 2 | $7.39 | Add to Cart | |
| 13 | K-2430 | Shim Kit | 1 | Replaces 21452. | $78.97 | Add to Cart |
| 14 | X-8L-602 | Capscrew | 9 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 14 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | X-8L-614 | Capscrew | 1 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | S-2986 | Rear Housing Case Assy | 1 | Replaces 4300181, 4300863. | $647.34 | Add to Cart |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | X-8-611 | Capscrew | 1 | 3/8"-16X3-1/4" | $6.93 | Add to Cart |
| 18 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 19 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 22 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 23 | 23646 | Lifting Eye | 1 | Call for availability |
Case (Front)
Item 2Item 6Item 7Item 5Item 4Item 1Item 21Item 3Item 20Item 18Item 19Item 24Item 7Item 23Item 22Item 6Item 13Item 16Item 11Item 10Item 12Item 9Item 17Item 18Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2278 | Case Assy | 1 | Replaces 4300592. | Call for availability | |
| 2 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 3 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 4 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 5 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 6 | X-8-1005 | Capscrew | 4 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 7 | 20814 | Spacer | 4 | $2.70 | Add to Cart | |
| 9 | X-8-725 | Capscrew | 8 | 7/16"-14X7/8" | $2.42 | Add to Cart |
| 10 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 11 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 12 | 22507 | Gasket | 1 | Call for availability | ||
| 13 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 16 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 16 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 17 | 4302708 | Stud | 4 | Replaces 5966. | $3.21 | Superseded by 4306583Add to Cart |
| 18 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 19 | X-1-1005 | Nut | 6 | Replaces X11000. 5/8"-18 | $2.04 | Superseded by X11012Add to Cart |
| 20 | 22916 | Stud | 2 | Call for availability | ||
| 21 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 22 | X-8-808 | Capscrew | 4 | 1/2"-13X1-1/4" | $2.75 | Add to Cart |
| 23 | X-10-801 | Washer | 4 | 1/2" | $1.15 | Add to Cart |
| 24 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 24 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |

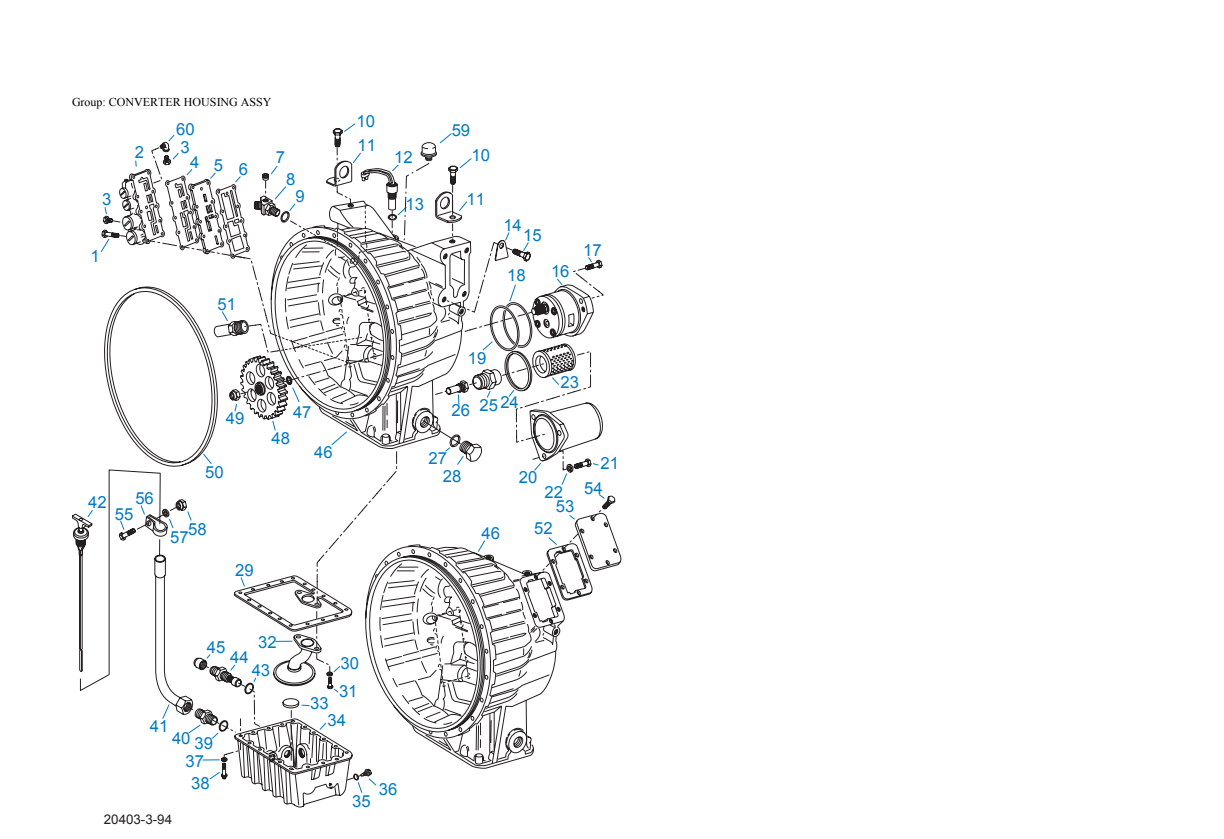

Converter Housing Assy
Item 10Item 60Item 59Item 2Item 3Item 4Item 5Item 6Item 7Item 11Item 12Item 10Item 8Item 3Item 9Item 13Item 11Item 14Item 15Item 17Item 1Item 18Item 16Item 51Item 19Item 23Item 47Item 26Item 49Item 48Item 46Item 27Item 21Item 50Item 28Item 20Item 42Item 56Item 22Item 53Item 54Item 55Item 57Item 58Item 46Item 52Item 29Item 45Item 32Item 44Item 30Item 43Item 31Item 33Item 41Item 34Item 37Item 38Item 36Item 35Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8-6104 | Capscrew | 2 | 3/8"-16X2-3/4" | Call for availability | |
| 1 | X-8L-626 | Capscrew | 2 | 3/8"-16X2-1/4" | $7.82 | Add to Cart |
| 1 | X-8L-672 | Capscrew | 6 | 3/8"-16X3-1/4" | Call for availability | |
| 2 | A-5587 | Valve Assy | 1 | Call for availability | ||
| 3 | X-12-210 | Pipe Plug | 4 | 1/8" | Call for availability | |
| 4 | 22532 | Gasket | 1 | Call for availability | ||
| 5 | 23612 | Plate | 1 | Call for availability | ||
| 6 | 22534 | Gasket | 1 | Call for availability | ||
| 7 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 8 | K-3226 | Elbow Kit | 1 | Replaces 4300307. | Call for availability | |
| 9 | 23109 | O-ring | 1 | Call for availability | ||
| 10 | X-8L-601 | Capscrew | 2 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 11 | 23645 | Lifting Eye | 2 | 90 DEG. | Call for availability | |
| 12 | K-2632 | Eng Speed Sensor Kit | 1 | Replaces 22569. | Call for availability | |
| 13 | 22504 | O-ring | 1 | Call for availability | ||
| 14 | 23573 | Instruction Tag | 3 | $1.79 | Add to Cart | |
| 15 | X-8-1202 | Screw | 3 | 3/4"-10X1" | Call for availability | |
| 16 | K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | Call for availability | |
| 17 | X-8C-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 18 | 691342 | Seal Ring | 1 | Replaces 5568503. | Call for availability | |
| 19 | 22430 | O-ring | 1 | Call for availability | ||
| 20 | 23220 | Filter Bowl | 1 | Call for availability | ||
| 21 | X-8-6105 | Screw | 3 | Replaces X86106. 3/8"-16X1-1/4" | Call for availability | |
| 22 | X-3-607 | Conical Washer | 3 | 3/8" | $2.88 | Add to Cart |
| 23 | 22510 | Oil Filter | 1 | Call for availability | ||
| 24 | 23108 | O-ring | 1 | Call for availability | ||
| 25 | 22512 | Nipple | 1 | Call for availability | ||
| 26 | A-5732 | Relief Valve Assy | 1 | Call for availability | ||
| 27 | 23029 | O-ring | 1 | Call for availability | ||
| 28 | 23028 | Plug | 1 | Call for availability | ||
| 29 | 22474 | Gasket | 1 | Call for availability | ||
| 30 | X-3-507 | Conical Washer | 2 | 5/16" | Call for availability | |
| 31 | X-8-550 | Capscrew | 2 | 5/16"-18X1" 12 PT | Call for availability | |
| 32 | 4301601 | Oil Transfer Tube | 1 | Replaces 4300434. | Call for availability | |
| 33 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 34 | 4300432 | Oil Pan | 1 | Call for availability | ||
| 35 | 4300484 | Washer | 1 | Call for availability | ||
| 36 | 4300438 | Drain Plug | 1 | Call for availability | ||
| 37 | X-3-507 | Conical Washer | 20 | 5/16" | Call for availability | |
| 38 | X-8-550 | Capscrew | 20 | 5/16"-18X1" 12 PT | Call for availability | |
| 39 | 23109 | O-ring | 1 | Call for availability | ||
| 40 | 22431 | Connector | 1 | Call for availability | ||
| 41 | 5500506 | Oil Fill Tube | 1 | STANDARD | Call for availability | |
| 42 | 5501023 | Dipstick | 1 | Replaces 5501008. STANDARD | Call for availability | |
| 43 | 23029 | O-ring | 1 | Call for availability | ||
| 44 | A-5754 | Valve Assy | 1 | Call for availability | ||
| 45 | 4300452 | Cap | 1 | Call for availability | ||
| 46 | K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. 6 BOLT ACCESS | Call for availability | |
| 46 | K-2625 | #1 Converter Hsg Kit | 1 | Call for availability | ||
| 47 | 4302219 | Snap Ring | 1 | Call for availability | ||
| 48 | 4302216 | Pump Gear | 1 | Call for availability | ||
| 49 | X-1-1008 | Nut | 1 | 5/8"-18 | $2.32 | Add to Cart |
| 50 | 23487 | Seal Ring | 1 | Call for availability | ||
| 51 | A-7119 | Filter Bypass Valve Assy | 1 | Replaces A-6067, A-6393. | Call for availability | |
| 52 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 53 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 54 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | Call for availability | ||
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | Call for availability | |
| 59 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 60 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6840 | Welded Countershaft Assy | 2 | Replaces A-5747, A-5899. C/S 4303902 - D/G 4300783 S/G 4300396 | $529.30 | Add to Cart |
| 3 | 4300184 | Spacer | 2 | $23.33 | Add to Cart |

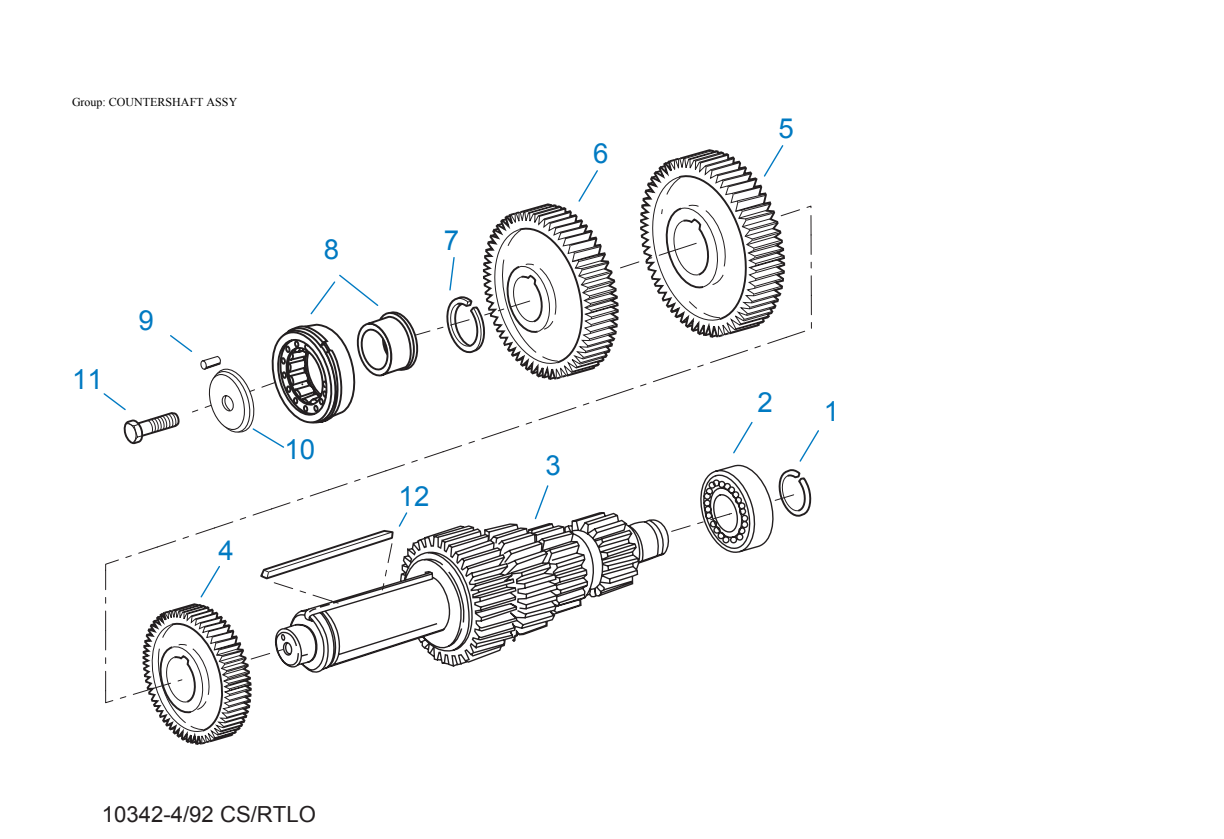

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | A-6689 | Cntrshft W/1ST & 2ND | 2 | Replaces A-5746, A-5873, K-2939, K-2968. | $456.62 | Add to Cart |
| 4 | 21588 | 3RD Gear-cntrshft | 2 | $143.90 | Add to Cart | |
| 5 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 5 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 5 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 6 | 21586 | Drive Gear-cntrshft | 2 | Replaces 22271. | $171.09 | Add to Cart |
| 7 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 8 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 9 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 10 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 11 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 12 | 4304840 | Key | 1 | Replaces 19673. KEY INCLUDED IN COUNTERSHAFT ASSY | $12.44 | Add to Cart |

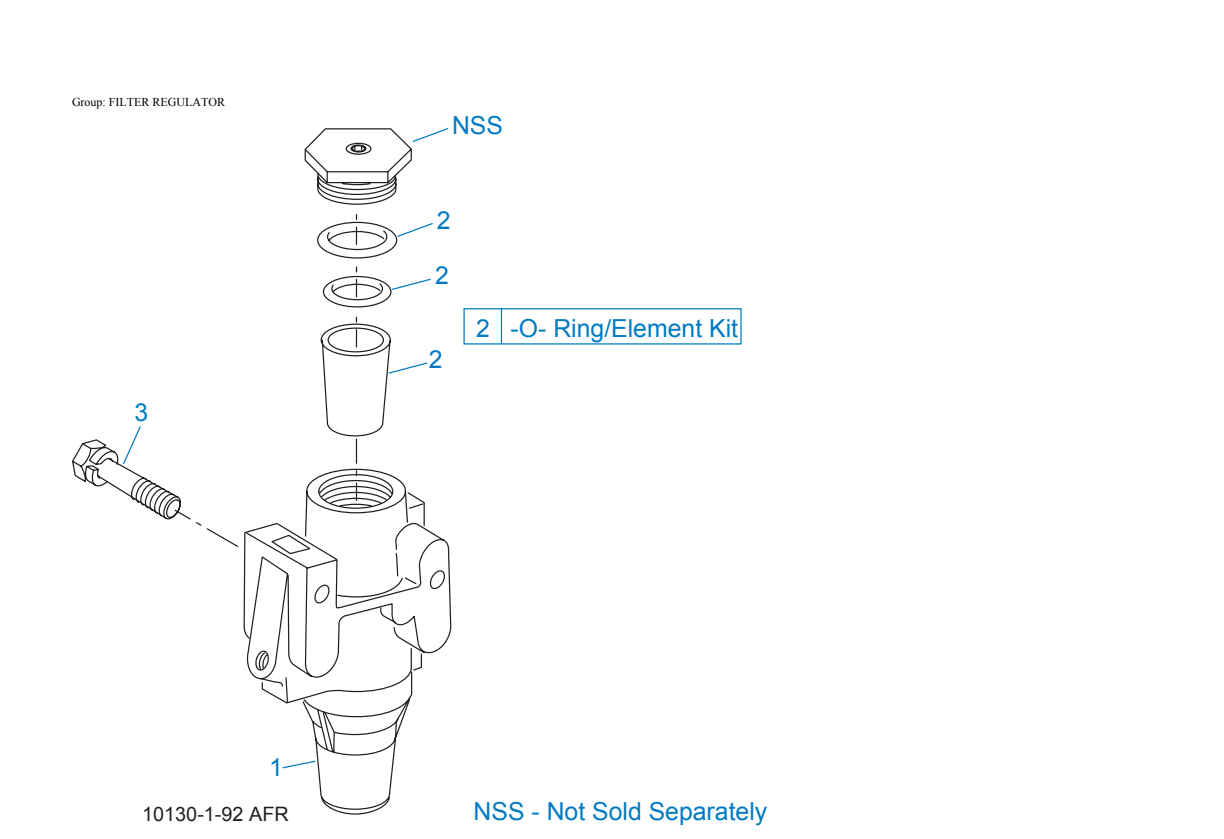

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6058 | Filter Regulator Assy | 1 | $94.51 | Add to Cart | |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

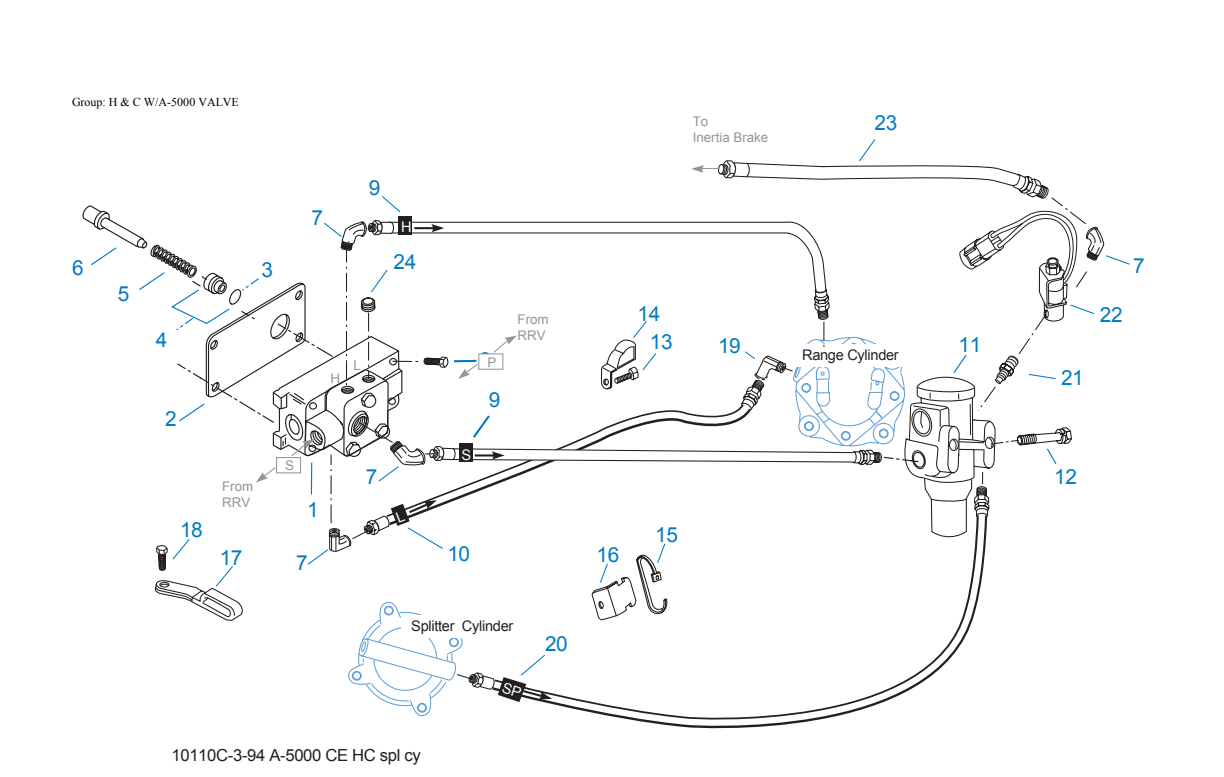

H & C W/A-5000 Valve
Item 23Item 9Item 7Item 6Item 3Item 24Item 7Item 5Item 14Item 22Item 4Item 13Item 19Item 11Item 21Item 9Item 2Item 7Item 12Item 1Item 18Item 15Item 17Item 7Item 10Item 16Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 4 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55518 | Hose Assy | 1 | 32" | $19.83 | Add to Cart |
| 11 | A-6058 | Filter Regulator Assy | 1 | $94.51 | Add to Cart | |
| 12 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |
| 13 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
| 21 | 12769 | Nipple | 1 | 1/8" | $16.67 | Add to Cart |
| 22 | 4301252 | Solenoid Valve 12V | 1 | Call for availability | ||
| 23 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 24 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |

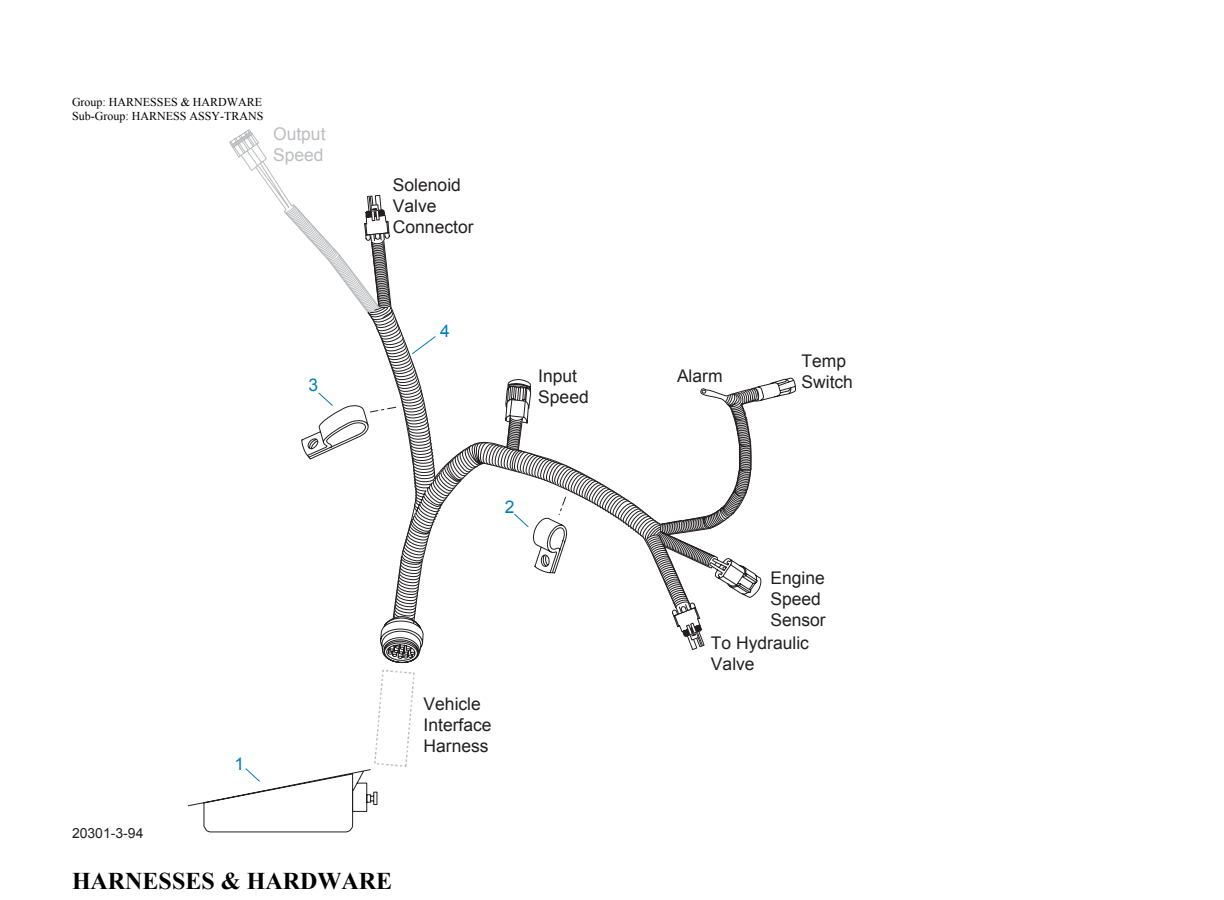

Harnesses & Hardware
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4301251 | Harness, Torq Conv 12V | 1 | Call for availability | ||
| 2 | 11665 | Clamp | 2 | $2.55 | Add to Cart | |
| 3 | X-8L-679 | Capscrew | 2 | 3/8"-16X1-3/4" | $1.89 | Add to Cart |
| 4 | X-1-809 | Jam Nut | 2 | 1/2"-20 | Call for availability | |
| 1 | A-6630 | No Longer Available | 1 | Replaces A-6421. CUMMINS 8.3 LITER & L-10-350 | Call for availability | |
| 2 | 19727 | Hose Clamp | 1 | $4.37 | Add to Cart | |
| 3 | 18769 | Hose Clamp | 1 | $4.43 | Add to Cart | |
| 4 | 4302493 | Harness | 1 | Replaces 4301249. | Call for availability |

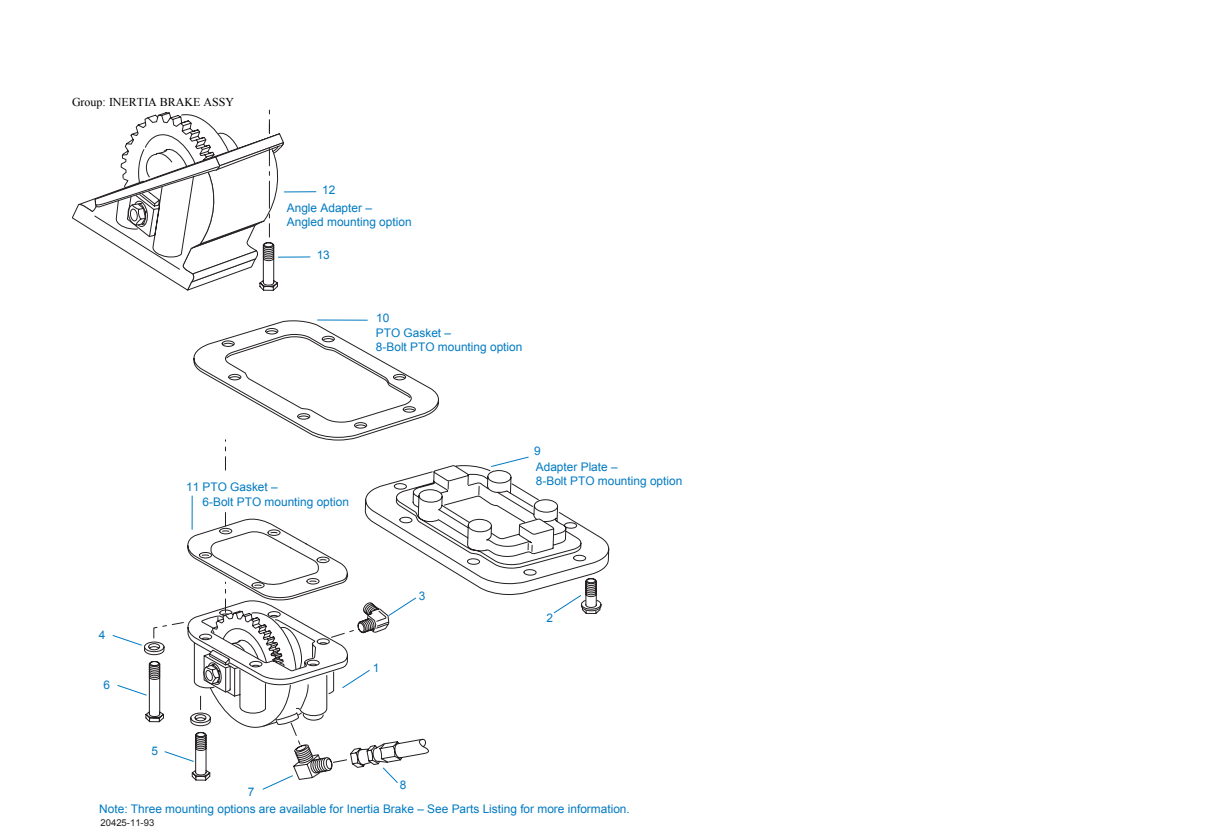

Inertia Brake Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2906 | Inertia Brake Kit | 1 | Replaces A-6200, A-6437. | Call for availability | |
| 2 | X-8L-722 | Capscrew | 8 | Replaces X8L721. 7/16"-14X1-1/4" | $4.23 | Add to Cart |
| 3 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 4 | 23473 | Washer | 6 | $5.20 | Add to Cart | |
| 5 | X-8-636 | Screw | 4 | 3/8"-16X3-3/4" | $2.25 | Add to Cart |
| 6 | X-8-624 | Capscrew | 2 | 3/8"-16X4" | $2.55 | Add to Cart |
| 7 | 22424 | Elbow | 1 | 90 DEGREE | Call for availability | |
| 7 | 23486 | Connector | 1 | STRAIGHT | Call for availability | |
| 8 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | Call for availability | |
| 8 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | Call for availability | |
| 8 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | Call for availability | |
| 9 | 18471 | Adapter Plate | 1 | 8 BOLT POSITION | $123.62 | Superseded by K1712Add to Cart |
| 10 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 11 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 12 | 4302464 | Angle Adapter | 1 | ROTATED 6 BOLT POSITION | Call for availability | |
| 13 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23402 | Input Shaft Oil Tube | 1 | Call for availability | ||
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 20458 | Drive Gear | 1 | Replaces 19630. | $103.22 | Add to Cart |
| 7 | 22428 | Piston Ring | 2 | Call for availability | ||
| 8 | 23438 | Piston Ring | 3 | Call for availability | ||
| 9 | S-1670 | Input Shaft Assy | 1 | Replaces 23395. | Call for availability | |
| 10 | 20171 | Bushing | 1 | $6.86 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2002 | O-ring Kit | 1 | COMPLETE | $19.78 | Add to Cart | |
| K-2072 | Master Valve Repair Kit | 1 | FOR A-5013 VALVE | $52.85 | Add to Cart | |
| K-2073 | Master Valve Repair Kit | 1 | FOR A-5318 VALVE | $49.93 | Add to Cart | |
| K-2078 | O-ring Kit - Splitter | 1 | SPLITTER | $10.58 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2314 | Oil Filter Kit | 1 | Call for availability | |||
| K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart | |
| K-2387R | Reman Hydra Valve Kit | 1 | Replaces K-2387, K-3085. | Call for availability | ||
| K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. | Call for availability | ||
| K-2390 | Stator Support Kit | 1 | Call for availability | |||
| K-2391 | Input Shaft Kit | 1 | Call for availability | |||
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2398 | Convertor Seal Kit | 1 | Call for availability | |||
| K-2403 | Oil Pan Retro Kit | 1 | STANDARD | Call for availability | ||
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2430 | Shim Kit | 1 | Replaces 21452. | $78.97 | Add to Cart | |
| K-2433 | Small Parts Kit | 1 | $393.94 | Add to Cart | ||
| K-2504 | Oil Pump Kit | 1 | Call for availability | |||
| K-2625 | #1 Converter Hsg Kit | 1 | Call for availability | |||
| K-2642 | 6 Bolt Rotated Line Kit | 1 | Call for availability | |||
| K-2643 | 6 Bolt Oil Line Kit | 1 | Call for availability | |||
| K-2644 | 8 Bolt Oil Line Kit | 1 | Call for availability | |||
| K-2646R | Reman 16-D Cnvtr Kit | 1 | Replaces K-3083. | Call for availability | ||
| K-2647R | Reman 16-C Cnvtr Kit | 1 | Replaces K-3082. | Call for availability | ||
| K-2831 | Cylinder Kit-range | 1 | Call for availability | |||
| K-2870 | Gasket Kit | 1 | COMPLETE | Call for availability | ||
| K-2871 | Basic Rebuild Kit | 1 | Call for availability | |||
| K-2873 | Basic Overhaul Kit | 1 | Call for availability | |||
| K-2877 | Sump Tube Return Kit | 1 | Replaces K-2620. | Call for availability | ||
| K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | Call for availability | ||
| K-3189 | Replt Kit-drive Gear | 1 | Replaces 4300467, 4303558, K-2312. | $195.66 | Add to Cart | |
| K-3191 | Master Valve Repair Kit | 1 | FOR A-6918 VALVE | $43.81 | Add to Cart | |
| K-3196 | Master Valve Repair Kit | 1 | FOR A-7318 VALVE | $41.48 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1670 | Input Shaft Assy | 1 | Replaces 23395. | Call for availability | ||
| S-1676 | Stator Support Assy | 1 | Replaces 23397. | Call for availability | ||
| S-2015 | Converter Housing Assy | 1 | Call for availability | |||
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart | |
| S-2278 | Case Assy | 1 | Replaces 4300592. | Call for availability | ||
| S-2280 | Shift Bar Hsg | 1 | Replaces 23738. HOUSING ONLY | Call for availability | ||
| S-2660 | Mainshaft Assy | 1 | Replaces 21594, 4303714, S-. | $145.58 | Add to Cart |
Mainshaft & Synchro(Aux)
Item 12Item 11Item 10Item 9Item 7Item 8Item 5Item 6Item 5Item 3Item 4Item 1Item 2Item 17Item 13Item 16Item 14Item 15Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21930 | Sliding Clutch | 1 | $76.35 | Add to Cart | |
| 2 | X-7-1005 | Capscrew | 1 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 3 | A-6340 | Retainer Assy | 1 | Replaces 4302057. | $28.94 | Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 4302058 | Bearing | 2 | $7.67 | Add to Cart | |
| 6 | 21931 | Splitter Gear | 1 | $251.16 | Add to Cart | |
| 7 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 8 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 9 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 10 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 11 | 4302059 | Auxiliary Mainshaft | 1 | $278.67 | Add to Cart | |
| 12 | 19203 | Spacer | 1 | $44.10 | Add to Cart | |
| 13 | 21918 | Reduction Gear | 1 | $333.91 | Add to Cart | |
| 14 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 15 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 16 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 17 | 22254 | Nut | 1 | $15.84 | Add to Cart |
Mainshaft Assy
Item 6Item 7Item 11Item 4Item 12Item 6Item 8Item 7Item 8Item 6Item 7Item 9Item 10Item 4Item 7Item 6Item 8Item 1Item 2Item 3Item 5Item 4Item 6Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 1 | K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart |
| 2 | S-2660 | Mainshaft Assy | 1 | Replaces 21594, 4303714, S-1561. | $145.58 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 5 | $6.93 | Add to Cart | |
| 7 | 14711 | Washer .248-.250 White | 5 | Replaces 18701. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.25 | Add to Cart |
| 7 | 14712 | Washer .253-.255 Green | 5 | Replaces 18702. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14713 | Washer .258-.260 Orange | 5 | Replaces 18703. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14714 | Washer .263-.265 Purple | 5 | Replaces 18704. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14715 | Washer .268-.270 Yellow | 5 | Replaces 18705. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14716 | Washer .273-.275 Black | 5 | Replaces 18706. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 3 | $42.03 | Add to Cart | |
| 9 | 4300654 | Lo Gear-mainshaft | 1 | Replaces 21593. | $242.27 | Add to Cart |
| 10 | 21591 | 1ST Gear-mainshaft | 1 | $221.76 | Add to Cart | |
| 11 | 21589 | 2ND Gear-mainshaft | 1 | $164.79 | Add to Cart | |
| 12 | 21587 | 3RD Gear-mainshaft | 1 | $175.63 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 21628 | Shift Diagram Label | 1 | Replaces 4300591. | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Line Return
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | Call for availability | |
| 2 | 4301101 | Tube | 1 | Replaces 23778. | Call for availability | |
| 3 | 23596 | Connector | 1 | Call for availability | ||
| 4 | 23109 | O-ring | 1 | Call for availability |
Oil Lines-Inertia Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 9 | 22627 | Oil Restrictor | 1 | Call for availability | ||
| 10 | 4302077 | Elbow | 1 | Call for availability | ||
| 11 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | Call for availability | |
| 11 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | Call for availability | |
| 11 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | Call for availability | |
| 12 | 23486 | Connector | 1 | STRAIGHT | Call for availability | |
| 13 | 11665 | Clamp | 1 | USE ON 6 BOLT AND ROTATED POSITION | $2.55 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 2 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart | |
| 3 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 4 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 7 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 8 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 9 | 4300183 | Yoke Bar | 1 | $51.08 | Add to Cart | |
| 10 | 22542 | Bushing | 1 | $3.11 | Add to Cart | |
| 11 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 12 | A-5371 | Range Cylinder Assy | 1 | Replaces 22543. | $113.97 | Add to Cart |
| 13 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 14 | X-8-825 | Capscrew | 2 | 1/2"-13X2-3/8" | $5.14 | Add to Cart |
| 15 | 4301642 | Shift Yoke | 1 | Replaces 22888. | Call for availability |
Reverse Idler
Item 11Item 7Item 5Item 6Item 3Item 4Item 2Item 12Item 8Item 7Item 5Item 6Item 4Item 3Item 2Item 1Item 9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
Roadranger Valves
Item 1Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 3Item 2Item 2Item 4Item 5Item 5Item 6Item 11Item 7Item 7Item 7Item 12Item 10Item 10Item 10Item 3Item 1Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 2 | K-2072 | Master Valve Repair Kit | 1 | FOR A-5013 VALVE | $52.85 | Add to Cart |
| 2 | K-2073 | Master Valve Repair Kit | 1 | FOR A-5318 VALVE | $49.93 | Add to Cart |
| 2 | K-3191 | Master Valve Repair Kit | 1 | FOR A-6918 VALVE | $43.81 | Add to Cart |
| 2 | K-3196 | Master Valve Repair Kit | 1 | FOR A-7318 VALVE | $41.48 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 3 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 3 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 13 | 4301233 | Reducer Bushing | 1 | Replaces 18004. | $7.13 | Add to Cart |
| 999 | A-6918 | Roadranger Valve | 1 | Replaces A-5013. STANDARD-W/LOGO | $91.89 | Add to Cart |
| 999 | A-7318 | Roadranger Valve Assy | 1 | Replaces A-5318. (LEFT OF DRIVER)-W/LOGO | $154.54 | Add to Cart |
Shift Bar Housing (Std)
Item 19Item 14Item 19Item 18Item 20Item 13Item 18Item 20Item 12Item 16Item 17Item 17Item 21Item 11Item 12Item 22Item 1Item 2Item 3Item 7Item 4Item 5Item 2Item 6Item 36Item 23Item 35Item 34Item 25Item 26Item 24Item 26Item 33Item 28Item 27Item 32Item 24Item 26Item 31Item 30Item 26Item 26Item 29Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2280 | Shift Bar Hsg | 1 | Replaces 23738. HOUSING ONLY | Call for availability | |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | $17.23 | Add to Cart | |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 11 | 4302361 | Magnetic Sensor | 1 | Replaces 23680. | Call for availability | |
| 12 | 17179 | Gasket | 2 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | 16131 | Shift Yoke | 1 | REVERSE/LO | $203.23 | Add to Cart |
| 24 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 25 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 26 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 27 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 28 | 14659 | Shift Block | 1 | 3RD/DIRECT | $31.48 | Add to Cart |
| 29 | 16136 | Shift Yoke | 1 | 3RD/DIRECT | $74.09 | Add to Cart |
| 30 | 16134 | Yoke Bar | 1 | 3RD/DIRECT | $28.91 | Add to Cart |
| 31 | 16135 | Shift Yoke | 1 | 1ST/2ND | $74.79 | Add to Cart |
| 32 | 16133 | Yoke Bar | 1 | 1ST/2ND | $39.91 | Add to Cart |
| 33 | 16132 | Yoke Bar | 1 | REVERSE/LO | $25.21 | Add to Cart |
| 34 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 35 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 36 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-2279 | No Longer Available | 1 | Replaces 23738. COMPLETE | Call for availability |
Slave Valve - A-
Item 2Item 3Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 7Item 2Item 4Item 2Item 2Item 5Item 2Item 8Item 1Item 2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
Splitter Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21607 | Shift Yoke | 1 | $111.01 | Add to Cart | |
| 2 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 3 | 14632 | Gasket | 1 | $2.06 | Add to Cart | |
| 4 | 21609 | Splitter Cylinder | 1 | $763.13 | Add to Cart | |
| 5 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 6 | 4300182 | Yoke Bar | 1 | No longer available - Call for replacement | ||
| 7 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 8 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 9 | X-12-101 | Plug | 2 | NOT SOLD FOR SERVICE | $3.52 | Add to Cart |
| 10 | 21760 | Cover | 1 | $88.80 | Add to Cart | |
| 11 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 12 | 4301233 | Reducer Bushing | 1 | Replaces 18004. | $7.13 | Add to Cart |
| 13 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 14 | 5568504 | O-ring | 1 | $1.50 | Add to Cart |
Stator Support Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22496 | Seal Ring | 1 | Call for availability | ||
| 2 | S-1676 | Stator Support Assy | 1 | Replaces 23397. | Call for availability | |
| 3 | 23398 | Gasket | 1 | Call for availability | ||
| 4 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 5 | 22464 | Spring | 1 | Call for availability | ||
| 6 | 23616 | Plug | 1 | Call for availability | ||
| 7 | X-8L-616 | Capscrew | 6 | 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 8 | 23401 | O-ring | 1 | Call for availability | ||
| 9 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTLO-11118A-MT, with every part in the manual matched to our live inventory. We stock 297 of the 421 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Converter Housing Assy Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/A-5000 Valve Harnesses & Hardware Inertia Brake Assy Input Shaft & Drive Gear Kits & Assemblies Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Line Return Oil Lines-Inertia Brake Range Cylinder Reverse Idler Roadranger Valves Shift Bar Housing (Std) Slave Valve - A- Splitter Cylinder Stator Support Assy
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLO-11118A-MT transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTLO-11118A-MT |
| Transmission type | 18-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 34 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLO-11118A-MT
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
