Eaton Fuller RTLO-14610A Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTLO-14610A is past saving, we also stock reman and new Eaton Fuller 10 speed transmissions, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 1 | 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 8 | 21599 | Washer | 2 | $16.47 | Add to Cart | |
| 9 | K-2867 | Replt Kit-drive Gear | 1 | Replaces 4300546, 4302683, K-2296. | $292.71 | Add to Cart |

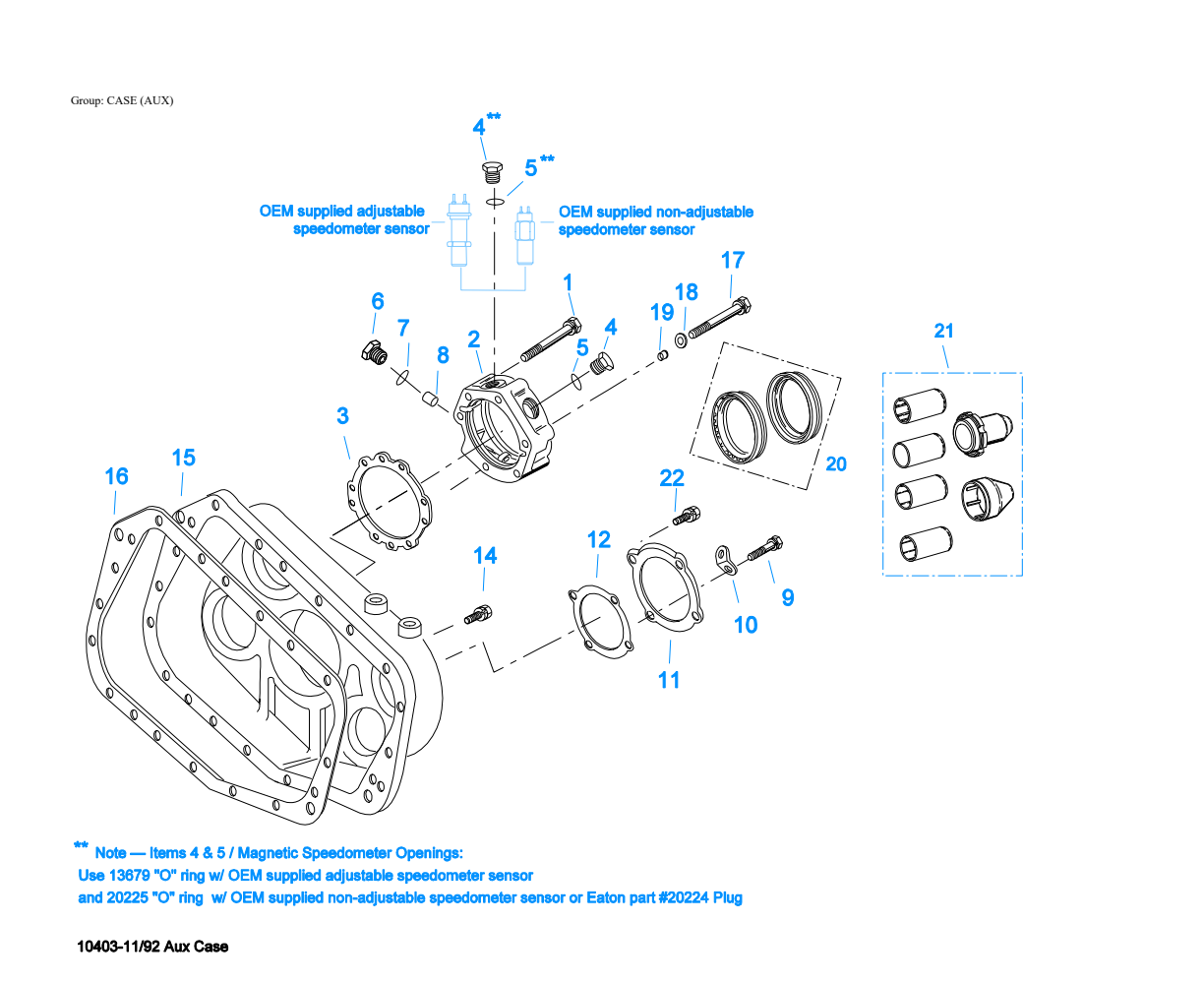

Case (Aux)
Item 11Item 1Item 8Item 17Item 18Item 5Item 12Item 7Item 4Item 14Item 16Item 10Item 5Item 20Item 9Item 6Item 19Item 2Item 3Item 15Item 22Item 4Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-611 | Capscrew | 5 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 2 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 3 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR | $2.06 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | $4.15 | Add to Cart | |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 11 | 16724 | Rear Brg Cover | 2 | $18.78 | Add to Cart | |
| 12 | 17097 | Gasket | 2 | $2.77 | Add to Cart | |
| 14 | X-8L-602 | Capscrew | 9 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 14 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | S-2909 | Rear Hsg Repl Assy | 1 | Replaces 18743, 18786. | $290.53 | Add to Cart |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | X-8-611 | Capscrew | 1 | 3/8"-16X3-1/4" | $6.93 | Add to Cart |
| 18 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 19 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |

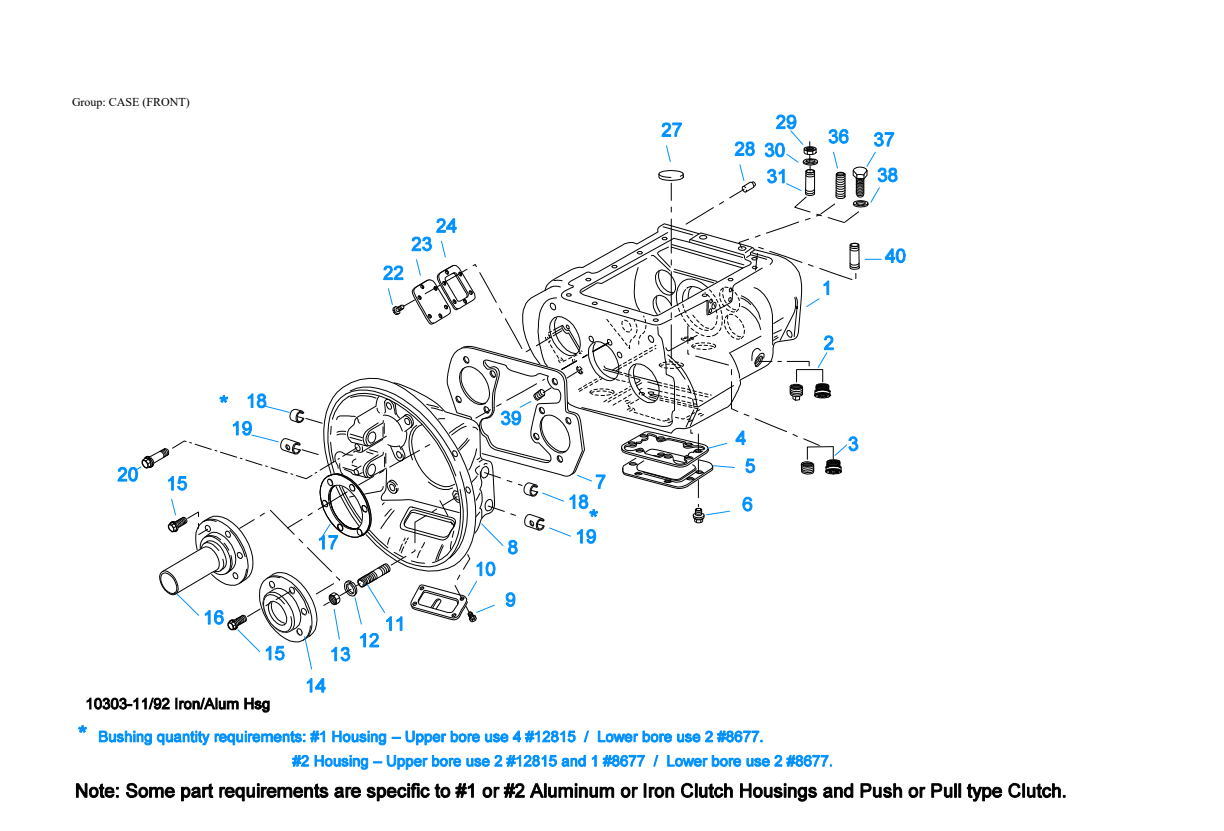

Case (Front)
Item 1Item 7Item 7Item 4Item 37Item 10Item 11Item 16Item 9Item 6Item 14Item 22Item 19Item 27Item 8Item 12Item 39Item 15Item 19Item 38Item 24Item 2Item 36Item 29Item 3Item 5Item 31Item 1Item 40Item 18Item 23Item 20Item 28Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1785 | Case Assy | 1 | Replaces 23583. | Call for availability | |
| 1 | S-2127 | No Longer Available | 1 | Replaces 4301812. FOR USE W/INTEGRAL PUMP | Call for availability | |
| 2 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-5728 | Clutch Housing Assy | 1 | Replaces 4300259, A-4342. #1 PULL - ALUMINUM | $838.91 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 1 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 40 | 23582 | No Longer Available | 1 | Call for availability |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20015 | Bearing | 2 | $100.29 | Add to Cart | |
| 2 | A-6385 | Welded Countershaft Assy | 2 | C/S 4300123 - D/G 4302684 S/G 4302696 | $688.79 | Add to Cart |
| 3 | 81057 | Bearing | 2 | $71.73 | Add to Cart | |
| 4 | 16723 | Snap Ring | 2 | $2.12 | Add to Cart |

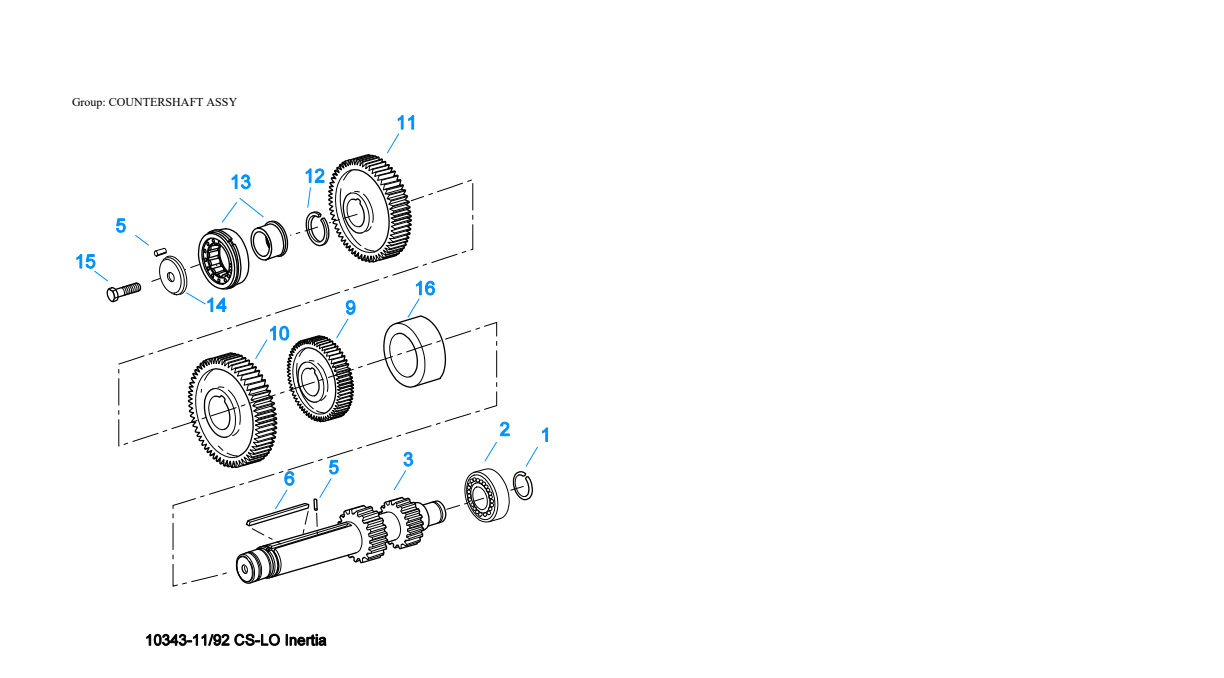

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | K-2931 | No Longer Available | 2 | Replaces 23512. | Call for availability | |
| 5 | 62511 | Roll Pin | 4 | ROLL PINS NO LONGER REQUIRED | $1.54 | Add to Cart |
| 6 | 21596 | Key | 2 | $6.50 | Add to Cart | |
| 9 | 22793 | 3RD Gear-cntrshft | 2 | $180.28 | Add to Cart | |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 11 | 21586 | Drive Gear-cntrshft | 2 | Replaces 22271. | $171.09 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 16 | 23204 | Spacer | 2 | $66.51 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

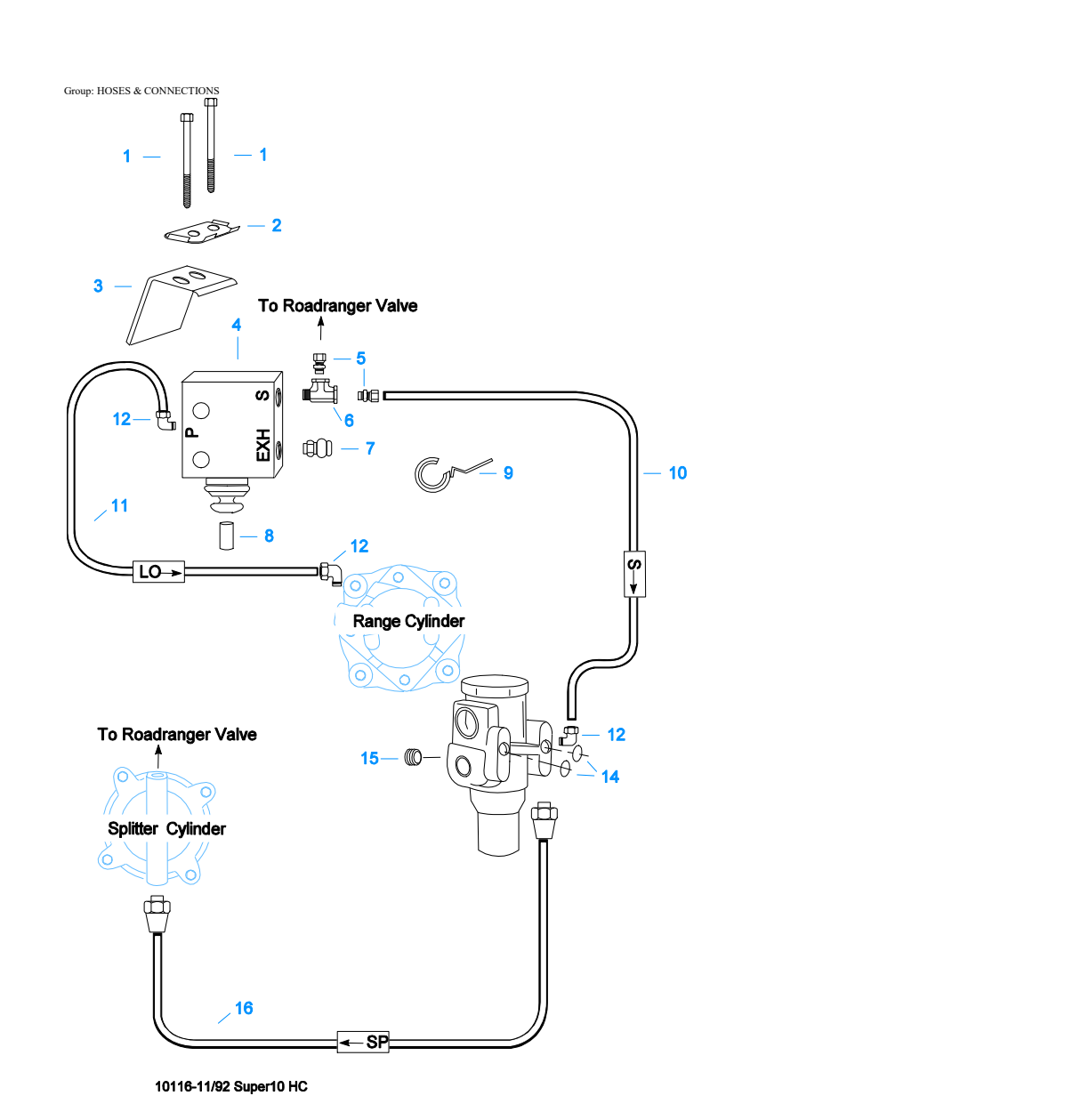

Hoses & Connections
Item 1Item 11Item 7Item 14Item 12Item 10Item 1Item 5Item 2Item 12Item 3Item 6Item 15Item 9Item 8Item 16Item 12Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8-434 | Capscrew | 2 | 1/4"- 20 X 2" | $1.73 | Add to Cart |
| 2 | 22818 | Lockwasher | 1 | Call for availability | ||
| 3 | 22817 | Retainer Plate | 1 | $21.20 | Add to Cart | |
| 4 | K-3121 | Air Valve Conv Kit | 1 | Replaces 23545. | $280.04 | Add to Cart |
| 5 | 84002 | Connector Assy | 2 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 5 | 84004 | Connector Assy | 2 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 5 | 84006 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- | $6.01 | Add to Cart |
| 6 | 22870 | Tee | 1 | $40.16 | Add to Cart | |
| 7 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 8 | 4301989 | Pin | 1 | Replaces 22813. | $5.22 | Add to Cart |
| 9 | 19727 | Hose Clamp | 1 | $4.37 | Add to Cart | |
| 10 | 75120 | Nylon Tube | 1 | 5/32" | $61.45 | Add to Cart |
| 11 | 75320 | Nylon Tube | 1 | Replaces 5546014. 5/32" | $61.61 | Add to Cart |
| 12 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 12 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 12 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 14 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 15 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |
| 16 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 20458 | Main Drive Gear | 1 | Replaces 19630. | $103.22 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |

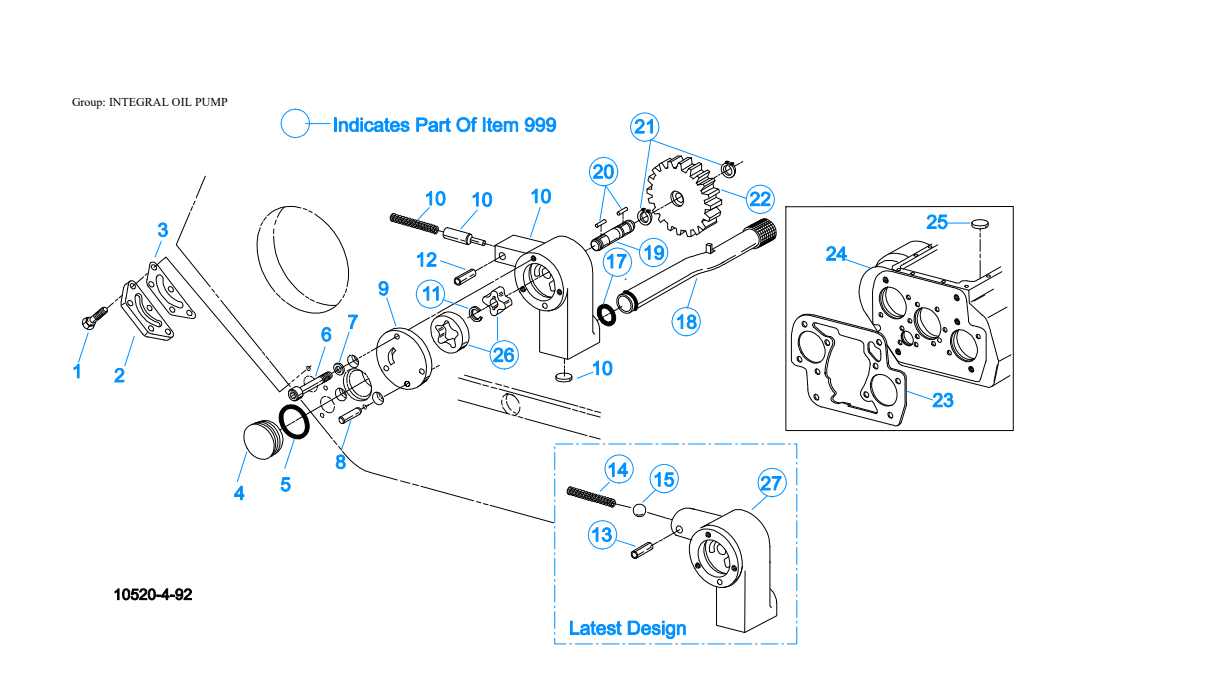

Integral Oil Pump
Item 9Item 4Item 7Item 8Item 26Item 18Item 2Item 21Item 6Item 3Item 2Item 5Item 2Item 22Item 1Item 10Item 23Item 10Item 20Item 10Item 13Item 7Item 10Item 12Item 11Item 19Item 17Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" - USE WITH 4300751 COVER | $1.87 | Add to Cart |
| 1 | X-8C-430 | Capscrew | 5 | 1/4"-20X7/8" - USE WITH 20513 COVER | $1.76 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | Roll Pin | 1 | Call for availability | ||
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $367.14 | Add to Cart | |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-2127 | No Longer Available | 1 | Replaces 4301812. FOR USE W/INTEGRAL PUMP | Call for availability | |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |

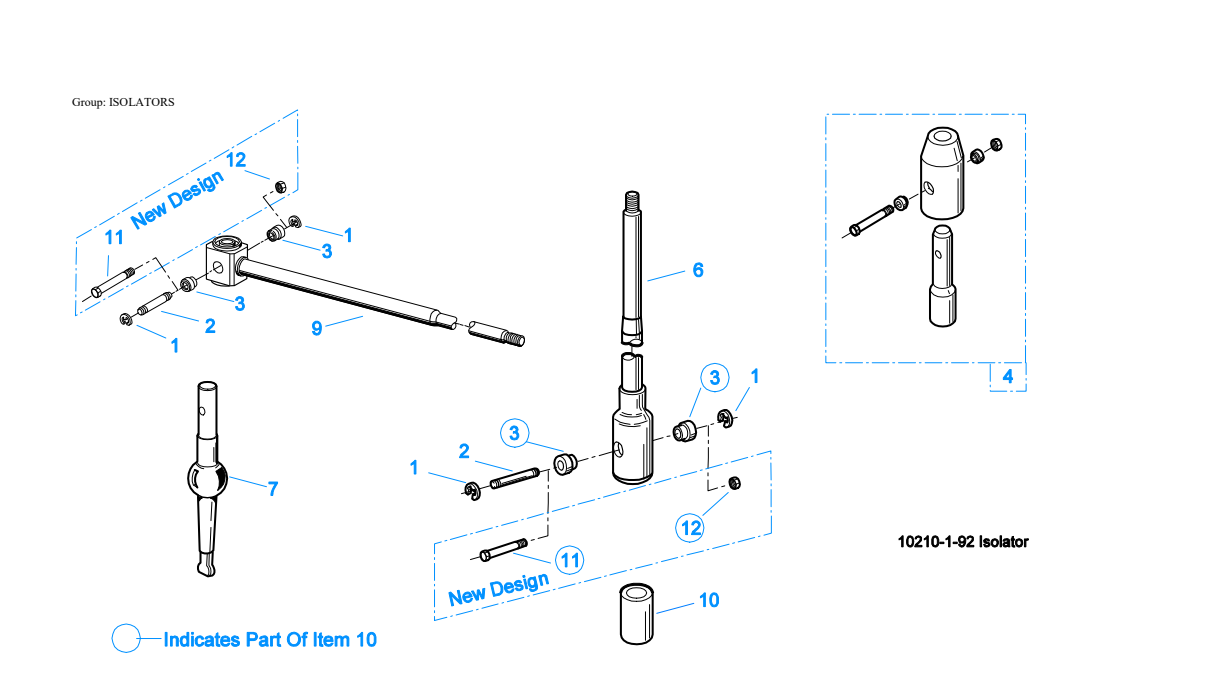

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||

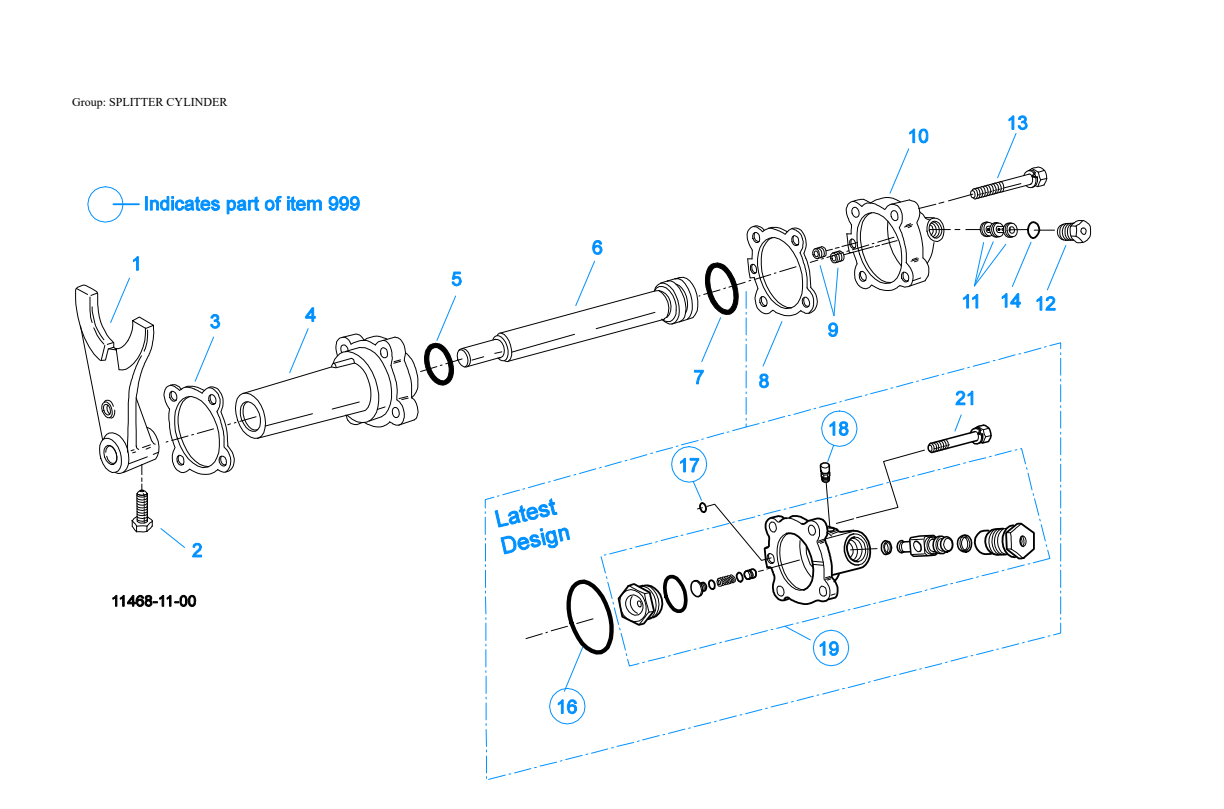

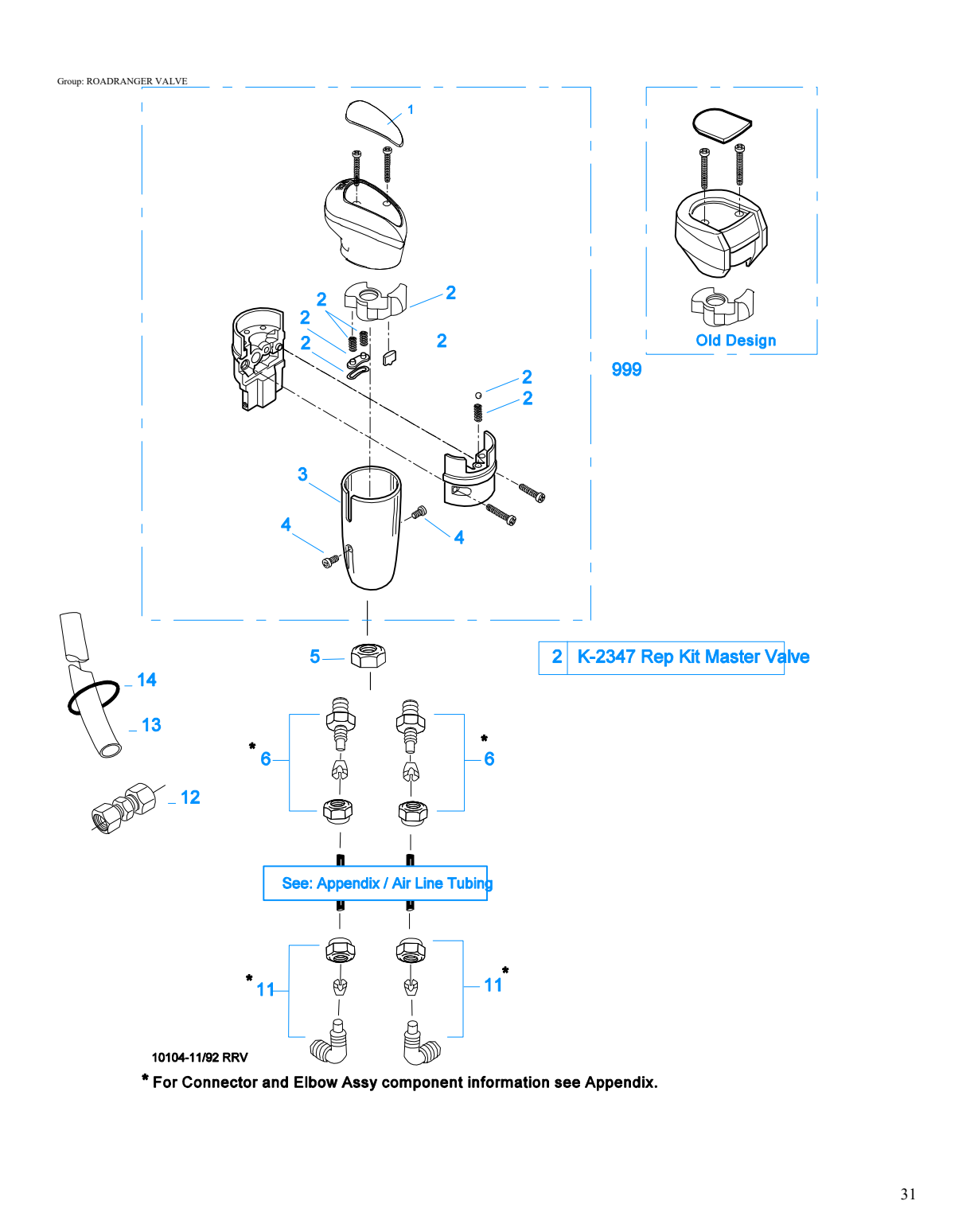

| K-2078 | O-ring Kit - Splitter | 1 | SPLITTER | $10.58 | Add to Cart | |
| K-2170 | Filter Reg Kit | 1 | Replaces A-5454. | $68.95 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2295 | Gasket Kit | 1 | $61.69 | Add to Cart | ||
| K-2297 | O-ring Kit - Range | 1 | RANGE | $18.58 | Add to Cart | |
| K-2298 | O-ring Kit - Complete | 1 | COMPLETE | $27.19 | Add to Cart | |
| K-2299 | Small Parts Kit | 1 | $432.86 | Add to Cart | ||
| K-2347 | Master Valve Repair Kit | 1 | FOR A-5510 VALVE | $25.82 | Add to Cart | |
| K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2850 | Housing Update Kit | 1 | Replaces 22800, 4301786, S-1792. | $657.06 | Add to Cart | |
| K-2867 | Replt Kit-drive Gear | 1 | Replaces 4300546, 4302683, K-2296. | $292.71 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-2995 | Basic Overhaul Kit | 1 | Call for availability | |||
| K-2998 | Basic Rebuild Kit | 1 | Call for availability | |||
| K-3190 | Master Valve Repair Kit | 1 | FOR A-6910 VALVE | $43.81 | Superseded by K3191Add to Cart | |
| K-3217 | Idler Shaft Repl Kit | 1 | Replaces 4302981. | $75.22 | Add to Cart | |
| K-3315 | Mainshaft Repl Kit | 1 | Replaces 4302976, 4302977, S-2417. | $229.25 | Add to Cart | |
| K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement | ||
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3496 | Synchronizer Replacement Kit | 1 | Replaces K-2974. SLIDING CLUTCH INCLUDED IN KIT | $403.13 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1347 | Rear Housing Assy | 1 | Replaces 17548, 18736, 18757, 18784, 19100. | No longer available - Call for replacement | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart | |
| S-1785 | Case Assy | 1 | Replaces 23583. | Call for availability | ||
| S-1786 | Shift Yoke Assy | 1 | Replaces 22801. | $137.64 | Add to Cart | |
| S-1790 | Range Section Assy | 1 | Call for availability | |||
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-1984 | Cover Assy-range Cyl | 1 | $305.38 | Add to Cart | ||
| S-2058 | Shift Bar Hsg Assy (std) | 1 | Replaces 22800, 4301786, S-1968. COMPLETE - FOR USE W/SHIFT LEVER | $1,333.73 | Add to Cart | |
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart | |
| S-2568 | Roadranger Valve | 1 | RTLO - W/SHIFT DIAGRAM | $104.05 | Add to Cart | |
| S-2737 | Mainshaft Assy | 1 | Replaces 4304597. | $200.24 | Add to Cart |

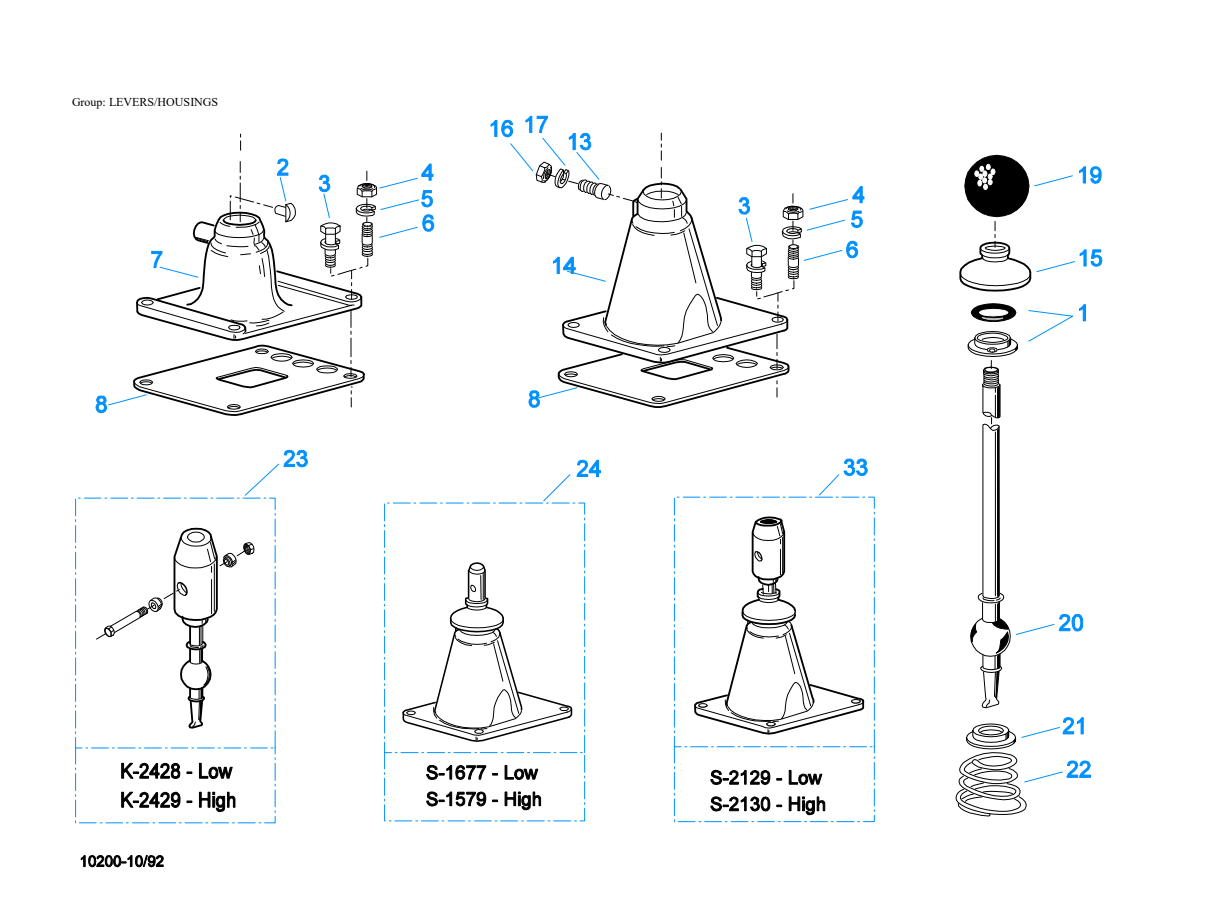

Levers/Housings
Item 7Item 17Item 1Item 16Item 2Item 21Item 24Item 6Item 8Item 4Item 3Item 4Item 6Item 3Item 20Item 22Item 1Item 19Item 5Item 15Item 5Item 33Item 23Item 8Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4303432 | Gasket | 1 | Replaces 22799. | $27.47 | Add to Cart |
| 13 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-500 | Nut | 1 | 5/16"-24 | Call for availability | |
| 17 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 19 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement | 1 | HIGH TOWER | $156.85 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |

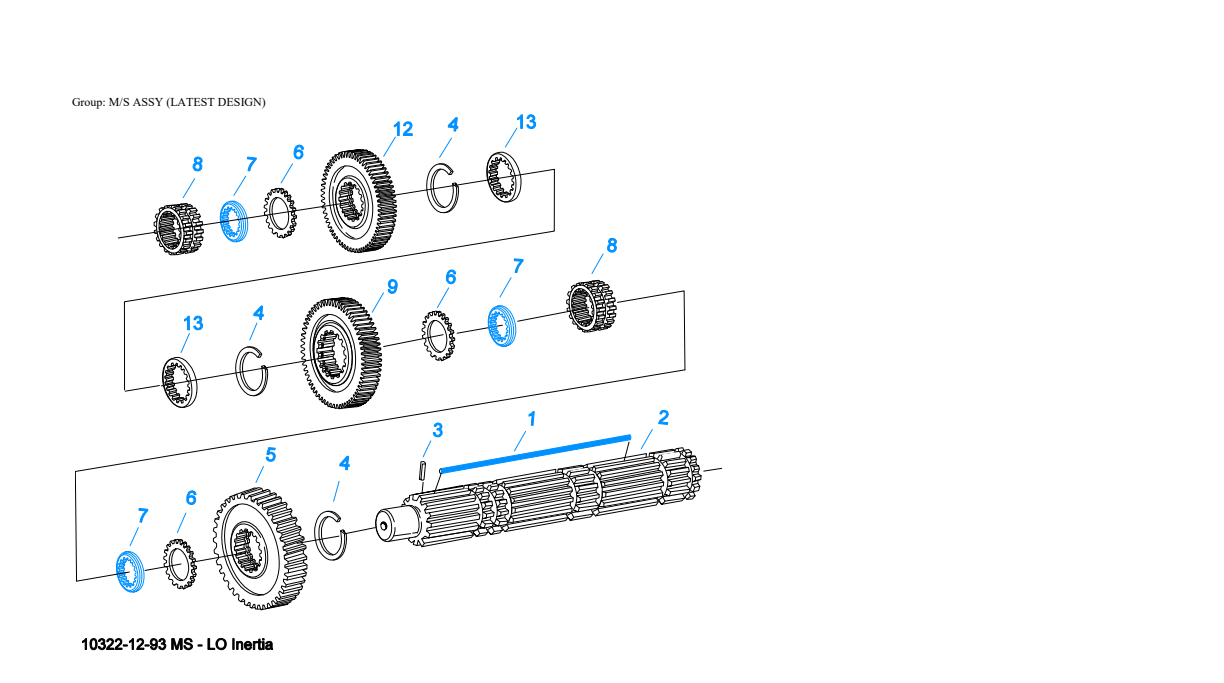

M/S Assy (Latest Design)
Item 13Item 6Item 13Item 9Item 6Item 5Item 8Item 6Item 12Item 8Item 3Item 7Item 1Item 2Item 4Item 4Item 7Item 7Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 1 | K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart |
| 2 | K-3315 | Mainshaft Repl Kit | 1 | Replaces 4302976, 4302977, S-2417. | $229.25 | Add to Cart |
| 2 | S-2737 | Mainshaft Assy | 1 | Replaces 4304597. | $200.24 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 3 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 3 | $6.93 | Add to Cart | |
| 7 | 14711 | Washer .248-.250 White | 3 | Replaces 18701. OPTIONAL 14711-14712 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.25 | Add to Cart |
| 7 | 14712 | Washer .253-.255 Green | 3 | Replaces 18702. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14713 | Washer .258-.260 Orange | 3 | Replaces 18703. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14714 | Washer .263-.265 Purple | 3 | Replaces 18704. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14715 | Washer .268-.270 Yellow | 3 | Replaces 18705. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14716 | Washer .273-.275 Black | 3 | Replaces 18706. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 4300382 | Washer .249-WHITE | 3 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 3 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 3 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 3 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 3 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 3 | OPTIONAL 4300382-4300387 OR | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 3 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 9 | 23511 | Lo Gear-mainshaft | 1 | $181.09 | Add to Cart | |
| 12 | 22792 | 3RD Gear-mainshaft | 1 | $219.10 | Add to Cart | |
| 13 | K-3315 | Mainshaft Repl Kit | 2 | Replaces 4302976, 4302977, S-2417. | $229.25 | Add to Cart |

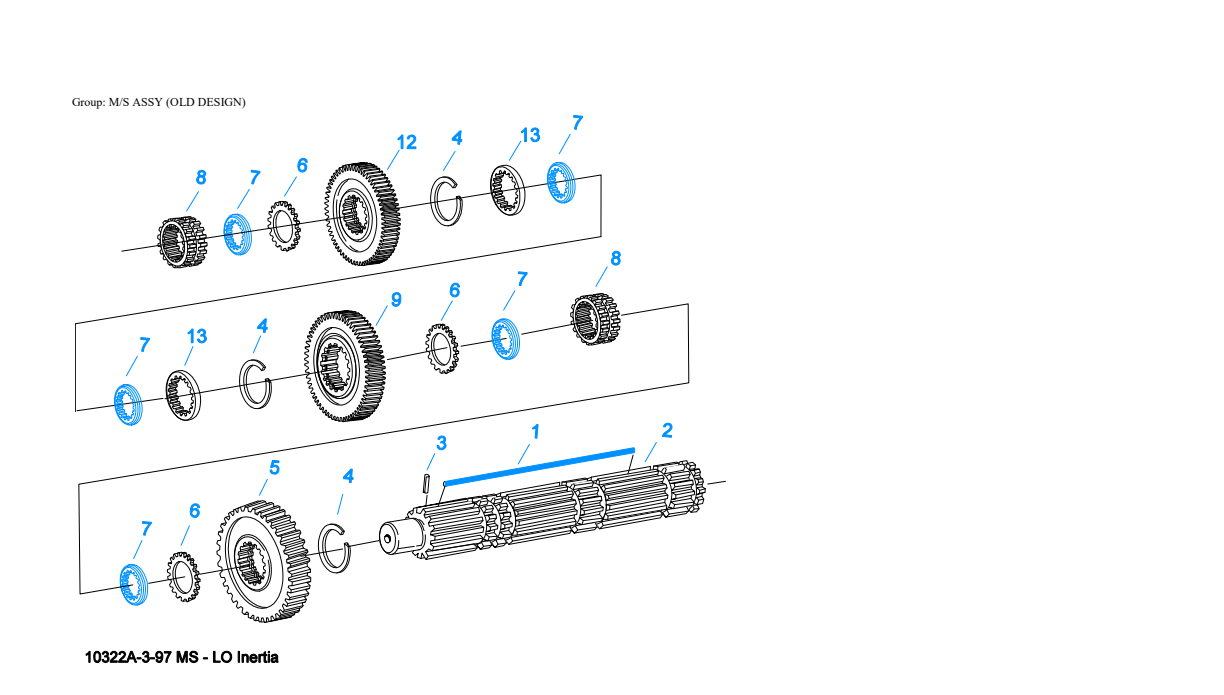

M/S Assy (Old Design)
Item 13Item 6Item 13Item 6Item 9Item 8Item 1Item 12Item 6Item 8Item 3Item 2Item 5Item 4Item 7Item 7Item 7Item 7Item 4Item 4Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 1 | K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart |
| 2 | S-2660 | Mainshaft Assy | 1 | Replaces 21594, 4303714, S-1561. | $145.58 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 3 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 3 | $6.93 | Add to Cart | |
| 7 | 14711 | Washer .248-.250 White | 5 | Replaces 18701. OPTIONAL 14711-14712 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.25 | Add to Cart |
| 7 | 14712 | Washer .253-.255 Green | 5 | Replaces 18702. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14713 | Washer .258-.260 Orange | 5 | Replaces 18703. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14714 | Washer .263-.265 Purple | 5 | Replaces 18704. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14715 | Washer .268-.270 Yellow | 5 | Replaces 18705. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14716 | Washer .273-.275 Black | 5 | Replaces 18706. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 9 | 23511 | Lo Gear-mainshaft | 1 | $181.09 | Add to Cart | |
| 12 | 22792 | 3RD Gear-mainshaft | 1 | $219.10 | Add to Cart | |
| 13 | 16288 | Spacer | 2 | $49.53 | Add to Cart |

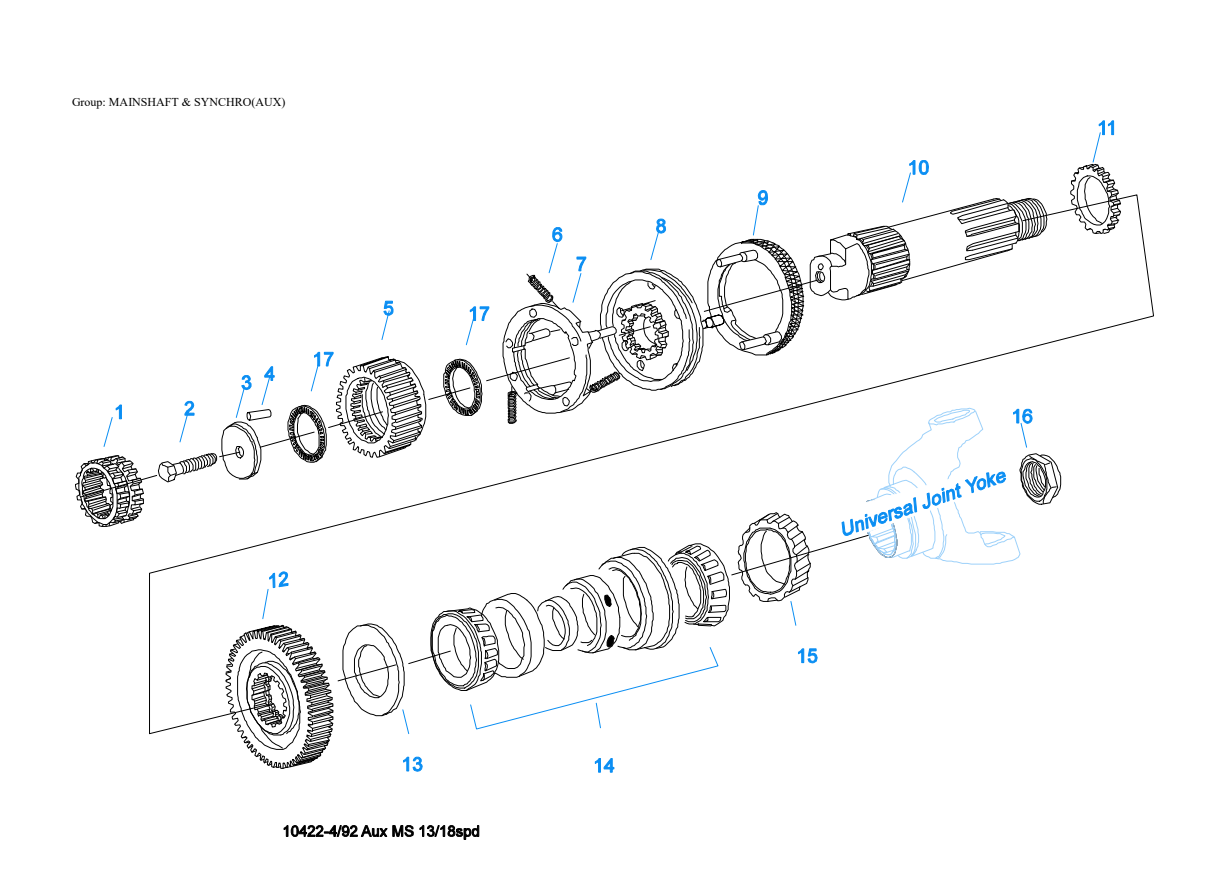

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21930 | Sliding Clutch | 1 | $76.35 | Add to Cart | |
| 2 | X-7-1005 | Capscrew | 1 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 3 | K-2796 | Retainer Repl Kit | 1 | Replaces 21606, 4302057, A-6340. | $268.88 | Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 4302376 | Splitter Gear- Mainshaft | 1 | Replaces 22796. | $235.42 | Add to Cart |
| 6 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 7 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 8 | 22915 | Sliding Clutch | 1 | $156.93 | Add to Cart | |
| 9 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 10 | K-2795 | Mainshaft Repl Kit | 1 | Replaces 21604. | $534.95 | Add to Cart |
| 11 | 23513 | Spacer | 1 | $80.39 | Add to Cart | |
| 12 | 4300124 | Reduction Gear | 1 | $513.86 | Add to Cart | |
| 13 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 14 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 15 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 16 | 22254 | Nut | 1 | $15.84 | Add to Cart | |
| 17 | 4302058 | Bearing | 2 | $7.67 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 23205 | Shift Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

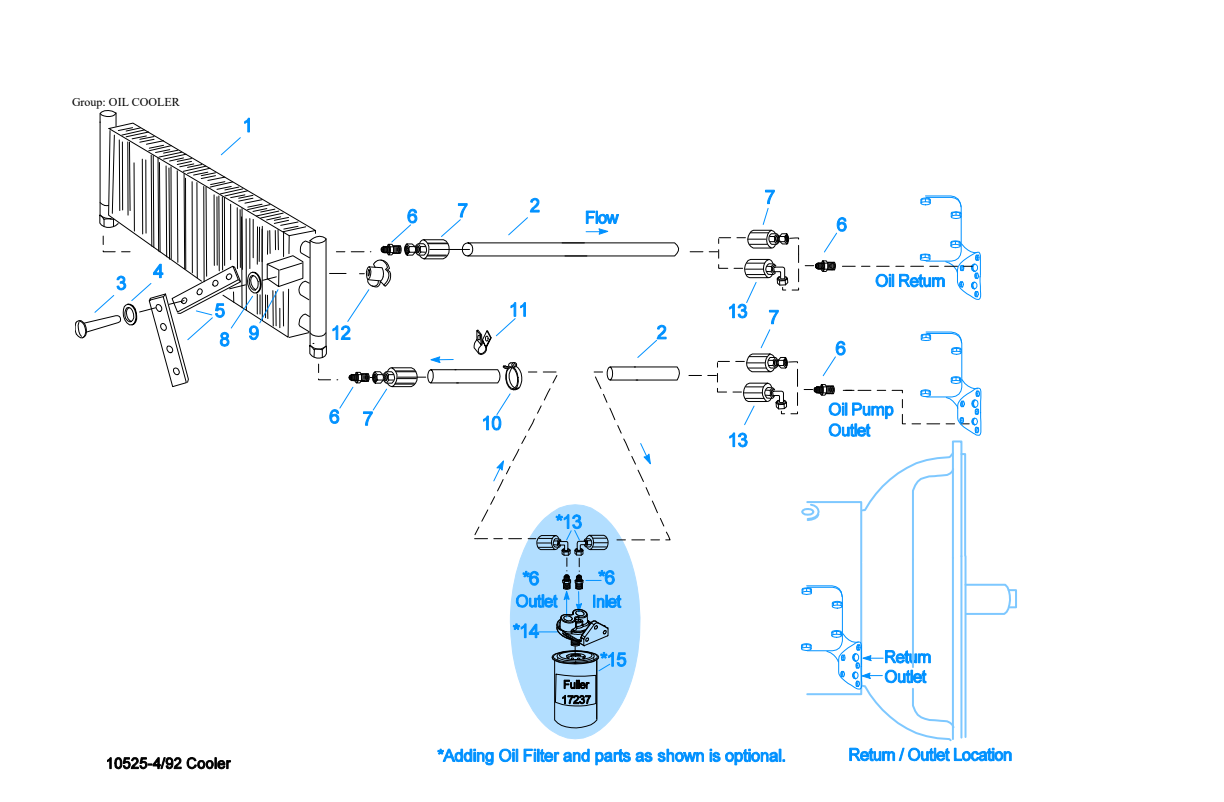

Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |

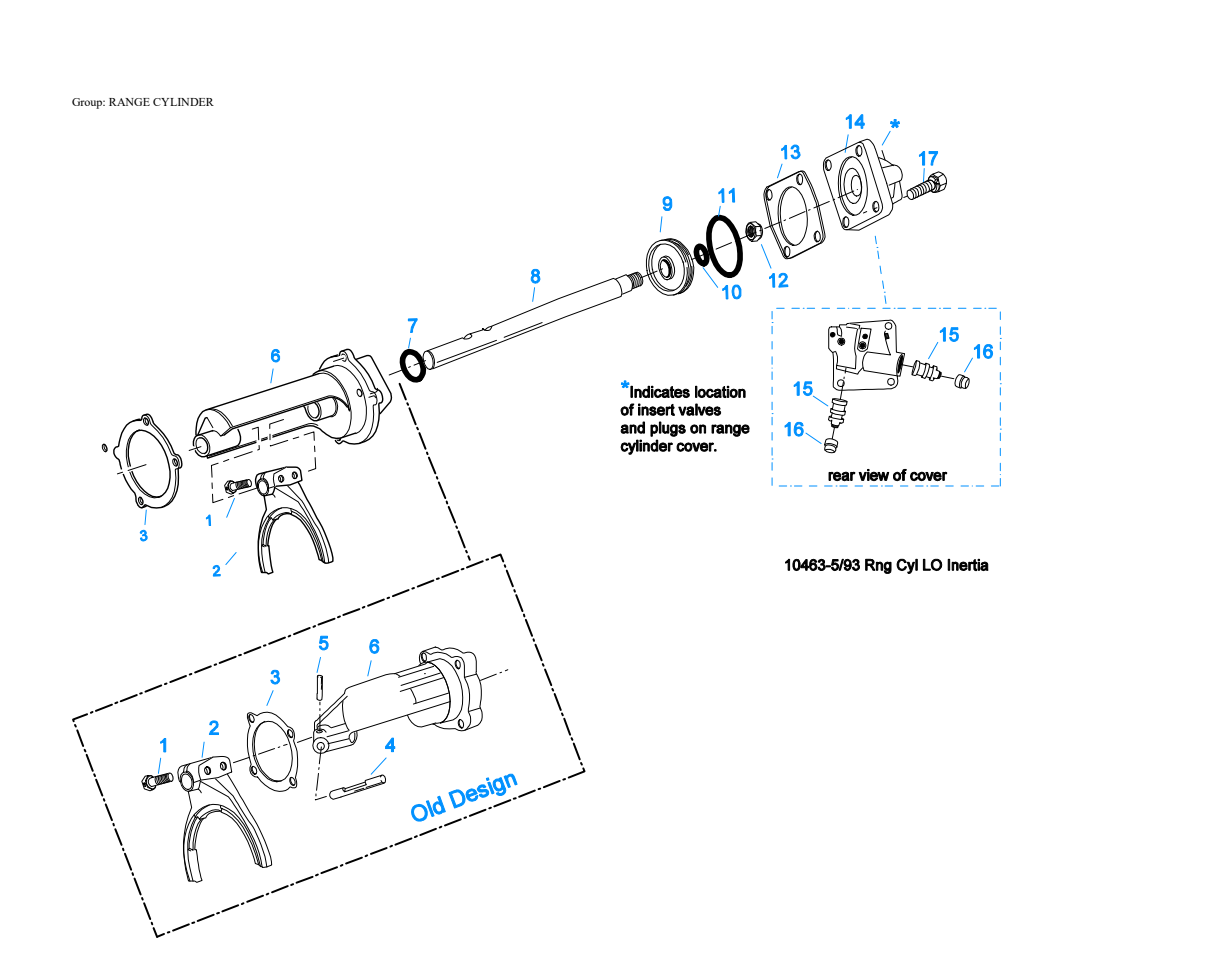

Range Cylinder
Item 14Item 7Item 5Item 2Item 8Item 10Item 11Item 15Item 16Item 4Item 9Item 16Item 17Item 13Item 6Item 3Item 1Item 6Item 3Item 1Item 15Item 12Item 2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 22821 | Pin-interlock | 1 | PART NO LONGER REQUIRED | Call for availability | |
| 5 | 62516 | Roll Pin | 1 | Replaces 62521. PART NO LONGER REQUIRED | $1.84 | Add to Cart |
| 6 | 4303682 | Range Cylinder | 1 | Replaces 4301789. | No longer available - Call for replacement | |
| 7 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 8 | 22824 | Yoke Bar | 1 | $120.68 | Add to Cart | |
| 9 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 10 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 11 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 12 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 13 | 22826 | Gasket | 1 | $8.09 | Add to Cart | |
| 14 | 22825 | Range Cylinder Cover | 1 | $76.97 | Add to Cart | |
| 15 | 4300810 | Insert Valve | 2 | Replaces 226414303615. | $75.03 | Add to Cart |
| 16 | 23009 | Plug | 2 | $36.96 | Add to Cart | |
| 17 | X-8L-607 | Capscrew | 4 | 3/8"-16X2-1/4", 3/8"-16X2-1/4" | $3.06 | Add to Cart |

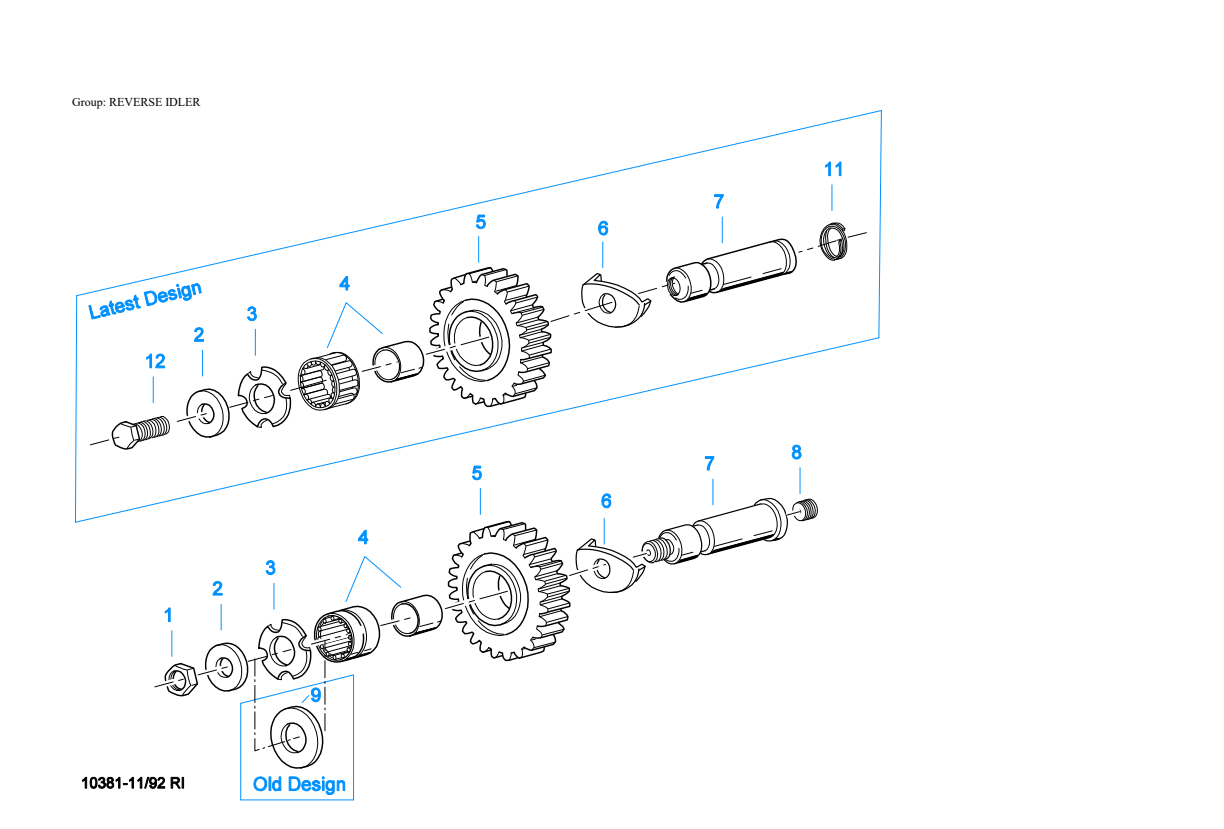

Reverse Idler
Item 7Item 5Item 4Item 1Item 8Item 12Item 9Item 7Item 6Item 4Item 3Item 6Item 2Item 11Item 5Item 2Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
Roadranger Valve
Item 13Item 1Item 14Item 4Item 4Item 2Item 11Item 6Item 5Item 12Item 2Item 2Item 6Item 3Item 2Item 2Item 2Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586109 | Shift Diagram Medallion | 1 | RTLO | $28.59 | Add to Cart |
| 2 | K-2347 | Master Valve Repair Kit | 1 | FOR A-5510 VALVE | $25.82 | Add to Cart |
| 2 | K-3190 | Master Valve Repair Kit | 1 | FOR A-6910 VALVE | $43.81 | Superseded by K3191Add to Cart |
| 3 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 4 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 5 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 6 | 84001 | Connector Assy | 2 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 6 | 84003 | Connector Assy | 2 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 6 | 84005 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 11 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 11 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 11 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 12 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 12 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 12 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 13 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | Call for availability | |
| 14 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-6910 | Roadranger Valve Assy | 1 | Replaces A-5510. STANDARD-W/LOGO | $79.78 | Add to Cart |
| 999 | S-2568 | Roadranger Valve Assy | 1 | RTLO - W/SHIFT DIAGRAM MEDALLION | $104.05 | Add to Cart |

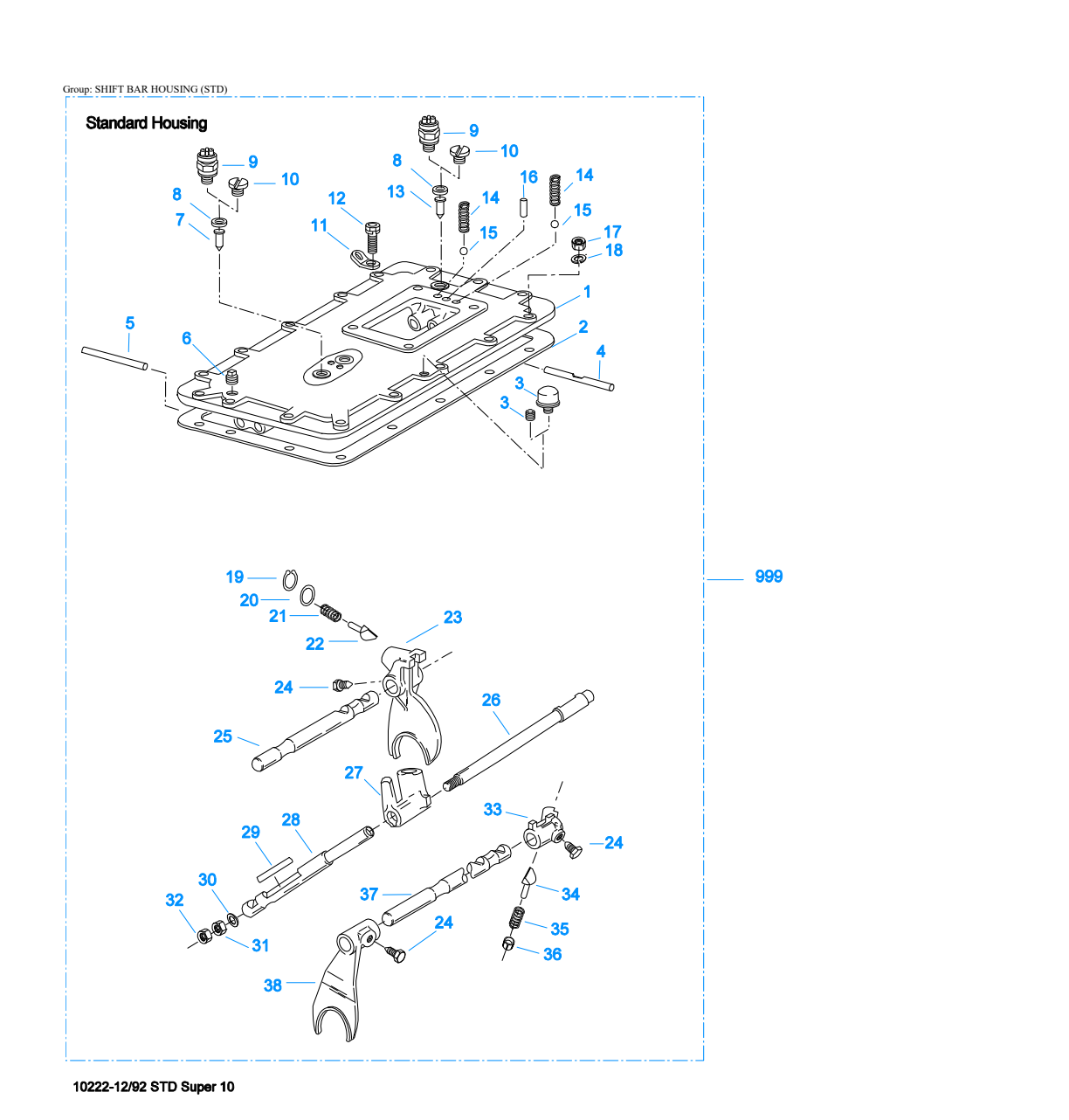

Shift Bar Housing (Std)
Item 4Item 7Item 1Item 14Item 6Item 27Item 14Item 8Item 16Item 15Item 9Item 24Item 8Item 17Item 10Item 22Item 28Item 20Item 24Item 5Item 37Item 10Item 11Item 15Item 25Item 9Item 24Item 33Item 29Item 26Item 19Item 38Item 34Item 12Item 36Item 32Item 31Item 21Item 3Item 2Item 13Item 35Item 23Item 30Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2850 | Housing Update Kit | 1 | Replaces 22800, 4301786, S-1792. | $657.06 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 22819 | Bar-interlock | 1 | Call for availability | ||
| 5 | 22812 | Pin | 1 | $27.37 | Add to Cart | |
| 6 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 7 | 4301999 | Pin | 1 | Replaces 22871. | $5.26 | Add to Cart |
| 8 | 15900 | Gasket | 2 | $2.24 | Add to Cart | |
| 9 | 22940 | Rev/neutral Light Switc | 2 | SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 10 | 4303656 | Plug | 2 | Replaces 15917. | $2.91 | Add to Cart |
| 11 | 20815 | Lifting Eye | 2 | $2.88 | Add to Cart | |
| 12 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 12 | X-8L-604 | Capscrew | 15 | 3/8"-16X1-1/4" - OR USE 13-#X-8L- 604 AND 2-#X-8L-602 | $2.34 | Add to Cart |
| 13 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 14 | 15918 | Spring | 2 | $1.97 | Add to Cart | |
| 15 | X-14-800 | Steel Ball | 2 | 1/2" | $1.78 | Add to Cart |
| 16 | 22810 | No Longer Available | 1 | Call for availability | ||
| 17 | X-1-600 | Nut | 1 | 3/8"-24 | $1.36 | Add to Cart |
| 18 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 19 | 22815 | Snap Ring | 1 | $1.45 | Add to Cart | |
| 20 | 22814 | Washer | 1 | $25.69 | Add to Cart | |
| 21 | 22809 | Spring | 1 | $2.50 | Add to Cart | |
| 22 | 22811 | Plunger | 1 | $32.21 | Add to Cart | |
| 23 | S-1786 | Shift Yoke Assy | 1 | Replaces 22801. | $137.64 | Add to Cart |
| 24 | 3220 | Lockscrew | 3 | $4.28 | Add to Cart | |
| 25 | 22804 | No Longer Available | 1 | REVERSE/1ST | Call for availability | |
| 26 | 22807 | Bar-interlock | 1 | $657.06 | Superseded by K2850Add to Cart | |
| 27 | 22802 | Shift Block | 1 | $657.06 | Superseded by K2850Add to Cart | |
| 28 | 22806 | Yoke Bar | 1 | $657.06 | Superseded by K2850Add to Cart | |
| 29 | 22808 | Key | 1 | $657.06 | Superseded by K2850Add to Cart | |
| 30 | 22816 | No Longer Available | 1 | Call for availability | ||
| 31 | X-1-600 | Nut | 1 | 3/8"-24 | $1.36 | Add to Cart |
| 32 | X-1-601 | Nut | 1 | 3/8"-24 NF | $1.36 | Add to Cart |
| 33 | 22803 | Shift Block | 1 | $119.87 | Add to Cart | |
| 34 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 35 | 18739 | Spring | 1 | $2.75 | Add to Cart | |
| 36 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 37 | 22805 | Yoke Bar | 1 | 3RD/5TH | $46.86 | Add to Cart |
| 38 | 16136 | Shift Yoke | 1 | $74.09 | Add to Cart | |
| 999 | S-2058 | Shift Bar Hsg Assy (std) | 1 | Replaces 22800, 4301786, S-1968. COMPLETE (STD) | $1,333.73 | Add to Cart |
Splitter Cylinder
Item 1Item 6Item 9Item 14Item 2Item 10Item 21Item 17Item 16Item 7Item 3Item 11Item 8Item 5Item 12Item 13Item 18Item 4Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21607 | Shift Yoke | 1 | $111.01 | Add to Cart | |
| 2 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 3 | 14632 | Gasket | 1 | $2.06 | Add to Cart | |
| 4 | 21609 | Splitter Cylinder | 1 | $763.13 | Add to Cart | |
| 5 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 6 | 21608 | Yoke Bar | 1 | $107.30 | Add to Cart | |
| 7 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 8 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 9 | X-12-101 | Plug | 2 | NOT SOLD FOR SERVICE | $3.52 | Add to Cart |
| 10 | 21760 | Cover | 1 | $88.80 | Add to Cart | |
| 11 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 12 | 4301233 | Reducer Bushing | 1 | $7.13 | Add to Cart | |
| 13 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 14 | 5568504 | O-ring | 1 | $1.50 | Add to Cart | |
| 16 | 5568534 | O-ring | 1 | $1.50 | Add to Cart | |
| 17 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 18 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 19 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement | |
| 21 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 999 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement |
This is the complete factory parts breakdown for the Eaton Fuller RTLO-14610A, with every part in the manual matched to our live inventory. We stock 395 of the 430 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator Hoses & Connections Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings M/S Assy (Latest Design) M/S Assy (Old Design) Mainshaft & Synchro(Aux) Miscellaneous Oil Cooler Range Cylinder Reverse Idler Roadranger Valve Shift Bar Housing (Std) Splitter Cylinder
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLO-14610A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTLO-14610A |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 37 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLO-14610A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
