Eaton Fuller RTLOF-14618A Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTLOF-14618A is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 1 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 8 | 21599 | Washer | 2 | $16.47 | Add to Cart | |
| 9 | K-3189 | Replt Kit-drive Gear | 1 | Replaces 4300467, 4303558, K-2312. | $195.66 | Add to Cart |
Case (Aux)
Item 1Item 17Item 14Item 19Item 7Item 11Item 10Item 16Item 13Item 4Item 8Item 4Item 12Item 5Item 5Item 5Item 18Item 6Item 5Item 3Item 15Item 9Item 2Item 20Item 21Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-611 | Capscrew | 5 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 2 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 3 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 4 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 5 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR | $2.60 | Add to Cart |
| 5 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR | $2.06 | Add to Cart |
| 6 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 7 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 8 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 9 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 10 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 11 | 4300925 | Rear Bearing Cover | 2 | Replaces 4300185. | $32.54 | Add to Cart |
| 12 | 4300186 | Gasket | 2 | $7.39 | Add to Cart | |
| 13 | K-2430 | Shim Kit | 1 | Replaces 21452. | $78.97 | Add to Cart |
| 13 | K-2431 | Shim Kit | 1 | FOR AUXILIARY COUNTERSHAFT PUMP | $60.42 | Add to Cart |
| 14 | X-8L-602 | Capscrew | 9 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 14 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | X-8L-614 | Capscrcrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 15 | S-2986 | Rear Housing Case Assy | 1 | Replaces 4300181, 4300863. | $647.34 | Add to Cart |
| 16 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 17 | X-8-611 | Capscrew | 1 | 3/8"-16X3-1/4" | $6.93 | Add to Cart |
| 18 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 19 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 20 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 21 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement |

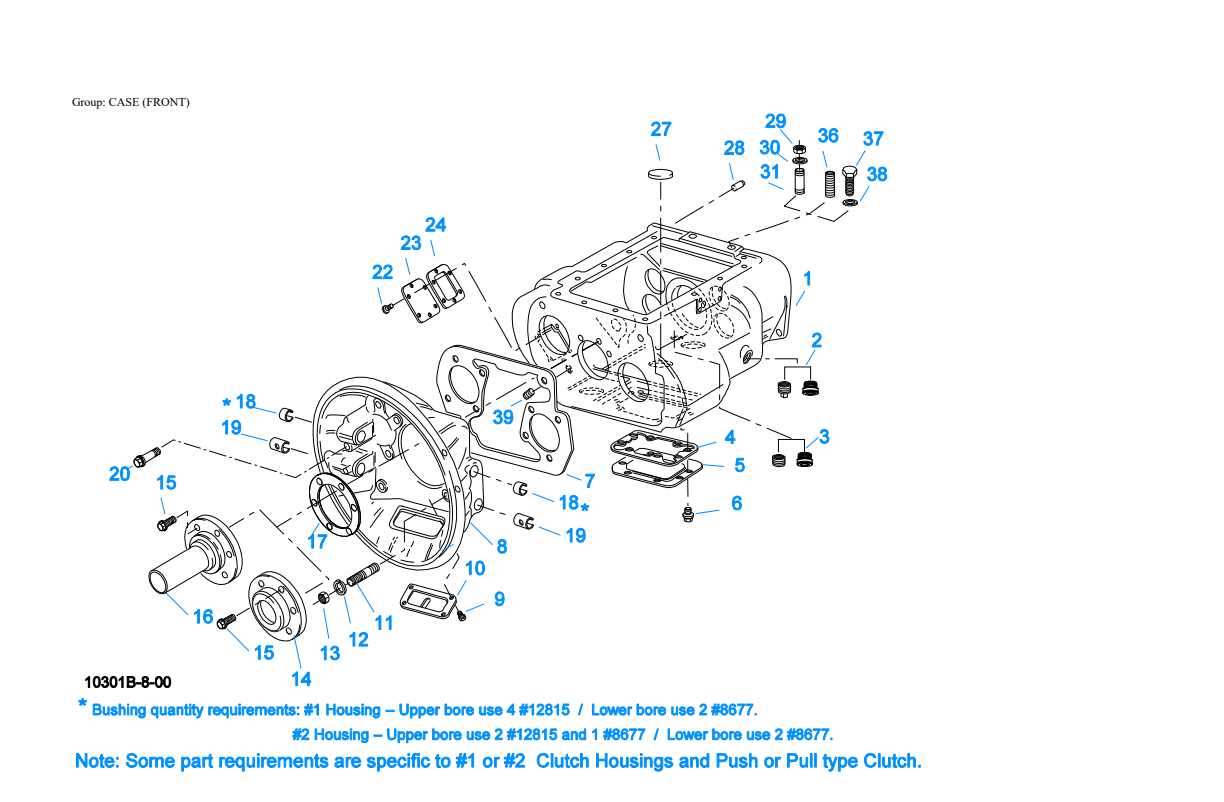

Case (Front)
Item 7Item 1Item 4Item 8Item 12Item 2Item 9Item 14Item 24Item 27Item 15Item 16Item 7Item 5Item 6Item 3Item 38Item 39Item 28Item 29Item 22Item 31Item 3Item 36Item 1Item 10Item 37Item 19Item 19Item 11Item 23Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1820 | Case Assy | 1 | Replaces 4300445. FOR USE W/INTEGRAL PUMP | $1,212.96 | Add to Cart |
| 1 | S-1888 | Case Assy | 1 | Replaces 4300590. | Call for availability | |
| 2 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING - UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 3 | FOR #1 AND #2 HOUSING - LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-826. .500-13 X 1.490, FOR IRON HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-6840 | Welded Countershaft Assy | 2 | Replaces A-5747, A-5899. C/S 4303902 - D/G 4300783 S/G 4300396 | $529.30 | Add to Cart |
| 3 | 4300184 | Spacer | 2 | $23.33 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 4303031 | Bearing | 2 | Replaces 14366. | $54.68 | Add to Cart |
| 3 | A-6689 | Cntrshft W/1ST & 2ND | 2 | Replaces A-5746, A-5873, K-2939, K-2968. | $456.62 | Add to Cart |
| 4 | 21588 | 3RD Gear-cntrshft | 2 | $143.90 | Add to Cart | |
| 5 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 5 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 5 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 6 | 21586 | Drive Gear-cntrshft | 2 | Replaces 22271. | $171.09 | Add to Cart |
| 7 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 8 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 9 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 10 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 11 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 12 | 4304840 | Key | 1 | Replaces 19673. KEY INCLUDED IN COUNTERSHAFT ASSY | $12.44 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |
H & C W/19470 Valve
Item 7Item 7Item 7Item 5Item 9Item 4Item 15Item 2Item 17Item 13Item 16Item 20Item 14Item 3Item 12Item 9Item 8Item 11Item 19Item 1Item 10Item 12Item 6Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55518 | Hose Assy | 1 | 32" | $19.83 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |

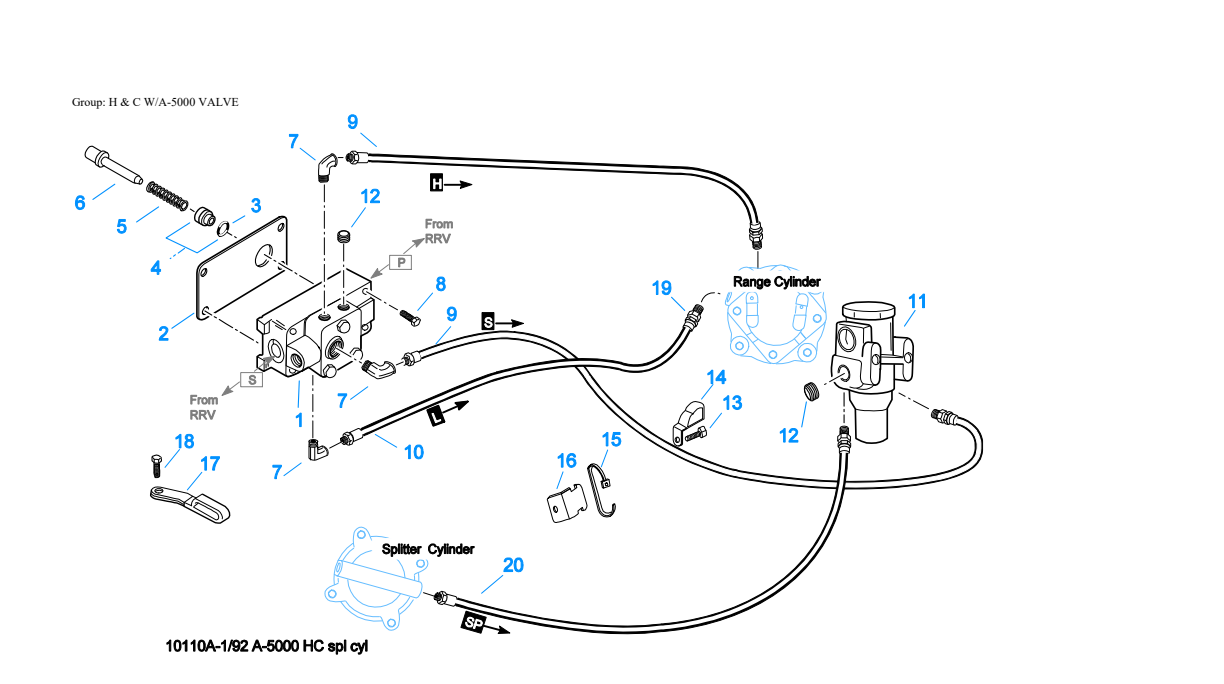

H & C W/A-5000 Valve
Item 7Item 7Item 7Item 4Item 9Item 17Item 10Item 9Item 6Item 15Item 18Item 12Item 20Item 19Item 8Item 13Item 5Item 11Item 2Item 14Item 16Item 12Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 14362, 19460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55509 | Hose Assy | 2 | 34" | $25.31 | Add to Cart |
| 10 | 55518 | Hose Assy | 1 | 32" | $19.83 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 14 | 21427 | Hose Clamp | 1 | $4.35 | Add to Cart | |
| 15 | 21425 | Strap | 1 | $1.73 | Add to Cart | |
| 16 | 21426 | Bracket | 1 | $7.03 | Add to Cart | |
| 17 | 21428 | Hose Clamp | 1 | $4.86 | Add to Cart | |
| 18 | X-8L-604 | Capscrew | 1 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55527 | Hose Assy | 1 | 15" | $21.47 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 20458 | Main Drive Gear | 1 | Replaces 19630. | $103.22 | Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 2053523566, 4302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart |

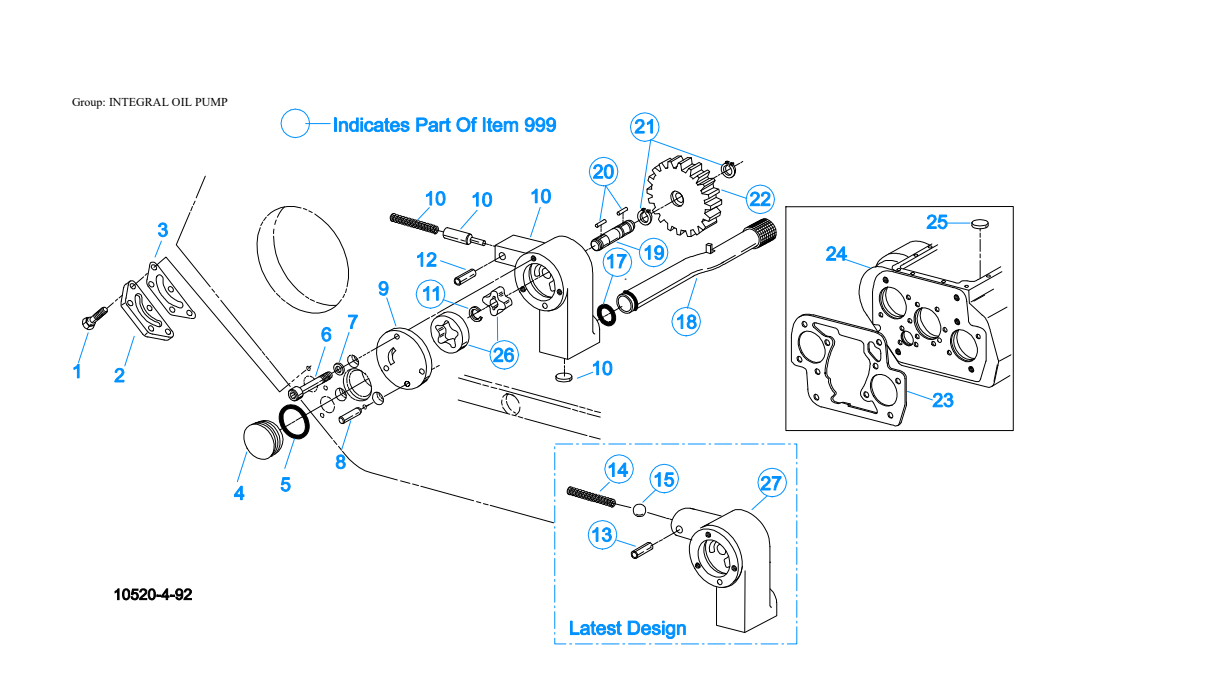

Integral Oil Pump
Item 9Item 4Item 7Item 8Item 26Item 18Item 2Item 21Item 6Item 3Item 2Item 5Item 2Item 22Item 1Item 10Item 23Item 10Item 20Item 10Item 13Item 7Item 10Item 12Item 11Item 19Item 17Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" - USE WITH 4300751 COVER | $1.87 | Add to Cart |
| 1 | X-8C-430 | Capscrew | 5 | 1/4"-20X7/8" - USE WITH 20513 COVER | $1.76 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | X-8-448 | Screw | 3 | Replaces X8445. 1/4"-20X1-1/4" | $1.76 | Add to Cart |
| 7 | 20824 | Washer | 3 | $18.88 | Add to Cart | |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | Roll Pin | 1 | Call for availability | ||
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $367.14 | Add to Cart | |
| 23 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 24 | S-1820 | Case Assy | 1 | Replaces 4300445. FOR USE W/INTEGRAL PUMP | $1,212.96 | Add to Cart |
| 25 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |

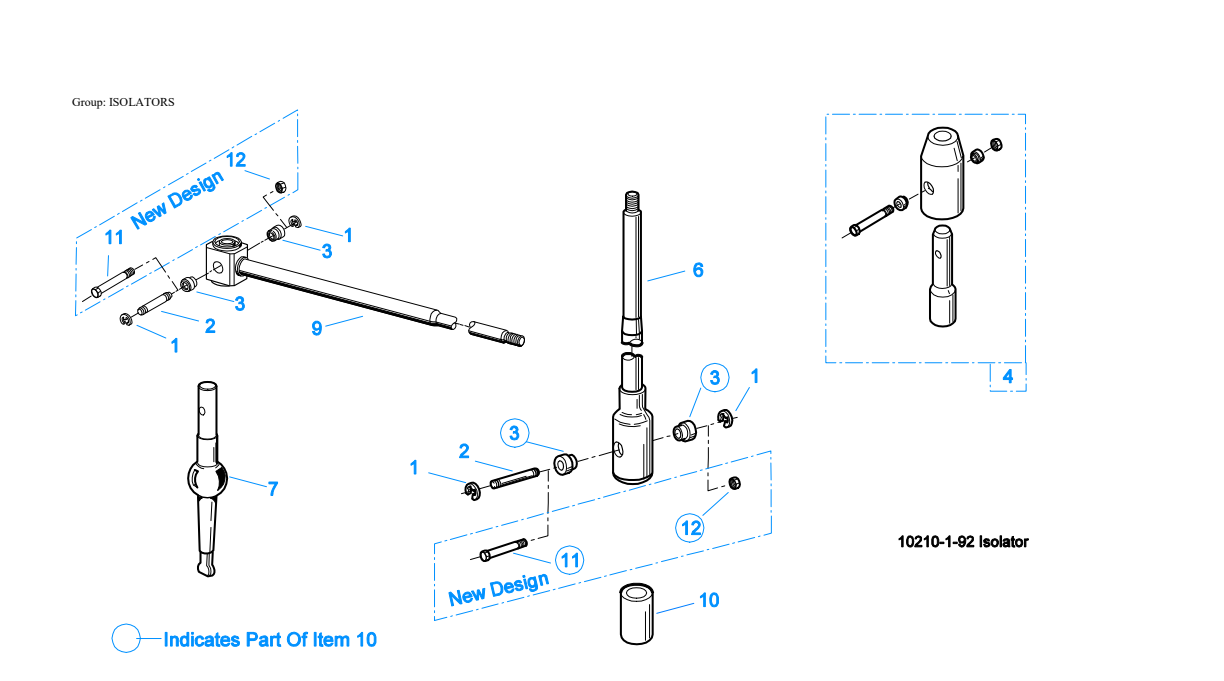

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 7 | 4301168 | Stub Lever | 1 | MID TOWER | $113.11 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1431 | Range Cyl-kit | 1 | $229.35 | Add to Cart | ||
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-2002 | O-ring Kit | 1 | $19.78 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2072 | Master Valve Repair Kit | 1 | FOR A-5013 VALVE | $52.85 | Add to Cart | |
| K-2078 | O-ring Kit - Splitter | 1 | SPLITTER | $10.58 | Add to Cart | |
| K-2199 | Gasket Kit | 1 | $80.16 | Add to Cart | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2338 | Basic Overhaul Kit | 1 | FOR AUXILIARY SECTION | $478.47 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2433 | Small Parts Kit | 1 | $393.94 | Add to Cart | ||
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart | |
| K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart | |
| K-2993 | Basic Overhaul Kit | 1 | $1,007.23 | Add to Cart | ||
| K-2996 | Basic Rebuild Kit | 1 | $791.77 | Add to Cart | ||
| K-3189 | Replt Kit-drive Gear | 1 | Replaces 4300467, 4303558, K-2312. | $195.66 | Add to Cart | |
| K-3191 | Master Valve Repair Kit | 1 | FOR A-6918 VALVE | $43.81 | Add to Cart | |
| K-3196 | Master Valve Repair Kit | 1 | FOR A-7318 VALVE | $41.48 | Add to Cart | |
| K-3209 | Idler Shaft Repl Kit | 1 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart | |
| K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement | ||
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1529 | Shift Bar Hsg Assy (f) | 1 | Replaces 20213, 22956. COMPLETE | $1,378.84 | Add to Cart | |
| S-1531 | Shift Bar Hsg Assy (std) | 1 | Replaces 20211, 22955. COMPLETE | $1,372.01 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 23567. 2" PUSH | $364.63 | Add to Cart | |
| S-1820 | Case Assy | 1 | Replaces 4300445. FOR USE W/INTEGRAL PUMP | $1,212.96 | Add to Cart | |
| S-1888 | Case Assy | 1 | Replaces 4300590. | Call for availability | ||
| S-1892 | Range Section Assy | 1 | $3,810.69 | Add to Cart | ||
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart | |
| S-2660 | Mainshaft Assy | 1 | Replaces 21594, 4303714, S-1561. | $145.58 | Add to Cart |

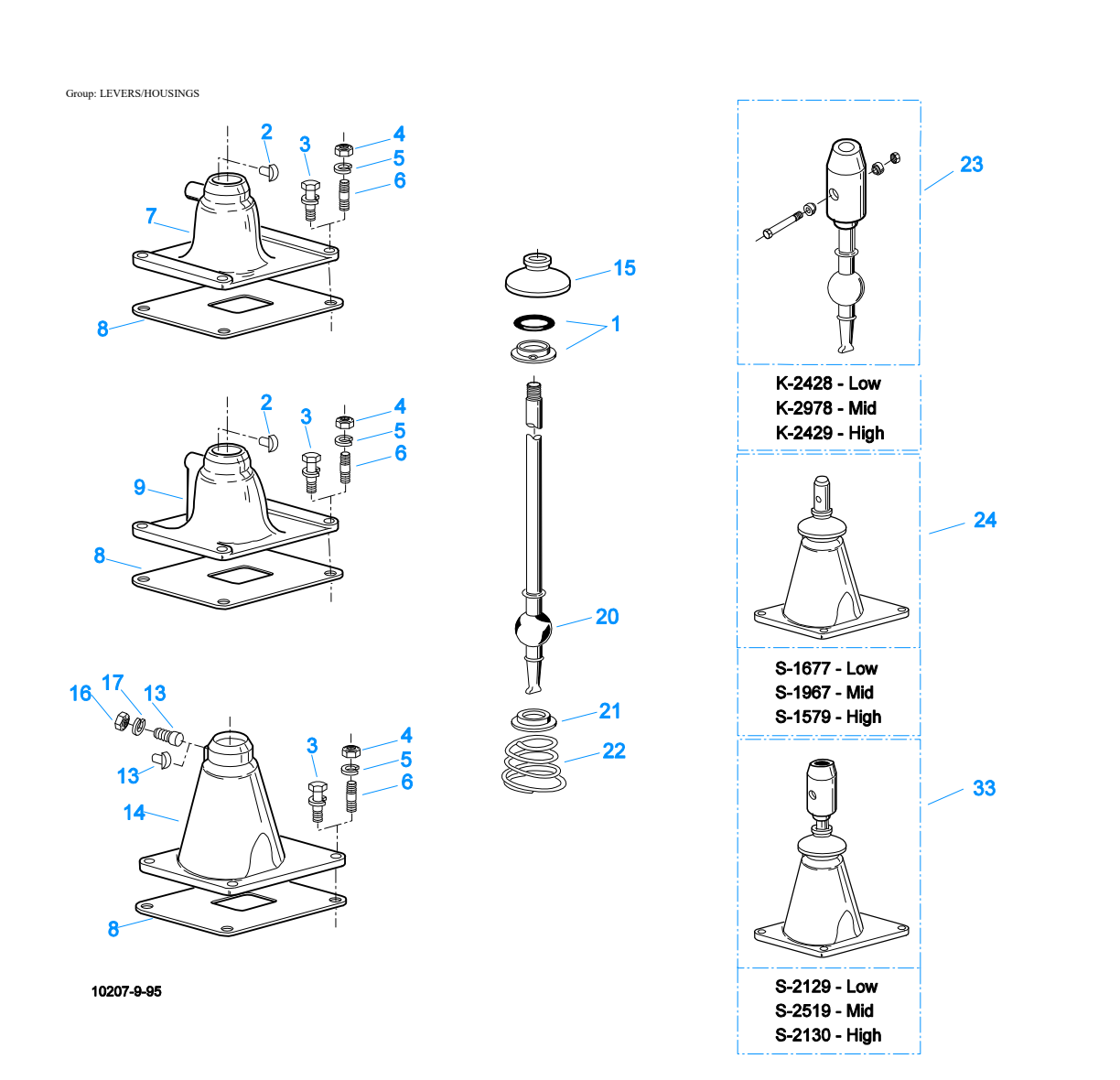

Levers/Housings
Item 17Item 7Item 14Item 4Item 5Item 15Item 1Item 24Item 3Item 8Item 6Item 6Item 22Item 8Item 5Item 1Item 5Item 2Item 6Item 20Item 21Item 4Item 16Item 9Item 23Item 33Item 3Item 4Item 3Item 2Item 8Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $10.08 | Add to Cart |
| 9 | K-2977 | Shift Lever Hsg Kit | 1 | Replaces 4301167, 4304907, A-6040. MID TOWER | $123.55 | Add to Cart |
| 13 | 4303030 | Pin | 1 | $9.45 | Add to Cart | |
| 13 | 6541 | Pin | 1 | 3/8" - USED W/17167 ONLY | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 23 | K-2978 | Lever Replacement Kit | 1 | MID TOWER | $162.67 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 24 | S-1967 | Shift Tower Assy | 1 | MID TOWER | $369.73 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 33 | S-2519 | Shift Lever Hsg Assy | 1 | Replaces S-2919. MID TOWER | $369.73 | Add to Cart |
Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21930 | Sliding Clutch | 1 | $76.35 | Add to Cart | |
| 2 | X-7-1005 | Capscrew | 1 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
| 3 | K-2617 | Retainer Repl Kit | 1 | Replaces 21606. | $353.76 | Add to Cart |
| 4 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 5 | 21931 | Splitter Gear- Mainshaft | 1 | $251.16 | Add to Cart | |
| 6 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 7 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 8 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 9 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 10 | K-2616 | Mainshaft Repl Kit | 1 | Replaces 21604. | $586.34 | Add to Cart |
| 11 | 19203 | Spacer | 1 | $44.10 | Add to Cart | |
| 12 | 21918 | Recudtion Gear | 1 | $333.91 | Add to Cart | |
| 13 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 14 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 15 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 16 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |
| 17 | 4302058 | Bearing | 2 | $7.67 | Add to Cart |

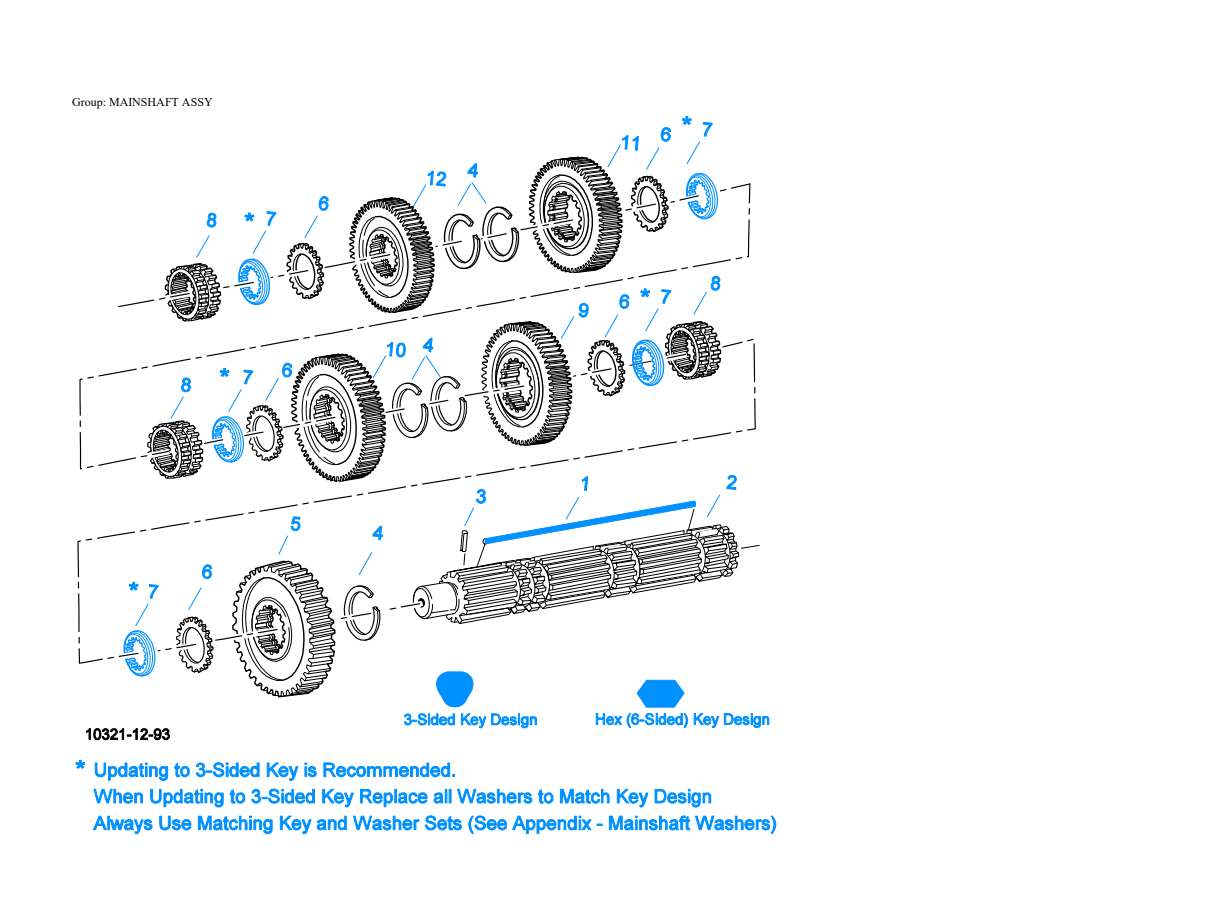

Mainshaft Assy
Item 6Item 6Item 8Item 8Item 8Item 6Item 6Item 6Item 9Item 10Item 1Item 11Item 5Item 3Item 2Item 12Item 7Item 4Item 4Item 7Item 4Item 7Item 7Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 1 | K-2366 | Key & Washer Kit | 1 | Replaces 21326, 4300763, 4304614. CONTAINS 3-SIDED KEY | $101.74 | Add to Cart |
| 2 | S-2660 | Mainshaft Assy | 1 | Replaces 21594, 4303714, S-1561. | $145.58 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 5 | $6.93 | Add to Cart | |
| 7 | 14711 | Washer .248-.250 White | 5 | Replaces 18701. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.25 | Add to Cart |
| 7 | 14712 | Washer .253-.255 Green | 5 | Replaces 18702. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14713 | Washer .258-.260 Orange | 5 | Replaces 18703. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.51 | Add to Cart |
| 7 | 14714 | Washer .263-.265 Purple | 5 | Replaces 18704. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14715 | Washer .268-.270 Yellow | 5 | Replaces 18705. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 14716 | Washer .273-.275 Black | 5 | Replaces 18706. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 21326 KEY | $10.61 | Add to Cart |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 3 | $42.03 | Add to Cart | |
| 9 | 4300654 | Lo Gear-mainshaft | 1 | Replaces 21593. | $242.27 | Add to Cart |
| 10 | 21591 | 1ST Gear-mainshaft | 1 | $221.76 | Add to Cart | |
| 11 | 21589 | 2ND Gear-mainshaft | 1 | $164.79 | Add to Cart | |
| 12 | 21587 | 3RD Gear-mainshaft | 1 | $175.63 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 21628 | Shift Diagram Label | 1 | Replaces 4300591. | $28.59 | Add to Cart | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

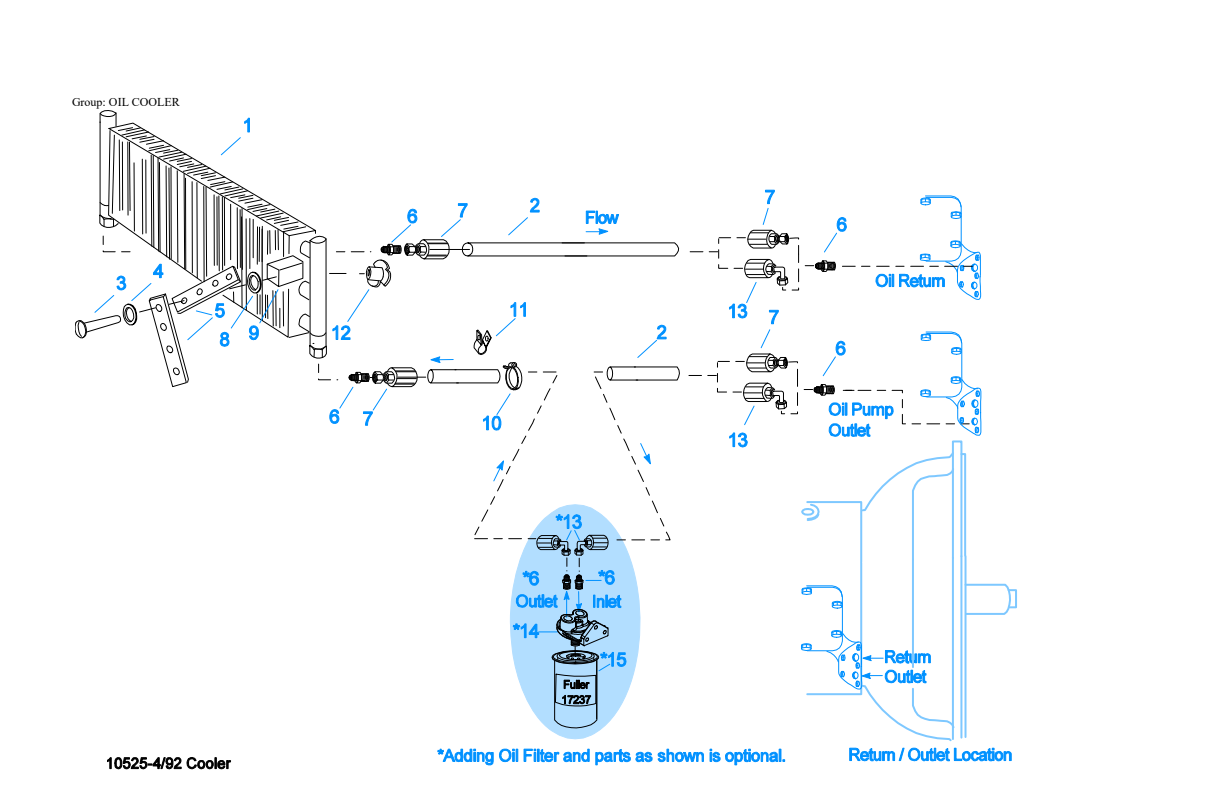

Oil Cooler
Item 11Item 7Item 1Item 4Item 10Item 9Item 7Item 2Item 7Item 6Item 6Item 7Item 6Item 3Item 13Item 12Item 6Item 13Item 2Item 8Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 16778 | Auxiliary Cylinder | 1 | $181.93 | Add to Cart | |
| 5 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 4300183 | Yoke Bar | 1 | $51.08 | Add to Cart | |
| 7 | A-6163 | Welded Yoke Assy | 1 | $130.85 | Add to Cart | |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 13 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart |
Reverse Idler
Item 7Item 11Item 7Item 4Item 2Item 5Item 4Item 6Item 9Item 10Item 2Item 8Item 12Item 9Item 4Item 3Item 6Item 5Item 3Item 5Item 3Item 3Item 3Item 3Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 4303336 | Retaining Ring | 4 | $2.70 | Add to Cart | |
| 7 | K-3209 | Idler Shaft Repl Kit | 2 | Replaces 16405, 4302981, 4305513. | $64.28 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 4 | $5.69 | Superseded by 4302982Add to Cart | |
| 10 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |

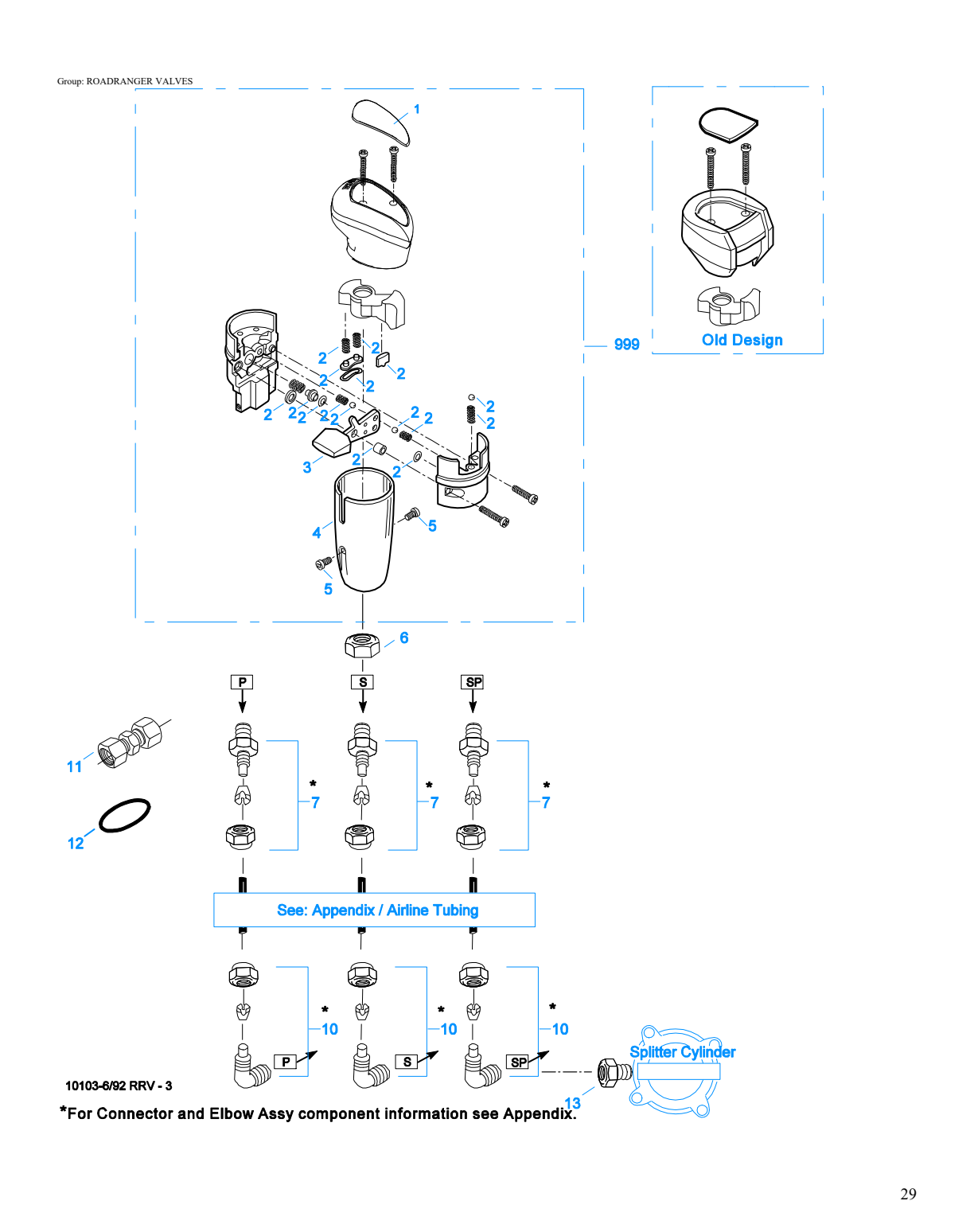

Roadranger Valves
Item 11Item 2Item 2Item 7Item 2Item 2Item 12Item 2Item 10Item 7Item 13Item 2Item 10Item 5Item 2Item 2Item 6Item 3Item 7Item 5Item 10Item 1Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 21691 | Logo Medallion | 1 | Replaces 4302349, 4300370. (OLD DESGIN) FULLER LOGO (LEFT OF DRIVER) | No longer available - Call for replacement | |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586114 | Shift Diagram Medallion | 1 | RTLO | $28.59 | Add to Cart |
| 2 | K-2072 | Master Valve Repair Kit | 1 | FOR A-5013 VALVE | $52.85 | Add to Cart |
| 2 | K-2073 | Master Valve Repair Kit | 1 | FOR A-5318 VALVE | $49.93 | Add to Cart |
| 2 | K-3191 | Master Valve Repair Kit | 1 | FOR A-6918 VALVE | $43.81 | Add to Cart |
| 2 | K-3196 | Master Valve Repair Kit | 1 | FOR A-7318 VALVE | $41.48 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 3 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 3 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 3 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 3 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 3 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 13571 | O-ring Clamp | 1 | $2.11 | Add to Cart | |
| 13 | 4301233 | Reducer Bushing | 1 | Replaces 18004. | $7.13 | Add to Cart |
| 999 | A-6918 | Roadranger Valve Assy | 1 | Replaces A-5013. STANDARD-W/LOGO | $91.89 | Add to Cart |
| 999 | A-7318 | Roadranger Valve Assy | 1 | Replaces A-5318. (LEFT OF DRIVER)-W/LOGO | $154.54 | Add to Cart |
| 999 | S-2555 | Roadranger Valve Assy | 1 | RTLO - W/SHIFT DIAGRAM MEDALLION | $122.13 | Add to Cart |

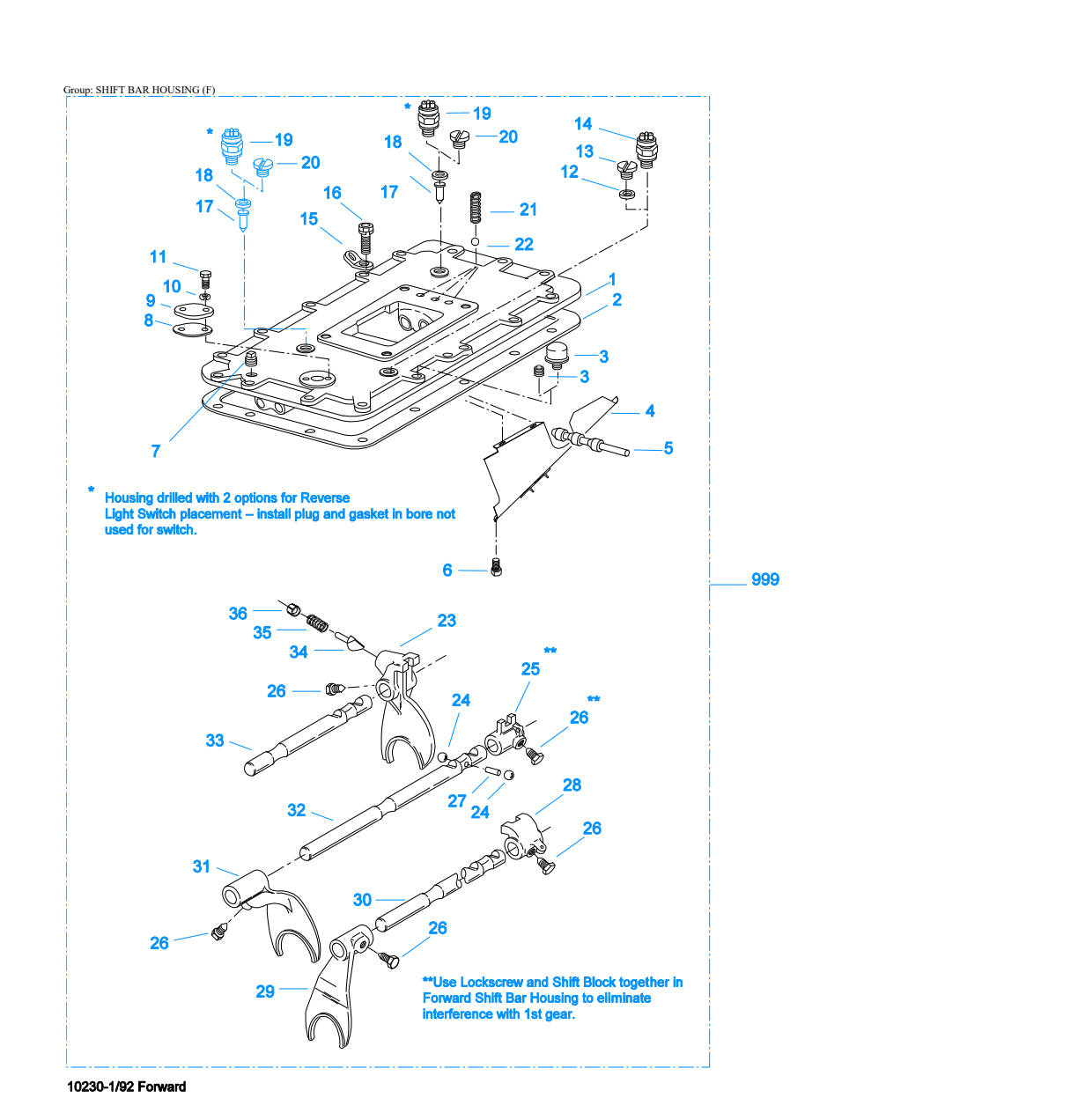

Shift Bar Housing (F)
Item 1Item 7Item 14Item 4Item 5Item 17Item 11Item 17Item 24Item 6Item 10Item 21Item 8Item 19Item 32Item 24Item 35Item 22Item 16Item 19Item 12Item 23Item 26Item 34Item 30Item 36Item 33Item 18Item 18Item 26Item 26Item 3Item 31Item 20Item 15Item 25Item 28Item 29Item 27Item 20Item 26Item 26Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1441 | Shift Bar Hsg (f) | 1 | Replaces 20213, 22956. HOUSING ONLY | $942.03 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | 16338 | Shift Yoke | 1 | REVERSE/LOW | $301.13 | Add to Cart |
| 24 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 25 | 22942 | Shift Block | 1 | 1ST/2ND | $57.42 | Add to Cart |
| 26 | 22943 | Lockscrew | 1 | USE W/22942 SHIFT BLOCK | $15.26 | Add to Cart |
| 26 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 27 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 28 | 14912 | Shift Block | 1 | 3RD/DIRECT | $69.32 | Add to Cart |
| 29 | 16136 | Shift Yoke | 1 | 3RD/DIRECT | $74.09 | Add to Cart |
| 30 | 14909 | Yoke Bar | 1 | 3RD/DIRECT | $47.11 | Add to Cart |
| 31 | 16135 | Shift Yoke | 1 | 1ST/2ND | $74.79 | Add to Cart |
| 32 | 14910 | Yoke Bar | 1 | 1ST/2ND | $46.02 | Add to Cart |
| 33 | 14908 | Yoke Bar | 1 | REVERSE/LOW | $37.62 | Add to Cart |
| 34 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 35 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 36 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1529 | Shift Bar Hsg Assy (f) | 1 | Replaces 20213, 22956. (F) COMPLETE | $1,378.84 | Add to Cart |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
Splitter Cylinder
Item 1Item 6Item 9Item 14Item 2Item 10Item 21Item 17Item 16Item 7Item 3Item 11Item 8Item 5Item 12Item 13Item 18Item 4Item 19Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21607 | Shift Yoke | 1 | $111.01 | Add to Cart | |
| 2 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 3 | 14632 | Gasket | 1 | $2.06 | Add to Cart | |
| 4 | 21609 | Splitter Cylinder | 1 | $763.13 | Add to Cart | |
| 5 | 21208 | O-ring | 1 | $4.80 | Add to Cart | |
| 6 | 4300182 | Yoke Bar | 1 | No longer available - Call for replacement | ||
| 7 | 21209 | O-ring | 1 | $5.37 | Add to Cart | |
| 8 | 17073 | Gasket | 1 | $2.39 | Add to Cart | |
| 9 | X-12-101 | Plug | 2 | NOT SOLD FOR SERVICE | $3.52 | Add to Cart |
| 10 | 21760 | Cover | 1 | $88.80 | Add to Cart | |
| 11 | 19974 | Insert Valve | 1 | Replaces 155124303616. | $52.92 | Add to Cart |
| 12 | 4301233 | Reducer Bushing | 1 | Replaces 18004. | $7.13 | Add to Cart |
| 13 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 14 | 5568504 | O-ring | 1 | $1.50 | Add to Cart | |
| 16 | 5568534 | O-ring | 1 | $1.50 | Add to Cart | |
| 17 | 13653 | O-ring | 1 | $3.00 | Add to Cart | |
| 18 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 19 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement | |
| 21 | X-8L-540 | Capscrew | 4 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 999 | K-3333 | Splitter Vlv Repl Kit | 1 | Replaces A-6861. | No longer available - Call for replacement |
This is the complete factory parts breakdown for the Eaton Fuller RTLOF-14618A, with every part in the manual matched to our live inventory. We stock 425 of the 440 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/19470 Valve H & C W/A-5000 Valve Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Cooler Range Cylinder Reverse Idler Roadranger Valves Shift Bar Housing (F) Slave Valve - Slave Valve - A- Splitter Cylinder
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTLOF-14618A transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTLOF-14618A |
| Transmission type | 18-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 37 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTLOF-14618A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
