Eaton Fuller RTO-11609A Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTO-11609A is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | RTO/RTOF/RTX/RTXF | $29.52 | Add to Cart |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 9 | K-2309 | Repl Kit-drive Gear | 1 | Replaces 19254, 4300465. | $297.69 | Add to Cart |
Case (Aux)
Item 11Item 12Item 12Item 2Item 4Item 1Item 13Item 11Item 14Item 8Item 12Item 15Item 3Item 12Item 10Item 23Item 5Item 24Item 6Item 7Item 19Item 22Item 16Item 21Item 20Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 3 | K-2256 | Oil Seal Kit | 1 | Replaces 19109, 21036. | $18.84 | Add to Cart |
| 4 | X-8L-605 | Capscrew | 5 | 3/8"-16X3" | $4.71 | Add to Cart |
| 4 | X-8L-616 | Capscrew | 5 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 5 | X-8-681 | Capscrew | 1 | 3/8"-16X2-3/4" | $4.00 | Add to Cart |
| 5 | X-8-682 | Capscrew | 1 | 3/8"-16X3" | $2.17 | Add to Cart |
| 6 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 7 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 8 | S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart |
| 8 | S-2149 | Rear Brg Cover Assy | 1 | Replaces 20208, 21062. | $329.84 | Add to Cart |
| 10 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 11 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 12 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR | $2.60 | Add to Cart |
| 12 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 12 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 13 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 14 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 15 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 16 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 16 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" USE W/LIFTING EYES | $1.76 | Add to Cart |
| 18 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 19 | 16724 | Rear Brg Cover | 2 | $18.78 | Add to Cart | |
| 20 | 17097 | Gasket | 2 | $2.77 | Add to Cart | |
| 21 | X-8L-609 | Capscrew | 14 | 3/8"-16X1-3/4" | $2.11 | Add to Cart |
| 21 | X-8L-614 | Capscrew | 5 | 3/8"-16X2" | $3.24 | Add to Cart |
| 22 | 19727 | Hose Clamp | 1 | $4.37 | Add to Cart | |
| 23 | 19465 | Rear Housing | 1 | Replaces 19469. | $805.70 | Add to Cart |
| 24 | 14335 | Gasket | 1 | $4.43 | Add to Cart |
Case (Front)
Item 29Item 27Item 36Item 37Item 28Item 30Item 31Item 38Item 24Item 23Item 22Item 1Item 2Item 18Item 39Item 19Item 4Item 3Item 5Item 20Item 15Item 40Item 7Item 18Item 6Item 19Item 41Item 17Item 8Item 10Item 9Item 16Item 11Item 12Item 15Item 13Item 14Item 4Item 2Item 2Item 1Item 2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1318 | Case Assy | 1 | Replaces 15390. | $3,327.93 | Add to Cart |
| 1 | S-1519 | Case Assy | 1 | Replaces 20500. FOR USE W/INTEGRAL PUMP | $2,896.81 | Add to Cart |
| 2 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 14267 | Front Brg. Cover | 1 | 1-3/4" PULL | $36.25 | Add to Cart |
| 14 | 15111 | Front Brg. Cover | 1 | 2" PULL | $47.29 | Add to Cart |
| 14 | 18699 | Front Brg. Cover | 1 | 1-3/4" & 2" PULL W/SEAL | $234.50 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 14 | 20552 | Front Brg Cover | 1 | 1-3/4" PULL | $72.77 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | 14994 | Front Brg. Cover | 1 | 2" PUSH | $221.55 | Add to Cart |
| 16 | 15113 | Front Brg. Cover | 1 | 1-3/4" & 2" PUSH W/SEAL | $317.56 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 16 | 20551 | Front Brg. Cover | 1 | 1-3/4" PUSH | $97.05 | Add to Cart |
| 16 | S-1478 | No Longer Available | 1 | 1-3/4" PUSH | Call for availability | |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 2 | FOR #1 AND #2 HOUSING LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 12581 | Oil Seal | 1 | USE W/15113 COVER ONLY | $8.63 | Add to Cart |
| 41 | 16976 | Seal | 1 | 1-3/4" | $14.47 | Add to Cart |
| 41 | 16977 | Seal | 1 | 2" | $17.24 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8879 | Bearing | 2 | $70.13 | Add to Cart | |
| 2 | A-5736 | Welded Countershaft Assy | 2 | Replaces A-4722, A-4976. C/S 4300319 - D/G 19255 | $267.10 | Add to Cart |
| 3 | 81052 | Bearing | 2 | Replaces 81008. | $59.71 | Add to Cart |
| 4 | 16723 | Snap Ring | 2 | $2.12 | Add to Cart |

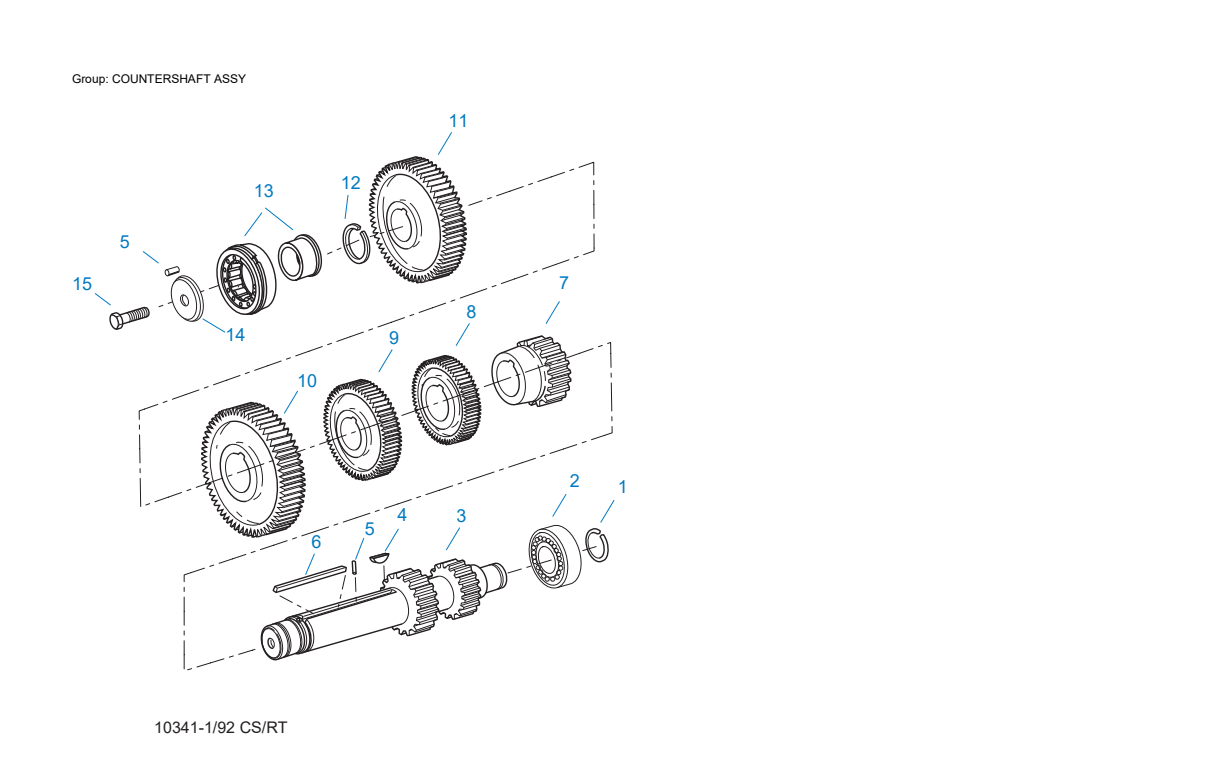

Countershaft Assy
Item 11Item 12Item 13Item 5Item 15Item 7Item 8Item 14Item 9Item 10Item 2Item 1Item 4Item 3Item 5Item 6Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | K-2934 | Cntrshft-w/rev & Lo | 2 | Replaces 19549. | $357.67 | Add to Cart |
| 4 | X-6-E | Key | 2 | $4.27 | Superseded by 230292Add to Cart | |
| 5 | 62511 | Roll Pin | 4 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4306076 | 1ST Gear-cntrshft | 2 | Replaces 19247, 20471. | $111.39 | Add to Cart |
| 8 | 20482 | 2ND Gear-cntrshft | 2 | Replaces 19615. | $101.39 | Add to Cart |
| 9 | 4305661 | Od Gear-cntrshft | 2 | Replaces 1963119633, 20481, 4302233, 20459. | $150.84 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 16390 | No Longer Available | 2 | OPTIONAL IF PTO GEARS ARE NOT USED | Call for availability | |
| 10 | 20840 | Pto Gear - Upper | 1 | Replaces 15952. | $105.45 | Add to Cart |
| 11 | 4305657 | Drive Gear-cntrshft | 2 | Replaces 1924019243, 20392, 4302087, 21020. | $118.01 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

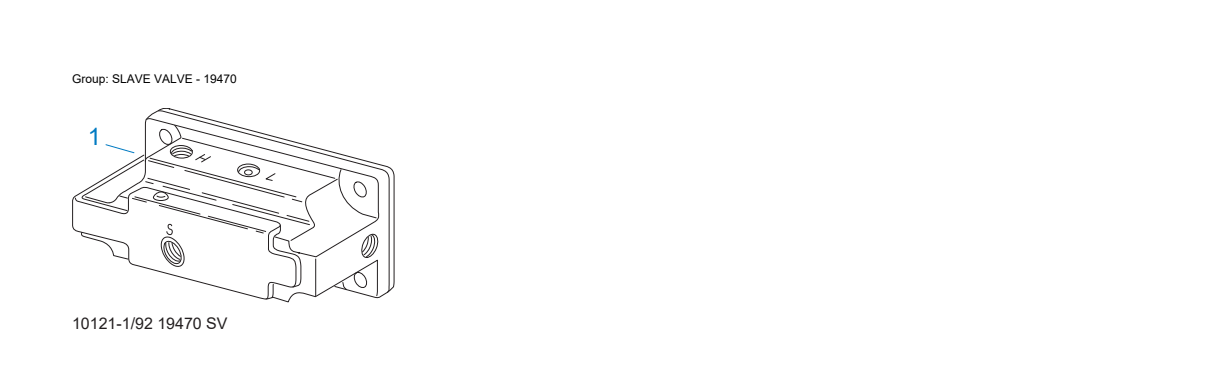

H & C W/19470 Valve
Item 9Item 7Item 14Item 6Item 3Item 8Item 5Item 4Item 15Item 12Item 2Item 10Item 13Item 7Item 1Item 14Item 16Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 12 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 13 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 14 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 15 | X-8L-614 | Capscrew | 1 | 3/8"-16X2" | $3.24 | Add to Cart |
| 16 | 55526 | Hose Assy | 1 | 26" | $19.65 | Add to Cart |
H & C W/A-4688 Valve
Item 6Item 5Item 2Item 13Item 4Item 9Item 14Item 1Item 11Item 10Item 8Item 3Item 7Item 12Item 15Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | 15758 | Gasket | 1 | $2.25 | Add to Cart | |
| 3 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 6 | 14361 | Pin | 1 | $44.42 | Add to Cart | |
| 7 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8L-411 | Capscrew | 4 | Replaces X8411. 1/4"-20X1-3/4" | $14.93 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-614 | Capscrew | 1 | 3/8"-16X2" | $3.24 | Add to Cart |
| 14 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 15 | 55526 | Hose Assy | 1 | 26" | $19.65 | Add to Cart |

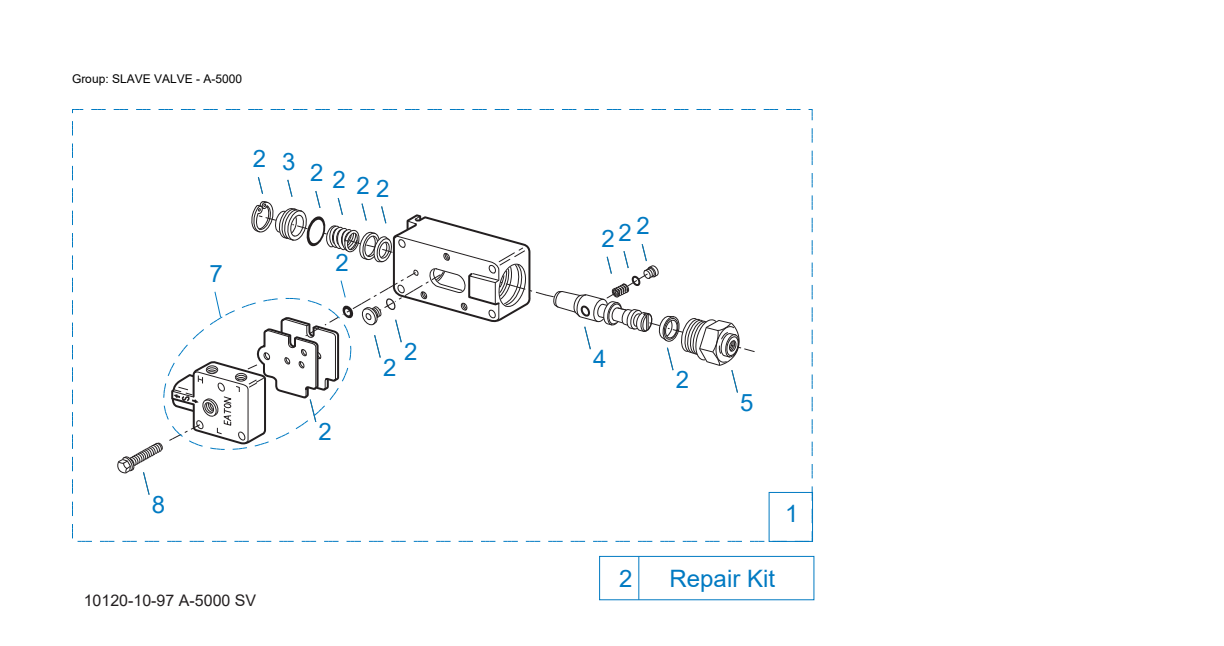

H & C W/A-5000 Valve
Item 9Item 7Item 6Item 3Item 14Item 5Item 4Item 8Item 15Item 12Item 10Item 13Item 2Item 7Item 1Item 14Item 16Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55522 | Hose Assy | 1 | 28" | $19.70 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 12 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 13 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 14 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 15 | X-8L-614 | Capscrew | 1 | 3/8"-16X2" | $3.24 | Add to Cart |
| 16 | 55526 | Hose Assy | 1 | 26" | $19.65 | Add to Cart |

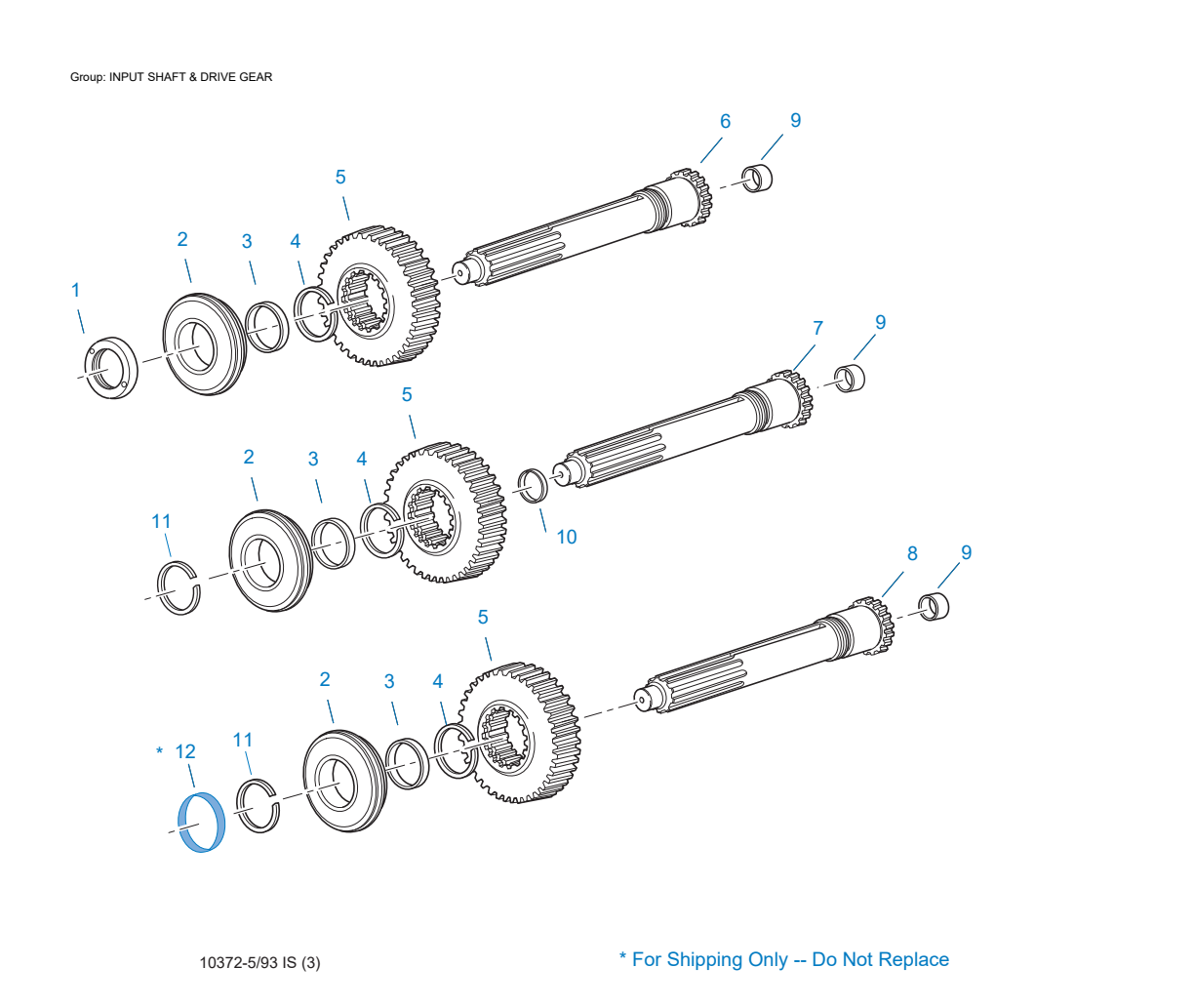

Input Shaft & Drive Gear
Item 6Item 9Item 5Item 2Item 3Item 4Item 1Item 9Item 7Item 5Item 2Item 3Item 4Item 11Item 10Item 8Item 9Item 5Item 2Item 3Item 4Item 11Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 11466 | Nut | 1 | USE W/19716 SHAFT | $37.21 | Add to Cart |
| 1 | 8858 | Nut | 1 | PUSH | $45.47 | Add to Cart |
| 1 | 8997 | Nut | 1 | PULL | $18.45 | Add to Cart |
| 2 | 4301417 | Roller Bearing | 1 | HEAVY DUTY BEARING FOR PTO APPLICATIONS | $64.75 | Superseded by 4308451Add to Cart |
| 2 | 81504 | Ball Bearing | 1 | $51.99 | Add to Cart | |
| 3 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 21021 | Main Drive Gear | 1 | USE W/16118 SL CLUTCH AND 14749 SPACER | $142.76 | Add to Cart |
| 5 | 4305659 | Main Drive Gear | 1 | Replaces 22030, 4302086, 22028. USE W/22026 SL CLUTCH AND 22032 SPACER | $154.92 | Add to Cart |
| 6 | 19714 | No Longer Available | 1 | 1-3/4" PUSH | Call for availability | |
| 6 | S-1128 | Input Shaft | 1 | Replaces 16465. 2" PULL | $89.76 | Add to Cart |
| 6 | S-1129 | Input Shaft | 1 | Replaces 16466. 2" PUSH | Call for availability | |
| 6 | S-1406 | Input Shaft | 1 | Replaces 19316. 1-3/4" PULL | $96.99 | Add to Cart |
| 7 | S-1409 | Input Shaft | 1 | Replaces 18837. 2" PULL W/SEAL | $627.18 | Add to Cart |
| 8 | S-1498 | Input Shaft | 1 | Replaces 20532. 1-3/4" PUSH | $456.42 | Superseded by S2918Add to Cart |
| 8 | S-1504 | Input Shaft | 1 | Replaces 20538. 1-3/4" PULL | $188.00 | Superseded by S2928Add to Cart |
| 8 | S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart |
| 8 | S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH - USE W/FBC 20549 | $364.63 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | 16978 | Sleeve | 1 | 2" W/SEAL | $27.60 | Add to Cart |
| 11 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 12 | 23559 | Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
Integral Oil Pump
Item 21Item 20Item 10Item 10Item 10Item 22Item 3Item 19Item 12Item 17Item 9Item 11Item 18Item 6Item 26Item 1Item 2Item 10Item 14Item 15Item 27Item 8Item 13Item 5Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8C-409 | Capscrew | 5 | 1/4"-20X5/8" - USE WITH 4300751 COVER | $1.87 | Add to Cart |
| 1 | X-8C-430 | Capscrew | 5 | 1/4"-20X7/8" - USE WITH 20513 COVER | $1.76 | Add to Cart |
| 2 | K-2402 | Cover & Screw Kit | 1 | Replaces 20513, 4300751. | $13.53 | Add to Cart |
| 3 | 20514 | Gasket | 1 | $2.07 | Add to Cart | |
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | K-4126 | Fastener Kit | 1 | Replaces 20824, X-8-448. KIT CONTAINS 3 FASTENERS AND 3 WASHERS | $46.89 | Add to Cart |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303107 | Retainer | 1 | Replaces 20510. | $30.74 | Add to Cart |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | 20518 | Crescent Ring | 1 | $1.59 | Add to Cart | |
| 12 | 62516 | Roll Pin | 1 | Replaces 62521. | $1.84 | Add to Cart |
| 13 | 62514 | No Longer Available | 1 | Call for availability | ||
| 14 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 15 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 20508 | Drive Shaft | 1 | $53.01 | Add to Cart | |
| 20 | 20509 | Key | 2 | $10.21 | Add to Cart | |
| 21 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 22 | 20511 | Drive Gear | 1 | $367.14 | Add to Cart | |
| 26 | 20507 | Element | 1 | $104.16 | Add to Cart | |
| 27 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
Isolators
Item 12Item 11Item 1Item 3Item 6Item 3Item 2Item 9Item 1Item 3Item 1Item 4Item 3Item 2Item 1Item 7Item 12Item 11Item 10Item 10Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |

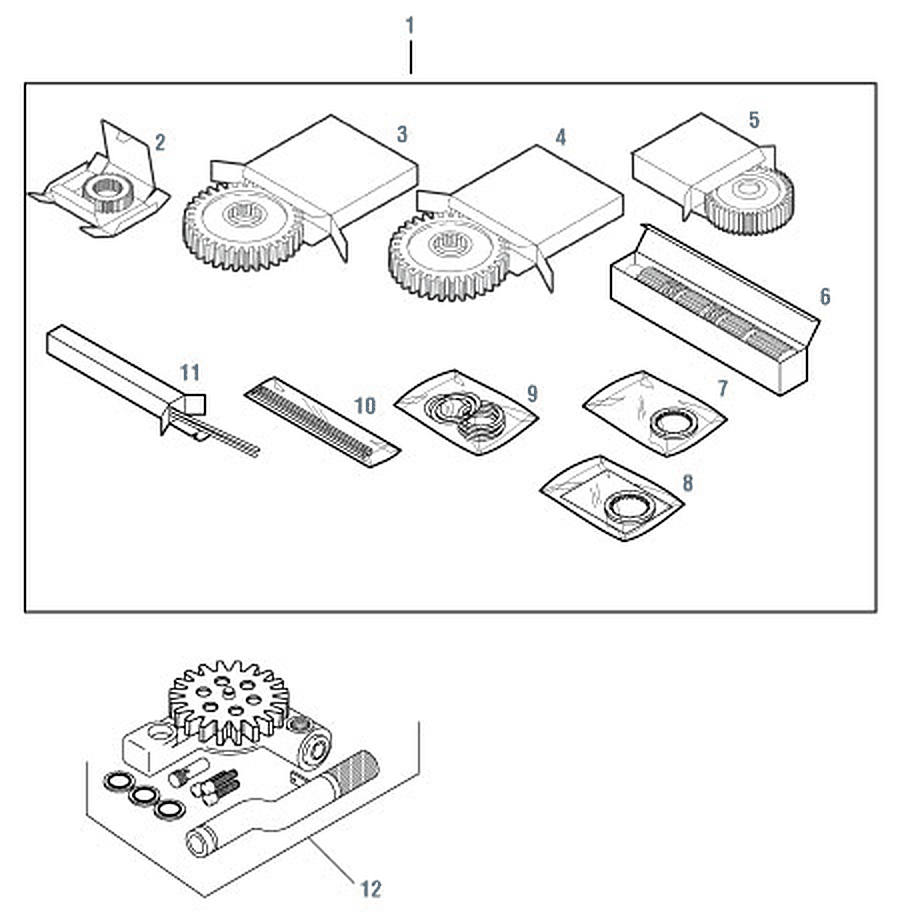

Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1431 | Range Cyl-kit | 1 | $229.35 | Add to Cart | ||
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart | |
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart | |
| K-1790 | Small Parts Kit | 1 | $254.55 | Add to Cart | ||
| K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 SLAVE VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1963 | Valve Conversion Kit | 1 | CONVERT TO A-5000 | $314.28 | Add to Cart | |
| K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2010 | Valve Conversion Kit | 1 | FOR A-5010 VALVE | $207.41 | Add to Cart | |
| K-2199 | Gasket Kit | 1 | $80.16 | Add to Cart | ||
| K-2256 | Oil Seal Kit | 1 | Replaces 14337, 19109, 21036. | $18.84 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2283 | Basic Rebuild Kit | 1 | $958.96 | Add to Cart | ||
| K-2309 | Repl Kit-drive Gear | 1 | Replaces 19254, 4300465. A-RATIO | $297.69 | Add to Cart | |
| K-2311 | Repl Kit-drive Gear | 1 | Replaces 19275, 4300466. B,P & R-RATIOS | $290.33 | Add to Cart | |
| K-2345 | Basic Overhaul Kit | 1 | 1-3/4" PULL TYPE | $1,031.27 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart | |
| K-2468 | Clutch Installation Kit | 1 | FOR USE WITH S-1659 INPUT SHAFT ASSY AND 81504 INPUT SHAFT BEARING | $318.86 | Add to Cart | |
| K-2761K-2934 | Basic Overhaul Kit Countershaft Repl Kit | 1 | Replaces K-1742, K-197419549. 2" PULL TYPE | Call for availability | ||
| K-2953 | Countershaft Repl Kit | 1 | Replaces 22777. | $376.37 | Add to Cart | |
| K-2966 | Retainer Kit | 1 | Replaces 19668, A-4729. | $29.42 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3155 | Washer Update Kit | 1 | RT/F-11609A | $788.49 | Add to Cart | |
| K-3156 | Washer Update Kit | 1 | RTO/RTX/F-11609A | $904.18 | Add to Cart | |
| K-3157 | Washer Update Kit | 1 | RTO/RTX/F-11609B | $957.71 | Add to Cart | |
| K-3158 | Washer Update Kit | 1 | RTX/F-11609R | $865.80 | Add to Cart | |
| K-3217 | Idler Shaft Repl Kit | 1 | Replaces 4302981. | $75.22 | Add to Cart | |
| K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3491 | Synchronizer Kit | 1 | Replaces K-2445. LO RANGE / SMALL PIN | $219.37 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. LO RANGE / LARGE PIN | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| K-4125 | Clutch Installation Kit (rt), Hydraulic Release | 1 | STANDARD RT INPUT SHAFT AND YOKE FOR HYDRAULIC CLUTCH RELEASE | $455.35 | Superseded by K4125CLAdd to Cart | |
| S-1128 | Input Shaft | 1 | Replaces 16465. 2" PULL | $89.76 | Add to Cart | |
| S-1129 | Input Shaft | 1 | Replaces 16466. 2" PUSH | Call for availability | ||
| S-1219 | Yoke Assy Low-rev | 1 | $72.34 | Add to Cart | ||
| S-1318 | Case Assy | 1 | Replaces 15390. | $3,327.93 | Add to Cart | |
| S-1341 | Mainshaft Assy | 1 | Replaces 16761, 18729. | $160.78 | Add to Cart | |
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1406 | Input Shaft | 1 | Replaces 19316. 1-3/4" PULL | $96.99 | Add to Cart | |
| S-1409 | Input Shaft | 1 | Replaces 18837. 2" PULL W/SEAL | $627.18 | Add to Cart | |
| S-1440 | Shift Bar Hsg (std) | 1 | Replaces 15890, 15928, 16913, 17115, 1718017182, 17428, 18571, 18640, 1864418840, 18847, 19448, 19449, 1945319454, 19455, 19605, 20074, 2021020211, 21133, 22955, S-1360, S-1364, S-1376, S-1377. HOUSING ONLY | $980.10 | Add to Cart | |
| S-1441 | Shift Bar Hsg (f) | 1 | Replaces 15891, 16340, 16564, 17114, 1712817181, 17218, 17492, 17577, 1790018203, 18436, 18642, 18646, 1888619159, 19450, 19451, 19456, 1945719458, 19717, 19956, 20072, 2021220213, 21134, 22956, S-1106, S-1361, S-1370, S-1374, S-1375, S-1378. HOUSING ONLY | $942.03 | Add to Cart | |
| S-1445 | Shift Bar Hsg (x) | 1 | Replaces 18920, 20135, 20214, 20215, 2048721135, 4302452. HOUSING ONLY (X) | $1,001.65 | Add to Cart | |
| S-1446 | Shift Bar Hsg (xf) | 1 | Replaces 18925, 20136, 20216, 20217, 2048821136, S-1361. HOUSING ONLY | $999.67 | Add to Cart | |
| S-1498 | Input Shaft | 1 | Replaces 20532. 1-3/4" PUSH | $456.42 | Superseded by S2918Add to Cart | |
| S-1504 | Input Shaft | 1 | Replaces 20538. 1-3/4" PULL | $188.00 | Superseded by S2928Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | ||
| S-1519 | Case Assy | 1 | Replaces 20500. FOR USE W/INTEGRAL PUMP | $2,896.81 | Add to Cart | |
| S-1527 | Shift Bar Hsg Assy (x) | 1 | Replaces 20215, 21135, 4302452. X-COMPLETE | $1,530.41 | Add to Cart | |
| S-1528 | Shift Bar Hsg Assy (xf) | 1 | Replaces 20217, 21136. XF-COMPLETE | $1,372.01 | Add to Cart | |
| S-1529 | Shift Bar Hsg Assy (f) | 1 | Replaces 20213, 22956. F-COMPLETE | $1,378.84 | Add to Cart | |
| S-1531 | Shift Bar Hsg Assy (std) | 1 | Replaces 20211, 22955. STD-COMPLETE | $1,372.01 | Add to Cart | |
| S-1659 | Input Shaft | 1 | Replaces 20535235664302661. 2" PULL - USE W/FBC 20550 | $110.63 | Add to Cart | |
| S-1660 | Input Shaft | 1 | Replaces 20536, 23567. 2" PUSH | $364.63 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-1944 | Range Section Assy | 1 | RTO-RTX "B","P","R" | $2,711.02 | Add to Cart | |
| S-1944R | Reman Range Section Assy | 1 | RTO-RTX "B","P","R" | $2,822.66 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2136 | Rear Brg Cover Assy | 1 | Replaces 21950, 22040, 22041, 22042, 43020064302007, S-1563. EXTENDED | $308.32 | Add to Cart | |
| S-2149 | Rear Brg Cover Assy | 1 | Replaces 20208, 21062. | $329.84 | Add to Cart | |
| S-2540 | Roadranger Valve Assy | 1 | Replaces A-5037. RT - W/SHIFT DIAGRAM MEDALLION | $113.85 | Add to Cart | |
| S-2541 | Roadranger Valve Assy | 1 | Replaces A-5040. RTO - W/SHIFT DIAGRAM MEDALLION | $155.71 | Add to Cart | |
| S-2542 | Roadranger Valve Assy | 1 | Replaces A-5185. P & R RATIO (9 SPEEDS)-W/SHIFT MEDALLION | $126.67 | Add to Cart | |
| S-2688 | Mainshaft Assy | 1 | Replaces 43034044303913. | $149.23 | Add to Cart |
Levers/Housings
Item 16Item 17Item 13Item 2Item 4Item 19Item 3Item 5Item 4Item 3Item 6Item 5Item 6Item 7Item 15Item 14Item 1Item 8Item 8Item 23Item 24Item 33Item 20Item 21Item 22Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 2 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 3 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 4 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 5 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 6 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 7 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 8 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 13 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 14 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 15 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 16 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 17 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 19 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |
| 20 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 20 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 21 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 22 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |

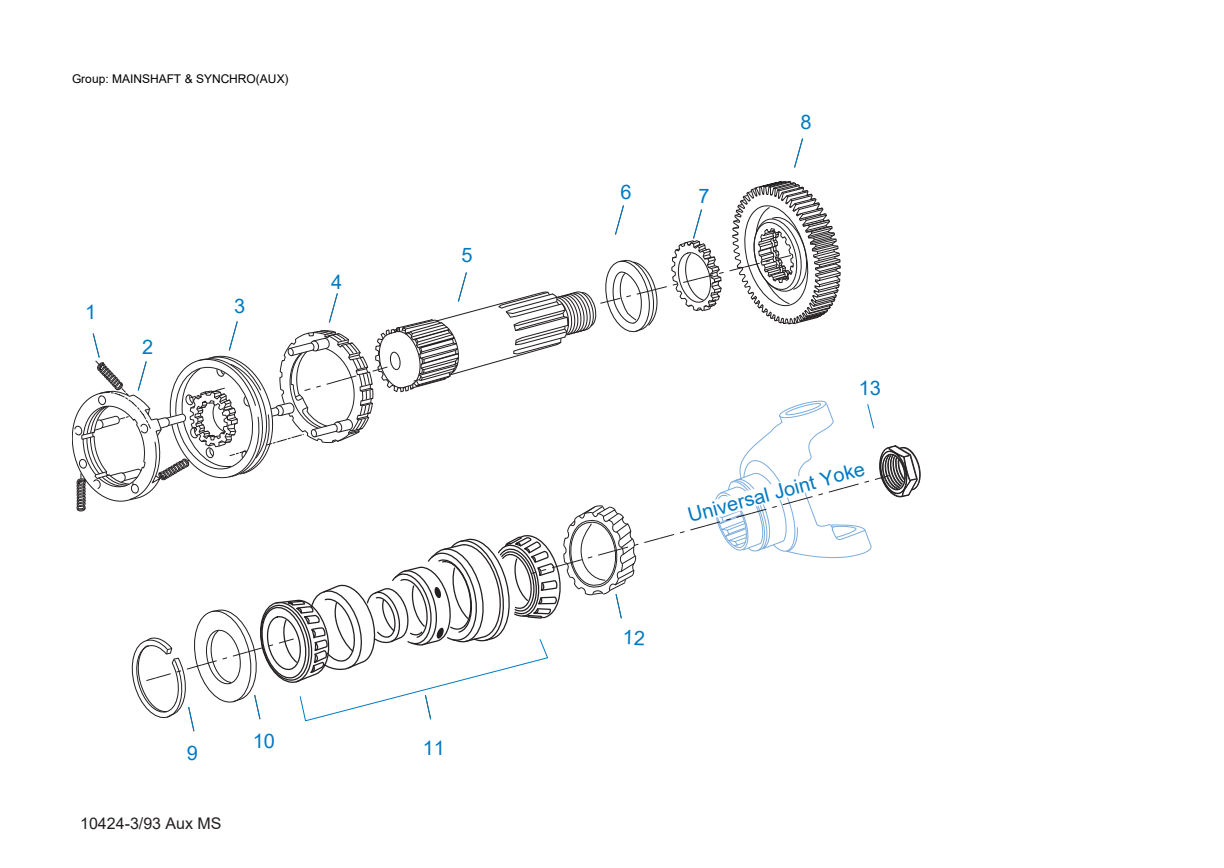

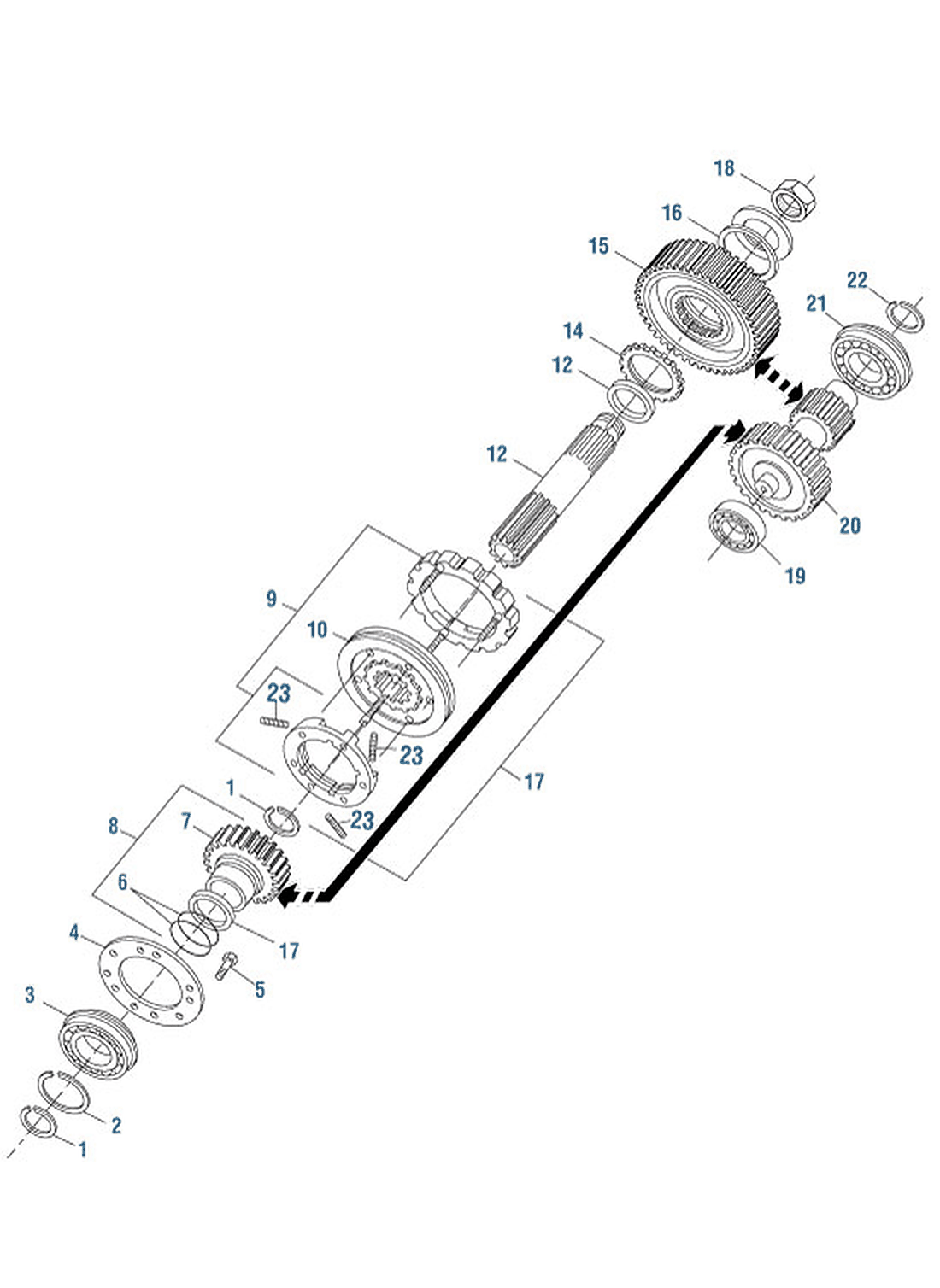

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-6153 | Synchronizer Assy | 1 | Replaces A-4416. LO RANGE - SMALL PIN | $130.43 | Add to Cart |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE - LARGE PIN | $146.52 | Add to Cart |
| 5 | 19281 | Mainshaft | 1 | $202.16 | Add to Cart | |
| 6 | 14332 | Washer | 1 | $24.93 | Add to Cart | |
| 7 | 14331 | Washer | 1 | $38.64 | Add to Cart | |
| 8 | 19165 | Reduction Gear | 1 | $835.69 | Add to Cart | |
| 9 | 14327 | Snap Ring | 1 | $2.85 | Add to Cart | |
| 10 | 19466 | Washer | 1 | $260.83 | Add to Cart | |
| 11 | 14367 | Bearing | 1 | $451.69 | Add to Cart | |
| 12 | 20192 | Rotor | 1 | $36.80 | Add to Cart | |
| 13 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |

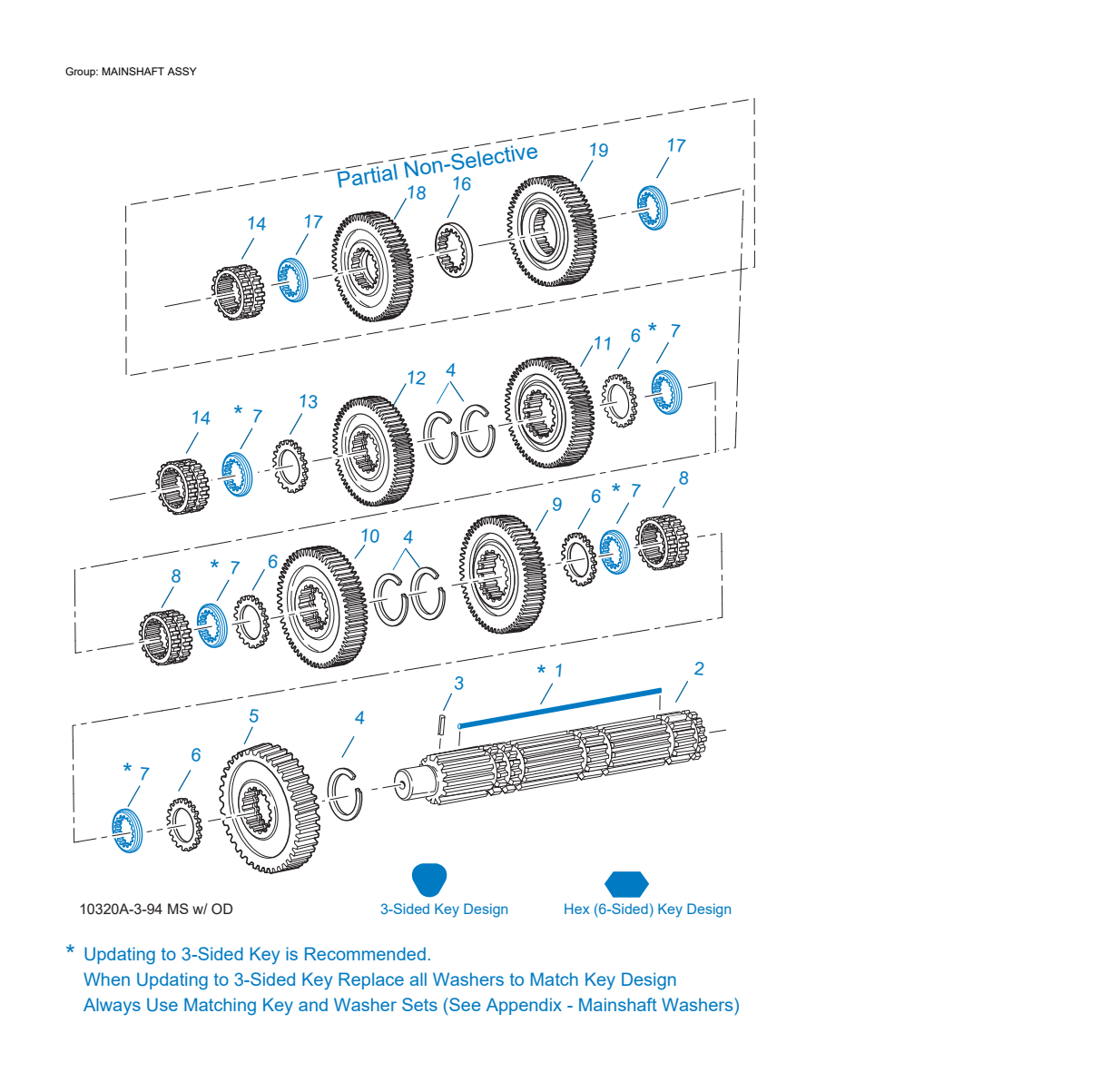

Mainshaft Assy
Item 19Item 17Item 16Item 18Item 14Item 17Item 6Item 7Item 11Item 4Item 12Item 13Item 14Item 7Item 8Item 6Item 7Item 9Item 10Item 4Item 7Item 6Item 8Item 1Item 2Item 3Item 5Item 4Item 6Item 7Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 17109 | Hex (6-SIDED) Key | 1 | MUST USE MATCHING WASHERS | $14.34 | Add to Cart |
| 1 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 1 | K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart |
| 2 | S-1341 | Mainshaft Assy | 1 | Replaces 16761, 18729. USES 17109 KEY | $160.78 | Add to Cart |
| 2 | S-2688 | Mainshaft Assy | 1 | Replaces 43034044303913. USES 4304615 KEY | $149.23 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 4 | $6.93 | Add to Cart | |
| 7 | 14711 | Washer .248-.250 White | 5 | Replaces 18701. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.25 | Add to Cart |
| 7 | 14712 | Washer .253-.255 Green | 5 | Replaces 18702. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.51 | Add to Cart |
| 7 | 14713 | Washer .258-.260 Orange | 5 | Replaces 18703. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.51 | Add to Cart |
| 7 | 14714 | Washer .263-.265 Purple | 5 | Replaces 18704. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.61 | Add to Cart |
| 7 | 14715 | Washer .268-.270 Yellow | 5 | Replaces 18705. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.61 | Add to Cart |
| 7 | 14716 | Washer .273-.275 Black | 5 | Replaces 18706. OPTIONAL 14711-14716 USE ANY 5 WASHERS USE WITH 17109 KEY | $10.61 | Add to Cart |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 9 | 16754 | Lo Gear-mainshaft | 1 | $194.39 | Add to Cart | |
| 10 | 20389 | 1ST Gear-mainshaft | 1 | Replaces 19246. | $143.09 | Add to Cart |
| 11 | 20390 | 2ND Gear-mainshaft | 1 | Replaces 19614. | $125.68 | Add to Cart |
| 12 | 19632 | Od Gear-mainshaft | 1 | USE W/16118 SL CLUTCH AND 14749 SPACER | $115.68 | Add to Cart |
| 12 | 4302088 | Od Gear-mainshaft | 1 | Replaces 22027, 22031. USE W/22026 SL CLUTCH AND 22032 SPACER | $192.65 | Add to Cart |
| 13 | 14749 | Spacer | 1 | USE W/16118 SL CLUTCH AND 19632 OD GEAR | $6.93 | Add to Cart |
| 13 | 22032 | Spacer | 1 | USE W/22026 SL CLUTCH AND 22027 OD GEAR | $9.49 | Add to Cart |
| 14 | 16118 | Sliding Clutch | 1 | USE W/14749 SPACER AND 19632 OD GEAR | $42.03 | Add to Cart |
| 14 | 4304317 | Sliding Clutch | 1 | Replaces 22026. USE W/22032 SPACER AND 22027 OD GEAR | $93.65 | Add to Cart |
| 16 | 4303603 | Washer | 1 | Replaces 4302397. | $14.45 | Add to Cart |
| 17 | 4302398 | Washer | 2 | MUST BE USED WITH 3-SIDED KEY & S-2120 MAINSHAFT ONLY | $10.08 | Add to Cart |
| 18 | 4302381 | Od Gear-mainshaft | 1 | Replaces 43023824302383. MUST BE USED WITH 3-SIDED KEY & S-2120 MAINSHAFT ONLY | $161.14 | Add to Cart |
| 19 | 4302384 | 2ND Gear-mainshaft | 1 | Replaces 4302385. MUST BE USED WITH 3-SIDED KEY & S-2120 MAINSHAFT ONLY | $195.59 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20398 | Shift Diagram Label | 1 | Replaces 19675. RT/RTX | $28.59 | Add to Cart | |
| 20399 | Shift Diagram Label | 1 | Replaces 19677, 19679. RTO | $28.59 | Add to Cart | |
| 21075 | Warning Label | 1 | REAR MOUNTED PTO | $55.52 | Add to Cart | |
| 21503 | Shift Diagram Label | 1 | RTX-P/R | $28.59 | Add to Cart | |
| 71004 | Install Instructions | 1 | TCB-6 - TCB-8 | Call for availability | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Non-Selective M/S Assy
Item 11Item 14Item 12Item 9Item 15Item 14Item 7Item 8Item 14Item 10Item 9Item 14Item 7Item 3Item 1Item 2Item 5Item 4Item 6Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2688 | Mainshaft Assy | 1 | Replaces 43034044303913. | $149.23 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4304614 | 3-SIDED Key | 1 | Replaces 4300890. | $6.30 | Add to Cart |
| 4 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 1 | $6.93 | Add to Cart | |
| 7 | 16118 | Sliding Clutch | 2 | $42.03 | Add to Cart | |
| 8 | 4303409 | Lo Gear-mainshaft | 1 | Replaces 4303407. | $159.18 | Add to Cart |
| 9 | 4303603 | Washer | 2 | Replaces 4302397. | $14.45 | Add to Cart |
| 10 | 4303477 | 1ST Gear-mainshaft | 1 | Replaces 4303414. | $180.99 | Add to Cart |
| 11 | 4302384 | 2ND Gear-mainshaft | 1 | Replaces 4302385. | $195.59 | Add to Cart |
| 12 | 4302381 | Od Gear-mainshaft | 1 | Replaces 43023824302383. | $161.14 | Add to Cart |
| 13 | 4300830 | Washer .244-BLUE | 1 | $9.36 | Add to Cart | |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4304317 | Sliding Clutch | 1 | Replaces 22026. | $93.65 | Add to Cart |

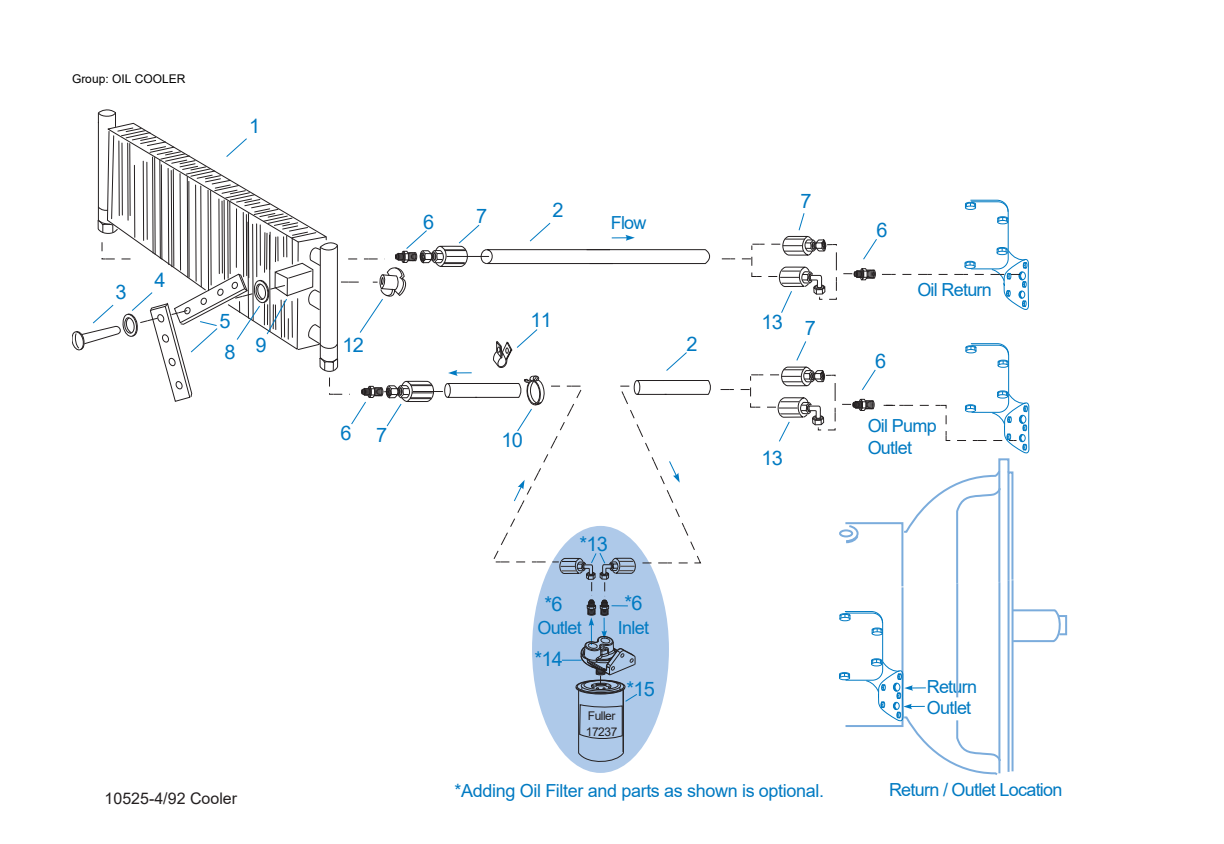

Oil Cooler
Item 1Item 7Item 6Item 7Item 2Item 6Item 4Item 3Item 5Item 11Item 13Item 7Item 9Item 12Item 2Item 8Item 6Item 6Item 7Item 10Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 3 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 4 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 5 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 6 | 19419 | Connector | 6 | $9.93 | Add to Cart | |
| 7 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 8 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 9 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 10 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 11 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 12 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 13 | 19422 | Elbow | 4 | $50.85 | Add to Cart | |
| 14 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 15 | 17237 | Filter Element | 1 | $25.51 | Add to Cart |

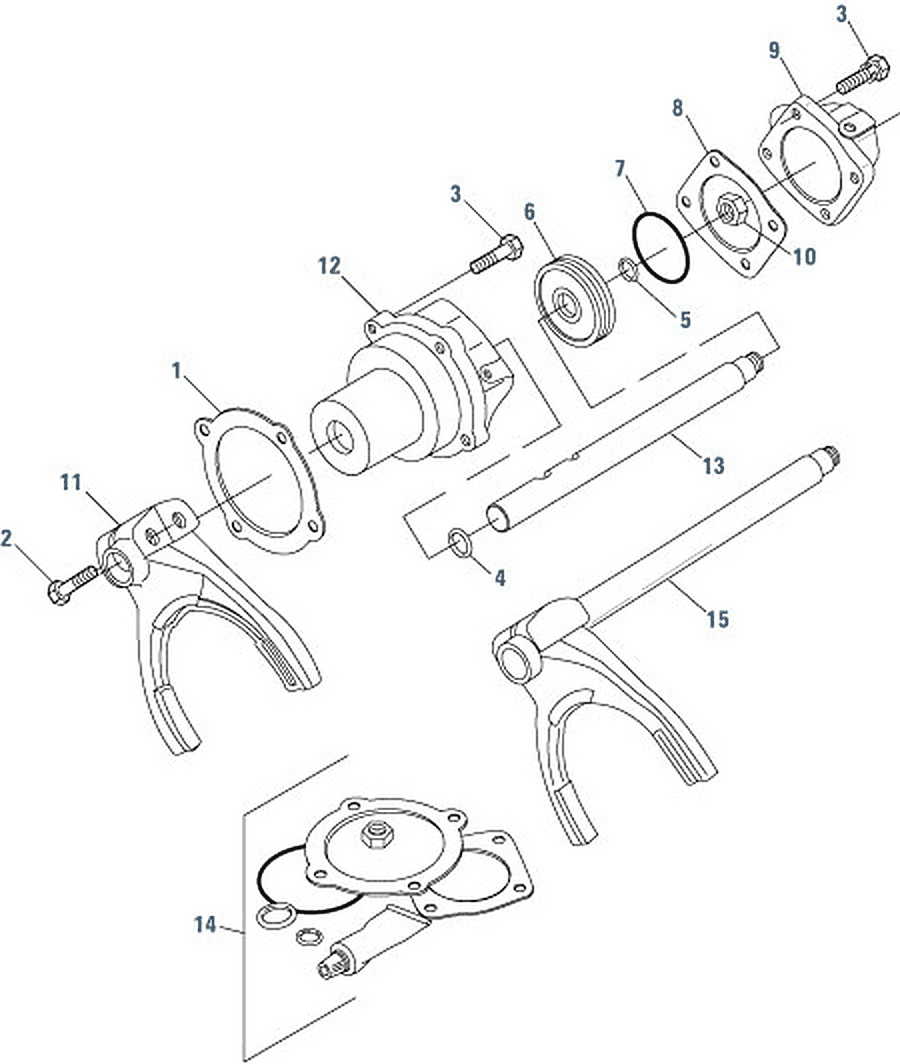

Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 16778 | Auxiliary Cylinder | 1 | $181.93 | Add to Cart | |
| 5 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 16993 | Yoke Bar | 1 | $193.71 | Superseded by A6162Add to Cart | |
| 7 | A-6162 | Welded Yoke & Bar Assy | 1 | $193.71 | Add to Cart | |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 13 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart |
Range Valve
Item 1Item 2Item 3Item 3Item 3Item 3Item 9Item 3Item 3Item 3Item 3Item 3Item 16Item 17Item 18Item 19Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15120 | Not Sold Separately | 1 | INCLUDED IN A-3546 | $127.07 | Superseded by A3546Add to Cart |
| 2 | 62512 | Roll Pin | 1 | $1.96 | Add to Cart | |
| 3 | K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart |
| 9 | X-13-214 | Screw | 4 | 8-32X3/4" | $2.40 | Add to Cart |
| 10 | 84002 | Connector Assy | 2 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 10 | 84004 | Connector Assy | 2 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 10 | 84006 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $6.01 | Add to Cart |
| 15 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 15 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 15 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 16 | 18905 | No Longer Available | 1 | Call for availability | ||
| 17 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 17 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 17 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 18 | 14441 | Clamp | 1 | Replaces 14465. | $3.54 | Add to Cart |
| 19 | 80120 | No Longer Available | 1 | 5/32" - BLACK 50' | Call for availability | |
| 20 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-3546 | Range Valve Assy | 1 | Replaces 18268, 18269, 18272. | $127.07 | Add to Cart |

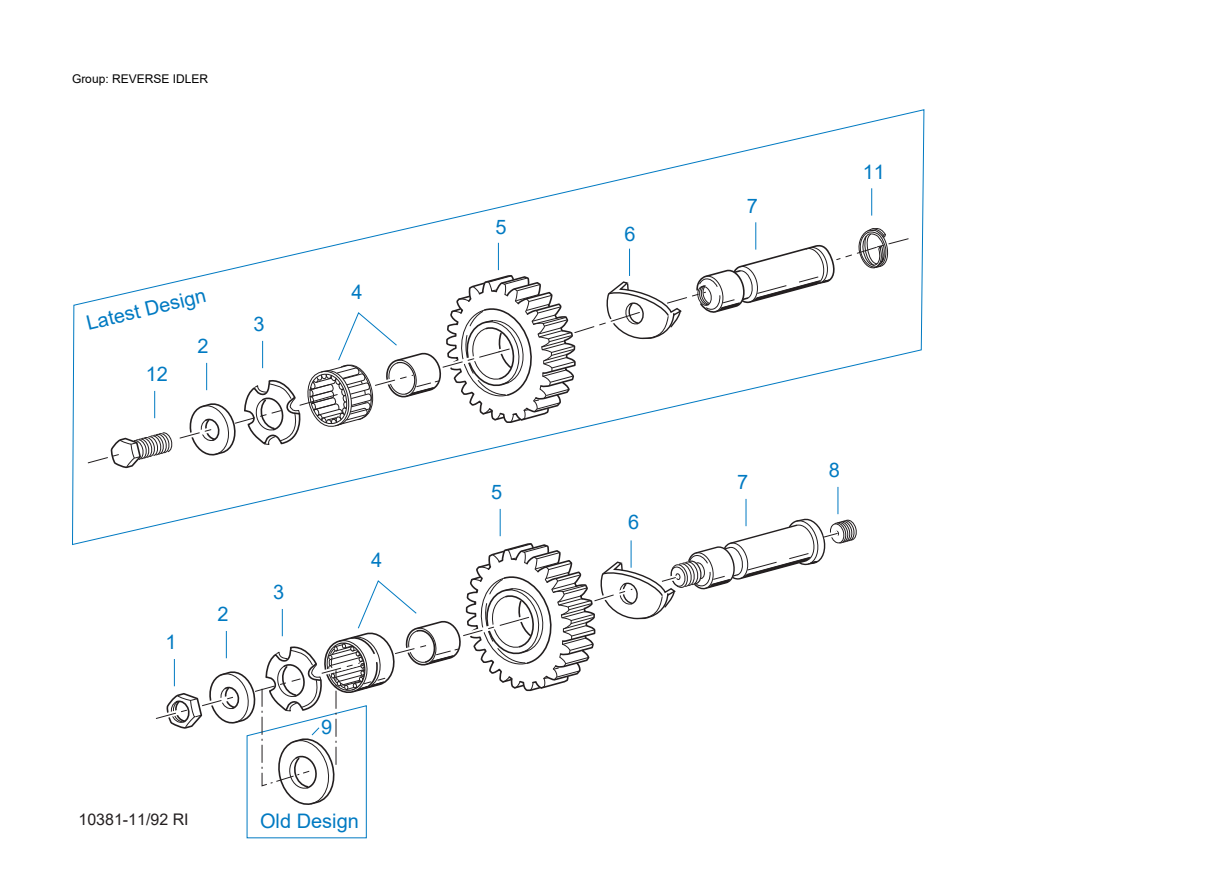

Reverse Idler
Item 11Item 7Item 5Item 6Item 3Item 4Item 2Item 12Item 8Item 7Item 5Item 6Item 4Item 3Item 2Item 1Item 9Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |
Road Speed Governor
Item 15Item 12Item 5Item 14Item 5Item 11Item 3Item 16Item 17Item 12Item 5Item 13Item 18Item 11Item 19Item 5Item 20Item 5Item 1Item 4Item 11Item 21Item 22Item 23Item 24Item 11Item 12Item 4Item 5Item 12Item 4Item 25Item 2Item 4Item 26Item 4Item 11Item 11Item 12Item 4Item 12Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 3 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 4 | 84002 | Connector Assy | 4 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 4 | 84004 | Connector Assy | 4 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 4 | 84006 | Connector Assy | 4 | "PUSH-TO-CONNECT" 5/32"TUBE- | $6.01 | Add to Cart |
| 5 | 85001 | Elbow Assy | 6 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 5 | 85002 | Elbow Assy | 6 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 5 | 85003 | Elbow Assy | 6 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 12769 | Nipple | 2 | 1/8" | $16.67 | Add to Cart |
| 12 | 12881 | Tee | 2 | 1/8" | $11.68 | Add to Cart |
| 12 | 21086 | Branch Tee | 2 | 1/8" | $13.10 | Add to Cart |
| 13 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 14 | X-8-434 | Capscrew | 2 | 1/4"-20X2" | $1.73 | Add to Cart |
| 15 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 16 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 17 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 18 | 18734 | Valve | 1 | $129.03 | Add to Cart | |
| 19 | 18656 | No Longer Available | 1 | Call for availability | ||
| 20 | 15899 | Pin | 1 | RT-RTF | $4.30 | Add to Cart |
| 20 | 20119 | Pin | 1 | RTX-RTXF | Call for availability | |
| 21 | 18685 | No Longer Available | 1 | Call for availability | ||
| 22 | X-3-305 | Lockwasher | 2 | #10 | Call for availability | |
| 23 | X-1-250 | No Longer Available | 2 | #10-32 | Call for availability | |
| 24 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 24 | X-8L-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 25 | 18675 | Valve | 1 | $166.96 | Add to Cart | |
| 26 | 18684 | No Longer Available | 1 | Call for availability |
Roadranger Valve
Item 1Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 2Item 3Item 2Item 5Item 4Item 5Item 6Item 2Item 7Item 7Item 11Item 12Item 10Item 10Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586104 | Shift Diagram Medallion | 1 | RT | $28.59 | Add to Cart |
| 1 | 5586105 | Shift Diagram Medallion | 1 | RTO | $28.59 | Add to Cart |
| 1 | 5586108 | Shift Diagram Medallion | 1 | P & R RATIO (9 SPEEDS) | $28.59 | Add to Cart |
| 2 | K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 2 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 2 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 80120 | No Longer Available | 1 | 5/32" - BLACK 50' | Call for availability | |
| 13 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-6909 | Roadranger Valve Assy | 1 | Replaces A-5010, A-5310. STANDARD-W/LOGO | $88.64 | Add to Cart |
| 999 | S-2540 | Roadranger Valve Assy | 1 | Replaces A-5037. RT - W/SHIFT DIAGRAM MEDALLION | $113.85 | Add to Cart |
| 999 | S-2541 | Roadranger Valve Assy | 1 | Replaces A-5040. RTO - W/SHIFT DIAGRAM MEDALLION | $155.71 | Add to Cart |
| 999 | S-2542 | Roadranger Valve | 1 | Replaces A-5185. P & R RATIO (9 SPEEDS)-W/SHIFT | $126.67 | Add to Cart |

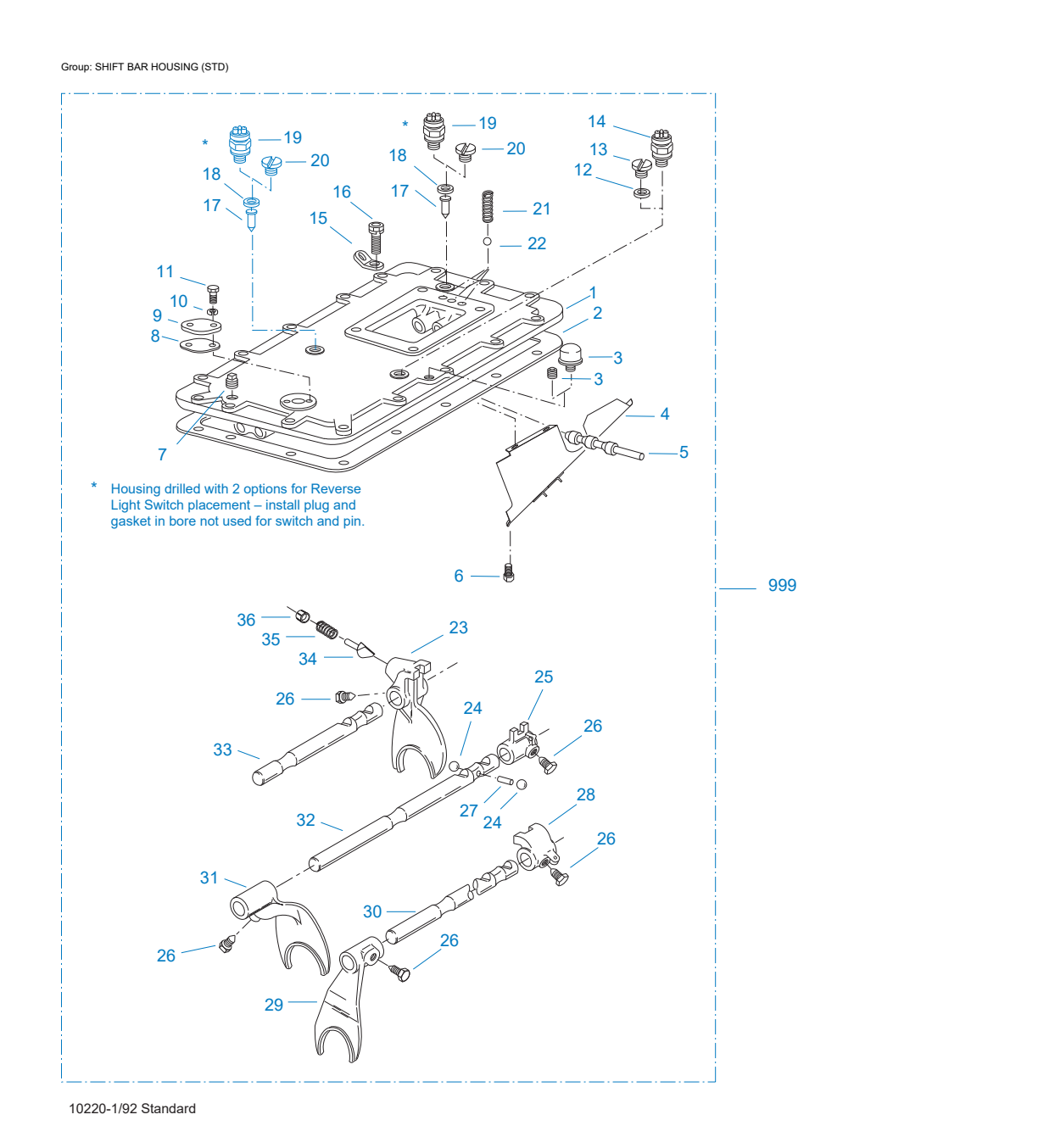

Shift Bar Housing (Std)
Item 19Item 14Item 19Item 20Item 13Item 18Item 20Item 18Item 12Item 16Item 17Item 17Item 21Item 15Item 22Item 11Item 1Item 10Item 9Item 2Item 8Item 3Item 3Item 4Item 7Item 5Item 2Item 6Item 36Item 23Item 35Item 34Item 25Item 26Item 24Item 26Item 33Item 28Item 27Item 32Item 24Item 26Item 31Item 30Item 26Item 26Item 29Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1440 | Shift Bar Hsg (std) | 1 | Replaces 15890, 15928, 16913, 17115, 1718017182, 17428, 18571, 18640, 1864418840, 18847, 19448, 19449, 1945319454, 19455, 19605, 20074, 2021020211, 21133, 22955, S-1360, S-1364, S-1376, S-1377. HOUSING ONLY | $980.10 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 3 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 4 | 20070 | Oil Trough | 1 | $17.04 | Add to Cart | |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 6 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 8 | 20209 | Gasket | 1 | $2.29 | Add to Cart | |
| 9 | 20199 | Plate | 1 | Replaces 18724. | $13.20 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-406 | Capscrew | 2 | 1/4"-20X3/4" | $1.71 | Add to Cart |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X-8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | 16131 | Shift Yoke | 1 | REVERSE/LO | $203.23 | Add to Cart |
| 24 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 25 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 26 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 27 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 28 | 14659 | Shift Block | 1 | 3RD/DIRECT | $31.48 | Add to Cart |
| 29 | 16136 | Shift Yoke | 1 | 3RD/DIRECT | $74.09 | Add to Cart |
| 30 | 16134 | Yoke Bar | 1 | 3RD/DIRECT | $28.91 | Add to Cart |
| 30 | 18643 | Yoke Bar | 1 | RT-3RD/DIRECT - W/ROAD SPEED GOVERNOR | $83.21 | Add to Cart |
| 30 | 19734 | No Longer Available | 1 | RTO-DIRECT - W/ROAD SPEED GOVERNOR | Call for availability | |
| 31 | 16135 | Shift Yoke | 1 | 1ST/2ND | $74.79 | Add to Cart |
| 32 | 16133 | Yoke Bar | 1 | 1ST/2ND | $39.91 | Add to Cart |
| 33 | 16132 | Yoke Bar | 1 | REVERSE/LO | $25.21 | Add to Cart |
| 34 | 10019 | Plunger | 1 | $4.28 | Add to Cart | |
| 35 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 36 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 999 | S-1531 | Shift Bar Hsg Assy | 1 | Replaces 20211, 22955. COMPLETE | $1,372.01 | Add to Cart |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Item 2Item 3Item 2Item 2Item 2Item 2Item 2Item 2Item 7Item 2Item 4Item 2Item 2Item 5Item 2Item 8Item 1Item 2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart |
| 3 | 19463 | Piston | 1 | Replaces 15126. | $60.69 | Add to Cart |
| 4 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 5 | K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart |
| 6 | X-8S-401 | Capscrew | 2 | 1/4"-20X1-1/8" | $2.75 | Add to Cart |
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTO-11609A, with every part in the manual matched to our live inventory. We stock 525 of the 562 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/19470 Valve H & C W/A-4688 Valve H & C W/A-5000 Valve Input Shaft & Drive Gear Integral Oil Pump Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Non-Selective M/S Assy Oil Cooler Range Cylinder Range Valve Reverse Idler Road Speed Governor Roadranger Valve Shift Bar Housing (Std) Slave Valve - Slave Valve - A-
No parts match that search. Try the part number with no dashes.
More RT/RTO-11609 exploded views and service kits
Additional diagrams for the RT/RTO-11609 family, with service kits and interchange numbers. Click a number on a diagram to highlight that part.
Transmission Kits - Additional Diagram
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2283 | Kit, Bearing And Seal (rebuild) | Includes (2) 46AX464, (2) 67AX224, (1) 3088-81504, (1) 46AX517, (2) 3088-19551, (2) 67AX264, (2) 3088-14287, (1) 3088-14367, (1) K-2256, (1) K-2199, (2) 17453, (1) K-1450, (1) 14750, (2) 16723, (2) 97AX181, (2) 16763, (3) 14897, (1) 16566, (2) 19548. Interchanges with Fuller K-1744, Navistar 593869C91 | $958.96 | Add to Cart | |
| 2 | K-1974 | Kit, Overhaul (2in Pull) | Includes (1) S-1659, (2) 67AX224, (1) 3088-81504, (1) 46AX517, (2) 46AX464, (2) 3088-19551, (2) 67AX264, (2) 3088-14287, (1) 3088-14367, (1) K-2256, (3) 14897, (1) 14750, (2) 16723, (2) 16763, (2) 97AX181, (2) 17453, (1) K-1450, (4) 83001, (1) 84002, (1) 85002, (1) K-2199, (1) 20550, (1) 19548. Interchanges with Navistar 593730C92 | $991.80 | Add to Cart | |
| 2 | K-2345 | Kit, Overhaul (1-3/4in Pull) | $1,031.27 | Add to Cart | ||
| 3 | K-1450 | Kit, O-ring, Range Cylinder | Includes (1) 14765, (1) 14344, (1) 56AX556, (1) 14349, (1) 14347, (1) NL110-1, (1) 3088-71206. Interchanges with Navistar 469267C91, Fuller K-2802 | $12.61 | Add to Cart | |
| 4 | K-2199 | Kit, Gasket | Includes (1) 19410, (2) 4300186, (1) 18506, (2) 17386, (1) 17179, (1) 21364, (2) 21345, (2) 16784, (1) K-1783, (1) 17106, (1) 19709. Interchanges with Navistar 1681269C9 | $80.16 | Add to Cart |
Main Case Components - Additional Diagram
Item 29Item 50Item 48Item 49Item 21Item 20Item 22Item 14Item 19Item 15Item 11Item 10Item 11Item 15Item 18Item 14Item 17Item 15Item 11Item 10Item 11Item 15Item 16Item 14Item 13Item 12Item 11Item 10Item 8Item 9Item 7Item 6Item 5Item 4Item 3Item 2Item 47Item 1Item 40Item 42Item 41Item 39Item 46Item 45Item 44Item 43Item 38Item 37Item 33Item 32Item 31Item 30Item 28Item 27Item 26Item 23Item 25Item 24Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8997 | Nut (use W/ 16465) | Interchanges with Navistar 697437R1, Fuller X-8-997 | $18.45 | Add to Cart | |
| 2 | 16980 | Ring, Retaining | Interchanges with Navistar 338750R1 | $2.75 | Add to Cart | |
| 3 | 3088-81504 | Bearing | Interchanges with Fuller 81504, Navistar 591842C91 | $59.10 | Add to Cart | |
| 4 | 16463 | Spacer | Interchanges with Navistar 405123C1 | $26.65 | Add to Cart | |
| 5 | 14750 | Ring, Retaining | Interchanges with Navistar 310703C1 | $2.20 | Add to Cart | |
| 6 | 22028 | Gear (rto A) (rtx P/r) | $154.92 | Add to Cart | ||
| 6 | 22028 | Gear (rto A) (rtx P/r) | New design. 10 pc Bulk Packaging. Sold as a 10-pack | $1,166.88 | Add to Cart | |
| 6 | 21021 | Gear (rto A) (rtx P/r) | Interchanges with Navistar 588843C2, Fuller 19241 | $142.76 | Add to Cart | |
| 6 | 21019 | Gear (rto B) | Interchanges with Navistar 588841C2, Fuller 19239 | $100.77 | Add to Cart | |
| 6 | 20458 | Gear (rt A) | Interchanges with Navistar 591874C2, Fuller 19630 | $103.22 | Add to Cart | |
| 7 | 16465 | Pinion (2in Pull) (use S-1128) | Interchanges with Navistar 405125C1 | $80.21 | Add to Cart | |
| 7 | 20535 | Pinion (2in Pull) (use S-1659/S-1501) | Interchanges with Fuller 23566 | $110.63 | Superseded by S1659Add to Cart | |
| 7 | 19714 | Pinion | $30.89 | Add to Cart | ||
| 8 | 16566 | Bushing | Interchanges with Navistar 422135C1 | $2.88 | Add to Cart | |
| 9 | S-1409 | Assembly, Pinion | 2in-10 Spline,Pull w/ Seal. Interchanges with Fuller 18837, Navistar 1681295C91 | $627.18 | Add to Cart | |
| 9 | S-1128 | Assembly, Pinion (use W/ 8997 Nut) | 2in-10 Spline-Pull. Interchanges with Navistar 1662454C91 | $89.76 | Add to Cart | |
| 9 | S-1659 | Assembly, Pinion | 2in-10 Spline-Pull. Interchanges with Fuller S-1501, Navistar 1691972C91 | $110.63 | Add to Cart | |
| 10 | 16118 | Clutch, Sliding | Interchanges with Navistar 405136C1 | $42.03 | Add to Cart | |
| 10 | 4304317 | Clutch, Sliding | $93.65 | Add to Cart | ||
| 11 | 4300830 | Washer (.244 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1694100C1 | $9.36 | Add to Cart | |
| 11 | 4300382 | Washer (.249 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685595C1 | $12.09 | Add to Cart | |
| 11 | 4300383 | Washer (.254 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685596C1 | $12.67 | Add to Cart | |
| 11 | 4300384 | Washer (.259 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685597C1 | $12.34 | Add to Cart | |
| 11 | 4300385 | Washer (.264 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685598C1 | $25.41 | Add to Cart | |
| 11 | 4300386 | Washer (.269 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685599C1 | $14.40 | Add to Cart | |
| 11 | 4300387 | Washer (.274 Thk) (use W/ 4304615 Key) | Interchanges with Navistar 1685600C1 | $28.78 | Add to Cart | |
| 11 | 14711 | Spacer (.249in Thk) | Interchanges with Fuller 18701, Navistar 499737C1 | $10.25 | Add to Cart | |
| 11 | 14712 | Spacer (.254in Thk) | Interchanges with Fuller 18702, Navistar 499738C1 | $10.51 | Add to Cart | |
| 11 | 14713 | Spacer (.259in Thk) | Interchanges with Fuller 18703, Navistar 499739C1 | $10.51 | Add to Cart | |
| 11 | 14714 | Spacer (.264in Thk) | Interchanges with Fuller 18704, Navistar 499740C1 | $10.61 | Add to Cart | |
| 11 | 14715 | Spacer (.269in Thk) | Interchanges with Fuller 18705, Navistar 499741C1 | $10.61 | Add to Cart | |
| 11 | 14716 | Spacer (.274in Thk) | Interchanges with Fuller 18706, Navistar 499742C1 | $10.61 | Add to Cart | |
| 12 | 22032 | Washer | Interchanges with Navistar 1663770C1 | $9.49 | Add to Cart | |
| 13 | 21261 | Gear (rto B) | Interchanges with Navistar 591878C2, Fuller 19638 | $115.15 | Add to Cart | |
| 13 | 19632 | Gear (rto A) | Interchanges with Navistar 591876C1 | $115.68 | Add to Cart | |
| 13 | 20391 | Gear (rt A) | Interchanges with Navistar 588844C2, Fuller 19242 | $137.73 | Add to Cart | |
| 13 | 4303476 | Gear (rt) | Interchanges with Fuller 4303452 | $137.81 | Add to Cart | |
| 14 | 14750 | Ring, Retaining | Interchanges with Navistar 310703C1 | $2.20 | Add to Cart | |
| 15 | 14749 | Spacer | Interchanges with Navistar 310702C1, Mack 371SH159 | $6.93 | Add to Cart | |
| 16 | 21498 | Gear, Mainshaft (rtx P/r) | Interchanges with Navistar 1654964C1 | $242.29 | Add to Cart | |
| 16 | 21263 | Gear (rto B) | Interchanges with Navistar 1695888C1 | $108.54 | Add to Cart | |
| 16 | 20390 | Gear (rto A) | Interchanges with Navistar 591865C2, Fuller 19614 | $125.68 | Add to Cart | |
| 17 | 21024 | Gear (rto B) | Interchanges with Navistar 591872C2, Fuller 19628 | $158.52 | Add to Cart | |
| 17 | 20389 | Gear (rt/rto A) | Interchanges with Navistar 591855C2, Fuller 19246 | $143.09 | Add to Cart | |
| 18 | 16754 | Gear, Low | Interchanges with Navistar 434805C1 | $194.39 | Add to Cart | |
| 19 | 16756 | Gear, Reverse | Interchanges with Navistar 434806C1 | $93.74 | Add to Cart | |
| 20 | 62504 | Pin | Interchanges with Navistar 17172R1 | $1.28 | Add to Cart | |
| 21 | 4304615 | Key (3 Sided) (current) | Interchanges with Fuller 4300120, Navistar 1685993C1 | $5.90 | Add to Cart | |
| 21 | 17109 | Key | Interchanges with Navistar 422141C2, Fuller 16703 | $14.34 | Add to Cart | |
| 22 | S-1341 | Kit, Shaft, Main | Interchanges with Navistar 446104C91, Fuller A-4123 | $160.78 | Add to Cart | |
| 23 | 3088-19551 | Bearing (current) | Interchanges with Navistar 591818C91 | $77.70 | Add to Cart | |
| 23 | 46AX318 | Bearing | $69.22 | Add to Cart | ||
| 24 | 419GC113B | Screw | Interchanges with Fuller X-7-1005. Sold as a 6-pack | $50.73 | Add to Cart | |
| 25 | 19548 | Retainer | Interchanges with Fuller A-4705, Fuller 4304605 | $24.57 | Add to Cart | |
| 26 | 19198 | Ring, Retaining | Interchanges with Navistar 583564R1 | $2.12 | Add to Cart | |
| 27 | 4305665 | Gear (rto B) | Interchanges with Navistar 588840C2, Fuller 19238 | $165.05 | Add to Cart | |
| 28 | 15953 | Gear, Pto (left) | Interchanges with Navistar 405151C1 | $103.41 | Add to Cart | |
| 28 | 15952 | Gear, Pto (right) | Interchanges with Fuller 20840, Navistar 405144C2 | $95.96 | Add to Cart | |
| 29 | K-2468 | Kit, Clutch Installation | Includes (1) 14750, (1) 16980, (4) 12815, (1) 14311, (1) 1642, (1) 4308226, (1) S-1659, (1) 20550, (1) 2104-127200, (1) 3088-81504, (1) 2104-105C137 | $318.86 | Add to Cart | |
| 29 | K-2468 | Kit, Clutch Installation | Same as K-2468 Except Has Clutch Brake (1)495KB241P1 Instead | $318.86 | Add to Cart | |
| 30 | 21262 | Gear (rto B) | Interchanges with Navistar 591879C2, Fuller 19639 | $239.18 | Add to Cart | |
| 30 | 20459 | Gear (rt A) | Interchanges with Navistar 1658853C1, Fuller 20481 | $150.84 | Add to Cart | |
| 30 | 20459 | Gear (rt A) | New design. 10 pc. Bulk Packaging. Sold as a 10-pack | $1,323.47 | Add to Cart | |
| 30 | 21020 | Gear (rto A) | Interchanges with Navistar 588842C2, Fuller 19240 | $118.01 | Add to Cart | |
| 31 | 19623 | Gear (rto B) | Interchanges with Navistar 591869C1, Fuller 21264 | $90.80 | Add to Cart | |
| 31 | 20482 | Gear (rt/rto A) | Interchanges with Navistar 1651844C1, Fuller 19615 | $101.39 | Add to Cart | |
| 32 | 20471 | Gear (rt/rto A) | Interchanges with Navistar 591856C2, Fuller 19247 | $111.39 | Add to Cart | |
| 32 | 21025 | Gear (rto B) | Interchanges with Navistar 591873C2, Fuller 19629 | $81.66 | Add to Cart | |
| 33 | 19549 | Countershaft | Interchanges with Navistar 583344C1, Fuller K-2934 | $207.17 | Add to Cart | |
| 34 | 19673 | Key | Interchanges with Fuller 15951, Navistar 591891C1 | $10.33 | Add to Cart | |
| 35 | 31AX532 | Pin | Interchanges with Fuller 62511, Navistar 19756R1. Sold as a 10-pack | $21.70 | Add to Cart | |
| 36 | X-6-E | Key | Interchanges with Navistar 1662464C1 | $4.27 | Superseded by 230292Add to Cart | |
| 37 | 67AX224 | Bearing | Interchanges with Fuller 14366 | $57.75 | Add to Cart | |
| 38 | 97AX181 | Ring, Retaining | Interchanges with Fuller 14317. Sold as a 10-pack | $36.10 | Add to Cart | |
| 39 | 21AX360 | Nut | Interchanges with Fuller X-1-1005, Eaton 90261. Sold as a 5-pack | $13.60 | Add to Cart | |
| 40 | 20552 | Front Bearing (rto 11609B, 12609) | 1-3/4in Pull | $72.77 | Add to Cart | |
| 41 | 4302982 | Washer | Interchanges with Fuller 14282, Navistar 282804C1 | $5.69 | Add to Cart | |
| 42 | 3088-14287 | Bearing | Interchanges with Fuller 14287, Navistar 292821C91 | $50.06 | Add to Cart | |
| 43 | 16757 | Gear, Reverse Idler | Interchanges with Navistar 434817C1 | $145.40 | Add to Cart | |
| 44 | 16403 | Washer | Interchanges with Navistar 396839C1 | $18.45 | Add to Cart | |
| 45 | 16405 | Shaft | Interchanges with Navistar 349851C2 | $28.31 | Add to Cart | |
| 45 | 4305513 | Shaft | New design | $22.92 | Add to Cart | |
| 46 | 5202 | Plug | Interchanges with Navistar 77156H | $5.69 | Add to Cart | |
| 47 | 14370 | 1-3/4in Push | Interchanges with Navistar 921601R1, Mack 43SH139 | $129.34 | Add to Cart | |
| 48 | K-2439 | Kit, Key And Washer (current) | Includes (1) 4304615, (2) 4300830, (4) 4300382, (2) 4300383, (1) 4300384 | $104.71 | Add to Cart | |
| 49 | K-2228 | Kit, Mainshaft | Includes (5) 14711, (1) 14712, (5) 14749, (1) 22032, (1) 17109, (1) K-2199, (1) S-1341 | $319.54 | Add to Cart | |
| 50 | K-3209 | Kit, Idler Shaft | New design. Includes (2) 4303336 | $64.28 | Add to Cart |
Main Case Kit - Additional Diagram
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3157 | Kit, Mainshaft | Includes (1) S-2688, (1) 4303406, (1) 4303409, (2) 4303603, (4) 4302398, (1) 16763, (1) 4304615, (1) 4304614 | $957.71 | Add to Cart | |
| 2 | 4305070 | Gear, Mainshaft (o.d.) (rt 16718) | $212.50 | Superseded by 4302393Add to Cart | ||
| 3 | 4303406 | Gear, Mainshaft, 1st (rtlo 18913) | $108.97 | Add to Cart | ||
| 4 | 4303409 | Gear, Mainshaft, Lo (rt 14609) | $159.18 | Add to Cart | ||
| 5 | 4302396 | Gear | $396.25 | Add to Cart | ||
| 6 | S-2688 | Assembly, Mainshaft | Interchanges with Fuller 4303913 | $149.23 | Add to Cart | |
| 7 | 4303603 | Washer (rto 14915) | $14.45 | Add to Cart | ||
| 8 | 4302398 | Washer (rto 14915) | $10.08 | Add to Cart | ||
| 9 | 16763 | Ring, Retaining | $2.01 | Add to Cart | ||
| 10 | 4304615 | Key (current) | $5.90 | Add to Cart | ||
| 11 | 4304614 | Key (3 Sided) | $6.30 | Add to Cart | ||
| 12 | K-3367 | Kit, Oil Pump | Interchanges with Fuller 4301829 | $367.14 | Add to Cart |
Auxiliary Components - Additional Diagram
Item 1Item 2Item 3Item 4Item 5Item 17Item 6Item 8Item 7Item 23Item 23Item 17Item 23Item 10Item 9Item 19Item 20Item 12Item 12Item 14Item 15Item 21Item 22Item 16Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Ring, Retaining | Interchanges with Navistar 131592H1 | $2.01 | Add to Cart | |
| 2 | 16628 | Ring, Retaining | Interchanges with Navistar 888722C1 | $4.37 | Add to Cart | |
| 3 | 46AX517 | Bearing | Interchanges with Fuller 81548, Navistar 311015C91 | $48.76 | Add to Cart | |
| 4 | 16138 | Retainer | Interchanges with Navistar 405126C1 | $58.58 | Add to Cart | |
| 5 | 6AX1359X | Screw (3/8in-16 X 1in) | Interchanges with Fuller X-8L-686, Navistar 1670574C1 | $2.77 | Add to Cart | |
| 6 | 17453 | O-ring | Interchanges with Navistar 450611C1 | $5.35 | Add to Cart | |
| 7 | 4300465 | Gear (rt/rto A) (use K-2309, K-2309) | Interchanges with Fuller 19254 | $109.41 | Add to Cart | |
| 7 | 4300466 | Gear (rto B) (use K-2311, K-2311) | Interchanges with Fuller 19275 | $124.03 | Add to Cart | |
| 8 | K-2309 | Kit, Gear (rt/rto A) | Gear (1)4300465. O-Rings (2)17453. Retainer (1)21320. Interchanges with Navistar 591907C92, Fuller K-1786 | $297.69 | Add to Cart | |
| 8 | K-2311 | Kit, Gear (rto B) | Includes (1) 4300466, (2) 17453, (1) 21320. Interchanges with Fuller K-1787, Navistar 588772C92 | $290.33 | Add to Cart | |
| 9 | 3088-K2446 | Kit, Synchronizer (big Pin) (w/o Clutch) | K-1946 Type. Interchanges with Fuller K-1946, Navistar 1648304C92 | $190.79 | Add to Cart | |
| 9 | K-2445 | Kit, Synchronizer (small Pin) (K-1945 Type) | Interchanges with Fuller K-1945, Navistar 478713C96 | $213.48 | Add to Cart | |
| 10 | 20323 | Clutch, Sliding | Use w/ K-2446 Synchronizer. Interchanges with Navistar 1648326C1 | $122.31 | Add to Cart | |
| 10 | 16759 | Clutch, Sliding | Use w/ K-3491 Synchronizer | $114.46 | Add to Cart | |
| 11 | 3088-K2448 | Kit, Synchronizer W/ Sliding Clutch | Includes (1) K-2446, (1) 20323. K-1948 Type. Interchanges with Fuller K-1948, Navistar 1648303C92 | Call for availability | ||
| 12 | 19281 | Mainshaft | Interchanges with Navistar 591862C1 | $202.16 | Add to Cart | |
| 13 | 14332 | Washer | Interchanges with Navistar 292788C1 | $24.93 | Add to Cart | |
| 14 | 16771 | Washer (rt 12509) | Interchanges with Navistar 464912C1 | $130.07 | Add to Cart | |
| 14 | 14331 | Washer (rt 11609) | Interchanges with Navistar 292787C1 | $38.64 | Add to Cart | |
| 15 | 19165 | Gear (rto A) | Interchanges with Navistar 584867C1 | $835.69 | Add to Cart | |
| 15 | 4300325 | Gear (rto B) | Interchanges with Fuller 19665, Navistar 1685865C1 | $446.39 | Add to Cart | |
| 16 | 14327 | Ring, Retaining | Interchanges with Navistar 327361R1 | $2.85 | Add to Cart | |
| 17 | 21320 | Retainer | Interchanges with Navistar 1666386C1 | $29.52 | Add to Cart | |
| 18 | 1227-W-1375 | Nut | Interchanges with Fuller 11956 | $209.39 | Add to Cart | |
| 18 | 22254 | Nut, Flanged | Interchanges with Navistar 1677264C1, Navistar 1677264 | $15.84 | Add to Cart | |
| 19 | 67AX264 | Bearing | Interchanges with Fuller 8879, Navistar 972848R91 | $56.55 | Add to Cart | |
| 20 | A-5735 | Countershaft, Auxiliary (rto B) | Interchanges with Navistar 591927C1, Fuller A-4727 | $373.41 | Add to Cart | |
| 20 | A-4722 | Countershaft, Auxiliary (rt/rto A) | Interchanges with Navistar 591929C1, Fuller A-5736 | $384.43 | Add to Cart | |
| 21 | 46AX464 | Bearing | Interchanges with Fuller 81052, Fuller 87012 | $69.47 | Add to Cart | |
| 22 | 16723 | Ring | Interchanges with Navistar 200380S1 | $2.12 | Add to Cart | |
| 23 | 14897 | Spring | Interchanges with Navistar 292779C1, Mack 366SH219 | $1.40 | Add to Cart |
Auxiliary Housing Components - Additional Diagram
Item 1Item 22Item 2Item 23Item 3Item 4Item 5Item 6Item 17Item 19Item 20Item 21Item 7Item 24Item 9Item 9Item 10Item 8Item 11Item 12Item 14Item 13Item 15Item 16Item 18Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302248 | Gasket | Interchanges with Navistar 292792C1, Mack 123SH46 | $4.48 | Add to Cart | |
| 2 | X-8L-609 | Screw (1-3/4in Lg.) | $2.11 | Add to Cart | ||
| 2 | X-8L-614 | Screw (2in Lg.) | $3.24 | Add to Cart | ||
| 3 | 3088-14367 | Kit, Bearing | Interchanges with Fuller 14367 | $271.00 | Add to Cart | |
| 4 | 17097 | Gasket | Interchanges with Navistar 443439C1, Fuller 5877 | $2.77 | Add to Cart | |
| 5 | 16724 | $18.78 | Add to Cart | |||
| 6 | 6AX1359X | Screw (3/8in-16 X 1in) | Interchanges with Fuller X-8L-686, Navistar 1670574C1 | $2.77 | Add to Cart | |
| 7 | 15532 | Gasket | Interchanges with Navistar 349852C1 | $3.19 | Add to Cart | |
| 8 | 153KB15 | Bushing | Interchanges with Fuller 7992. Sold as a 10-pack | $47.29 | Add to Cart | |
| 9 | 20226 | Plug | $4.15 | Add to Cart | ||
| 10 | 56AX533 | O-ring | Interchanges with Fuller 14142. Sold as a 10-pack | $29.30 | Add to Cart | |
| 11 | 17179 | Gasket | Interchanges with Navistar 212376S1 | $2.25 | Add to Cart | |
| 12 | 49AX224 | Plug, Magnetic | Interchanges with Fuller 17178, Navistar 56070R1. Sold as a 5-pack | $39.93 | Add to Cart | |
| 13 | 6J2245 | O-ring (use W/ Sensor) | Interchanges with CAT 6J2245 | Call for availability | ||
| 13 | 13679 | O-ring (use W/ Plug) | $2.60 | Add to Cart | ||
| 14 | 20224 | Plug | $9.19 | Add to Cart | ||
| 15 | 20807 | Seal, Oil | Interchanges with Navistar 1693416C1 | $26.60 | Add to Cart | |
| 16 | 20808 | Slinger | $14.52 | Add to Cart | ||
| 17 | K-2262 | Kit, Seal | Includes (1) 20807, (1) 20808, (1) 15532, (1) 21364, (1) 19709, (1) 17106 | $30.59 | Add to Cart | |
| 18 | 16295 | Spacer | $28.15 | Add to Cart | ||
| 19 | 19709 | Collar | Interchanges with Navistar 3289882R1 | $2.04 | Add to Cart | |
| 20 | 17106 | Washer | Interchanges with Navistar 442540C1 | $1.63 | Add to Cart | |
| 21 | X-8-616 | Screw (2-3/4in Lg.) | $3.01 | Superseded by X8L616Add to Cart | ||
| 21 | X-8-605 | Screw (3in Lg.) | $4.71 | Superseded by X8L605Add to Cart | ||
| 22 | 36AX3 | Washer, Lock | Interchanges with Fuller X-3-600, Eaton 90416. Sold as a 10-pack | $21.30 | Add to Cart | |
| 23 | 14330 | Washer (rt 11509) | Interchanges with Navistar 292786C1 | $31.53 | Add to Cart | |
| 24 | 20191 | Gear, Speedometer | $40.36 | Add to Cart |
Range Cylinder Components - Additional Diagram
Item 1Item 2Item 3Item 3Item 4Item 5Item 6Item 7Item 8Item 9Item 10Item 11Item 12Item 13Item 14Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14347 | Gasket | Interchanges with Navistar 292793C1, Mack 126SH129 | $2.29 | Add to Cart | |
| 2 | X-7-810 | Screw (1/2in-20 X 2in) | Interchanges with Navistar 292815C1, HYS 289867 | $1.89 | Superseded by X7809Add to Cart | |
| 3 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Fuller X-8L-604. Sold as a 5-pack | $19.35 | Add to Cart | |
| 4 | 14765 | O-ring | Interchanges with Navistar 424193C1, CAT 5F1678 | $2.70 | Add to Cart | |
| 5 | 446GC1131 | O-ring | Interchanges with Fuller 14345, Mack 342SH450. Sold as a 10-pack | $24.20 | Add to Cart | |
| 6 | 14341 | Piston | Interchanges with Navistar 292791C1, Mack 314SH48 | $26.70 | Add to Cart | |
| 7 | 14344 | O-ring | Interchanges with Navistar 424194C1 | $8.00 | Add to Cart | |
| 8 | 14349 | Gasket | Interchanges with Navistar 292795C1, Mack 126SH130 | $5.36 | Add to Cart | |
| 9 | 19690 | Cylinder Range | Interchanges with Navistar 588785C1 | $81.87 | Add to Cart | |
| 10 | NL-110-1 | Nut, Locking (5/8in-18) | Interchanges with Fuller X-1-1010, Eaton 60600 | $70.40 | Add to Cart | |
| 10 | 20AX7 | Nut (5/8in-18) | Interchanges with Fuller X-1-1000, Rockwell N-110. Sold as a 6-pack | $15.36 | Add to Cart | |
| 11 | 22823 | Fork, Shift | Interchanges with Navistar 1693341C1 | $82.40 | Add to Cart | |
| 12 | 16778 | Cylinder, Range | $181.93 | Add to Cart | ||
| 13 | 16993 | Rail, Yoke | $193.71 | Superseded by A6162Add to Cart | ||
| 14 | K-1450 | Kit, O-ring, Range Cylinder | Includes (1) 14765, (1) 14344, (1) 56AX556, (1) 14349, (1) 14347, (1) 3088-71206. Interchanges with Navistar 469267C91, Fuller K-2802 | $12.61 | Add to Cart | |
| 15 | A-6163 | Assembly, Yoke (range) (latest Design) | New design | $130.85 | Add to Cart |

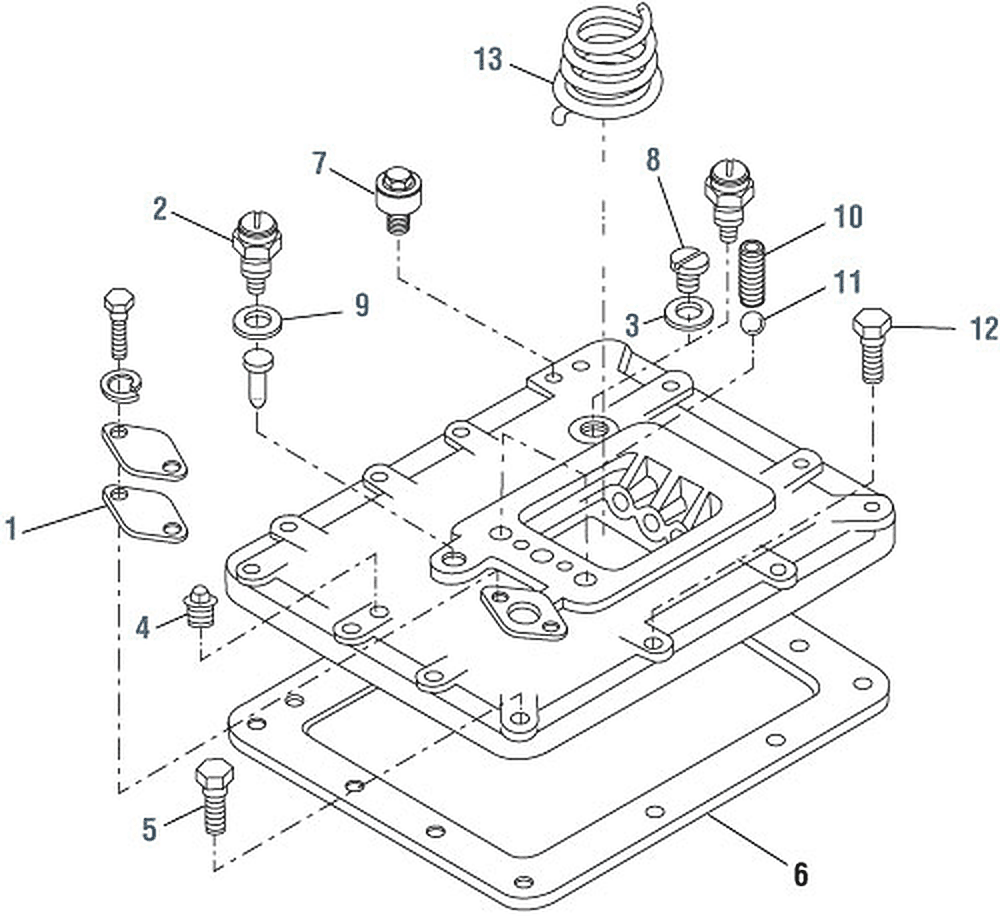

Cover Components - Additional Diagram
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20209 | Gasket | Interchanges with Navistar 1651860C1 | $2.29 | Add to Cart | |
| 2 | 1MR2297 | Switch, Reverse | Interchanges with Fuller 22940. Sold as a 5-pack | $78.05 | Add to Cart | |
| 3 | 15900 | Gasket | $2.24 | Add to Cart | ||
| 4 | 49AX233 | Plug | Interchanges with Fuller X-12-602, Eaton 90323 | Call for availability | ||
| 5 | 6AX1308X | Screw (3/8in-16 X 1-1/4in) | Interchanges with Fuller X-8L-604. Sold as a 5-pack | $19.35 | Add to Cart | |
| 6 | 20211 | Gasket | Call for availability | |||
| 7 | 4304602 | Breather | Interchanges with Fuller 23605 | $8.22 | Add to Cart | |
| 8 | 49AX224 | Plug, Magnetic | Interchanges with Fuller 171718, Navistar 56070R1. Sold as a 5-pack | $39.93 | Add to Cart | |
| 9 | 17179 | Gasket | Interchanges with Navistar 212376S1 | $2.25 | Add to Cart | |
| 10 | 15918 | Spring | Interchanges with Navistar 66286H | $1.97 | Add to Cart | |
| 11 | 48AX17 | Ball | Interchanges with BALL(1/2in dia.). Sold as a 10-pack | $27.90 | Add to Cart | |
| 12 | 6AX1309X | Screw (3/8in-16 X 1-1/2in) | Interchanges with Fuller X-8L-602. Sold as a 5-pack | $14.90 | Add to Cart | |
| 13 | 2536 | Spring, Shift Lever | Interchanges with Navistar 44028HA | $5.59 | Add to Cart |

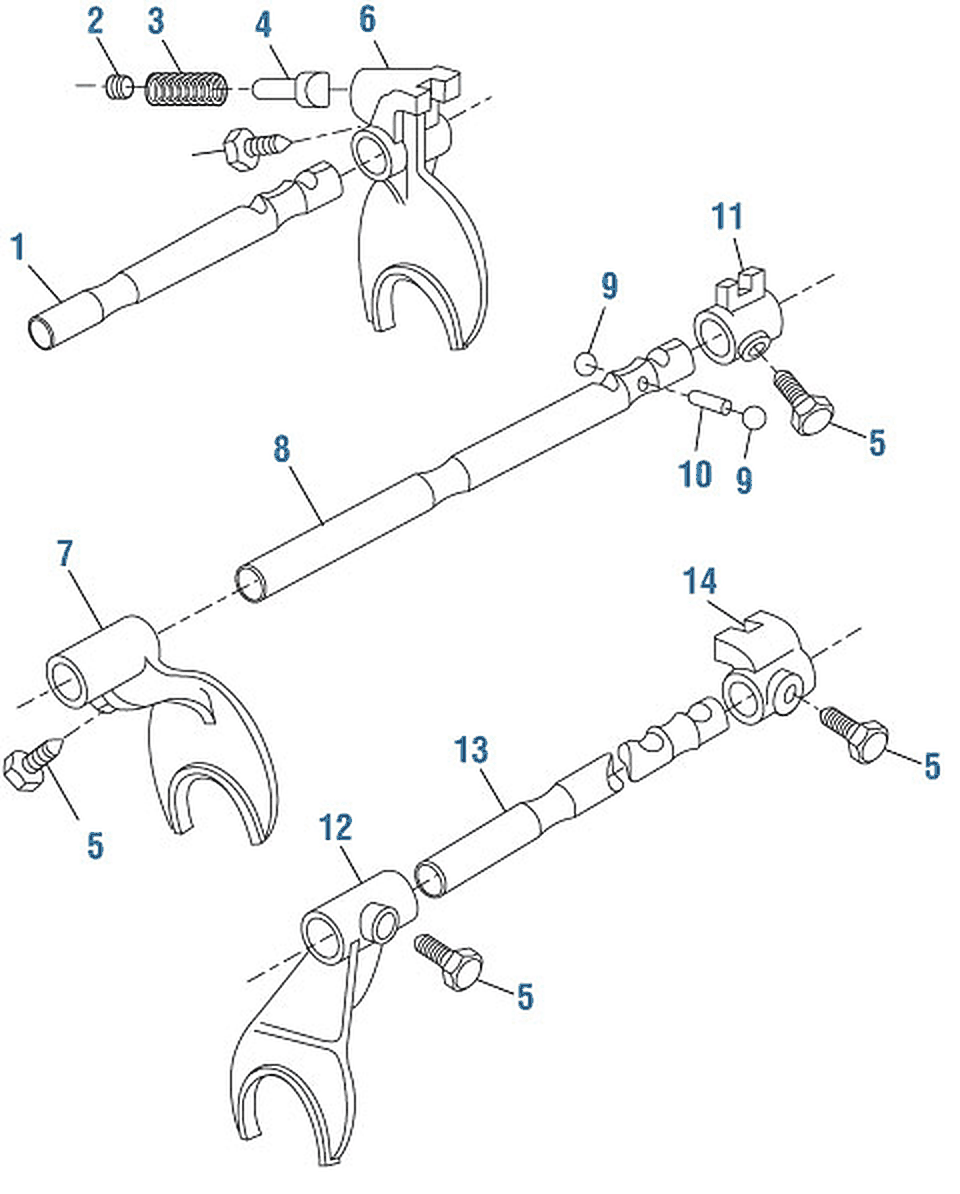

Shifter Components - Additional Diagram
Item 5Item 12Item 5Item 7Item 8Item 13Item 5Item 14Item 10Item 9Item 5Item 11Item 9Item 1Item 6Item 4Item 3Item 2Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14908 | Rail, Reverse (f) | Interchanges with Navistar 310554C2 | $37.62 | Add to Cart | |
| 2 | 8968 | Plug | Interchanges with Navistar 697426R1 | $4.91 | Add to Cart | |
| 3 | 6392 | Spring | Interchanges with Navistar 87919H, Fuller 4670 | $3.89 | Add to Cart | |
| 4 | 10019 | Plunger | Interchanges with Navistar 972561R1, Mack 306SH19 | $22.91 | Add to Cart | |
| 5 | 7AX264X | Screw | Interchanges with Navistar 44024H. Sold as a 10-pack | $61.55 | Add to Cart | |
| 6 | 16131 | Fork, Reverse | Interchanges with Navistar 405133C1 | $203.23 | Add to Cart | |
| 6 | 16338 | Fork, Low-reverse (f) | $301.13 | Add to Cart | ||
| 7 | 16135 | Fork, 2nd | Interchanges with Navistar 405131C1, Fuller 17521 | $74.79 | Add to Cart | |
| 8 | 14910 | Rail, 2nd (f) | Interchanges with Navistar 310556C1 | $46.02 | Add to Cart | |
| 9 | 48AX12 | Ball | Interchanges with Navistar 1662475C1, Fuller X-14-1200. Sold as a 10-pack | $32.00 | Add to Cart | |
| 10 | 1634 | Pin | Interchanges with Navistar 41052V | $3.13 | Add to Cart | |
| 11 | 14658 | Shifter Block | Interchanges with Navistar 292748C1 | $43.77 | Add to Cart | |
| 12 | 16136 | Fork, Direct | Interchanges with Navistar 405132C1, Fuller 17520 | $74.09 | Add to Cart | |
| 13 | 14909 | Rail, Direct (f) | Interchanges with Navistar 310555C1 | $47.11 | Add to Cart | |
| 14 | 14912 | Shifter Block (f) | Interchanges with Navistar 310558C1 | $69.32 | Add to Cart | |
| 14 | 14659 | Shifter Block | Interchanges with Navistar 292749C1 | $31.48 | Add to Cart | |
| 14 | 19063 | Shifter Block (rtx) | Interchanges with Navistar 1651796C1 | $44.48 | Add to Cart |
