Eaton Fuller RTOF-11607L Parts Manual
Complete unit, in stock

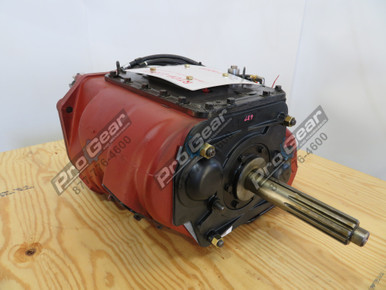

RTOF-11607L Eaton Fuller Transmission
$3,450.00$8,987.00
+ $1,000.00 refundable core deposit
Rebuilding this unit? Every part below is priced and ready to order. If the RTOF-11607L is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

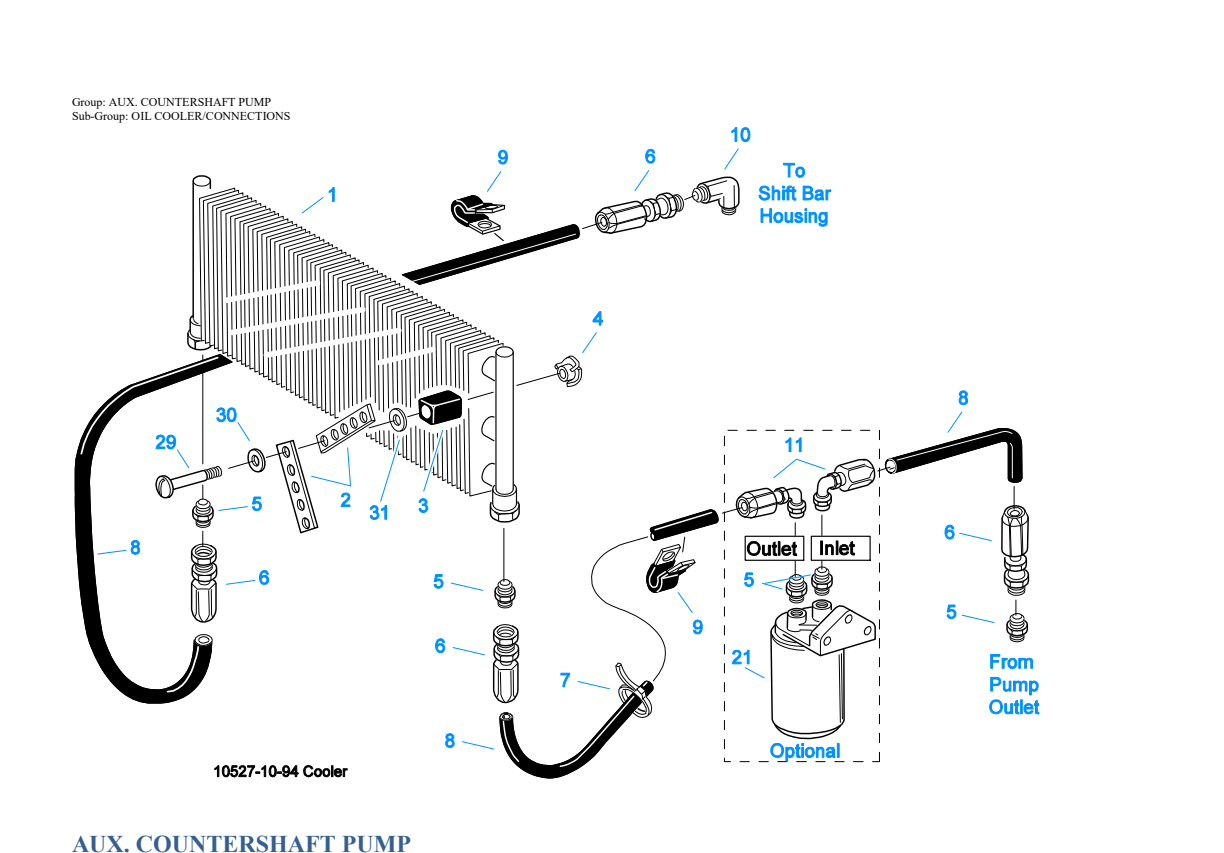

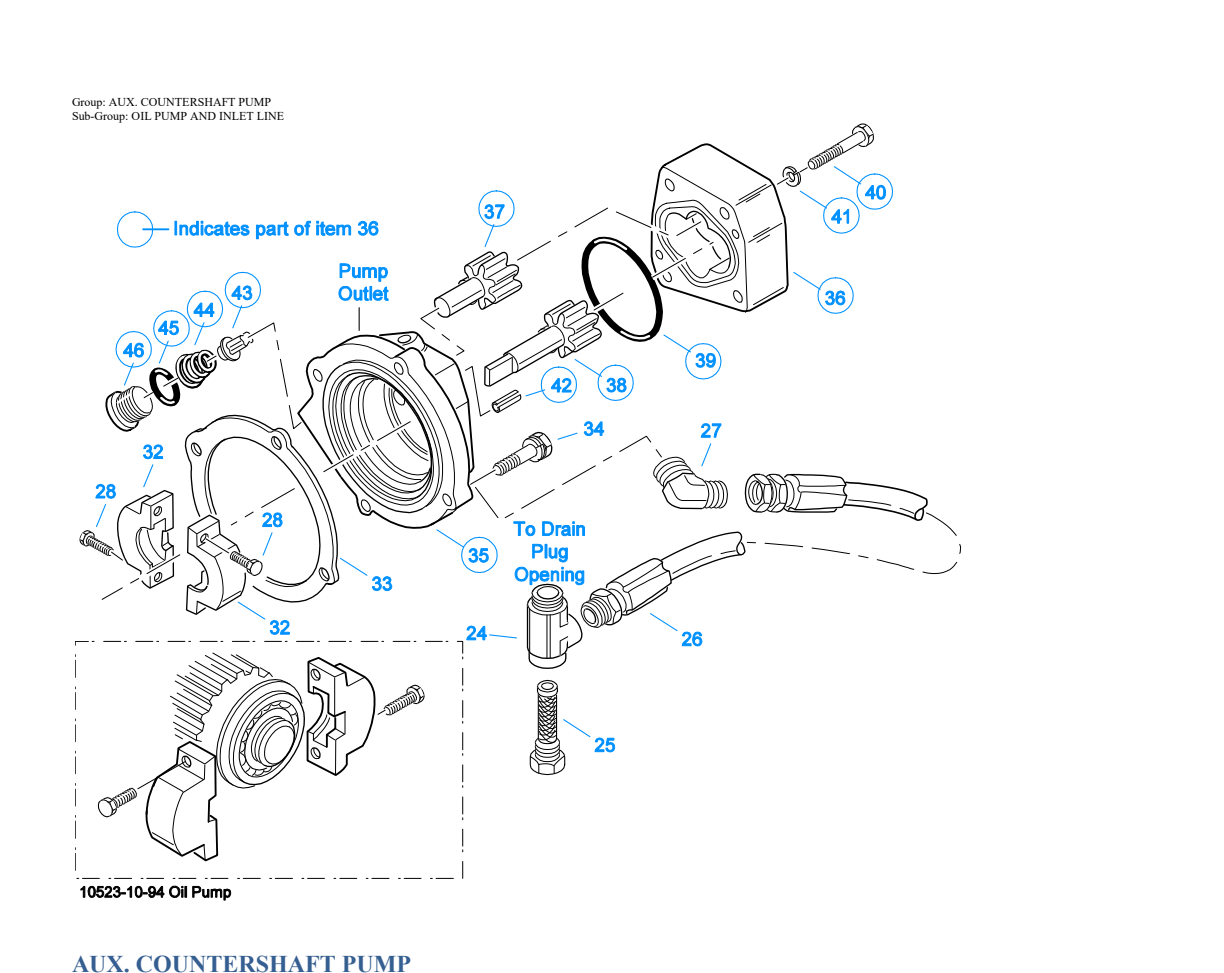

Aux. Countershaft Pump
Item 1Item 4Item 6Item 2Item 6Item 10Item 5Item 5Item 8Item 6Item 9Item 11Item 3Item 9Item 6Item 5Item 29Item 30Item 7Item 8Item 21Item 5Item 31Item 8
Item 41Item 27Item 44Item 28Item 33Item 40Item 37Item 26Item 39Item 34Item 25Item 45Item 28Item 32Item 32Item 35Item 36Item 46Item 24Item 43Item 38Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18025 | Oil Cooler | 1 | $297.40 | Add to Cart | |
| 2 | 18211 | Bracket | 4 | $3.23 | Add to Cart | |
| 3 | 18209 | Plug-rubber Mount | 2 | $5.18 | Add to Cart | |
| 4 | 18210 | Nut | 2 | $2.29 | Add to Cart | |
| 5 | 19419 | Connector | 5 | $9.93 | Add to Cart | |
| 6 | 19415 | Swivel | 4 | $41.50 | Add to Cart | |
| 7 | 17190 | Strap | 8 | $3.24 | Add to Cart | |
| 8 | 19424 | Hose | 1 | 25 FEET | $379.73 | Add to Cart |
| 9 | 19423 | Clamp | 5 | $3.67 | Add to Cart | |
| 10 | 19420 | Elbow | 1 | $37.90 | Add to Cart | |
| 11 | 19422 | Elbow | 2 | $50.85 | Add to Cart | |
| 21 | S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart |
| 29 | X-8-535 | Capscrew | 2 | 5/16"-16X2-1/2" | $1.94 | Add to Cart |
| 30 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 31 | X-10-501 | Washer | 2 | 5/16" | $1.13 | Add to Cart |
| 24 | 19412 | Tee | 1 | $56.74 | Add to Cart | |
| 25 | 19413 | Strainer | 1 | $118.73 | Add to Cart | |
| 26 | 19425 | Hose Assy | 1 | $117.15 | Add to Cart | |
| 27 | 19418 | Elbow | 1 | $47.03 | Add to Cart | |
| 28 | X-7-416 | Capscrew | 2 | 1/4"-28X13/16" SOCKET HEAD | $7.62 | Add to Cart |
| 32 | K-1711 | Collar Kit | 1 | Replaces 19404. | $1,046.94 | Add to Cart |
| 33 | 19409 | Gasket | 1 | $5.03 | Add to Cart | |
| 34 | X-8-685 | Capscrew | 1 | 3/8"-16X2-3/4" SOCKET HEAD | $4.28 | Add to Cart |
| 34 | X-8L-602 | Capscrew | 3 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 35 | 19401 | Oil Pump Adapter | 1 | No longer available - Call for replacement | ||
| 36 | A-4680 | Oil Pump Assy | 1 | Replaces 19400. | $631.21 | Add to Cart |
| 37 | A-4676 | Idler Gear Assy | 1 | $70.75 | Add to Cart | |
| 38 | A-4677 | Drive Gear Assy | 1 | $41.48 | Add to Cart | |
| 39 | 18109 | O-ring | 1 | $6.67 | Add to Cart | |
| 40 | X-8-434 | Capscrew | 4 | 1/4"-20X2" | $1.73 | Add to Cart |
| 41 | X-3-400 | Lockwasher | 4 | 1/4" | $1.17 | Add to Cart |
| 42 | 62515 | Roll Pin | 2 | $1.31 | Add to Cart | |
| 43 | 12757 | Valve | 1 | $26.09 | Add to Cart | |
| 44 | 12755 | Spring | 1 | $9.64 | Add to Cart | |
| 45 | 5568536 | O-ring | 1 | Replaces 13884. | $2.06 | Add to Cart |
| 46 | 19411 | Plug | 1 | $11.10 | Add to Cart |

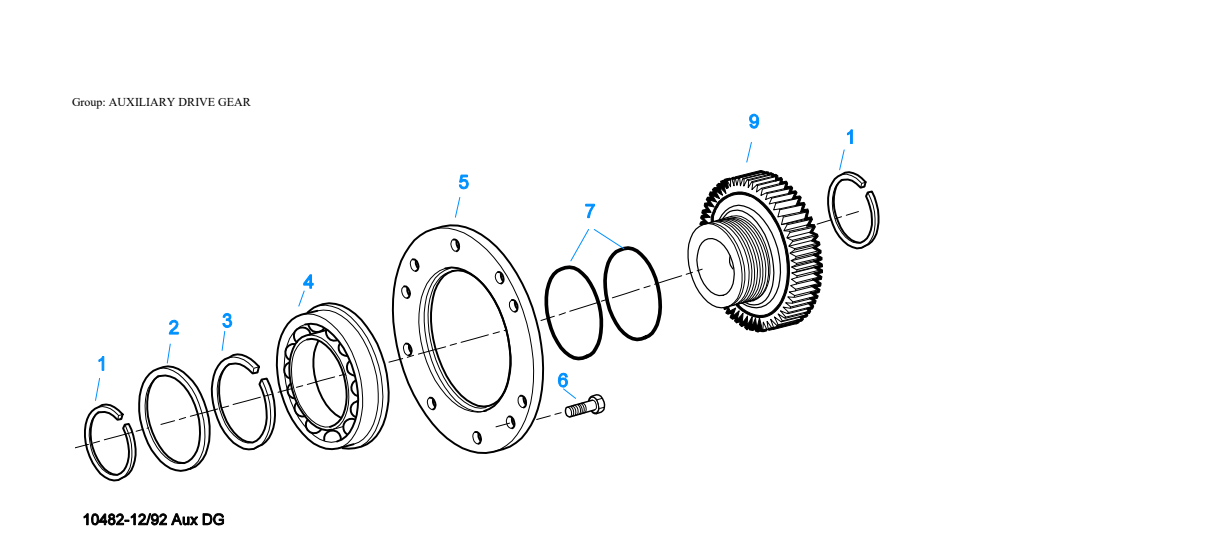

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | $29.52 | Add to Cart | |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 9 | K-2311 | Repl Kit-drive Gear | 1 | Replaces 19275, 4300466. | $290.33 | Add to Cart |

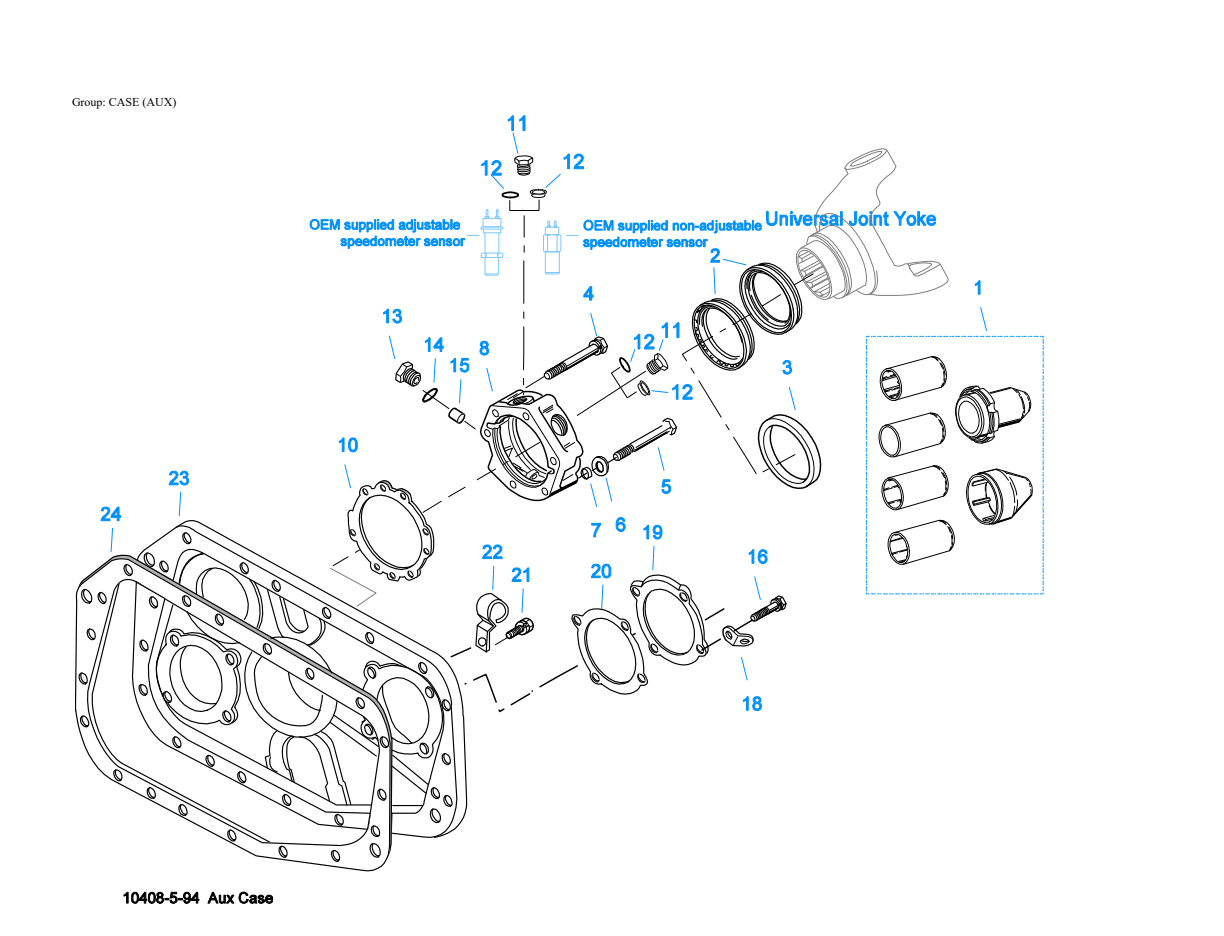

Case (Aux)
Item 1Item 11Item 1Item 1Item 7Item 14Item 6Item 12Item 24Item 12Item 2Item 10Item 18Item 19Item 3Item 8Item 4Item 16Item 20Item 23Item 21Item 22Item 15Item 13Item 5Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | ||
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 3 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 4 | X-8L-605 | Capscrew | 5 | 3/8"-16X3" - USE W/S-2151 COVER | $4.71 | Add to Cart |
| 4 | X-8L-611 | Capscrew | 5 | 3/8"-16X3-1/4" - USE W/S-2119 COVER | $2.85 | Add to Cart |
| 5 | X-8-611 | Capscrew | 1 | 3/8"-16X3-1/4" - USE W/S-2119 COVER | $6.93 | Add to Cart |
| 5 | X-8-682 | Capscrew | 1 | 3/8"-16X3" - USE W/S-2151 COVER | $2.17 | Add to Cart |
| 6 | 17106 | Gasket | 1 | $1.63 | Add to Cart | |
| 7 | 19709 | Collar | 1 | $2.04 | Add to Cart | |
| 8 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 8 | S-2151 | Rear Brg Cover Assy | 1 | Replaces S-1429. | $820.92 | Add to Cart |
| 10 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 11 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 12 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH | $2.60 | Add to Cart |
| 12 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 12 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 13 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 14 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 15 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 16 | X-8L-602 | Capscrew | 8 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 18 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 19 | 17252 | Rear Bearing Cover | 2 | $95.39 | Add to Cart | |
| 20 | 17386 | Gasket | 2 | $2.39 | Add to Cart | |
| 21 | X-8L-602 | Capscrew | 16 | 3/8"-16X1-1/2" | $1.72 | Add to Cart |
| 21 | X-8L-605 | Capscrew | 1 | 3/8"-16X3" | $4.71 | Add to Cart |
| 21 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 22 | 19727 | Hose Clamp | 1 | $4.37 | Add to Cart | |
| 23 | S-1347 | Rear Housing Assy | 1 | Replaces 17548, 18736, 18757, 18784, 19100. | No longer available - Call for replacement | |
| 24 | 14335 | Gasket | 1 | $4.43 | Add to Cart |

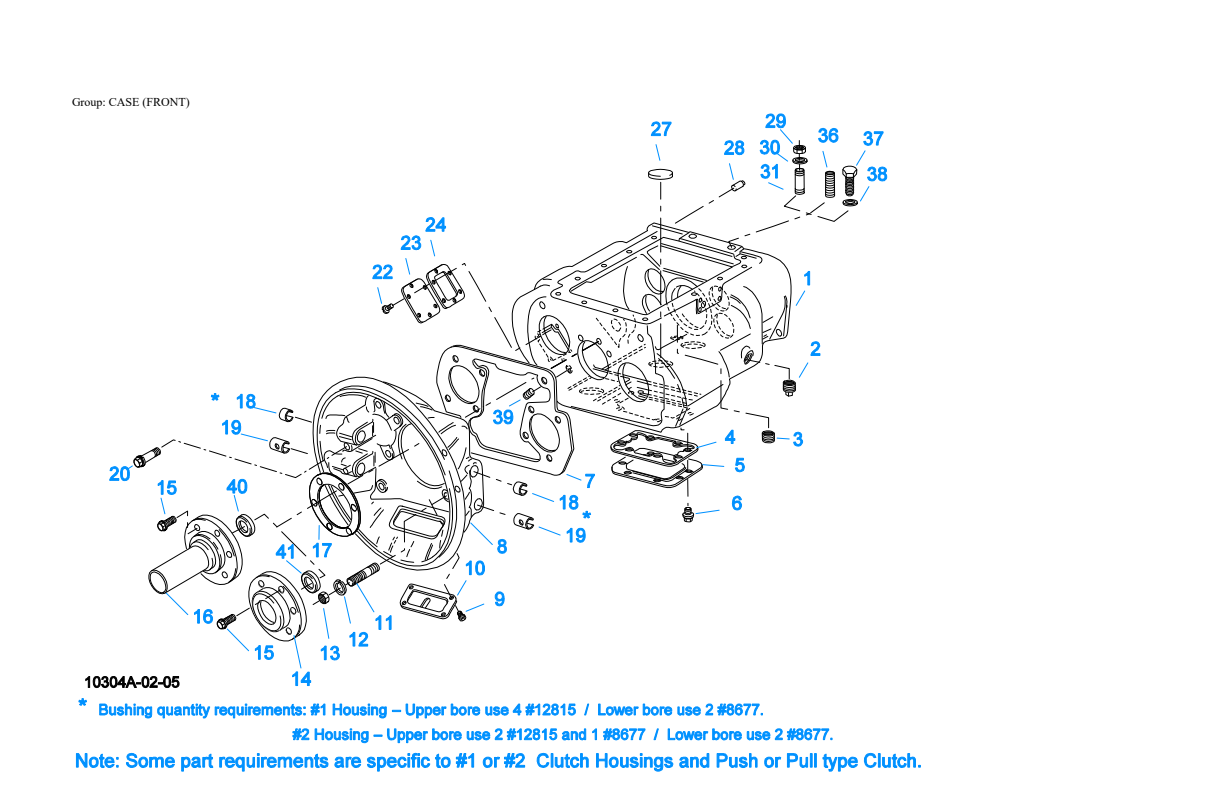

Case (Front)
Item 1Item 4Item 8Item 12Item 9Item 14Item 2Item 24Item 27Item 16Item 7Item 5Item 6Item 18Item 17Item 15Item 41Item 38Item 39Item 28Item 29Item 22Item 31Item 3Item 3Item 36Item 1Item 10Item 37Item 19Item 19Item 11Item 23Item 40Item 20Item 15Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1412 | No Longer Available | 1 | Replaces 19256. | Call for availability | |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 14267 | Front Brg. Cover | 1 | 1-3/4" PULL | $36.25 | Add to Cart |
| 14 | 15111 | Front Brg. Cover | 1 | 2" PULL | $47.29 | Add to Cart |
| 14 | 18699 | Front Brg. Cover | 1 | 1-3/4" & 2" PULL W/SEAL | $234.50 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 14 | 20552 | Front Brg Cover | 1 | 1-3/4" PULL | $72.77 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" USE 6 PCS WITH PULL TYPE COVER USE 4 PCS WITH PUSH TYPE COVER | $2.34 | Add to Cart |
| 15 | X-8L-619 | Capscrew | 2 | 3/8"-16X1-1/4" - USE WITH PUSH | $13.50 | Add to Cart |
| 16 | 14994 | Front Brg. Cover | 1 | 2" PUSH | $221.55 | Add to Cart |
| 16 | 15113 | Front Brg. Cover | 1 | 1-3/4" & 2" PUSH W/SEAL | $317.56 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 16 | 20551 | Front Brg. Cover | 1 | 1-3/4" PUSH | $97.05 | Add to Cart |
| 16 | S-1478 | No Longer Available | 1 | 1-3/4" PUSH | Call for availability | |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING - UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 3 | FOR #1 AND #2 HOUSING - LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 12581 | Oil Seal | 1 | USE W/15113 COVER ONLY | $8.63 | Add to Cart |
| 41 | 16976 | Seal | 1 | 1-3/4" | $14.47 | Add to Cart |
| 41 | 16977 | Seal | 1 | 2" | $17.24 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8879 | Bearing | 2 | $70.13 | Add to Cart | |
| 2 | A-4659 | Welded Countershaft Assy | 2 | C/S 19278 - D/G 19276 | $532.01 | Add to Cart |
| 3 | 81012 | Bearing | 2 | $103.37 | Add to Cart | |
| 4 | 11364 | Snap Ring | 2 | $2.68 | Add to Cart |

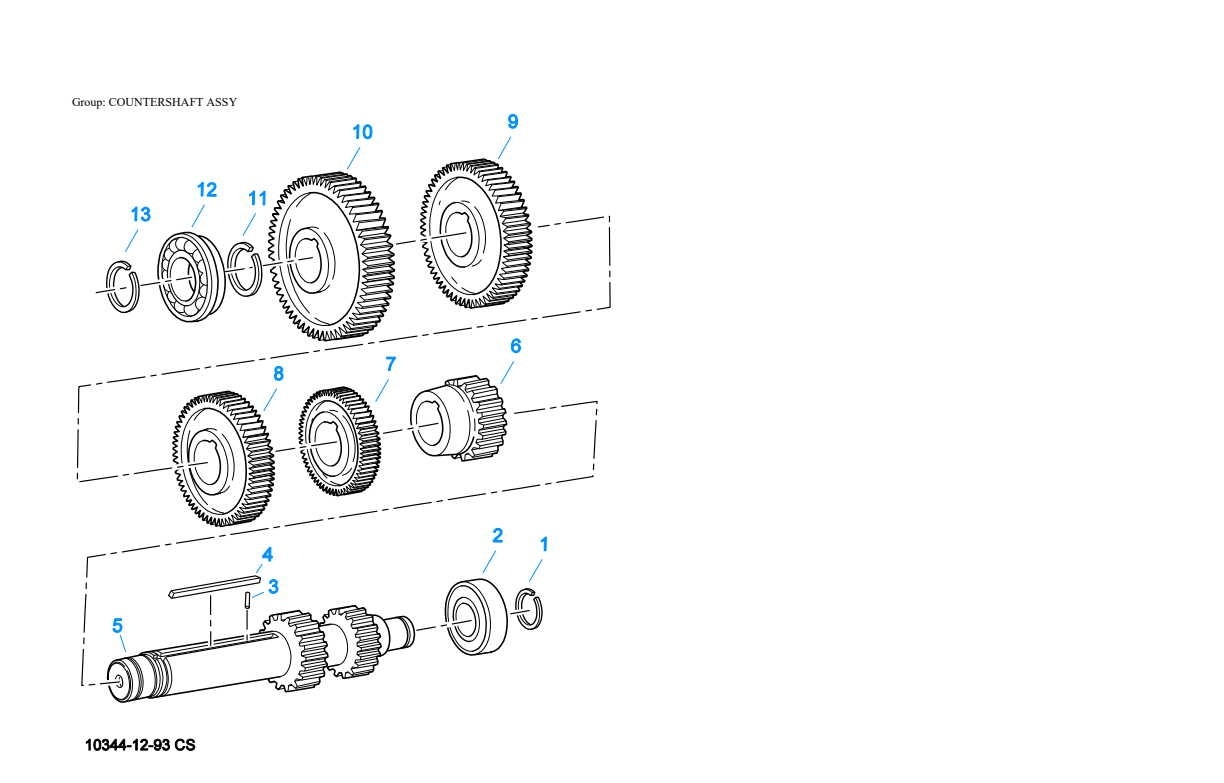

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | No longer available - Call for replacement | ||
| 3 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 4 | 16664 | Key | 2 | $9.41 | Add to Cart | |
| 5 | 20134 | Countershaft | 2 | $1,073.59 | Add to Cart | |
| 6 | 4300293 | 1ST Gear-cntrshft | 2 | Replaces 19178. | No longer available - Call for replacement | |
| 7 | 19613 | 2ND Gear-cntrshft | 2 | $192.26 | Add to Cart | |
| 8 | 4300289 | Od Gear-cntrshft | 2 | Replaces 19181. | $264.61 | Add to Cart |
| 9 | 14307 | No Longer Available | 1 | Call for availability | ||
| 9 | 14886 | No Longer Available | 1 | Call for availability | ||
| 9 | 14905 | No Longer Available | 2 | Call for availability | ||
| 10 | 4300287 | Drive Gear-cntrshft | 2 | Replaces 20133. | $201.81 | Add to Cart |
| 11 | 20085 | Snap Ring | 2 | $2.29 | Add to Cart | |
| 12 | 81022 | Ball Bearing | 2 | Replaces 5566509. | $65.37 | Add to Cart |
| 13 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart |
Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |

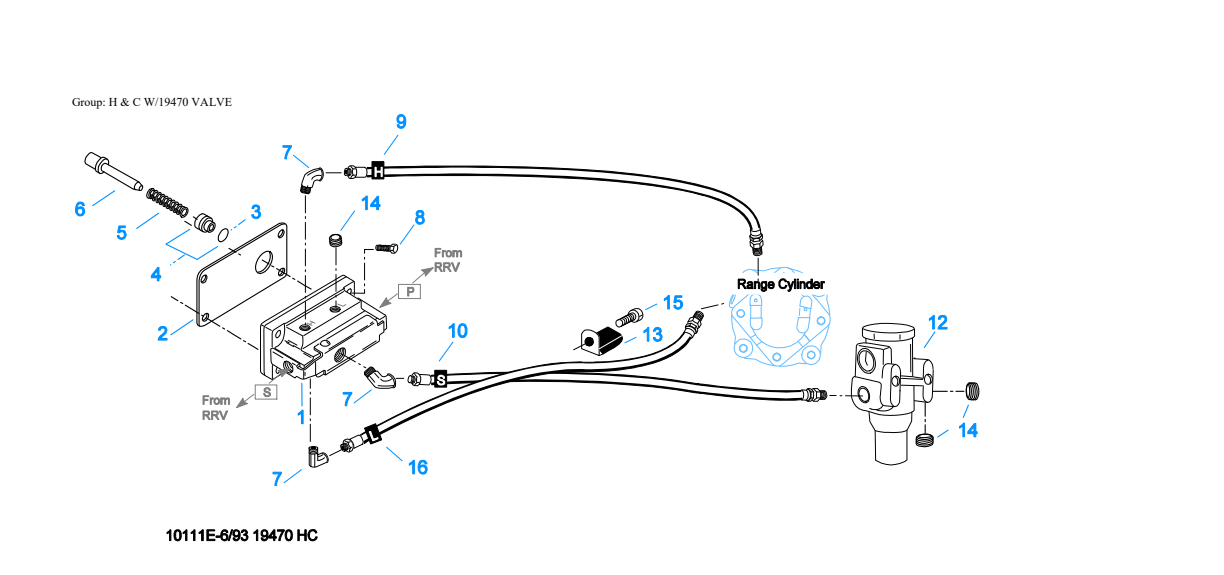

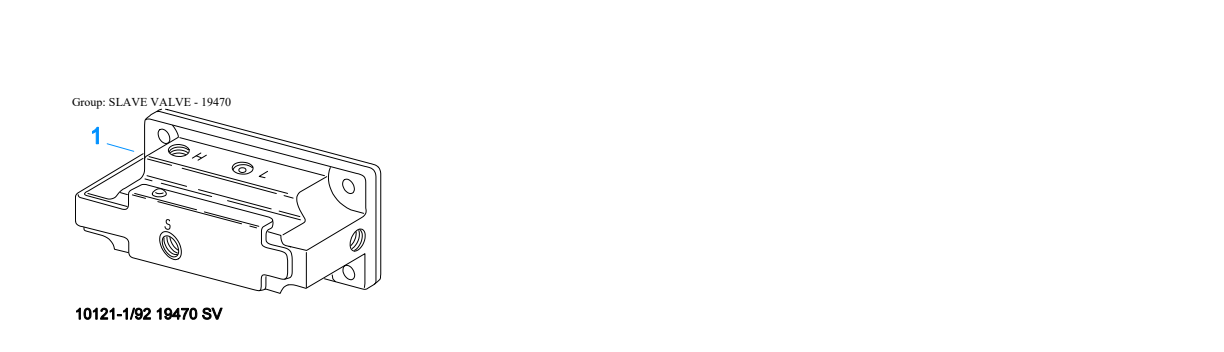

H & C W/19470 Valve
Item 7Item 7Item 7Item 1Item 4Item 14Item 14Item 9Item 5Item 2Item 12Item 10Item 15Item 6Item 8Item 13Item 3Item 16Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-401 | Capscrew | 4 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 9 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 12 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 13 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 14 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 15 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 16 | 55524 | Hose Assy | 1 | 27" | $20.10 | Add to Cart |

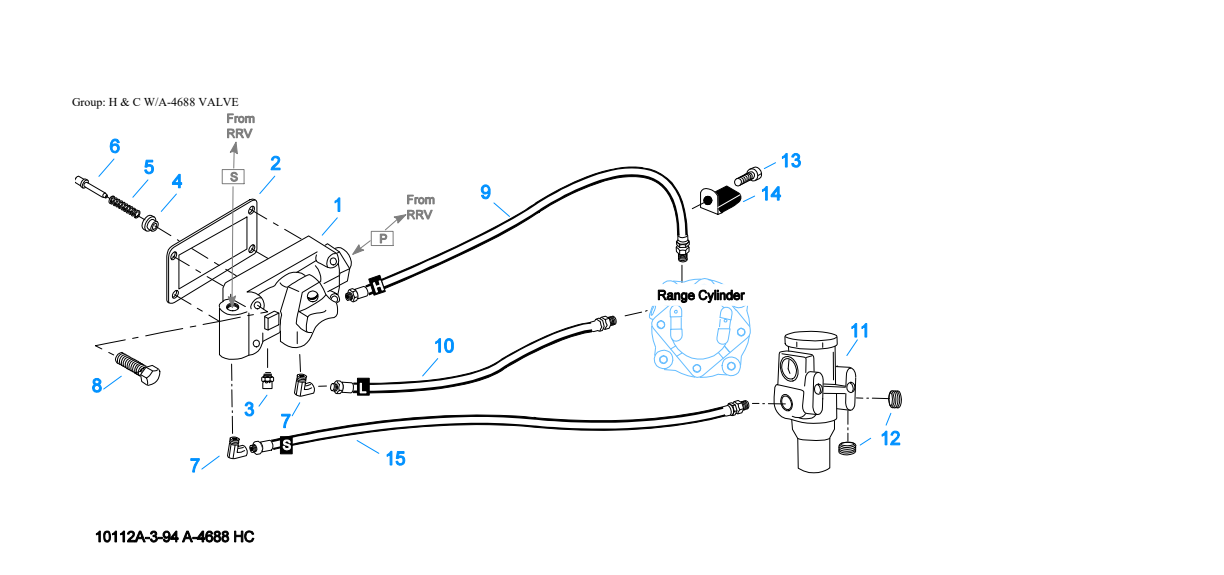

H & C W/A-4688 Valve
Item 7Item 11Item 7Item 4Item 13Item 12Item 10Item 9Item 2Item 15Item 14Item 8Item 5Item 3Item 6Item 1Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | 15758 | Gasket | 1 | $2.25 | Add to Cart | |
| 3 | X2014210 | Breather | 1 | Replaces 7935. | $5.06 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 6392 | Spring | 1 | $3.89 | Add to Cart | |
| 6 | 14361 | Pin | 1 | $44.42 | Add to Cart | |
| 7 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8L-411 | Capscrew | 4 | Replaces X8411. 1/4"-20X1-3/4" | $14.93 | Add to Cart |
| 9 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 11 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 12 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 13 | X-8L-614 | Capscrew | 1 | 3/8"-16X2" | $3.24 | Add to Cart |
| 14 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 15 | 55518 | Hose Assy | 1 | 32" | $19.83 | Add to Cart |

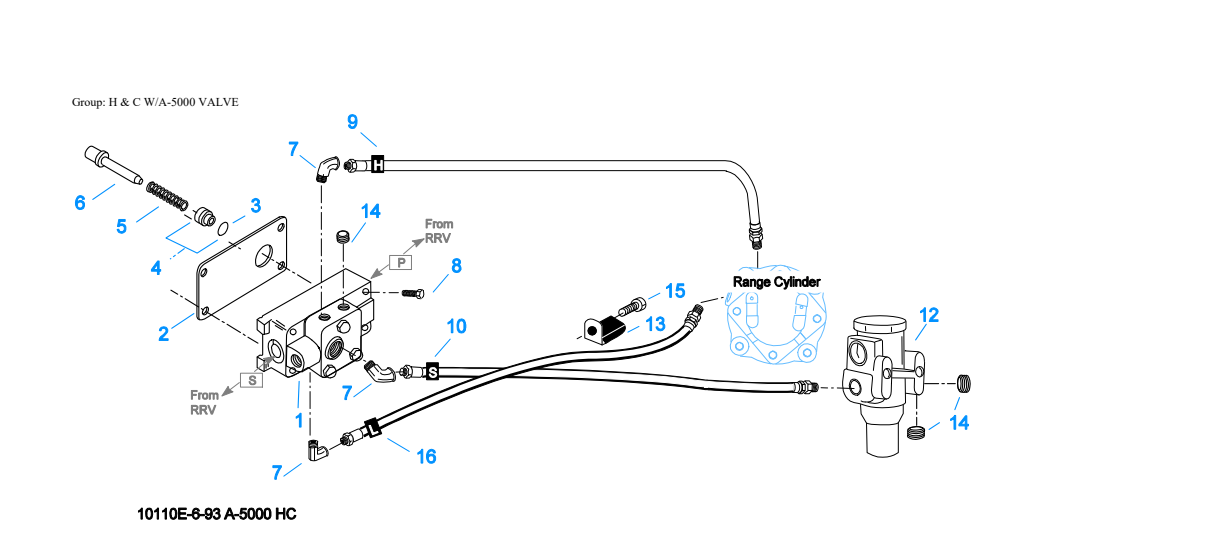

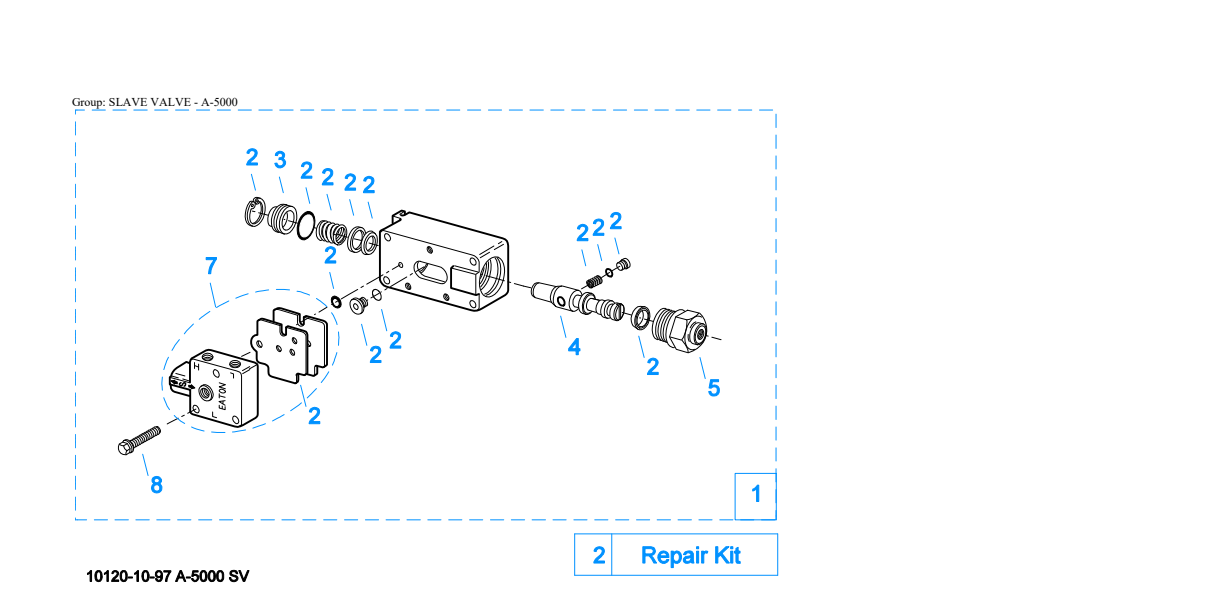

H & C W/A-5000 Valve
Item 7Item 4Item 7Item 7Item 1Item 6Item 2Item 14Item 15Item 8Item 9Item 14Item 16Item 5Item 10Item 3Item 12Item 13Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | 19481 | Gasket | 1 | $3.87 | Add to Cart | |
| 3 | 19462 | O-ring | 1 | Replaces 14033. | $2.01 | Add to Cart |
| 4 | K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart |
| 5 | 21268 | Spring | 1 | Replaces 19572. | $1.76 | Add to Cart |
| 6 | 20490 | Pin | 1 | Replaces 19459. | $10.36 | Add to Cart |
| 7 | 12845 | Elbow | 3 | 1/8" | $5.13 | Add to Cart |
| 8 | X-8C-411 | Capscrew | 4 | 1/4"-20X1-3/4" | $2.55 | Add to Cart |
| 9 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 10 | 55523 | Hose Assy | 1 | 29" | $18.28 | Add to Cart |
| 12 | A-4740 | Filter/regulator | 1 | Replaces 19600. | $74.68 | Add to Cart |
| 13 | 19779 | Hose Clamp | 1 | $3.85 | Add to Cart | |
| 14 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 15 | X-8L-601 | Capscrew | 1 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 16 | 55524 | Hose Assy | 1 | 27" | $20.10 | Add to Cart |

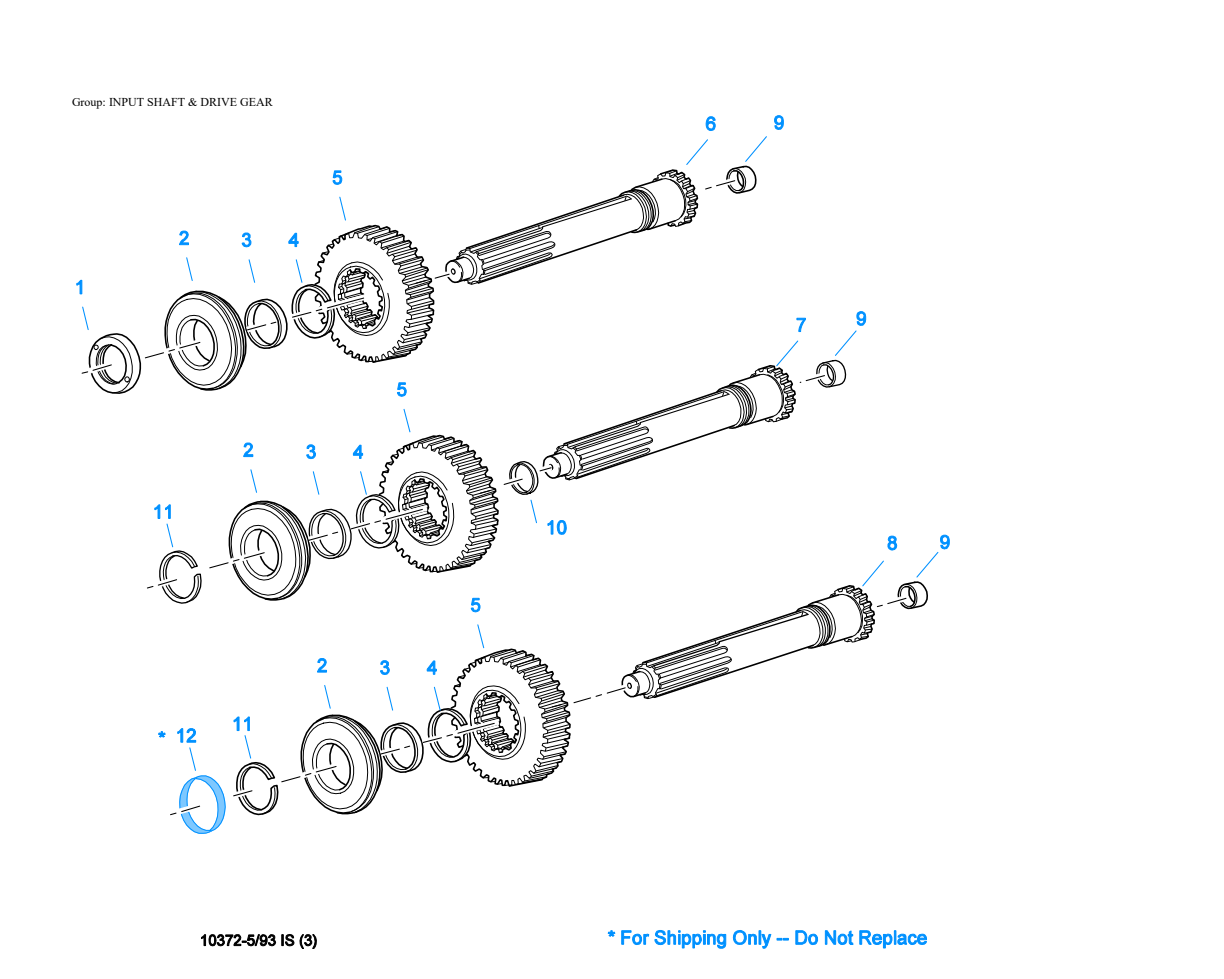

Input Shaft & Drive Gear
Item 7Item 11Item 4Item 4Item 11Item 5Item 5Item 4Item 1Item 5Item 2Item 2Item 2Item 12Item 9Item 6Item 9Item 8Item 3Item 10Item 9Item 3Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 11466 | Nut | 1 | USE W/15112 SHAFT | $37.21 | Add to Cart |
| 1 | 8858 | Nut | 1 | PUSH | $45.47 | Add to Cart |
| 1 | 8997 | Nut | 1 | PULL | $18.45 | Add to Cart |
| 2 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 3 | 16396 | Spacer | 1 | $27.52 | Add to Cart | |
| 4 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 5 | 23138 | Main Drive Gear | 1 | $306.54 | Add to Cart | |
| 5 | K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart |
| 6 | 14660 | Input Shaft | 1 | 1-3/4" PUSH - USE W/FBC 14370 | $322.89 | Add to Cart |
| 6 | 14661 | Input Shaft | 1 | 1-3/4" PULL - USE W/FBC 14267 | $313.58 | Add to Cart |
| 6 | 14995 | No Longer Available | 1 | 2" PUSH - USE W/FBC 14994 | Call for availability | |
| 6 | 15110 | Input Shaft | 1 | 2" PULL - USE W/FBC 15111 | $205.26 | Add to Cart |
| 6 | 15112 | No Longer Available | 1 | 2" PUSH W/SEAL - USE W/FBC 15113 | Call for availability | |
| 7 | S-1343 | Input Shaft Assy | 1 | Replaces 16983. 1-3/4" PULL W/SEAL - USE W/FBC 18699 | Call for availability | |
| 7 | S-1344 | Input Shaft Assy | 1 | Replaces 16984. 2" PULL W/SEAL - USE W/FBC 18699 | Call for availability | |
| 8 | S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL - USE W/FBC 20550 | $166.91 | Add to Cart |
| 8 | S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH - USE W/FBC 20549 | Call for availability | |
| 8 | S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | Call for availability | |
| 8 | S-2917 | Input Shaft Assy | 1 | Replaces 20531, 4304355. 1-3/4" PULL | $391.22 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | 16978 | Sleeve | 1 | 2" W/SEAL | $27.60 | Add to Cart |
| 10 | 16979 | Wear Sleeve | 1 | 1-3/4" W/SEAL | $14.47 | Add to Cart |
| 11 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 12 | 23559 | Shipping Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |

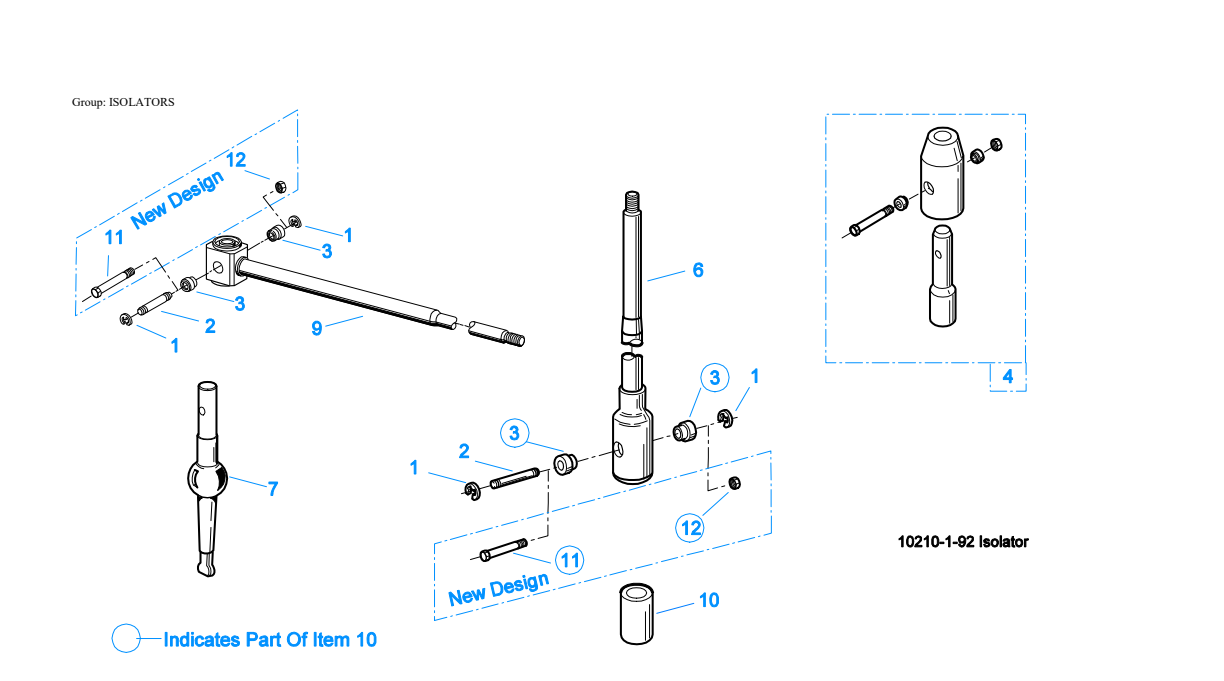

Isolators
Item 1Item 4Item 1Item 1Item 2Item 2Item 12Item 7Item 10Item 3Item 12Item 3Item 3Item 6Item 3Item 1Item 9Item 11Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $5.31 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |

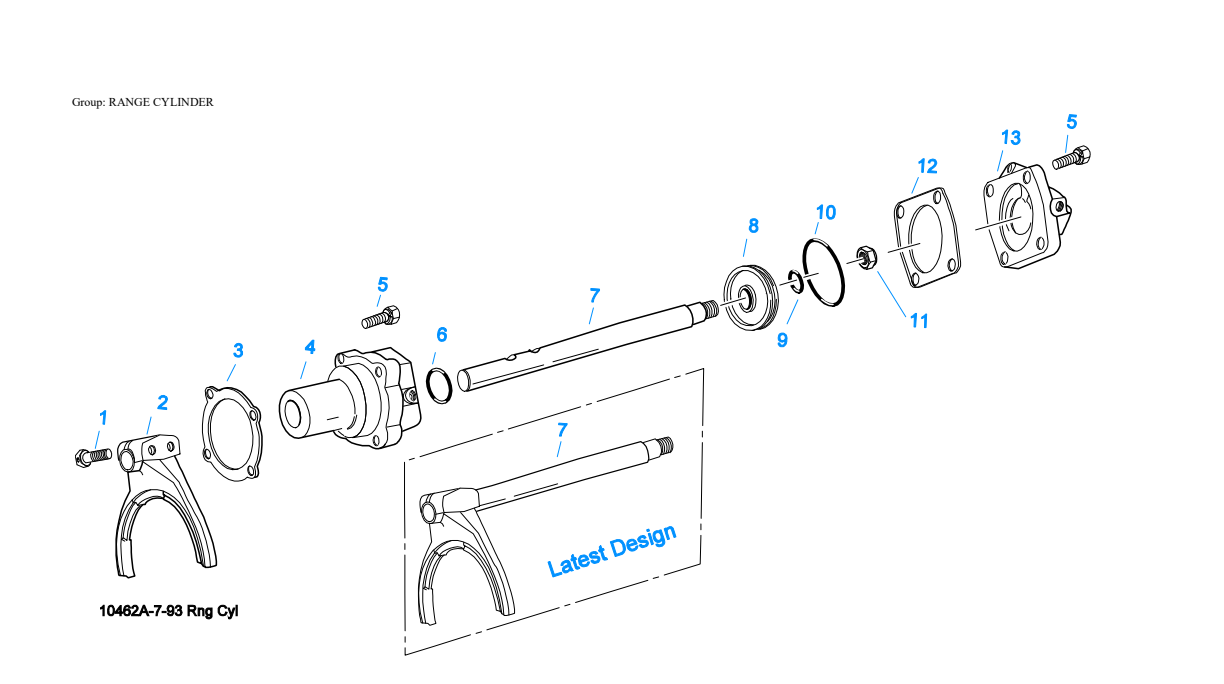

Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1431 | Range Cyl-kit | 1 | $229.35 | Add to Cart | ||
| K-1432 | Cyl Kit-range | 1 | $263.84 | Add to Cart | ||
| K-1450 | O-ring Kit-range | 1 | $12.61 | Add to Cart | ||
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1546 | Repl Kit-mainshaft | 1 | Replaces 15948, 18134. | $215.80 | Add to Cart | |
| K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart | |
| K-1603 | Gasket Kit | 1 | FOR AUXILIARY SECTION | $18.46 | Add to Cart | |
| K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart | |
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1644 | Quill Replacement Kit | 1 | Replaces 16833, 16834. | $43.76 | Add to Cart | |
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart | |
| K-1702 | Oil Cooler Kit | 1 | $1,915.58 | Add to Cart | ||
| K-1706 | Pump Installation Kit | 1 | $1,427.32 | Add to Cart | ||
| K-1711 | Collar Kit | 1 | Replaces 19404. | $1,046.94 | Add to Cart | |
| K-1803 | Small Parts Kit | 1 | $457.81 | Add to Cart | ||
| K-1866 | Basic Rebuild Kit | 1 | $625.32 | Add to Cart | ||
| K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart | |
| K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart | |
| K-1956 | Cooler Instln Kit | 1 | $859.65 | Add to Cart | ||
| K-1963 | Slave Vlv Conversion Ki | 1 | CONVERTS A-4688 TO A-5000 VALVE | $314.28 | Add to Cart | |
| K-1969 | Sleeve Kit | 1 | Replaces 1436219460, 21446. FOR SLAVE VALVES | $3.99 | Add to Cart | |
| K-1980 | Basic Overhaul Kit | 1 | $1,014.49 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2010 | Valve Conversion Kit | 1 | FOR A-5010 VALVE | $207.41 | Add to Cart | |
| K-2199 | Gasket Kit | 1 | $80.16 | Add to Cart | ||
| K-2256 | Oil Seal Kit | 1 | Replaces 14337, 19109, 21036. | $18.84 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2311 | Repl Kit-drive Gear | 1 | Replaces 19275, 4300466. | $290.33 | Add to Cart | |
| K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart | |
| K-2361 | Key & Washer Kit | 1 | Replaces 19314. CONTAINS 3-SIDED KEY | $118.54 | Add to Cart | |
| K-2394 | Air Systems Tool Kit | 1 | $41.89 | Add to Cart | ||
| K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3217 | Idler Shaft Repl Kit | 1 | Replaces 4302981. | $75.22 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3491 | Synchronizer Kit | 1 | Replaces K-2445. LO RANGE / SMALL PIN | $219.37 | Add to Cart | |
| K-3492 | Synchronizer Kit | 1 | Replaces K-2446. LO RANGE / LARGE PIN | $228.43 | Add to Cart | |
| K-3494 | Synchronizer Replacement Kit | 1 | Replaces K-2448. SLIDING CLUTCH INCLUDED IN KIT | $421.10 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | No longer available - Call for replacement | |||
| S-1130 | Input Shaft Assy | 1 | Replaces 14660. 1-3/4" PUSH | $176.19 | Add to Cart | |
| S-1131 | Input Shaft Assy | 1 | Replaces 14661. 1-3/4" PULL | $314.24 | Add to Cart | |
| S-1132 | Input Shaft Assy | 1 | Replaces 14995. 2" PUSH | Call for availability | ||
| S-1133 | Input Shaft Assy | 1 | Replaces 15110. 2" PULL | $205.26 | Add to Cart | |
| S-1343 | Input Shaft Assy | 1 | Replaces 16983. 1-3/4" PULL W/ SEAL | Call for availability | ||
| S-1344 | Input Shaft Assy | 1 | Replaces 16984. 2" PULL W/ SEAL | Call for availability | ||
| S-1347 | Rear Housing Assy | 1 | Replaces 17548, 18736, 18757, 18784, 19100. | No longer available - Call for replacement | ||
| S-1395 | Range Section Assy | 1 | Call for availability | |||
| S-1395R | Reman Range Section Assy | 1 | Call for availability | |||
| S-1404 | Oil Filter | 1 | Replaces 17238. | $273.36 | Add to Cart | |
| S-1516 | Cap Assy | 1 | Replaces 20851, 20853. FOR A-5000 VALVE | No longer available - Call for replacement | ||
| S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL | $166.91 | Add to Cart | |
| S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH | Call for availability | ||
| S-1781 | Mainshaft Assy | 1 | Replaces 4300285, S-1551. | $308.35 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart | |
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2151 | Rear Brg Cover Assy | 1 | Replaces S-1429. | $820.92 | Add to Cart | |
| S-2558 | Roadranger Valve Assy | 1 | Replaces A-5035. RTO - W/SHIFT DIAGRAM MEDALLION | $99.66 | Add to Cart | |
| S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | Call for availability | ||
| S-2917 | Input Shaft Assy | 1 | Replaces 20531, 4304355. 1-3/4" PULL | $391.22 | Add to Cart |

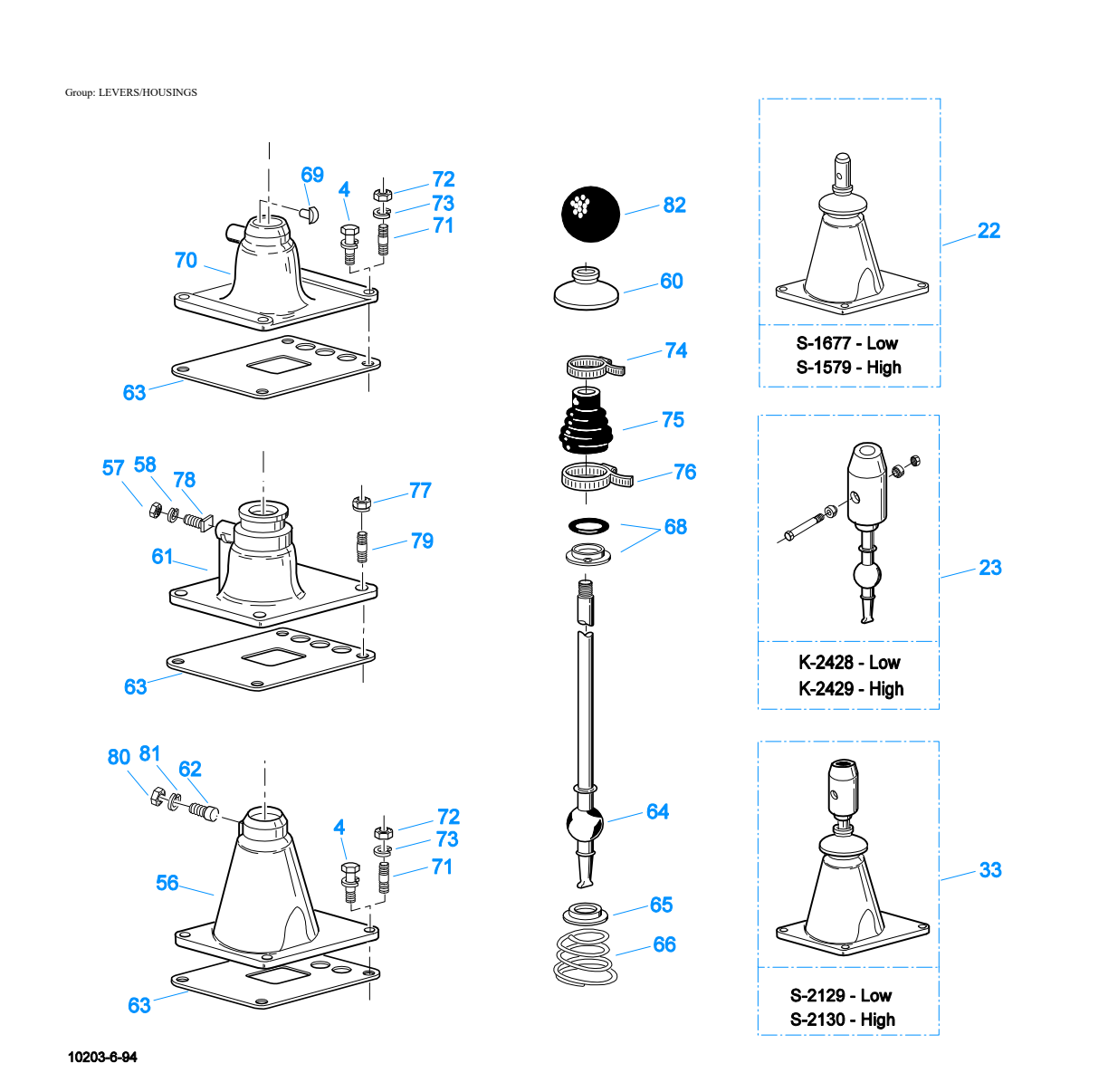

Levers/Housings
Item 71Item 4Item 71Item 77Item 69Item 80Item 74Item 66Item 61Item 4Item 72Item 79Item 76Item 63Item 68Item 65Item 60Item 82Item 23Item 81Item 72Item 70Item 56Item 58Item 63Item 33Item 57Item 73Item 64Item 63Item 73Item 75Item 23Item 78Item 62Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $382.64 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | Call for availability | |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $9.67 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | No longer available - Call for replacement | ||
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | Call for availability | |
| 78 | 14461 | Pin | 1 | Call for availability | ||
| 79 | 14236 | No Longer Available | 4 | Call for availability | ||
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 82 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |

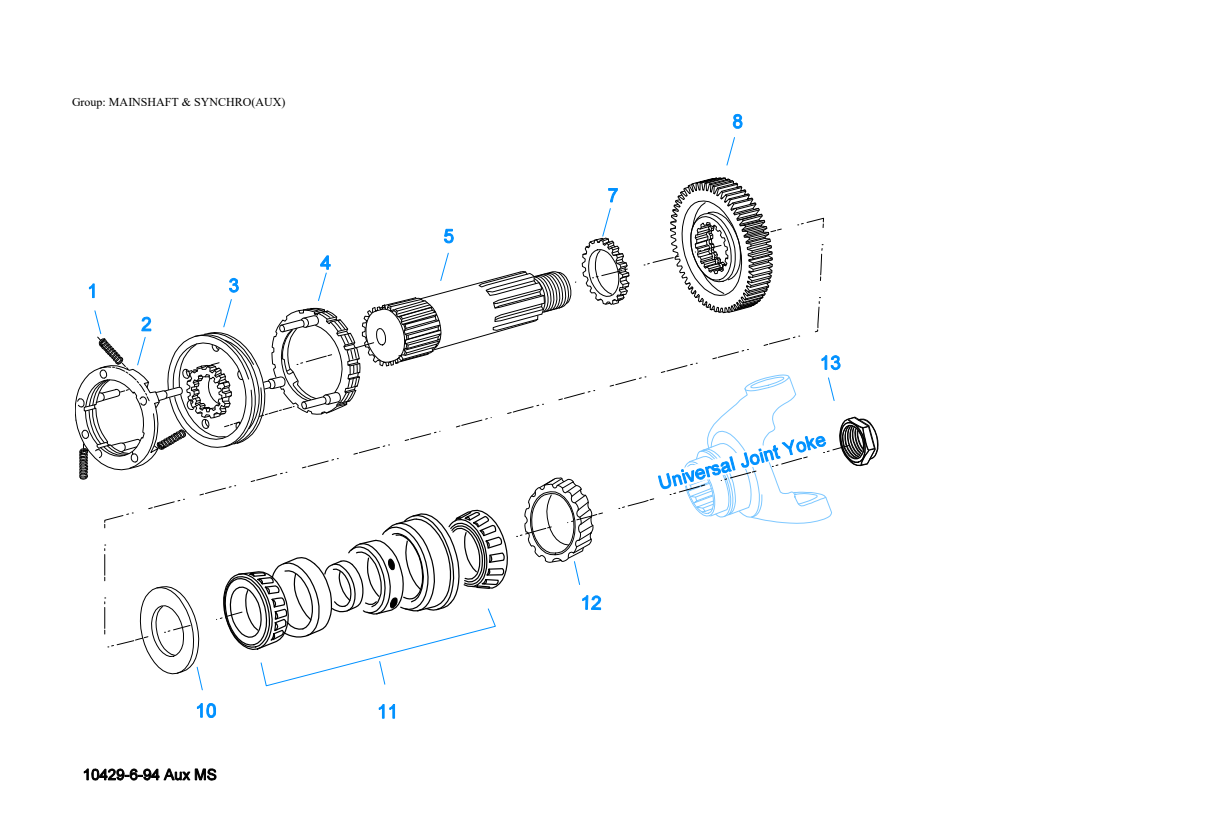

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-6153 | Synchronizer Assy | 1 | Replaces A-4416. LO RANGE - SMALL PIN | $130.43 | Add to Cart |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE - LARGE PIN | $146.52 | Add to Cart |
| 5 | 19202 | Mainshaft | 1 | Replaces 4302460. | $364.62 | Add to Cart |
| 7 | 19203 | Spacer | 1 | $44.10 | Add to Cart | |
| 8 | 19277 | Lo Gear-mainshaft | 1 | $320.36 | Add to Cart | |
| 10 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 11 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 12 | 20191 | Rotor | 1 | $40.36 | Add to Cart | |
| 13 | 22254 | Nut | 1 | Replaces 11956. | $15.84 | Add to Cart |

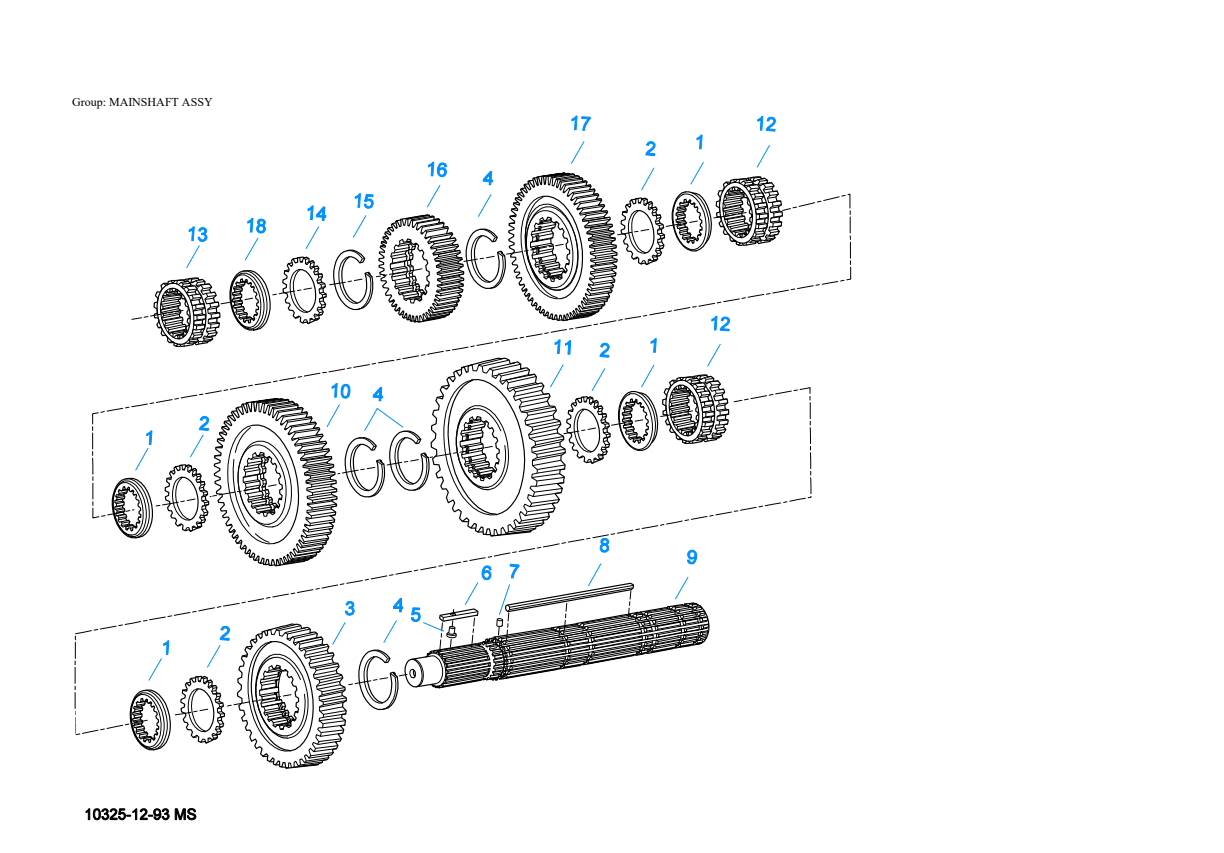

Mainshaft Assy
Item 1Item 1Item 8Item 9Item 1Item 6Item 1Item 4Item 10Item 18Item 16Item 11Item 13Item 2Item 17Item 2Item 2Item 4Item 14Item 15Item 12Item 12Item 2Item 7Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14711 | Washer .248-.250 White | 4 | Replaces 18701. | $10.25 | Add to Cart |
| 1 | 14712 | Washer .253-.255 Green | 4 | Replaces 18702. | $10.51 | Add to Cart |
| 1 | 14713 | Washer .258-.260 Orange | 4 | Replaces 18703. | $10.51 | Add to Cart |
| 1 | 14714 | Washer .263-.265 Purple | 4 | Replaces 18704. | $10.61 | Add to Cart |
| 1 | 14715 | Washer .268-.270 Yellow | 4 | Replaces 18705. | $10.61 | Add to Cart |
| 1 | 14716 | Washer .273-.275 Black | 4 | Replaces 18706. | $10.61 | Add to Cart |
| 1 | 4300382 | Washer .249-WHITE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.09 | Add to Cart |
| 1 | 4300383 | Washer .254-GREEN | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 1 | 4300384 | Washer .259-ORANGE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 1 | 4300385 | Washer .264-PURPLE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 1 | 4300386 | Washer .269-YELLOW | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | No longer available - Call for replacement | |
| 1 | 4300387 | Washer .274-BLACK | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 1 | 4300830 | Washer .244-BLUE | 4 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $9.36 | Add to Cart |
| 2 | 14749 | Spacer | 4 | $6.93 | Add to Cart | |
| 3 | 19313 | Reverse Gear- Mainshaft | 1 | $271.82 | Add to Cart | |
| 4 | 14750 | Snap Ring | 4 | $2.20 | Add to Cart | |
| 5 | 14832 | Pin | 1 | $6.50 | Add to Cart | |
| 6 | A-3456 | Key & Pin Assy | 1 | Replaces 14884. | $32.16 | Add to Cart |
| 7 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 8 | 4300975 | 3-SIDED Key | 1 | MUST USE MATCHING WASHERS | $17.54 | Add to Cart |
| 8 | K-2361 | Key & Washer Kit | 1 | Replaces 19314. CONTAINS 3-SIDED KEY | $118.54 | Add to Cart |
| 9 | S-1781 | Mainshaft Assy | 1 | Replaces 4300285, S-1551. | $308.35 | Add to Cart |
| 10 | 4300292 | 1ST Gear-mainshaft | 1 | Replaces 19177. | No longer available - Call for replacement | |
| 11 | 4300294 | Lo Gear-mainshaft | 1 | Replaces 19082. | $260.57 | Add to Cart |
| 12 | 14709 | Sliding Clutch | 2 | $92.80 | Add to Cart | |
| 13 | 23139 | Sliding Clutch | 1 | $146.85 | Add to Cart | |
| 13 | K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart |
| 14 | 14273 | Spacer | 1 | $362.01 | Add to Cart | |
| 15 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 16 | 4300297 | Od Gear-mainshaft | 1 | Replaces 23140. | $263.22 | Add to Cart |
| 16 | K-2321 | Update Kit | 1 | Replaces 14654, 19168, 19182. | $975.22 | Add to Cart |
| 17 | 4300290 | 2ND Gear-mainshaft | 1 | Replaces 19612. | $202.37 | Add to Cart |
| 18 | 14274 | Washer .248-.250 White | 1 | Replaces 18717. | $15.94 | Add to Cart |
| 18 | 14276 | Washer .258-.260 Orange | 1 | Replaces 18719. | $8.51 | Add to Cart |
| 18 | 14277 | Washer .263-.265 Purple | 1 | Replaces 18720. | $7.62 | Add to Cart |
| 18 | 14278 | Washer .268-.270 Yellow | 1 | Replaces 18721. | $7.51 | Add to Cart |
| 18 | 14279 | Washer .273-.275 Black | 1 | Replaces 18722. | $110.63 | Add to Cart |
| 18 | 4300512 | Washer .253-.255 Green | 1 | Replaces 14275, 18718. | $15.54 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20394 | No Longer Available | 1 | Call for availability | |||
| 21075 | Warning Label | 1 | $55.52 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-7-809 | Bolt | 2 | Replaces X7810, X7811. 1/2"-20X1-3/4" | $1.89 | Add to Cart |
| 2 | 22823 | Shift Yoke | 1 | Replaces 16775. | $82.40 | Add to Cart |
| 3 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 4 | 16778 | Auxiliary Cylinder | 1 | $181.93 | Add to Cart | |
| 5 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 6 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 7 | 19652 | Yoke Bar | 1 | Replaces 16773. | $77.15 | Add to Cart |
| 7 | A-6160 | Welded Yoke Assy | 1 | $185.86 | Add to Cart | |
| 8 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 9 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 10 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 11 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 12 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 13 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart |

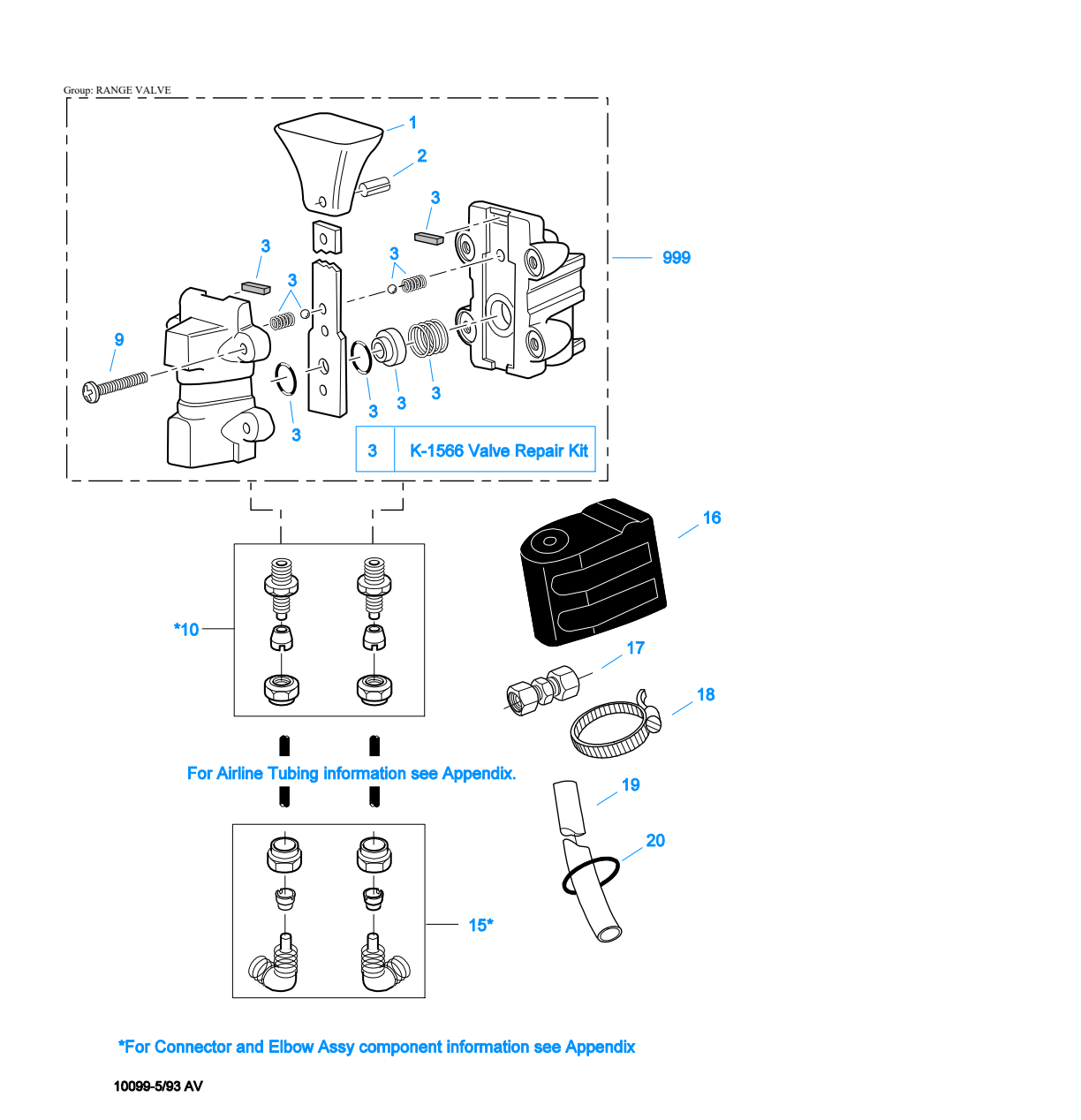

Range Valve
Item 1Item 17Item 19Item 16Item 3Item 18Item 3Item 9Item 3Item 3Item 3Item 3Item 3Item 3Item 15Item 10Item 3Item 2Item 20Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15120 | Knob | 1 | $127.07 | Superseded by A3546Add to Cart | |
| 2 | 62512 | Roll Pin | 1 | $1.96 | Add to Cart | |
| 3 | K-1566 | Valve Repair Kit | 1 | FOR A-3546 VALVE | $117.51 | Add to Cart |
| 9 | X-13-214 | Screw | 4 | 8-32X3/4" | $2.40 | Add to Cart |
| 10 | 84002 | Connector Assy | 2 | Replaces 82502. 1/8"TUBE-1/8"NPTF | $7.06 | Add to Cart |
| 10 | 84004 | Connector Assy | 2 | Replaces 82504. 5/32"TUBE-1/8"NPTF | $11.29 | Add to Cart |
| 10 | 84006 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- | $6.01 | Add to Cart |
| 15 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 15 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 15 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 16 | 18905 | No Longer Available | 1 | Call for availability | ||
| 17 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 17 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 17 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 18 | 14441 | Clamp | 1 | Replaces 14465. | $3.54 | Add to Cart |
| 19 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | Call for availability | |
| 20 | 13571 | O-ring Clamp | 2 | $2.11 | Add to Cart | |
| 999 | A-3546 | Range Valve Assy | 1 | Replaces 18268, 18269, 18272. | $127.07 | Add to Cart |

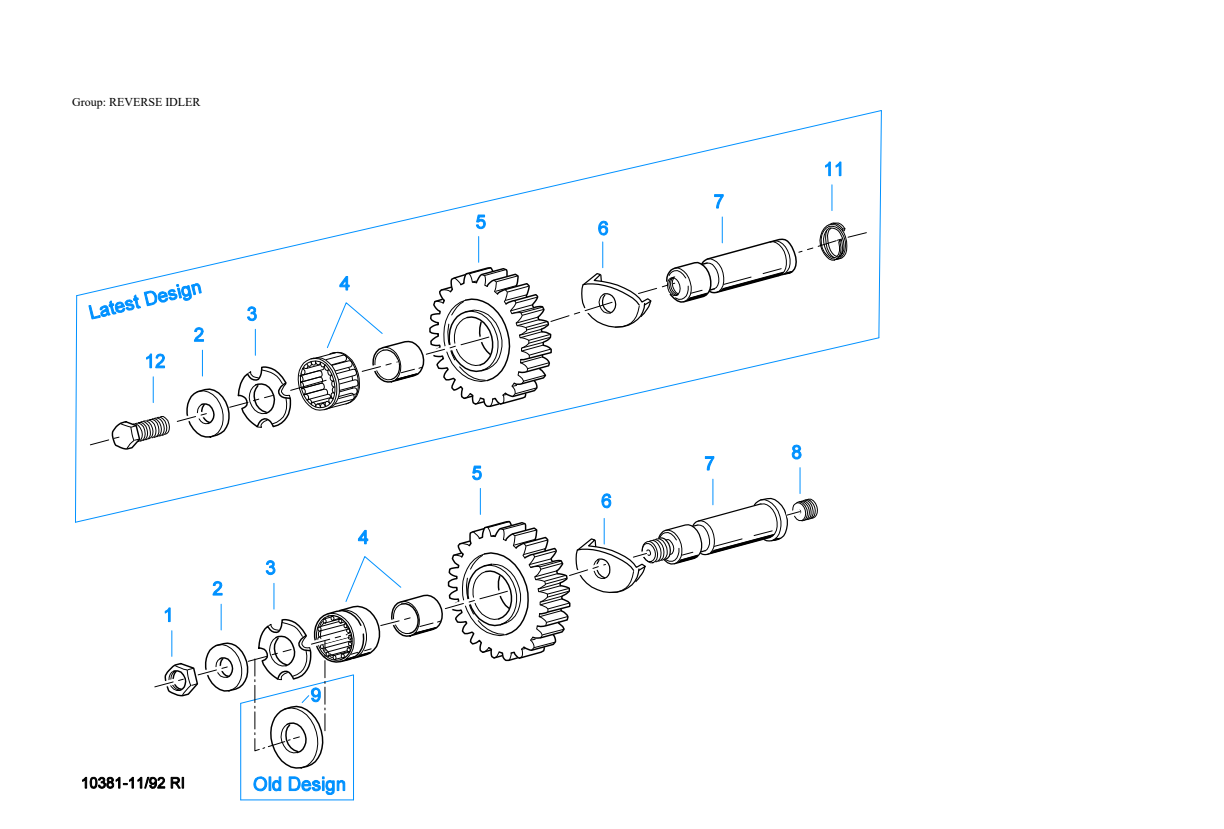

Reverse Idler
Item 7Item 5Item 4Item 1Item 8Item 12Item 9Item 7Item 6Item 4Item 3Item 6Item 2Item 11Item 5Item 2Item 3Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $2.70 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |

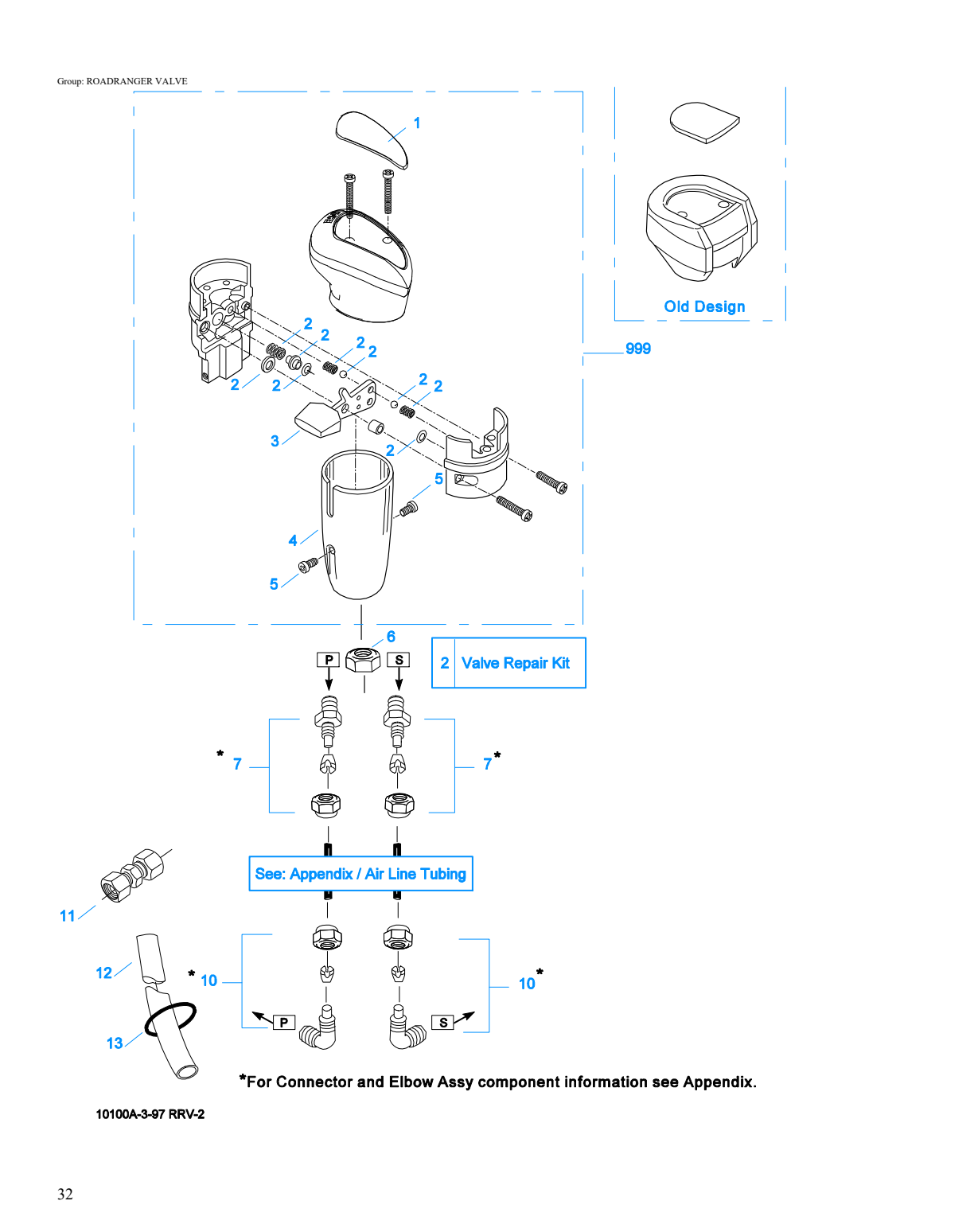

Roadranger Valve
Item 10Item 2Item 2Item 2Item 1Item 12Item 2Item 3Item 2Item 7Item 13Item 2Item 2Item 10Item 6Item 5Item 5Item 11Item 7Item 4Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20107 | Medallion, Logo | 1 | (OLD DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586100 | Medallion, Logo | 1 | (LATEST DESIGN) FULLER LOGO ONLY | $28.59 | Add to Cart |
| 1 | 5586103 | Shift Diagram Medallion | 1 | RTO | $28.59 | Add to Cart |
| 2 | K-1921 | Master Valve Repair Kit | 1 | FOR A-6909 & A-5010 VALVES | $20.03 | Add to Cart |
| 3 | 20495 | Lever | 1 | $15.43 | Add to Cart | |
| 4 | 20112 | Cover | 1 | $7.57 | Add to Cart | |
| 5 | X-8-213 | Screw | 2 | Replaces X8202. 8-32X3/8" | $2.20 | Add to Cart |
| 6 | X-9-802 | Nut | 1 | 1/2"-13 | $1.87 | Add to Cart |
| 7 | 84001 | Connector Assy | 2 | Replaces 82501. 1/8"TUBE-1/16"NPTF | $6.95 | Add to Cart |
| 7 | 84003 | Connector Assy | 2 | Replaces 82503. 5/32"TUBE-1/16"NPTF | $12.54 | Add to Cart |
| 7 | 84005 | Connector Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/16"NPTF | $6.93 | Add to Cart |
| 10 | 85001 | Elbow Assy | 2 | Replaces 84501. 5/32"TUBE-1/8"NPTF | $14.54 | Add to Cart |
| 10 | 85002 | Elbow Assy | 2 | Replaces 84502. 1/8"TUBE-1/8"NPTF | $13.93 | Add to Cart |
| 10 | 85003 | Elbow Assy | 2 | "PUSH-TO-CONNECT" 5/32"TUBE- 1/8"NPTF | $9.85 | Add to Cart |
| 11 | 84101 | Union Assy | 1 | 1/8" TUBING | $8.46 | Add to Cart |
| 11 | 84102 | Union Assy | 1 | 5/32" TUBING | $15.91 | Add to Cart |
| 11 | 84103 | Union Assy | 1 | "PUSH-TO-CONNECT" 5/32" TUBING | $55.05 | Add to Cart |
| 12 | 80120 | Sheathing (50 Ft Roll) | 1 | 5/32" - BLACK 50' | Call for availability | |
| 13 | 13571 | O-ring Clamp | 1 | $2.11 | Add to Cart | |
| 999 | A-6909 | Roadranger Valve Assy | 1 | Replaces A-5010, A-5310. STANDARD-W/LOGO | $88.64 | Add to Cart |
| 999 | S-2558 | Roadranger Valve Assy | 1 | Replaces A-5035. RTO - W/SHIFT DIAGRAM MEDALLION | $99.66 | Add to Cart |

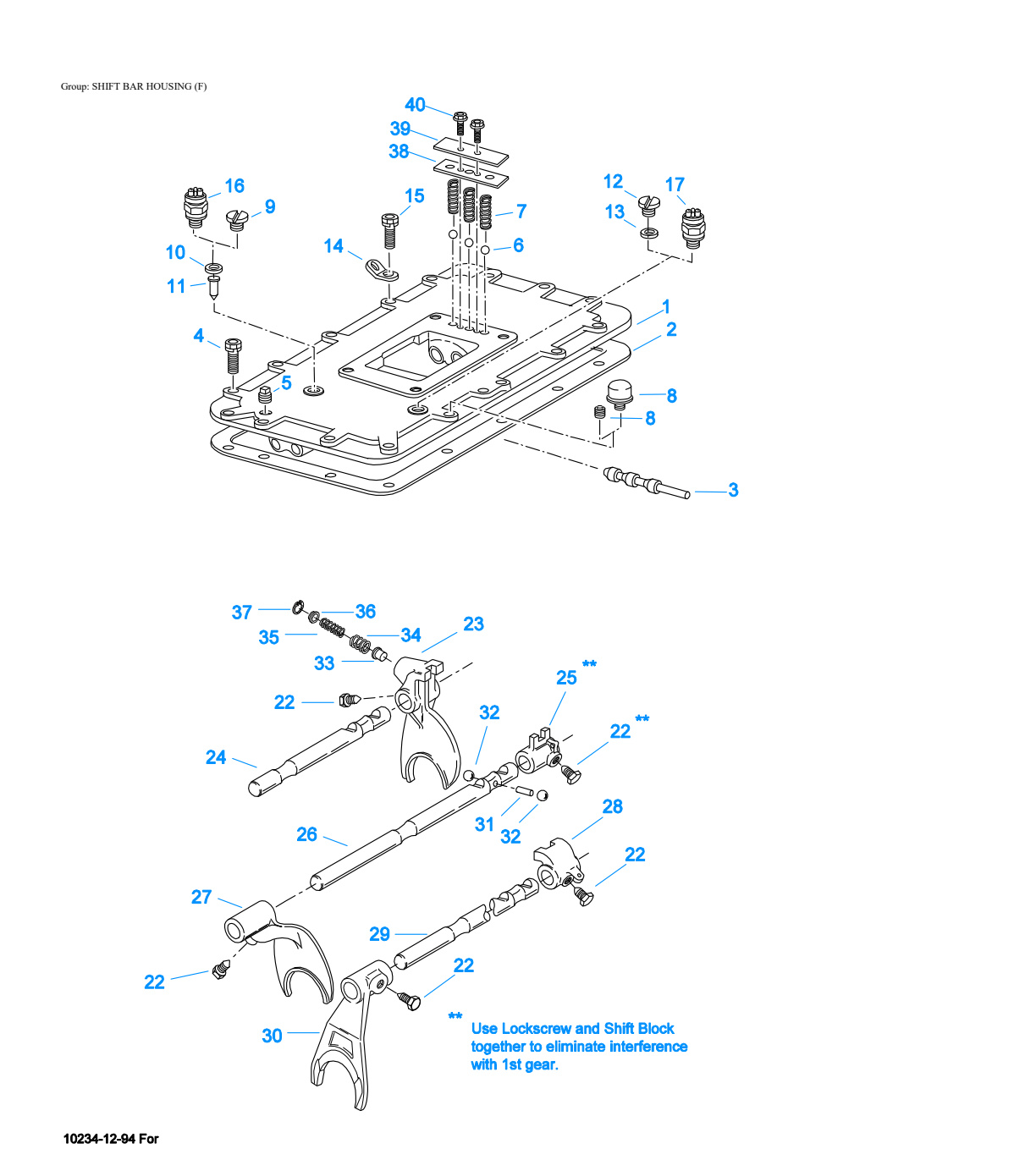

Shift Bar Housing (F)
Item 11Item 7Item 17Item 1Item 14Item 5Item 27Item 16Item 37Item 15Item 29Item 28Item 25Item 8Item 9Item 8Item 4Item 30Item 22Item 13Item 31Item 6Item 3Item 24Item 22Item 35Item 22Item 10Item 32Item 23Item 34Item 3Item 12Item 22Item 33Item 36Item 22Item 32Item 40Item 26Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1613 | No Longer Available | 1 | Replaces 19770, 22958. HOUSING ONLY | Call for availability | |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 4 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X- 8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 5 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 6 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 7 | 15918 | Spring | 3 | $1.97 | Add to Cart | |
| 8 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 8 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 13 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 14 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 15 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $1.72 | Add to Cart |
| 16 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 17 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 22 | 22943 | Lockscrew | 1 | USE W/19703 SHIFT BLOCK | $15.26 | Add to Cart |
| 22 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 23 | 19705 | Shift Yoke | 1 | LO/REVERSE | $470.58 | Add to Cart |
| 24 | 19708 | Yoke Bar | 1 | LO/REVERSE - W/TORQUE LIMITER | Call for availability | |
| 24 | 19710 | Yoke Bar | 1 | LO/REVERSE | Call for availability | |
| 25 | 19703 | Shift Block | 1 | 1ST/2ND | $128.62 | Add to Cart |
| 26 | 19707 | Yoke Bar | 1 | 1ST/2ND | $39.12 | Add to Cart |
| 27 | 16135 | Shift Yoke | 1 | 1ST/2ND | $74.79 | Add to Cart |
| 28 | 19704 | Shift Block | 1 | 3RD/OD | $126.14 | Add to Cart |
| 29 | 19706 | Yoke Bar | 1 | 3RD/OD | $124.08 | Add to Cart |
| 30 | 4300536 | Shift Yoke | 1 | Replaces 19878. 3RD/OD | $126.57 | Add to Cart |
| 31 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 32 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 33 | 19790 | Plunger | 1 | $29.54 | Add to Cart | |
| 34 | 19791 | Spring | 1 | $3.52 | Add to Cart | |
| 35 | 19838 | Spring | 1 | $3.46 | Add to Cart | |
| 36 | 19792 | Retainer | 1 | $7.44 | Add to Cart | |
| 37 | 19793 | Snap Ring | 1 | $1.89 | Add to Cart | |
| 38 | 15133 | Gasket | 1 | $1.58 | Add to Cart | |
| 39 | 15132 | Spring Cover | 1 | $5.57 | Add to Cart | |
| 40 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
Slave Valve -
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2424 | Valve Replacement Kit | 1 | Replaces 19470. | $133.29 | Add to Cart |
Slave Valve - A-
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-4688 | Slave Valve Assy | 1 | Replaces 15125, 19464, A-3991. | No longer available - Call for replacement | |
| 2 | K-1699 | Repair Kit-slave Valve | 1 | FOR A-4688 VALVE | $17.70 | Add to Cart |
| 3 | 19463 | Piston | 1 | Replaces 15126. | $60.69 | Add to Cart |
| 4 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 5 | K-1613 | Cap Replacement Kit | 1 | Replaces 16429, 18707. FOR A-4688 VALVE | $65.98 | Add to Cart |
| 6 | X-8S-401 | Capscrew | 2 | 1/4"-20X1-1/8" | $2.75 | Add to Cart |
| 1 | A-5000 | Slave Valve Assy | 1 | Replaces 20850. | $133.29 | Add to Cart |
| 2 | K-1935 | Repair Kit-slave Valve | 1 | FOR A-5000 VALVE | $38.38 | Add to Cart |
| 3 | 20855 | Plug | 1 | $34.68 | Add to Cart | |
| 4 | 20854 | Piston | 1 | $97.04 | Add to Cart | |
| 5 | 20849 | Cap | 1 | Replaces 15131. | $37.47 | Add to Cart |
| 7 | S-1516 | Cap Assy | 1 | Replaces 20851, 20853. | No longer available - Call for replacement | |
| 8 | X-8C-413 | Capscrew | 3 | 1/4"-20X1-1/2" | $4.86 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller RTOF-11607L, with every part in the manual matched to our live inventory. We stock 455 of the 499 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Aux. Countershaft Pump Auxiliary Drive Gear Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Filter Regulator H & C W/19470 Valve H & C W/A-4688 Valve H & C W/A-5000 Valve Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Range Cylinder Range Valve Reverse Idler Roadranger Valve Shift Bar Housing (F) Slave Valve - Slave Valve - A-
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the RTOF-11607L transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | RTOF-11607L |
| Transmission type | 7-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 41 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for RTOF-11607L
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
